TELEMECANIQUE TBX DSS 1622

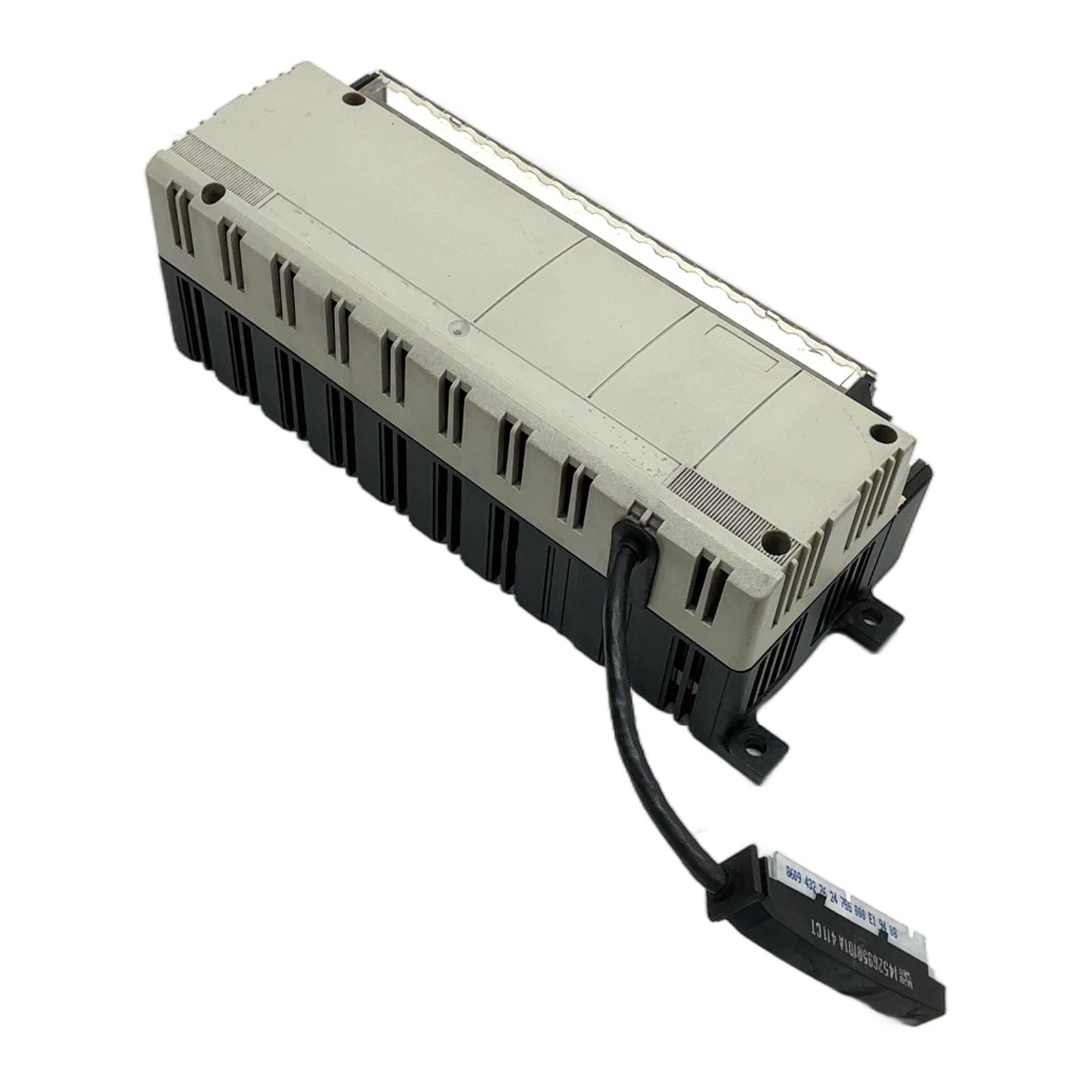

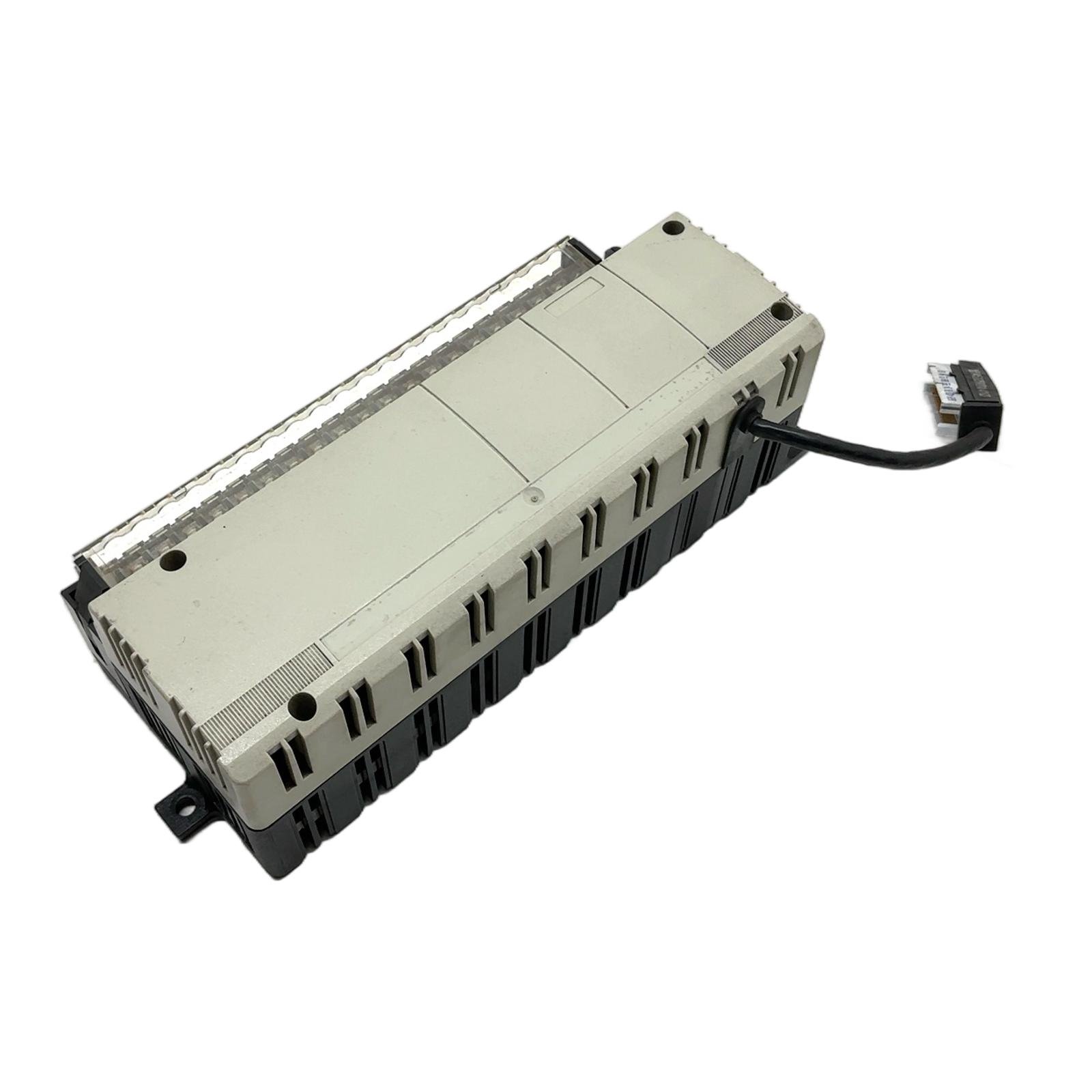

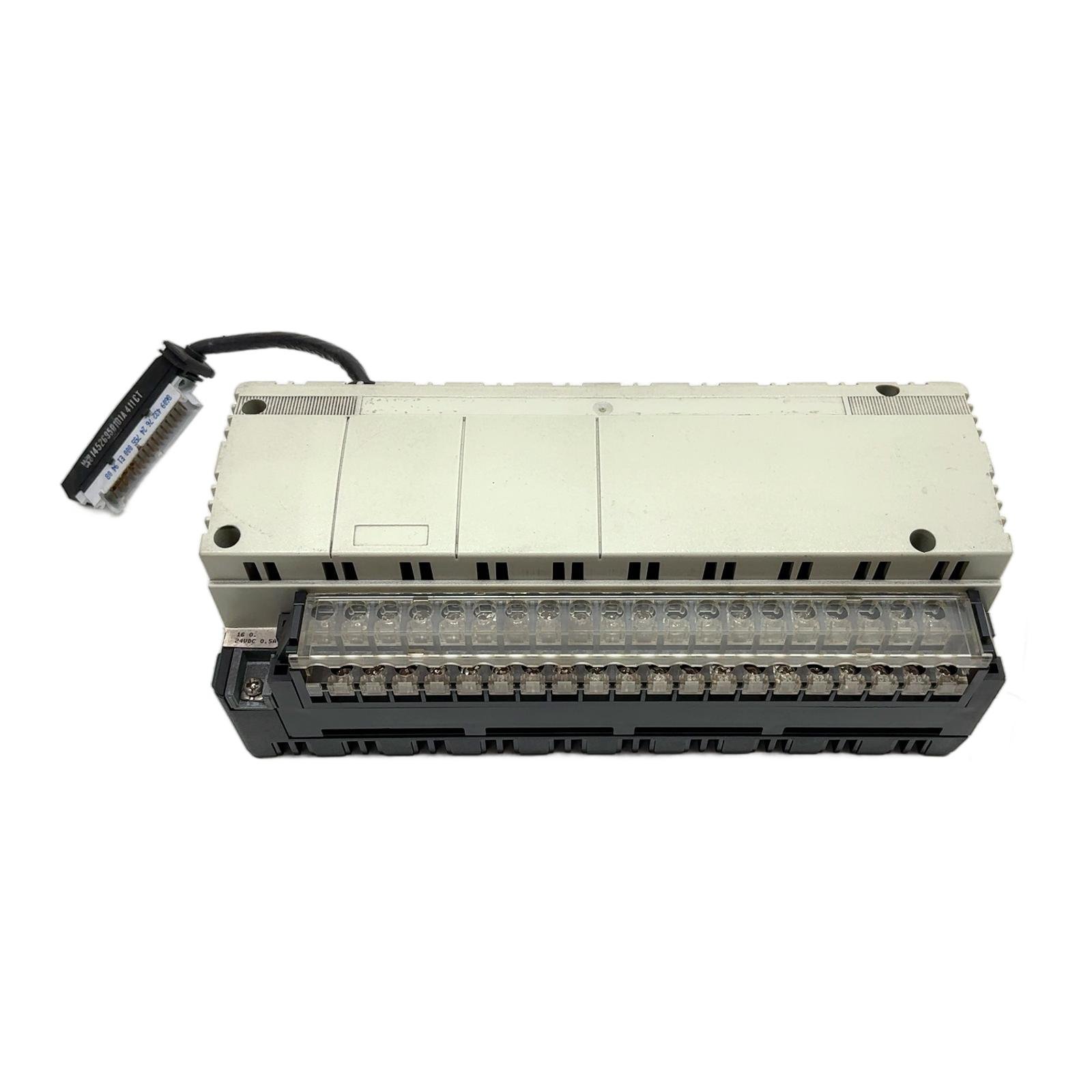

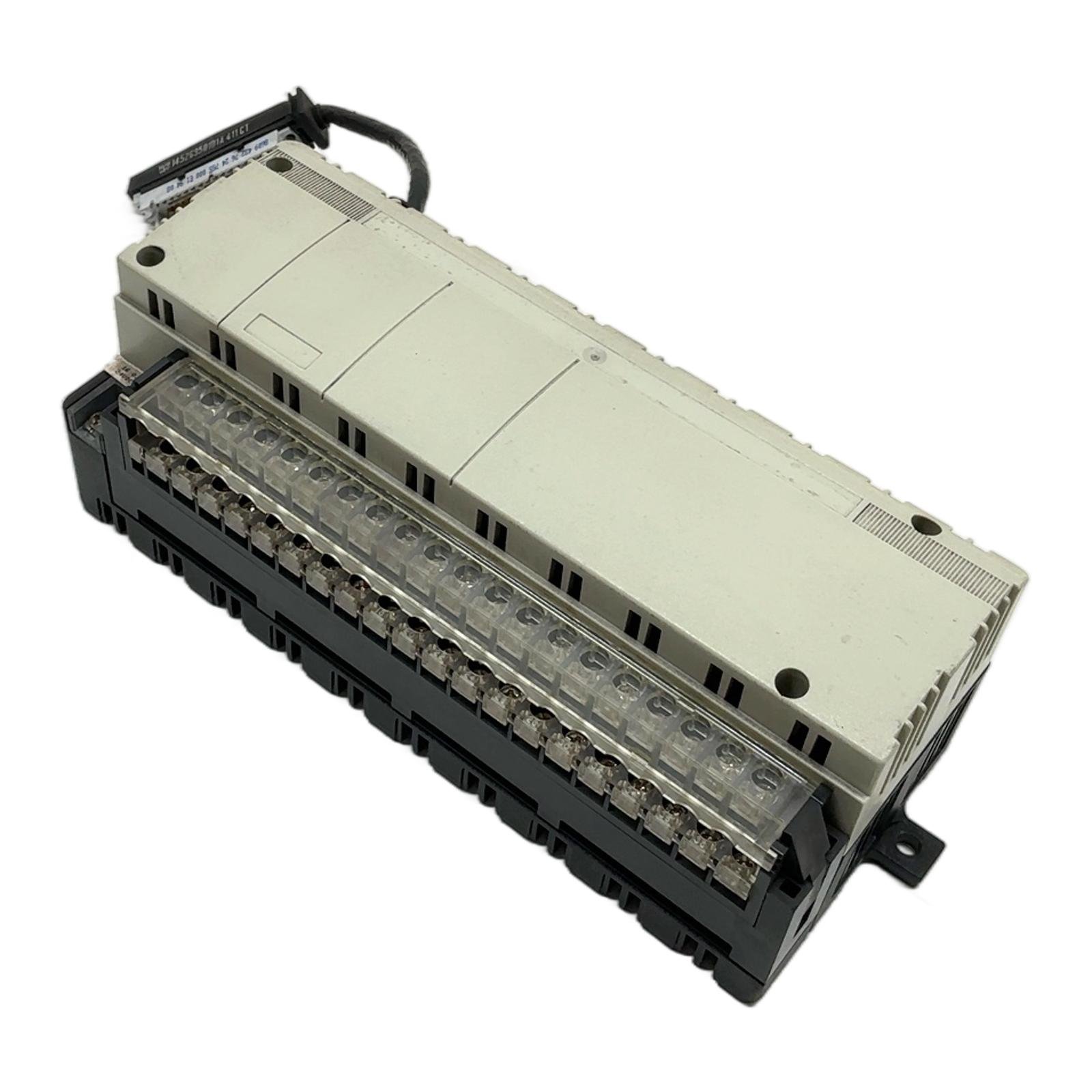

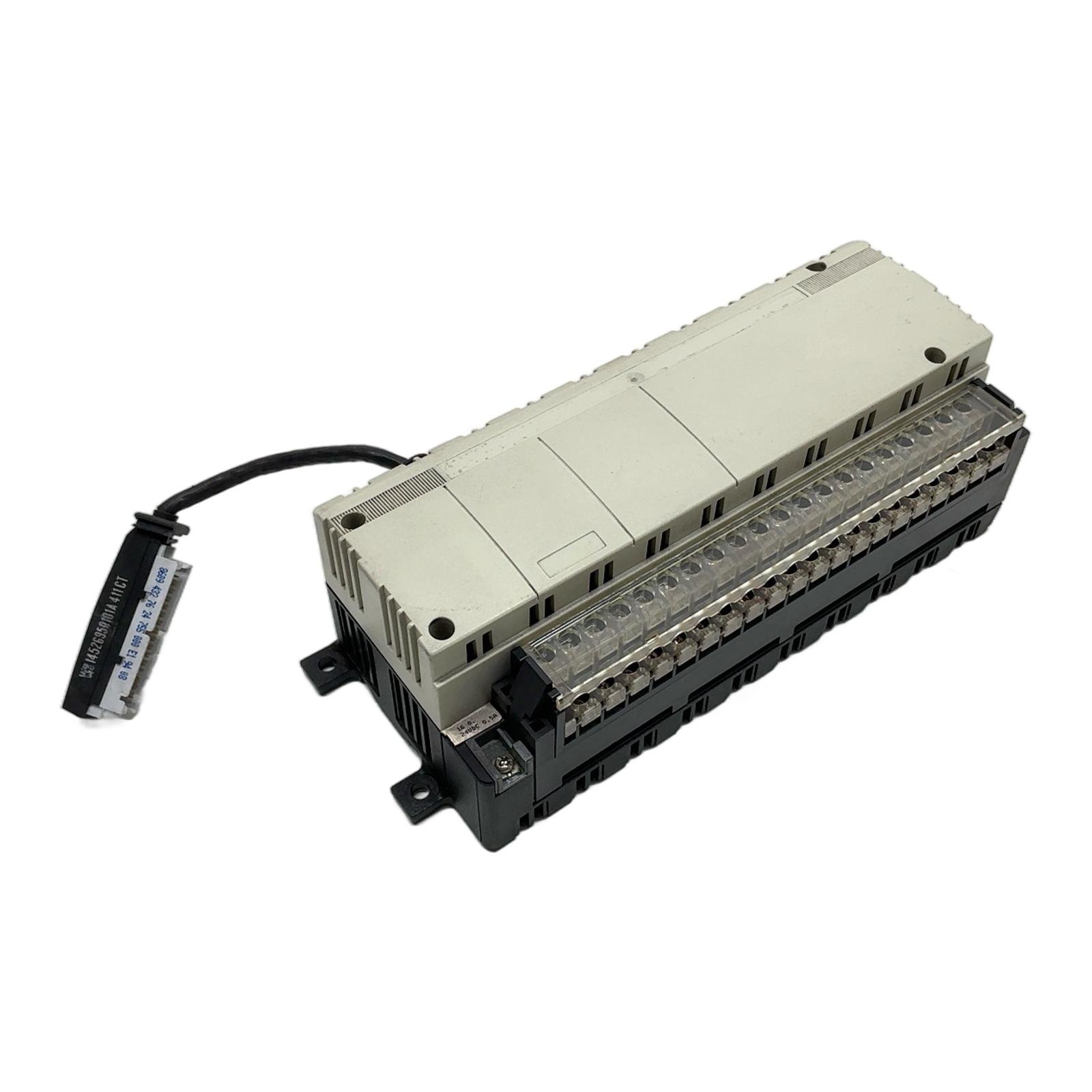

Telemecanique TBX DSS 1622 – 16 Point Discrete Output Module Description The Telemecanique TBX DSS 1622 is a discrete output module designed for the TBX distributed I/O platform. It features 16 solid-state sourcing outputs, providing reliable switching for 24VDC logic applications. This module is an essential spare part for maintaining legacy automation systems that rely on the robust and proven Telemecanique TBX series. Specifications Manufacturer: Telemecanique Model: TBX DSS 1622 Product Family: TBX Number of Outputs: 16 Output Type: Discrete, Solid-State (Transistor), Sourcing Voltage: 24VDC Current per Point: 0.5A Connection: Screw Terminals Label Info REF. DE GARANTIE: 06-94 II:03 C 100 34551677 Application This module is typically used in manufacturing, material handling, and process control applications to drive actuators such as contactor coils, pilot lights, and solenoid valves from a programmable logic controller. Country of Origin Made in France. CO2 Impact Opting for this pre-owned module over a new equivalent prevents the emission of approximately 20.0 kg of CO2, contributing to a more sustainable industrial environment. Availability This is an obsolete item. Availability is limited to existing stock. Order now from profideals for expert support and fast delivery. FAQ Question?Is this module a sinking or sourcing output type? Answer:The Telemecanique TBX DSS 1622 is a sourcing (positive logic) output module, meaning it provides a +24VDC signal to the load when activated. Question?What is the maximum current per output and per module? Answer:The maximum current is 0.5A per output. The total current for the module should not exceed the limits specified in the TBX system manual, but typically you should not exceed 8A for the entire module (16 outputs x 0.5A). Question?Can I use this module with a modern Schneider Electric PLC like a Modicon M340 or M580? Answer:No, this module is specifically designed for the obsolete Telemecanique TBX series distributed I/O system. It is not compatible with modern Modicon PLC platforms without a specific gateway, which is also obsolete. It’s intended for maintenance of existing TBX systems. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
