TELEMECANIQUE LX4-D12

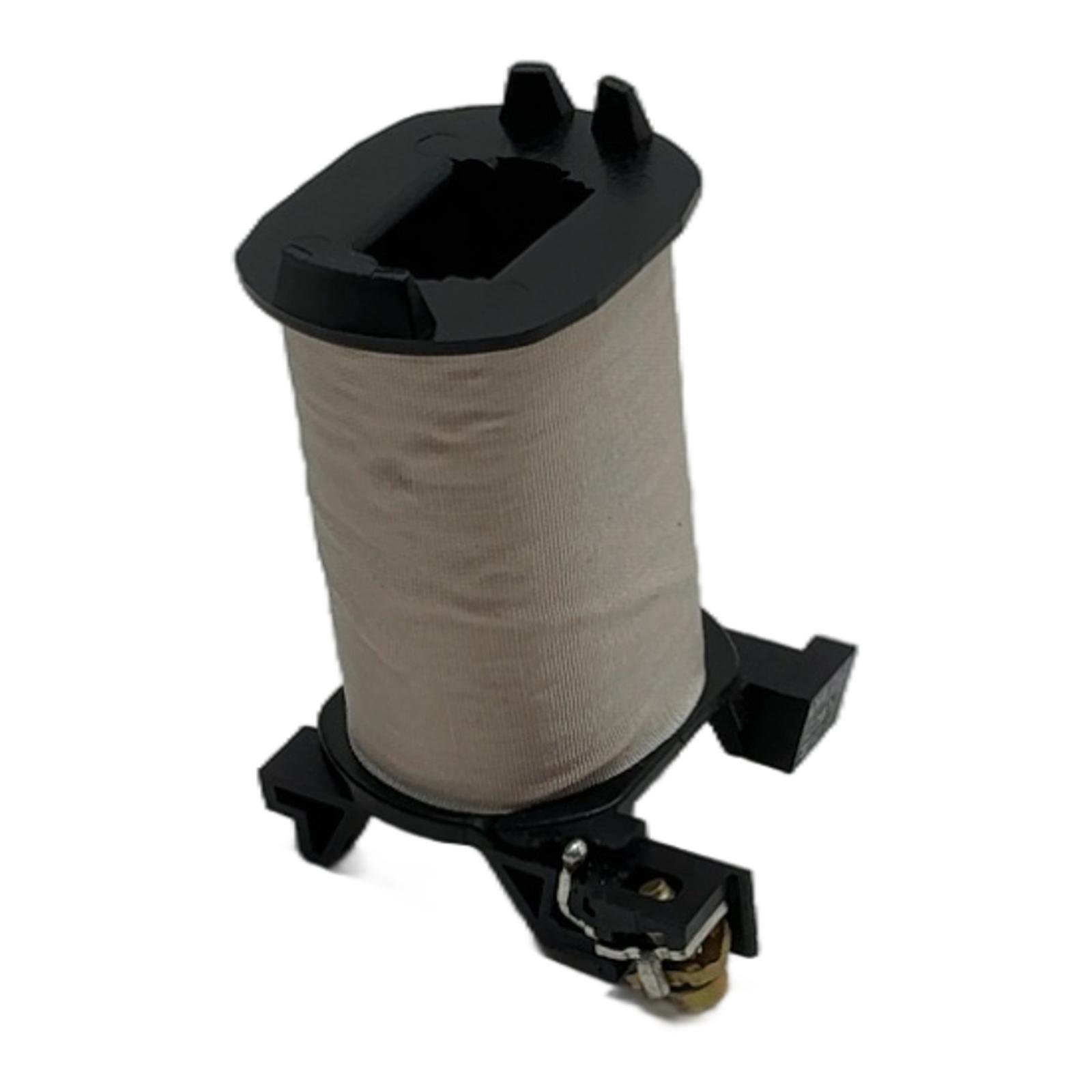

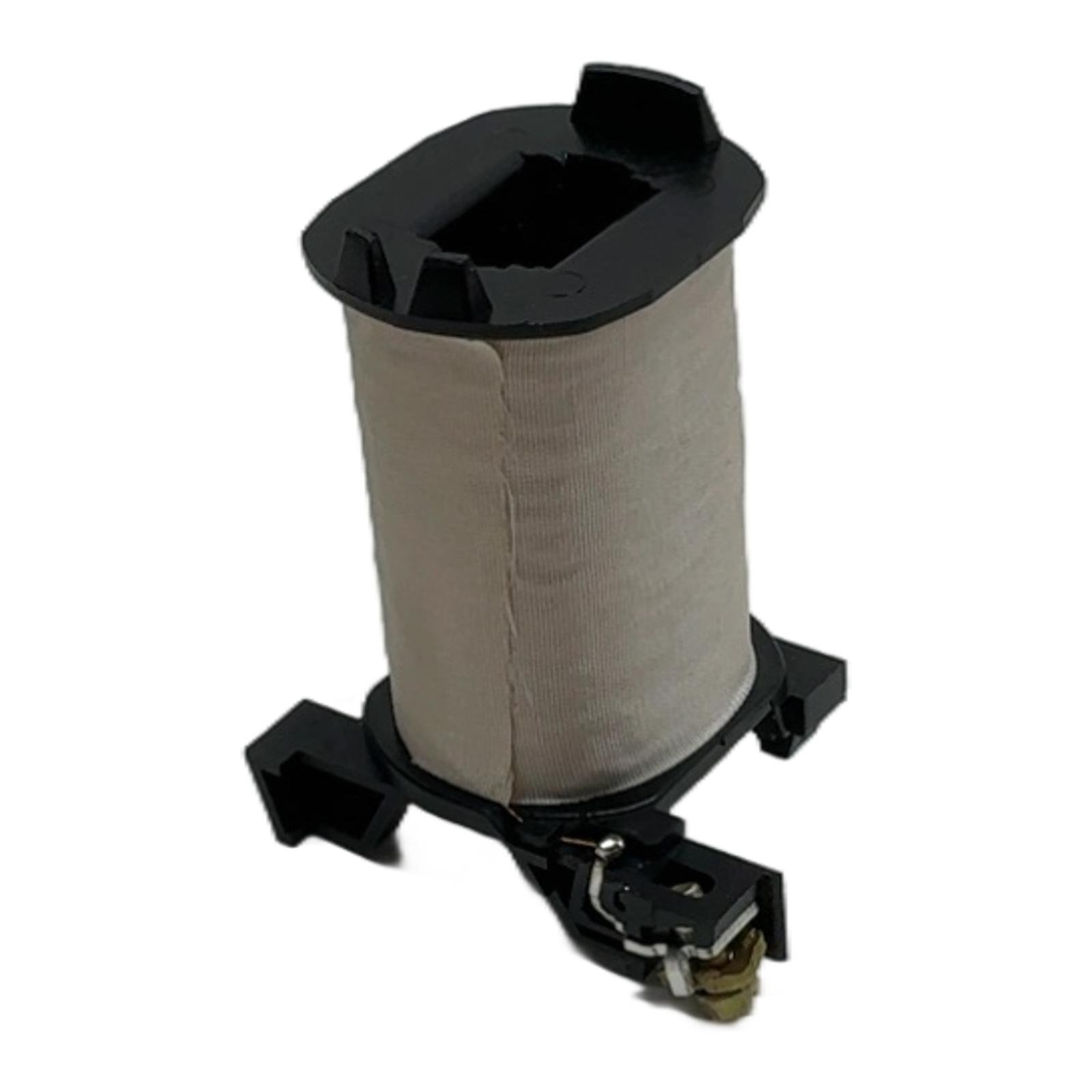

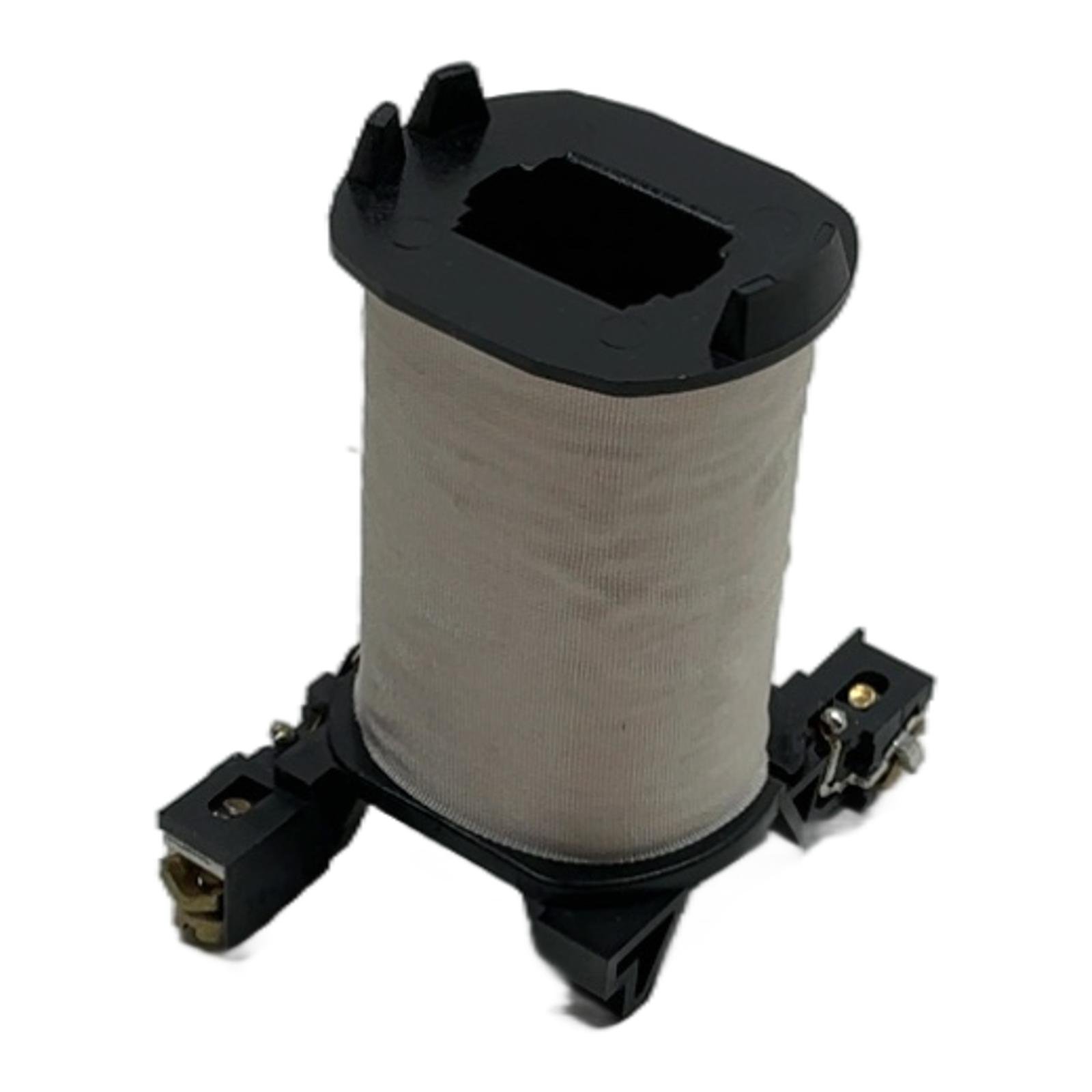

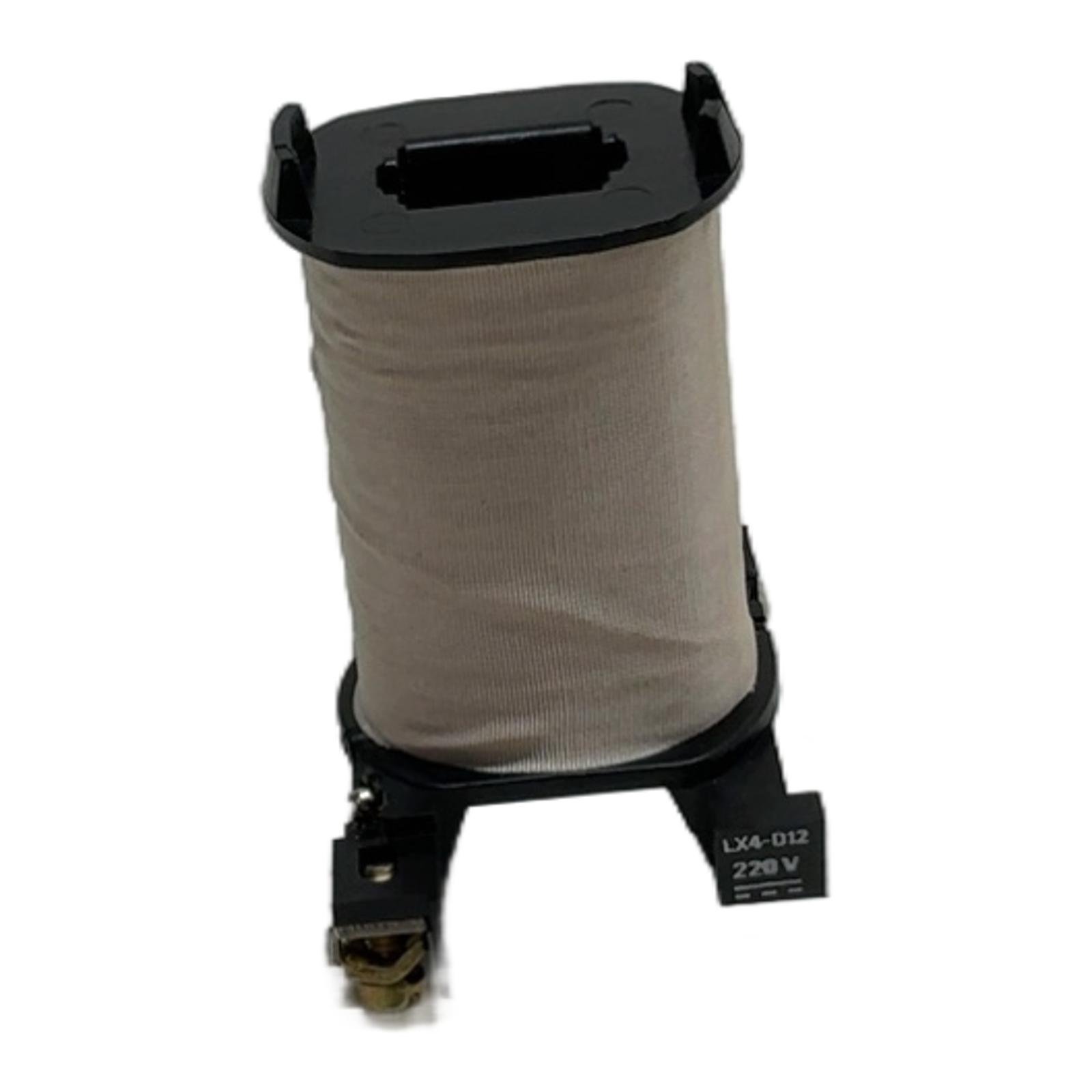

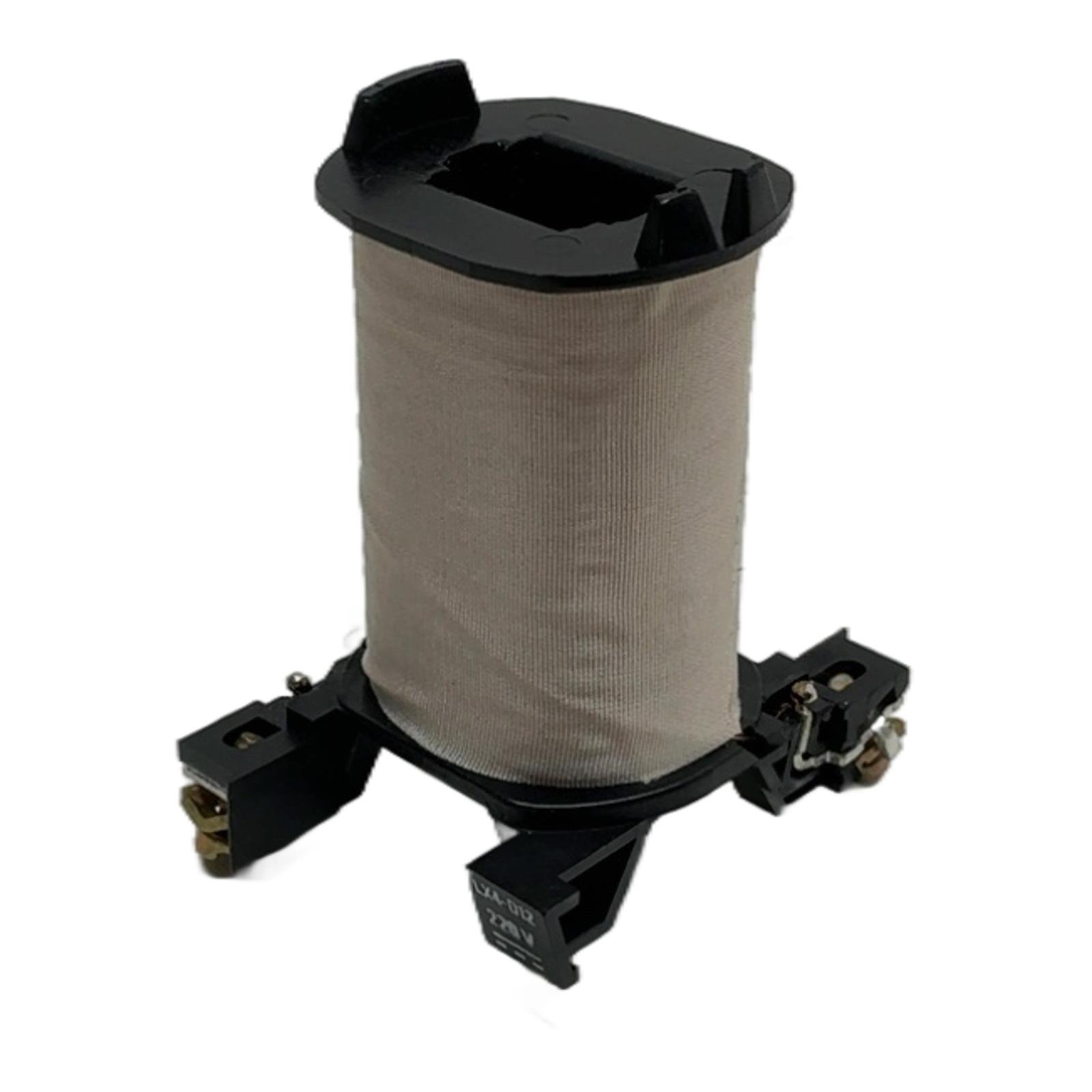

Telemecanique LX4-D12 Contactor Coil Description This is an original Telemecanique LX4-D12 contactor coil for the TeSys D series. It is designed to operate on a 220V AC control circuit. As a new-old-stock component, it’s an ideal spare part for maintaining or repairing existing industrial control panels, ensuring compatibility and original equipment performance. Specifications Manufacturer: Telemecanique (Schneider Electric) Model: LX4-D12 Product Type: Contactor Coil Control Circuit Voltage: 220V AC Frequency: 50/60 Hz Compatibility: For TeSys D contactors LC1D09 to LC1D38 Label Info LX4-D12 220 V Application This coil is used as a replacement part in motor starters, control systems, and other applications utilizing Telemecanique TeSys D contactors. It is responsible for actuating the contactor’s main power contacts when the control voltage is applied. Country of Origin Made in France. CO2 Impact By purchasing this reused component, you avoid the emission of approximately 2.2 kg of CO2, which is involved in the production of a new part. This saving is equivalent to the CO2 absorption of a small tree over a year. Availability This is an obsolete item but available from our stock. Order now from profideals for expert support and fast delivery. FAQ Which contactors is the LX4-D12 coil compatible with?The LX4-D12 is designed for use with Telemecanique and Schneider Electric TeSys D contactors, specifically models LC1-D09, LC1-D12, LC1-D18, LC1-D25, LC1-D32, and LC1-D38. What is the inrush and sealed power consumption of this coil?For a 220V 50Hz AC coil like the LX4-D12, the typical inrush power is around 70 VA, and the sealed (holding) power consumption is approximately 7.5 VA. Can I use this 220V 50Hz coil on a 60Hz supply?While many TeSys coils are rated for 50/60Hz, this specific older model is marked for 220V, which typically implies 50Hz. Using it on 60Hz might alter its performance characteristics. The modern equivalent, LXD1M7, is rated for 220/230V at 50/60Hz. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: March 13, 2026
