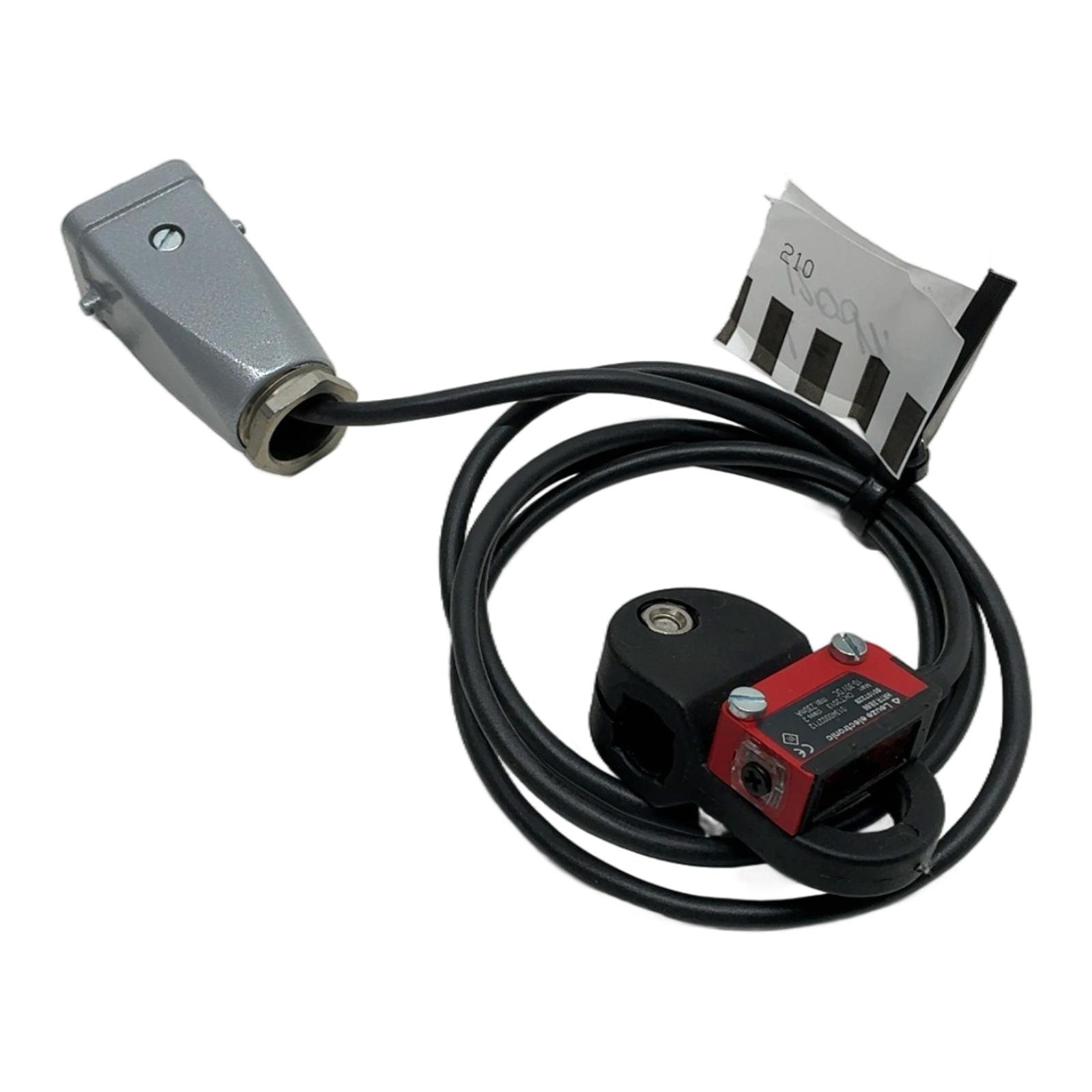

LEUZE HRTR 3B.66 50107228

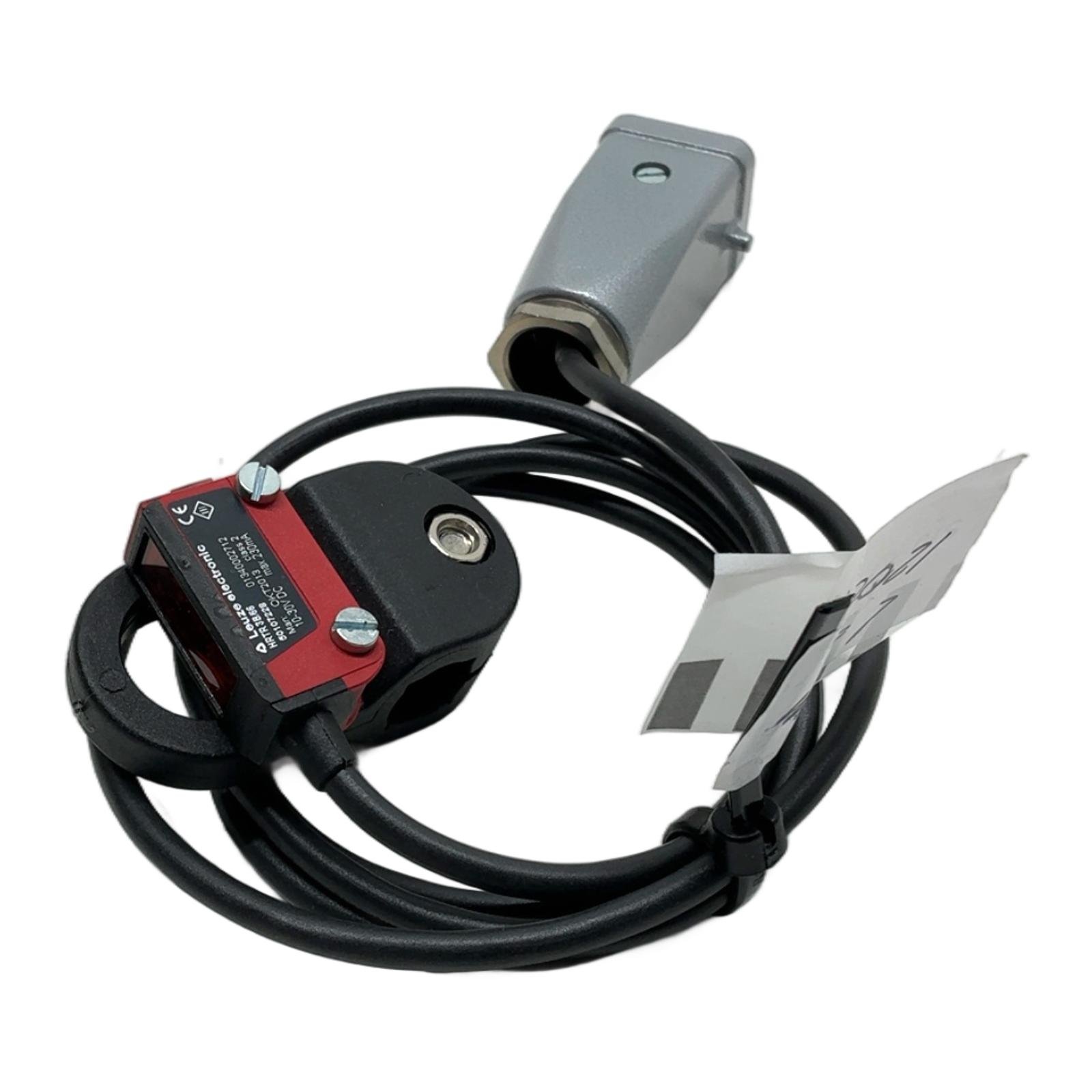

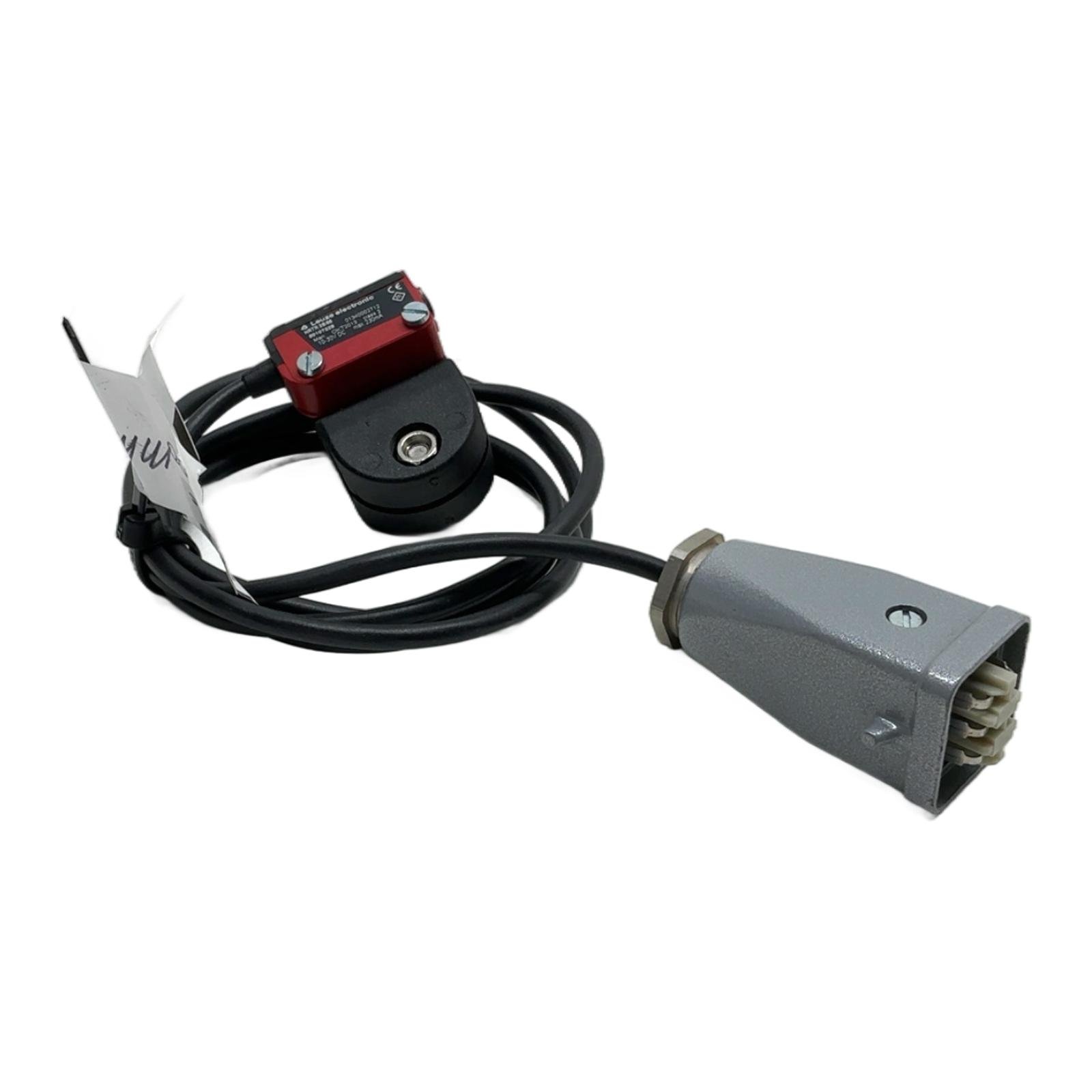

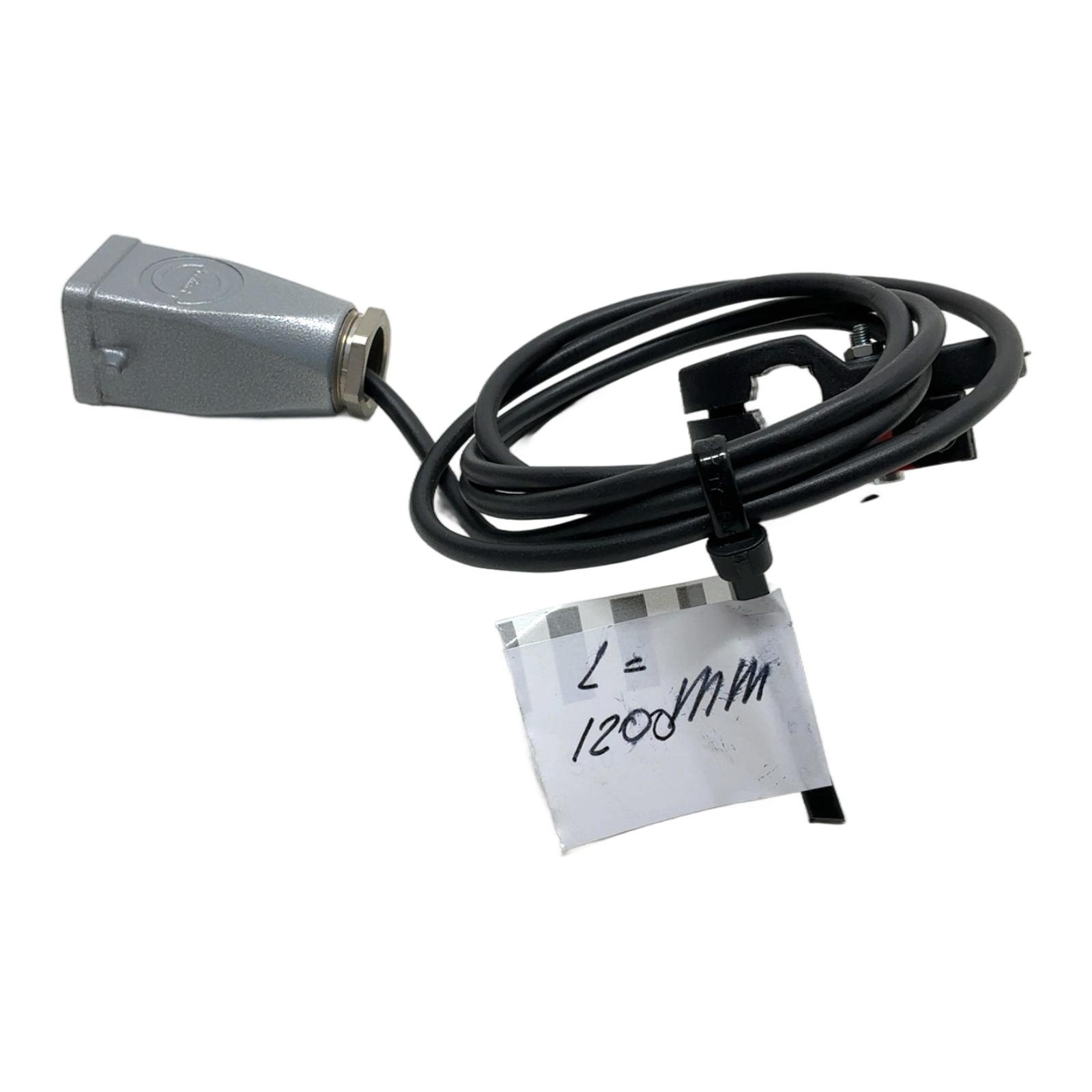

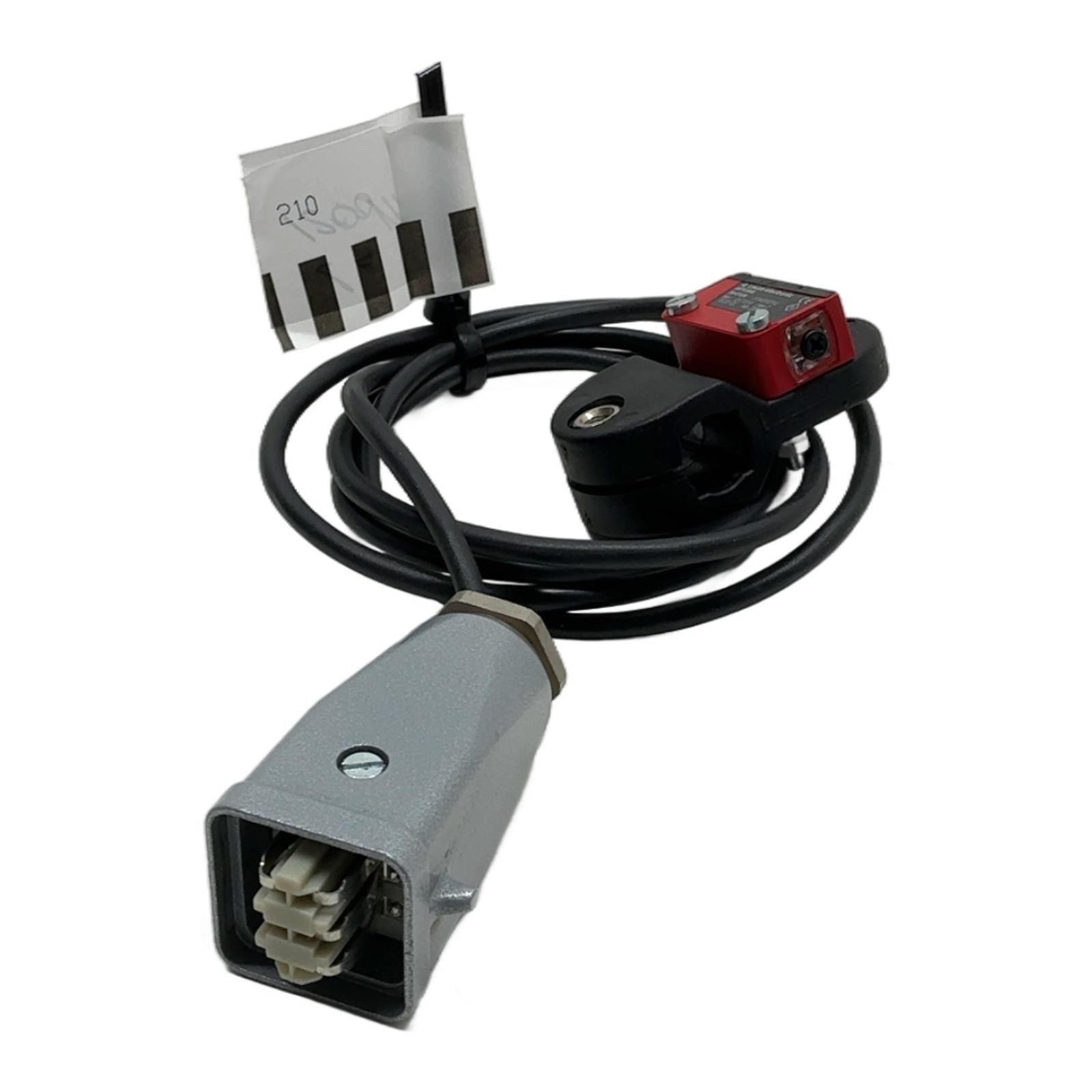

Leuze HRTR 3B.66 Diffuse Sensor – Reliable Detection for AutomationDescriptionThe Leuze HRTR 3B.66 is a high-performance diffuse reflection sensor designed for precise object detection in industrial environments. Featuring background suppression, it reliably detects objects regardless of color or surface variations, while ignoring objects in the background. This unit comes with a 10-30V DC operating voltage and a cabled connection terminating in a robust industrial connector, making it suitable for demanding applications. Manufactured in 2013, this sensor is a dependable component for machine automation and material handling systems.SpecificationsManufacturer: LeuzeType: HRTR 3B.66Part Number: 50107228Function: Diffuse sensor with background suppressionOperating Voltage: 10-30V DCMax Current: 230mAConnection: Pre-cabled with heavy-duty rectangular connectorCable Length: approx. 1200 mmLabel InfoBrand: Leuze electronicModel: HRTR 3B.66Part No: 50107228Date of Manufacture: October 2013ApplicationIdeal for applications such as object presence detection on conveyor belts, part positioning in assembly lines, and level monitoring in hoppers. Its reliable background suppression makes it effective in complex environments with reflective surfaces or varying background conditions.Country of OriginMade in Germany.CO2 ImpactBy reusing this sensor, you are helping to avoid approximately 12 kg of CO2 emissions. This saving is equivalent to the emissions from driving a standard car for 60 kilometers.AvailabilityThis item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery.FAQQuestion?What is the typical sensing range for the HRTR 3B.66 sensor?Answer:The sensing range for this series is adjustable via a potentiometer on the housing. It is designed for short-range detection, typically up to 150mm on a standard white target (90% remission), depending on the target object’s color, size, and reflectivity.Question?Is the attached grey connector a standard sensor connector?Answer:No, the large grey rectangular connector is a heavy-duty industrial type, not a standard M8 or M12 sensor connector. This suggests the sensor was part of a specific machine’s wiring harness, offering a more robust connection than standard types.Question?How can I adjust the sensitivity of this sensor?Answer:The sensitivity and detection range can be adjusted using the small screw-head potentiometer located on the top surface of the red sensor housing. This allows for fine-tuning the sensor’s performance to match the specific application requirements.profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.Last Update: Friday, March 13, 2026
