DR-BREIT 403006.001 501050.001

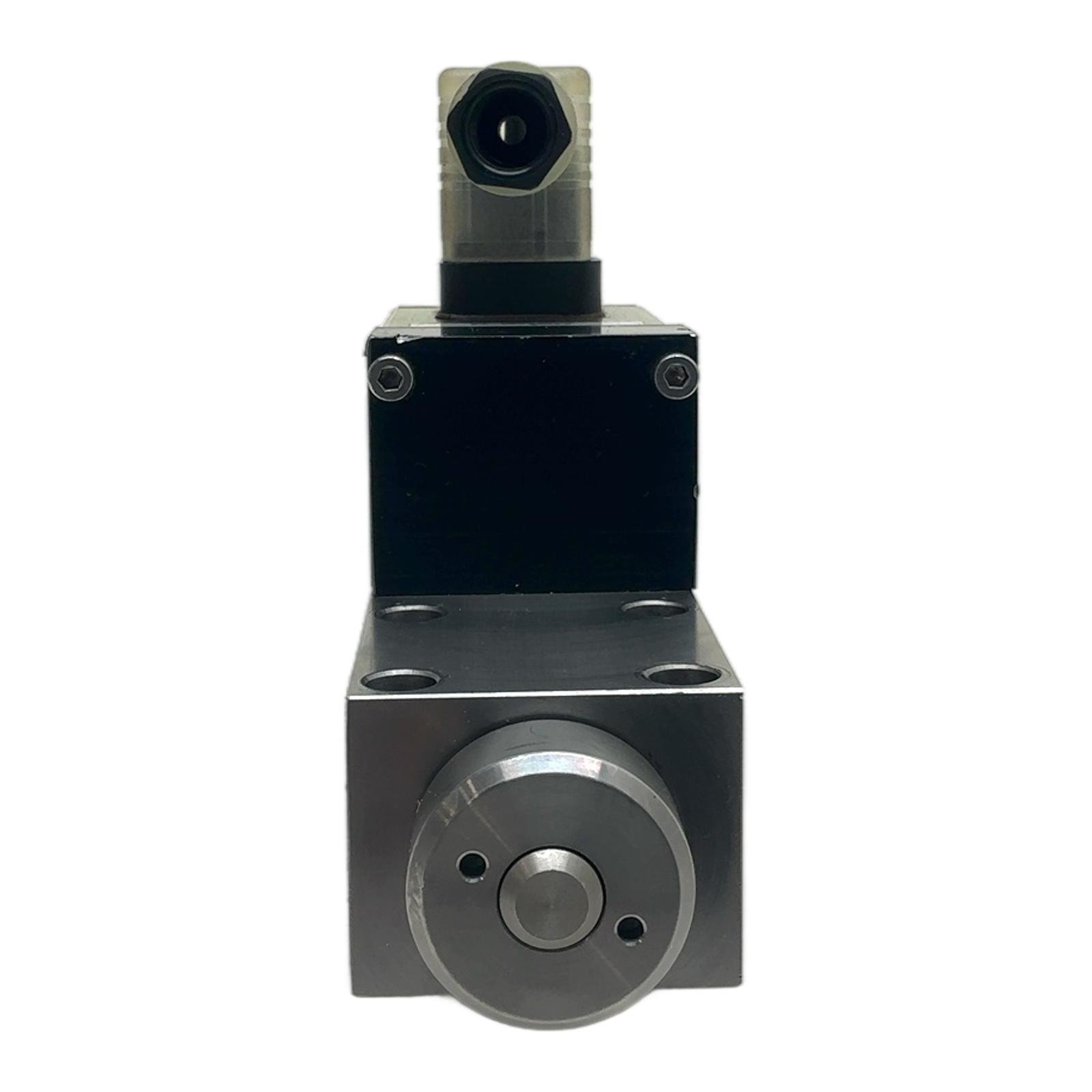

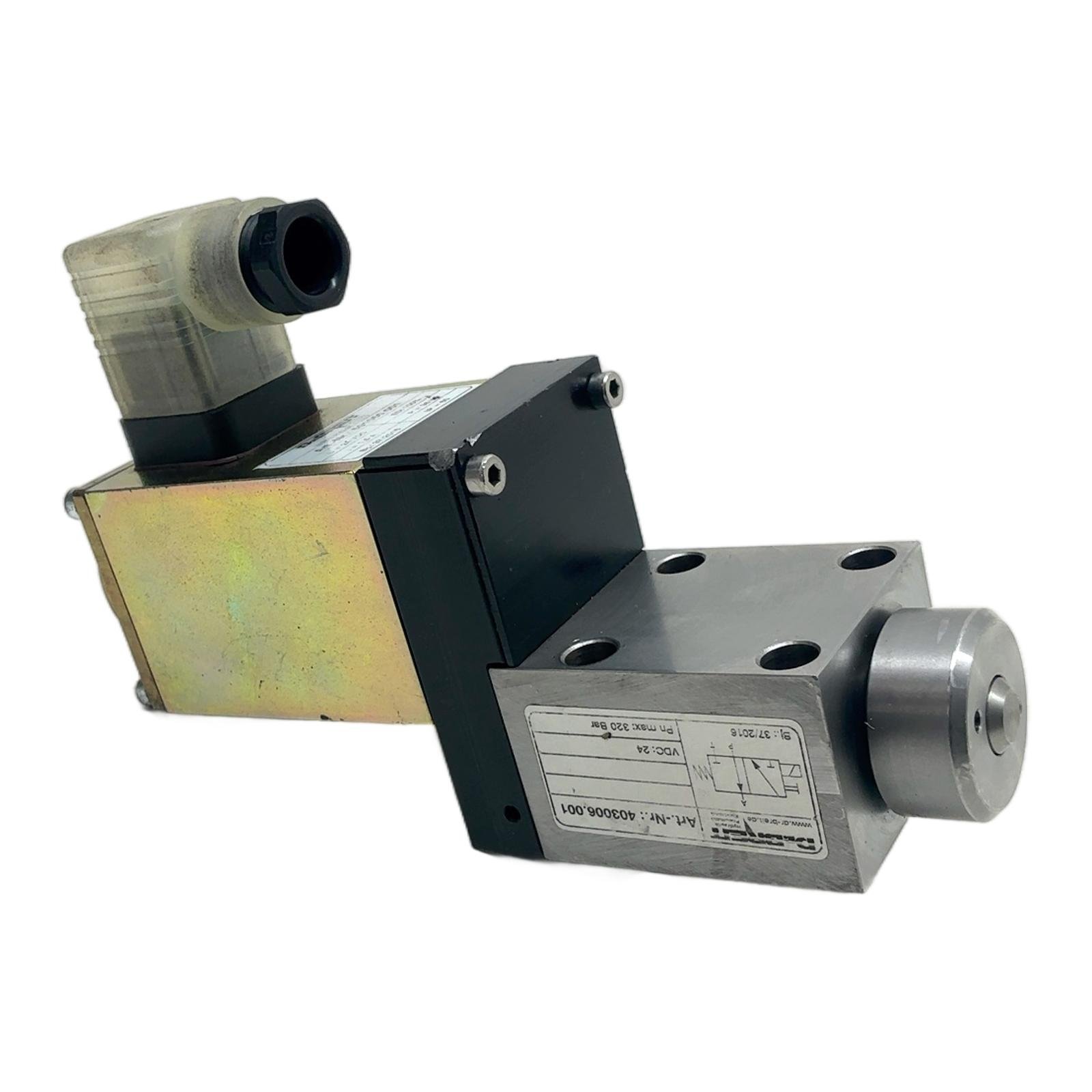

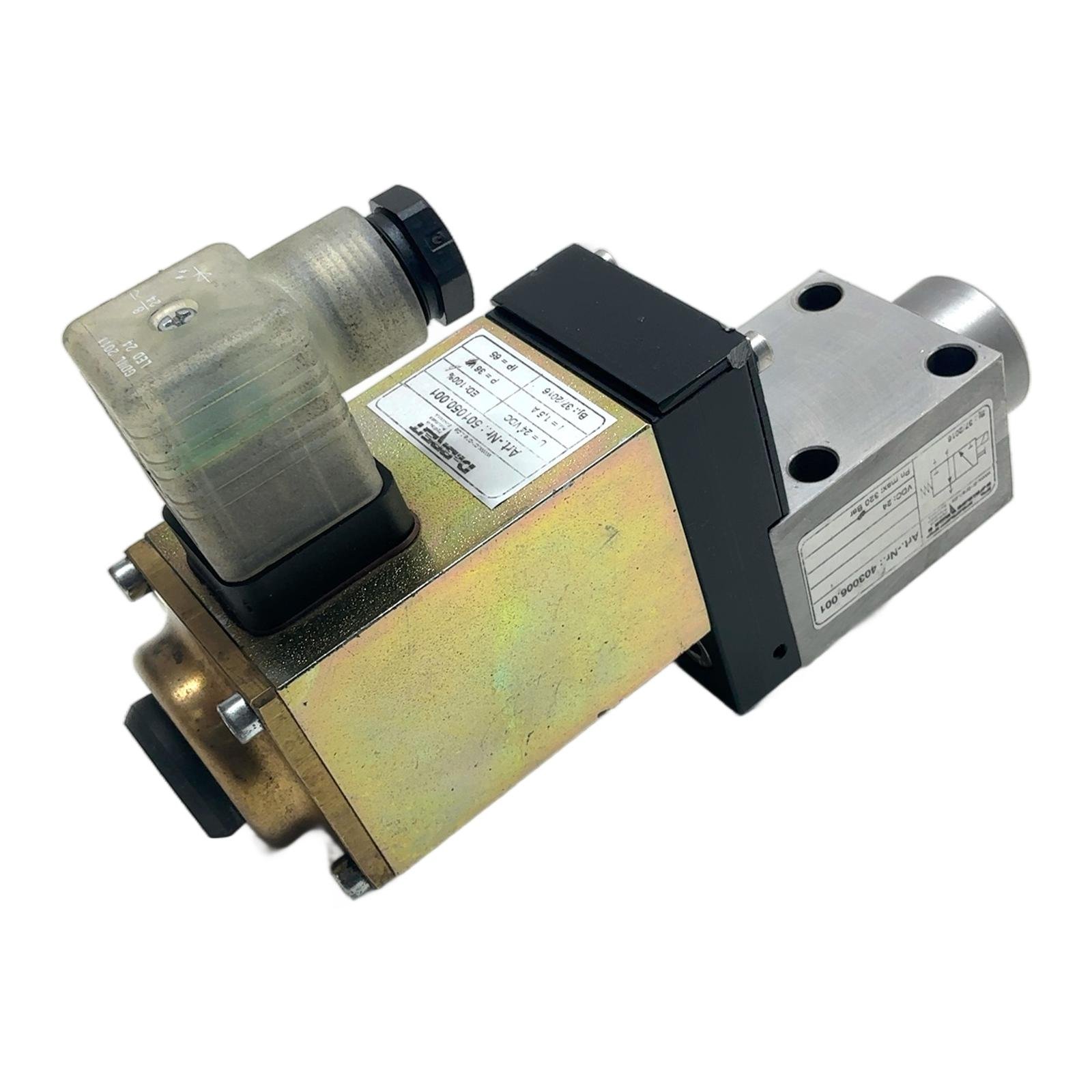

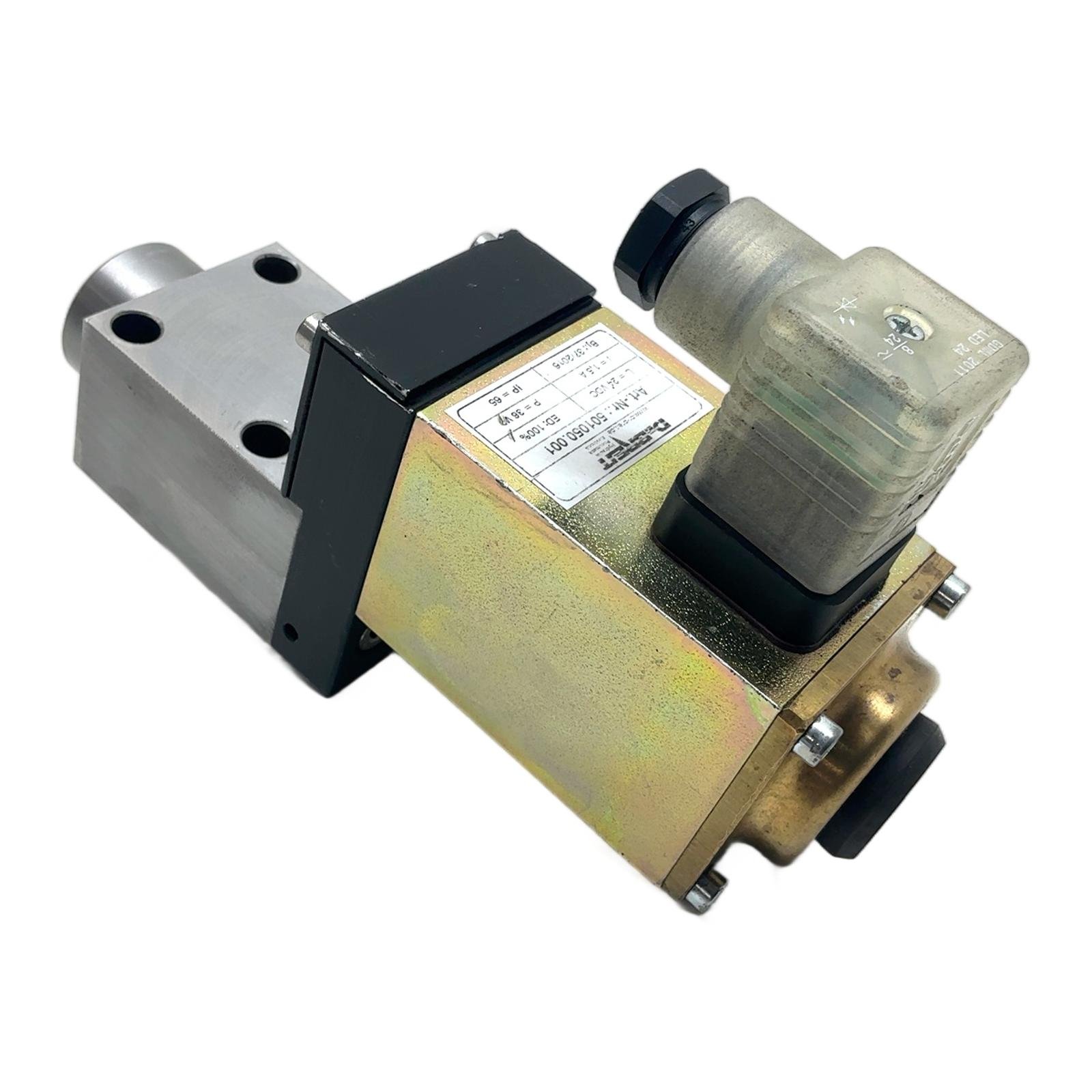

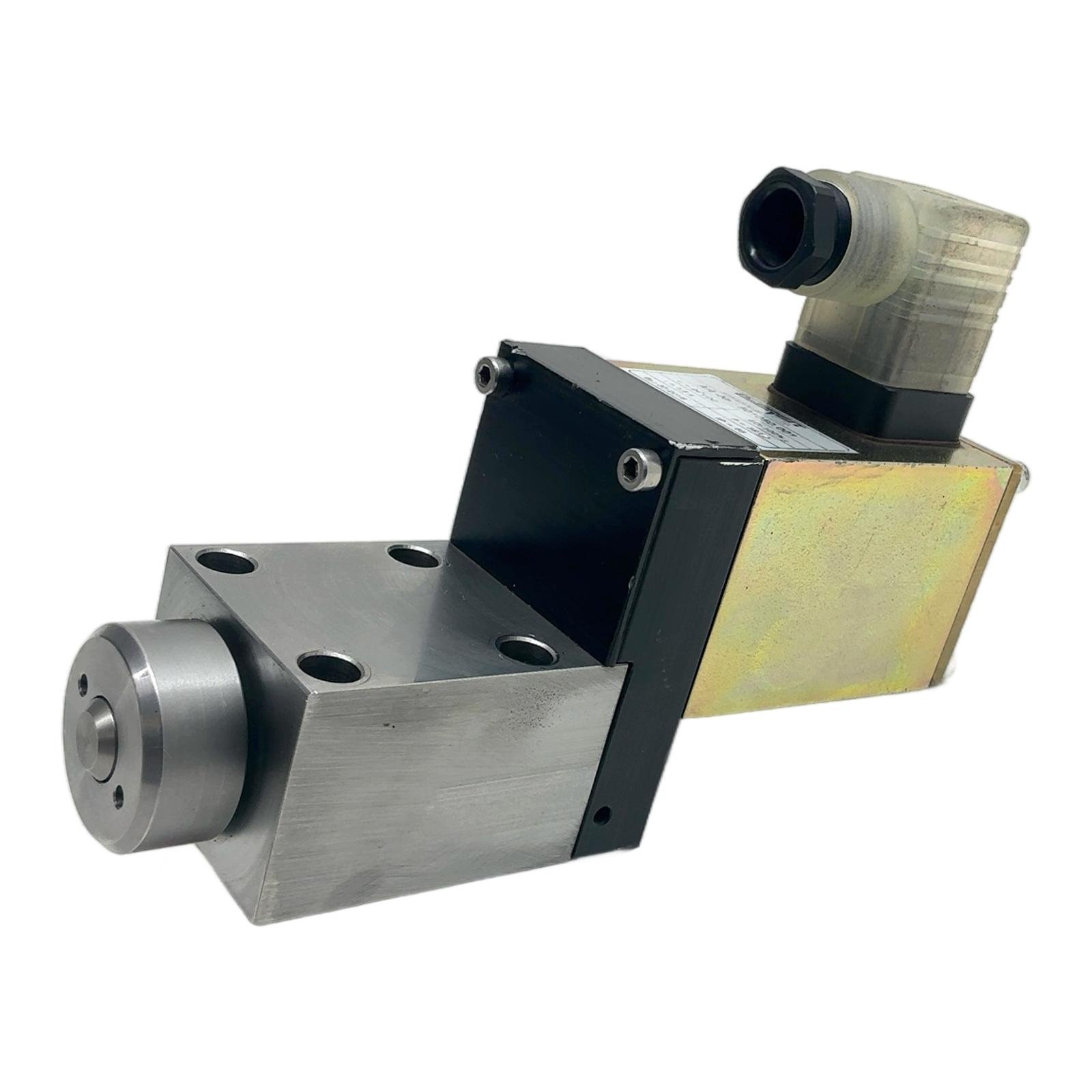

D. Breit 2/2-Way Hydraulic Solenoid Valve 403006.001 Description This is a high-quality hydraulic solenoid valve assembly from D. Breit, designed for demanding industrial applications. The valve, part number 403006.001, is a 2/2-way seat valve capable of handling pressures up to 320 Bar. It is actuated by a 24 VDC solenoid coil (part number 501050.001) rated for 100% duty cycle, ensuring reliable and continuous operation. Its robust construction and standard interface make it an ideal component for controlling hydraulic flow in various machinery. Specifications Manufacturer: D. Breit Valve Type: 2/2-Way Solenoid Seat Valve Operating Voltage: 24 VDC Maximum Nominal Pressure (Pn max): 320 Bar Solenoid Power: 36 W Solenoid Current: 1.5 A Duty Cycle (ED): 100% Ingress Protection: IP65 Mounting Interface: Likely NG6 / CETOP 3 Label Info Valve Block (403006.001): Pn max: 320 Bar, VDC: 24, Bj.: 37/2016 Solenoid Coil (501050.001): U = 24 VDC, I = 1.5 A, P = 36 W, ED: 100%, IP = 65, Bj.: 37/2016 Application This valve is suitable for a wide range of industrial hydraulic systems, including machine tools, presses, mobile hydraulics, and general manufacturing equipment where precise and reliable flow control is required. Country of Origin Made in Germany. CO2 Impact By purchasing this pre-owned valve, you help avoid the emission of approximately 25 kg of CO2. This is comparable to the savings from driving a car for 125 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the mounting interface for this D. Breit 403006.001 valve?Based on the port configuration visible on the base, this valve highly likely uses a standard NG6 (also known as CETOP 3 or ISO 4401-03) mounting interface, which is common for this type of industrial hydraulic valve. Can the 24VDC solenoid coil (501050.001) be replaced separately?Yes, the solenoid coil is a separate component and can typically be unscrewed and replaced without removing the entire valve from the system, which simplifies maintenance. What type of hydraulic fluid is recommended for this valve?While specific fluid recommendations require a datasheet, valves of this type are generally designed to work with standard mineral oil-based hydraulic fluids (like HLP, HVLP) according to DIN 51524. Always ensure fluid cleanliness meets system requirements. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
