LEUZE HRTR 25/66-300 50039546

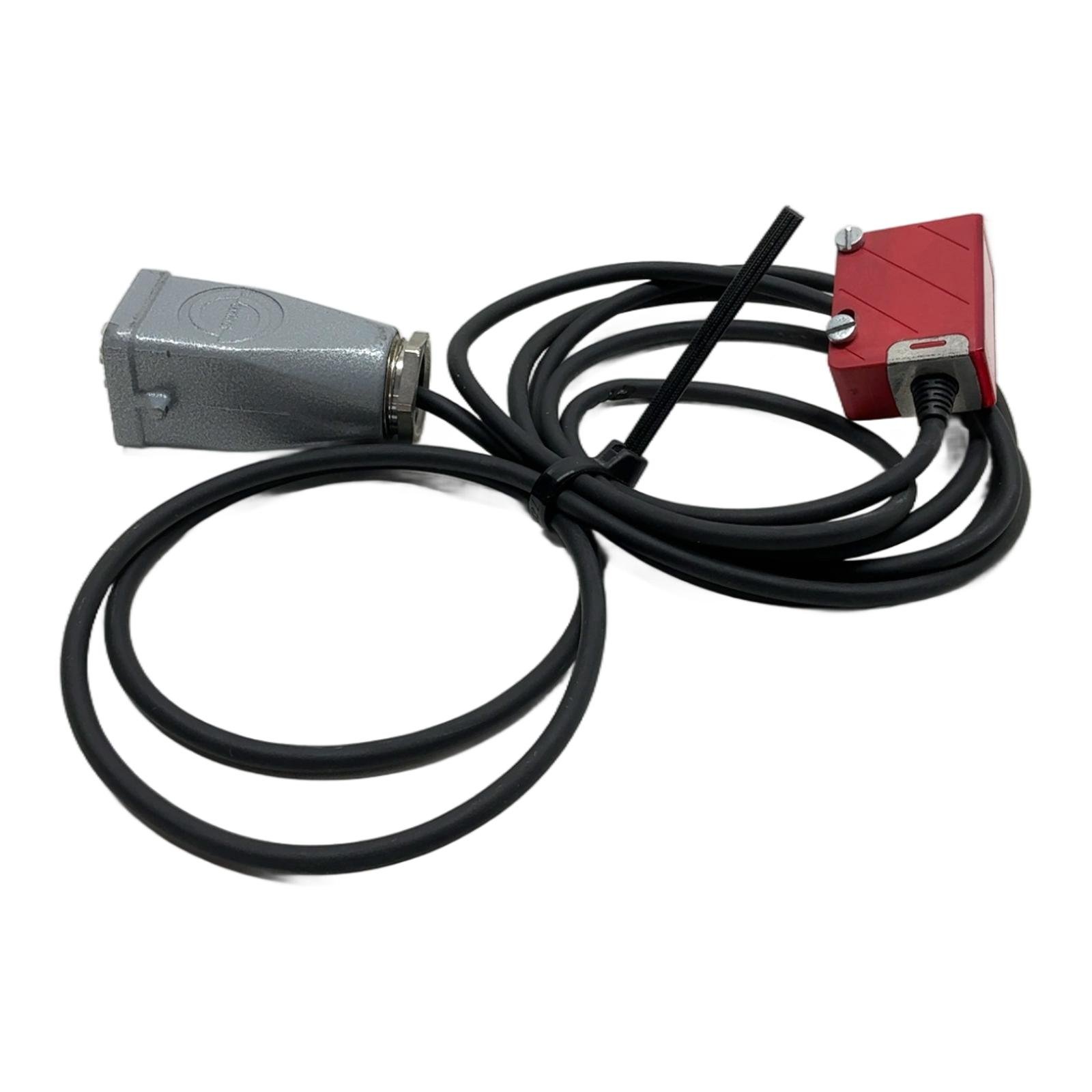

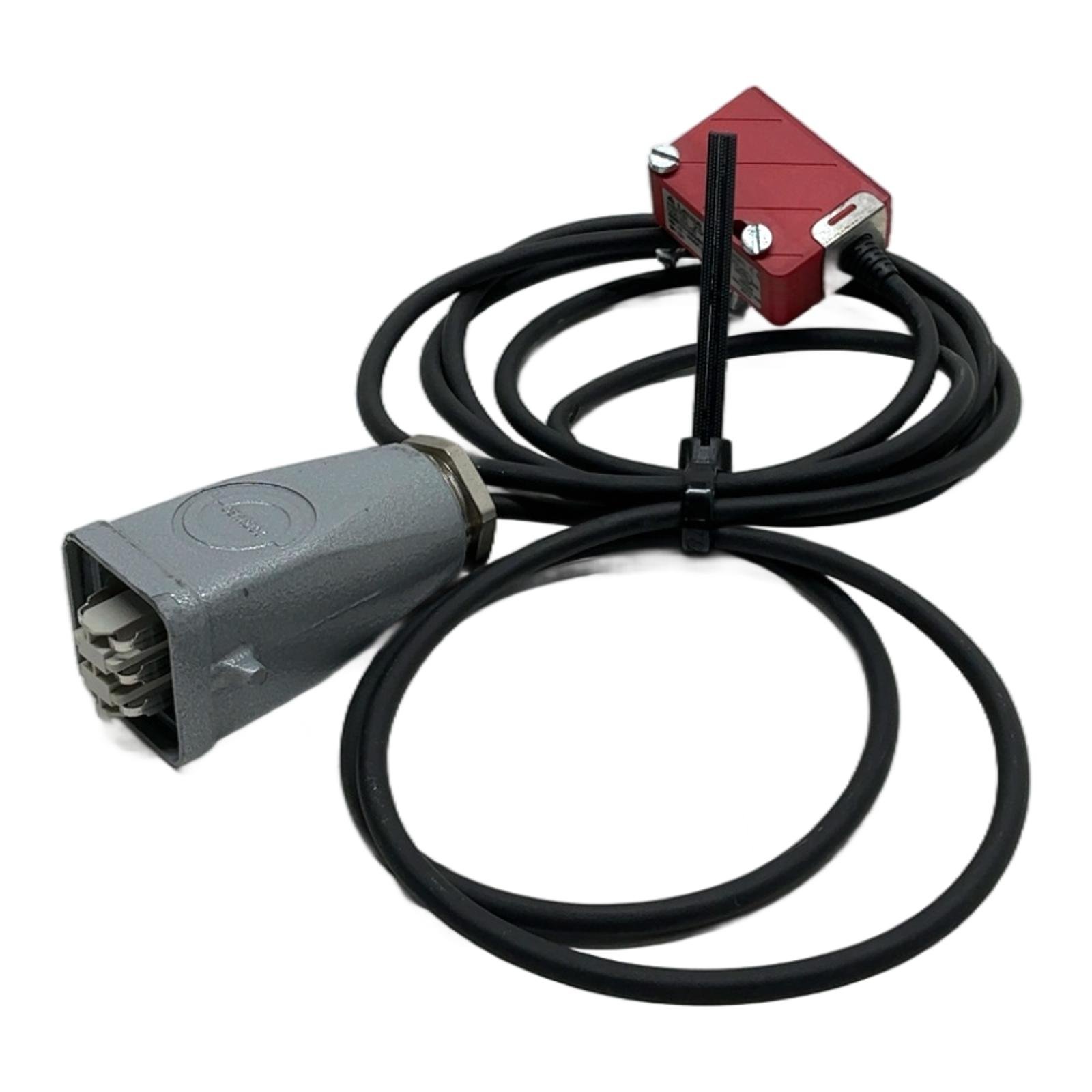

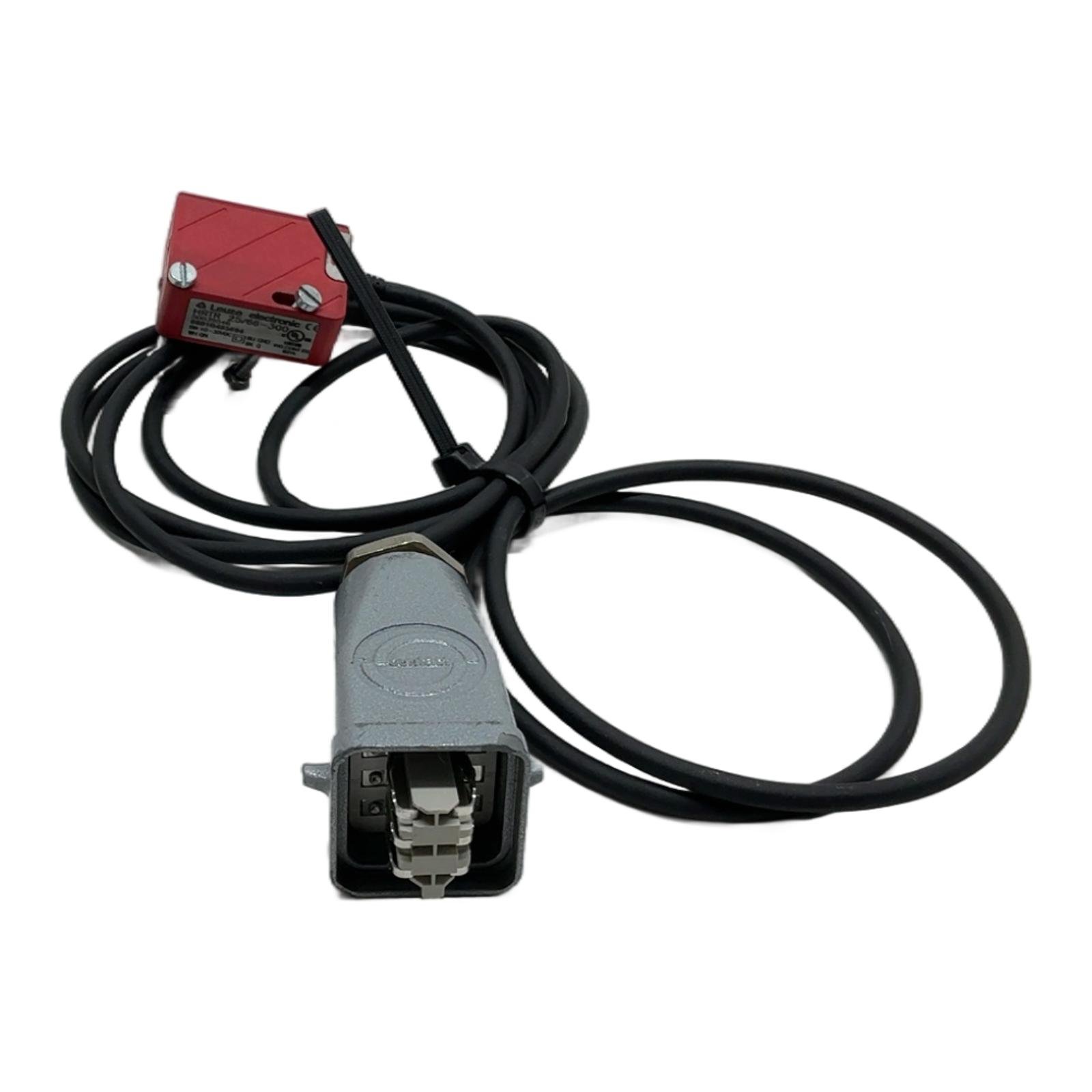

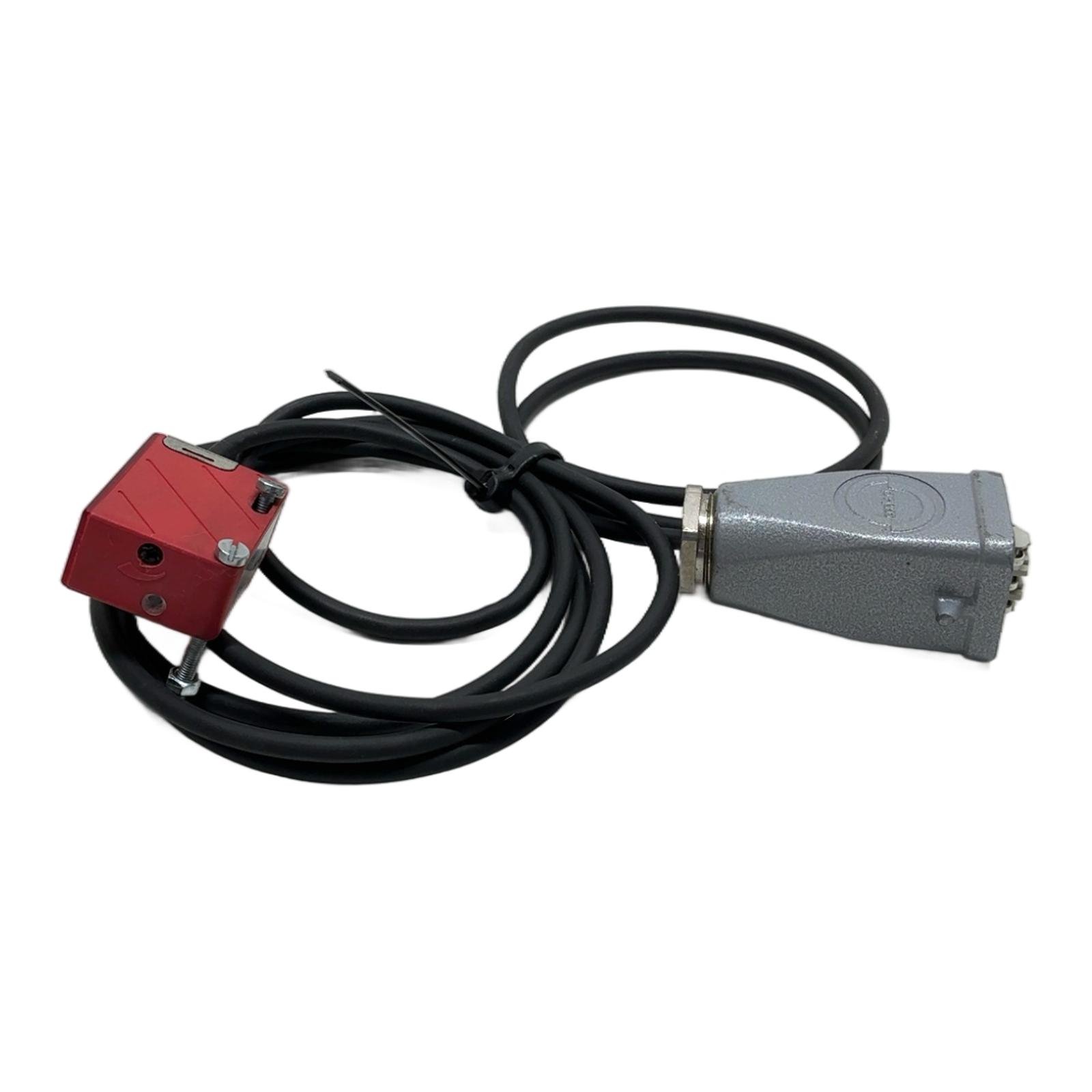

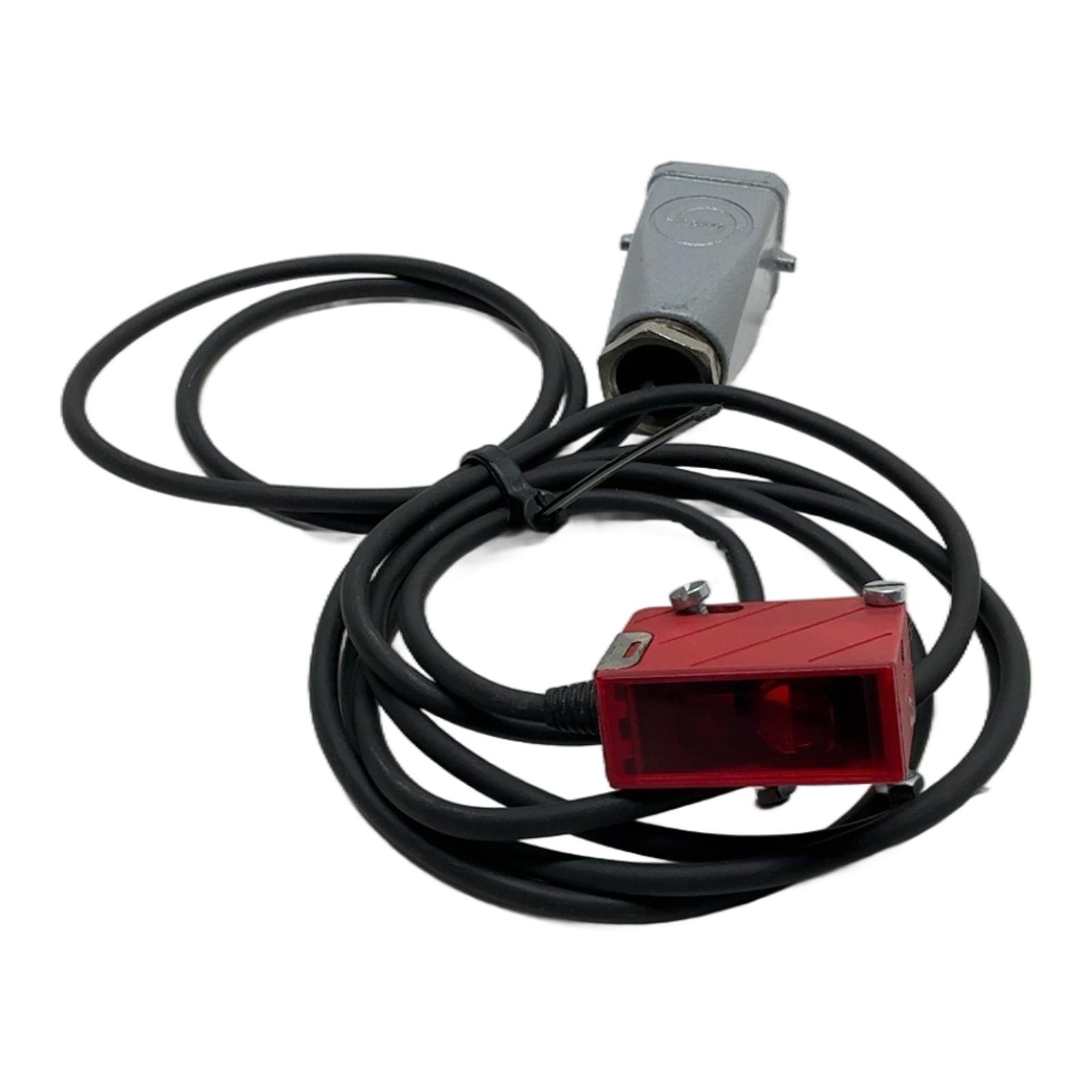

Leuze Diffuse Sensor with Background Suppression Description The Leuze HRTR 25/66-300 is a high-performance photoelectric diffuse sensor designed for precise and reliable object detection in industrial automation settings. It features adjustable background suppression, allowing it to accurately detect objects regardless of color or surface texture, while ignoring objects in the background. This used unit comes with a permanently attached cable and a robust industrial connector, ready for integration into your system. Specifications Manufacturer: Leuze Type: HRTR 25/66-300 Part Number: 50039546 Principle of Operation: Diffuse reflection sensor with background suppression Sensing Range: up to 300 mm Supply Voltage: 10 – 30V DC Switching Output: PNP, Light switching Connection: Fixed cable with industrial multi-pin connector Label Info BN: 10-30VDC BU: GND BK: Q WH: ON (Indication for light-on operation) Application Ideal for presence detection in conveyor systems, packaging machinery, assembly lines, and general material handling applications where reliable detection of varying objects is required. Country of Origin Made in Germany. CO2 Impact By purchasing this pre-owned sensor, you are contributing to the circular economy and avoiding approximately 16 kg of CO2 emissions associated with the production of a new unit. This is comparable to the emissions from a car driving 80 kilometers. Availability This unit is a tested, used item in excellent working condition. It is available for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the principle of operation for this sensor?This is a diffuse reflection sensor with background suppression. It uses triangulation to detect an object at a set distance, reliably ignoring any people, machine parts, or reflective surfaces located beyond the set range. What do the “BN” and “BK” wire color codes on the label signify?These are standard industrial wire color codes. BN (Brown) is for the positive power supply (10-30V DC), and BK (Black) is the switching output (Q). Is the large grey connector a standard M12 or M8?No, this is a non-standard rectangular industrial connector, likely a Harting or similar type. It is designed for a specific machine interface, offering a more secure and robust connection than standard M-series connectors. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
