SCHNEIDER ELECTRIC GV3L40
SCHNEIDER ELECTRIC GV3L40
€ 45,95
4 op voorraad
4 op voorraad
Betaalmethode:
Specificatie
| Gewicht | 3,00 kg |
|---|---|
| Packing Quantity |
1 Unit(s) |
| Unit of Measure |
Unit(s) |
| Brand |
SCHNEIDER ELECTRIC |
| Category |
Motor Control |
| Description |
Motor Circuit Breaker |
| MPN |
GV3L40 |
| Other Notations |
GV3L40 |
| Fabr. Art. Nr. |
GV3L40 |
- Ophalen in ons magazijn
Roosendaal
Vandaag
- Standaard levering
Nederland
België
1-2 dagen
1-2 dagen
Omschrijving

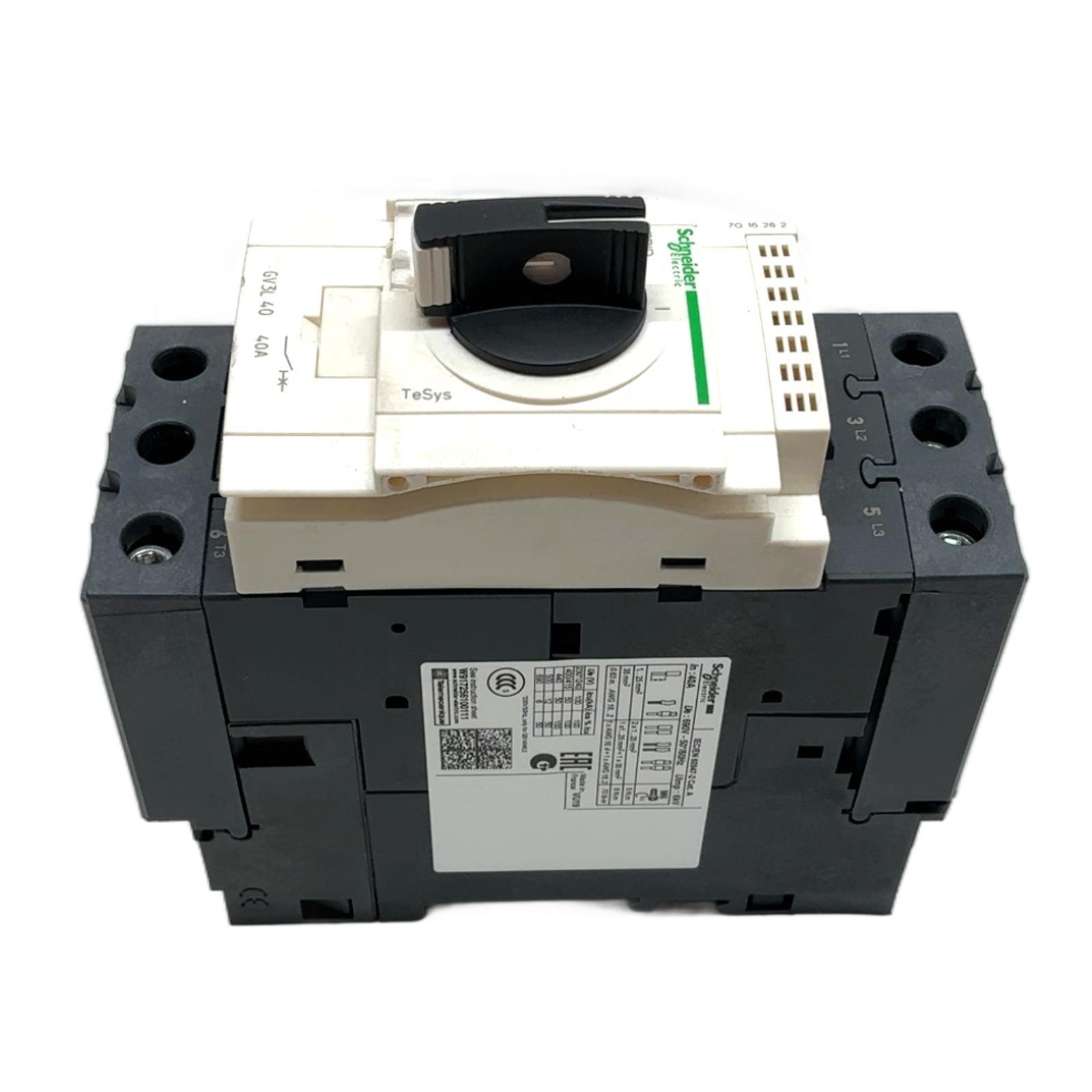

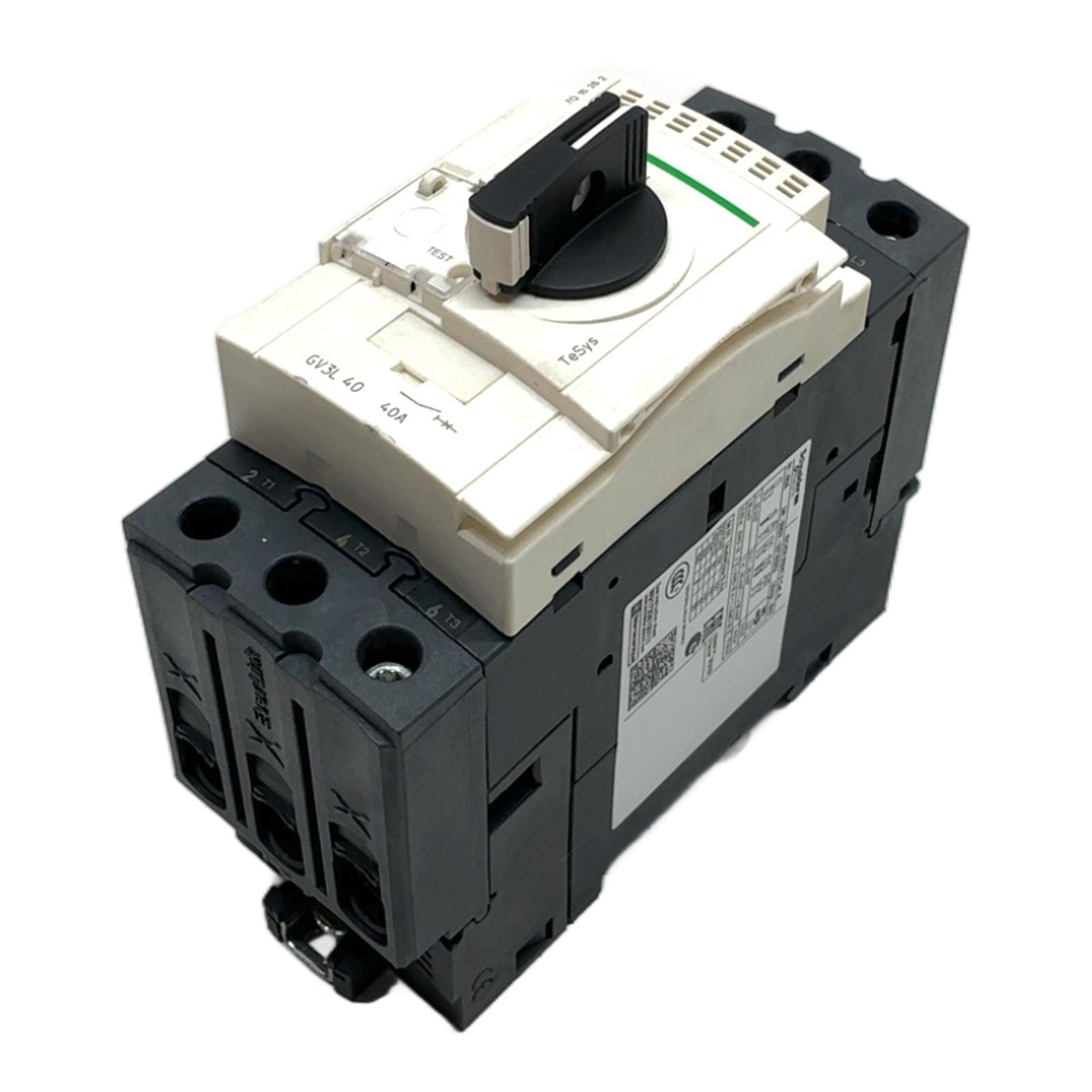

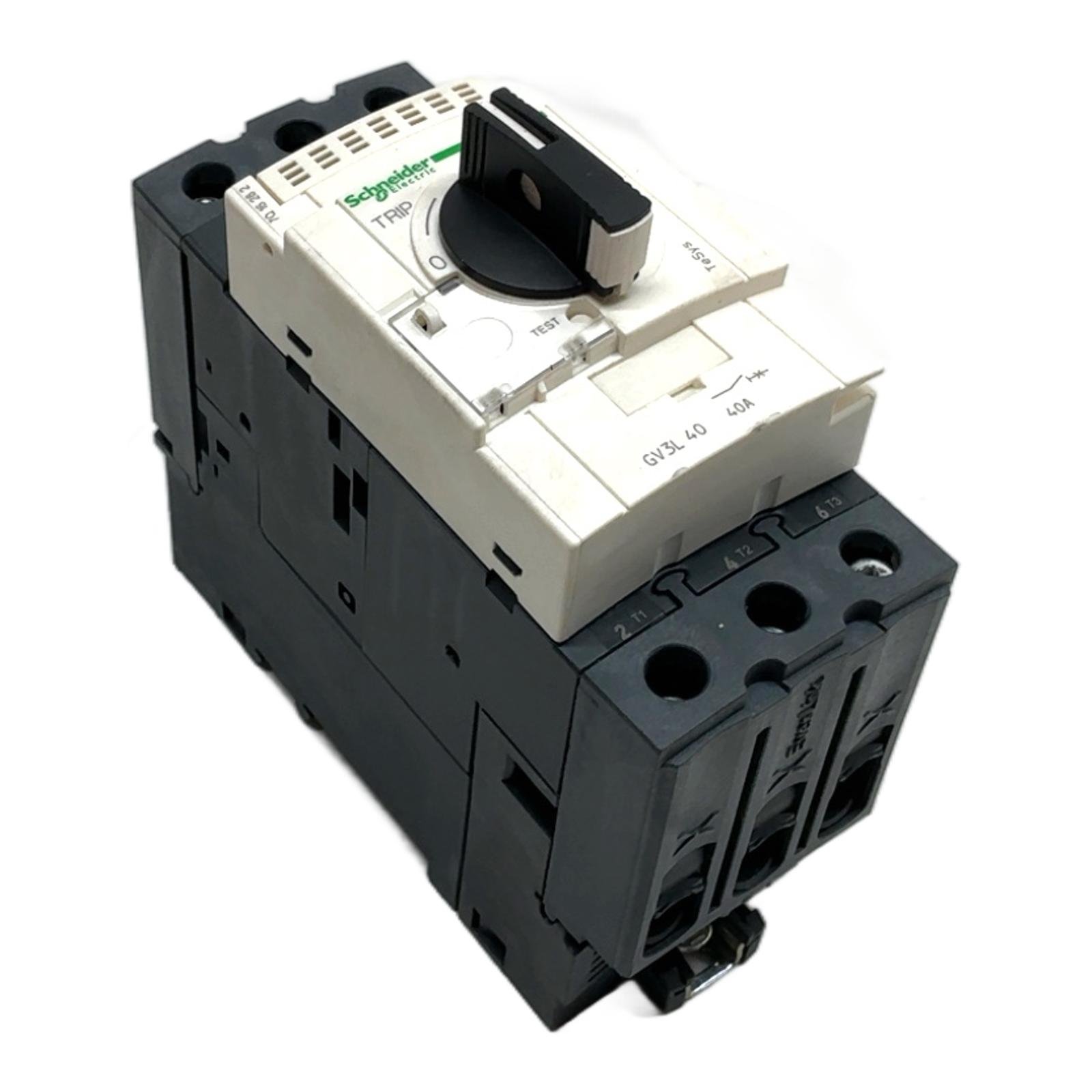

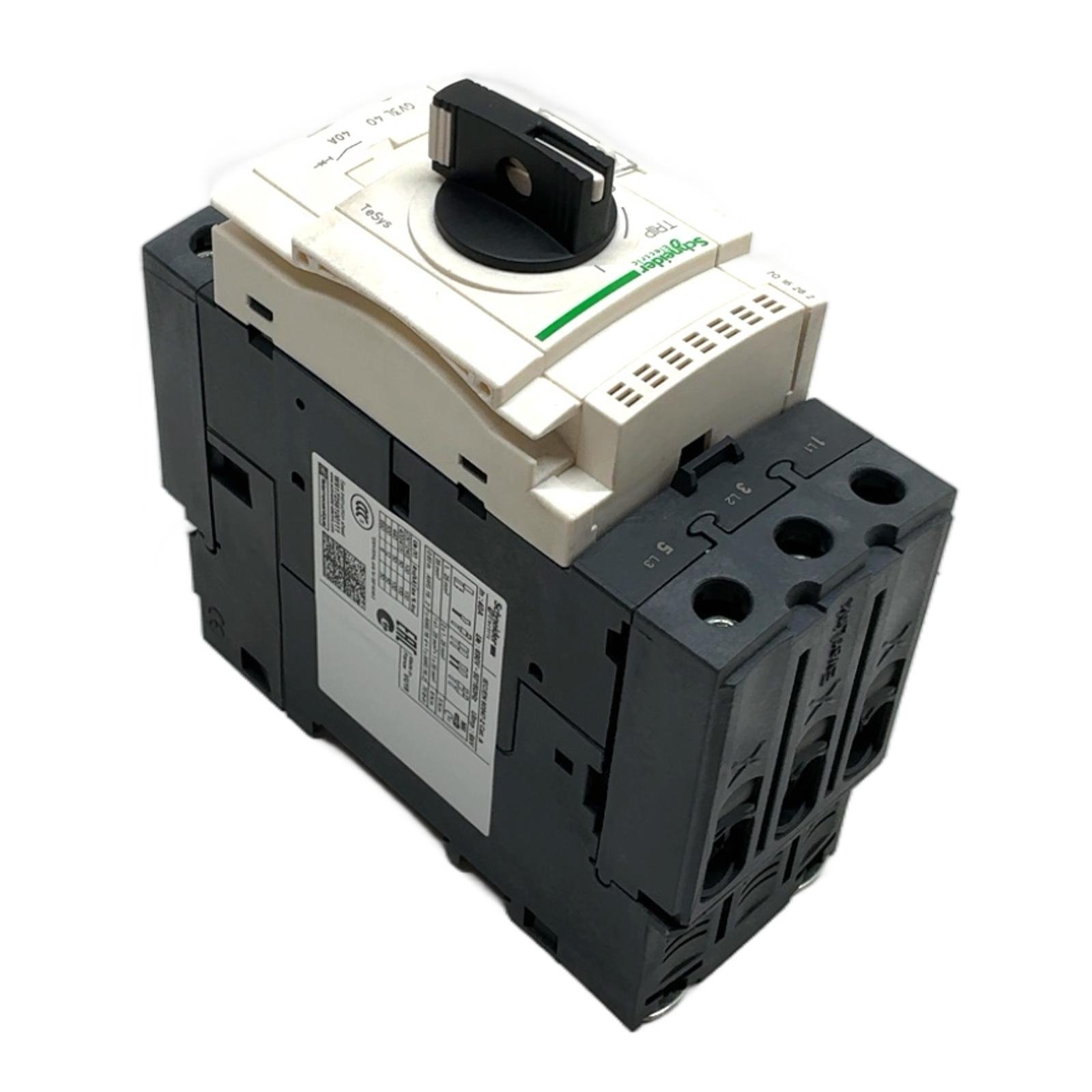

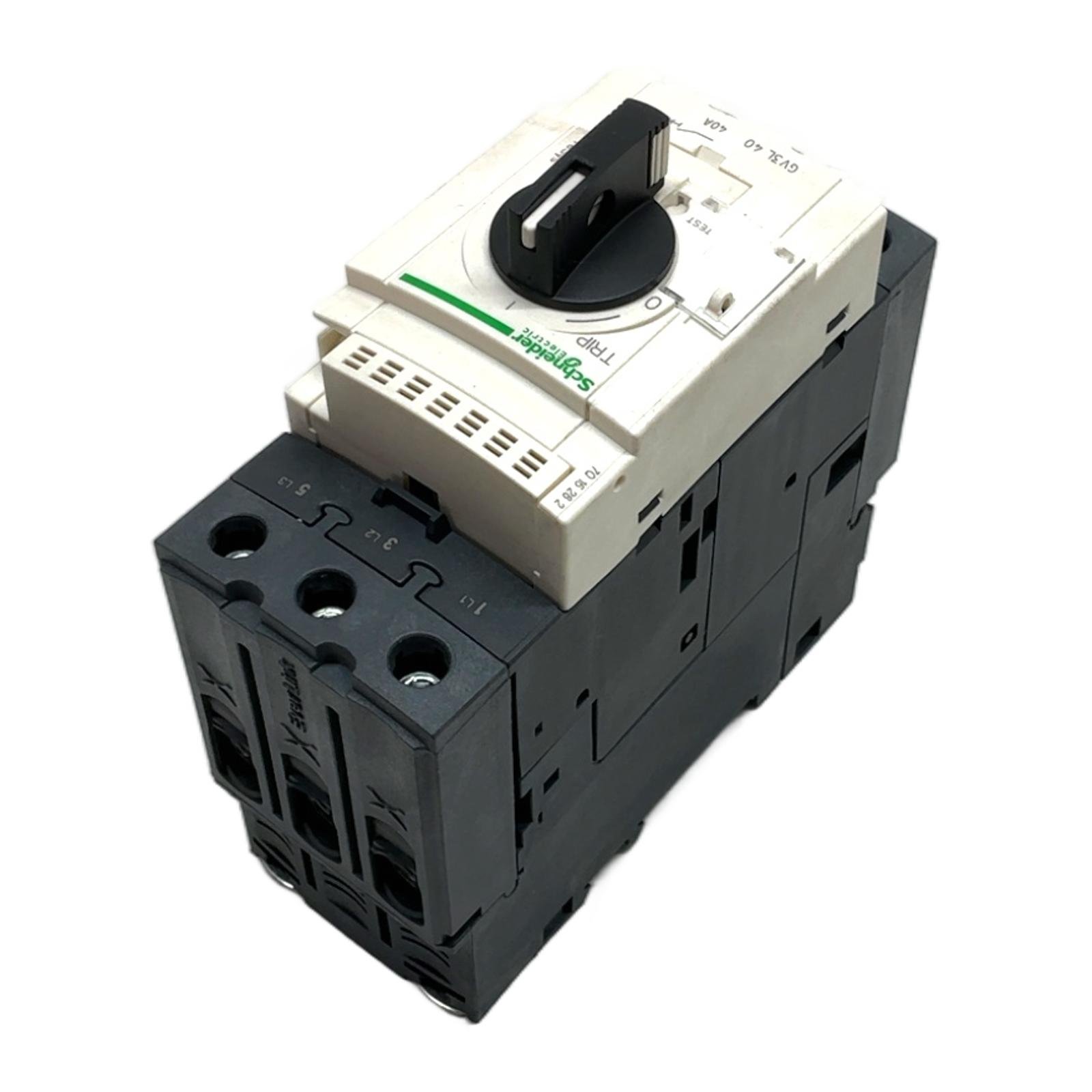

Schneider Electric TeSys GV3L40 Motor Circuit Breaker Description The Schneider Electric GV3L40 is a high-performance magnetic motor circuit breaker from the TeSys GV3 series. It is designed to provide reliable short-circuit protection for 3-phase motors. With a rated current of 40A and a high breaking capacity, this device ensures the safety and longevity of your critical motor applications. The rotary knob allows for easy manual control, and its compact design facilitates simple installation in control panels. Specifications Manufacturer: Schneider Electric Product Range: TeSys Model: GV3L40 Poles: 3-Pole (3P) Rated Current (In): 40 A Rated Operational Voltage (Ue): up to 690V AC 50/60Hz Protection Type: Magnetic (Short-Circuit) Breaking Capacity (Icu): 50 kA at 400/415V Control Type: Rotary Knob Label Info In: 40A Ue: 690V Uimp: 6kV IEC/EN 60947-2 Cat. A Application Ideal for use in industrial automation, HVAC systems, and manufacturing lines for protecting pumps, fans, conveyors, and other motor-driven equipment from short-circuit currents. Country of Origin Made in France. CO2 Impact By purchasing this pre-owned item, you help avoid the production of a new one, saving an estimated 34 kg of CO2. This is comparable to the emissions from a 170 km car journey. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the difference between a GV3L and a GV3P circuit breaker?The GV3L provides magnetic-only protection, which is for short-circuits. It must be paired with a separate thermal overload relay for complete motor protection. The GV3P model incorporates both thermal (overload) and magnetic (short-circuit) protection in a single unit. Can I mount auxiliary contacts on this GV3L40 breaker?Yes, the TeSys GV3 series is designed for modularity. You can add front or side-mounted auxiliary contact blocks, such as the GVAE or GVAN series, to provide status signaling for your control system. What is the magnetic tripping current for the GV3L40?According to the technical datasheet, the magnetic trip is set at approximately 13 times the rated current (13 x In). For this 40A model, the tripping current is around 520 A. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
