PARKER 10G-43-0090-BF

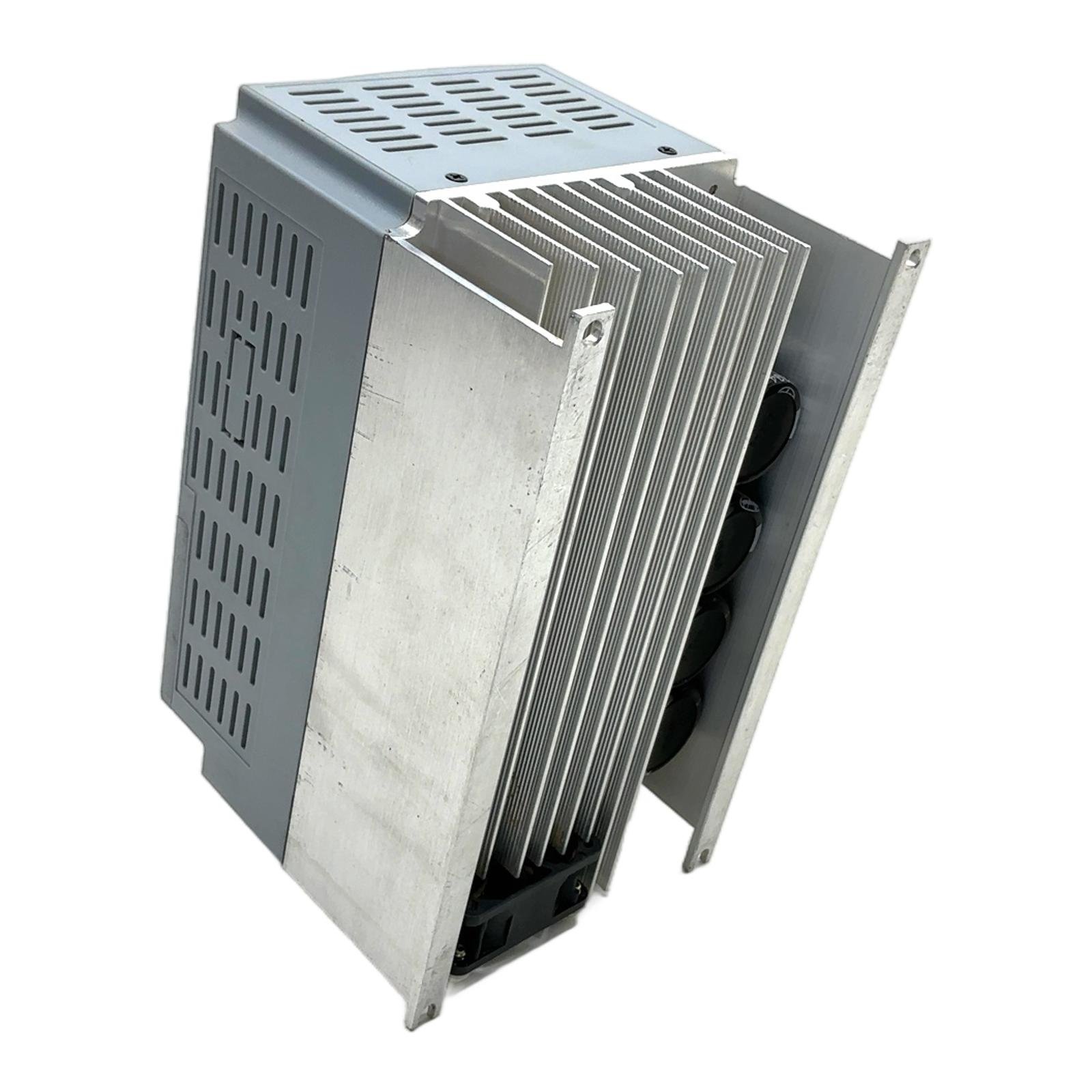

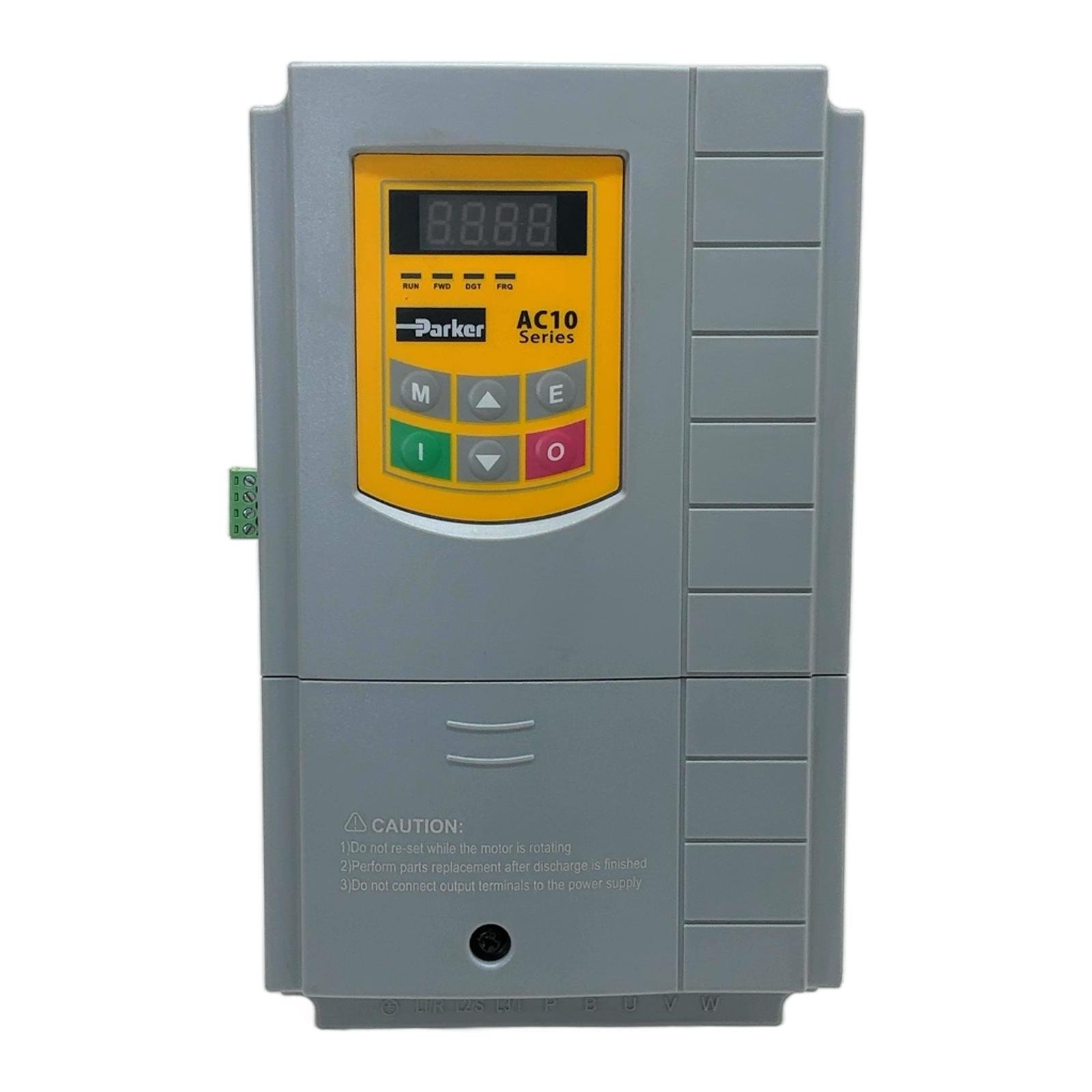

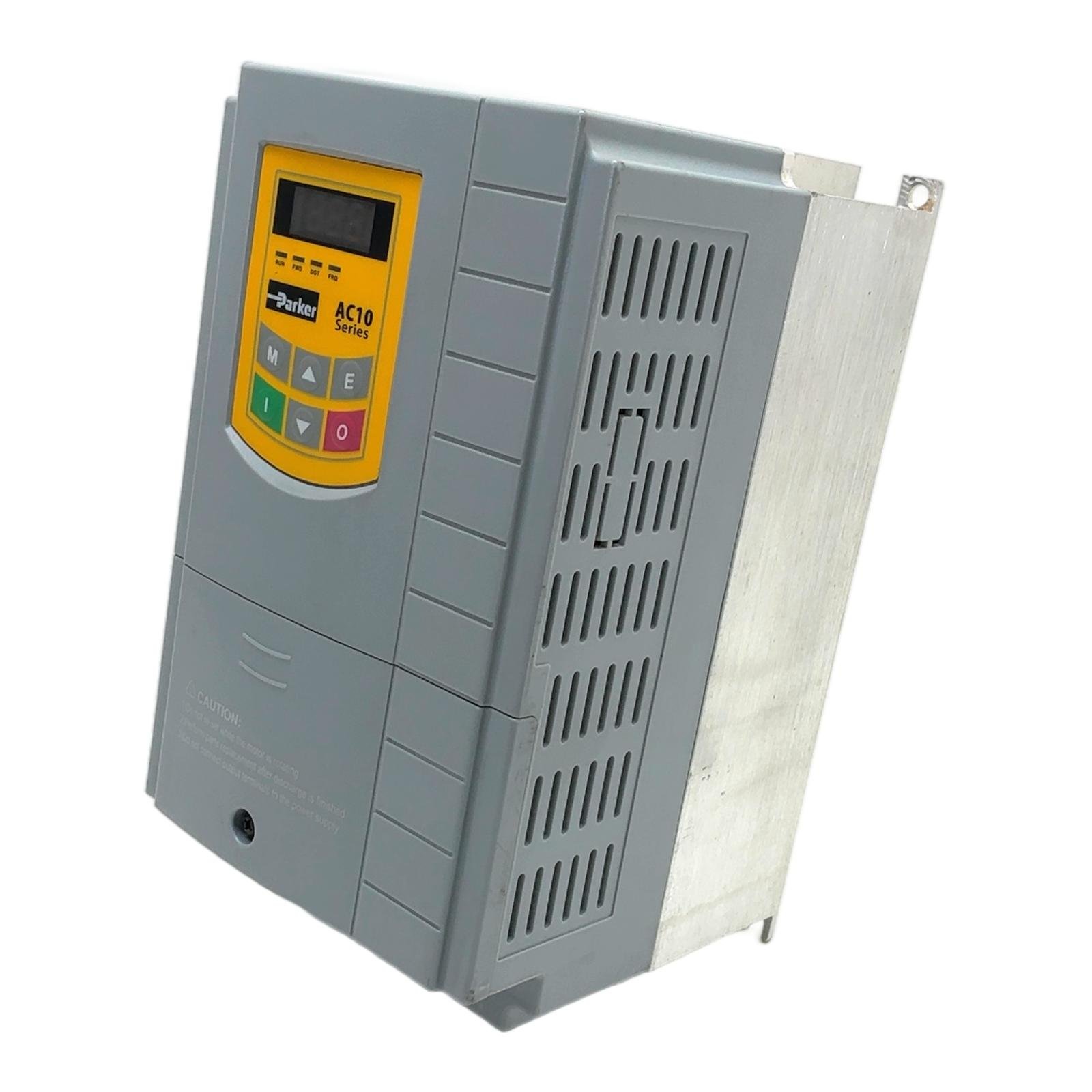

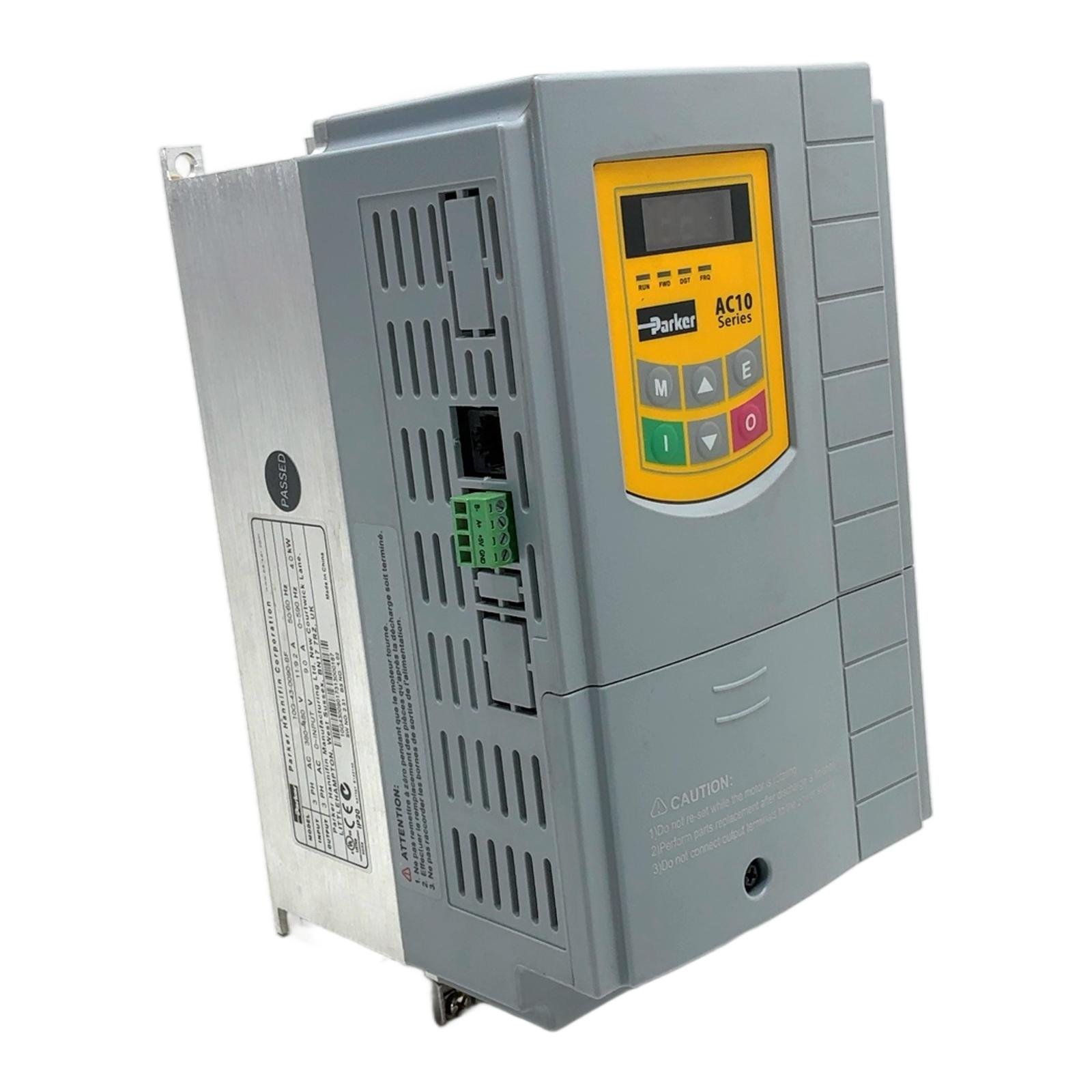

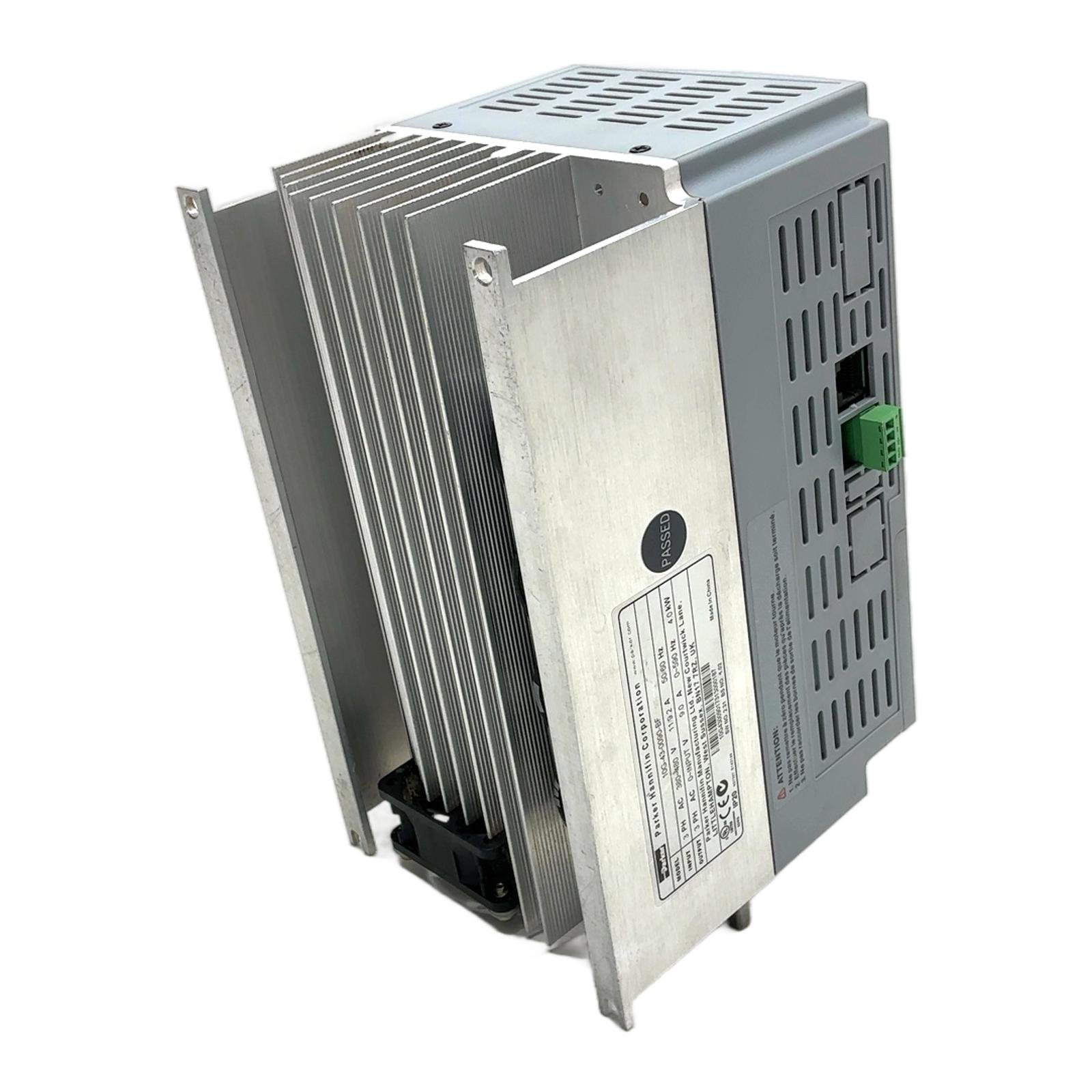

Parker AC10 Series Compact AC Drive Description The Parker 10G-43-0090-BF is a high-performance frequency inverter from the AC10 series, designed to provide efficient and precise speed control for AC induction motors. This 4.0 kW drive is compact and robust, making it suitable for a variety of industrial applications such as conveyors, fans, pumps, and machine tools. It features sensorless vector mode, an integrated keypad, and standard Modbus RTU communication for easy setup and system integration. Specifications Manufacturer: Parker Hannifin Corporation Series: AC10 Model: 10G-43-0090-BF Input Voltage: 3-Phase 380-480V AC, 50/60 Hz Input Current: 11.9 / 9.2 A Output Power: 4.0 kW (5.5 HP) Output Current: 9.0 A Output Frequency: 0-590 Hz Enclosure Rating: IP20 Braking: Integrated dynamic braking chopper Communication: Modbus RTU via RJ45 Label Info Model: 10G-43-0090-BF Input: 3 PH AC 380-480 V, 11 / 9.2 A, 50/60 Hz Output: 3 PH AC 0-INPUT V, 9.0 A, 0-590 Hz, 4.0 kW SW NO: 2.31 BS NO: 1.02 Application Ideal for general-purpose applications requiring reliable variable speed motor control. This includes but is not limited to packaging machinery, conveyor systems, HVAC fans, and industrial pumps. Country of Origin Made in China. CO2 Impact Choosing this pre-owned unit over a new one avoids the emission of approximately 100 kg of CO2. This saving is equivalent to the CO2 captured by 5 trees in a year. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What communication protocols are supported by the 10G-43-0090-BF?This model comes standard with Modbus RTU communication via its RJ45 port, allowing for easy integration into existing control networks. Does this drive have a built-in braking chopper?Yes, the ‘B’ in the part number 10G-43-0090-BF indicates that a dynamic braking chopper is fitted as standard, allowing for the connection of an external braking resistor for applications requiring fast deceleration. Can this AC10 drive be used for sensorless vector control?Absolutely. The Parker AC10 series supports both simple V/Hz control and advanced Sensorless Vector Control (SVC) for improved motor torque and speed regulation across a wide range. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: March 13, 2026
