SCHNEIDER ELECTRIC ABE7R16T210 064463

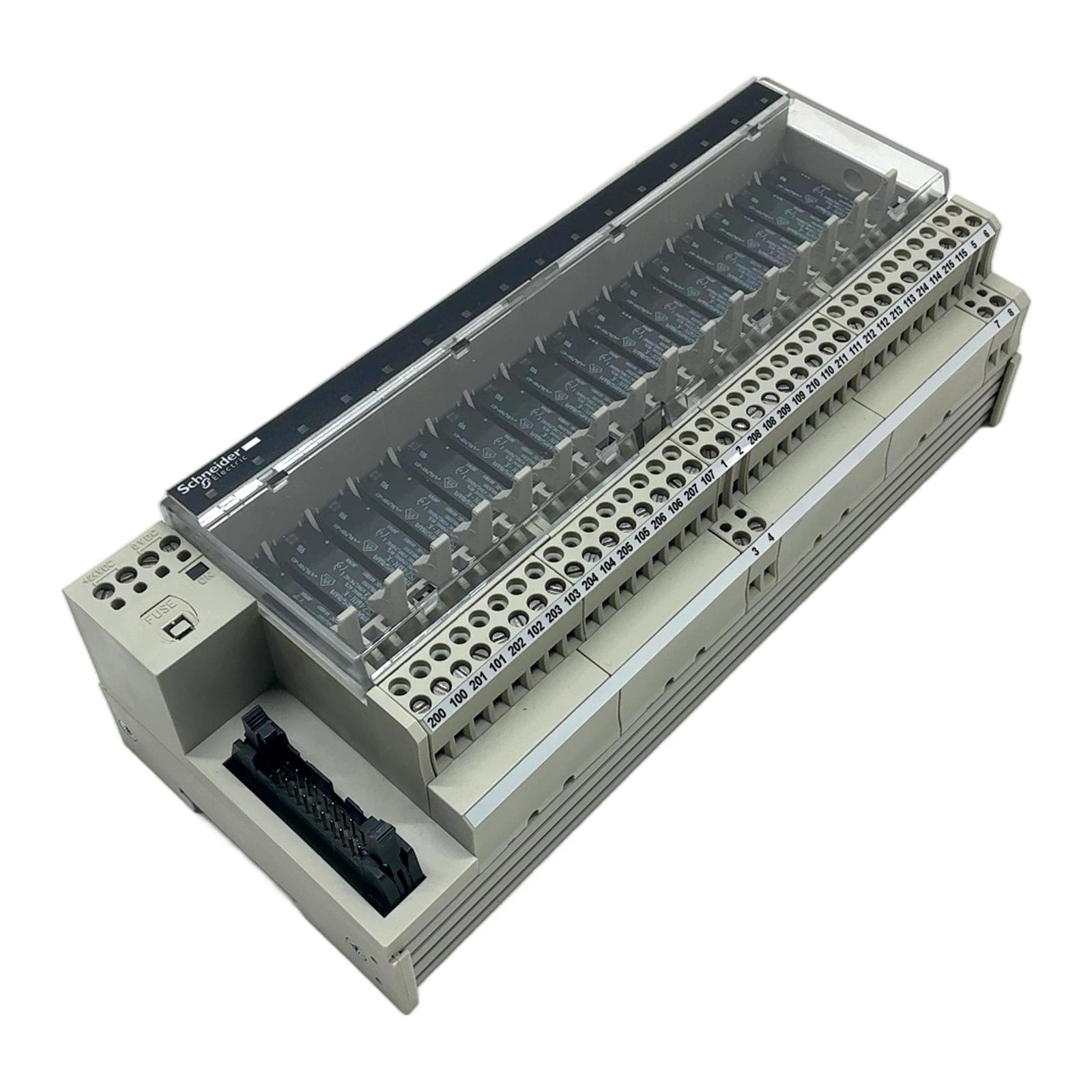

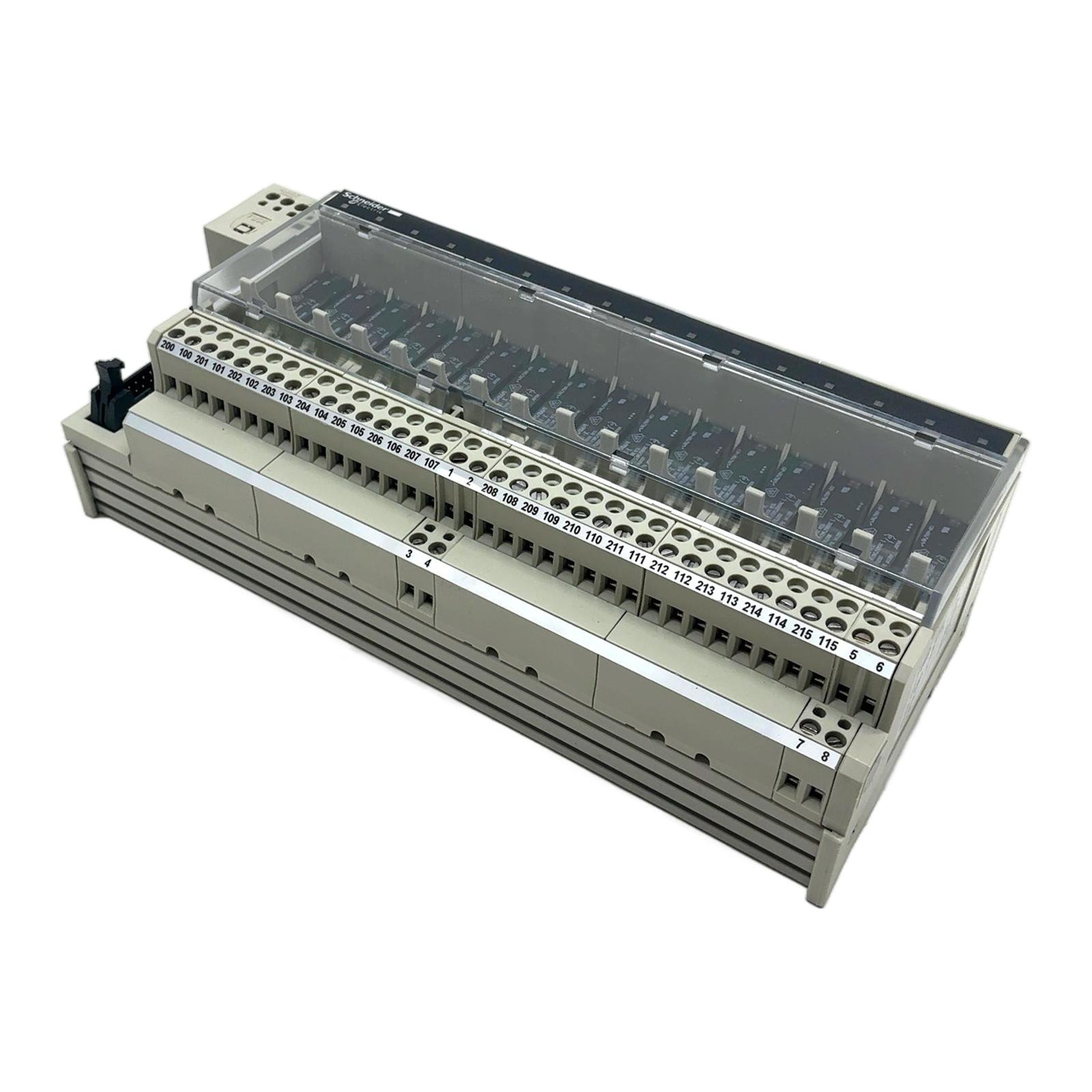

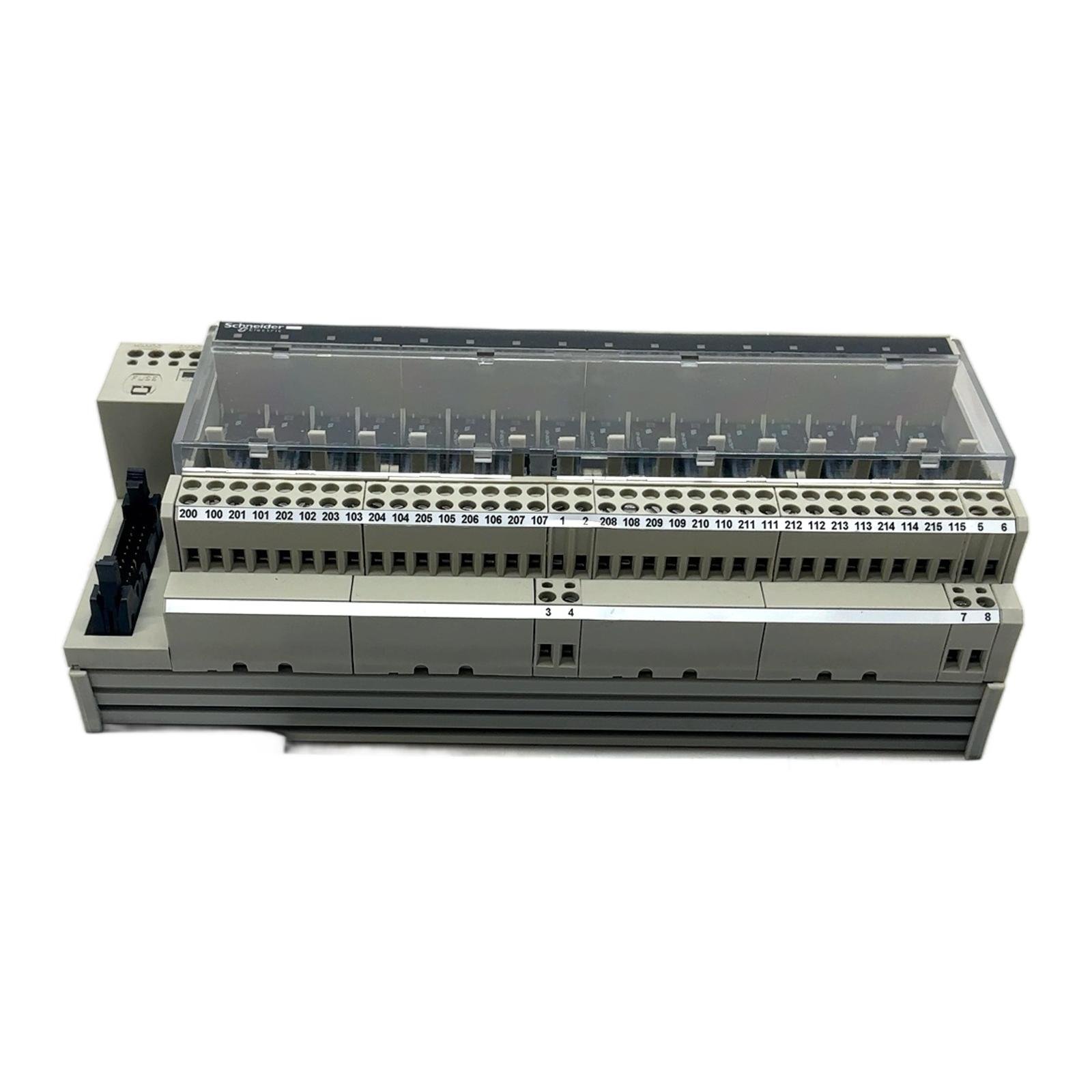

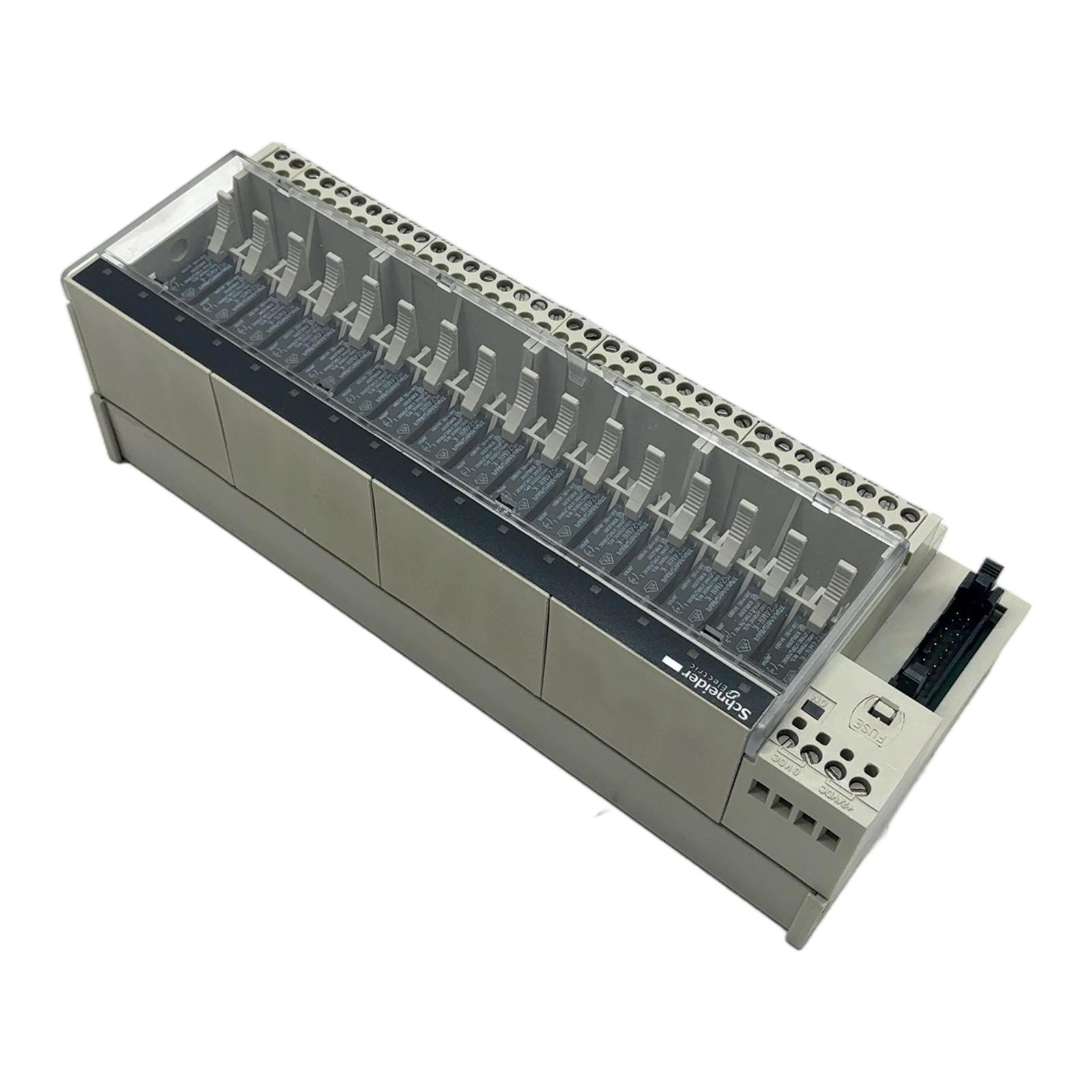

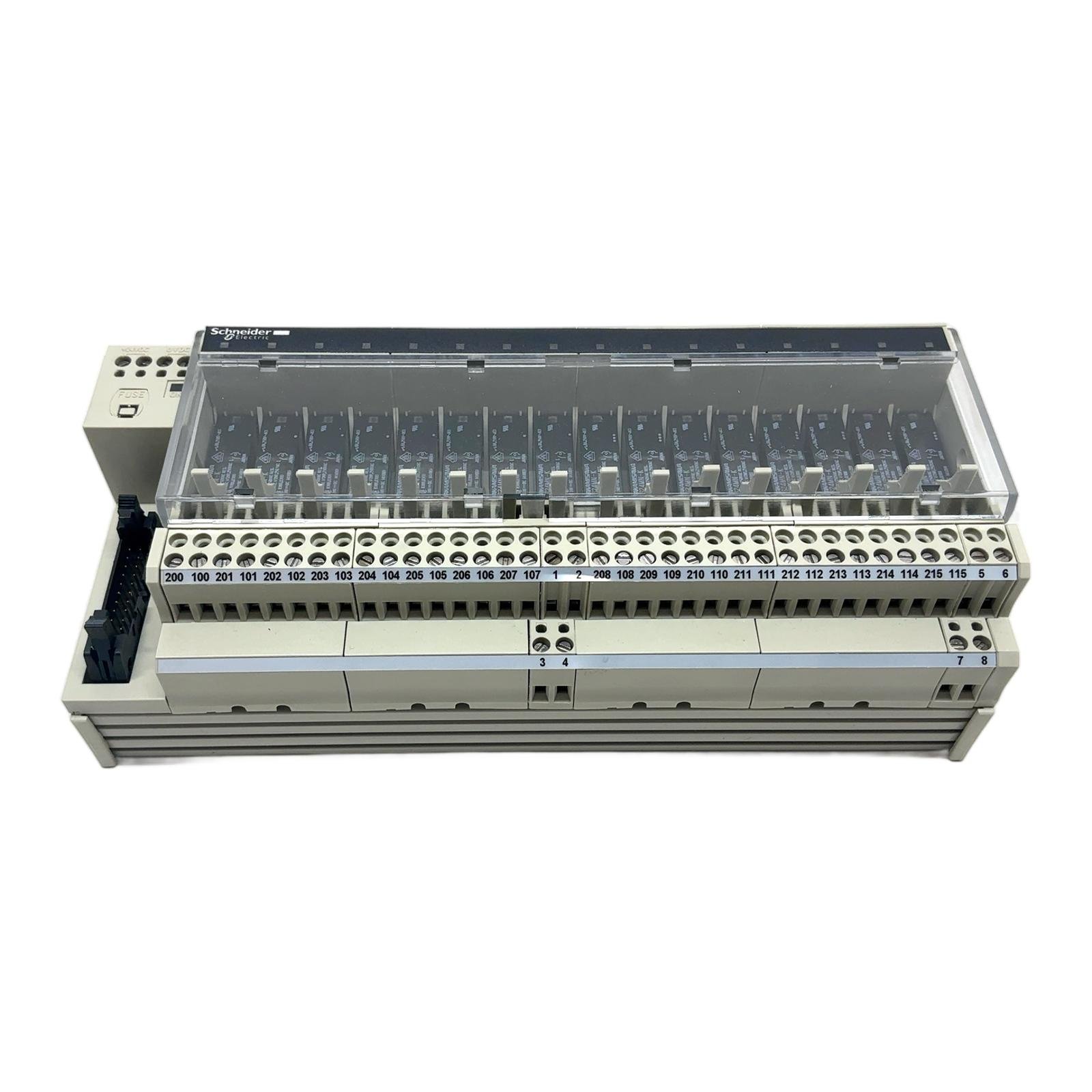

Schneider Electric Modicon ABE7 16-Channel Relay Output Module Description The ABE7R16T210 is a plug-in relay output sub-base from Schneider Electric’s Modicon Telefast ABE7 series. It provides a straightforward and reliable interface between PLC digital outputs and field actuators. This module features 16 output channels, each with a 1 Normally Open (NO) contact, making it ideal for a wide range of control applications. The design simplifies wiring, reduces installation time, and provides dependable galvanic isolation. Specifications Manufacturer: Schneider Electric Product Series: Modicon Telefast ABE7 Model: ABE7R16T210 Number of Channels: 16 Contact Type: 1 NO (Normally Open) per channel Terminal Connections: Screw-type PLC Connection: HE-10 Connector Maximum Tightening Torque: 0.6 Nm Label Info Brand: Schneider Electric Model: ABE7 R16T210 Part Number: 064463 Date Code: 3N-2014-W32 Application This relay module is perfectly suited for industrial automation systems to control loads such as contactors, solenoid valves, and indicator lights. It is commonly used with Schneider Electric Modicon PLCs to ensure a robust and easily maintainable connection to field devices. Country of Origin Made in France. CO2 Impact By choosing to reuse this industrial part, you are saving 15.4 kg of CO2 emissions. This is equivalent to the emissions from driving an average car for 77 kilometers. Availability In stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What type of PLCs is the ABE7R16T210 compatible with?This module is part of the Modicon Telefast ABE7 system and is designed for use with Schneider Electric’s Modicon PLC series, such as the Modicon M340, Premium, and Quantum, using a compatible pre-wired cable with an HE-10 connector. Are the relays included and are they replaceable?Yes, this sub-base comes with plug-in electromechanical relays. They are individually replaceable, allowing for easy maintenance without needing to replace the entire module. The specific relay part number is typically visible on the relay itself. What is the maximum switching current and voltage for the relay contacts?The maximum switching capacity depends on the specific plug-in relay used. However, for the standard relays supplied with this base, the typical maximum switching current is around 2 A, and the maximum switching voltage is 250 V AC or 30 V DC, subject to the load type. Always consult the official datasheet for precise electrical durability curves. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
