SCHNEIDER ELECTRIC iC60N C6A A9F04206

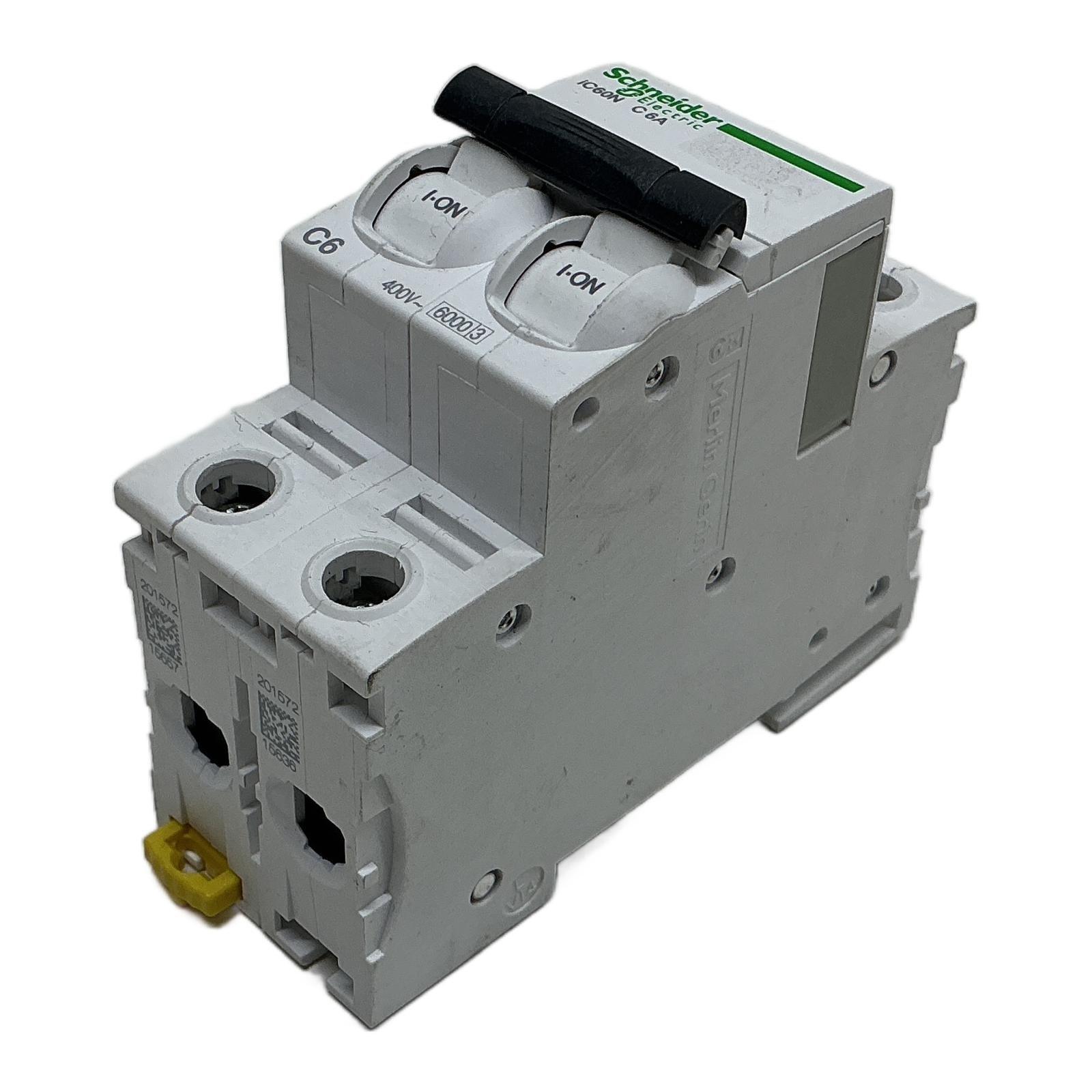

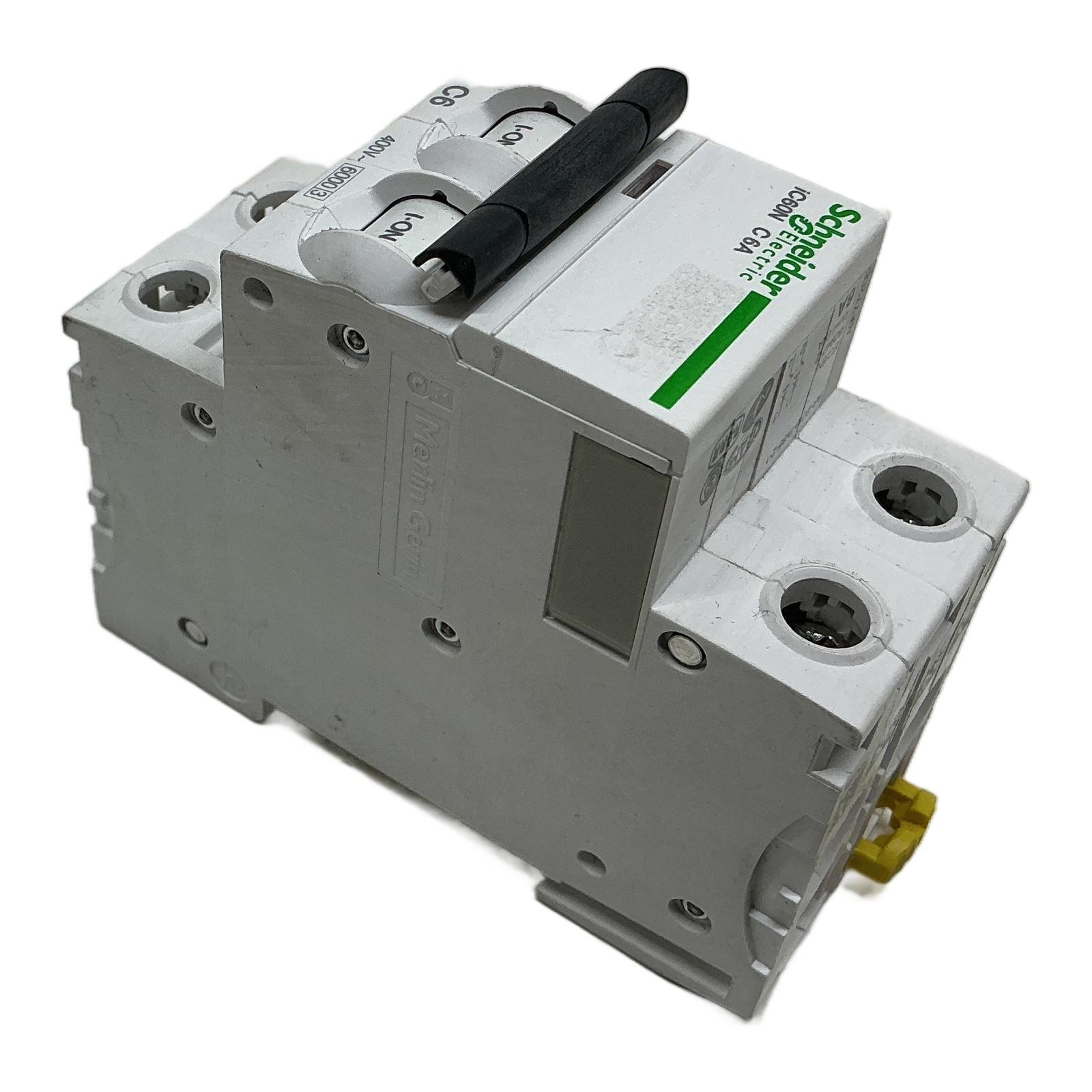

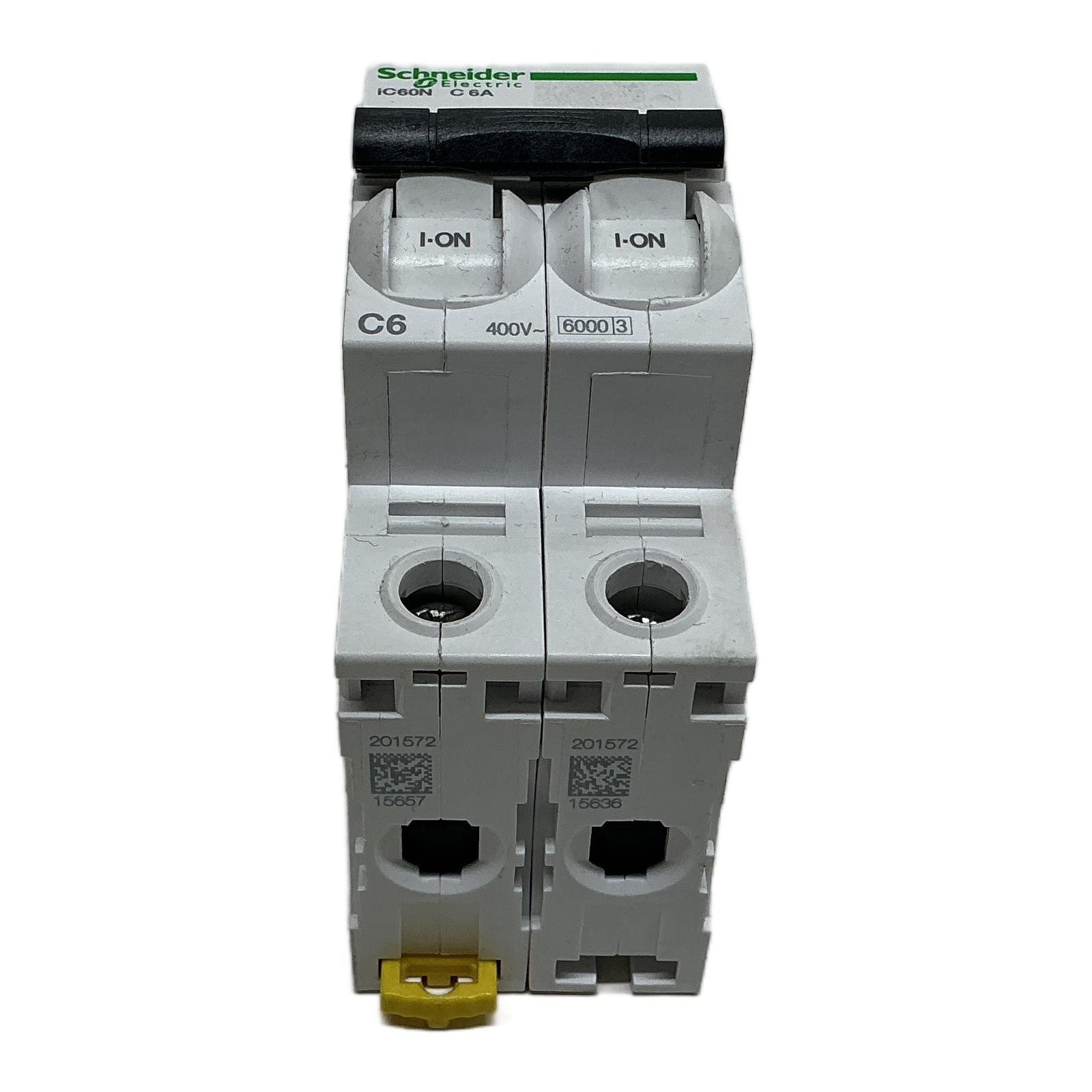

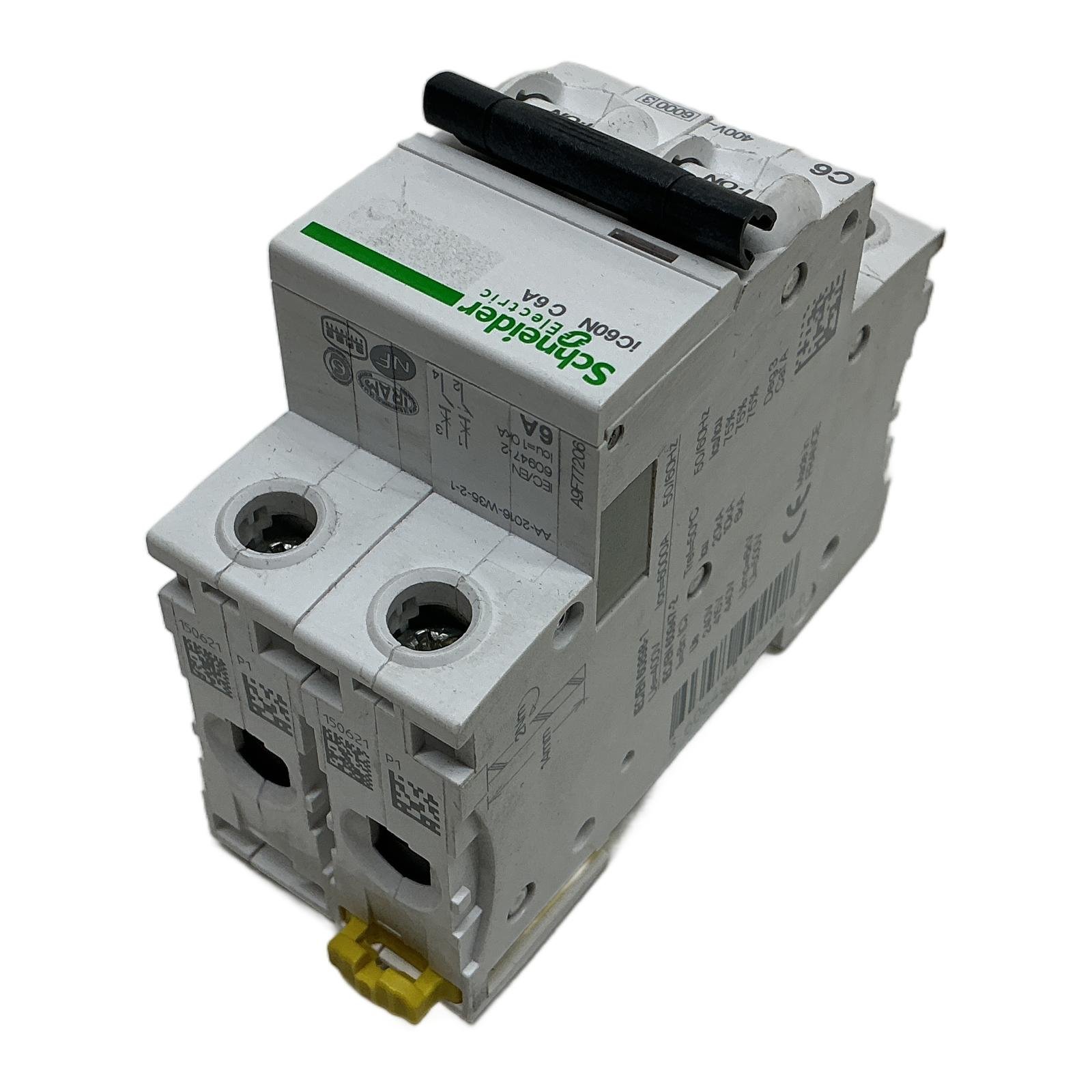

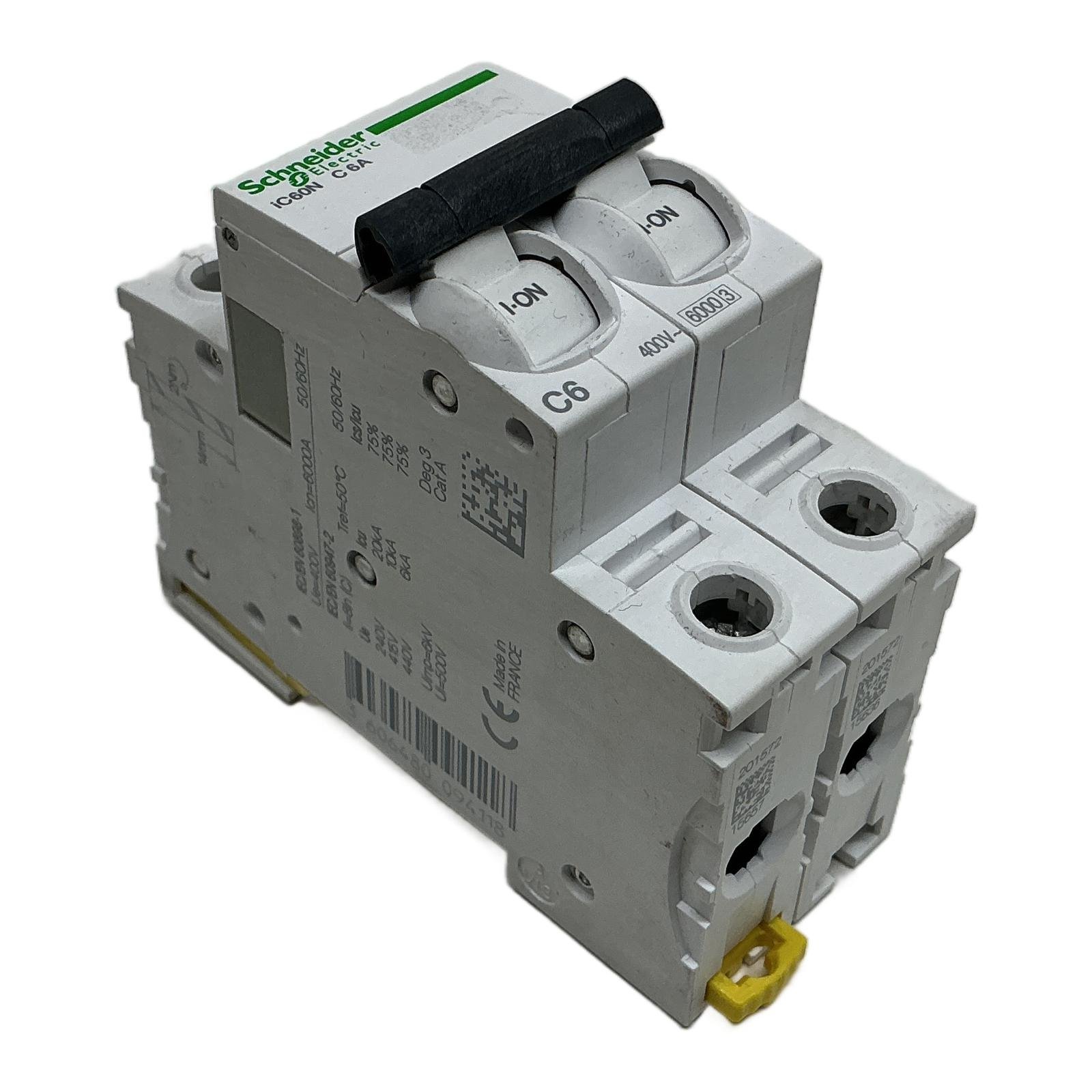

Schneider Electric iC60N 2-Pole Circuit Breaker Description The Schneider Electric A9F04206 is a high-performance 2-pole miniature circuit breaker (MCB) from the renowned Acti9 iC60N series. It is engineered to provide superior protection for electrical circuits against both overloads and short-circuits. With a 6A rating and a C-type tripping curve, it is ideal for protecting lighting circuits, socket outlets, and other general loads with moderate inrush currents. This device is compliant with both IEC/EN 60898-1 and IEC/EN 60947-2 standards, ensuring reliability and safety in demanding industrial environments. Specifications Manufacturer: Schneider Electric Part Number: A9F04206 Series: Acti9 iC60N Poles: 2-Pole (2P) Rated Current: 6A Tripping Curve: C Rated Voltage (Ue): 400V AC Breaking Capacity (Icn): 6000A (6kA) per IEC/EN 60898-1 Frequency: 50/60Hz Mounting: DIN Rail Label Info Model: iC60N C6A Standards: IEC/EN 60898-1, IEC/EN 60947-2 Rated Insulation Voltage (Ui): 500V Rated Impulse Withstand Voltage (Uimp): 6kV Application This MCB is designed for use in distribution boards within commercial buildings, industrial facilities, and infrastructure projects. It is suitable for final circuit protection where reliability and safety are paramount. Country of Origin Made in France. CO2 Impact By purchasing this reused component, you are contributing to a circular economy and helping to avoid approximately 10.0 kg of CO2 emissions that would be generated from manufacturing a new one. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the difference between the iC60N and the iC60H series?The main difference is the breaking capacity. The iC60N series typically has a breaking capacity of 6kA (as per IEC 60898-1), while the iC60H series offers a higher capacity, usually 10kA, making it suitable for applications with higher potential fault currents. What does the ‘C’ curve rating (C6) signify for this breaker?The ‘C’ curve indicates that the breaker will trip magnetically between 5 and 10 times the rated current (6A). This makes it ideal for general-purpose applications like resistive or slightly inductive loads, such as lighting and standard power outlets, accommodating normal inrush currents without nuisance tripping. Can this 2-pole breaker be used for two separate single-phase circuits?No, a 2-pole breaker is designed to protect a single circuit (e.g., a single-phase line and neutral, or two phases of a multi-phase system). Both poles are mechanically linked and will trip simultaneously. Using it for two independent circuits is against electrical codes and unsafe. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
