SCHNEIDER ELECTRIC XUKOAKSAM12

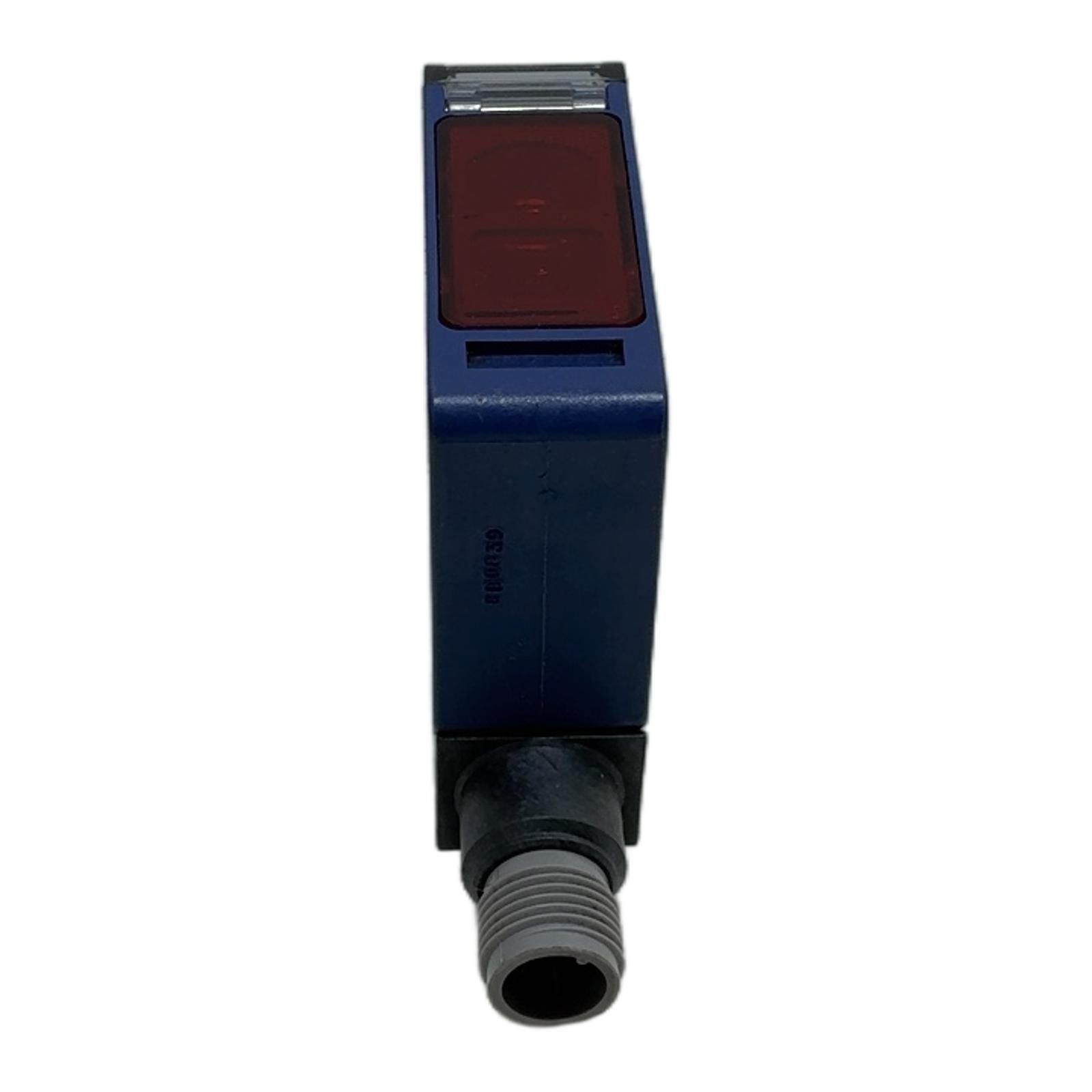

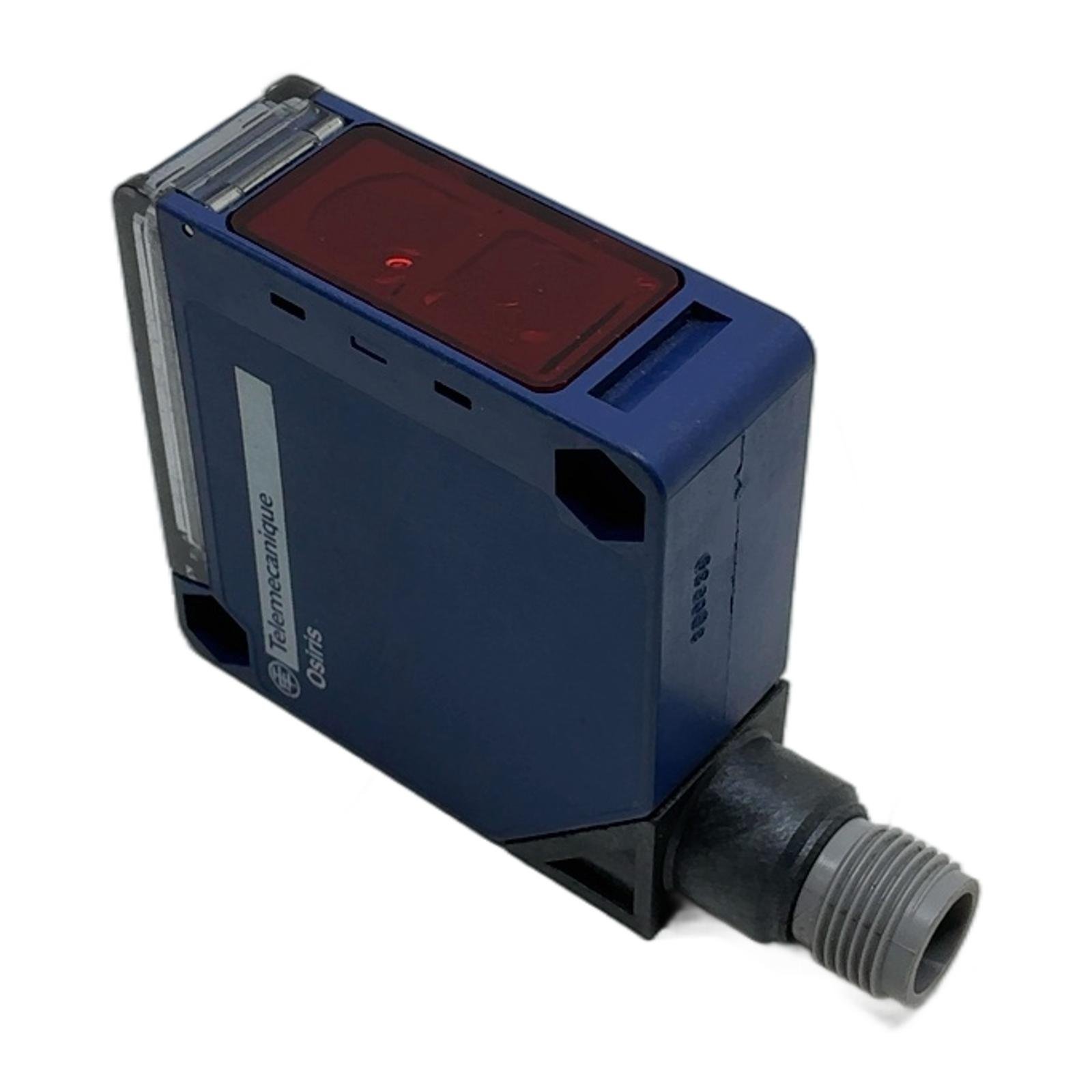

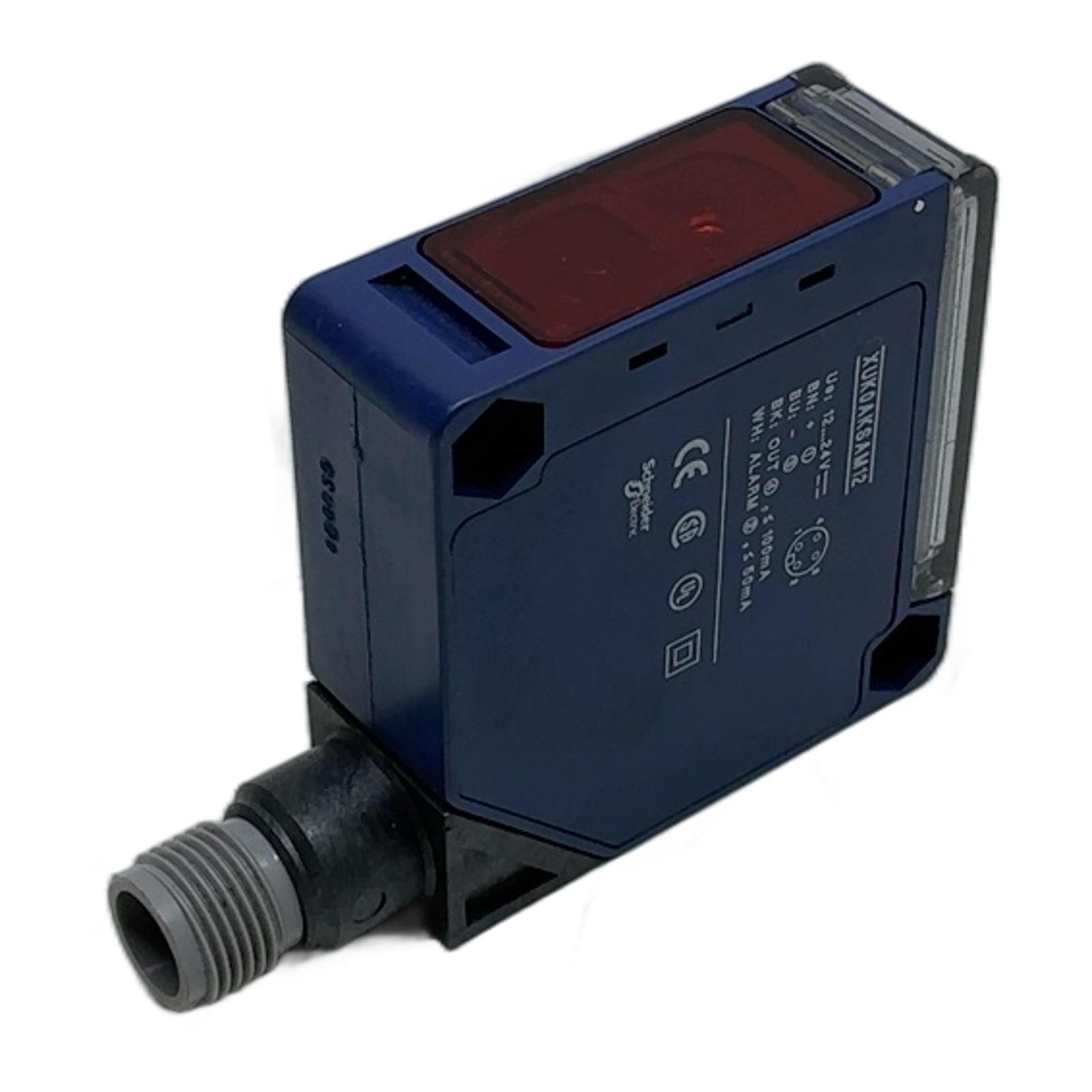

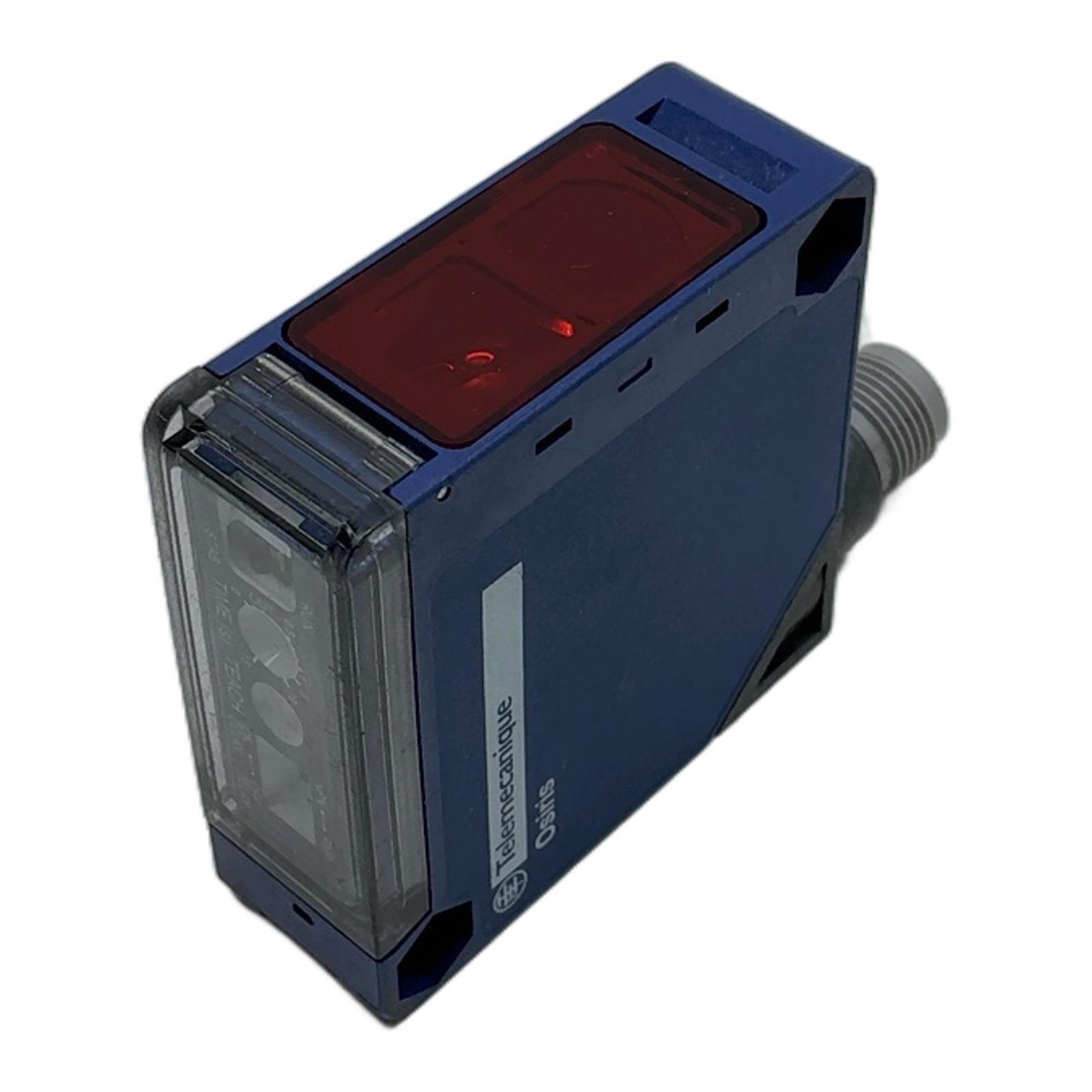

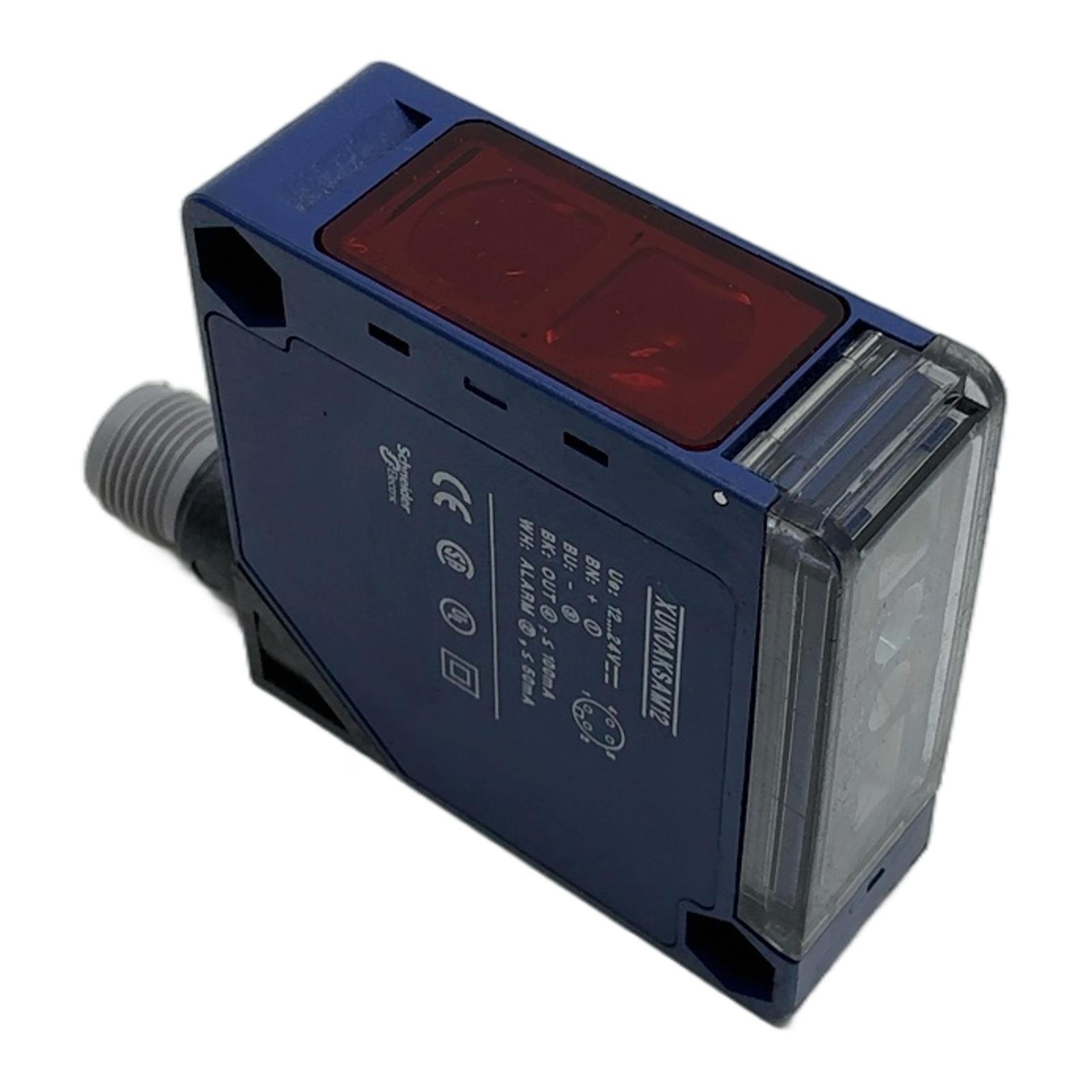

Schneider Electric OsiSense XU Universal Photoelectric Sensor Description The XUKOAKSAM12 from Schneider Electric’s Telemecanique line is a highly versatile and compact photoelectric sensor. As part of the OsiSense XU series, it offers a universal, multimode detection system in a 50x50mm housing. This sensor is designed for a wide range of industrial applications, providing reliable detection with easy setup through its teach mode. Its selectable NPN/PNP output and standard M12 connector ensure compatibility with various control systems. Specifications Manufacturer: Schneider Electric Brand: Telemecanique Series: OsiSense XU Model: XUKOAKSAM12 Sensor Type: Multimode Photoelectric Sensor Rated Supply Voltage: 12 to 24 V DC Output Type: Discrete (PNP and NPN selectable) Connection: M12 male connector, 4-pin Sensing Distance: up to 30m (thru-beam), 7m (reflex), 0.8m (diffuse) IP Rating: IP65 Housing Material: PBT Label Info Ue: 12…24V BN: + BU: – BK: OUT, less than or equal to 100mA WH: ALARM, less than or equal to 50mA Application This sensor is ideal for various automation tasks such as object detection, presence monitoring, and positioning in industries like packaging, material handling, food and beverage, and assembly lines. Country of Origin Based on product markings and manufacturer data, this product is typically made in Indonesia. CO2 Impact Opting for this pre-owned sensor instead of a new one prevents the emission of approximately 2.4 kg of CO2, contributing to a more sustainable industrial environment. Availability This item is a used product in excellent condition. Order now from profideals for expert support and fast delivery. FAQ What is the ‘multimode’ feature of the XUKOAKSAM12?It allows the sensor to be configured for different detection principles: diffuse, diffuse with background suppression, polarized reflex, standard reflex, and thru-beam, making it highly versatile for various applications from a single part number. How do I switch between NPN and PNP output on this sensor?The output type can be selected via a switch located under the protective cover, next to the ‘TEACH’ button. This allows for seamless integration into control systems with either sinking (NPN) or sourcing (PNP) inputs. What is the purpose of the ‘TEACH’ button?The ‘TEACH’ button is used for quick and easy sensitivity adjustment. By presenting the target and/or background to the sensor and pressing the button, the sensor automatically sets the optimal switching threshold for reliable detection. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
