SCHNEIDER ELECTRIC GV2ME03 GVAN11

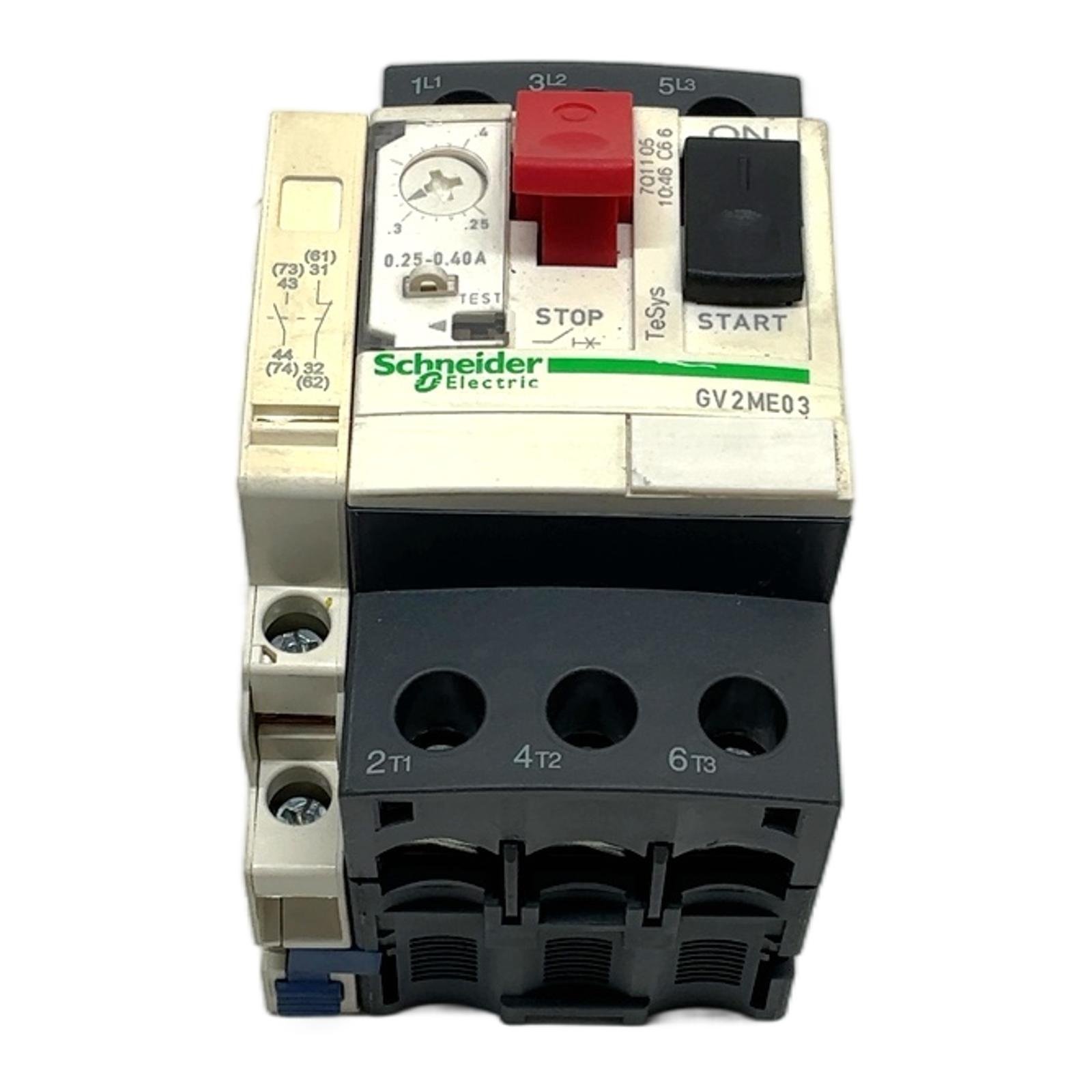

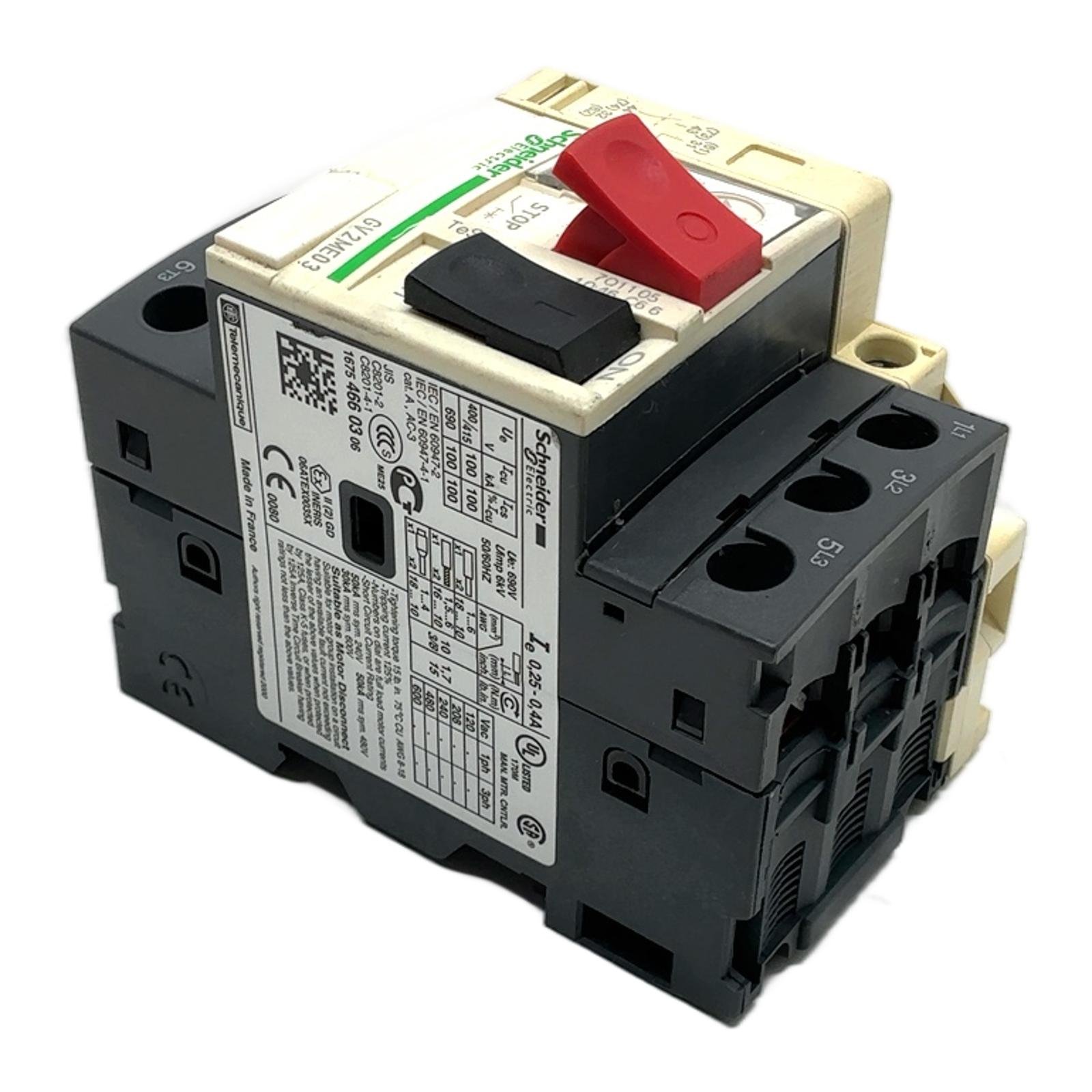

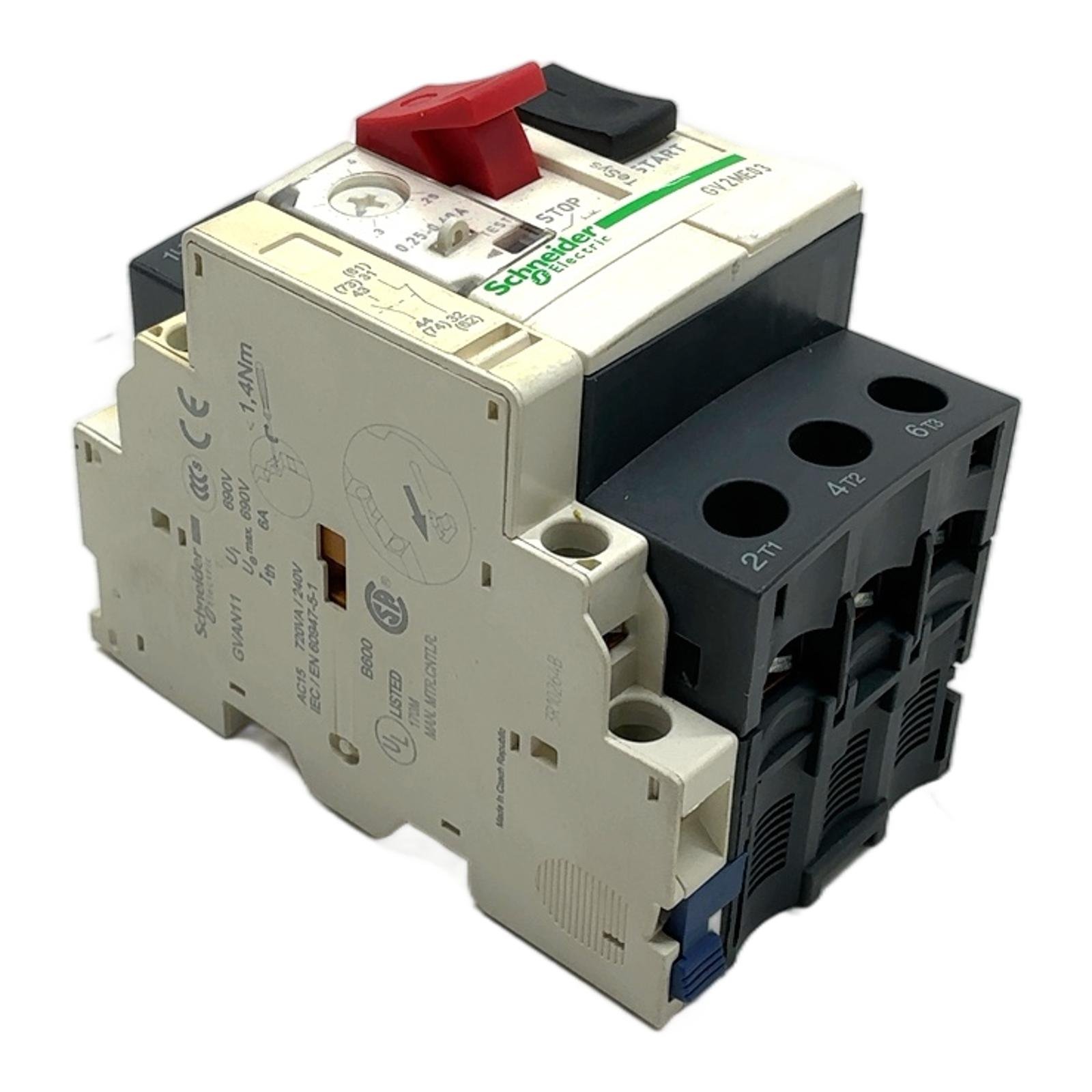

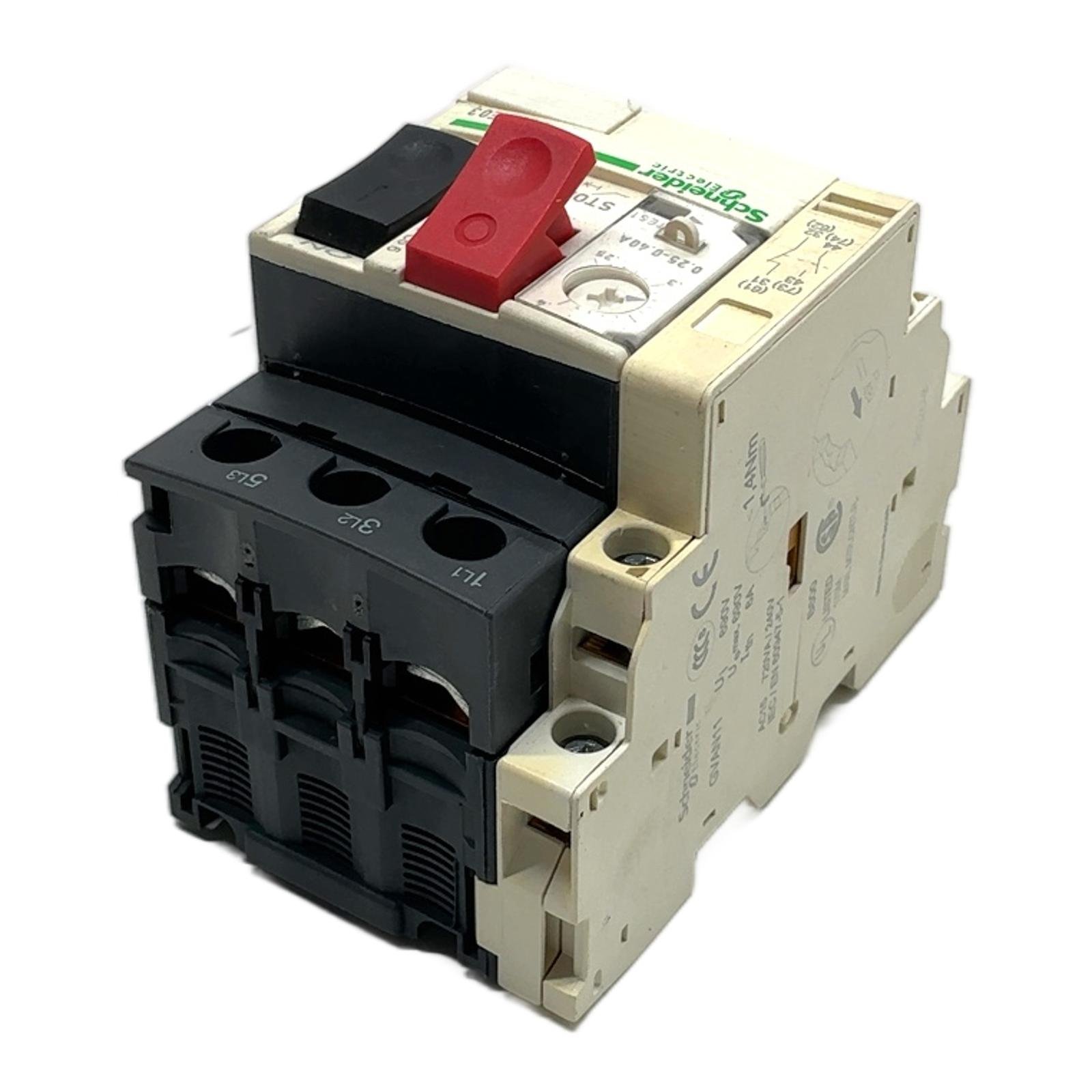

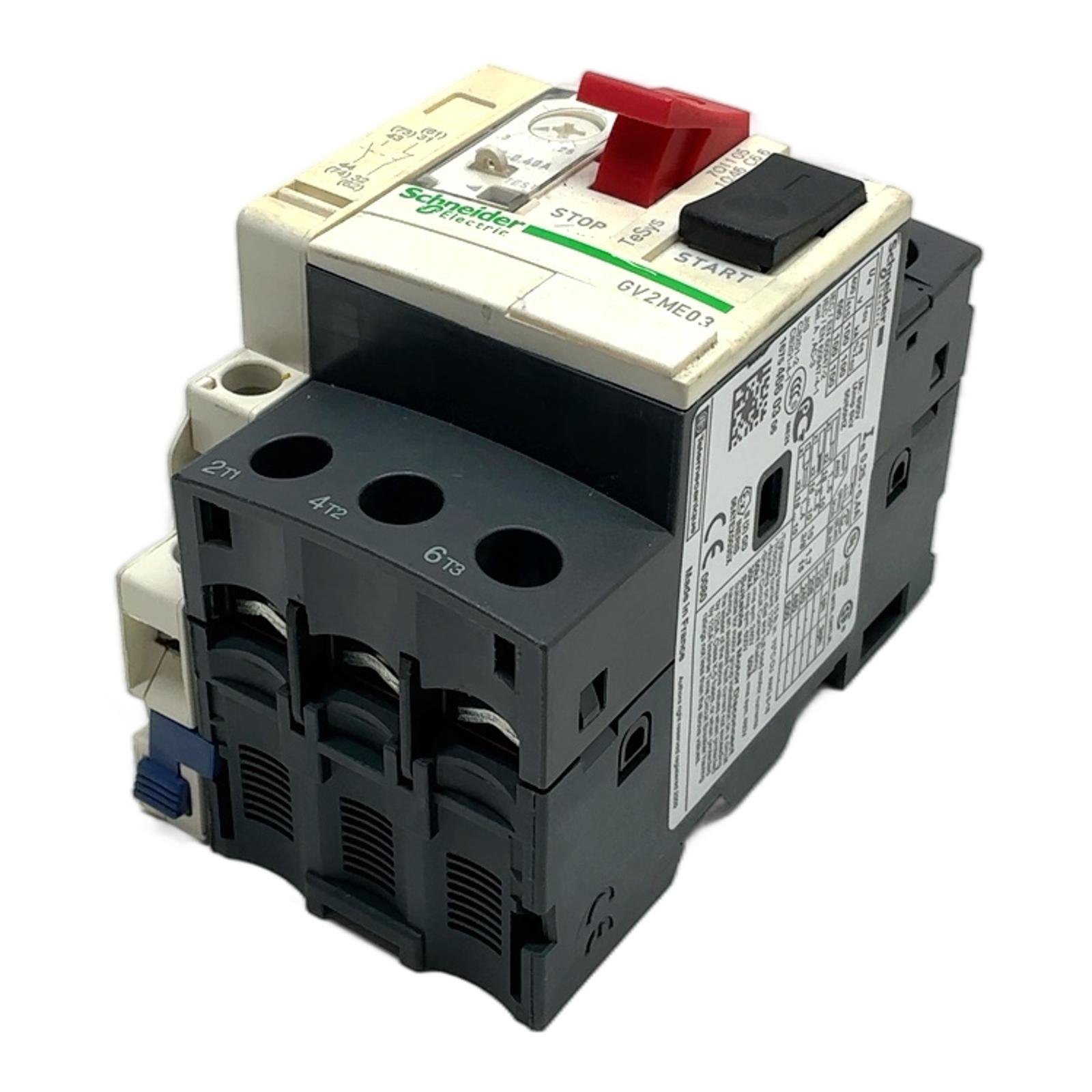

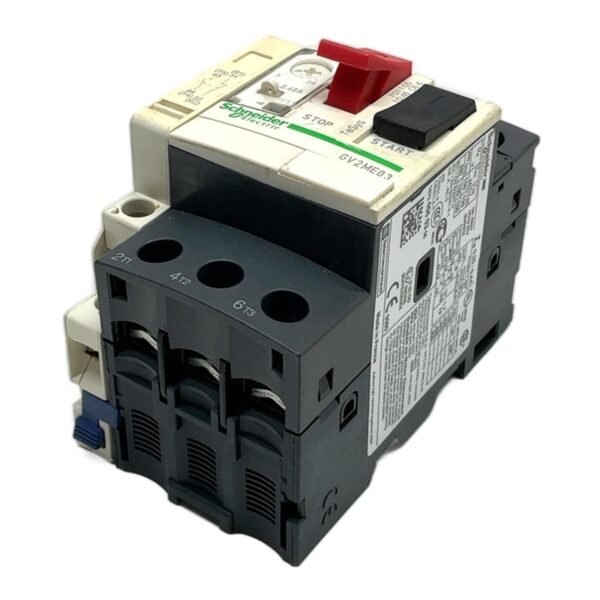

Schneider Electric TeSys GV2 Motor Protection Circuit Breaker with Auxiliary Contact Description This is a Schneider Electric GV2ME03, a thermal-magnetic motor circuit breaker from the TeSys GV2 range. It is designed to protect motors against overloads, short circuits, and phase failures. This unit features an adjustable thermal setting range from 0.25 to 0.4 Amperes and is operated via convenient push buttons. Included is a GVAN11 side-mounted auxiliary contact block, providing one normally open (NO) and one normally closed (NC) contact for status signaling. Specifications Manufacturer: Schneider Electric Series: TeSys GV2 Model: GV2ME03 Auxiliary Contact Model: GVAN11 Current Setting Range: 0.25 to 0.4 A Rated Operational Voltage (Ue): up to 690V AC Poles: 3P (3-pole) Control Type: Push-button (Start/Stop) Protection Type: Thermal-Magnetic Mounting: 35mm DIN Rail Label Info Main Unit: GV2ME03, Ie 0.25-0.4A, Ue 690V, IEC/EN 60947 Auxiliary Unit: GVAN11, Ui 690V, Ith 6A, AC15 720VA/240V Application Ideal for the protection of small three-phase motors in various industrial applications such as conveyor systems, pumps, fans, and processing machinery where precise overload protection is critical. Country of Origin The main circuit breaker is made in France, and the auxiliary contact block is made in the Czech Republic. CO2 Impact By purchasing this pre-owned component, you are contributing to a circular economy and have helped avoid approximately 12.0 kg of CO2 emissions associated with the production of a new unit. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the primary function of the GVAN11 auxiliary contact block included with this GV2ME03?The GVAN11 provides additional signaling contacts (1 Normally Open, 1 Normally Closed) that are mechanically linked to the main breaker’s status. These can be used to signal the ON/OFF or tripped state of the breaker to a PLC, indicator light, or alarm system. How do I correctly set the thermal overload protection on the GV2ME03 for a motor with a Full Load Amp (FLA) of 0.35A?You should turn the rotary dial on the front of the device to align the arrow with the ‘0.35’ mark. This ensures the breaker will trip if the motor consistently draws more current than its rated FLA, protecting it from overheating. Is this circuit breaker suitable for use in both single-phase and three-phase applications?Yes, while it is a 3-pole breaker designed for three-phase motors, it can also be used for single-phase motor protection by wiring the poles in series according to the manufacturer’s instructions to ensure all thermal elements are engaged. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
