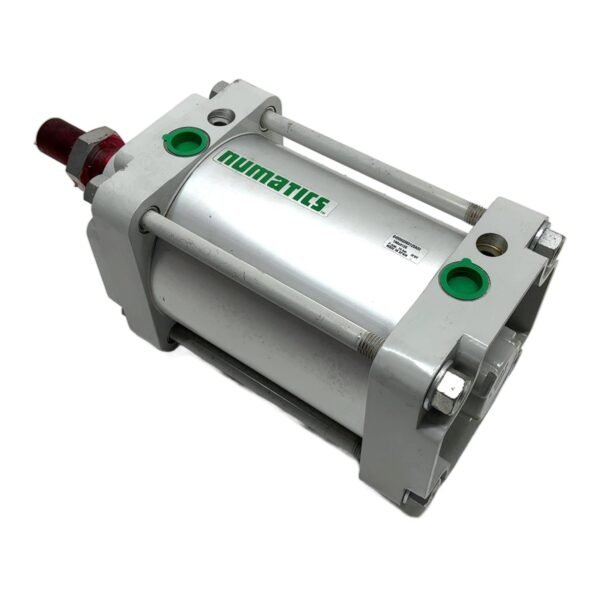

NUMATICS G450AQSK0125A00

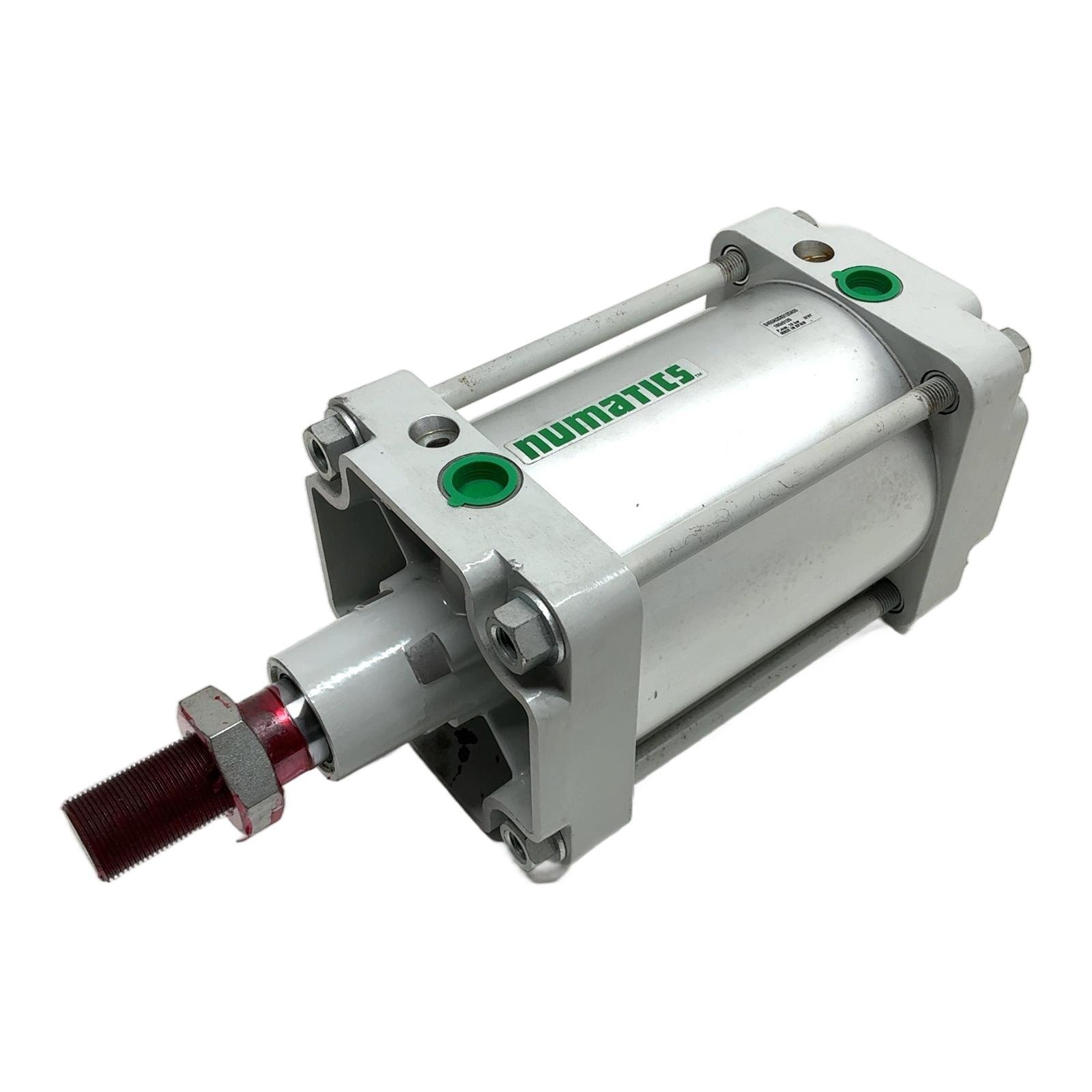

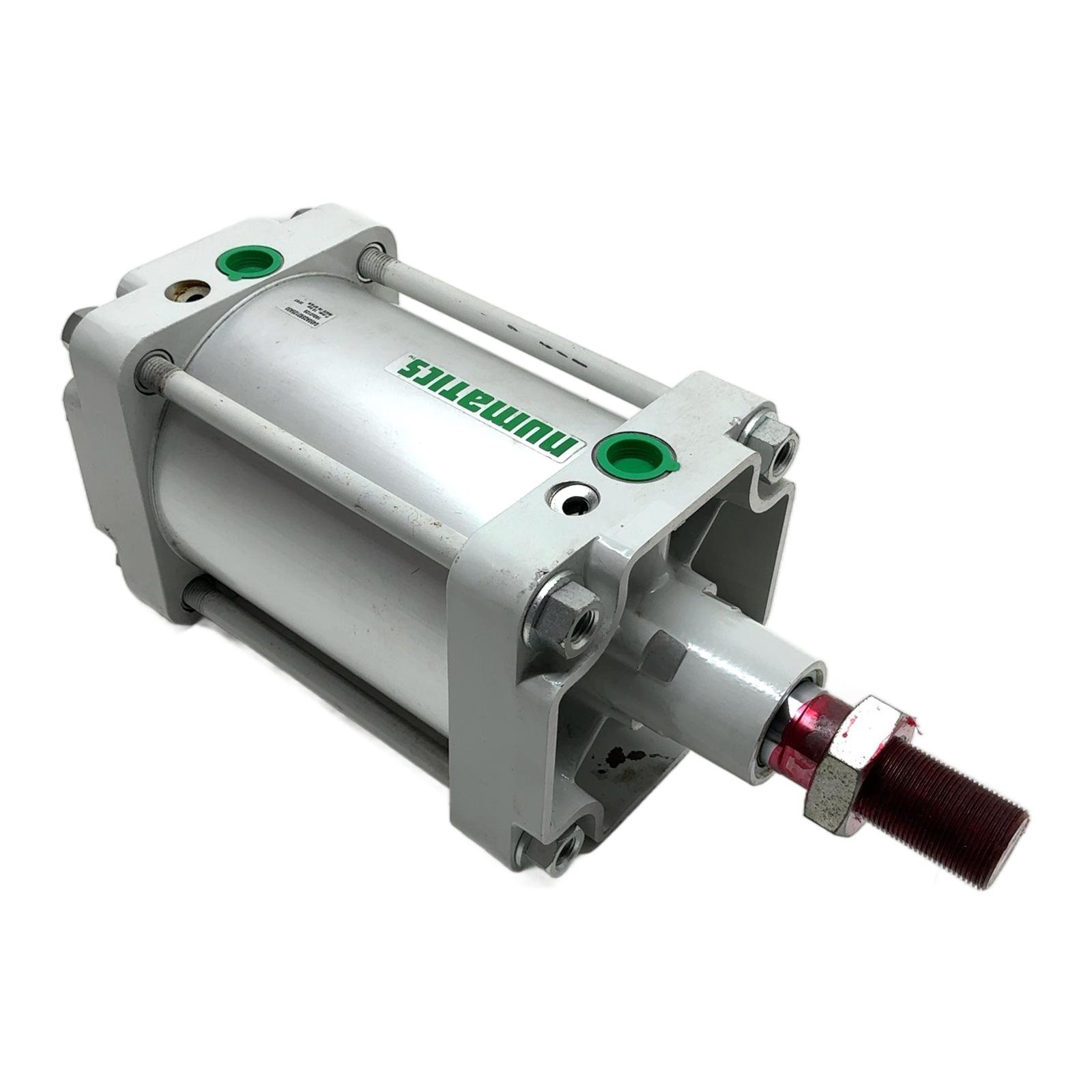

Numatics ISO 15552 Standard Pneumatic Cylinder Description This is a G450 series pneumatic cylinder from Numatics, designed according to the ISO 15552 standard. It is a double-acting tie-rod cylinder featuring a 160mm bore and a 125mm stroke. The cylinder is equipped with adjustable pneumatic cushioning at both ends to ensure smooth deceleration of the piston, reducing shock and vibration. A magnetic piston is included, allowing for non-contact position sensing using external sensors. This robust cylinder is suitable for a wide variety of automation and linear motion applications. Specifications Manufacturer: Numatics (Emerson) Series: G450 Type: G450AQSK0125A00 Standard Compliance: ISO 15552 Action: Double-acting Bore Diameter: 160 mm Stroke Length: 125 mm Piston: Magnetic Cushioning: Adjustable, Pneumatic Maximum Operating Pressure: 10 bar Label Info Model: G450AQSK0125A00 Dimensions: 160×0125 P.max: 10 bar Factory Code: 3F8Y Application Ideal for use in factory automation, material handling, packaging machinery, and other systems requiring reliable and powerful linear actuation. Country of Origin Made in Spain. CO2 Impact Reusing this component saves approximately 90 kg of CO2, which is comparable to the emissions from driving a standard car for 450 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the significance of the ISO 15552 standard for this cylinder?The ISO 15552 standard ensures that the cylinder’s mounting dimensions, bore sizes, and rod end threads are interchangeable with cylinders from other manufacturers that also comply with this standard. This makes it an easy drop-in replacement. How do I adjust the pneumatic cushioning on this G450 cylinder?The cushioning is adjusted via small screws located on the end caps. Turning the screw changes the rate at which trapped air is exhausted, allowing you to control the deceleration speed of the piston at the end of its stroke for smoother operation. Can I use standard proximity sensors with the magnetic piston in this cylinder?Yes, the integrated magnetic piston is designed to work with standard cylinder position sensors (like reed or hall-effect sensors). These can be mounted in the grooves on the cylinder’s profile body to detect the piston’s position. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
