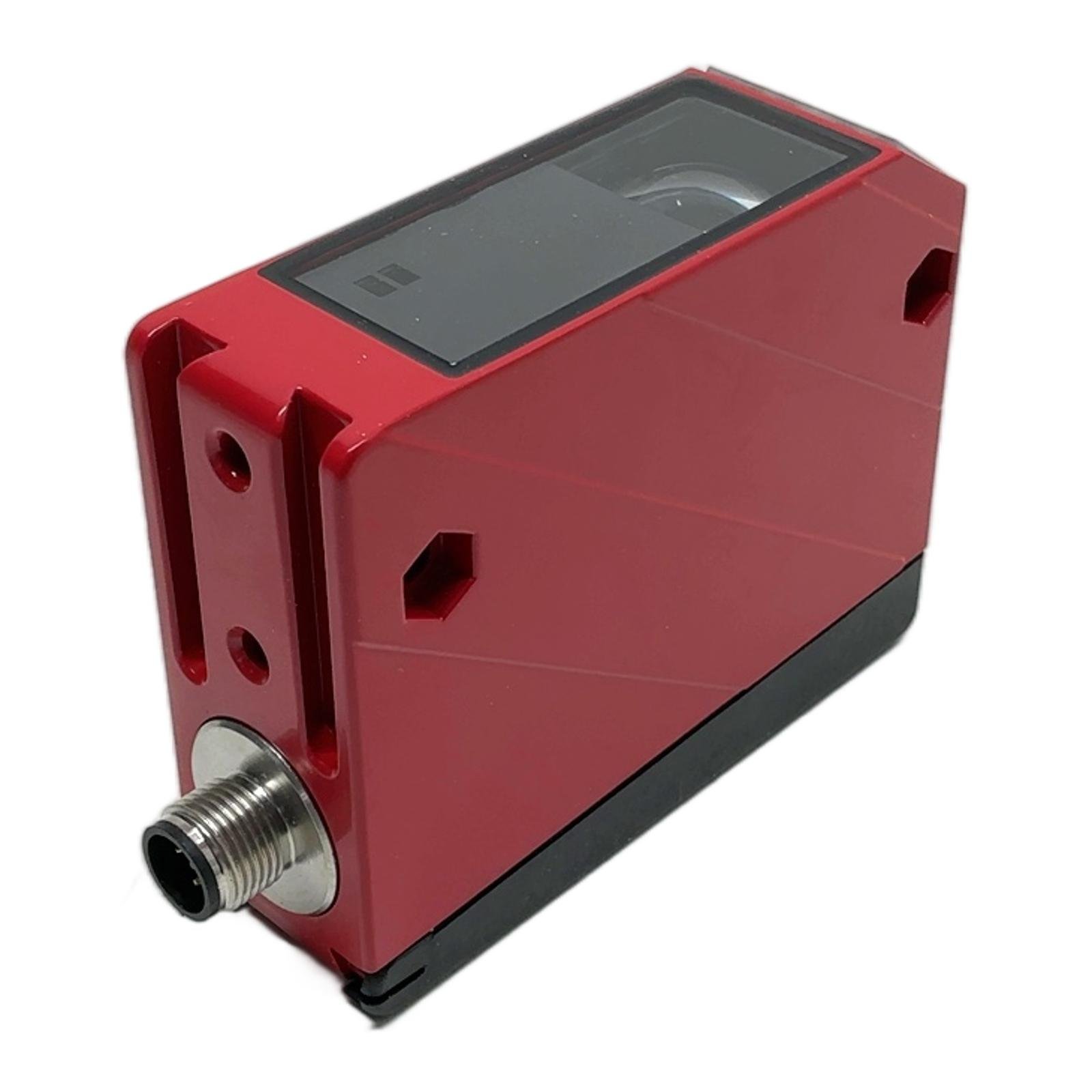

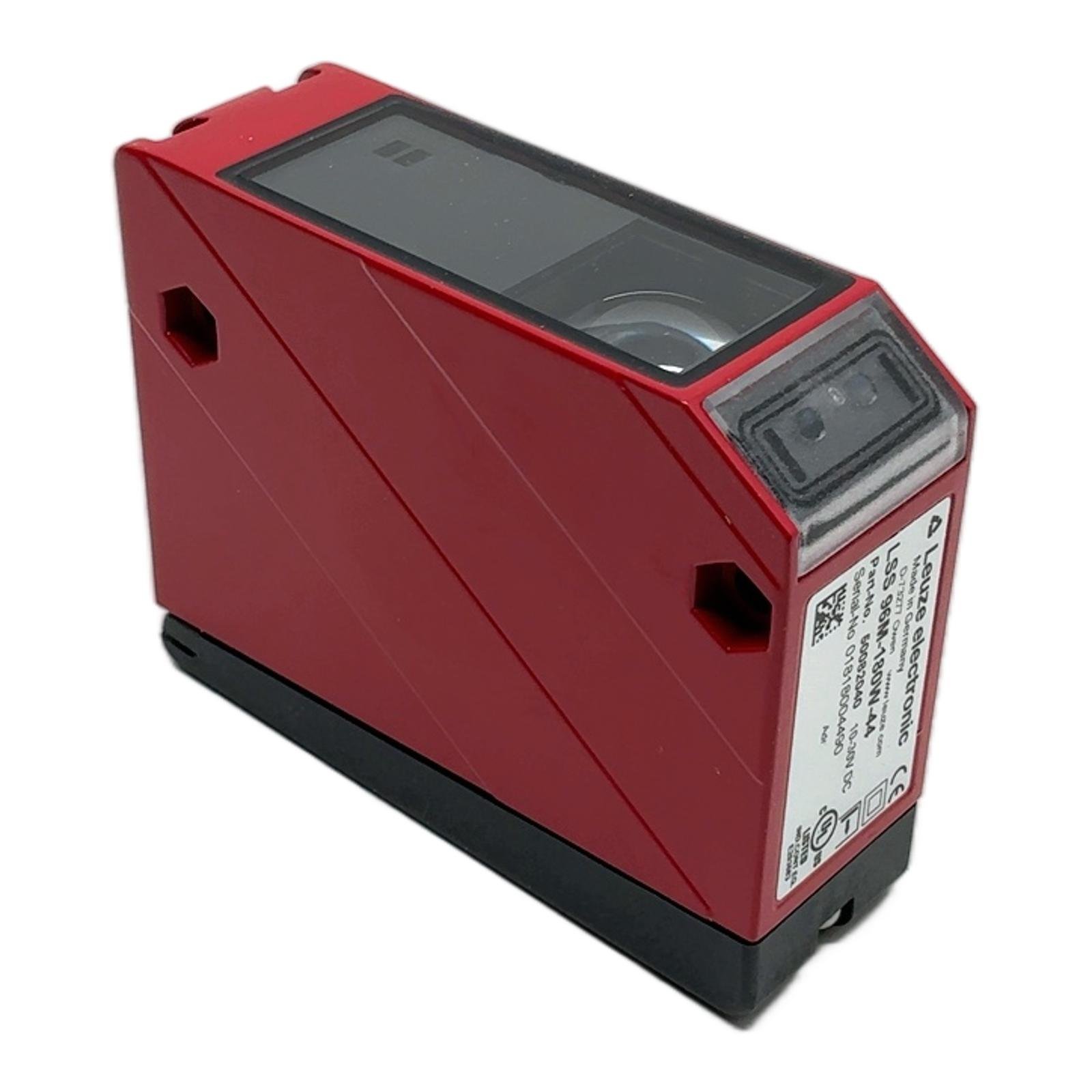

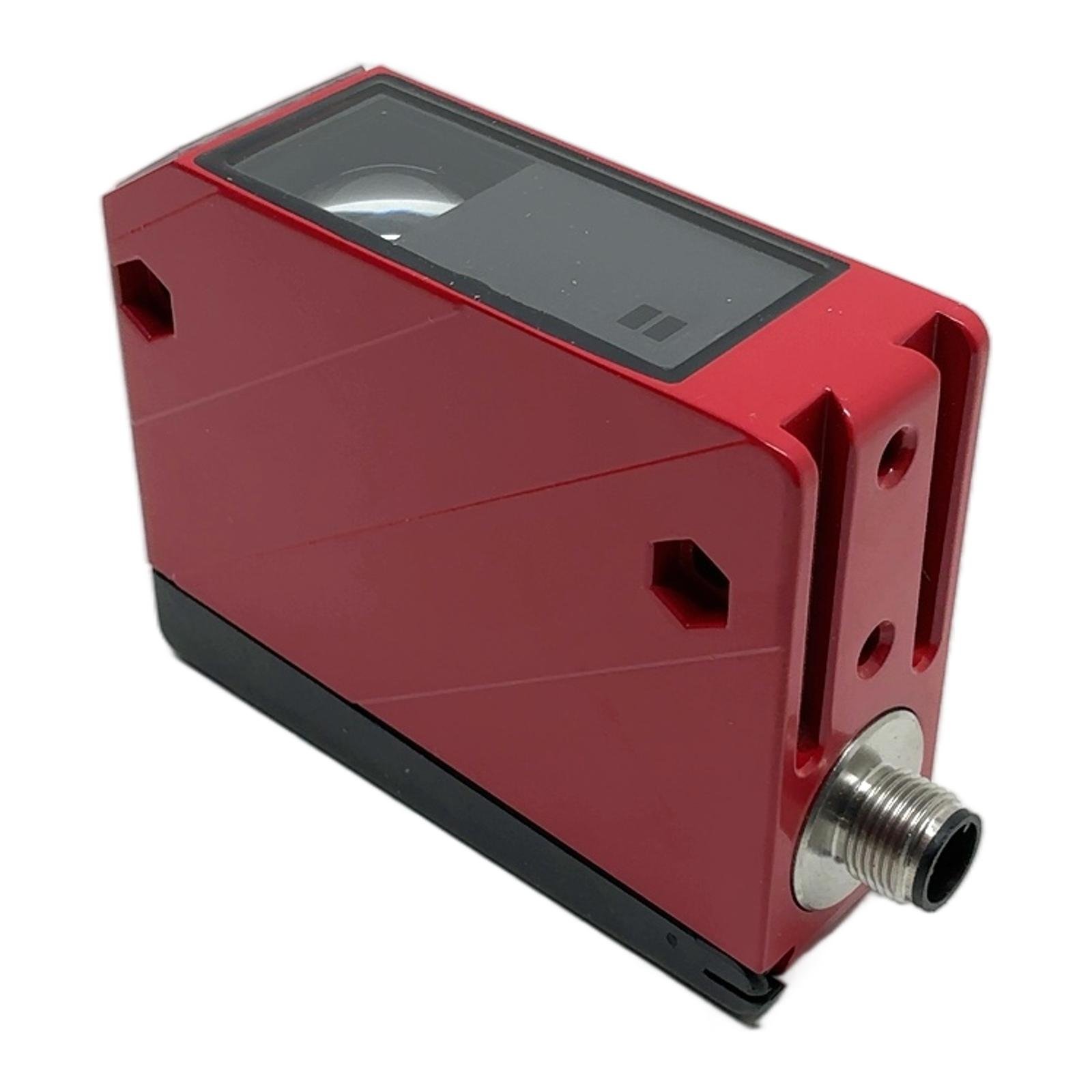

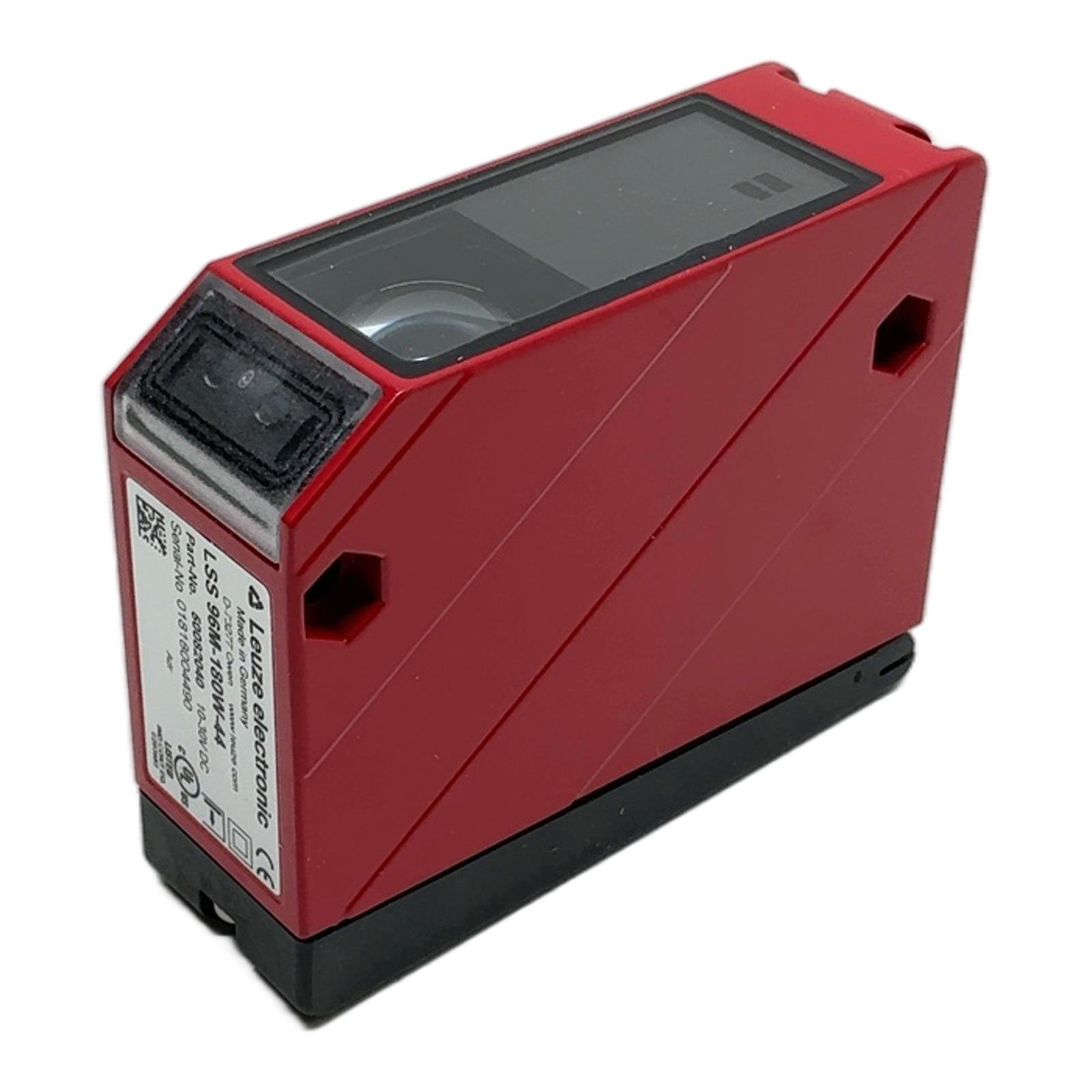

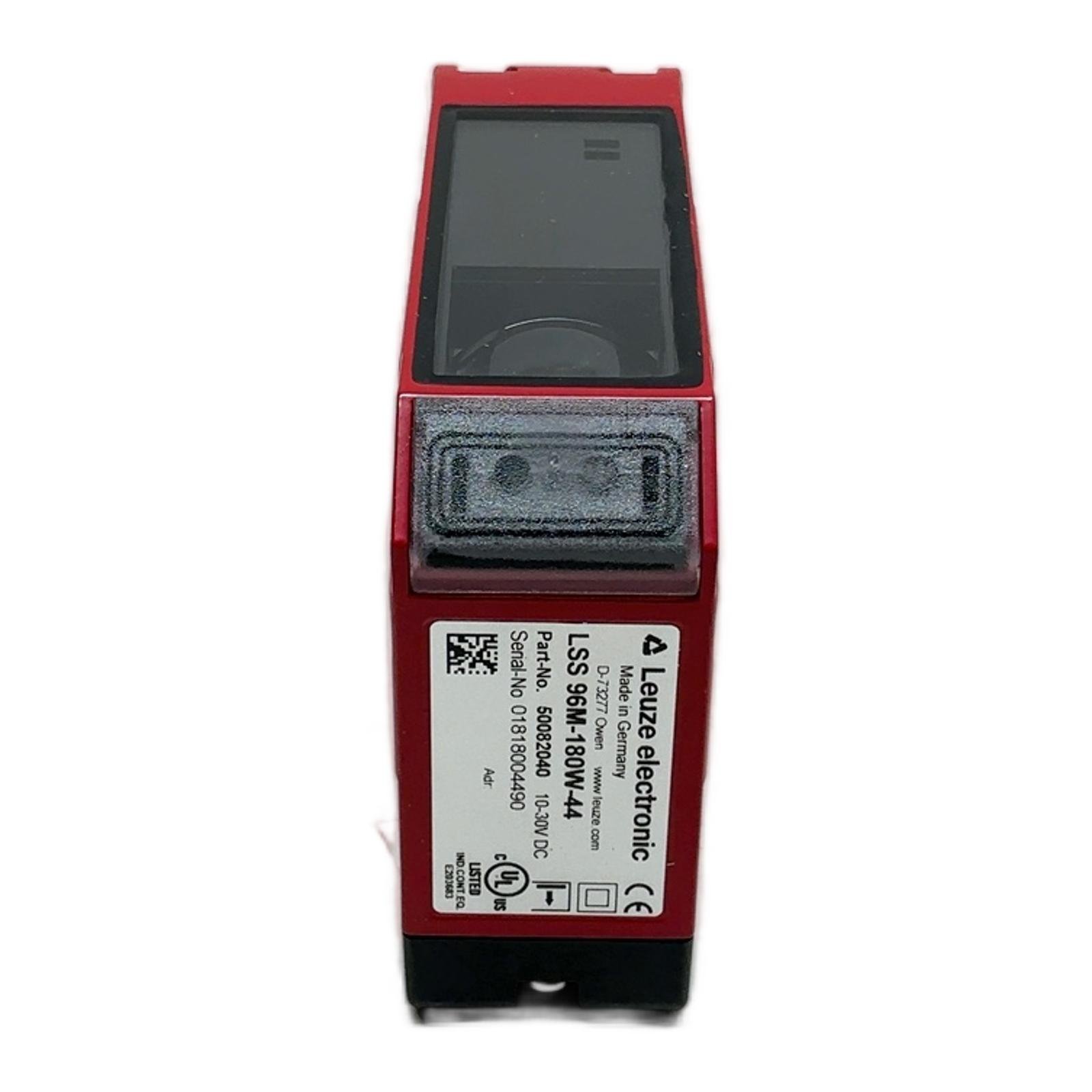

LEUZE LSS 96M-180W-44 50082040

Leuze LSS 96M-180W-44 Photoelectric Sensor Transmitter Description The Leuze LSS 96M-180W-44 is a high-performance through-beam photoelectric sensor transmitter designed for demanding industrial automation tasks. As part of the 96 series, it offers an exceptional operating range of up to 180 meters, ensuring reliable detection over long distances. Its rugged die-cast aluminum housing and high protection ratings of IP67 and IP69K make it perfectly suited for use in harsh environments, including those with high-pressure washdowns. Specifications Manufacturer: Leuze Type: LSS 96M-180W-44 Part Number: 50082040 Function: Through-beam photoelectric sensor transmitter Operating Range: 0 – 180 m Light Source: LED, Infrared Supply Voltage: 10 – 30V DC Connection: M12 connector, 4-pin Degree of Protection: IP67, IP69K Operating Temperature: -40 to +60 deg. C Housing Material: Die-cast aluminum Label Info S/N: 01816004480 Batch-No.: D0A143333 Application This sensor transmitter is ideal for applications in logistics, conveyor technology, material handling, and plant engineering where long-distance and reliable object detection is critical. Country of Origin Made in Germany. CO2 Impact By purchasing this pre-owned component, you are contributing to a circular economy and have helped avoid approximately 6.8 kg of CO2 emissions associated with the production of a new unit. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the required corresponding receiver for this LSS 96M-180W-44 transmitter?This transmitter is part of the Leuze 96 series. It must be paired with a compatible receiver, such as the Leuze LSR 96M/P-… or LSR 96M/N-… models, to function correctly as a through-beam sensor. What does the -44 suffix in the type number signify?The suffix ‘-44’ in Leuze product numbers often refers to specific connection or feature variants. In this case, it typically indicates a model with a 4-pin M12 connector for power and signaling. Always check the datasheet to confirm compatibility with your wiring setup. Is this sensor suitable for outdoor applications?Yes, with its high IP67 and IP69K ratings, the sensor is fully protected against dust and water ingress, including high-pressure, high-temperature washdowns. The die-cast aluminum housing also provides excellent durability for outdoor or harsh industrial environments. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
