MANNESMANN REXROTH Z2FS 6-2-42/2QV 481624/5

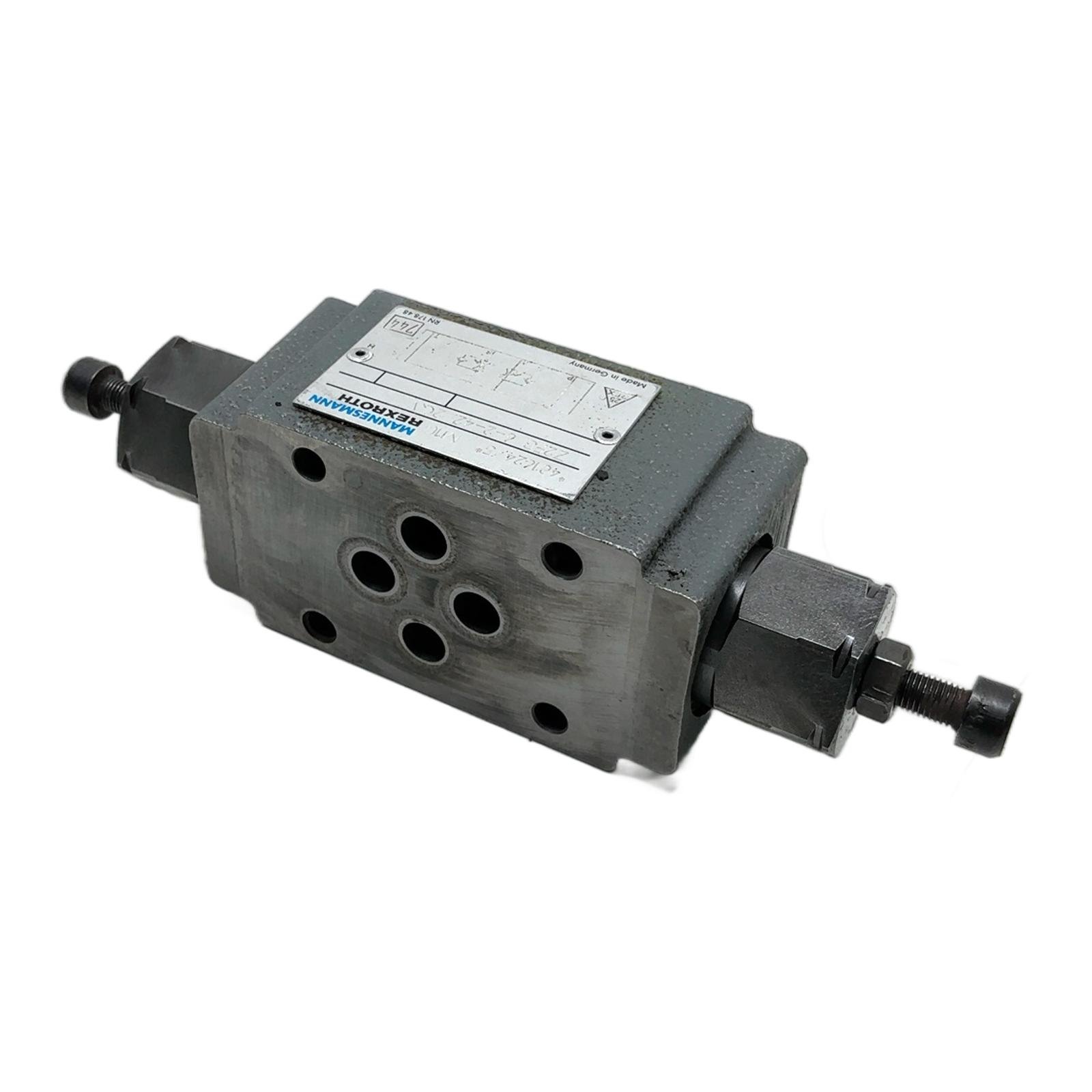

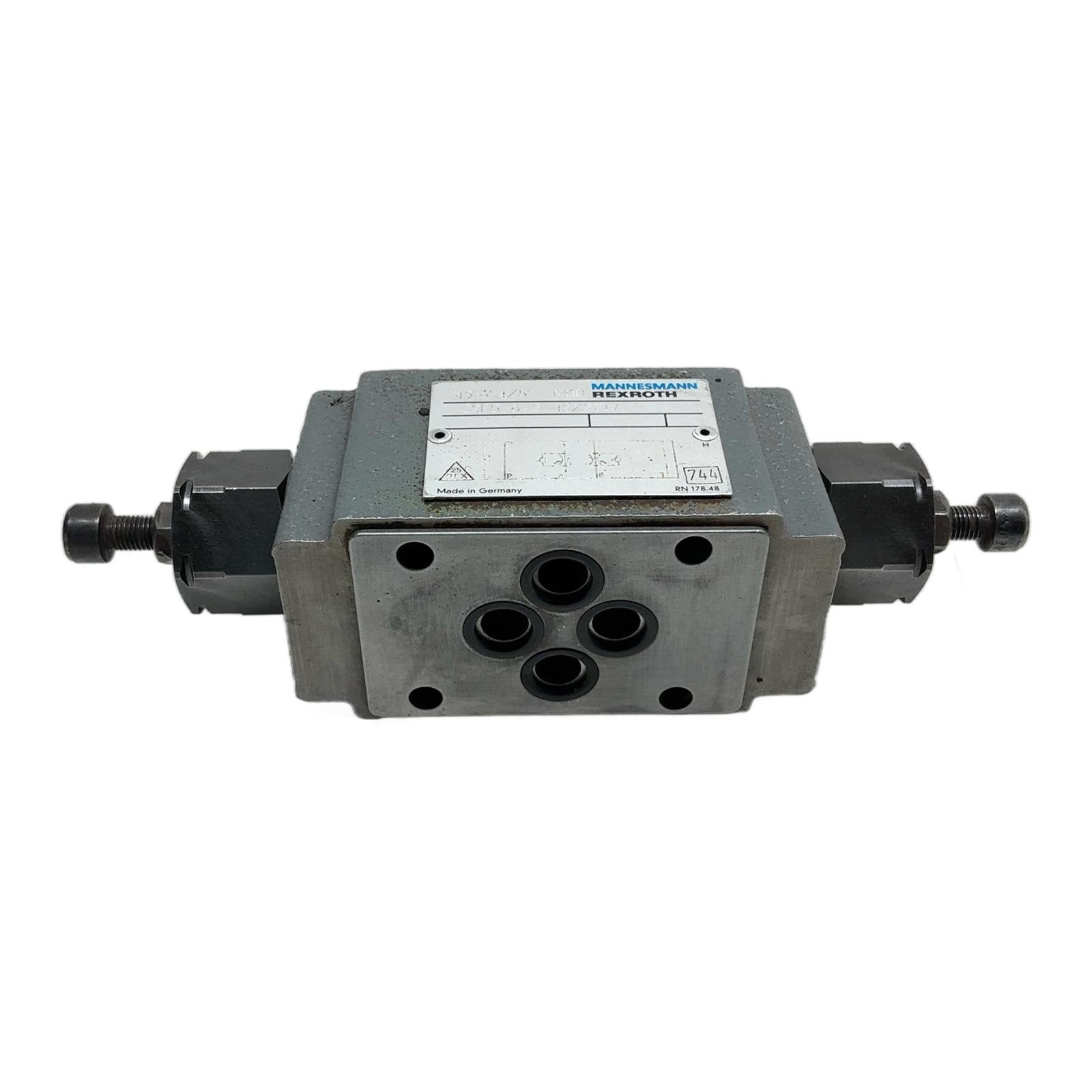

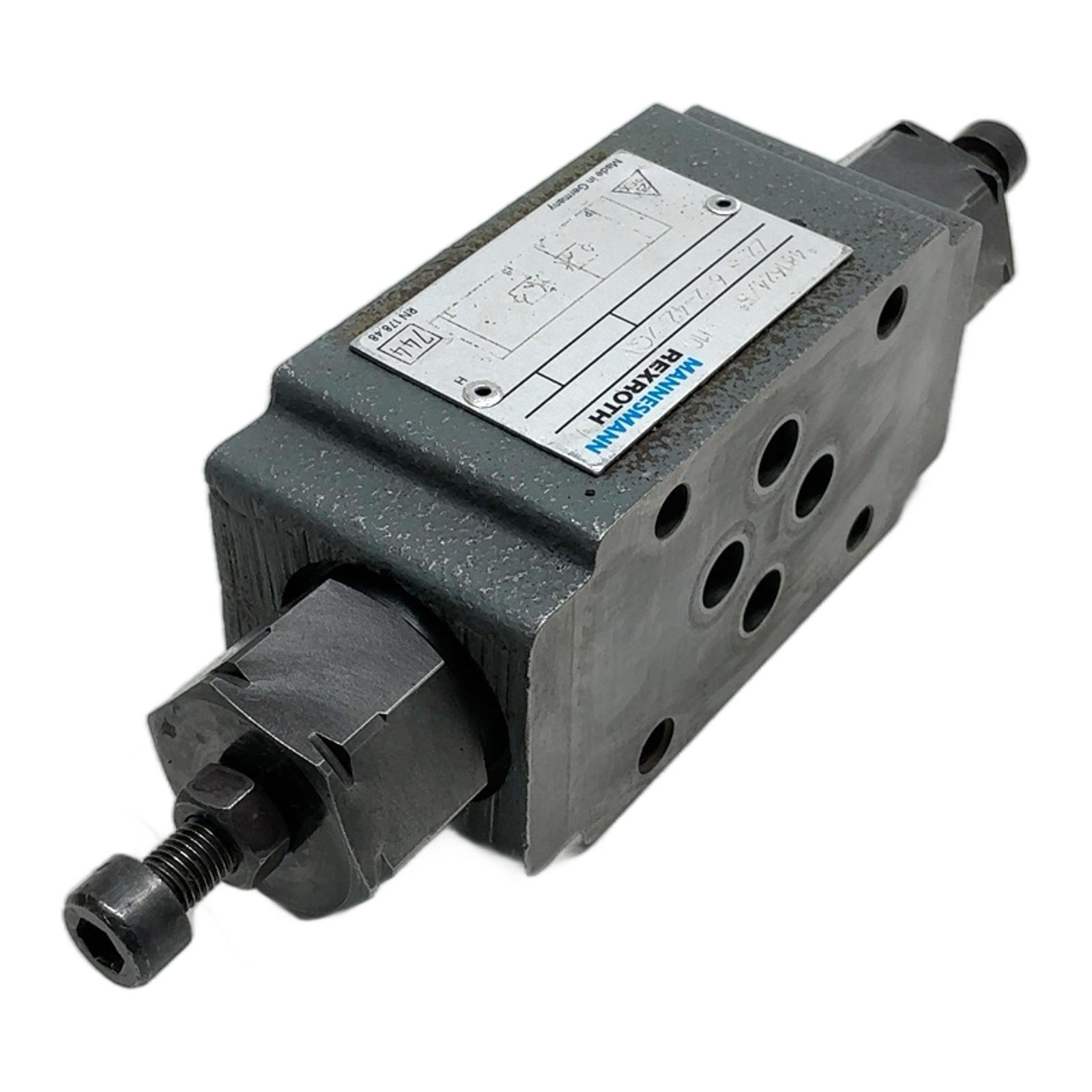

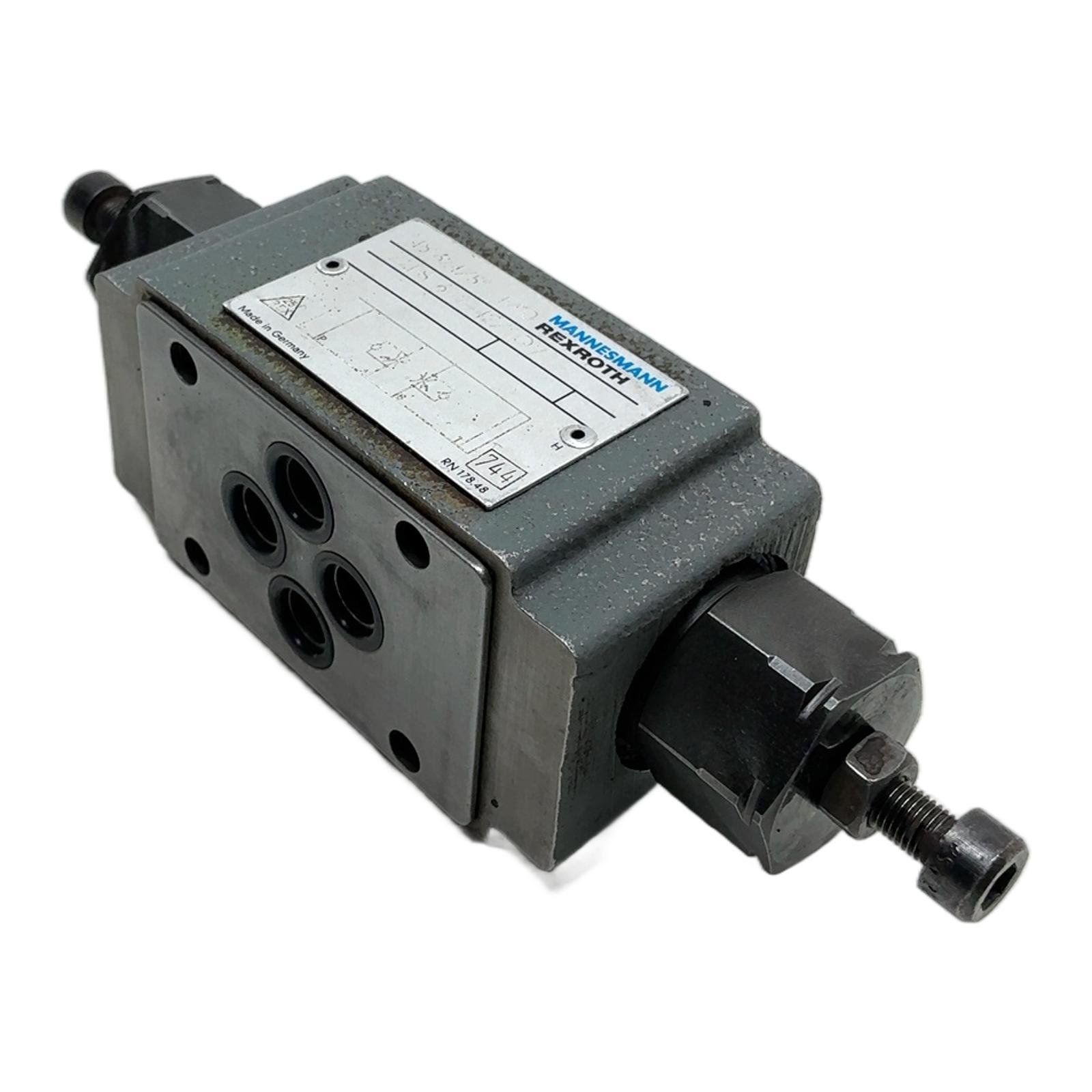

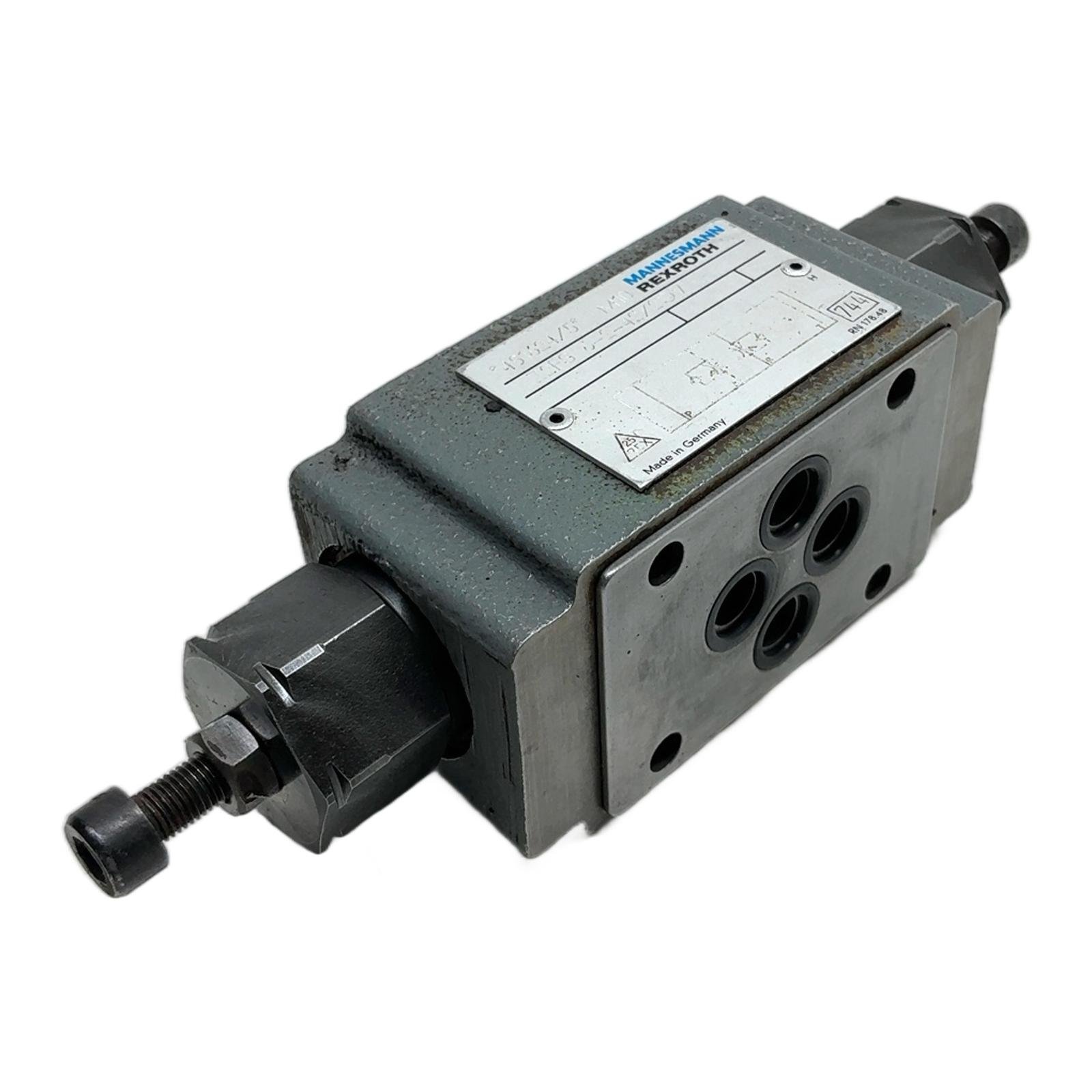

Rexroth NG6 Hydraulic Sandwich Plate Valve Description This is a Z2FS 6-2-42/2QV, a double throttle check valve manufactured by Mannesmann Rexroth. As a sandwich plate valve of size NG6 (CETOP 3), it can be easily integrated into vertical stacking assemblies. It allows for flow adjustment in one direction and provides free flow in the reverse direction, independently for both service ports A and B. This makes it ideal for controlling actuator speed. Specifications Manufacturer: Mannesmann Rexroth Type: Z2FS 6-2-42/2QV Part Number: 481624/5 Size: NG6 / CETOP 3 Function: Double throttle check valve, pilot operated Adjustment Type: Screw with locknut Seal Material: FKM (Viton) Label Info Model: Z2FS 6-2-42/2QV Part No: 481624/5* M10 RN: 178.48 Application This valve is commonly used in industrial hydraulic systems to control the velocity of hydraulic cylinders and motors. Its sandwich plate design makes it suitable for compact hydraulic power units in machine tools, presses, and general industrial machinery. Country of Origin Made in Germany CO2 Impact Reusing this component saves an estimated 2.4 kg of CO2 compared to producing a new one. This saving is based on the production of a 1.2 kg steel valve. Availability This is a used item, available for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question?What does NG6 signify for this valve? Question?Can this valve be used for both meter-in and meter-out control? Question?What is the significance of the “2QV” suffix? profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Friday, March 13, 2026
