SKF FY40 TR

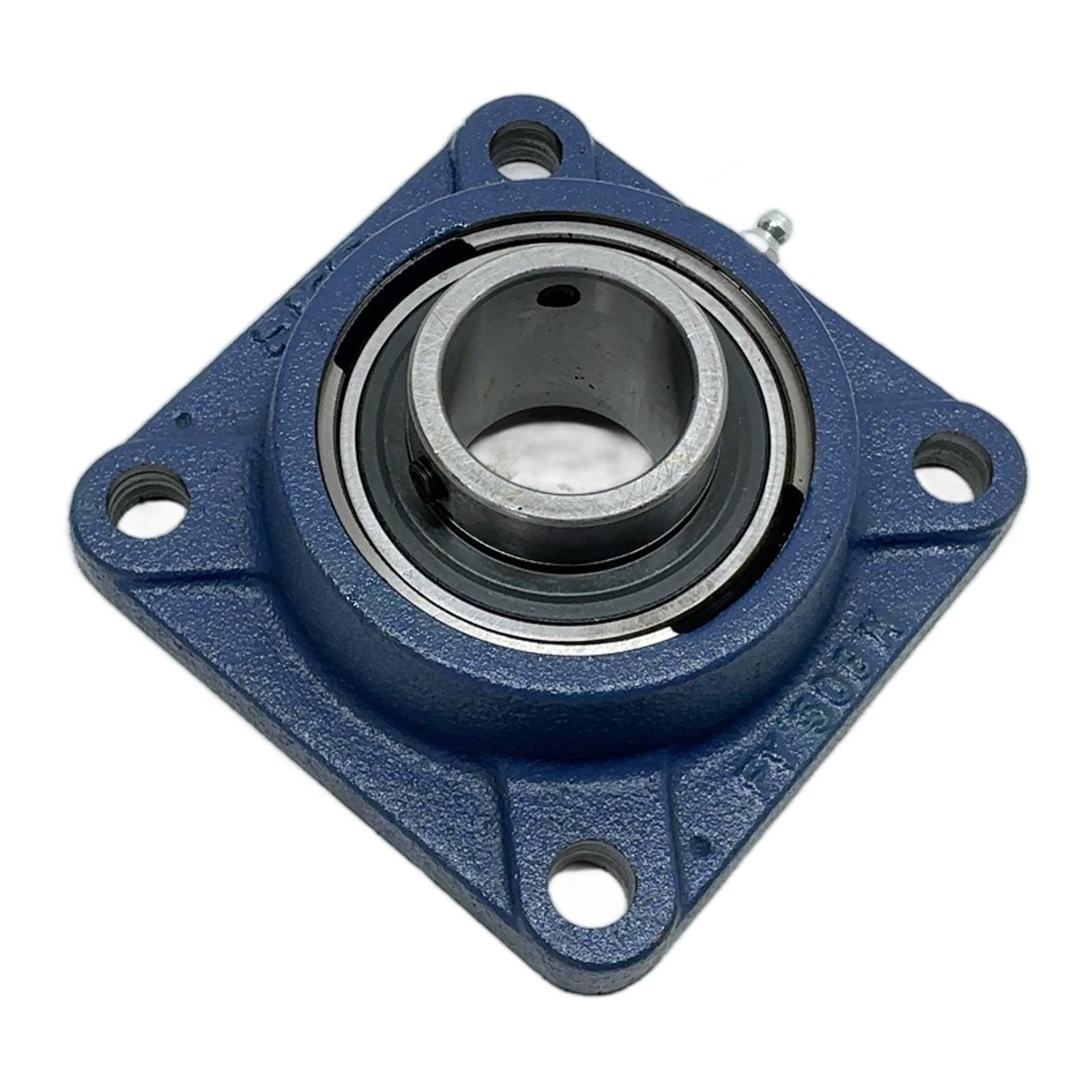

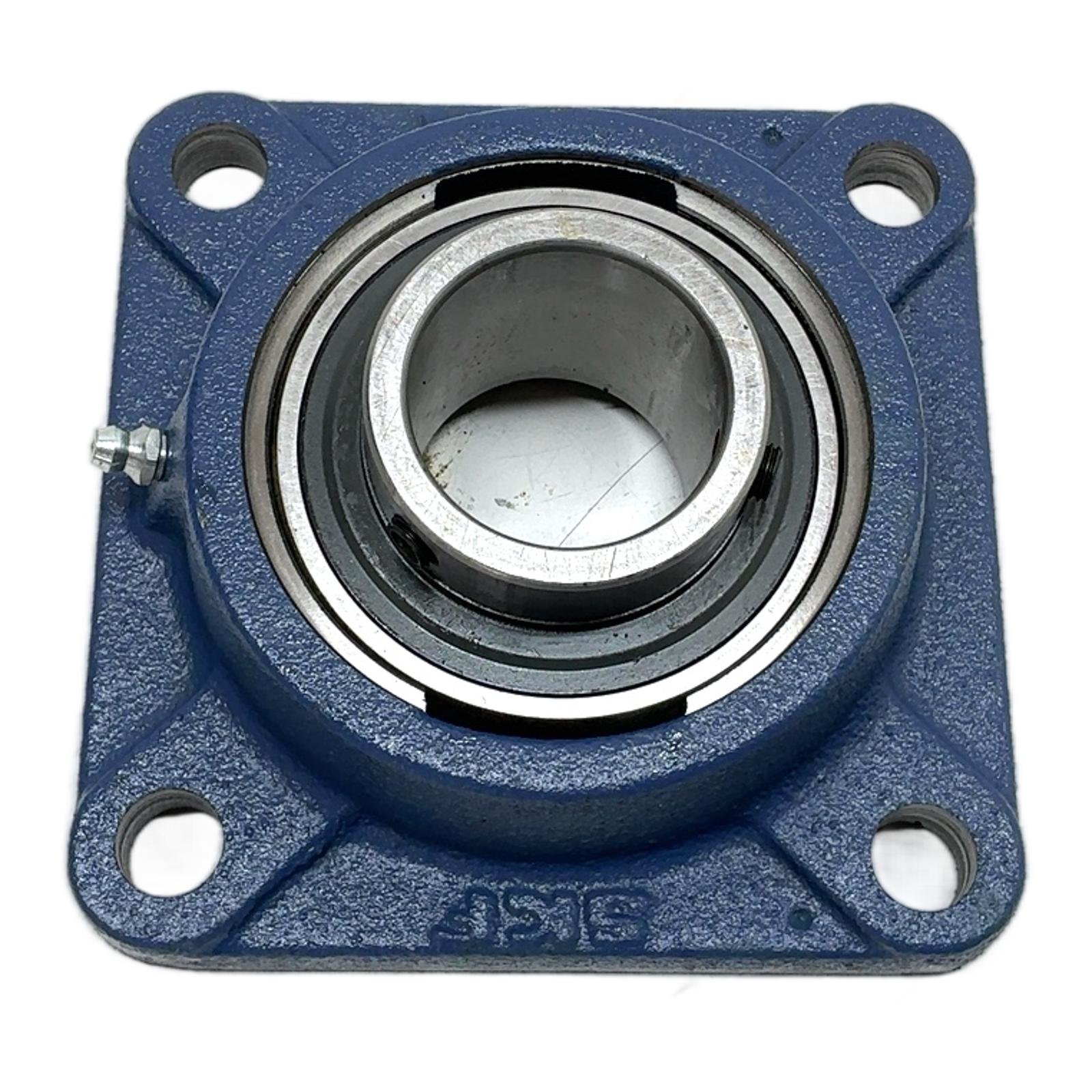

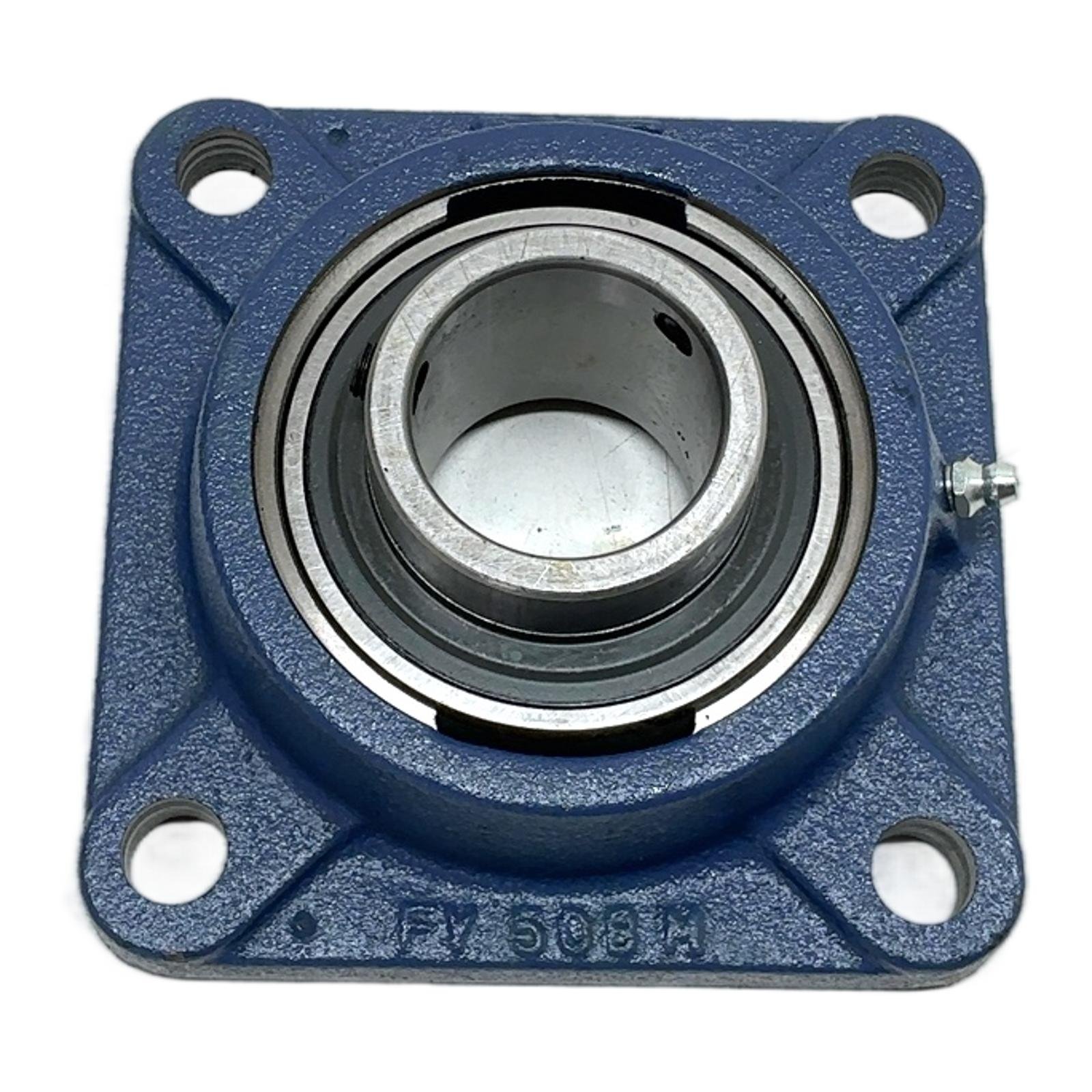

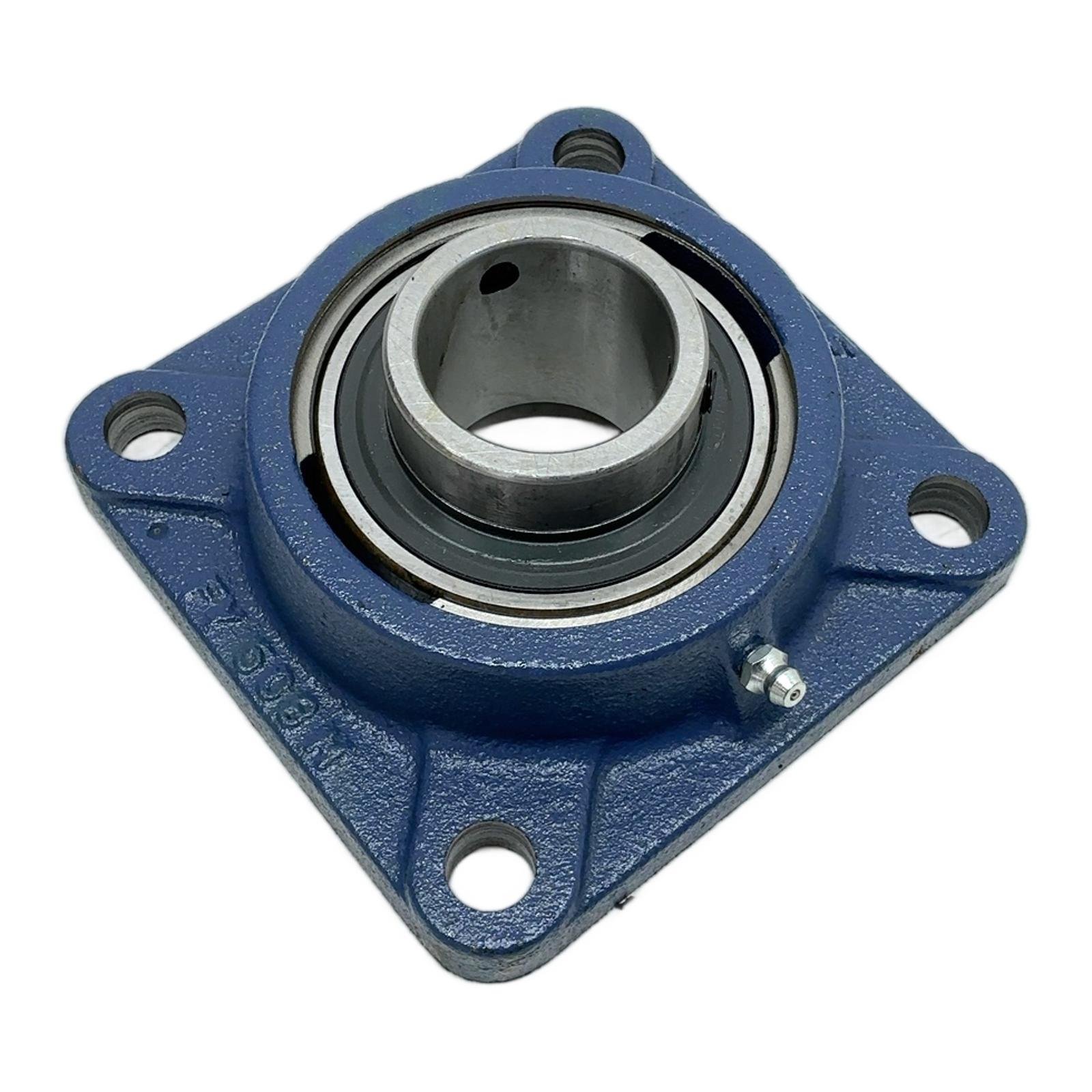

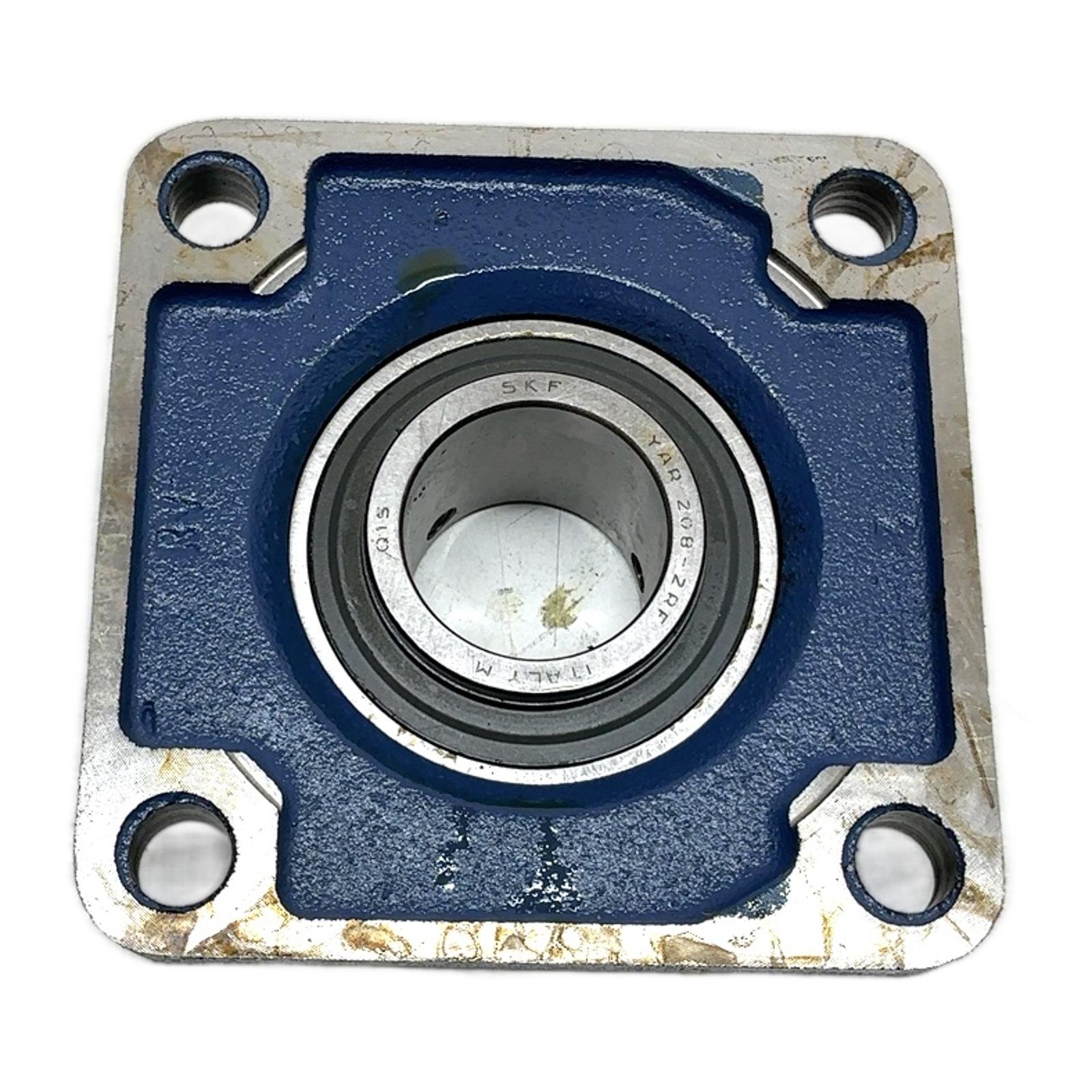

SKF FY 40 TR 40mm Square Flange Bearing Unit Description The SKF FY 40 TR is a robust and reliable square flanged ball bearing unit designed for industrial applications requiring straightforward mounting and dependable performance. This unit combines a cast iron housing with a high-quality insert bearing, featuring a set screw locking mechanism for easy and secure installation onto a 40mm shaft. The integrated seals protect the bearing from contaminants, extending its service life in various operating environments. Specifications Bore Diameter: 40 mm Housing Material: Cast Iron Housing Model: FY 508 H Bearing Insert: YAR 208-2F Locking Method: Set Screw Locking Number of Bolt Holes: 4 Label Info Manufacturer: SKF Model: FY 40 TR Country of Origin: Italy Application This bearing unit is ideal for use in conveyor systems, agricultural machinery, packaging equipment, and general industrial machinery where a simple and robust mounting solution is required. Country of Origin This SKF bearing unit is manufactured in Italy. CO2 Impact Opting for this component prevents the emission of approximately 2.6 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the emissions from driving a car for 13 kilometers. Availability This item is a New Old Stock (NOS) product, in excellent condition and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the correct tightening torque for the set screws on the YAR 208-2F insert?For a YAR 208-2F with an M8x1 set screw, SKF recommends a tightening torque of 6.5 Nm. Always use a calibrated torque wrench for proper installation. Is this bearing unit pre-lubricated and ready for installation?Yes, SKF bearing units like the FY 40 TR are supplied pre-filled with a high-quality grease. The grease nipple allows for re-lubrication as per the maintenance schedule of your application. Can the bearing insert (YAR 208-2F) be replaced separately from the housing (FY 508 H)?Absolutely. SKF bearing units are designed to be modular. You can purchase and replace just the YAR 208-2F insert if needed, which can be more cost-effective than replacing the entire unit. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
