INA KWSE20-H G3V1 FA520

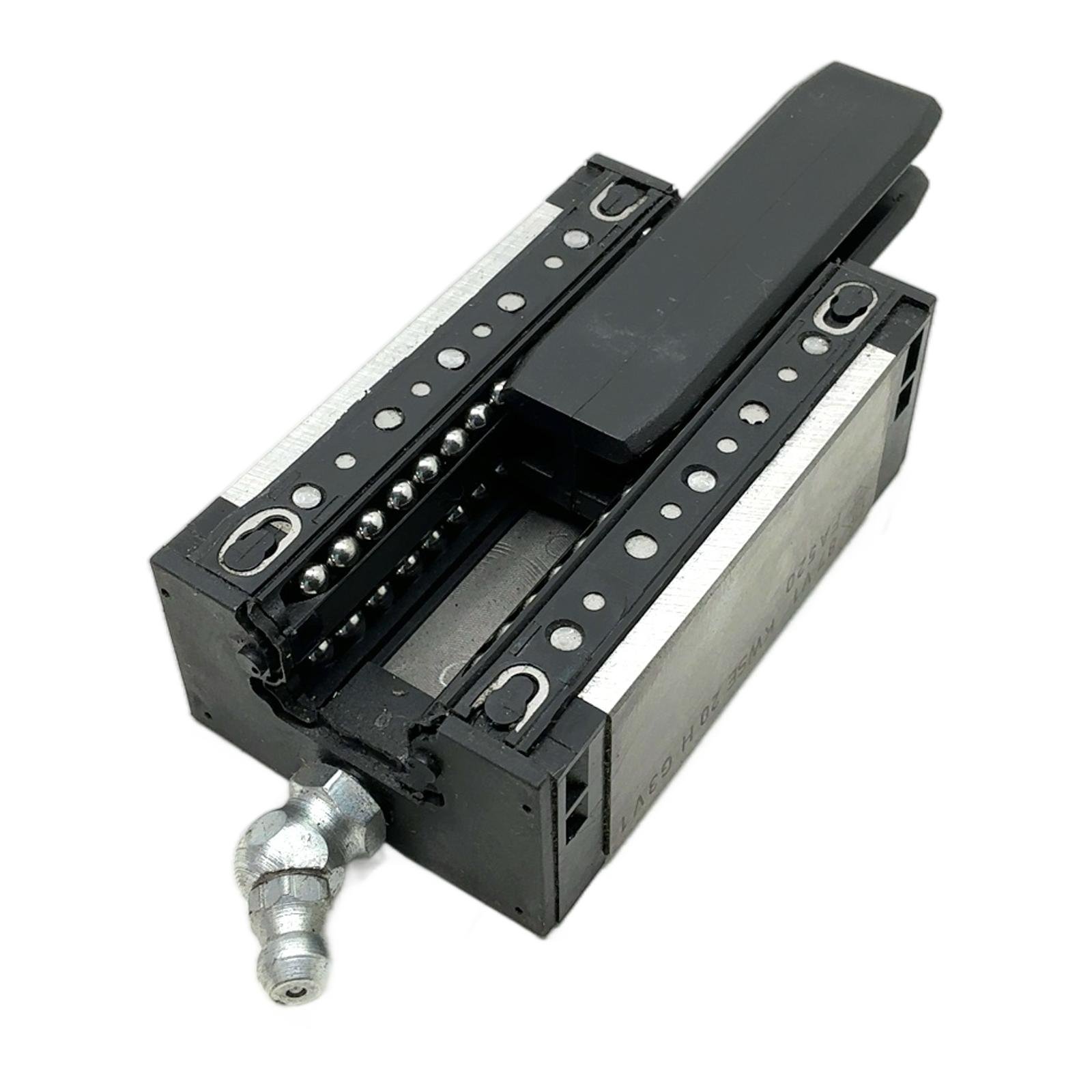

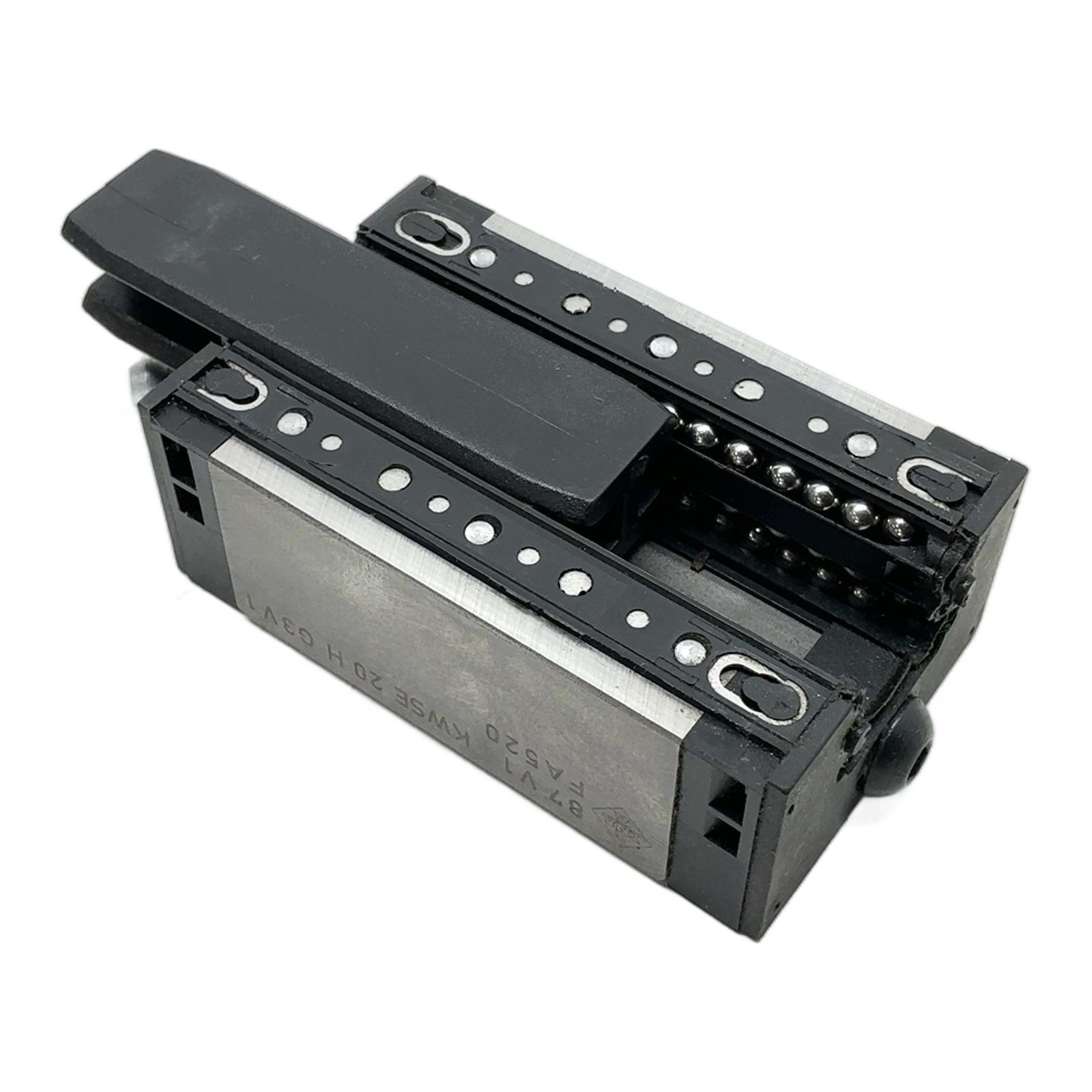

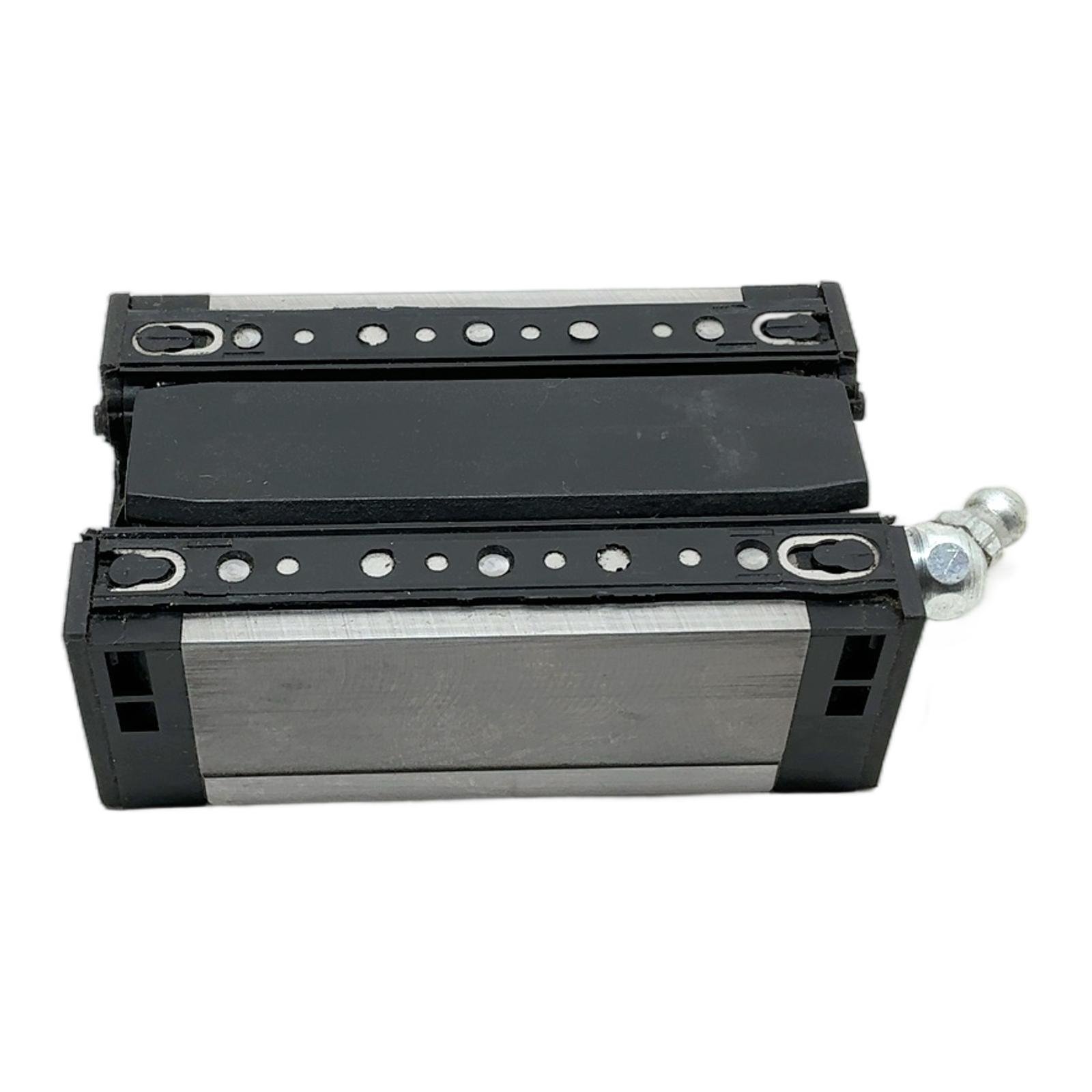

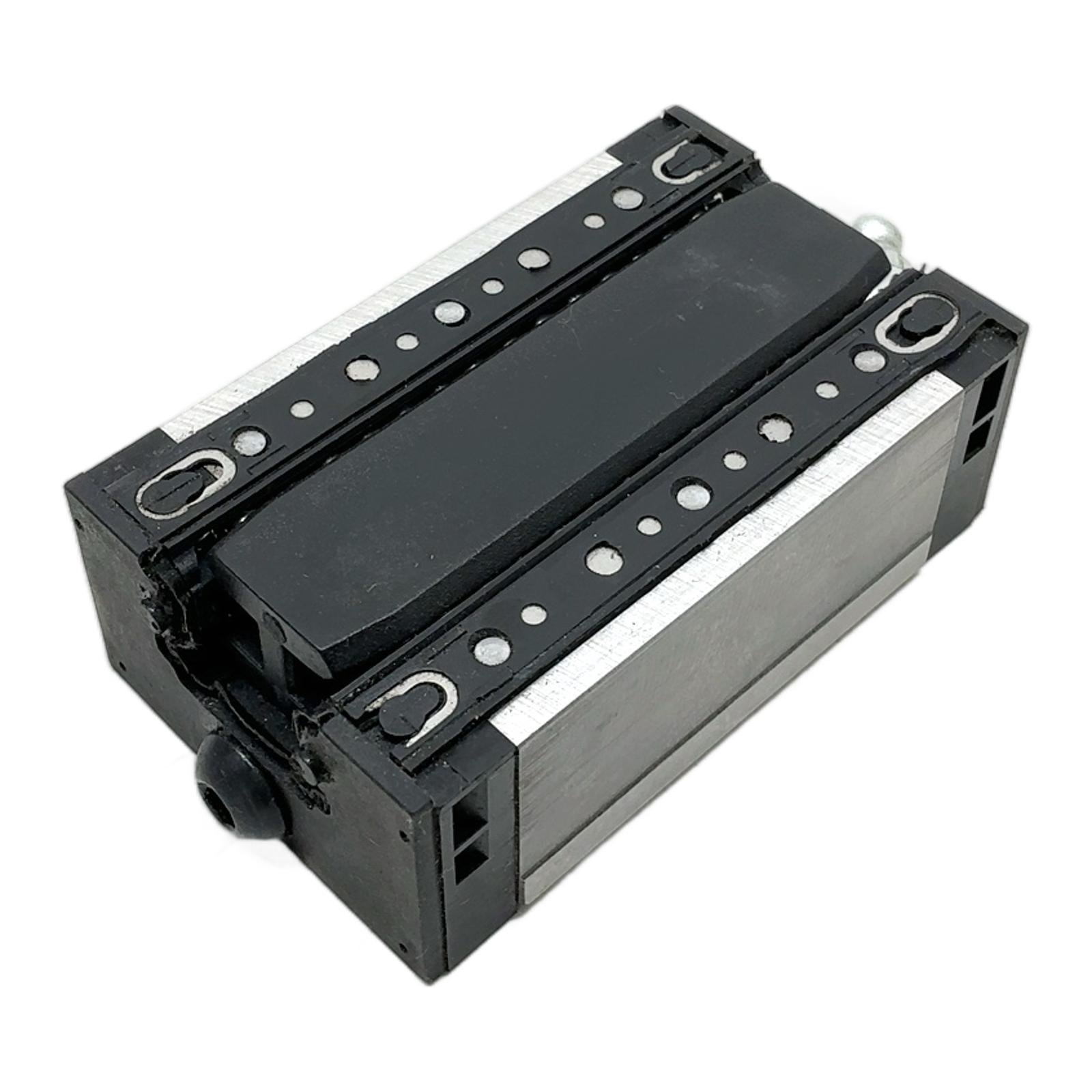

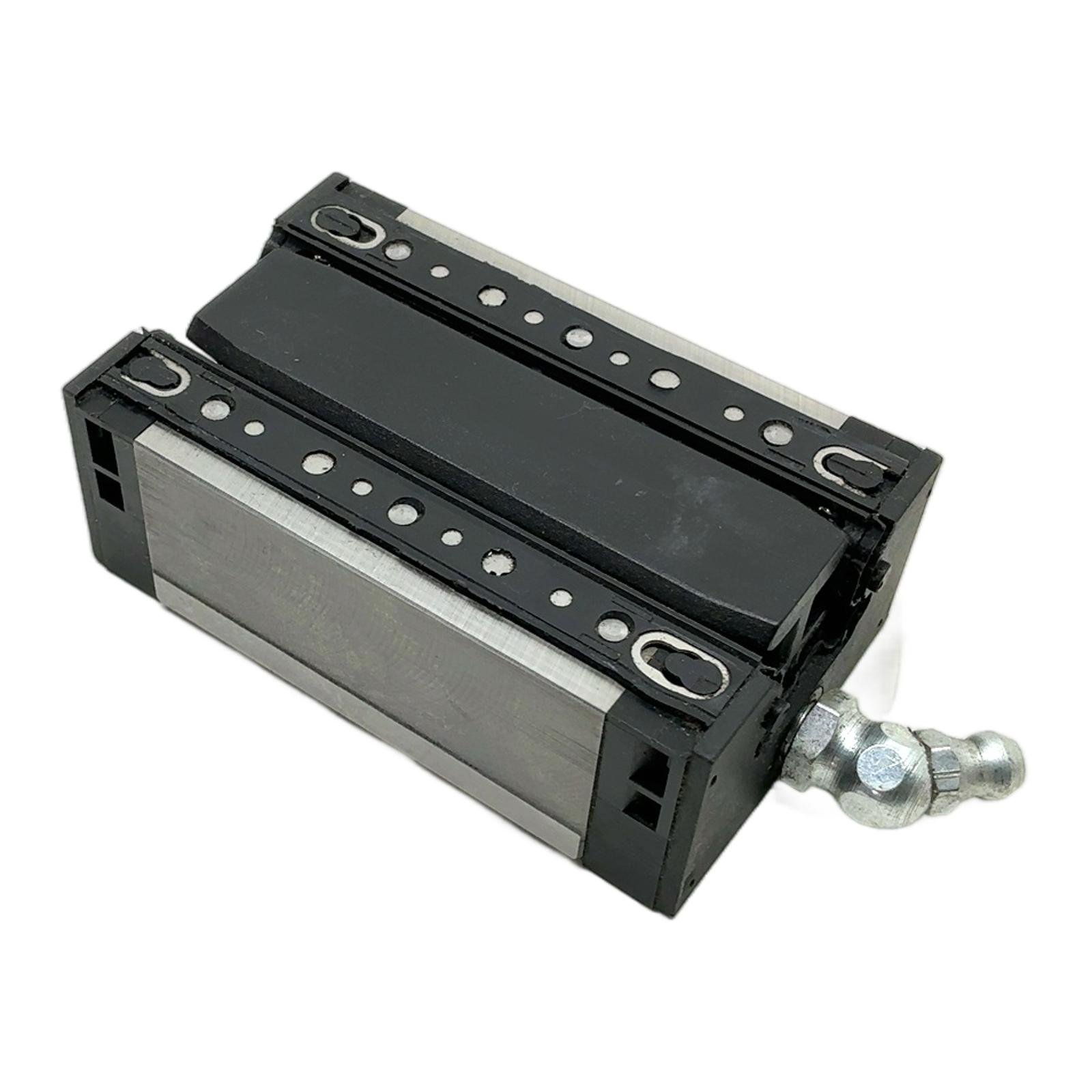

INA KWSE 20 H G3V1 Linear Guide Carriage Description The INA KWSE 20 H G3V1 is a high-performance, six-row linear recirculating ball bearing and guideway assembly, also known as a linear carriage. Designed for 20mm profile rails, this component from the Schaeffler Group provides exceptional load-carrying capacity, high rigidity, and precise, smooth motion, making it ideal for demanding industrial applications such as CNC machinery, automation systems, and precision robotics. Specifications Manufacturer: INA (Schaeffler Group) Model: KWSE 20 H G3V1 Type: Linear Guide Carriage Size: For 20mm rails Preload Class: H (High Preload) Accuracy Class: G3 (Standard) Sealing: V1 (Standard end seals with additional front seals) Label Info Brand: INA Part Number: KWSE 20 H G3V1 Additional Codes: 87 V1, FA520 Application This linear carriage is suited for applications requiring high precision and rigidity, including machine tools, industrial robots, measuring equipment, and heavy-duty material handling systems where reliable linear guidance is critical. Country of Origin Germany CO2 Impact By purchasing this pre-owned component, you help avoid the 0.56 kg of CO2 emissions associated with manufacturing a new one. This choice supports a circular economy and reduces industrial waste. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What type of rail is compatible with the INA KWSE 20 H G3V1 carriage?This carriage is designed for use with INA KUVE20 series profile rails. Ensure the rail is clean and free of damage before installation for optimal performance. What does the ‘H G3 V1′ designation mean?’H’ indicates a high preload class for increased rigidity. ‘G3’ is the standard accuracy class. ‘V1′ specifies the sealing arrangement, which typically includes standard end seals and additional front seals for protection against contamination. What is the correct lubrication procedure for this linear carriage?This carriage should be lubricated with a high-quality lithium-based grease. The grease nipple attached allows for easy relubrication. Refer to the Schaeffler/INA maintenance guidelines for specific grease types and lubrication intervals based on your application’s load, speed, and environmental conditions. Last Update: March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
