JUMO dTRANS T01 T 70/00413021

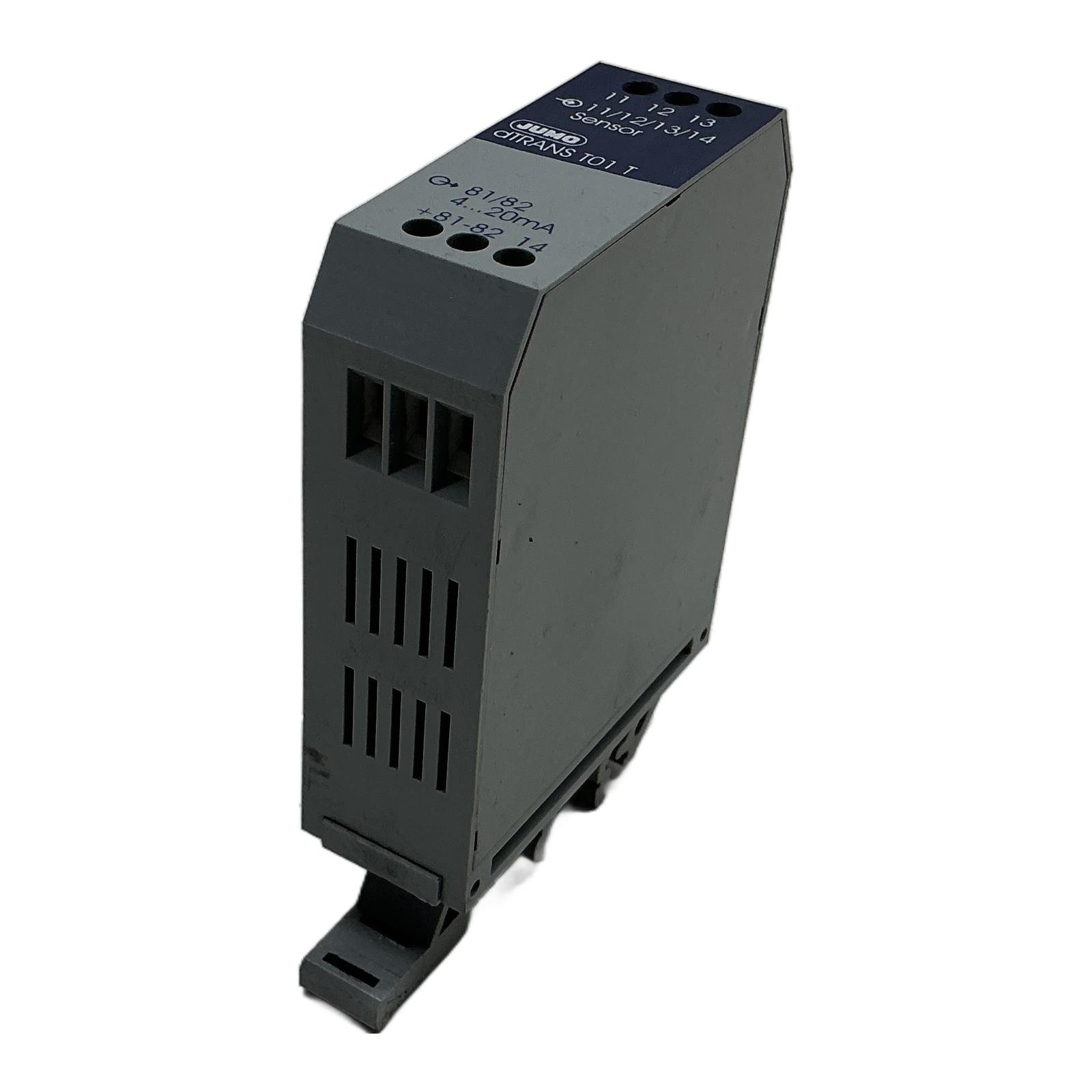

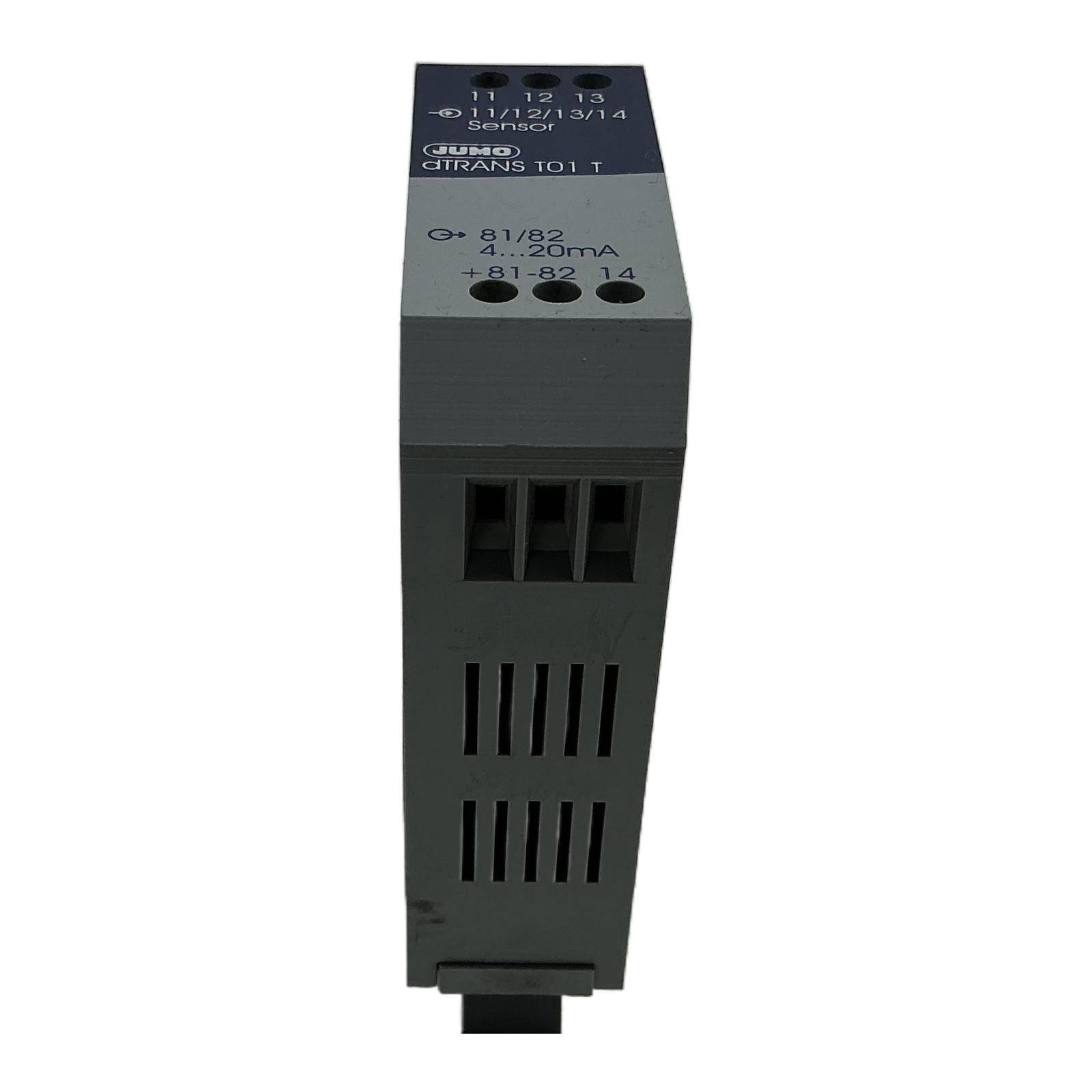

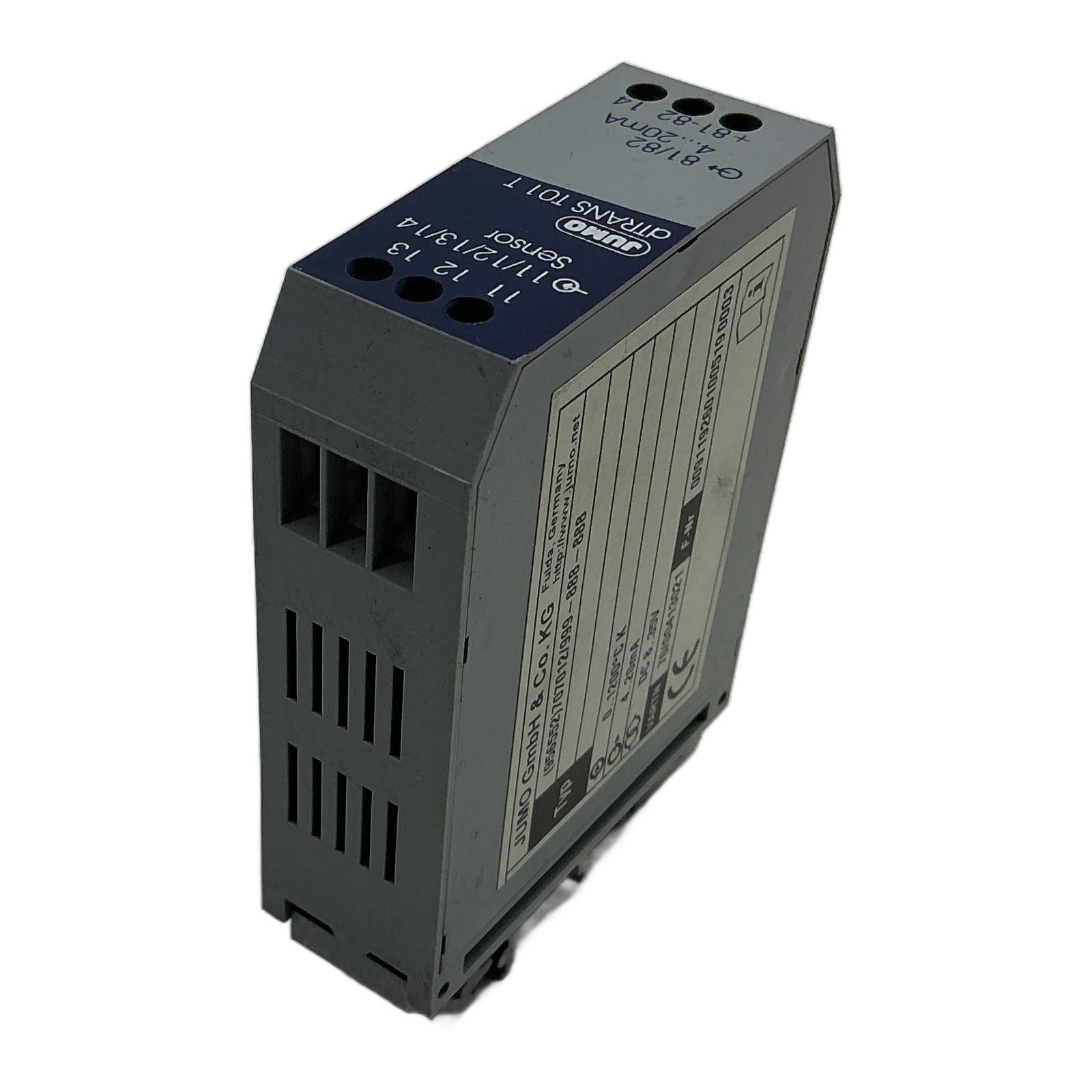

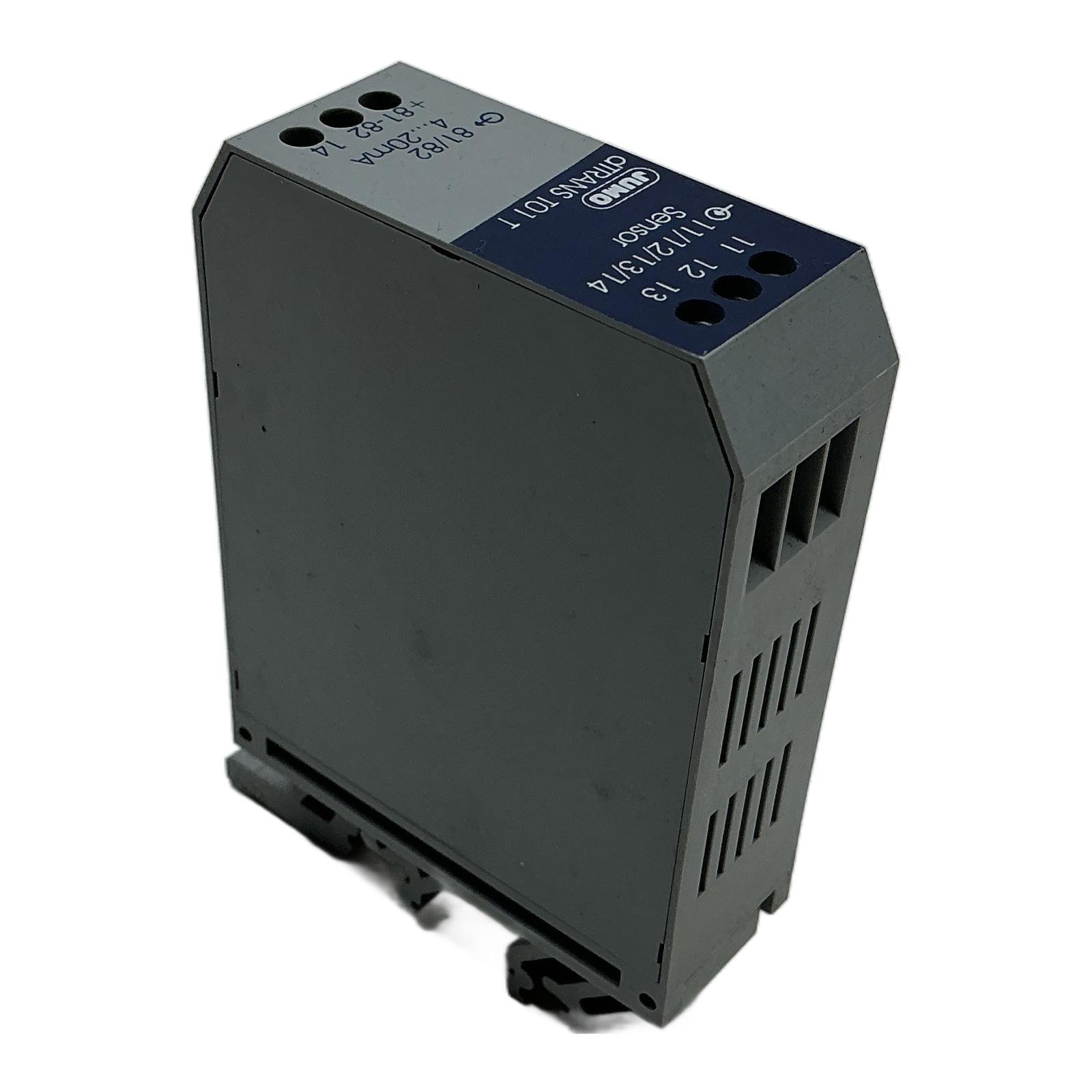

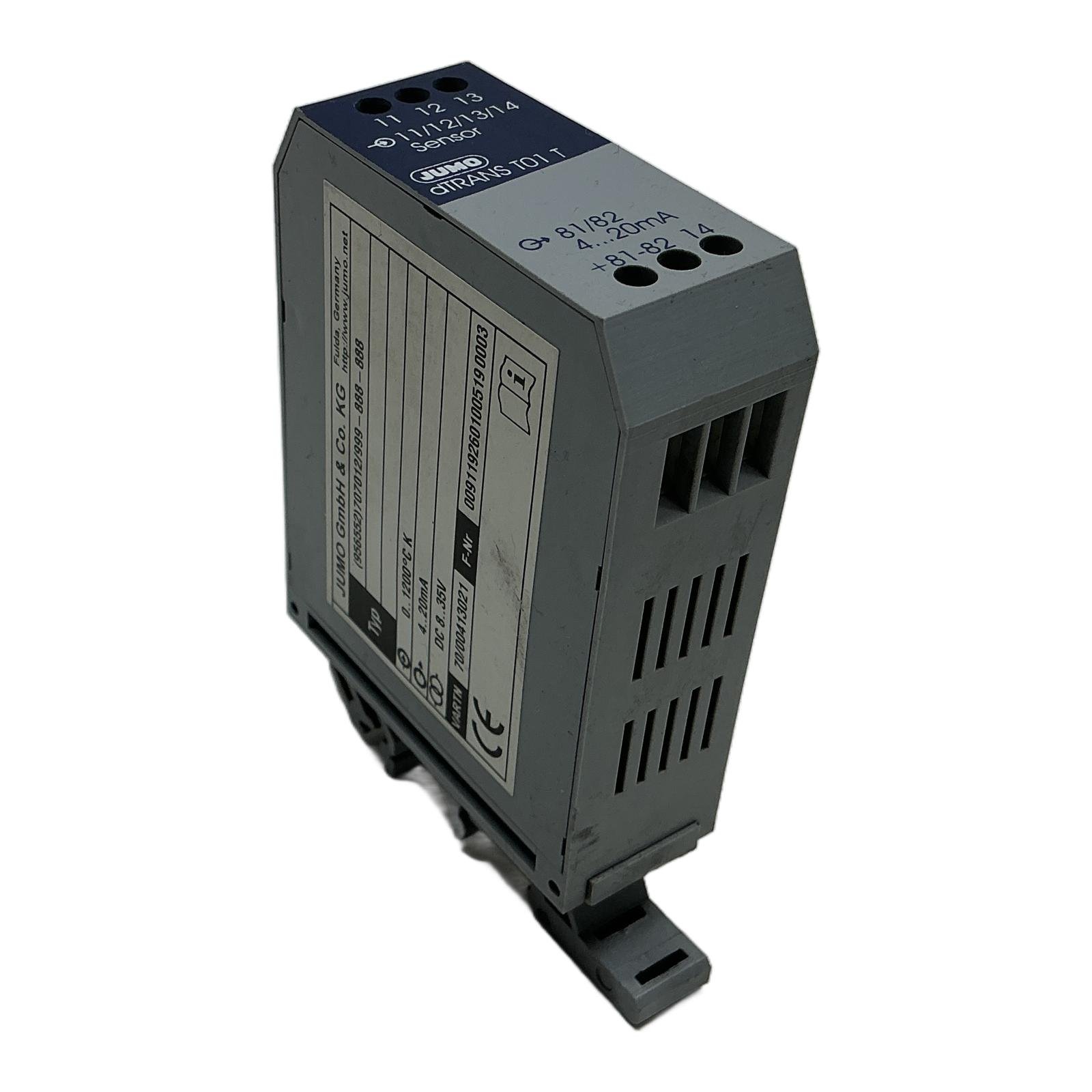

JUMO dTRANS T01 T Two-Wire Temperature Transmitter Description The JUMO dTRANS T01 T is a compact and reliable two-wire temperature transmitter designed for mounting on a standard DIN rail. This specific module is configured to accept a Type K thermocouple input and convert its reading into a standardized 4-20mA analog output signal, making it suitable for a wide range of industrial process monitoring and control systems. Its loop-powered design simplifies wiring and installation. Specifications Manufacturer: JUMO Model: dTRANS T01 T Part Number: 70/00413021 Power Supply: 8 to 35V DC (Loop Powered) Input Type: Thermocouple Type K Input Range: 0 to 1200 deg C Output Signal: 4 to 20mA Mounting: DIN Rail Label Info Typ: (956552)707012/999-888-888 VARTN: 70/00413021 F-Nr: 009119260100519 0003 Application Ideal for use in industrial automation, machine building, process control, and HVAC systems where accurate temperature measurement from a thermocouple needs to be transmitted over a distance to a PLC, controller, or data acquisition system. Country of Origin Made in Germany. CO2 Impact Choosing this pre-owned JUMO transmitter saves an estimated 4.8 kg of CO2 compared to manufacturing a new one. This is equivalent to the emissions from driving a standard car for 24 kilometers. Availability This item is a used, tested component in excellent working condition. Order now from profideals for expert support and fast delivery. FAQ Can this transmitter be reconfigured for a different sensor type or range?Yes, the dTRANS T01 T is a programmable transmitter. However, re-configuration requires the JUMO PC setup software and a specific programming interface. This unit comes pre-configured for a Type K thermocouple with a 0 to 1200 deg C range. How is a two-wire transmitter like this correctly wired?This is a loop-powered device. The positive side of the DC power supply connects to the transmitter’s power input (terminal 14), and the transmitter’s signal output (terminal 81/82) connects to the analog input of the PLC or controller. The negative side of the power supply connects to the common of the analog input, completing the 4-20mA loop. Is this model still supported by JUMO?The dTRANS T01 T is considered an obsolete product. While technical documentation is generally available online, direct manufacturer support may be limited. The JUMO dTRANS T07 series is a recommended modern alternative for new installations. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
