ENDRESS+HAUSER FTL50H-AWE2AC4G6A

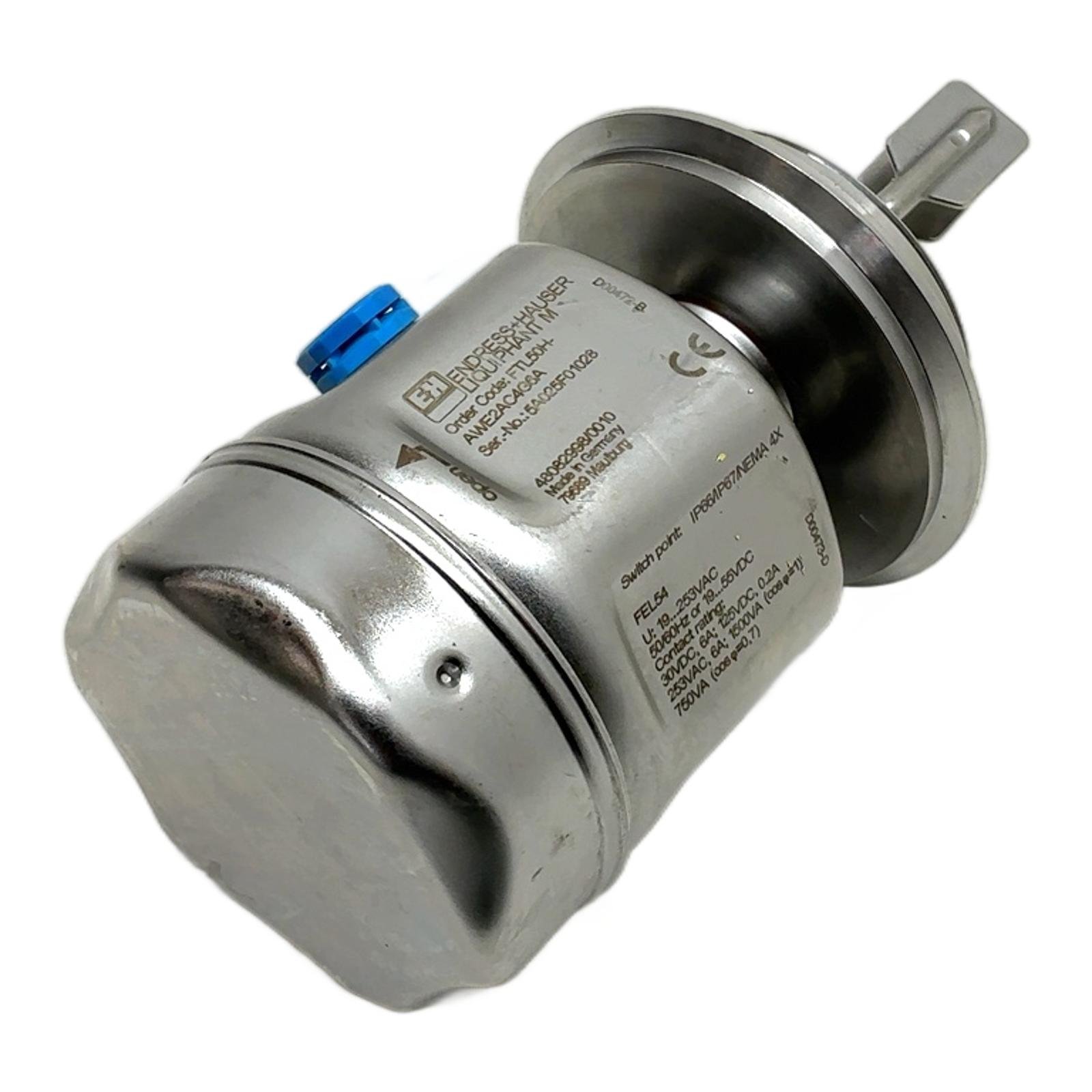

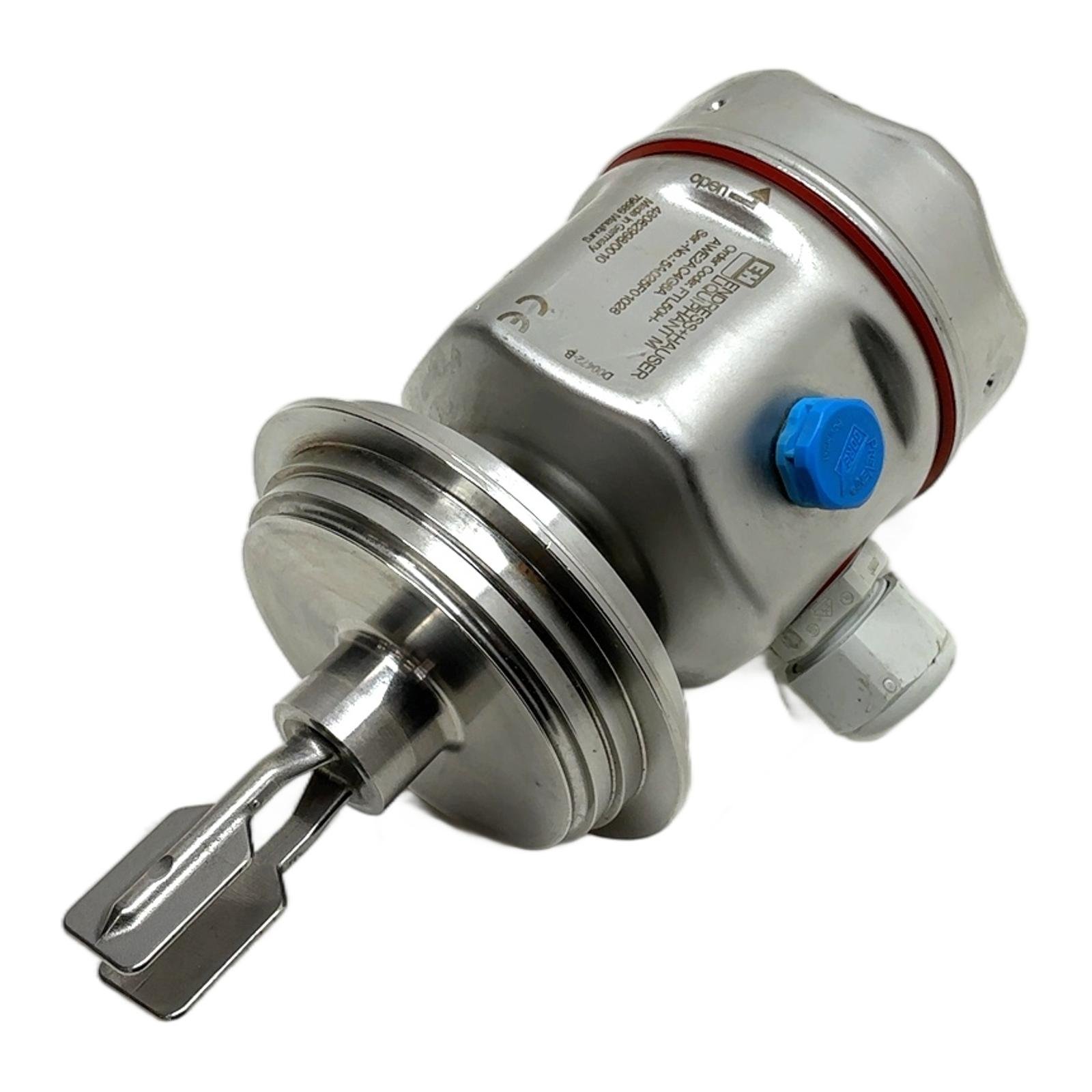

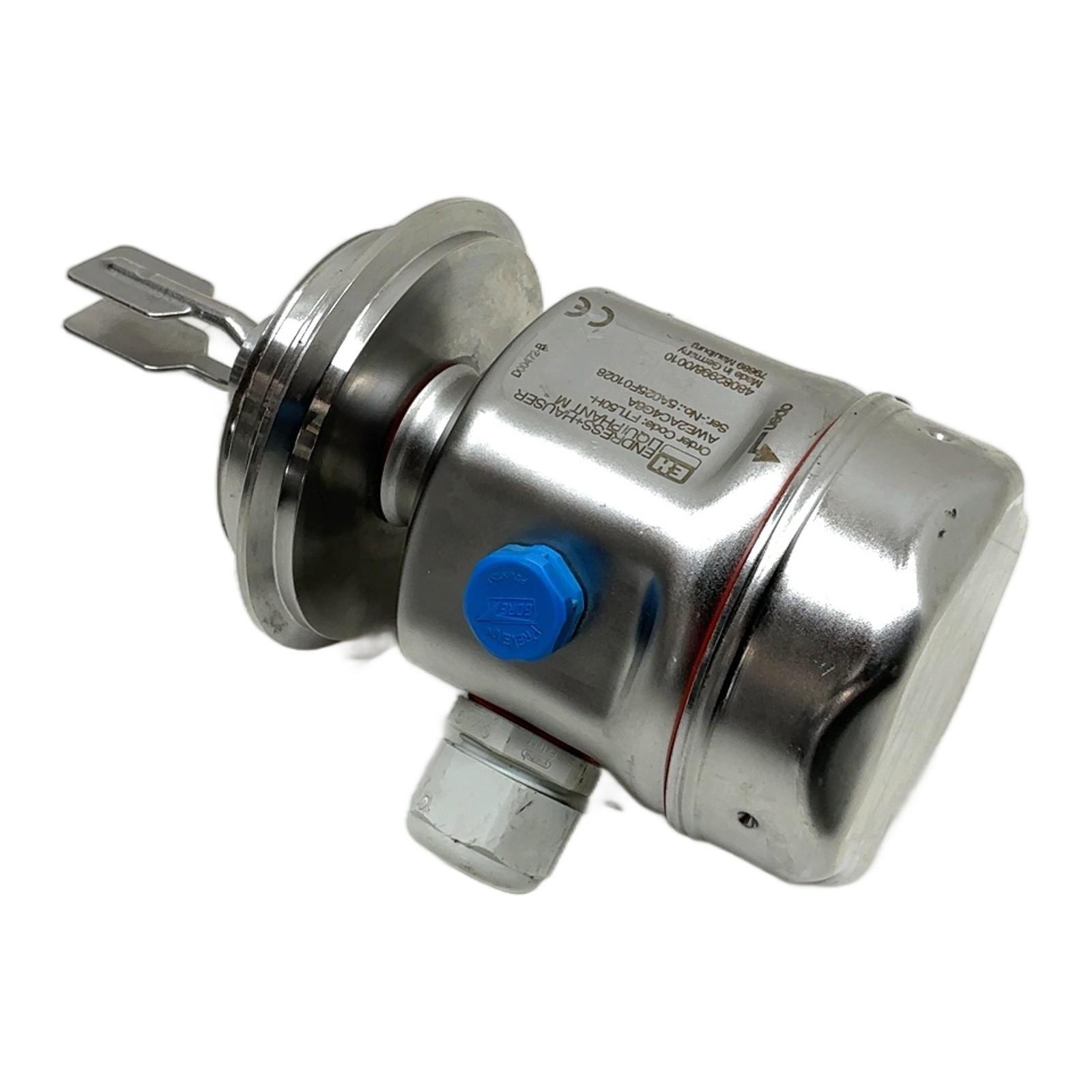

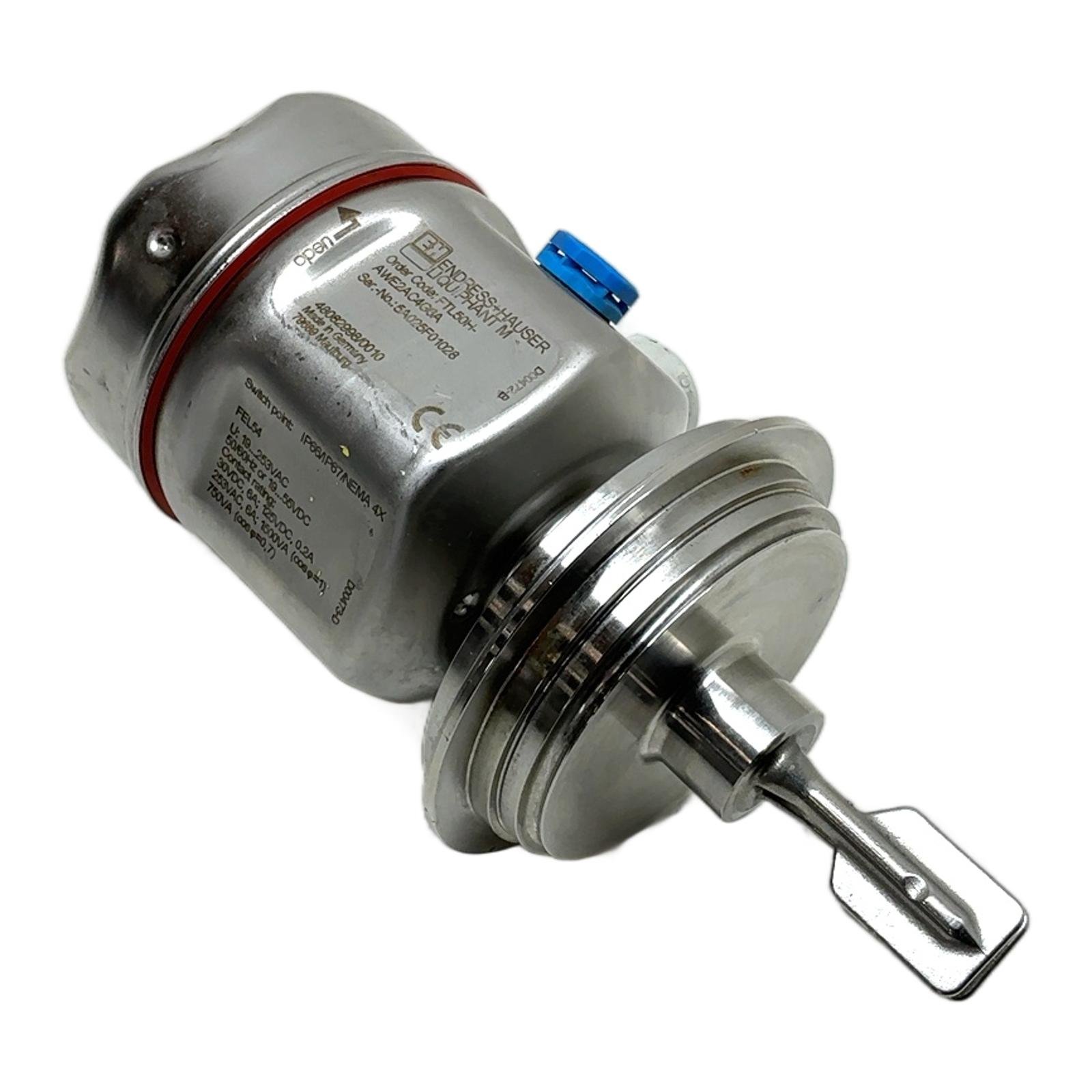

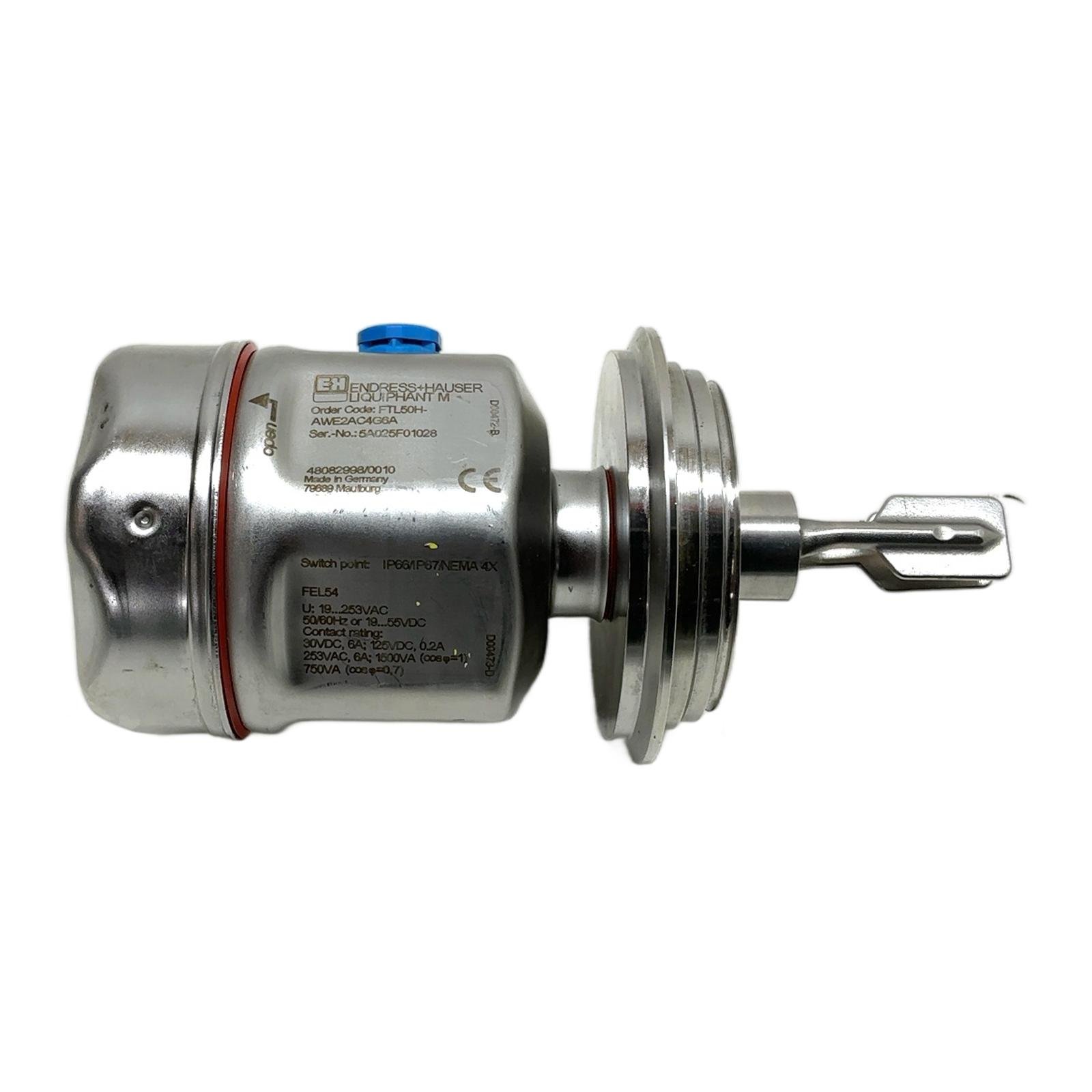

Endress+Hauser Liquiphant M FTL50H Vibrating Level Switch Description This is a Liquiphant M FTL50H from Endress+Hauser, a point level switch for liquids. It is based on the vibrating tuning fork principle and is designed for use in tanks, vessels, and pipelines. The FTL50H model is specifically designed for hygienic applications found in the food, beverage, and pharmaceutical industries. Its robust stainless steel construction ensures durability and resistance to process conditions. Specifications Manufacturer: Endress+Hauser Model: Liquiphant M Order Code: FTL50H-AWE2AC4G6A Serial Number: 5A025F01028 Electronics: FEL54 Supply Voltage: 19 to 253V AC (50/60Hz) or 19 to 55V DC Contact Rating: 30VDC, 6A; 125VDC, 0.2A; 253VAC, 6A Protection Rating: IP66/IP67/NEMA 4X Label Info Order Code: FTL50H-AWE2AC4G6A Ser-No.: 5A025F01028 Made in Germany Application This level switch is ideal for overfill protection, pump dry-run protection, and level detection in storage tanks and mixing vessels across various industries, especially where hygienic standards are required. Country of Origin Germany CO2 Impact By choosing this pre-owned level switch, you help avoid the emission of approximately 60 kg of CO2. This saving is comparable to driving a car for 300 kilometers. Availability This unit is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the main advantage of a vibrating fork level switch like the FTL50H?The primary advantage is its universal applicability and reliability. It operates independently of the liquid’s properties such as conductivity, dielectric constant, density, or viscosity. This makes it a maintenance-free, ‘fit and forget’ solution for many applications. Is the FTL50H suitable for use in hazardous (Ex) areas?This specific model with the FEL54 electronics is for non-hazardous areas. For applications in hazardous zones, different electronic inserts and approvals (e.g., ATEX, FM) are required. Always check the device’s nameplate for specific certifications. How does the FEL54 electronics module function?The FEL54 is a relay output module (DPDT – Double Pole Double Throw). It provides a potential-free switch contact that can be used to directly control smaller loads like contactors or signal lamps, or to provide an input to a PLC system. It supports a very wide range of AC and DC supply voltages. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
