FESTO DSNU-16-300-PPV-A 14320

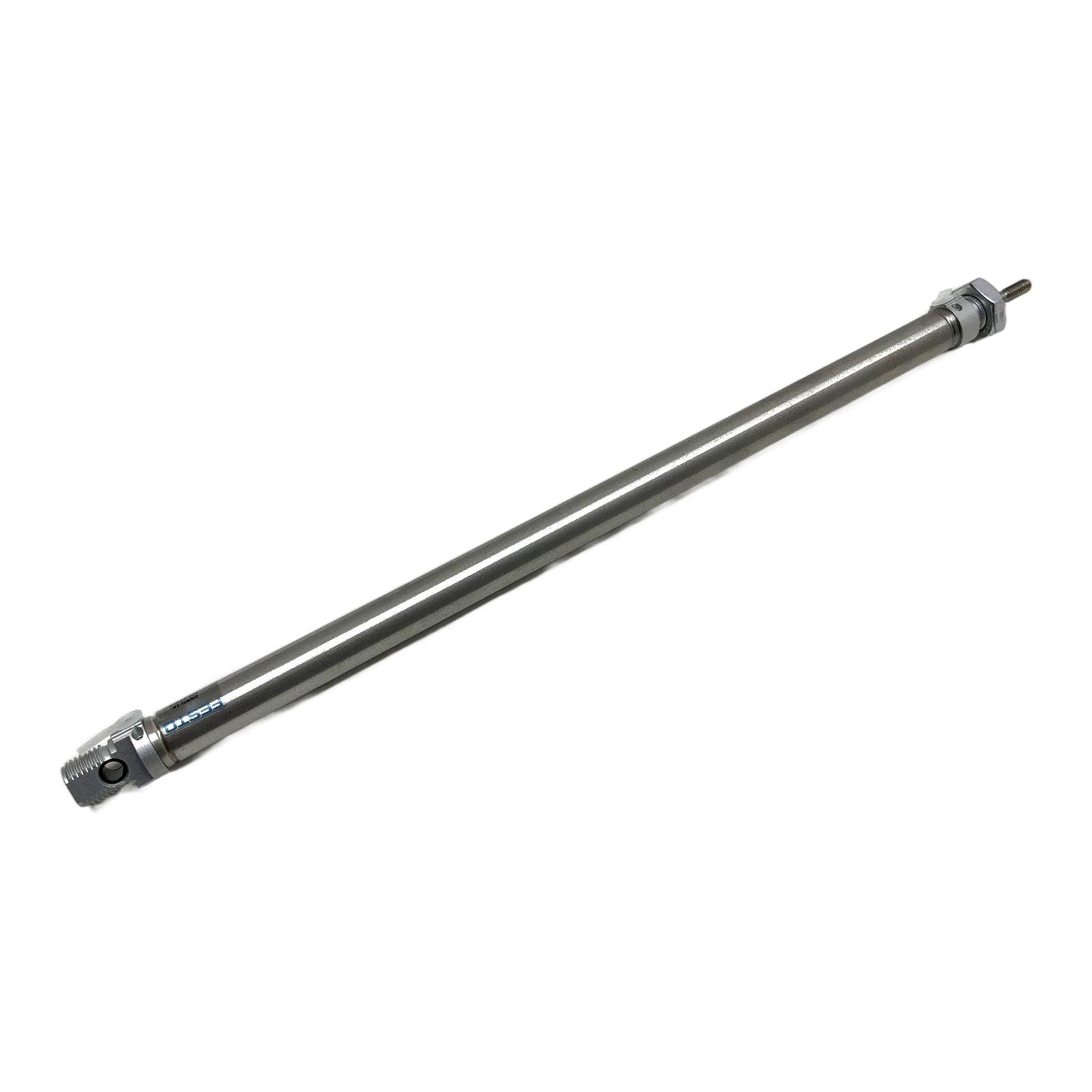

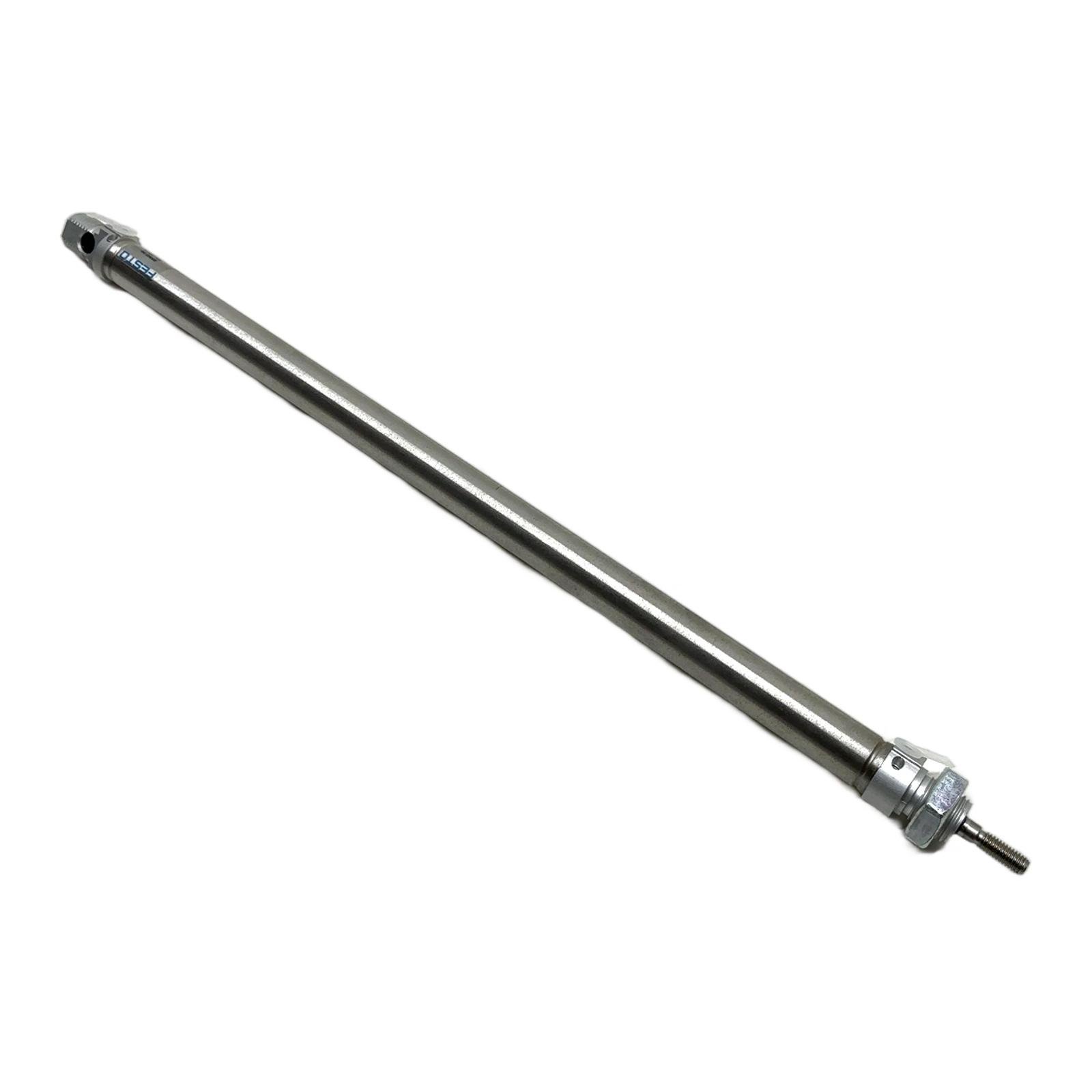

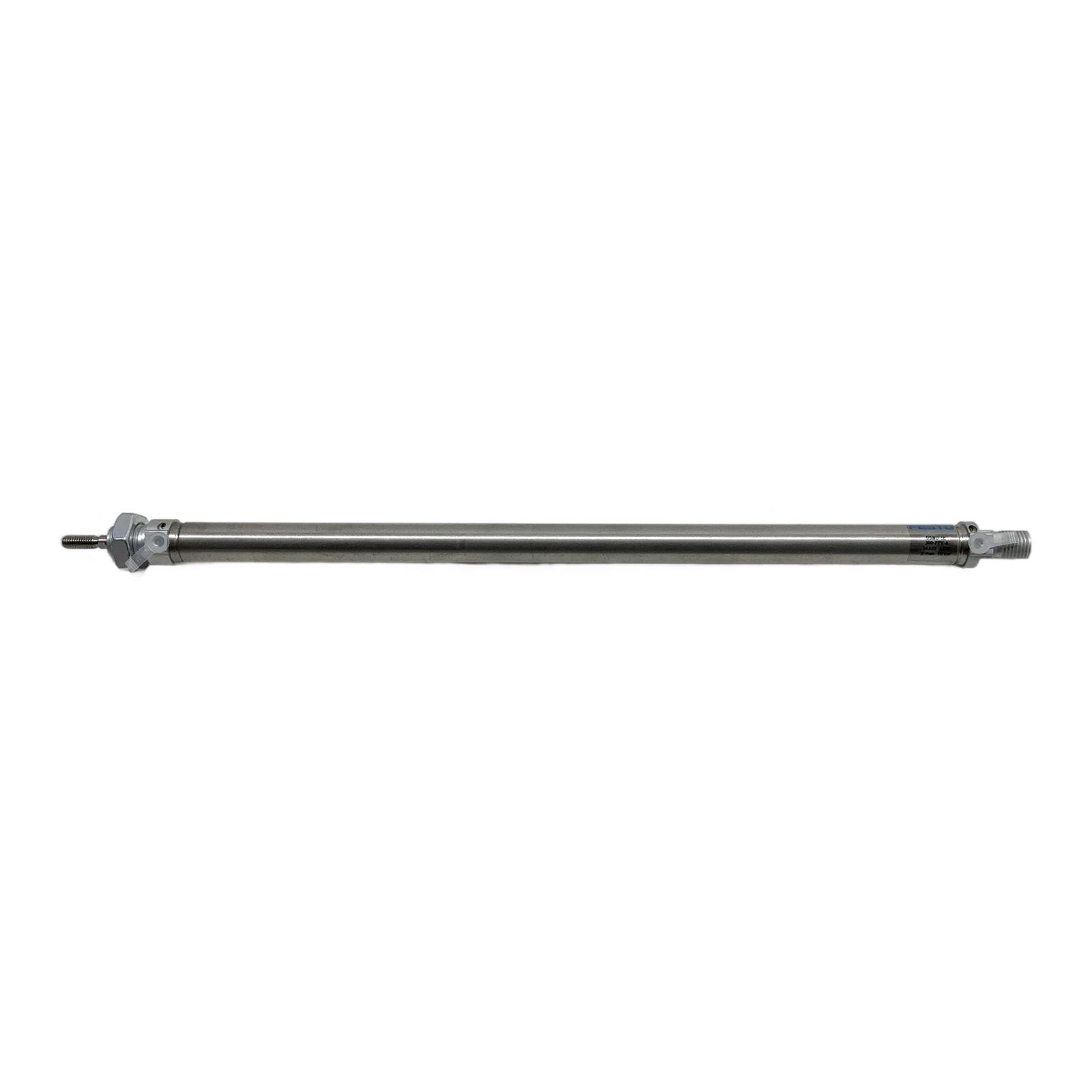

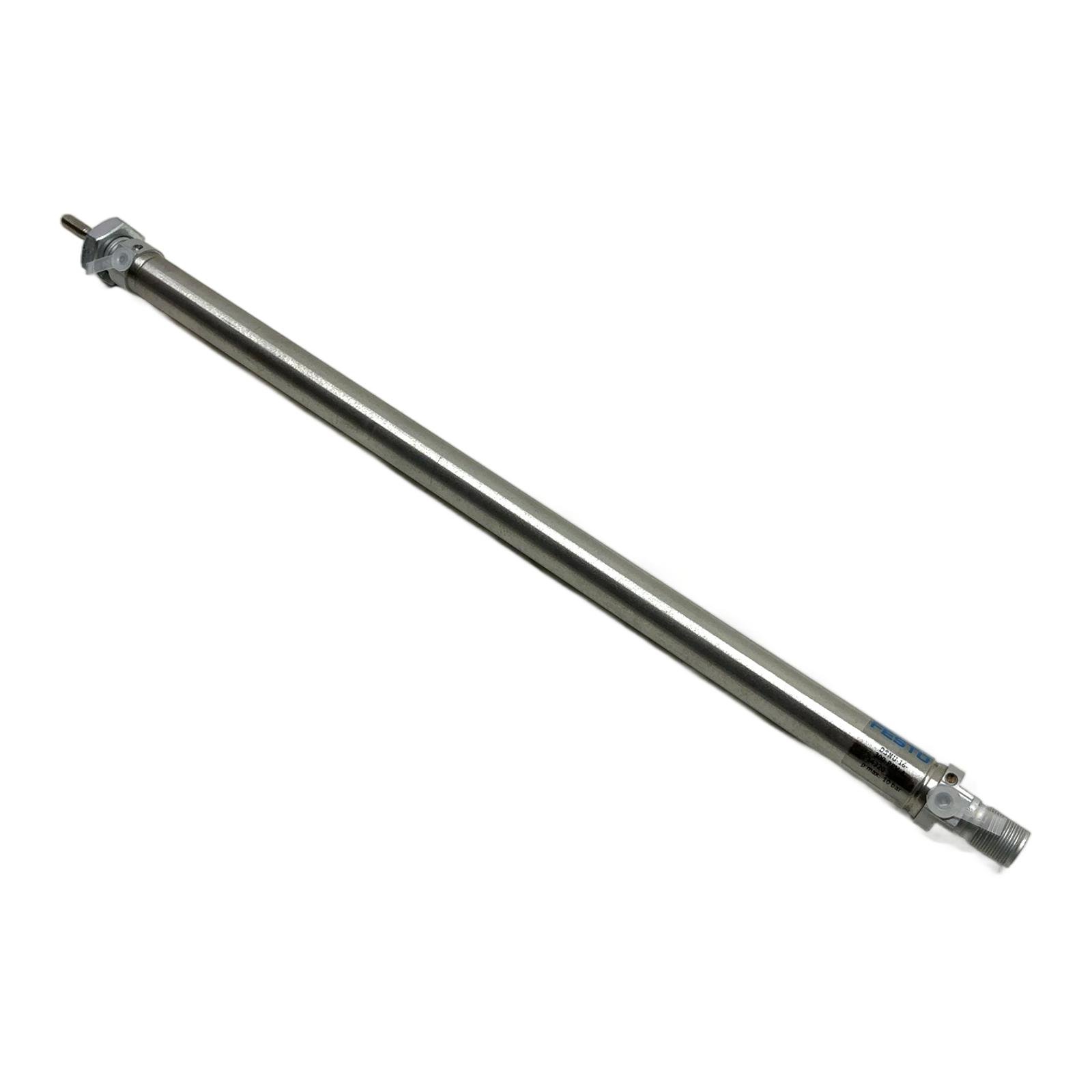

Festo DSNU-16-300-PPV-A Pneumatic Round Cylinder Description The Festo DSNU-16-300-PPV-A is a double-acting round cylinder conforming to the ISO 6432 standard. It offers reliable performance for a variety of industrial automation applications. Featuring a 16mm piston diameter and a 300mm stroke, this cylinder is built for precision and durability. The adjustable pneumatic cushioning at both ends ensures smooth deceleration, reducing machine vibration and noise. A magnetic piston allows for contactless position sensing with proximity sensors. Specifications Manufacturer: Festo Type: DSNU-16-300-PPV-A Part Number: 14320 Piston Diameter (Bore): 16 mm Stroke Length: 300 mm Action: Double-acting Cushioning: PPV – Pneumatic cushioning, adjustable at both ends Position Detection: With magnetic piston for proximity sensors Operating Pressure: 1.5 to 10 bar Pneumatic Connection: M5 Label Info FESTO DSNU-16-300-PPV-A 14320 L608 p max: 10 bar Application Ideal for use in sorting, clamping, lifting, and stopping applications within packaging machinery, assembly lines, and material handling systems where precise linear motion and reliability are critical. Country of Origin This product is manufactured by Festo in Germany. CO2 Impact By purchasing this pre-owned cylinder, you help avoid the emission of approximately 0.5 kg of CO2, equivalent to the energy needed to fully charge a smartphone 60 times. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What does ‘PPV-A’ signify in the model number?The ‘PPV’ indicates that the cylinder has adjustable pneumatic cushioning at both ends, which helps to absorb energy at the end of the stroke for smoother operation. The ‘A’ signifies that the piston is magnetic, allowing for contactless position sensing using proximity sensors. What is the required operating pressure for this cylinder?The DSNU-16-300-PPV-A is designed to operate within a pressure range of 1.5 to 10 bar (approximately 22 to 145 psi). Is this cylinder compatible with standard ISO 6432 mounting accessories?Yes, as an ISO 6432 standard cylinder, it is fully compatible with a wide range of standard mounting accessories like flanges, foot mounts, and clevises, making integration into existing systems straightforward. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
