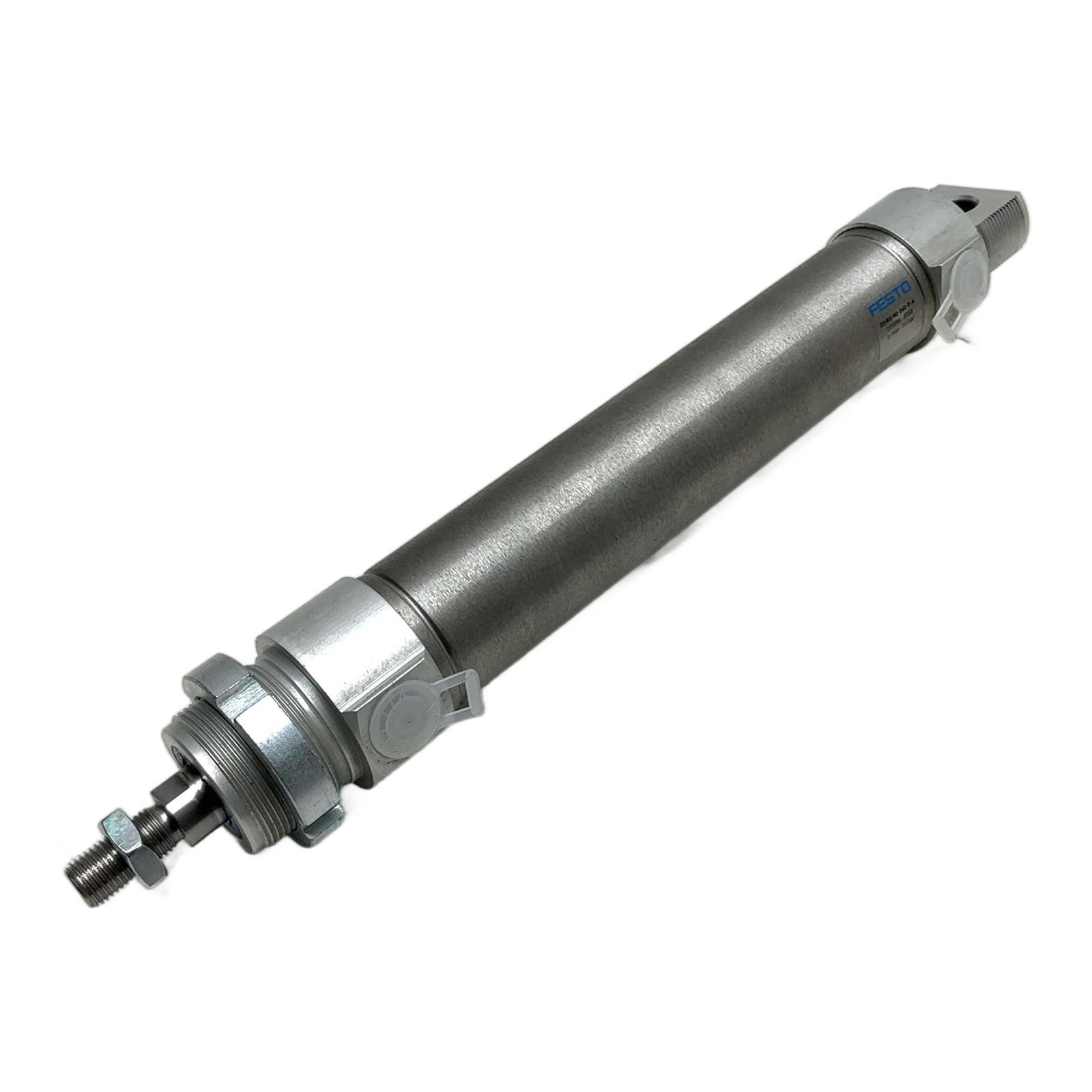

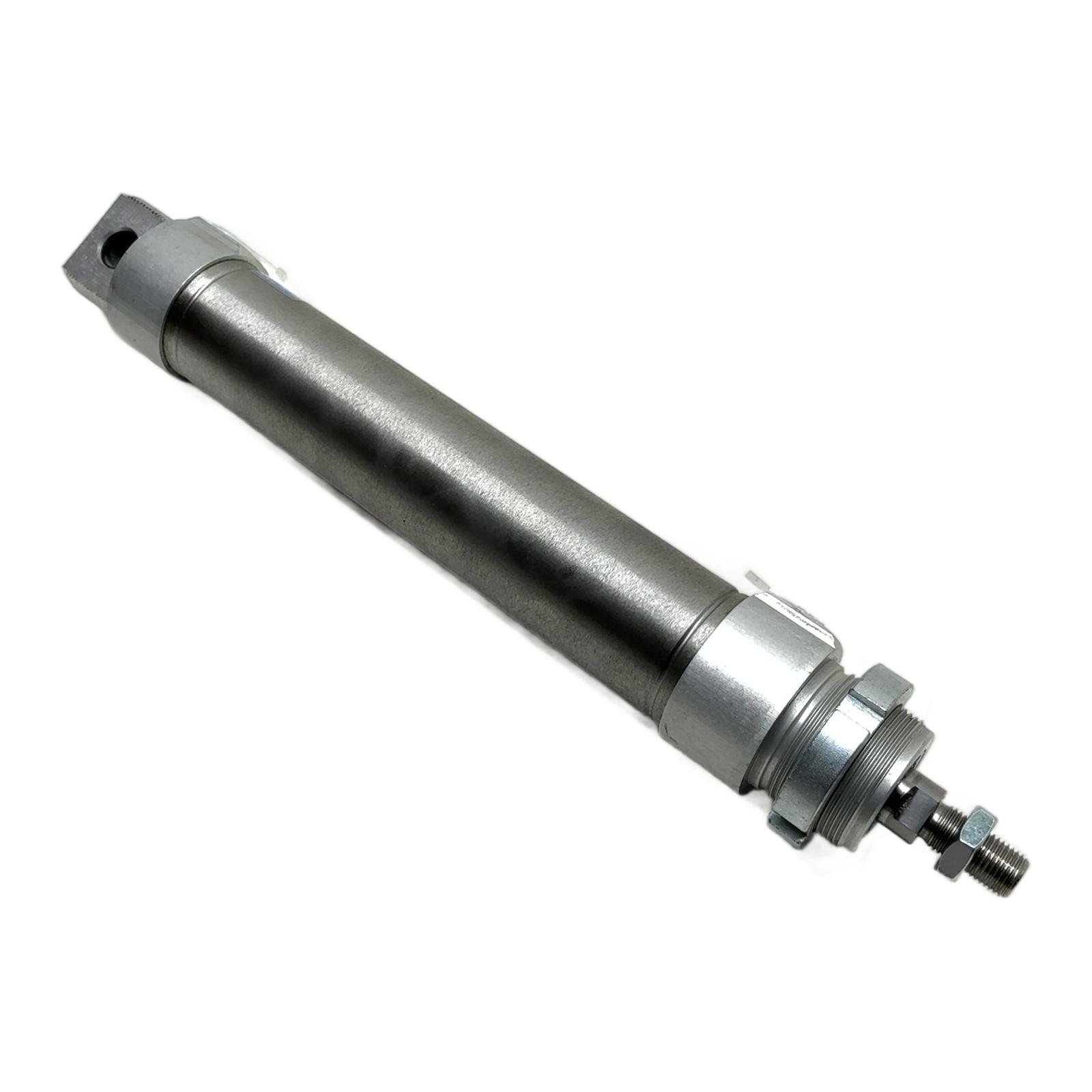

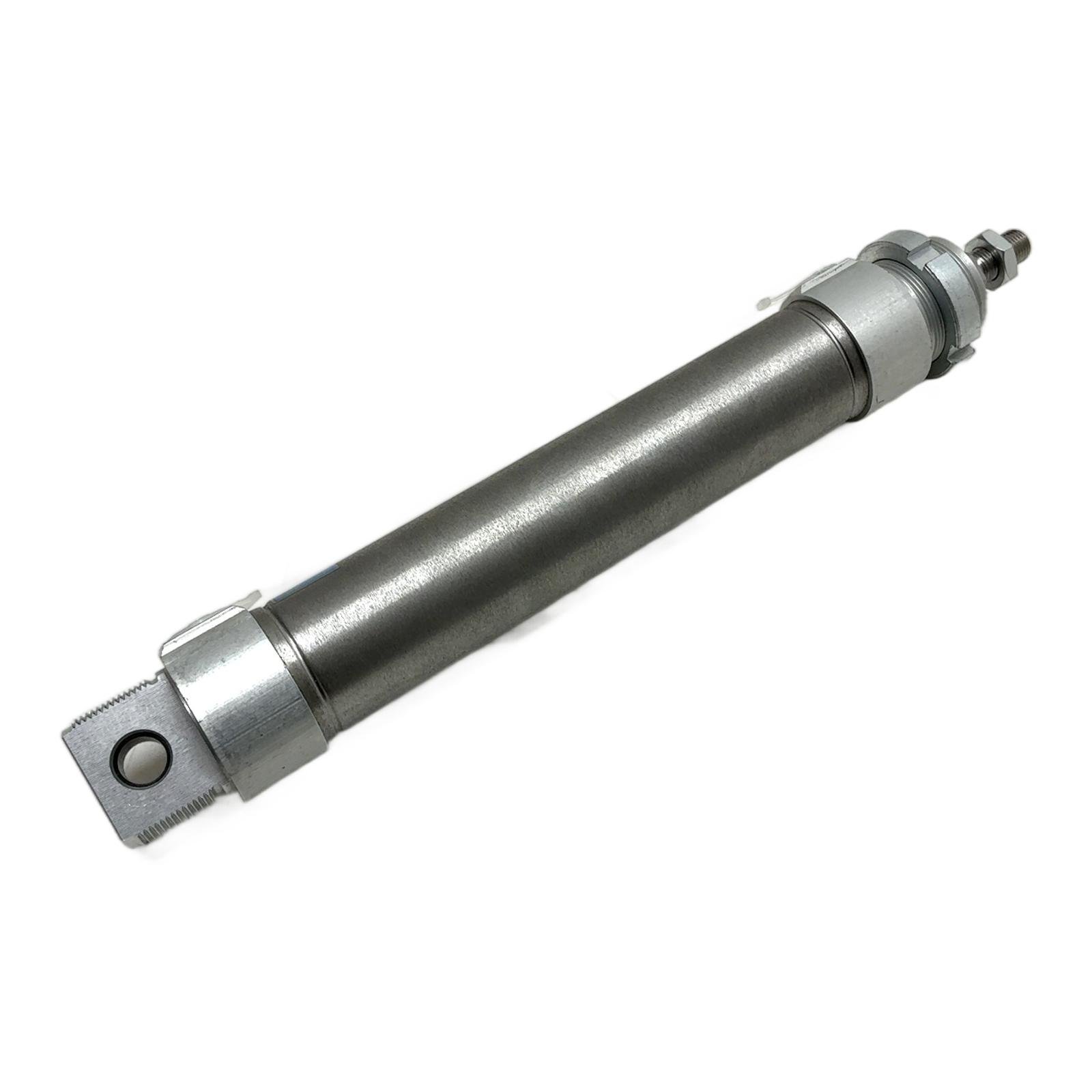

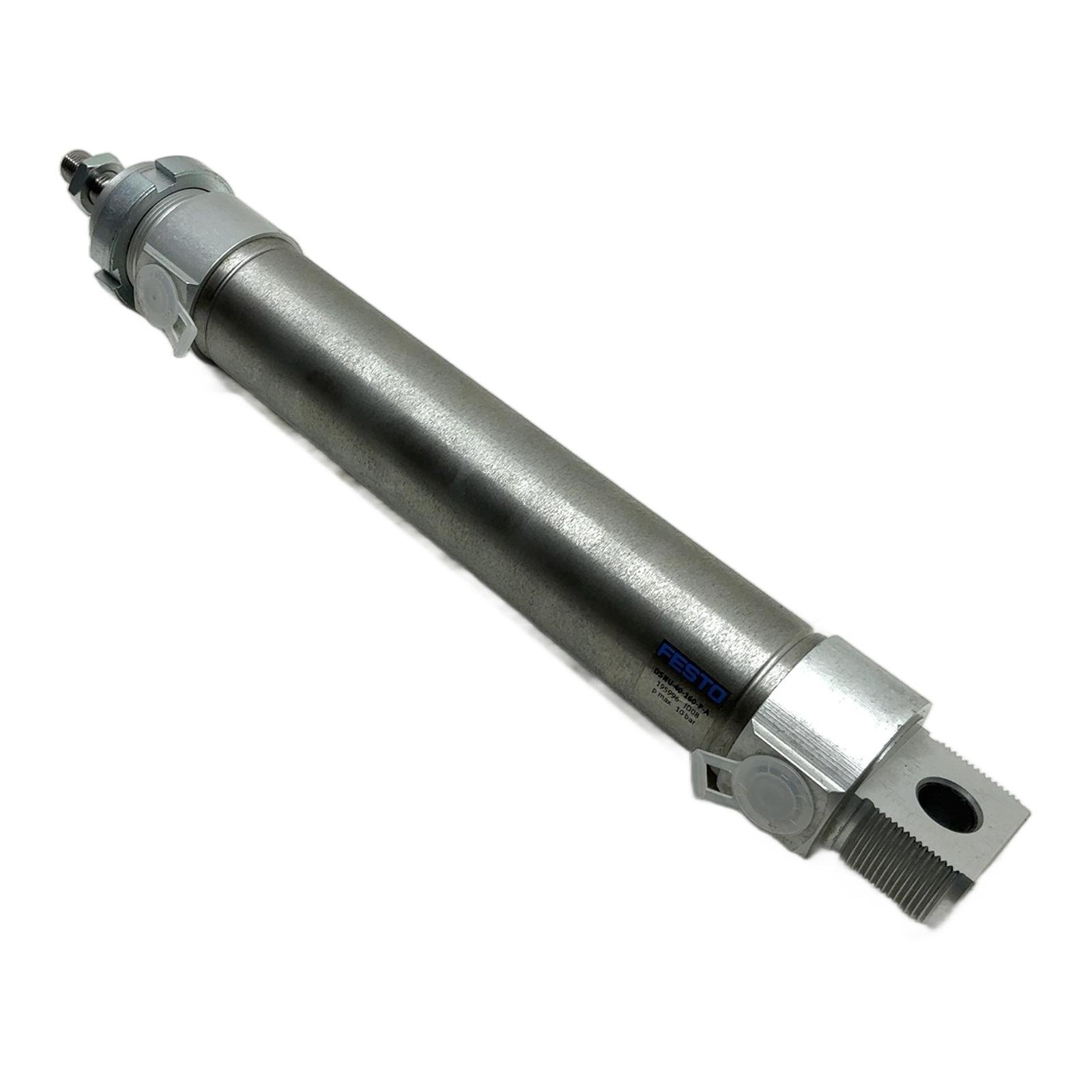

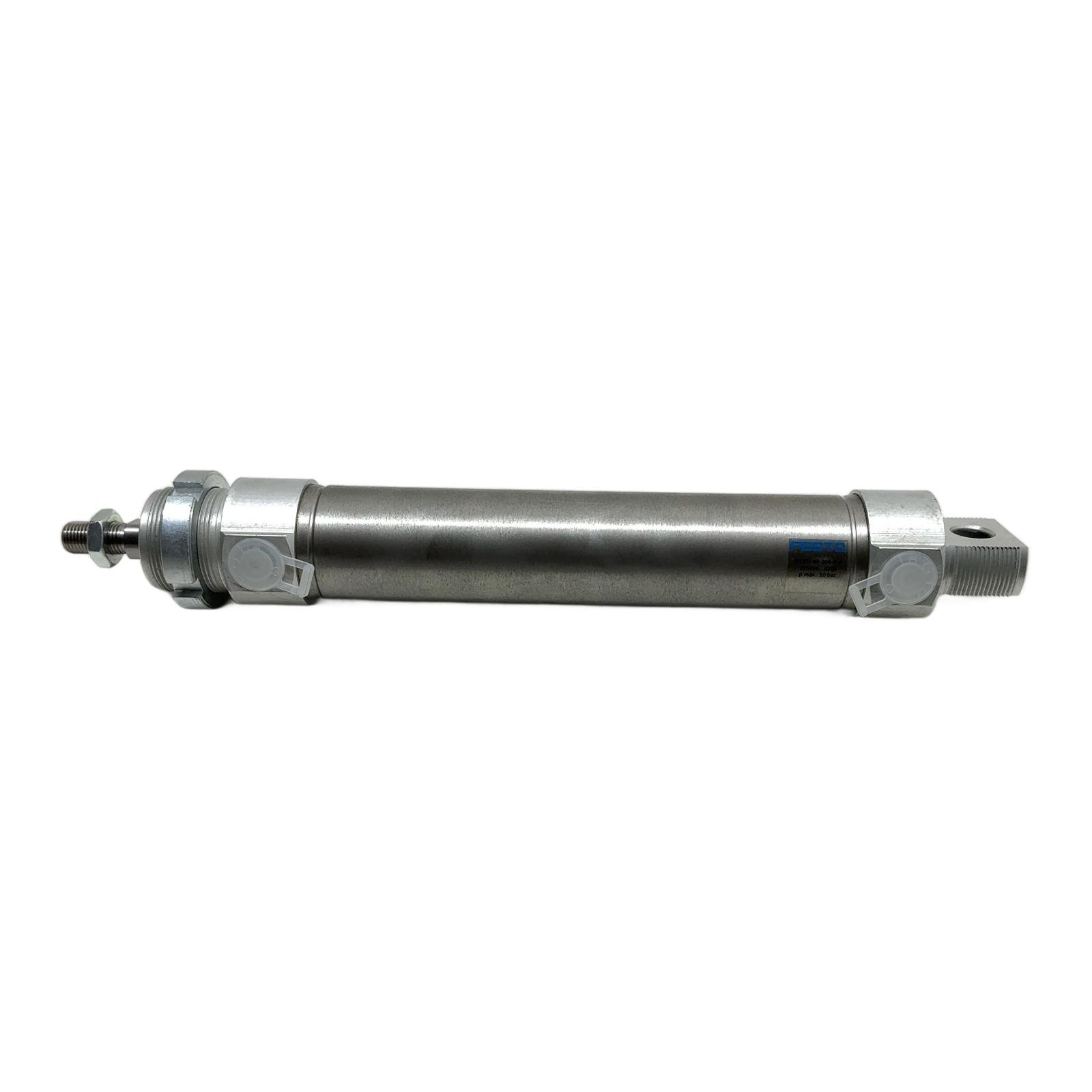

FESTO DSNU-40-160-P-A 195996

Festo DSNU Series Pneumatic Cylinder Description The Festo DSNU-40-160-P-A is a high-quality ISO standard round cylinder designed for precision and durability in industrial automation. With a 40 mm piston diameter and a 160 mm stroke, it delivers reliable linear force for various applications. This model features elastic cushioning at both ends for smooth, low-impact operation and includes a magnet for position sensing. Specifications Manufacturer: Festo Series: DSNU Piston Diameter: 40 mm Stroke Length: 160 mm Cushioning: Elastic cushioning rings/plates at both ends (Code: P) Position Sensing: With magnet for proximity sensors (Code: A) Operating Pressure: up to 10 bar Conforms to Standard: ISO 6432 Piston Rod Material: High-alloy stainless steel Label Info Type: DSNU-40-160-P-A Part Number: 195996 Serial Code: JD08 Max Pressure: 10 bar Application Ideal for sorting, clamping, feeding, and positioning tasks in manufacturing, packaging, and material handling systems where space-efficient and reliable pneumatic actuation is required. Country of Origin Manufactured by Festo in Germany. CO2 Impact Choosing this pre-owned cylinder saves approximately 8.0 kg of CO2 compared to a new one, contributing to a more sustainable operation. Availability In stock. Order now from profideals for expert support and fast delivery. FAQ What does the “-P-A” suffix in DSNU-40-160-P-A signify? The “-P-” indicates that the cylinder is equipped with elastic cushioning rings/plates at both ends to reduce impact and noise. The “-A” signifies that the piston contains a magnet for position sensing with external proximity sensors. What is the required compressed air quality for this cylinder? According to Festo standards, this cylinder operates best with compressed air according to ISO 8573-1:2010 [7:4:4]. This means the air should be filtered and can be lubricated or non-lubricated. Using lubricated air will require continuous lubrication for the cylinder’s lifespan. Can this cylinder be operated without lubrication? Yes, the DSNU series is designed for both lubricated and non-lubricated operation. However, if you start using lubricated air, you must continue to do so for the rest of the cylinder’s operational life to prevent seals from drying out. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
