CAMOZZI DNX-40/80 L80022/00080

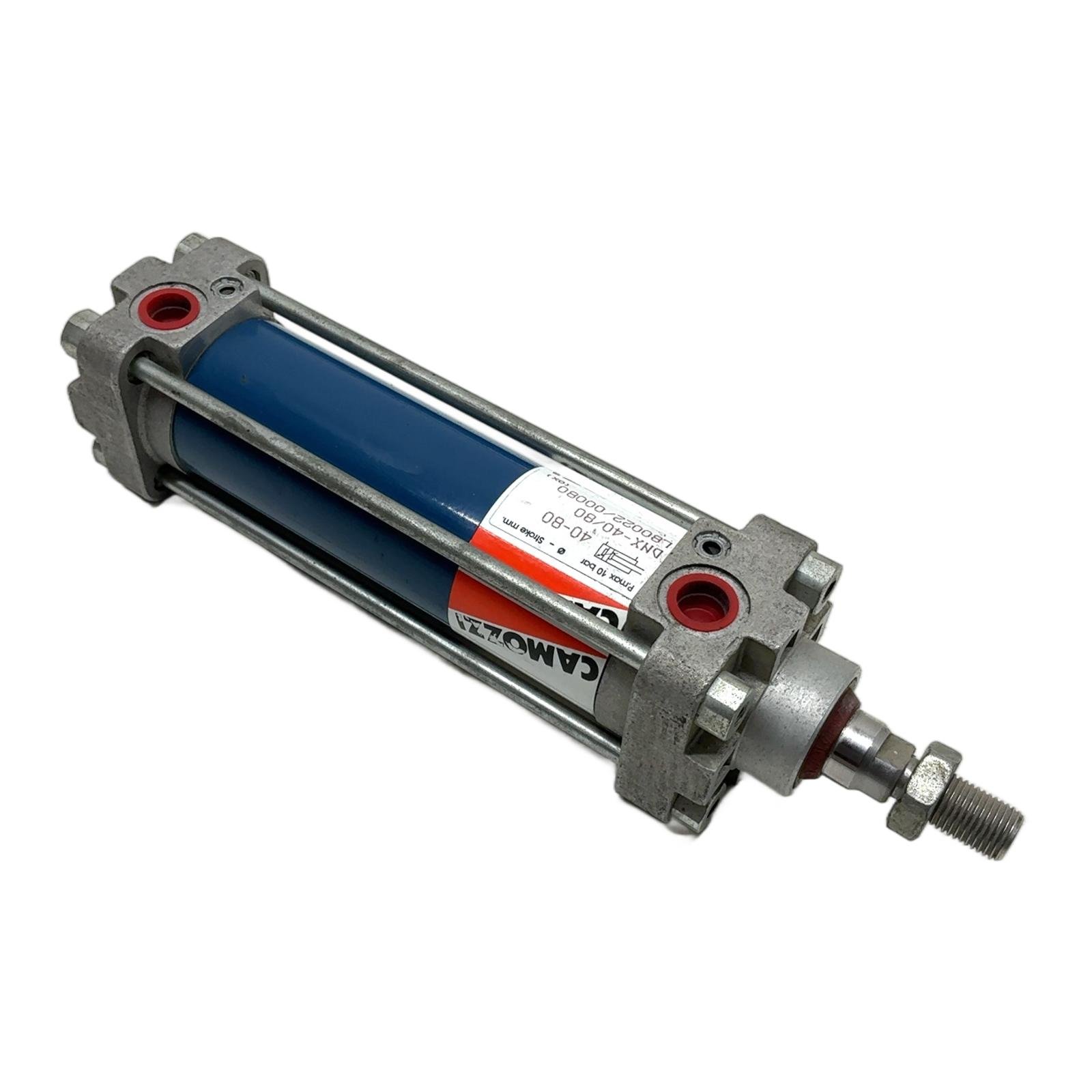

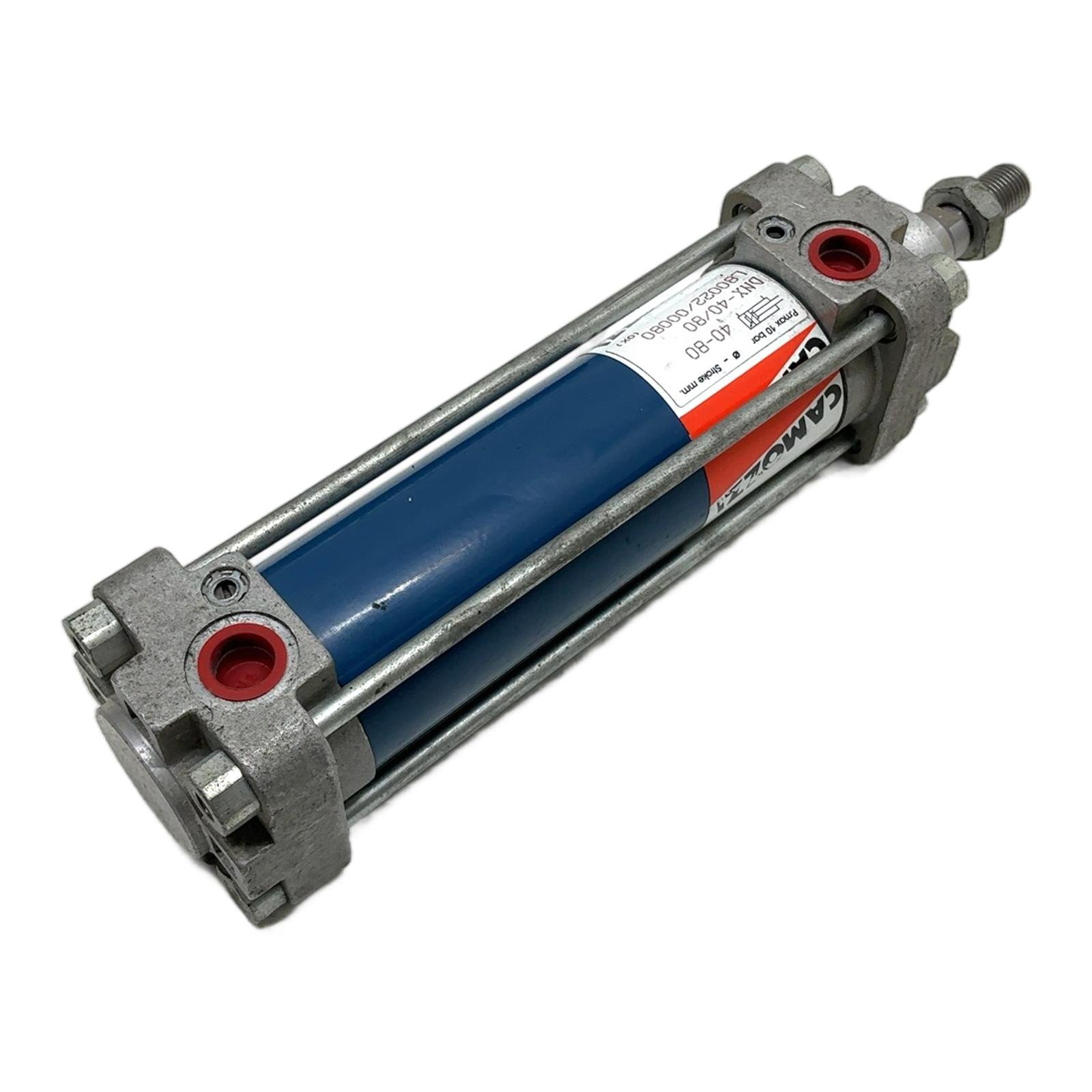

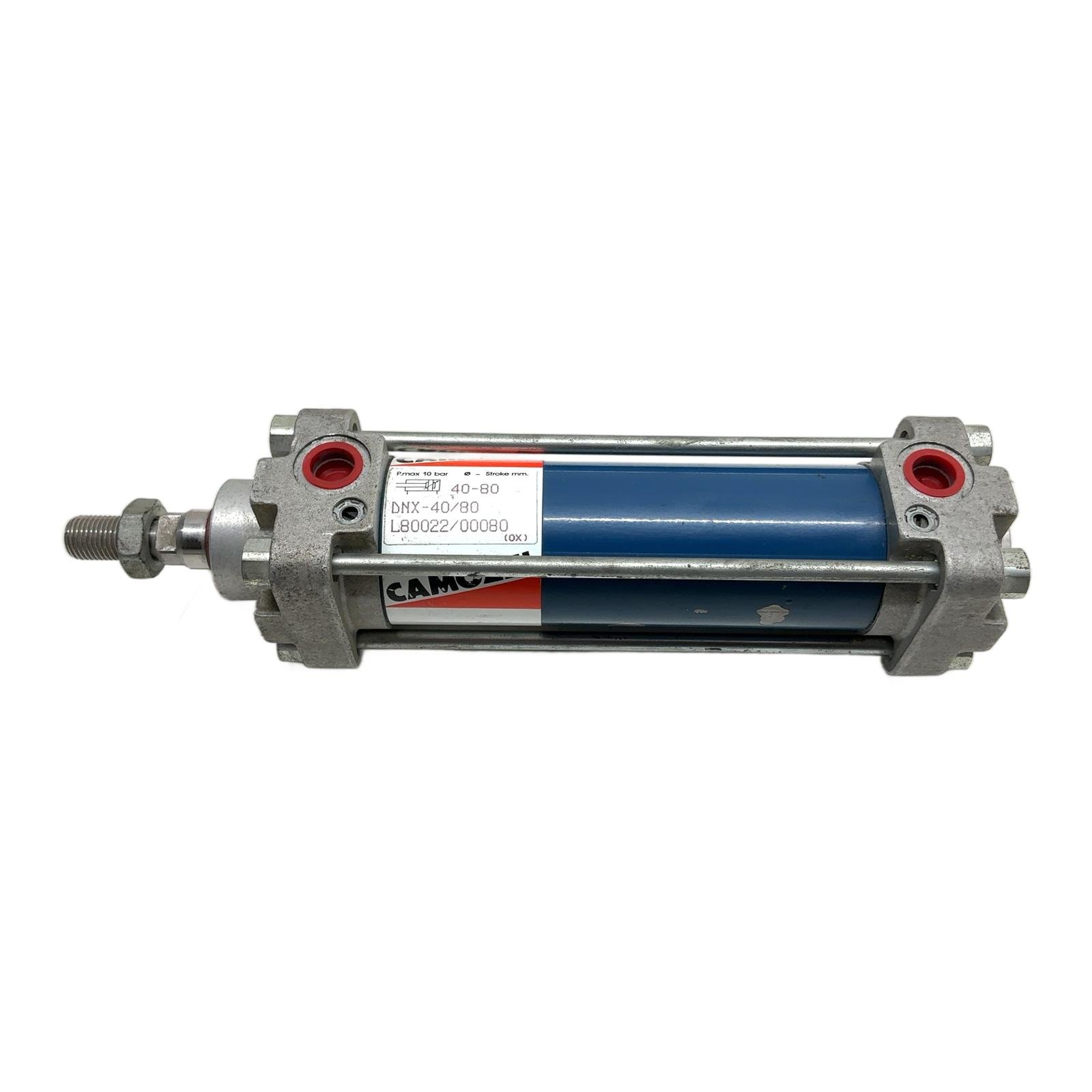

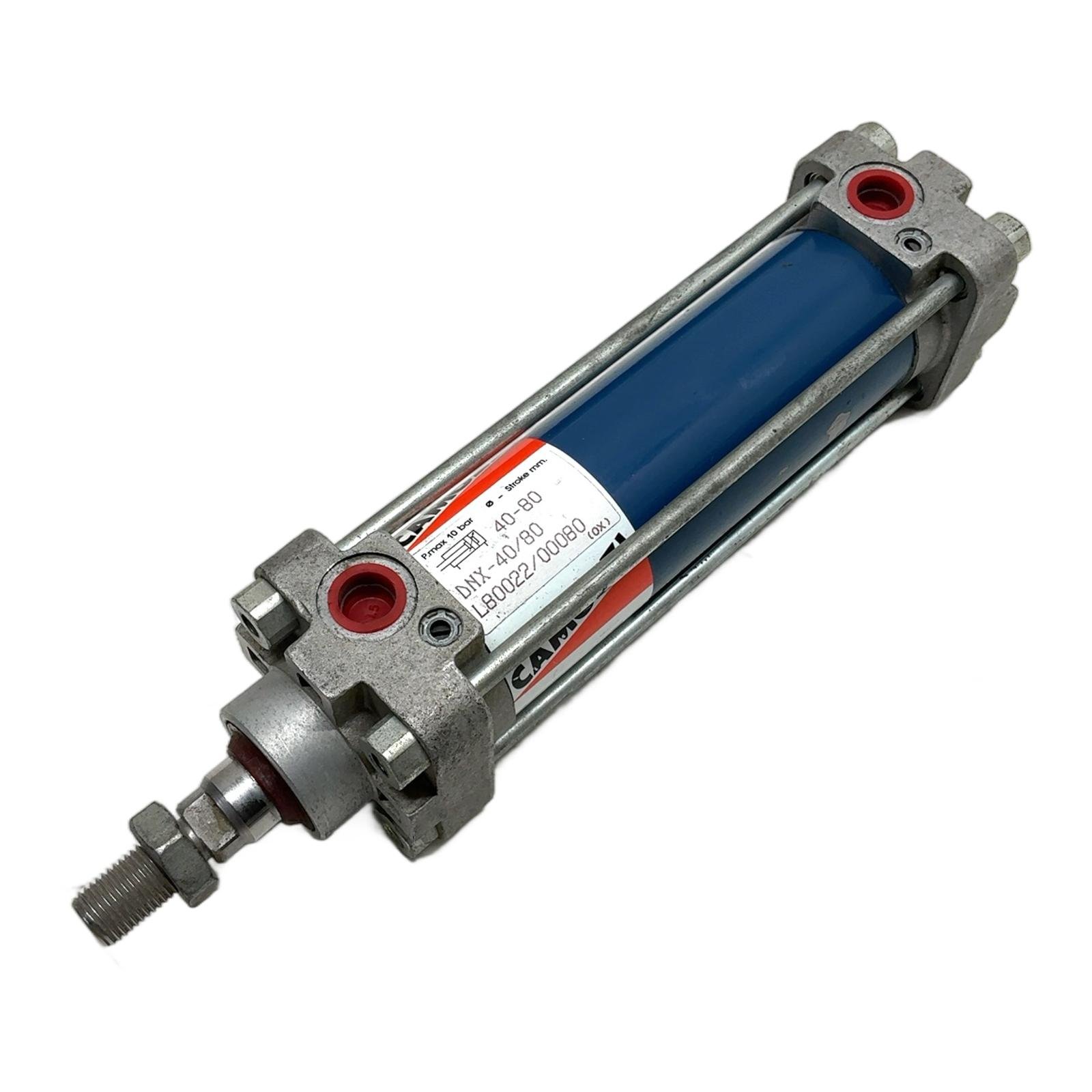

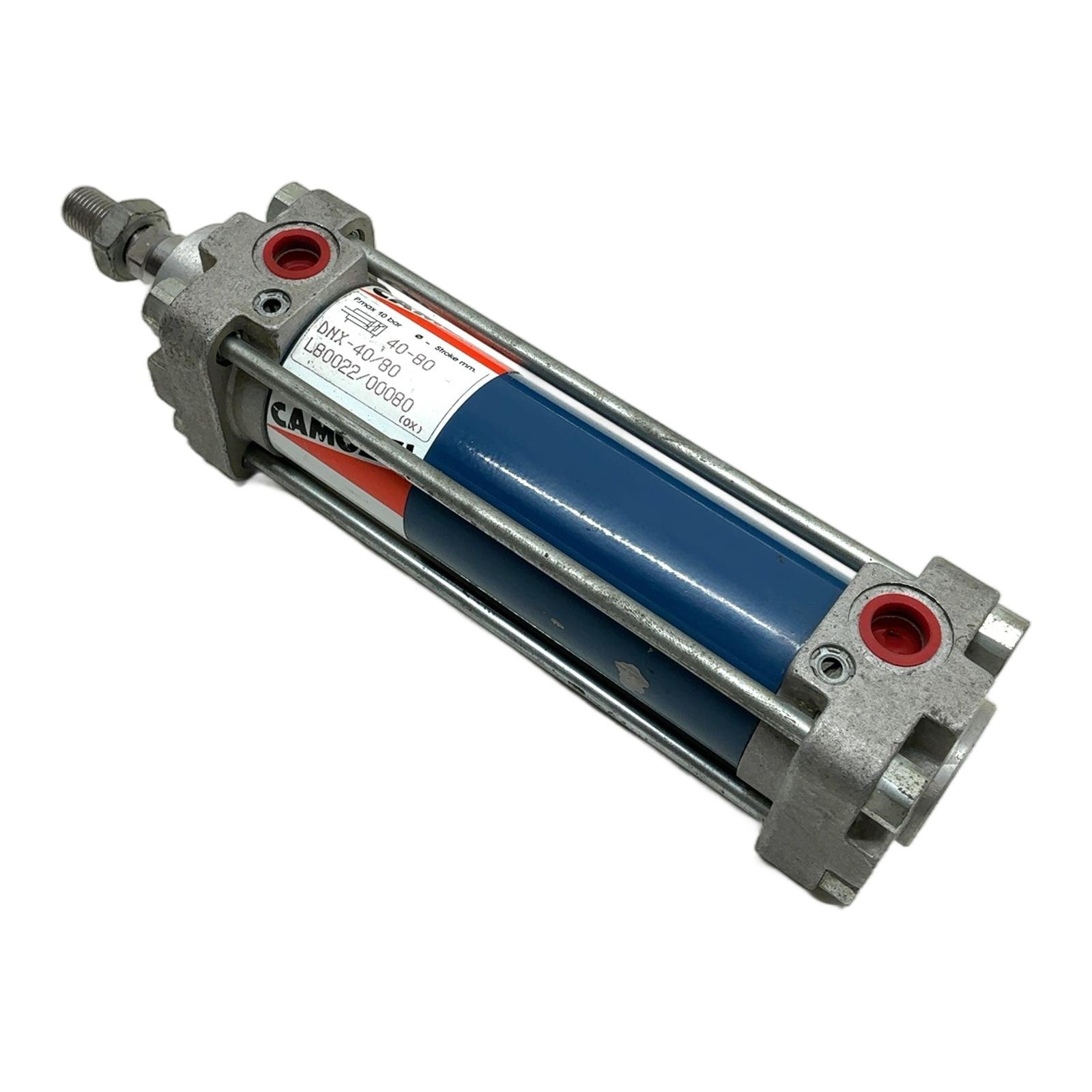

Camozzi DNX-40/80 Pneumatic Tie-Rod Cylinder Description This is a double-acting pneumatic cylinder, model DNX-40/80, from the renowned manufacturer Camozzi. Engineered for reliability in industrial environments, this cylinder provides linear motion for a wide range of automation tasks. It features a sturdy tie-rod construction, ensuring durability and consistent performance. Specifications Manufacturer: Camozzi Model: DNX-40/80 Action: Double-Acting Bore Diameter: 40 mm Stroke Length: 80 mm Maximum Operating Pressure: 10 bar Piston Type: Non-magnetic Construction: Tie-rod type, compliant with older ISO/VDMA standards. Label Info Model: DNX-40/80 Bore/Stroke: 40-80 Order Code: L80022/00080 Max Pressure: P.max 10 bar Application Suitable for various industrial applications including material handling, clamping, positioning, and pressing operations where reliable and controlled linear force is required. Country of Origin Made in Italy. CO2 Impact By choosing this pre-owned cylinder, you are preventing the emission of approximately 12.0 kg of CO2, which would be generated in the production of a new one. This saving is comparable to the emissions from a 60-kilometer car journey. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Is this DNX-40/80 cylinder magnetic for use with position sensors?No, the ‘N’ in the DNX series designation typically indicates it is a non-magnetic version. It does not have a magnetic piston, so standard reed or hall-effect sensors for cylinder position will not work with this model. What are the thread specifications for the air ports and the piston rod?For a 40mm bore cylinder compliant with older standards like ISO 6431, the air ports are typically G1/4 inch. The piston rod thread for a 40mm bore cylinder is commonly M12x1.25. Always verify with a thread gauge before fitting connectors. Can this cylinder be used with lubricated air?Yes, Camozzi cylinders of this vintage are designed to work with both lubricated and non-lubricated compressed air. However, if you begin using lubricated air, it is recommended to continue doing so for the remainder of the cylinder’s service life to prevent the internal seals from drying out. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
