SKF YAR213-2RF

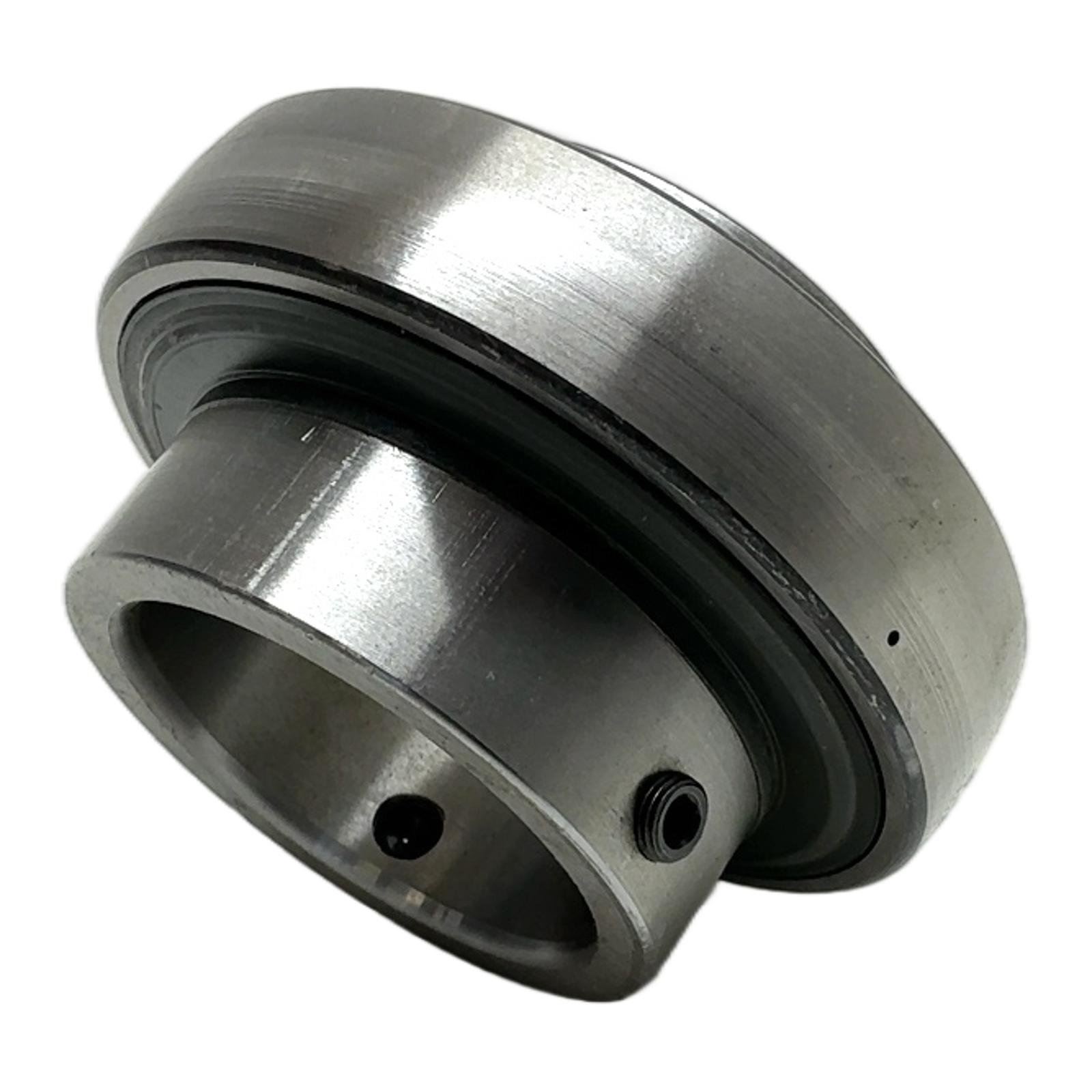

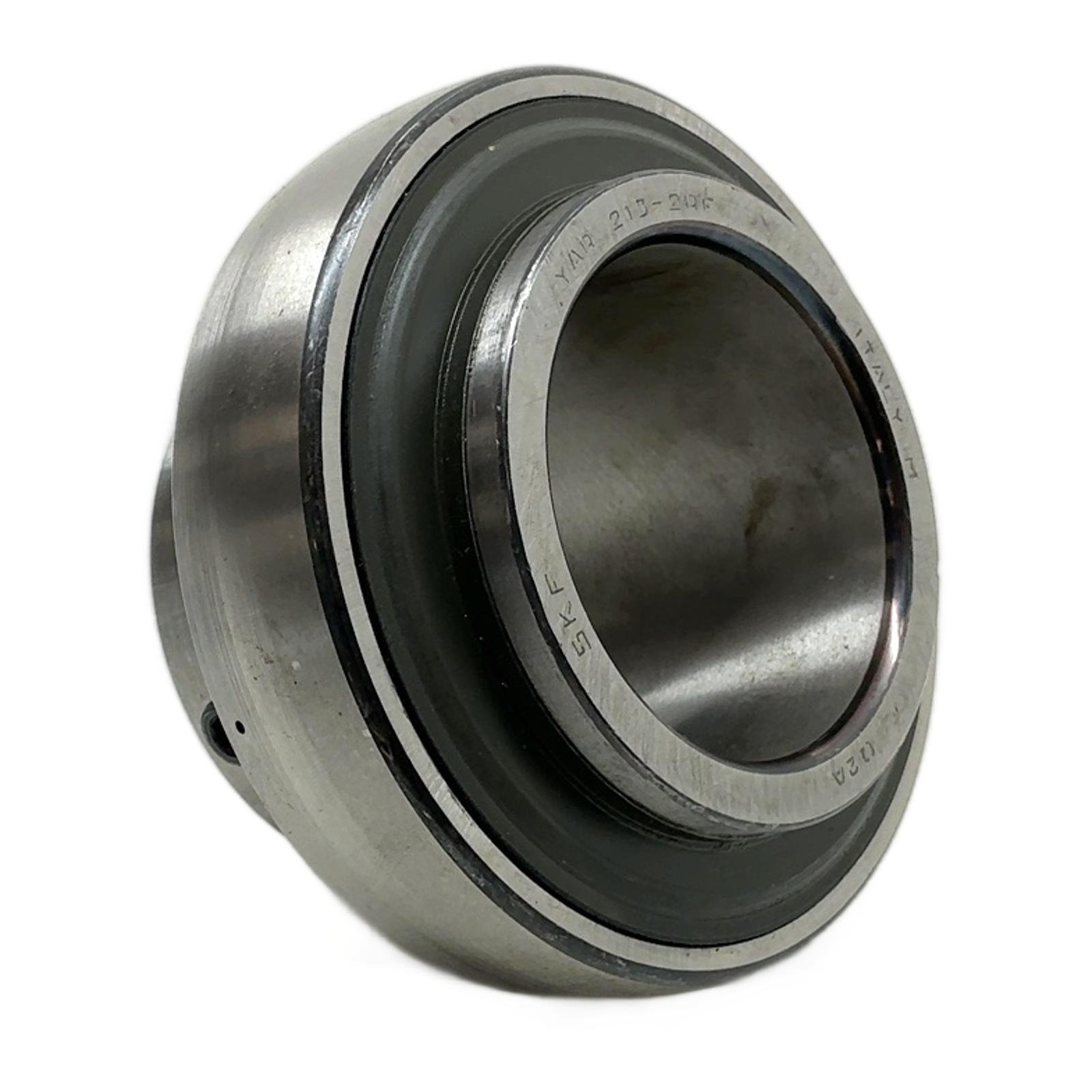

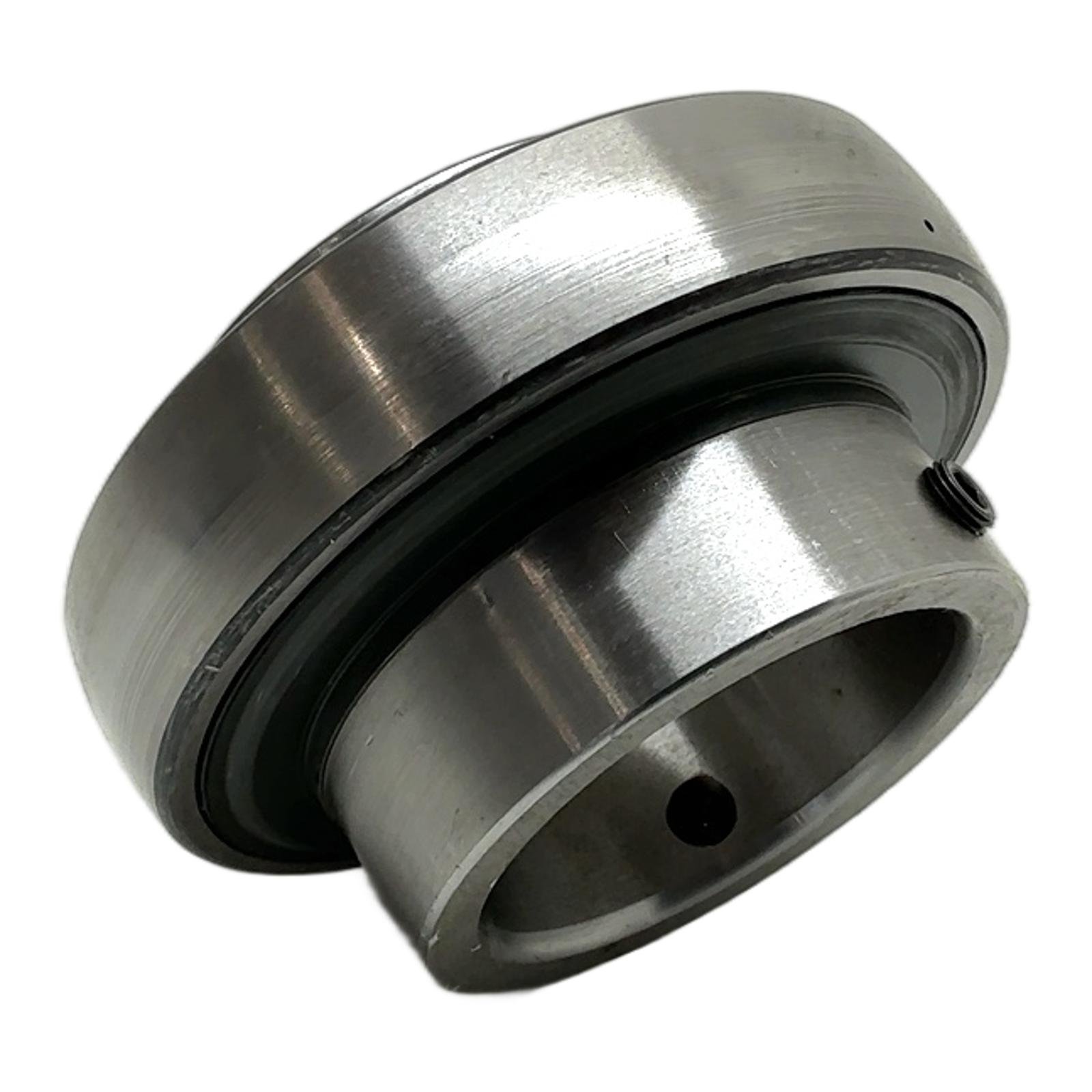

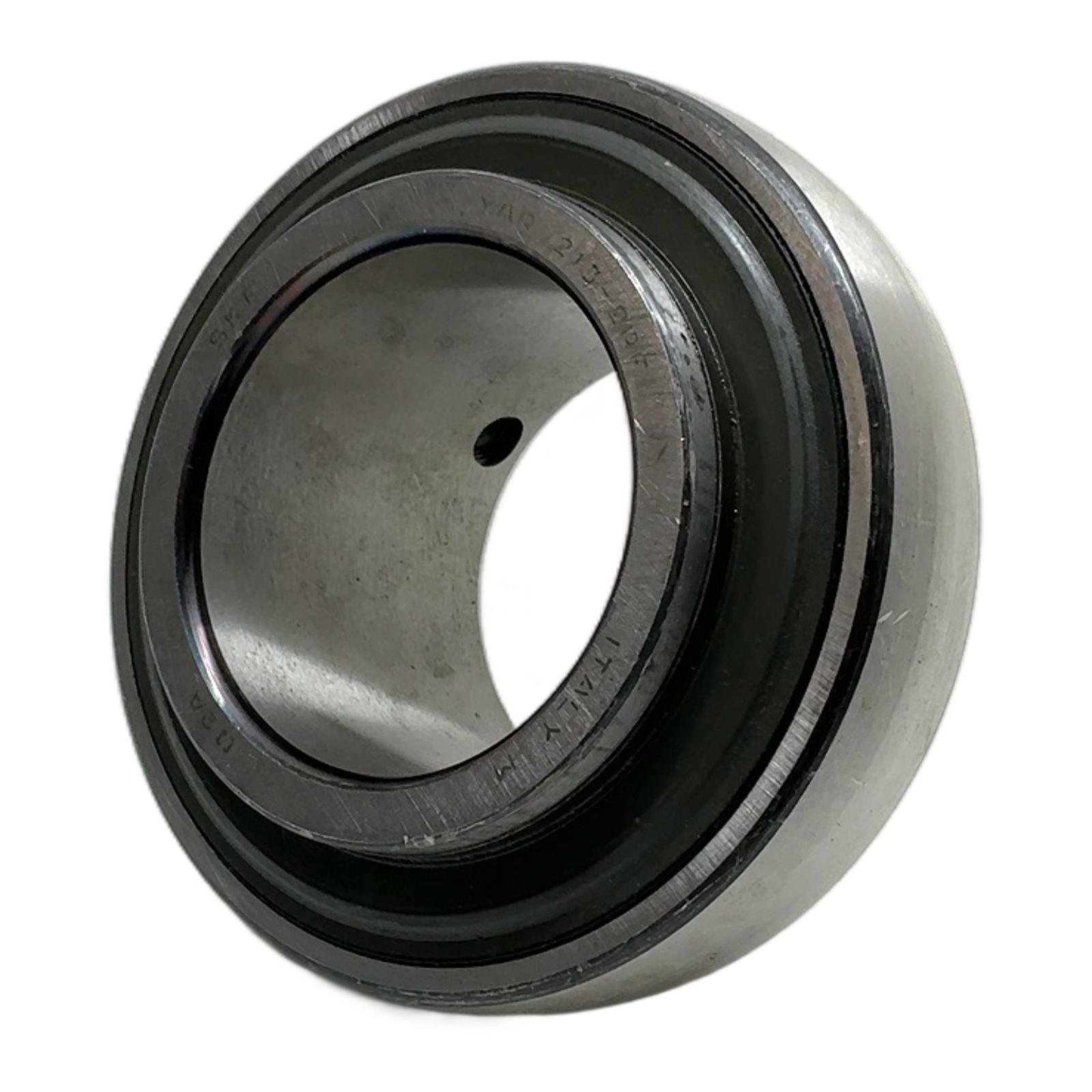

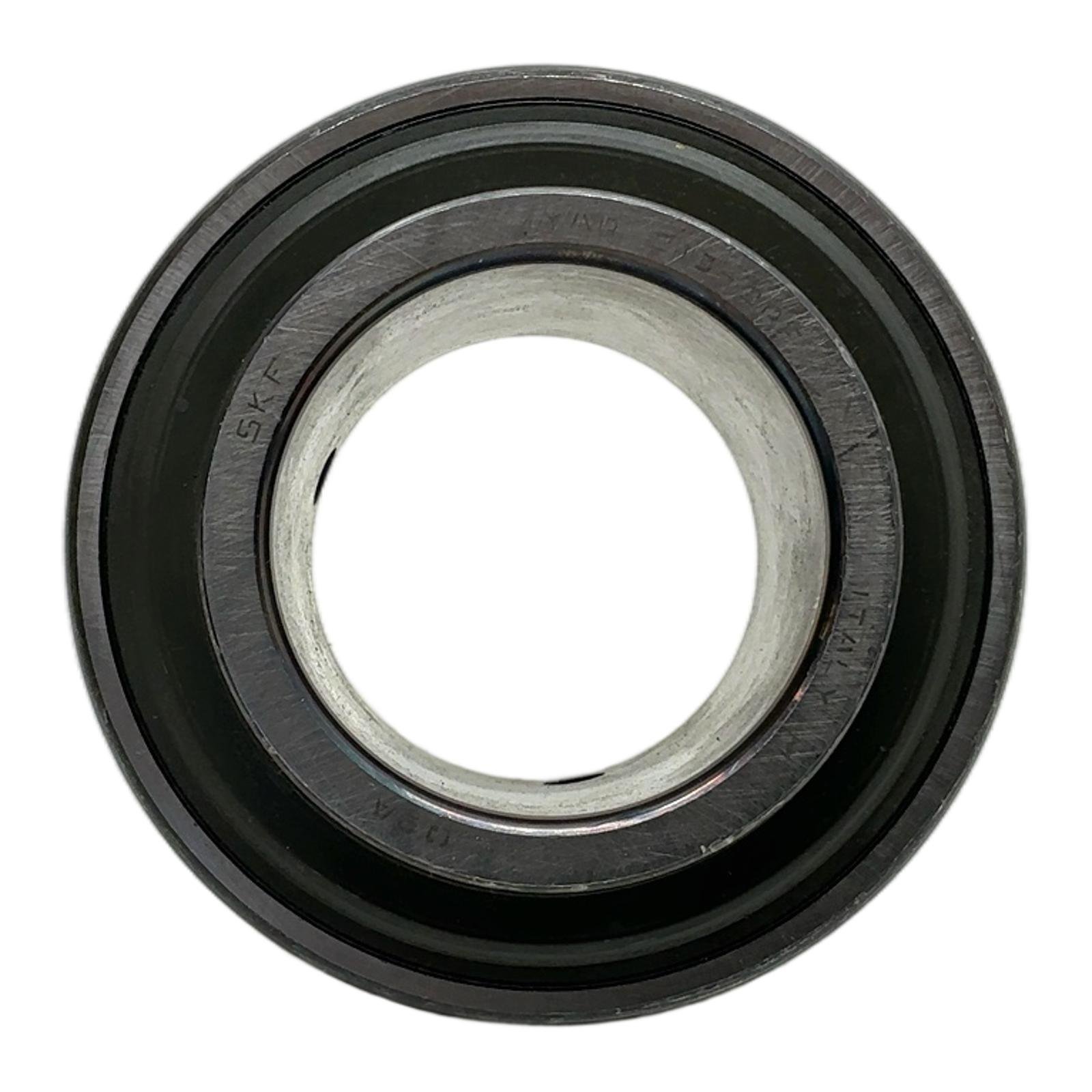

SKF YAR 213-2RF Insert Bearing Description The SKF YAR 213-2RF is a high-performance insert bearing, also known as a Y-bearing, designed for reliability and ease of use. It features a 65 mm bore and is equipped with a grub screw locking mechanism for secure attachment to the shaft. The spherical outer ring allows for initial static misalignment, simplifying installation and reducing stress on the bearing. This bearing is suitable for a wide variety of applications where simplicity and reliability are key. Specifications Manufacturer: SKF Part Number: YAR 213-2RF Bore Diameter (d): 65 mm Outer Diameter (D): 120 mm Total Width (B1): 65.1 mm Locking: Grub screws (Set screws) Sealing: 2RF – Standard seals with flingers on both sides Material: Bearing Steel Label Info Brand: SKF Model: YAR 213-2RF Marking: ITALY Application This insert bearing is commonly used in agricultural machinery, conveyor systems, food and beverage processing, packaging equipment, and textile machinery. Its robust sealing and self-aligning capability make it ideal for environments with moderate contamination and potential for shaft misalignment. Country of Origin Made in Italy. CO2 Impact By purchasing this reused bearing, you are helping to avoid the emission of approximately 4.6 kg of CO2, which is associated with the production of a new unit. This is equivalent to the CO2 absorbed by a mature tree over several months. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the main advantage of the ‘2RF’ seal designation on this SKF YAR 213-2RF bearing? The ‘2RF’ designation indicates a standard seal with a plain flinger on both sides. This provides effective protection against moderate contamination and helps retain lubricant, extending the bearing’s service life in typical industrial environments. How do I properly tighten the grub screws on the YAR 213-2RF to ensure it’s securely fastened to a 65mm shaft? The grub (set) screws should be tightened to the manufacturer’s recommended torque specification using a suitable hex key. Typically, you tighten them alternately to ensure the inner ring is centered and securely locked onto the shaft without causing distortion. Always consult the SKF maintenance handbook for precise torque values. Can this YAR 213-2RF bearing accommodate misalignment? Yes, a key feature of Y-bearings like this one is the spherically ground outside surface. This allows it to accommodate initial static misalignment when mounted in an appropriate SKF bearing housing, which simplifies installation and prevents premature wear. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
