PEPPERL+FUCHS V1S-T-V3 221645

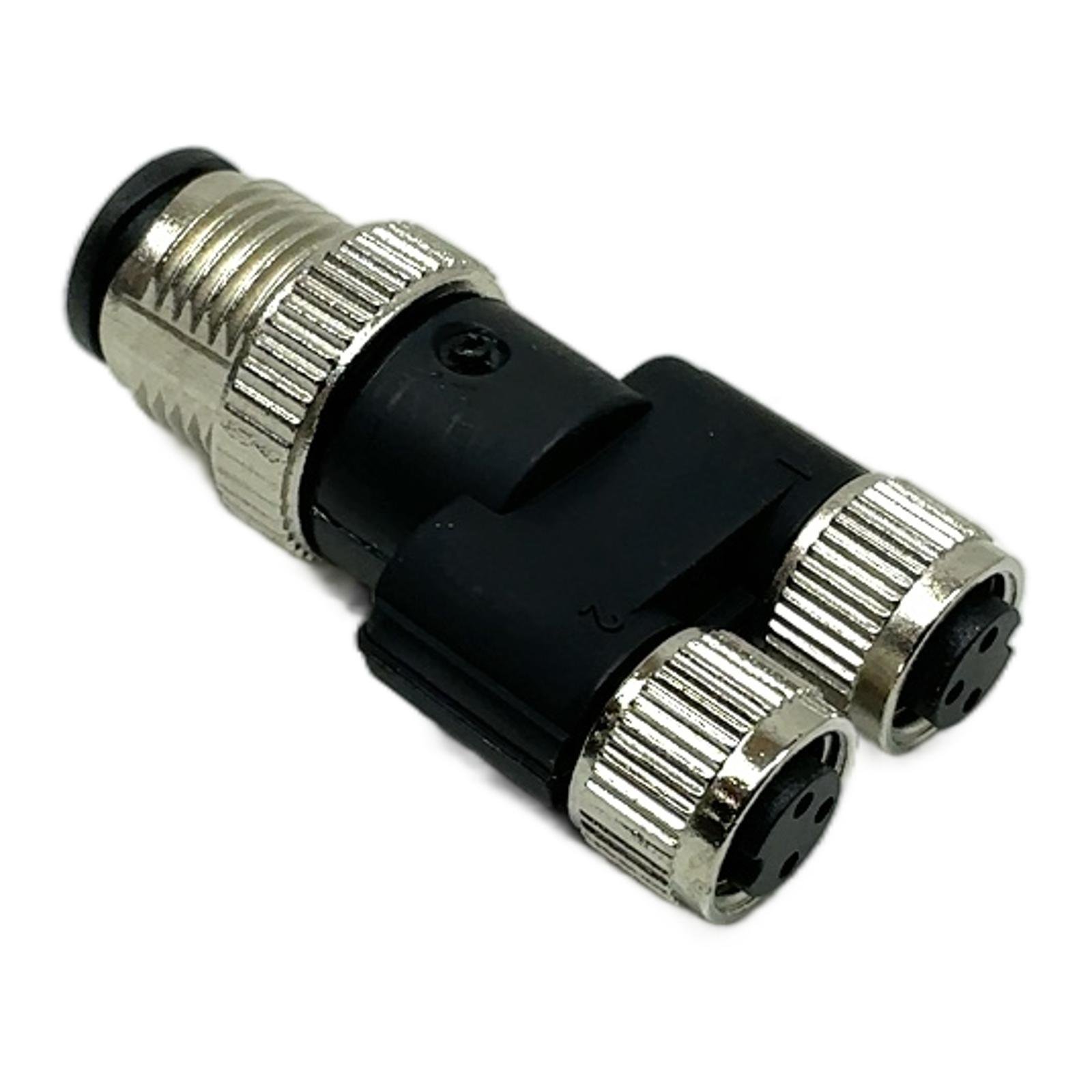

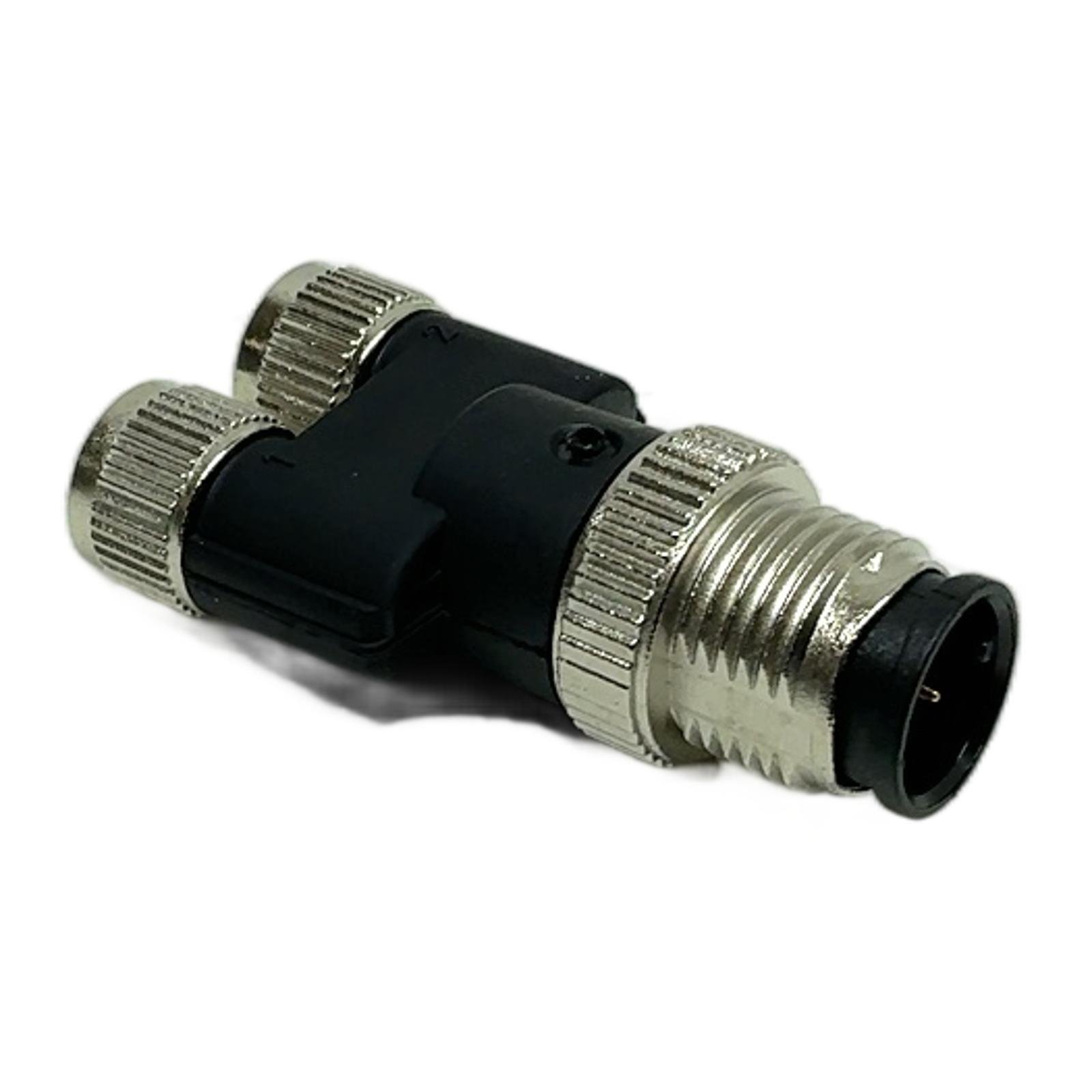

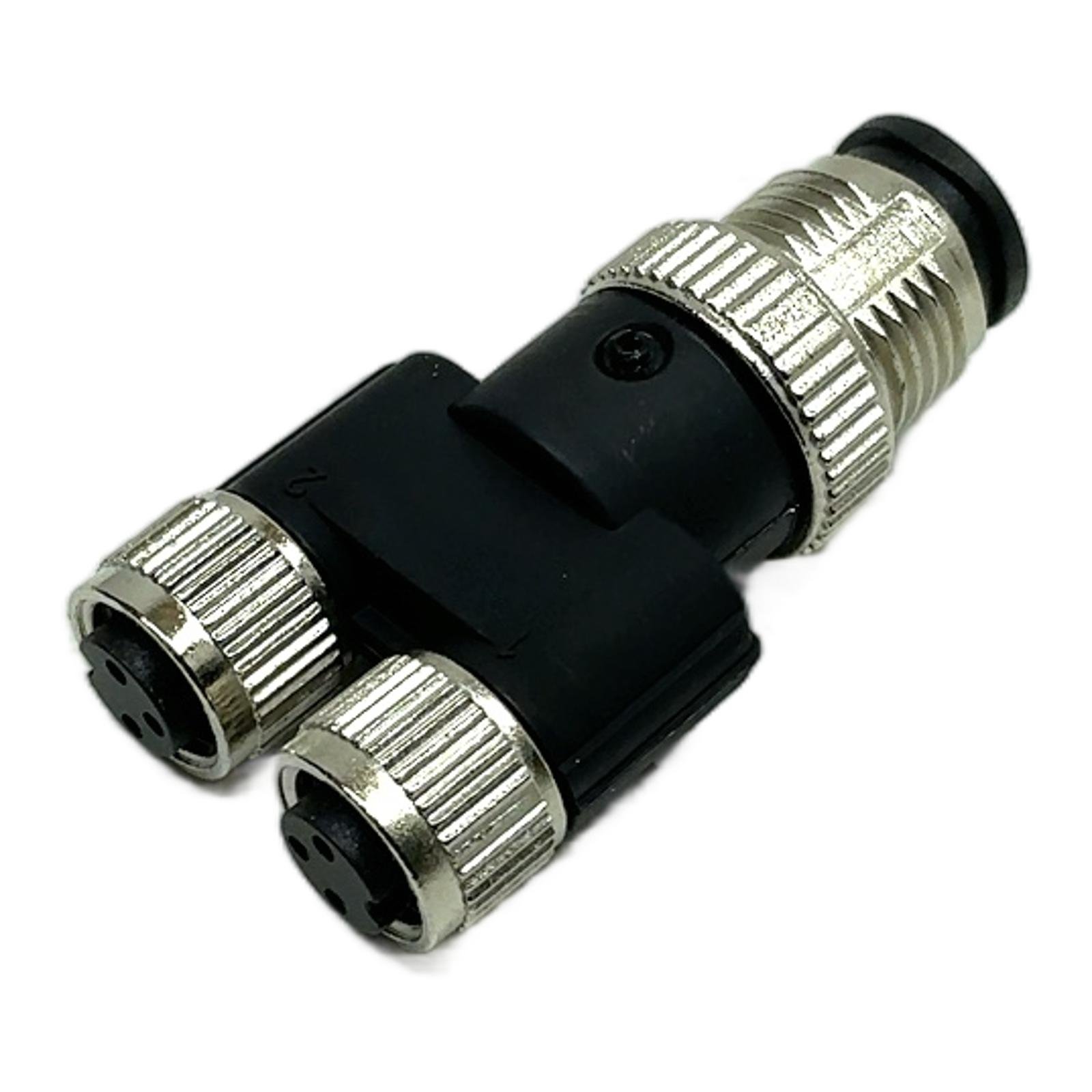

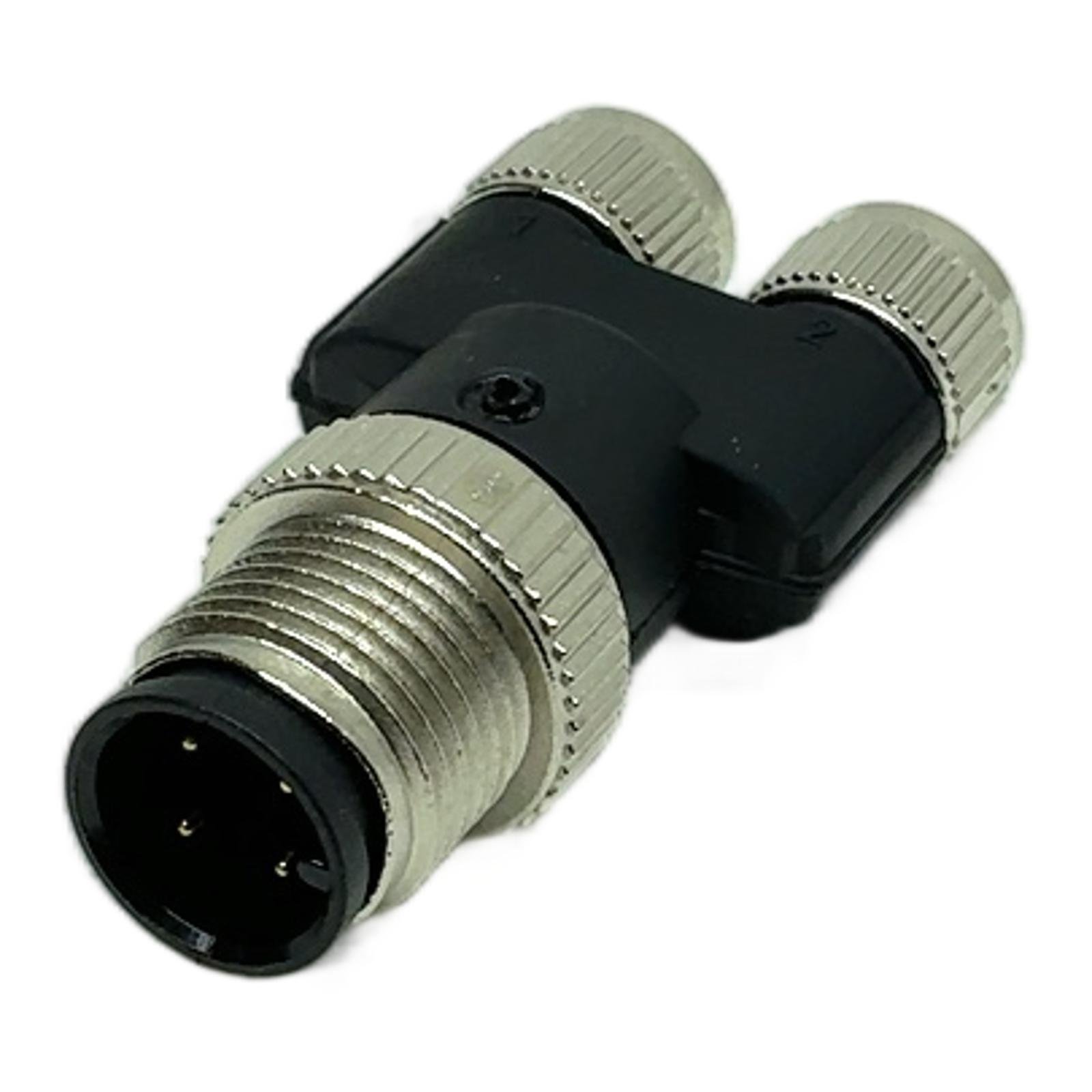

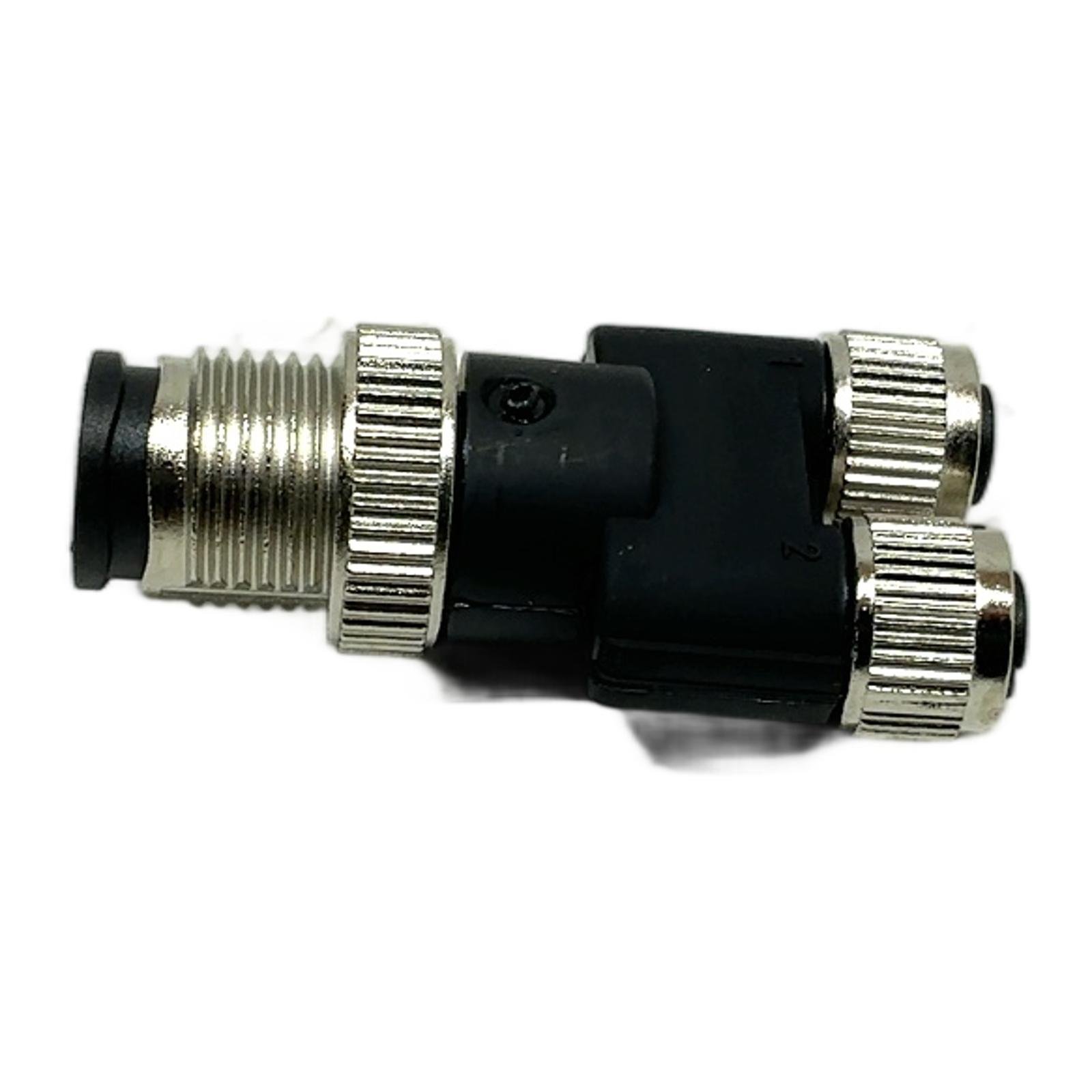

Pepperl+Fuchs M12 Y-Splitter V1S-T-V3 Description The V1S-T-V3 is a robust Y-distributor from Pepperl+Fuchs, designed for reliable signal and power distribution in industrial automation environments. This component allows a single M12 connection to be split into two parallel outputs, simplifying wiring for sensors and actuators. Its high protection rating ensures dependable operation even in harsh conditions. Specifications Model: V1S-T-V3 Part Number: 221645 Type: Y-Splitter / Y-Distributor Connector 1: M12 Male Plug, 4-pin, A-coded Connector 2 & 3: M12 Female Socket, 5-pin, A-coded (Pin 5 not connected) Rated Voltage: max. 250 V AC/DC Rated Current: max. 4 A per contact Protection Rating: IP67 / IP68 / IP69 Housing Material: TPU, Black Coupling Nut: Die-cast zinc, nickel-plated Label Info Manufacturer: PEPPERL+FUCHS Type: V1S-T-V3 Part No.: 221645 Application This Y-splitter is ideal for applications requiring the duplication of sensor signals or the parallel connection of multiple actuators to a single I/O port. It is commonly used in conveyor systems, packaging machinery, and general machine building. Country of Origin Made in Poland. CO2 Impact By choosing this reused component, you are avoiding the production of a new one, saving an estimated 0.8 kg of CO2. This is comparable to the energy needed to fully charge a smartphone 96 times. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Why does this splitter have a 4-pin male connector but two 5-pin female connectors?This is a common design for compatibility. The V1S-T-V3 uses a standard 4-pin M12 A-coded pinout (pins 1-4) which are wired in parallel to the corresponding pins on both 5-pin female sockets. Pin 5 on the female sockets is not connected, ensuring it can be used with both 4-pin and 5-pin cables without any issue, as long as pin 5 is not required by the connected device. What is the IP rating and what kind of environments is this connector suitable for?The V1S-T-V3 has an IP67, IP68, and IP69 rating when properly mated. This means it is fully protected against dust ingress, can be submerged in water, and can withstand high-pressure, high-temperature washdowns. It is ideal for harsh industrial environments, including food and beverage processing and machine tools. Can I use this splitter for a PROFINET or EtherCAT network?No, this splitter is not suitable for Industrial Ethernet protocols. It is an A-coded connector for standard sensor/actuator signals. Industrial Ethernet requires specific D-coded or X-coded M12 connectors with appropriate shielding to ensure data integrity at high speeds. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
