SCHNEIDER ELECTRIC DF101

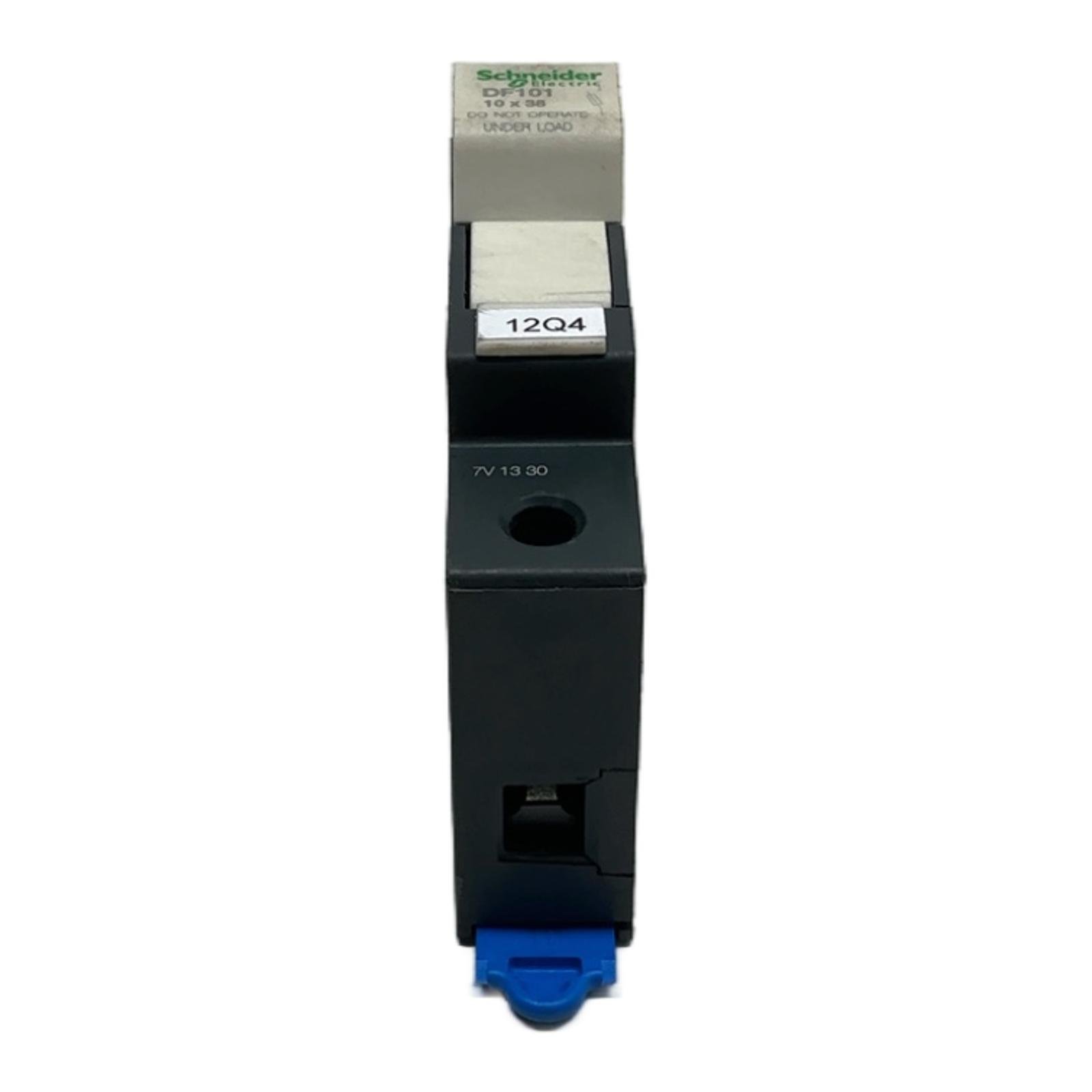

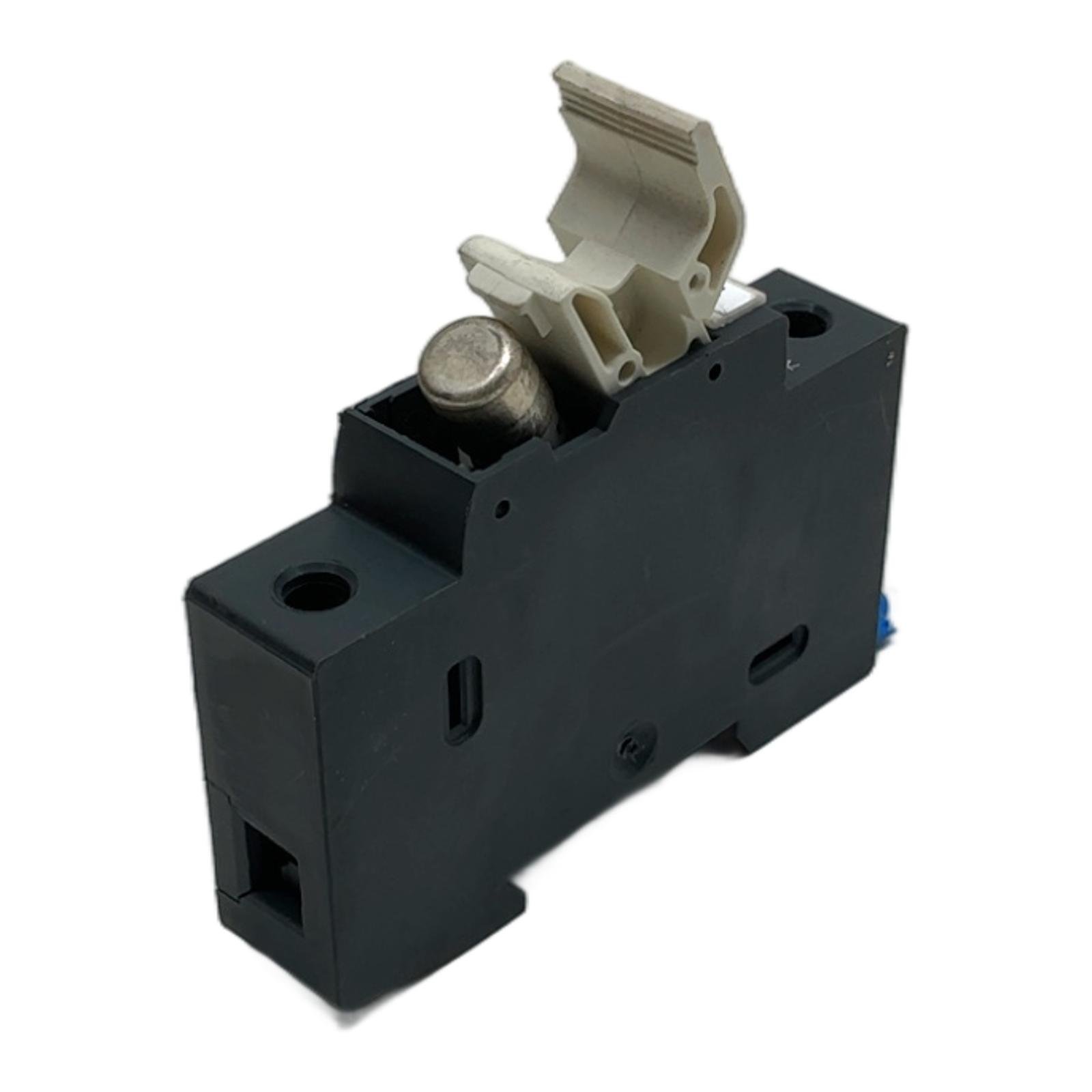

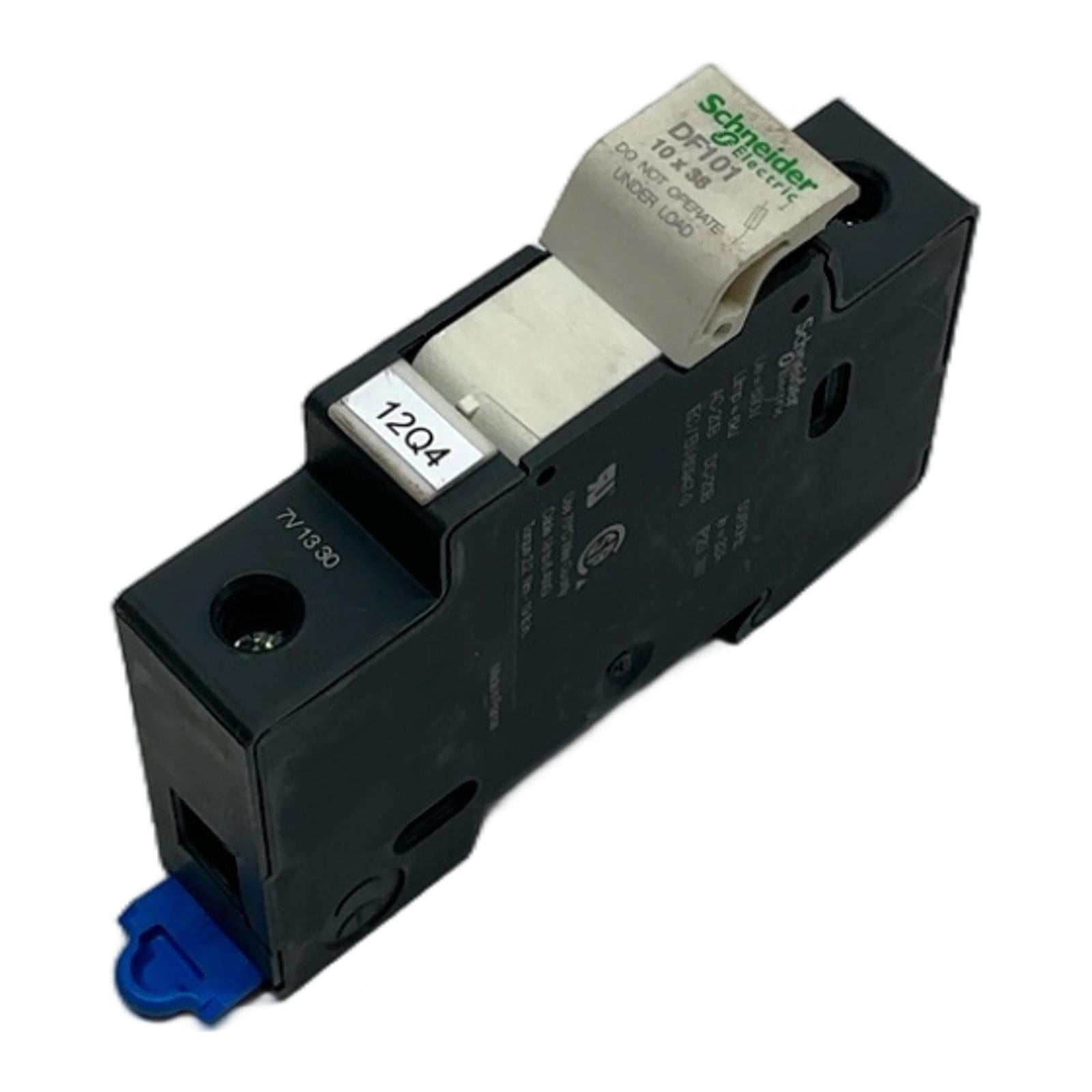

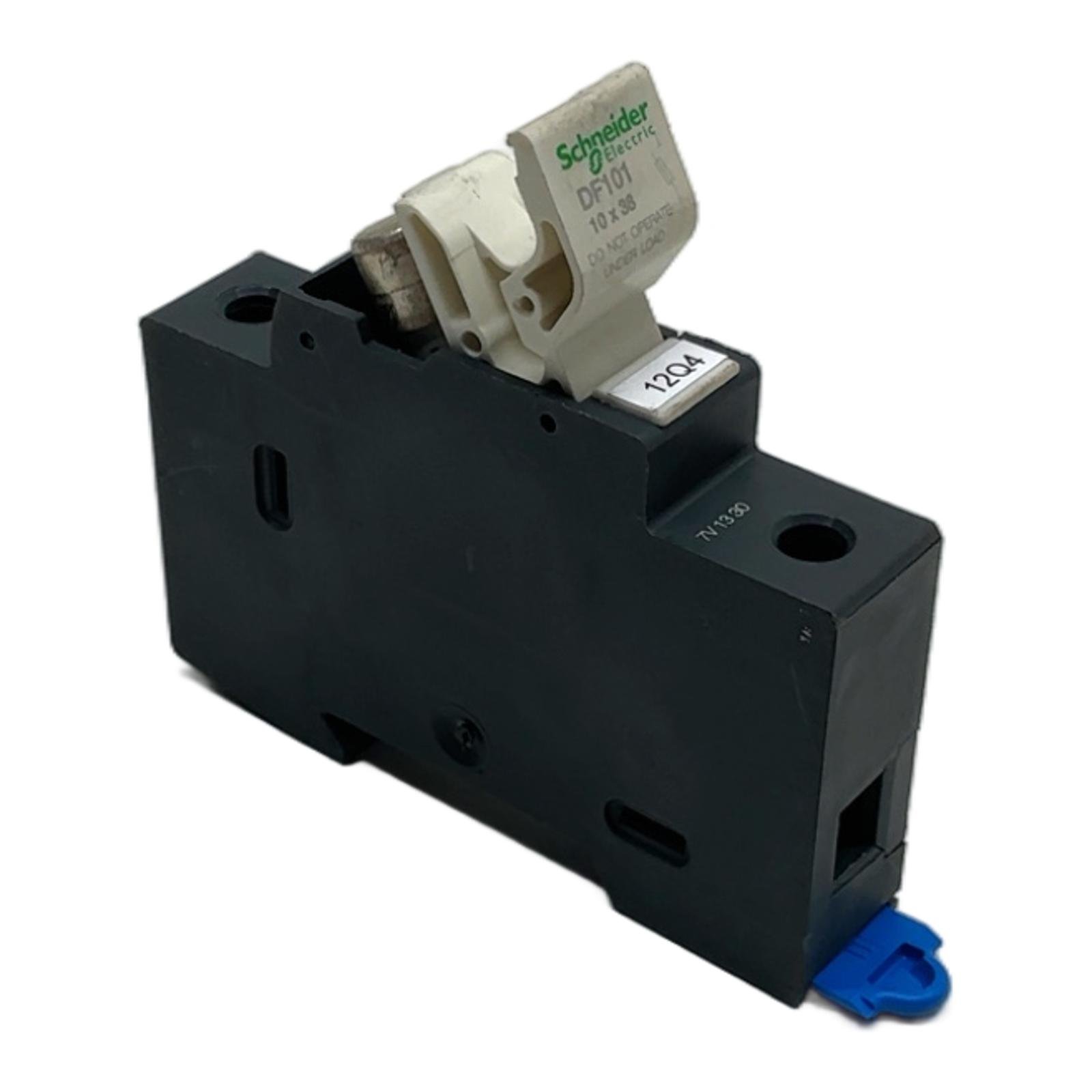

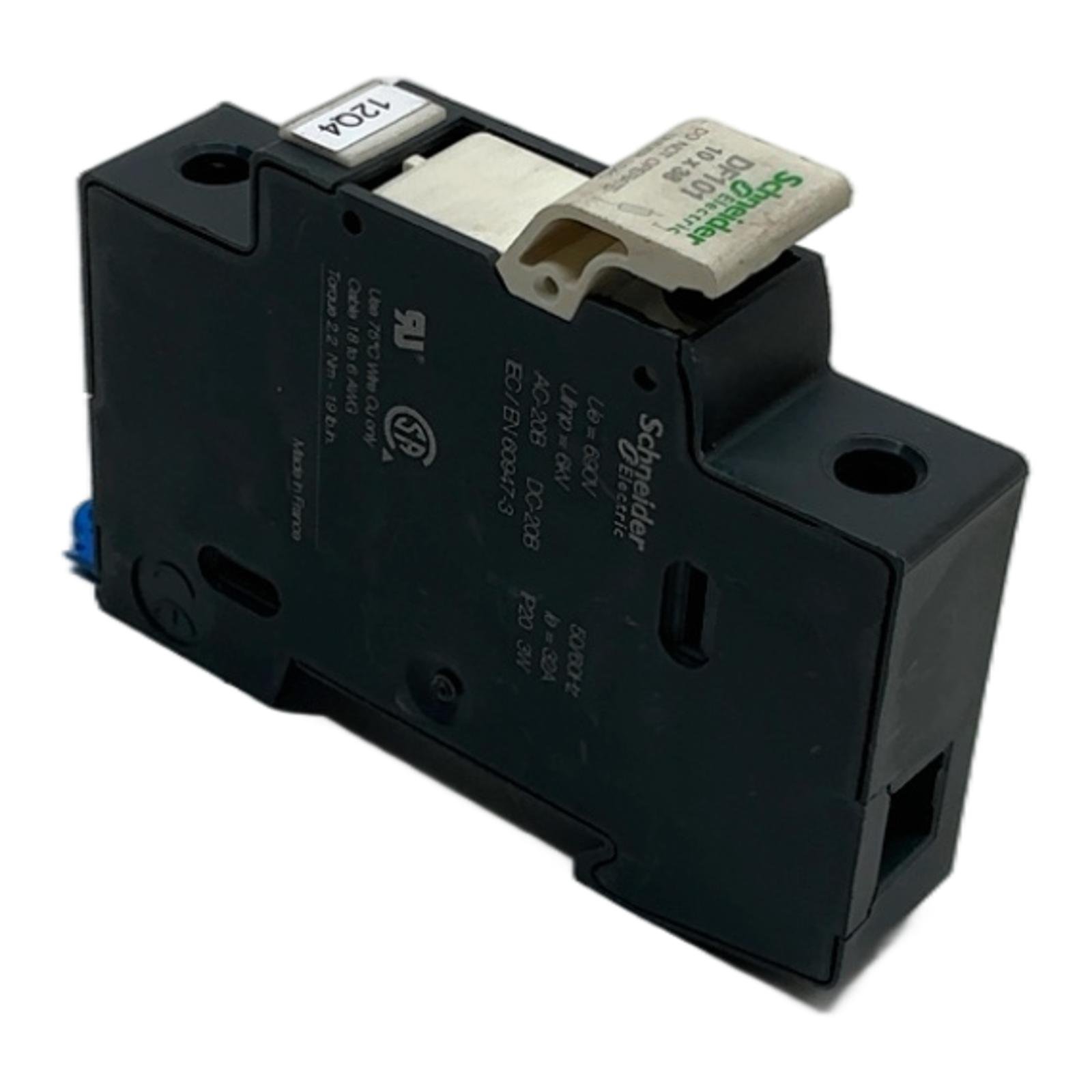

Schneider Electric TeSys DF101 Fuse Holder Description The Schneider Electric DF101 is a high-quality, single-pole fuse holder from the TeSys range, designed for industrial applications requiring reliable circuit protection. It accommodates 10 x 38 mm fuses and is rated for a current of up to 32A and a voltage of 690V. Its compact design allows for easy mounting on a standard DIN rail, making it a versatile solution for control panels and distribution boards. Specifications Manufacturer: Schneider Electric Part Number: DF101 Product Range: TeSys DF Number of Poles: 1P Rated Current (Ie): 32A Rated Voltage (Ue): 690V AC Rated Impulse Withstand Voltage (Uimp): 6kV Compatible Fuse Size: 10 x 38 mm Mounting: DIN Rail Protection Rating: IP20 Label Info Standard: IEC/EN 60947-3 Utilization Category: AC-20B, DC-20B Application Ideal for protecting motors, transformers, and other electrical loads in industrial automation, HVAC systems, and commercial buildings. Provides safe isolation for maintenance purposes. Country of Origin Made in France. CO2 Impact By purchasing this reconditioned component, you are helping to avoid the production of a new one, saving an estimated 2.6 kg of CO2. This is comparable to the emissions saved by not driving a car for 13 kilometers. Availability This item is a used, tested product in excellent working condition. Available for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What type and size of fuse is compatible with the DF101?The DF101 is designed specifically for cylindrical fuses of size 10 x 38 mm, such as gG or aM type fuses, up to a rating of 32A. Can this fuse holder be used in DC applications?Yes, the device is rated for both AC and DC applications, as indicated by the AC-20B and DC-20B utilization categories on the casing. Always consult the datasheet for specific DC voltage limits. Is the DF101 touch-safe when the fuse carrier is open?The TeSys DF series is designed to be IP20 finger-safe, providing protection against accidental contact with live parts, even when the carrier is open for fuse replacement. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
