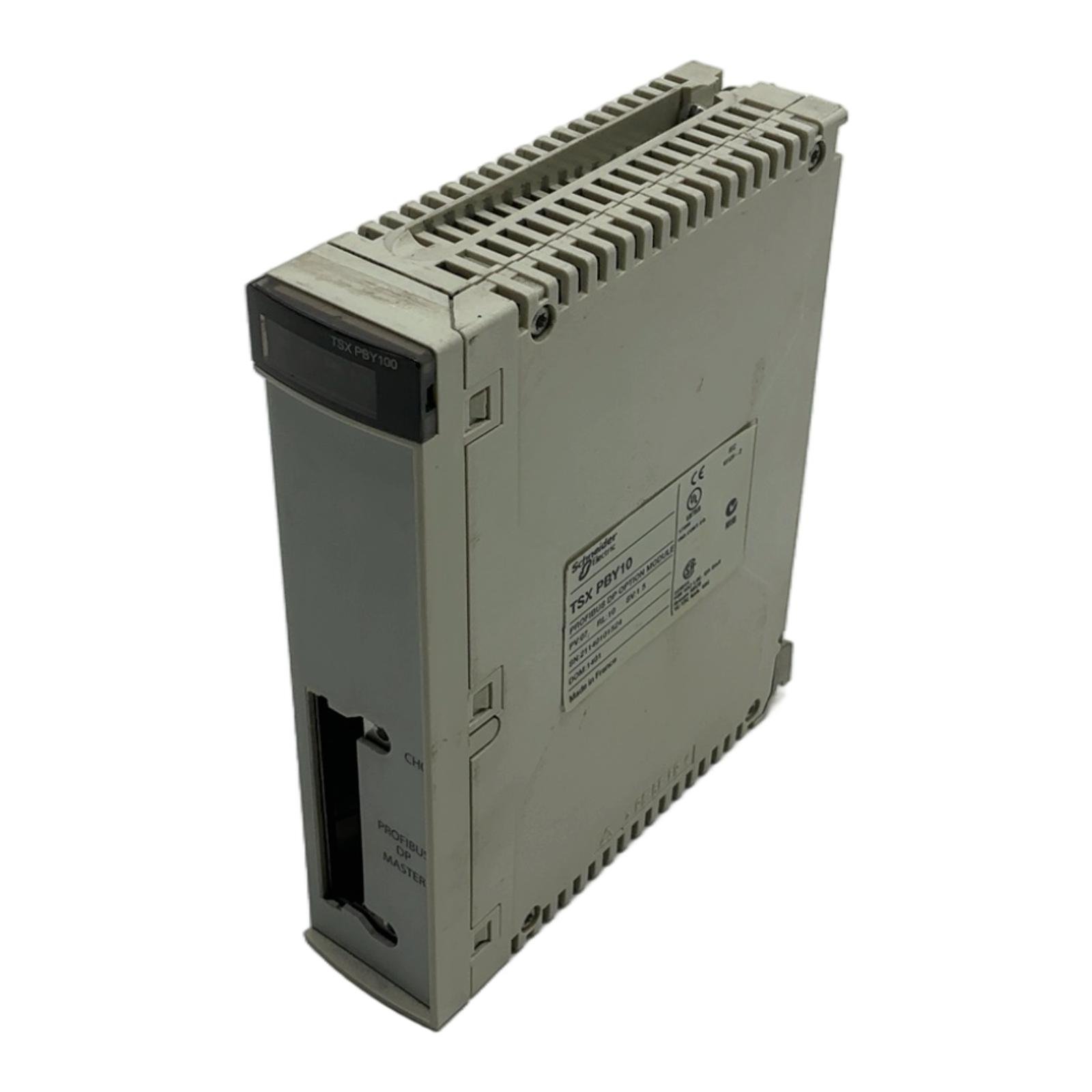

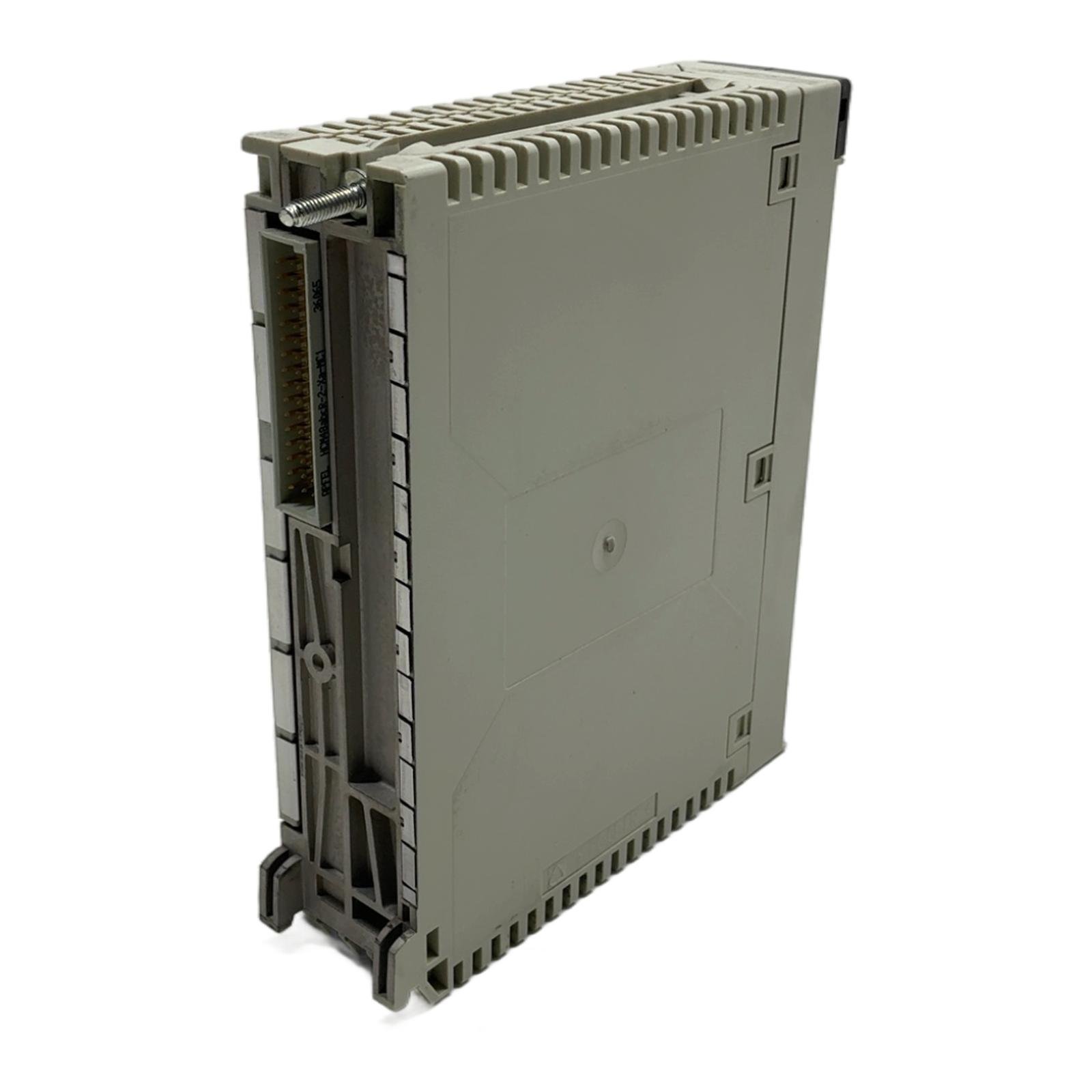

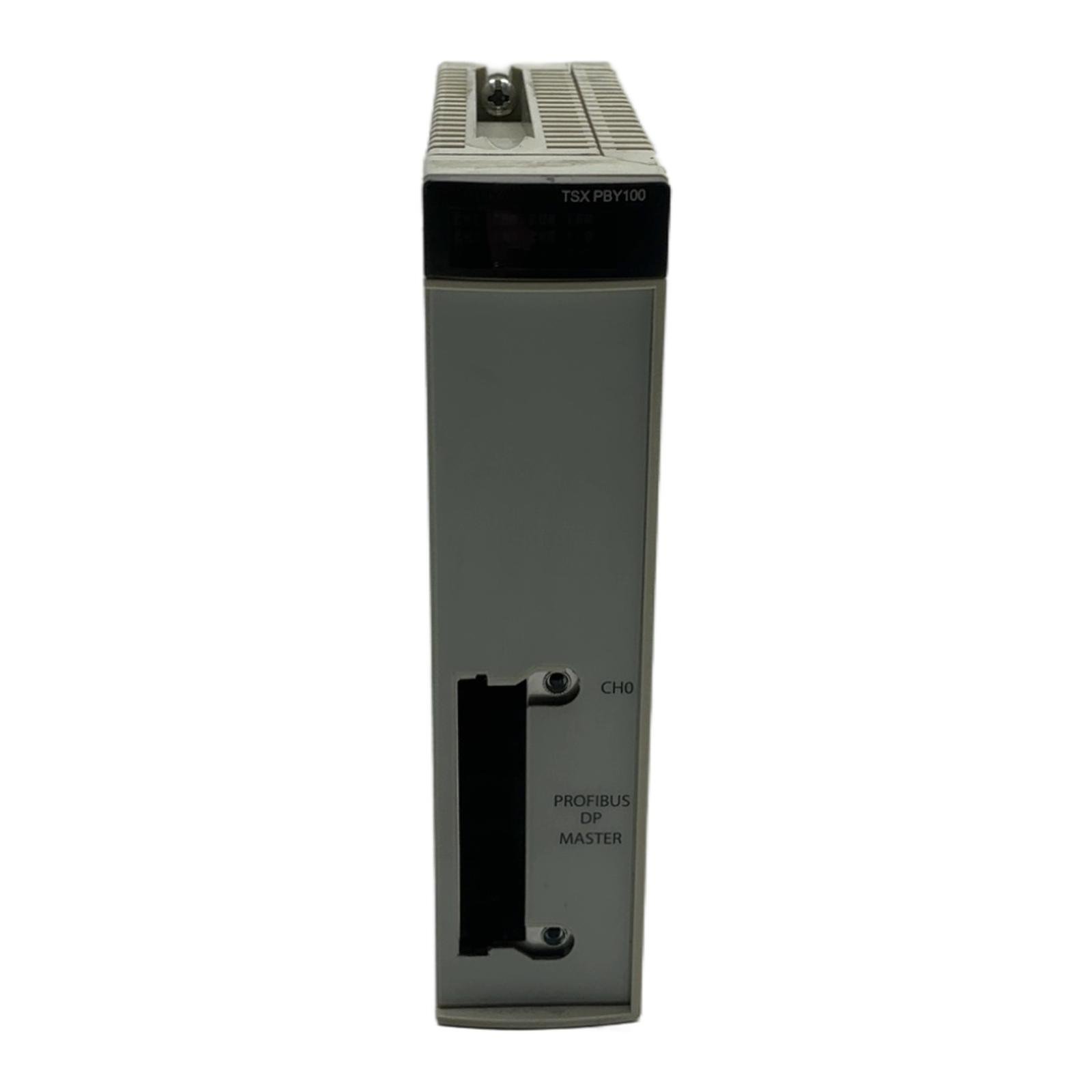

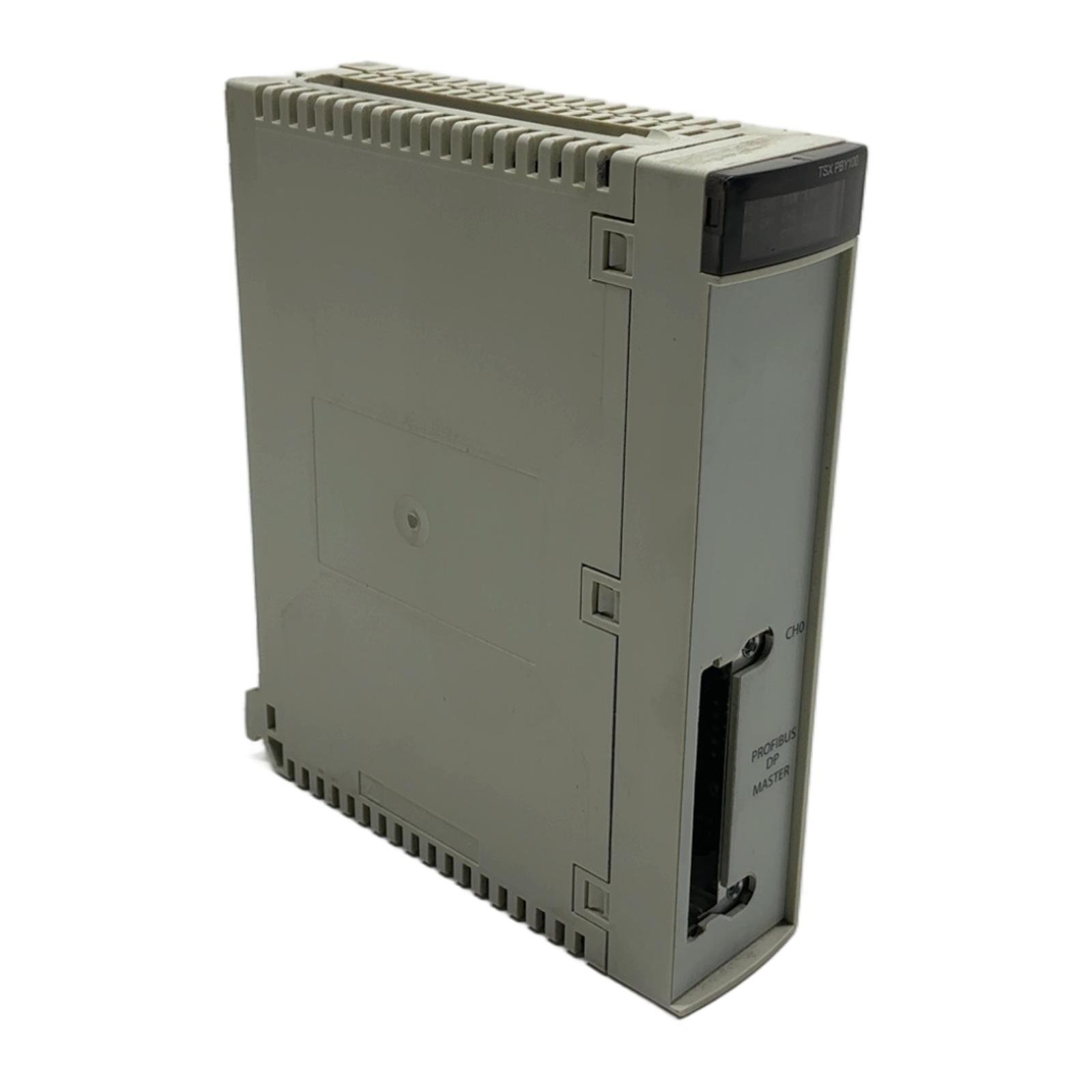

SCHNEIDER ELECTRIC TSXPBY100

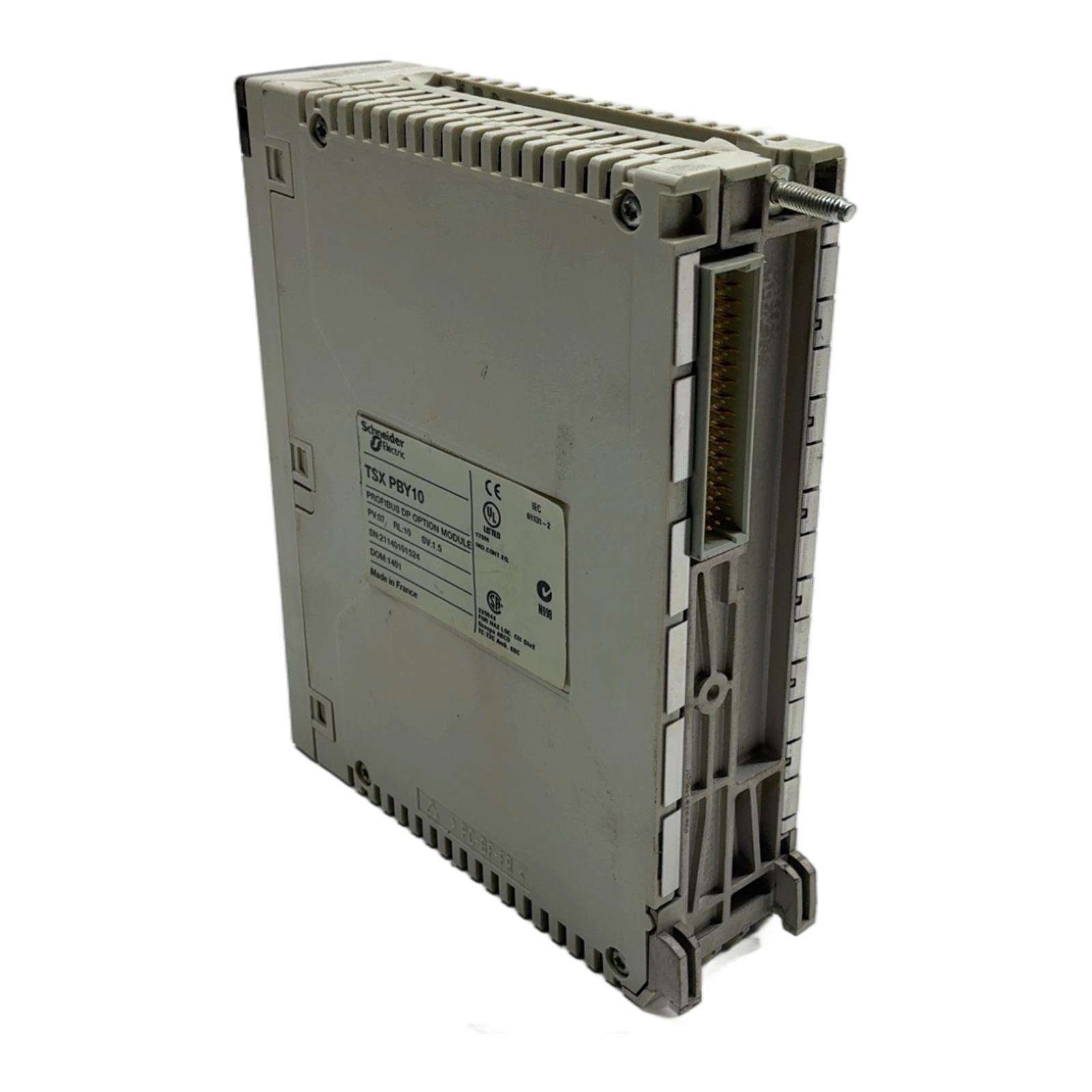

Schneider Electric TSXPBY100 Profibus DP Master Module Description The TSXPBY100 is a Profibus DP master communication module for the Schneider Electric Modicon Premium PLC series. It allows the PLC to control a Profibus network, managing communication with various slave devices such as remote I/O, drives, and sensors. As the Modicon Premium platform is obsolete, this module is a critical spare part for maintaining and extending the operational life of existing automation systems. Specifications Manufacturer: Schneider Electric Part Number: TSXPBY100 Product Family: Modicon Premium Function: Profibus DP Master Module Communication Speed: Up to 12 Mbit/s Format: Single-width module Label Info Model: TSX PBY10 PV: 07 RL: 10 SV: 1.5 Serial Number: 21140101524 Date of Manufacture: 1401 (Week 1, 2014) Application This module is used in industrial automation systems where a Modicon Premium PLC needs to act as a master on a Profibus DP network. It is common in manufacturing, process control, and infrastructure applications that were automated with the Modicon Premium platform. Country of Origin Made in France. CO2 Impact Opting for this pre-owned module over a new alternative avoids approximately 16 kg of CO2 emissions. This saving is comparable to the emissions from driving an average car for 80 kilometers. Availability This is an obsolete item. Availability is limited to existing stock. Order now from profideals for expert support and fast delivery. FAQ Is this module compatible with the Modicon M340 or M580 series?No, the TSXPBY100 is specifically designed for the obsolete Modicon Premium PLC platform. For Modicon M340 or M580, you would need a different communication module compatible with those systems. What software is required to configure the TSXPBY100 module?Configuration of this module is done within the Modicon Premium programming software, which is either PL7 Pro or Unity Pro, depending on the PLC CPU’s firmware version. Does this module support Profibus PA?No, the TSXPBY100 is a Profibus DP (Decentralized Peripherals) master module. It does not natively support Profibus PA (Process Automation). To connect PA devices, a DP/PA segment coupler or link would be required. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
