DATALOGIC CBX100

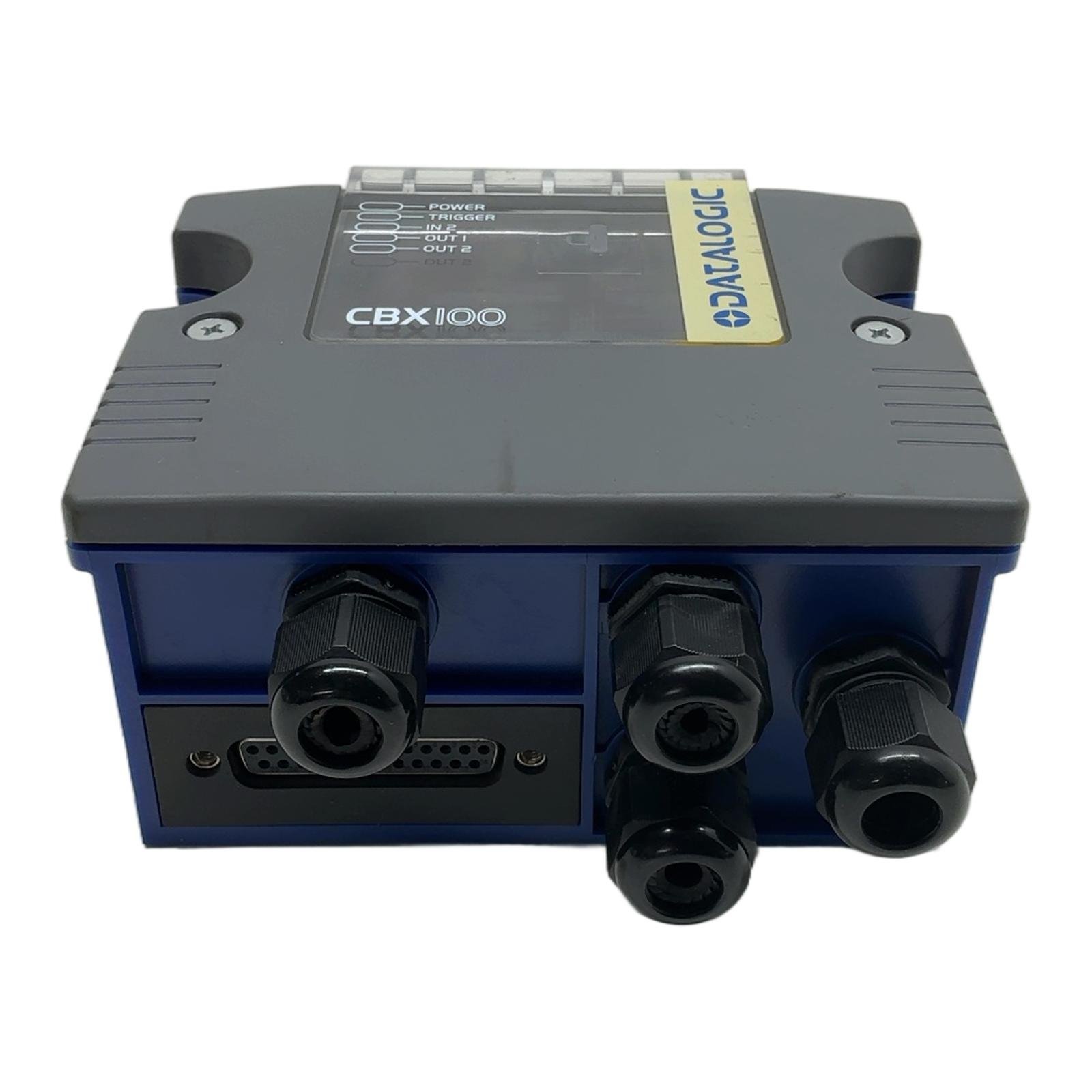

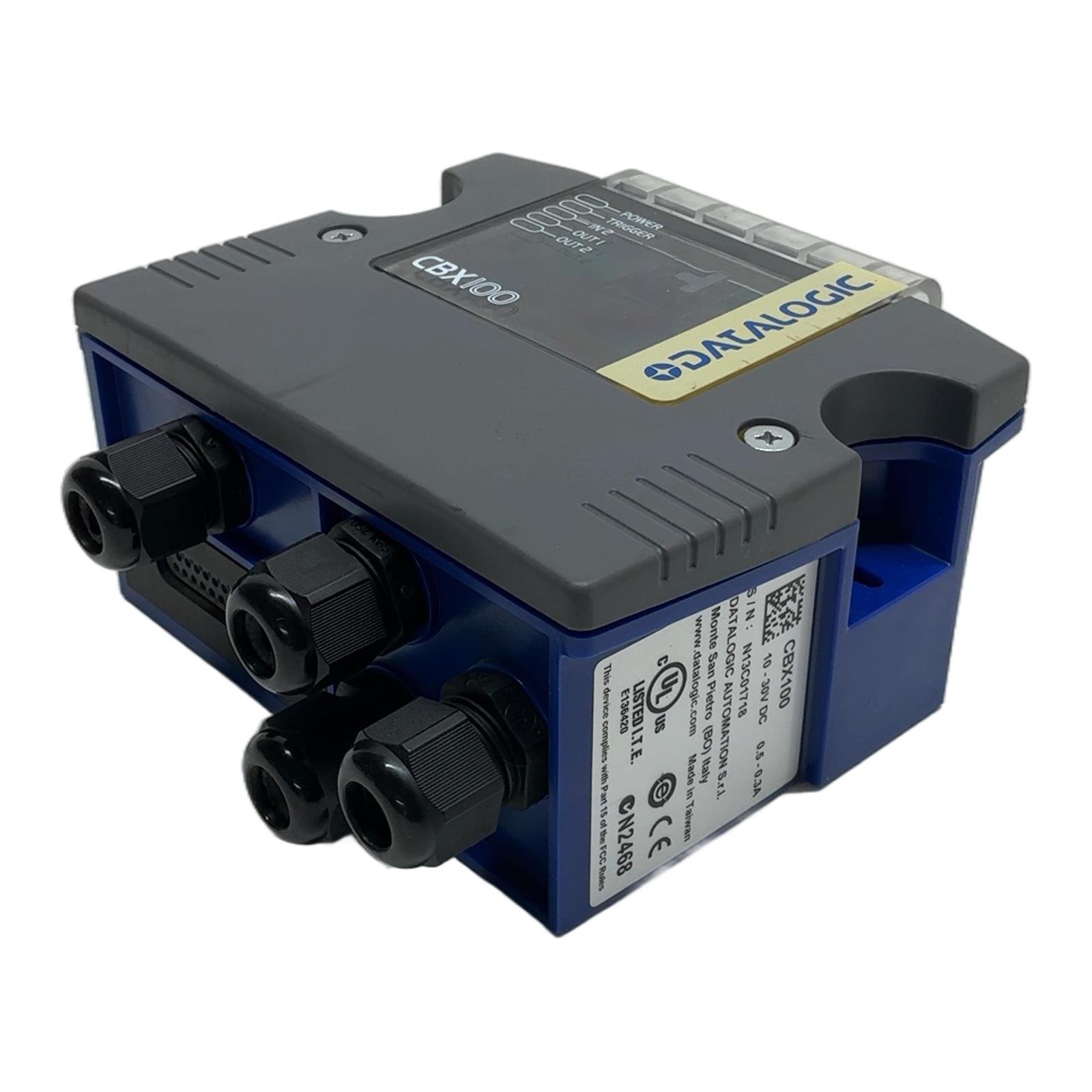

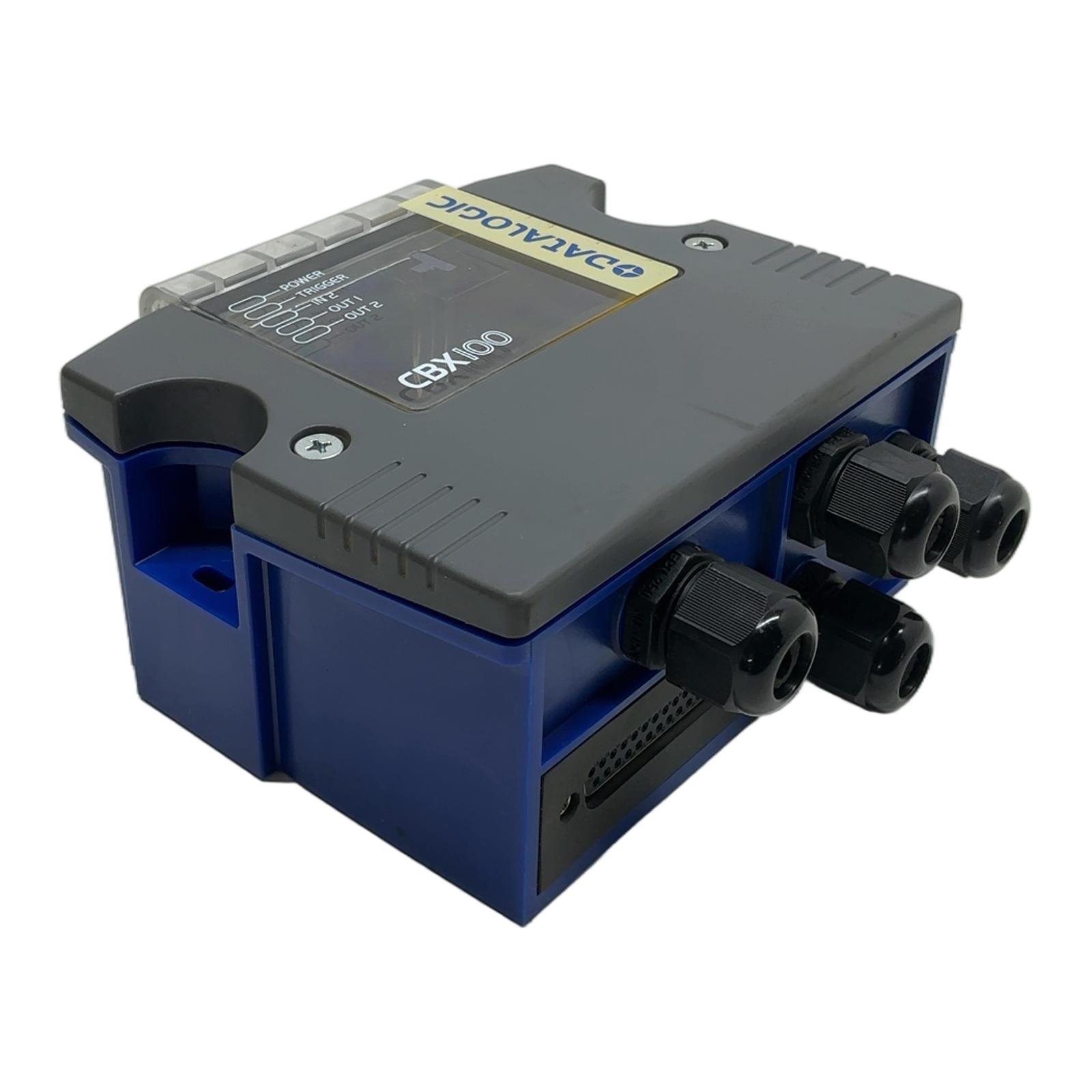

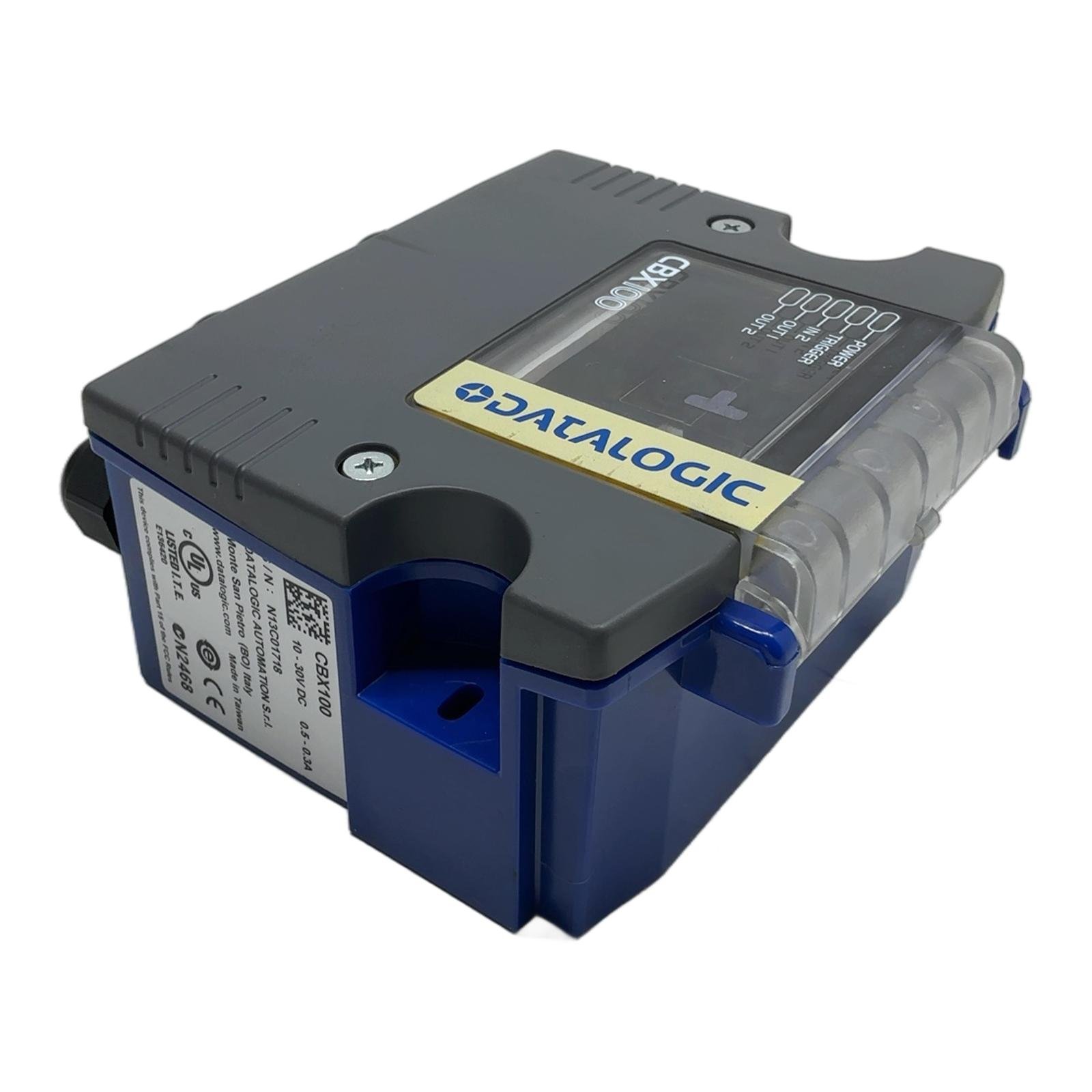

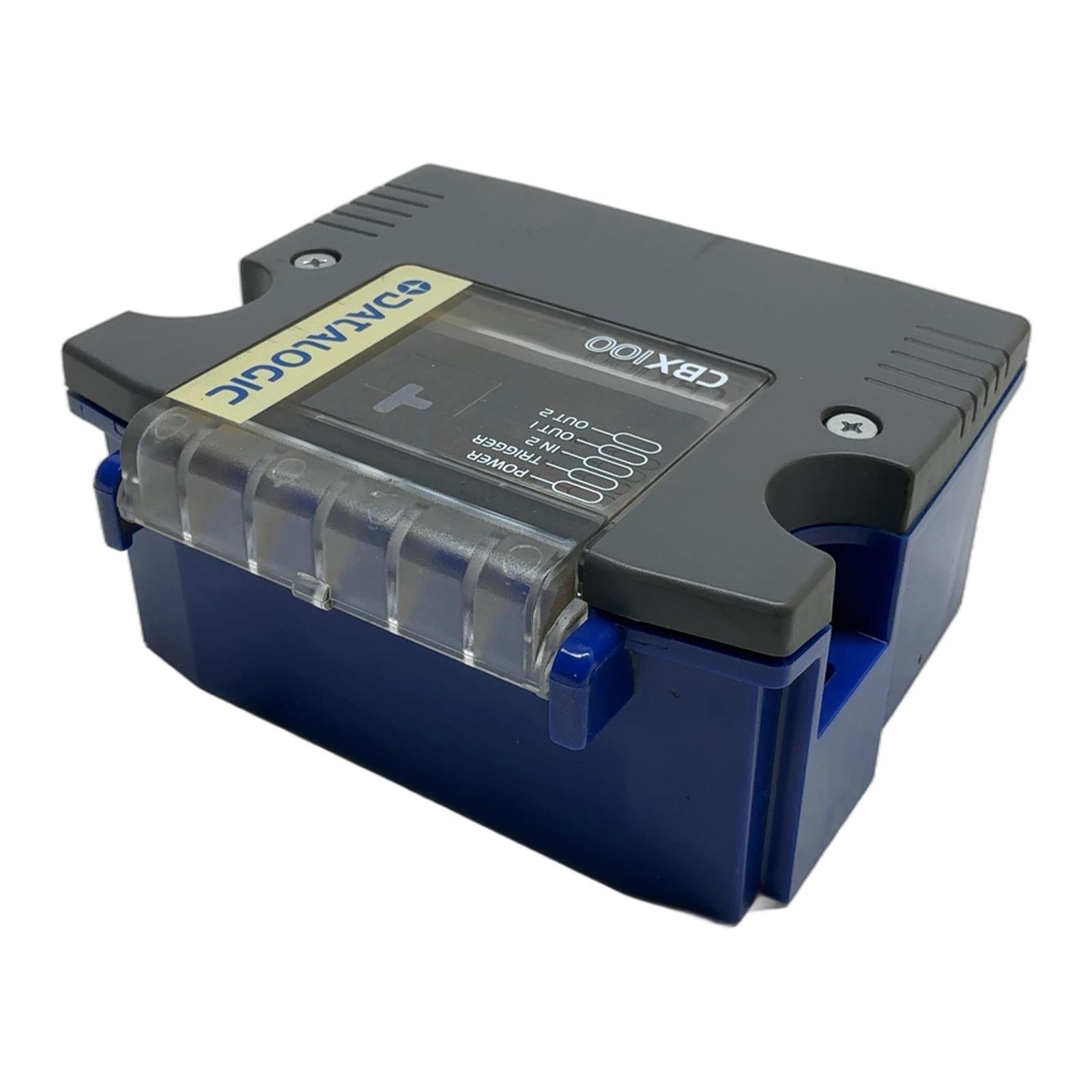

Datalogic CBX100 Connection Box for Barcode Scanners Description The Datalogic CBX100 is an industrial-grade connection box designed to provide a straightforward and robust interface for various Datalogic barcode scanners. It simplifies installation by providing a central point for terminating power, communication (like RS232/RS485), and I/O signals in a protective IP65-rated enclosure. This module is essential for integrating scanners into automated systems reliably and efficiently. Specifications Manufacturer: Datalogic Model: CBX100 Input Voltage: 10 – 30V DC Input Current: 0.5 – 0.3A Protection Class: IP65 Connectors: D-Sub and internal screw terminals Label Info Serial Number: N13C01718 Certifications: cULus, CE Application This connection box is ideal for industrial automation environments where Datalogic scanners (such as the DS2xxx, DS4xxx, and DS6xxx series) are used for product tracking, logistics, and quality control. It ensures a stable and protected connection against dust and water ingress. Country of Origin Made in Taiwan. CO2 Impact Choosing this reused Datalogic CBX100 prevents the emission of approximately 20 kg of CO2 that would be generated producing a new one. This saving is comparable to the emissions from driving a car for 100 kilometers, contributing to a more sustainable industrial operation. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What series of Datalogic scanners is the CBX100 compatible with?The CBX100 is primarily designed for older Datalogic scanner series, including the DS2000, DS4000, DS6000, and DX8000 families. Always verify compatibility with your specific scanner model’s documentation. Does the CBX100 support different communication protocols like RS232 and RS485?Yes, the internal terminal block is versatile and allows for the wiring of different serial communication standards, including RS232 and RS485, depending on the configuration of the connected scanner. What is the IP rating of the CBX100 enclosure?The Datalogic CBX100 has an IP65 protection rating when all cable glands are properly sealed and the cover is securely fastened. This makes it resistant to dust and low-pressure water jets from any direction. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
