SMC AR20-F01E-1-B

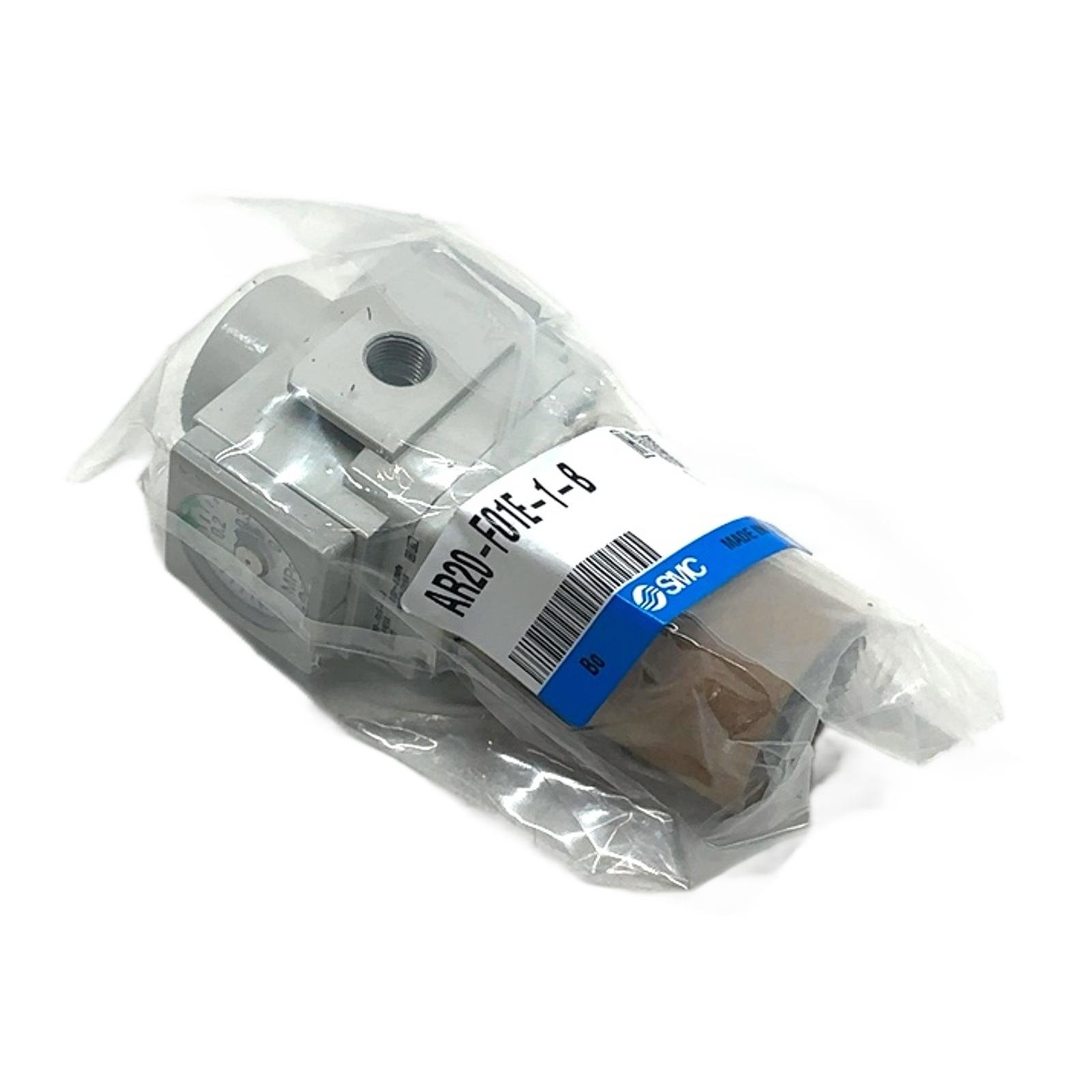

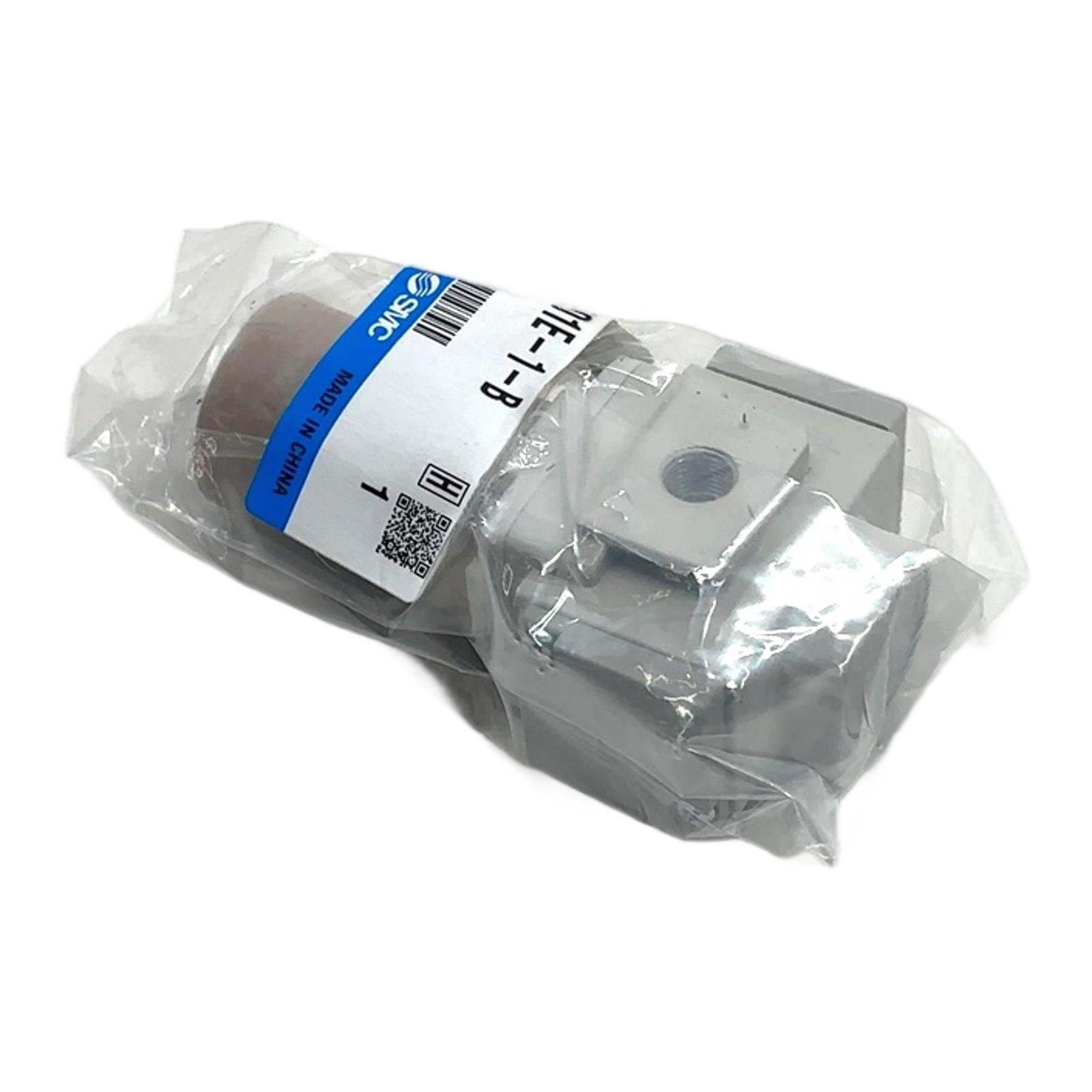

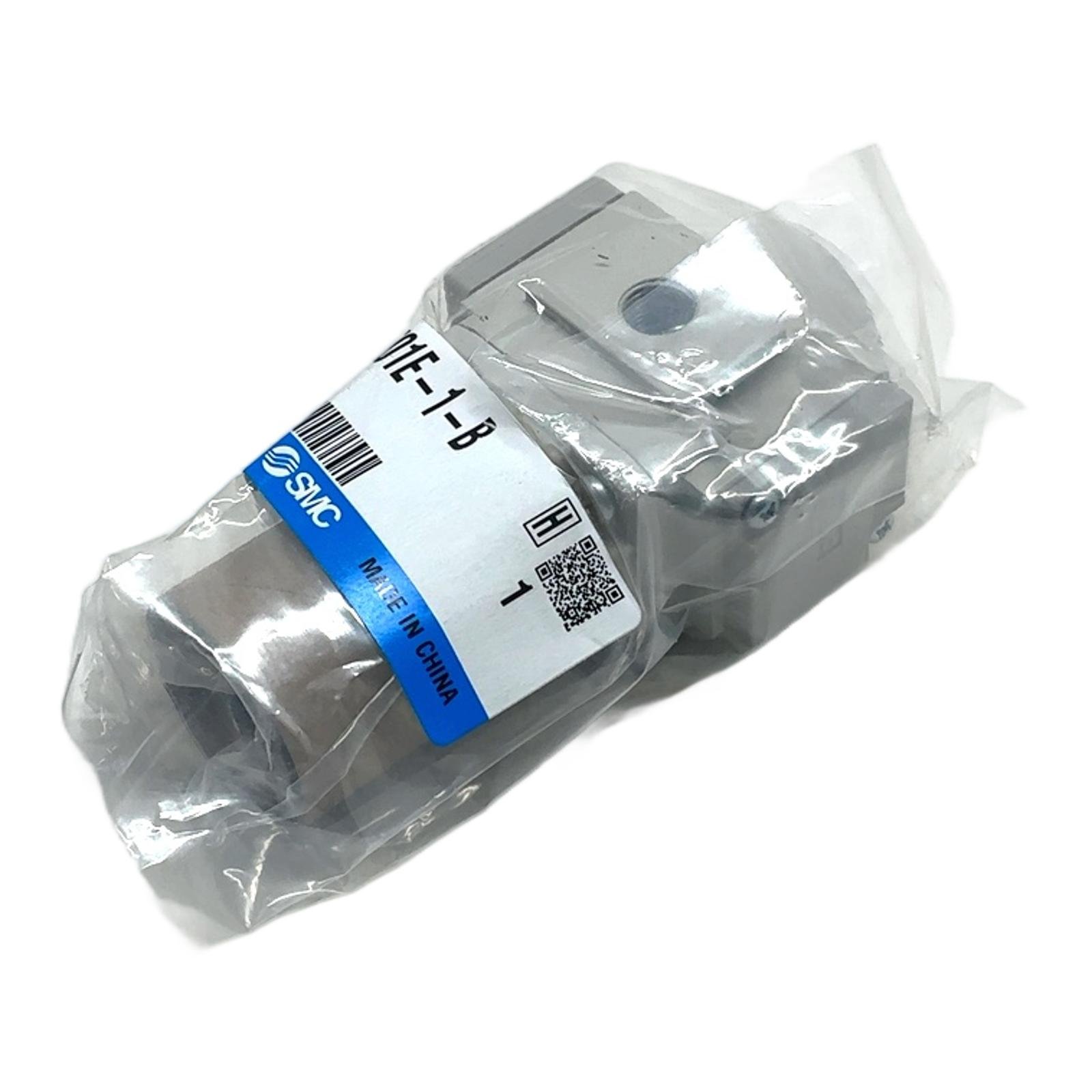

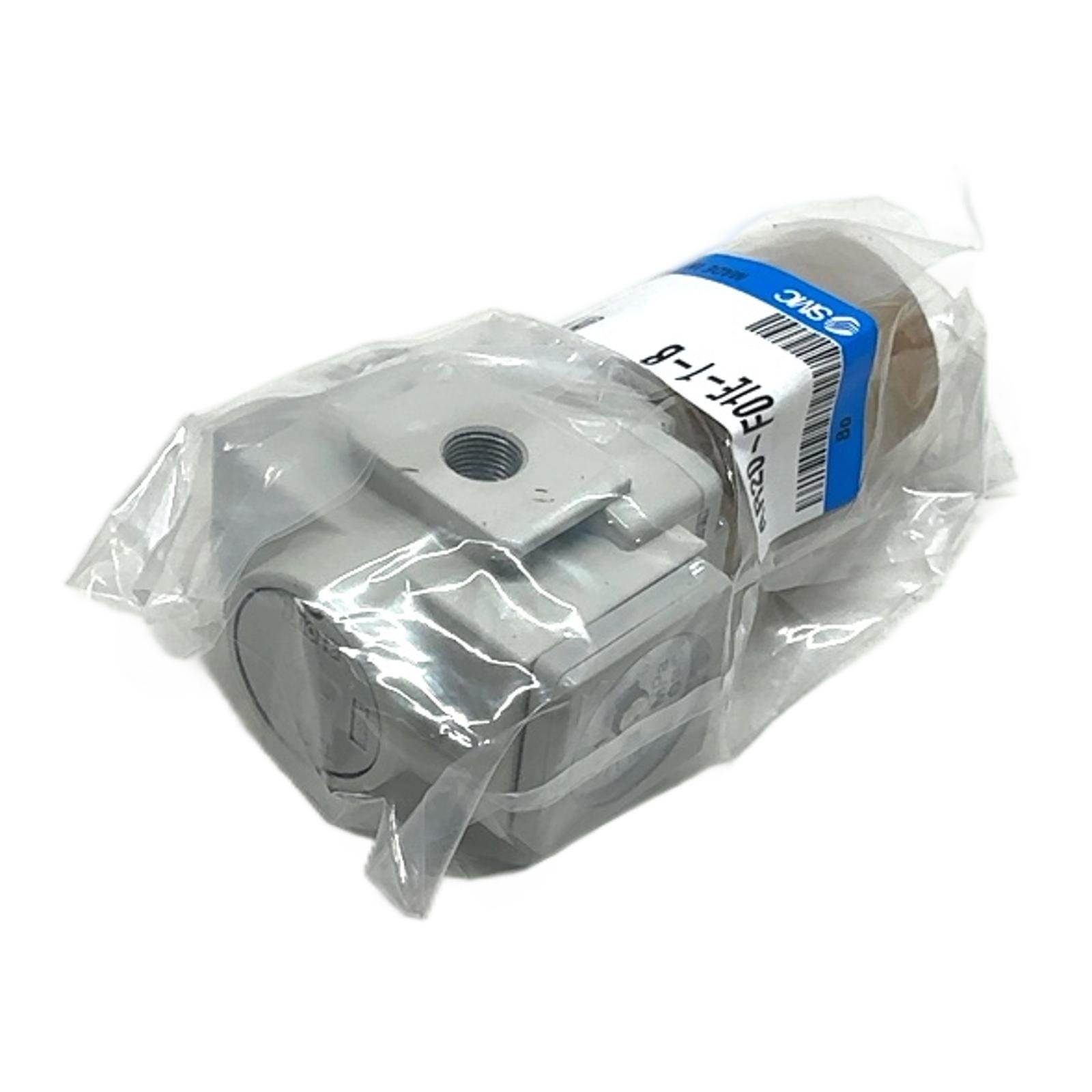

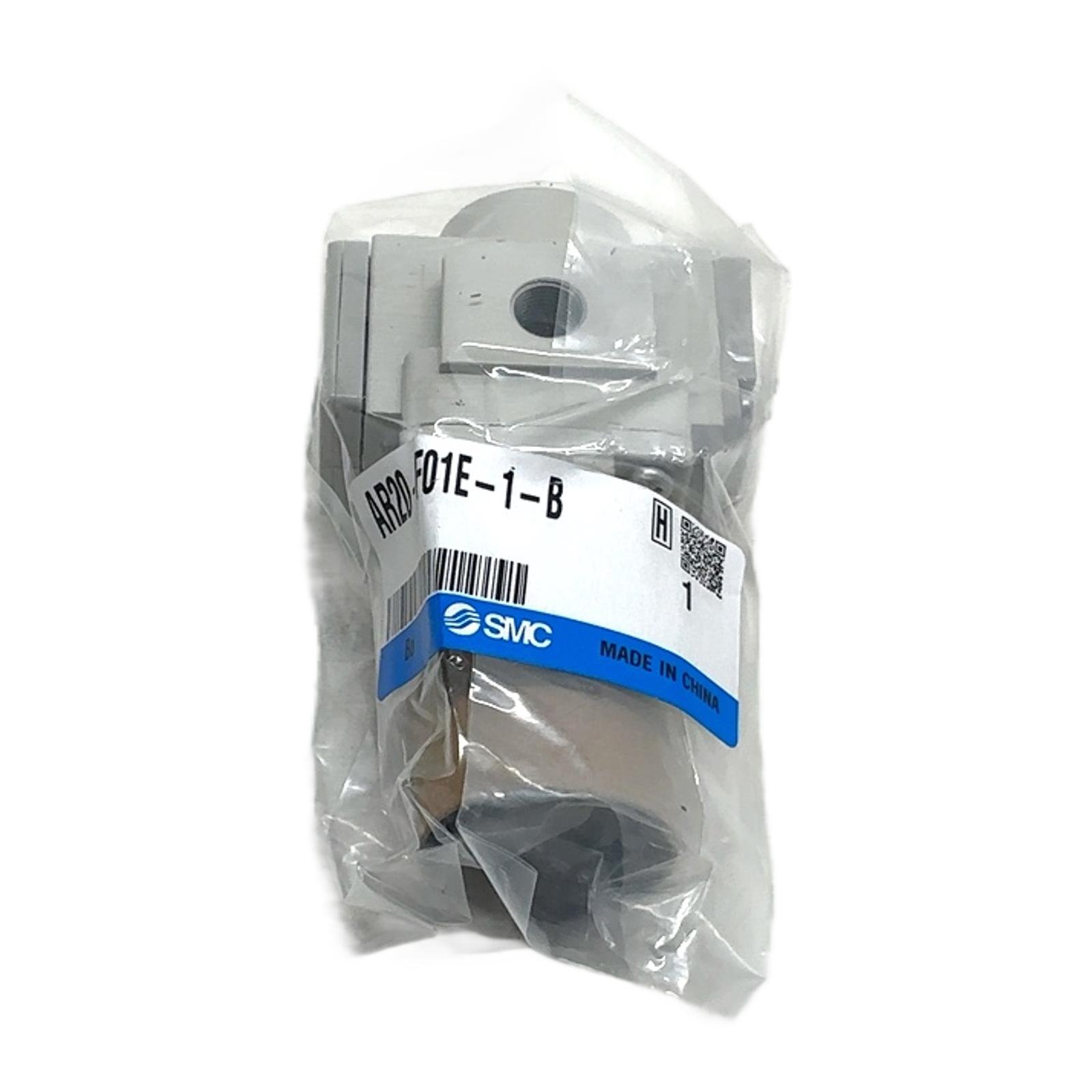

SMC AR20-F01E-1-B Pneumatic Regulator with Filter and Gauge Description The SMC AR20-F01E-1-B is a high-quality modular style regulator designed for precise pressure control in pneumatic systems. This compact unit combines a regulator and filter, ensuring clean and stable air supply to downstream equipment. It includes a backflow function, a round pressure gauge, and a mounting bracket for easy installation. It is an essential component for any application requiring reliable air pressure management. Specifications Manufacturer: SMC Model: AR20-F01E-1-B Body Size: 20 Port Size: Rc(PT) 1/8 Set Pressure Range: 0.05 to 0.7 MPa Maximum Operating Pressure: 1.0 MPa Fluid: Air Special Feature: Integrated Backflow Function Included: Round pressure gauge and mounting bracket Label Info Brand: SMC Part Number: AR20-F01E-1-B Application This regulator is ideal for a wide range of industrial automation applications, including manufacturing lines, pneumatic tools, robotics, and any system where precise control of compressed air is critical for performance and equipment longevity. Country of Origin This product is Made in China. CO2 Impact Opting for this component saves approximately 2.6 kg of CO2 compared to manufacturing a new one, contributing to a more sustainable operation. Availability This item is in stock and ready for immediate dispatch. Condition is new in original, sealed packaging. Order now from profideals for expert support and fast delivery. FAQ What is the purpose of the backflow function (indicated by ‘E’ in the model number)?The backflow function allows pressure on the outlet side to be exhausted quickly to the inlet side when the inlet pressure is cut off. This is useful for applications like balancing circuits or when needing to rapidly vent downstream pressure for safety or operational reasons. Can the handle orientation or pressure gauge be changed on this AR20-F01E-1-B model?Yes, SMC’s modular design allows for flexibility. While this ‘-B’ model comes with a specific bracket configuration, the pressure gauge can typically be mounted on either the front or back. The handle orientation is fixed, but you can choose different models if a top-facing handle is required. What is the filtration rating for the integrated filter in this unit?The standard filtration rating for the filter element in the AR-F series regulators is 5 micrometers (um). This is effective for removing common particulates from compressed air lines, protecting downstream components like valves and cylinders. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
