DANFOSS MCE101 175U3104

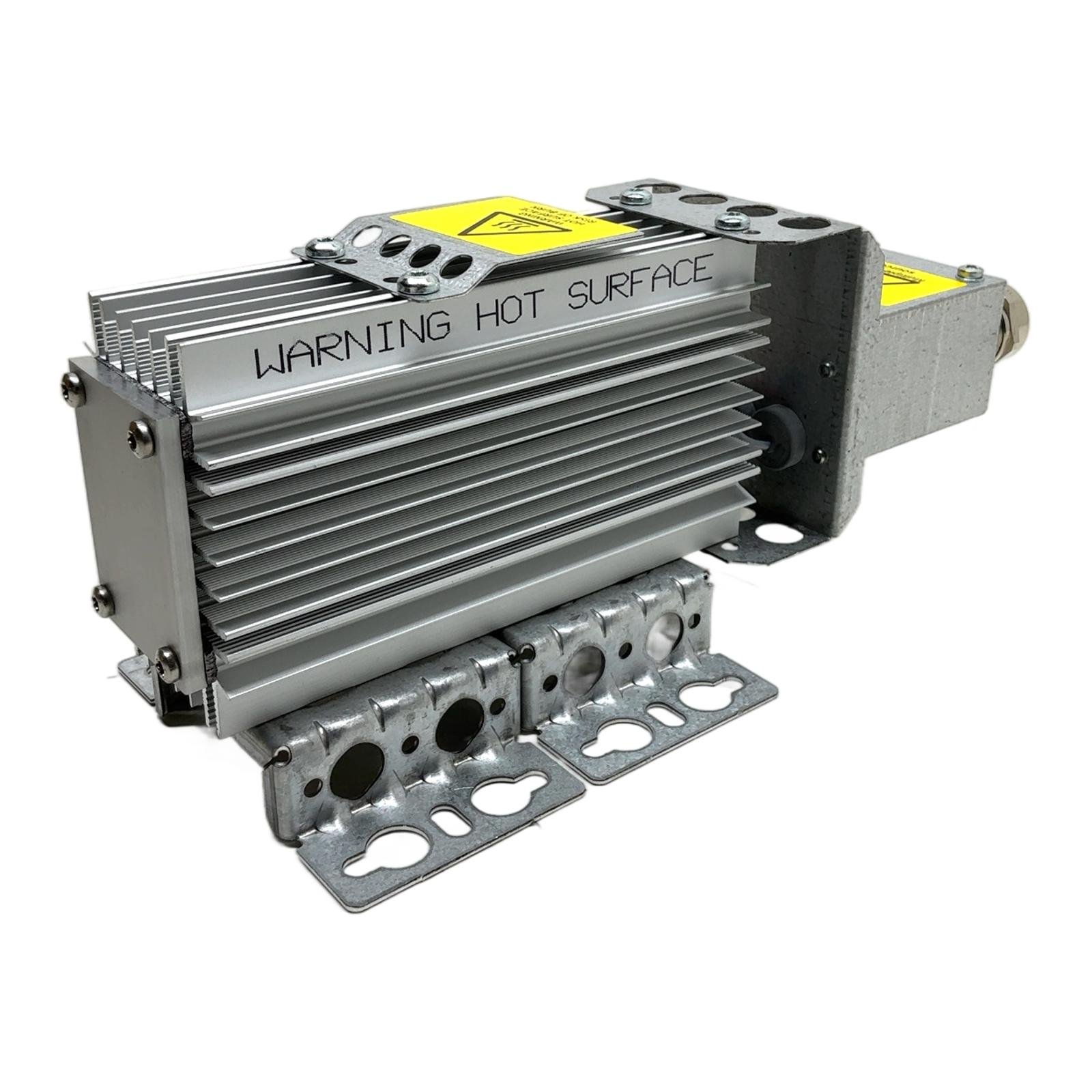

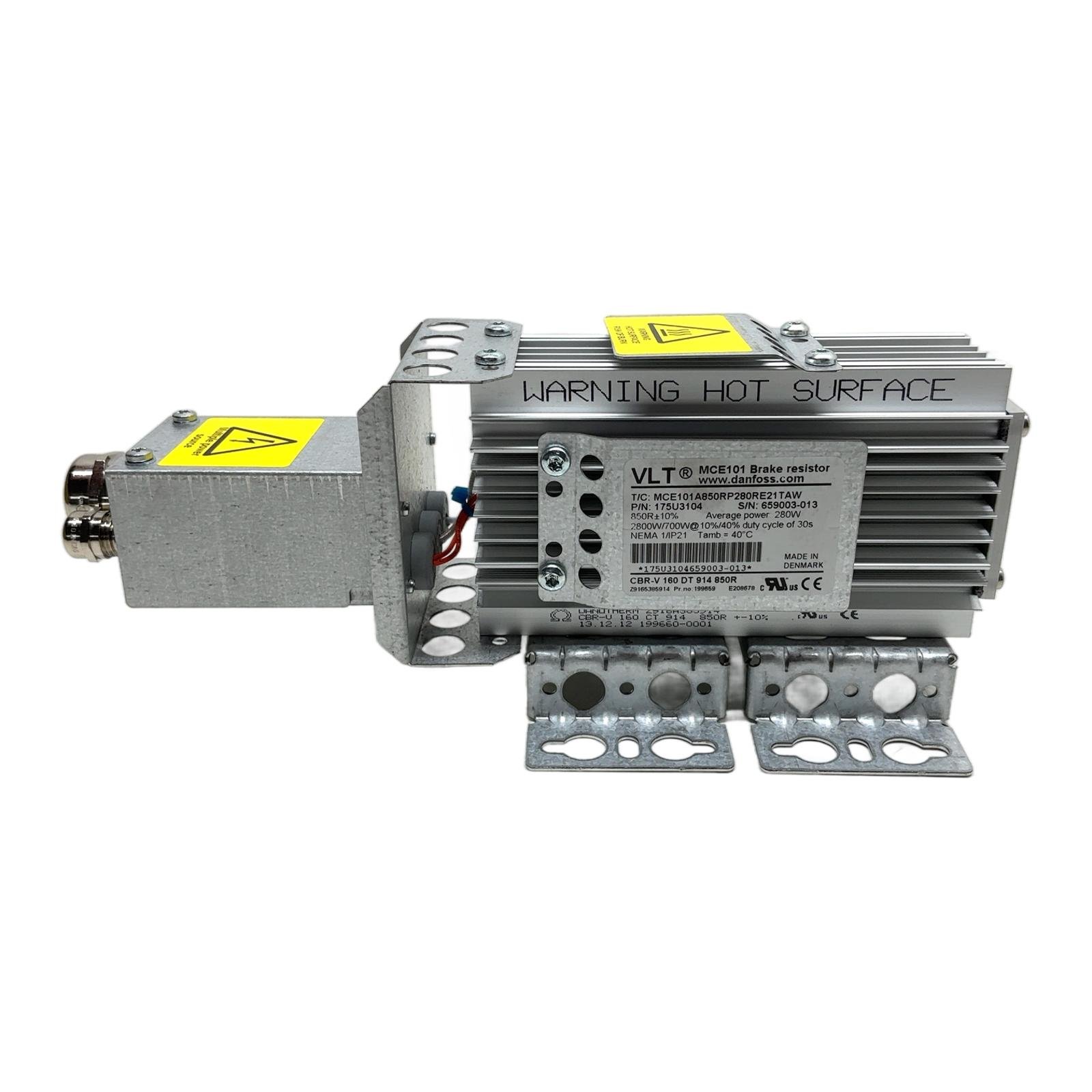

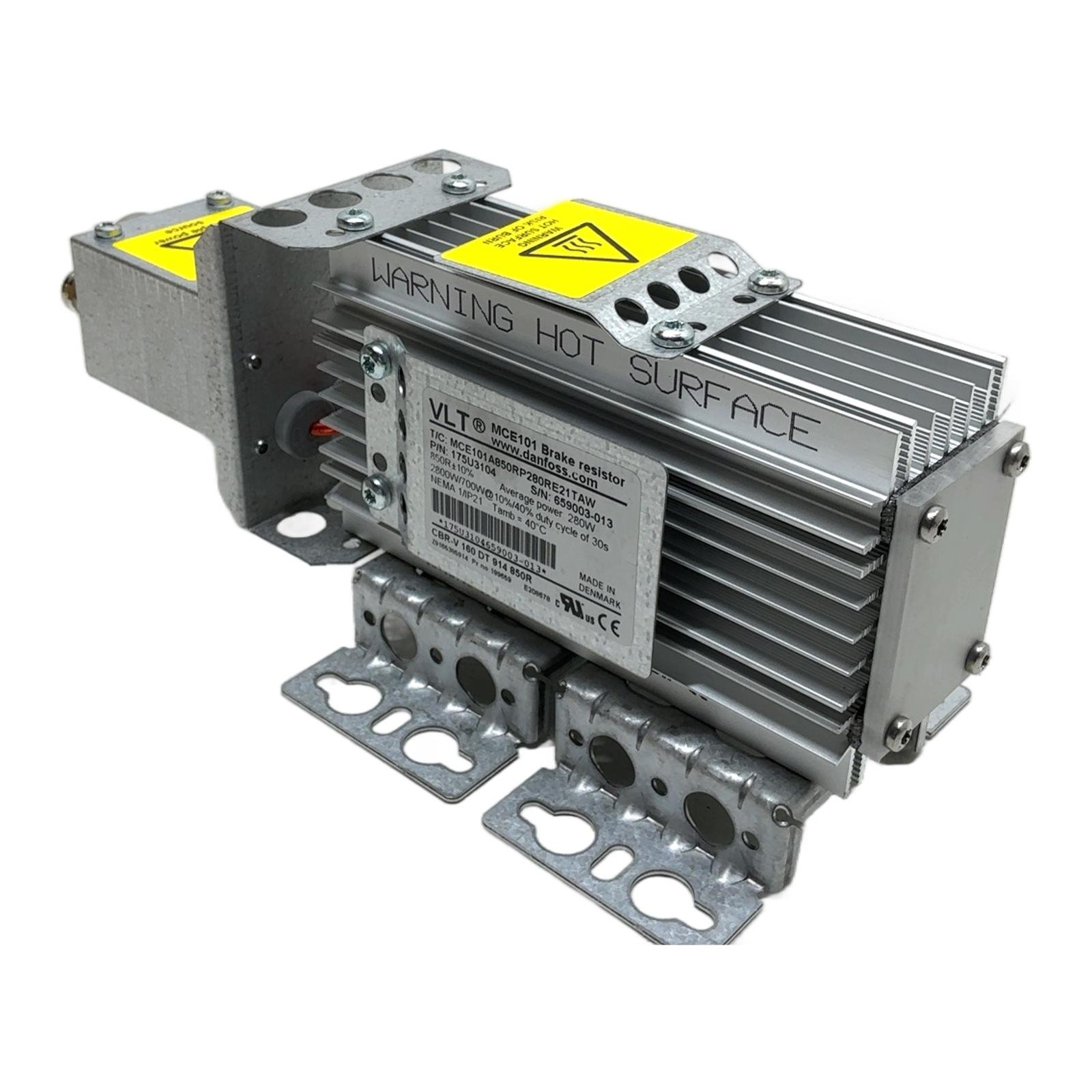

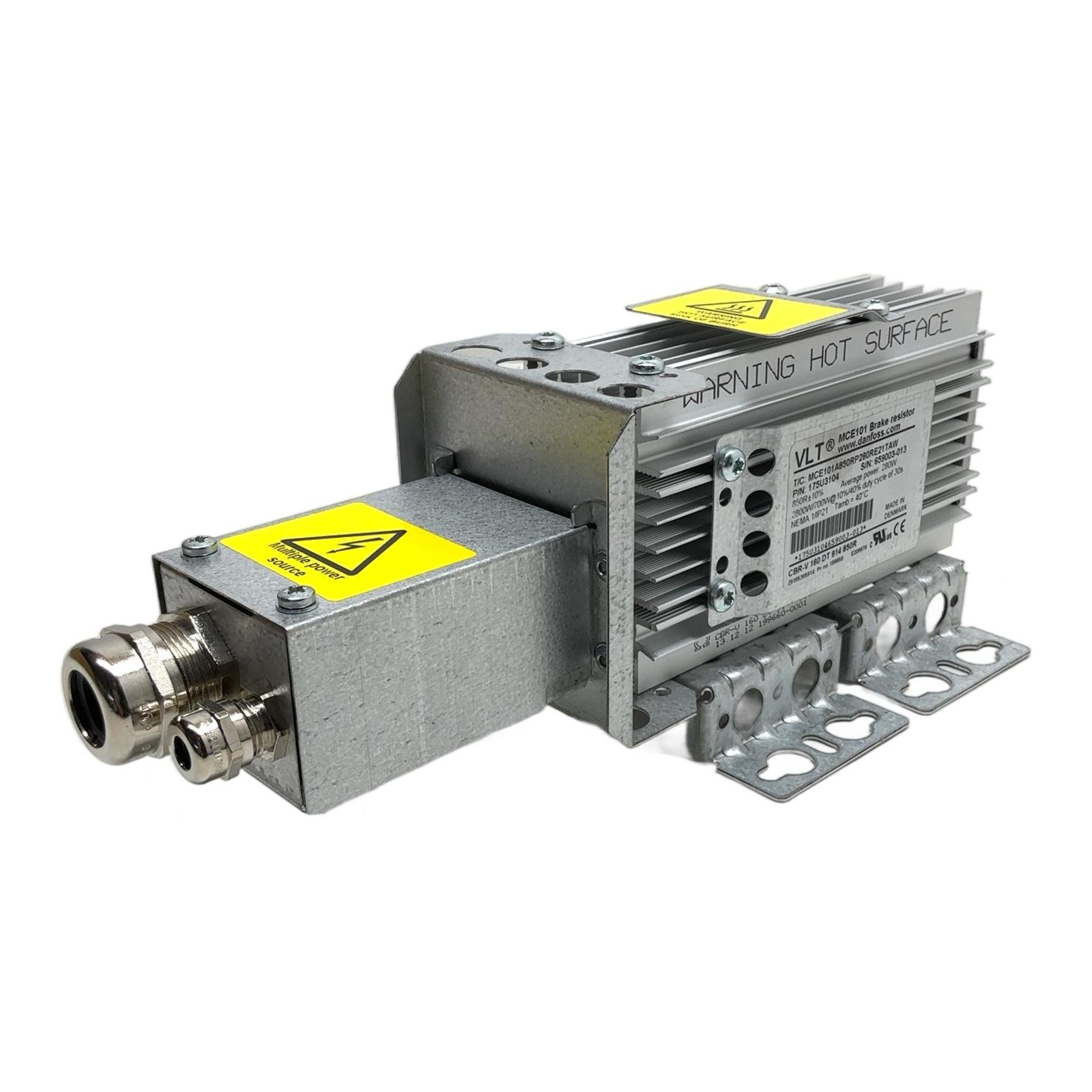

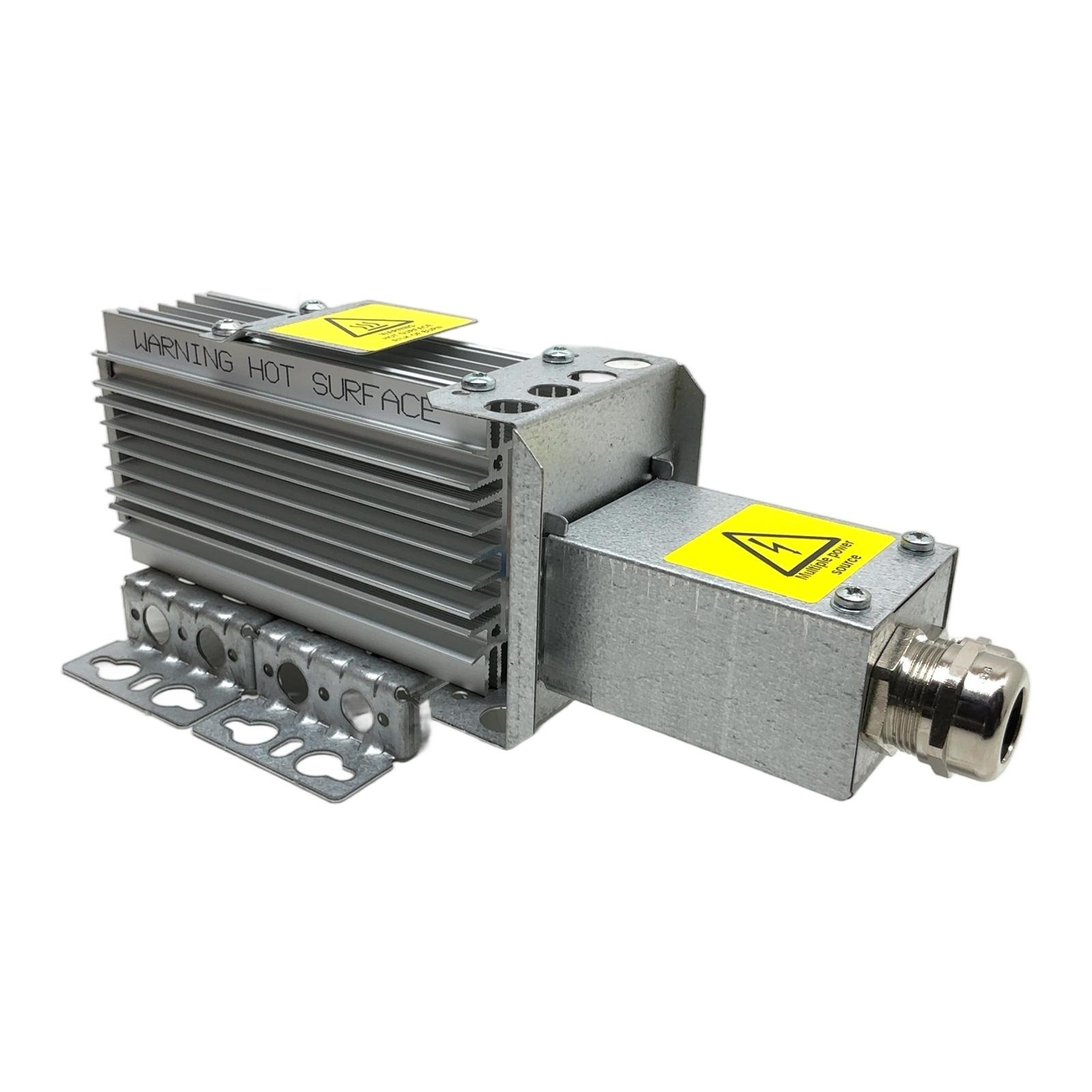

Danfoss VLT MCE101 Brake Resistor Description The Danfoss VLT MCE101, part number 175U3104, is a high-quality brake resistor designed for use with Danfoss VLT series frequency converters. It plays a critical role in applications with high inertia or frequent, rapid decelerations by safely dissipating regenerative energy from the motor. This prevents over-voltage faults on the DC-link of the drive, ensuring stable and reliable operation. Its robust construction with an aluminum heatsink provides excellent thermal performance. Specifications Manufacturer: Danfoss Model: VLT MCE101 Part Number (P/N): 175U3104 Resistance: 850 Ohm, +/- 10% tolerance Average Power Dissipation: 280W Peak Power / Duty Cycle: 2800W at 10% / 700W at 40% (for a 30s cycle) Protection Rating: NEMA 1 / IP21 Maximum Ambient Temperature: 40 deg C Label Info Type Code (T/C): MCE101A850RP280RE21TAW Serial Number (S/N): 659003-013 Alternate ID: CBR-V 160 DT 914 850R Application This brake resistor is essential for applications such as conveyors, cranes, elevators, and centrifuges where controlled braking is required. It is installed in the electrical cabinet and connected to the brake chopper terminals of the VFD. Country of Origin Made in Denmark. CO2 Impact Choosing this component helps avoid the manufacturing of a new one, saving an estimated 19.0 kg of CO2 emissions. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What VLT drives is this MCE101 resistor compatible with?It is generally compatible with smaller Danfoss VLT series drives like the FC 51, FC 202, and FC 301/302. However, you should always verify compatibility and proper sizing in the specific drive’s hardware or design guide. What is the purpose of the 10%/40% duty cycle rating?This rating indicates the resistor’s ability to handle high peak power for short durations, which is typical during motor braking. It means the unit can safely dissipate 2800W for 10% of a 30-second cycle, or 700W for 40% of that same cycle, without overheating. What are the key considerations for installation?Ensure there is adequate ventilation and clearance around the aluminum heatsink, as it is designed to get hot. Use appropriately gauged wiring for the expected peak current and ensure all electrical connections are secure to prevent hazards. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
