SICK C4C-EA16510A10000 1211485

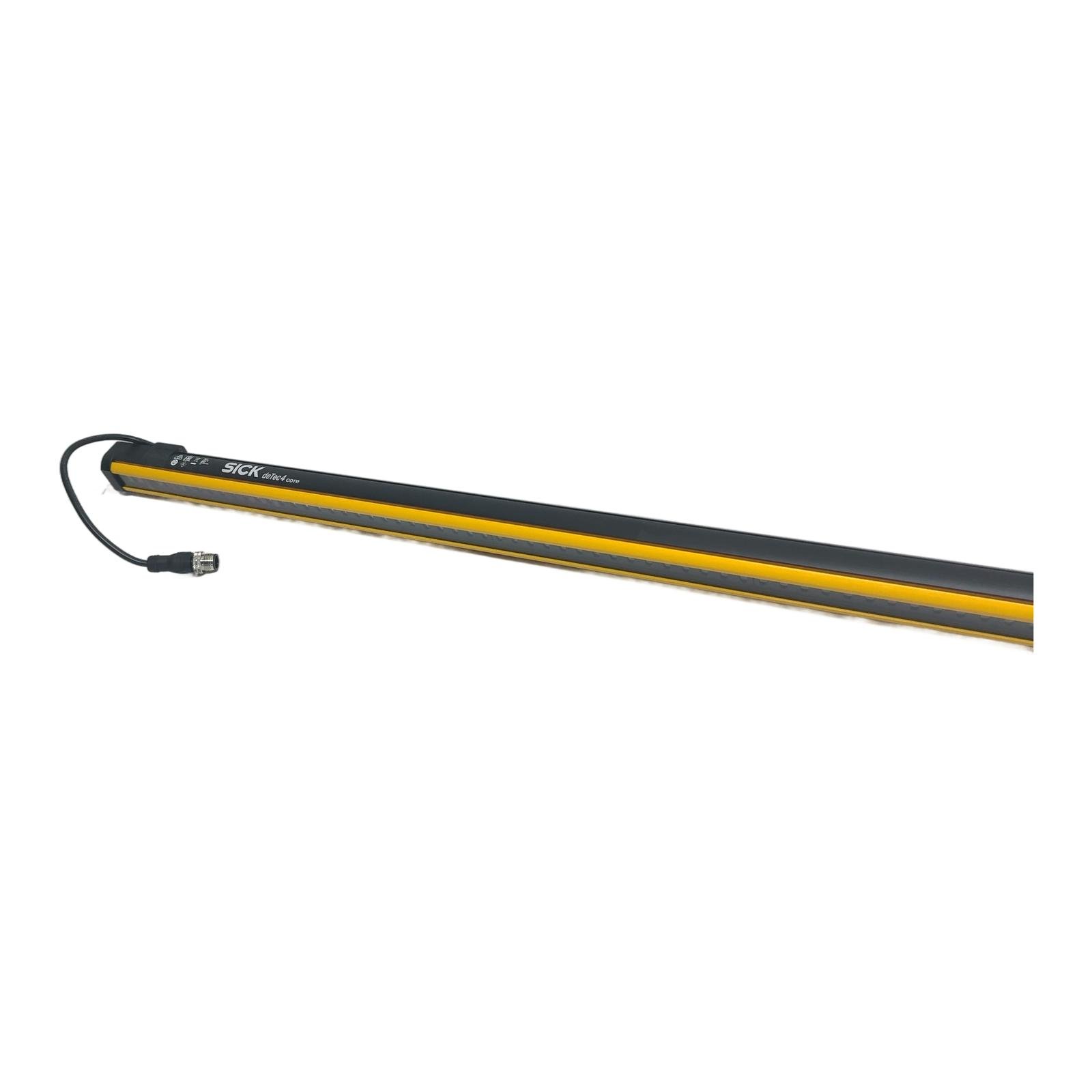

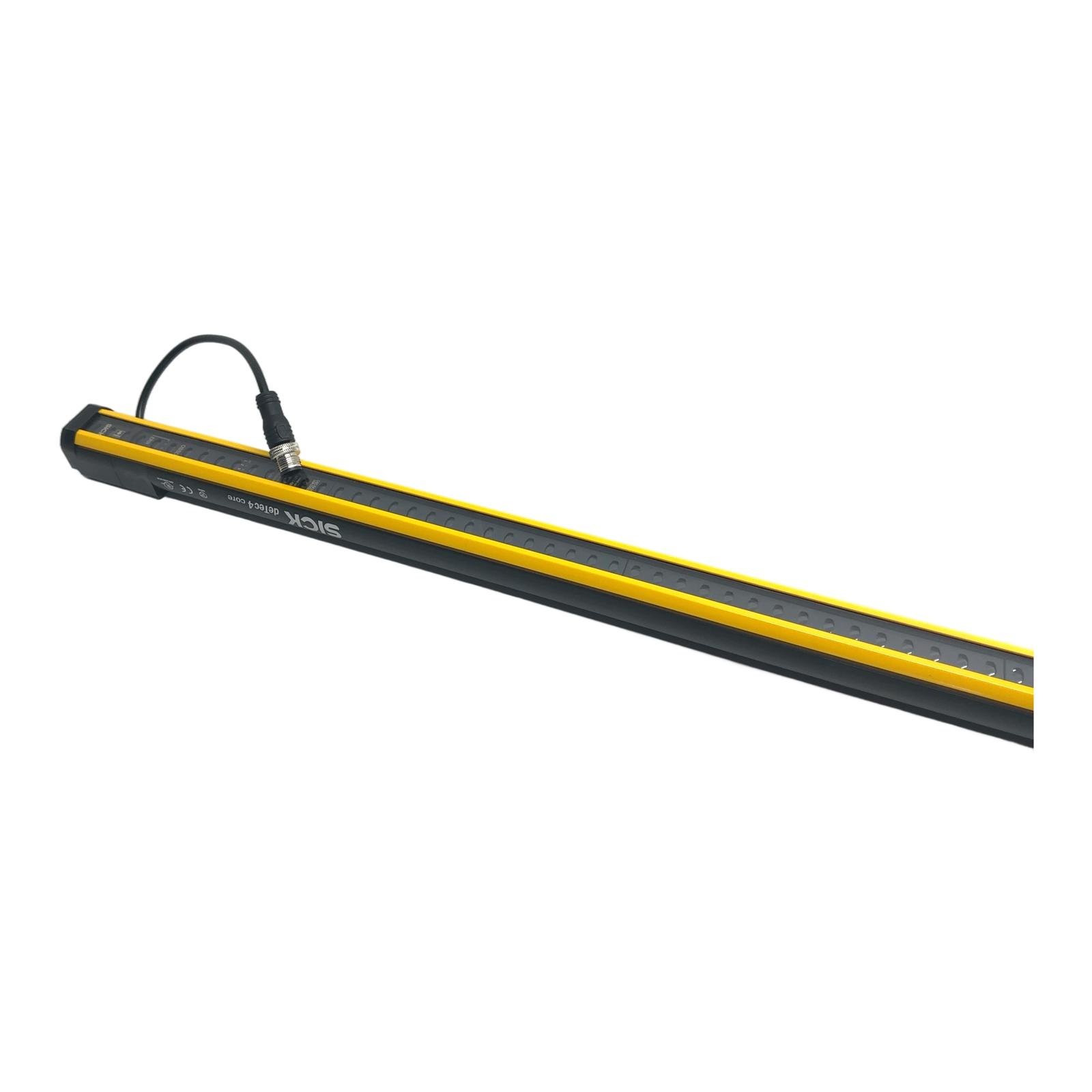

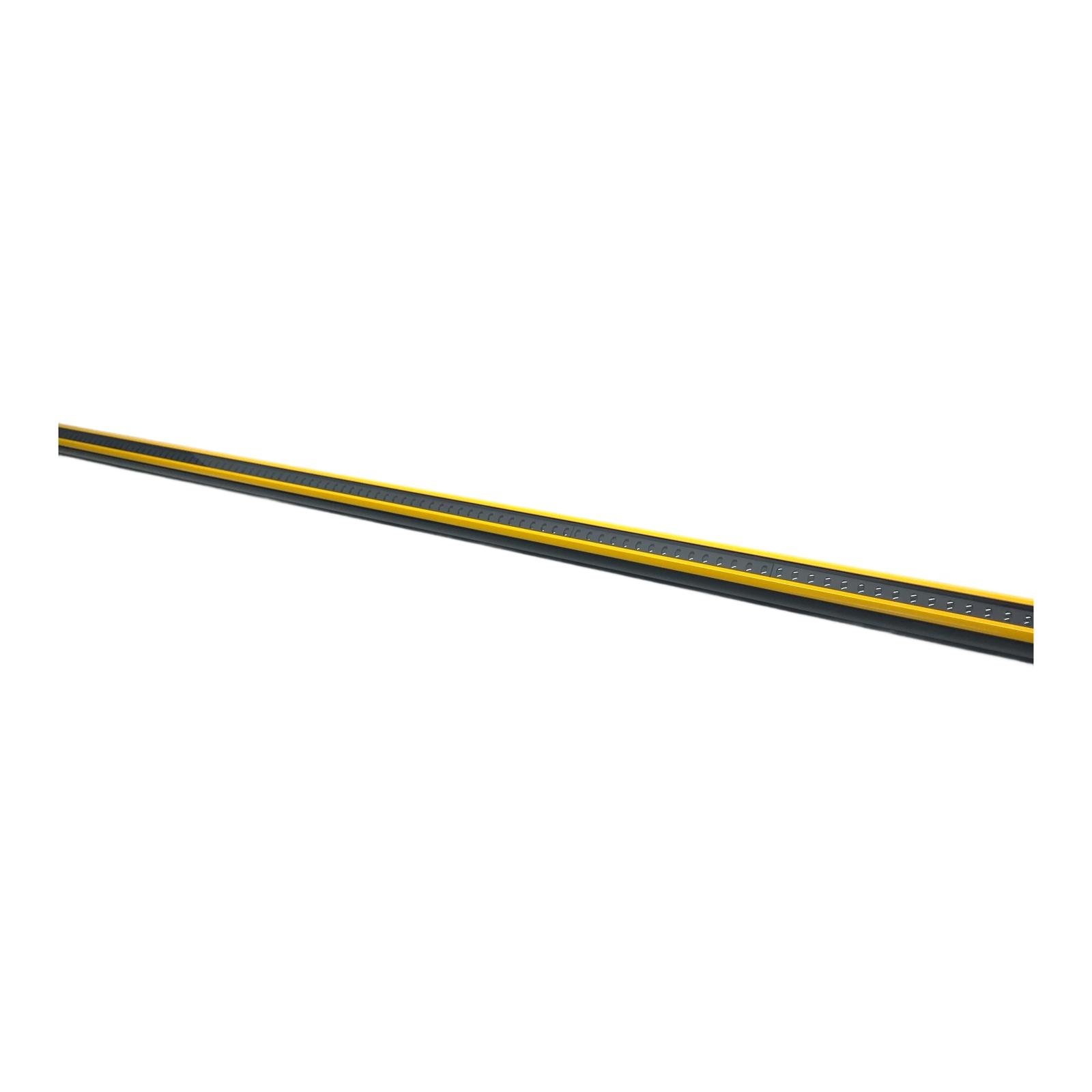

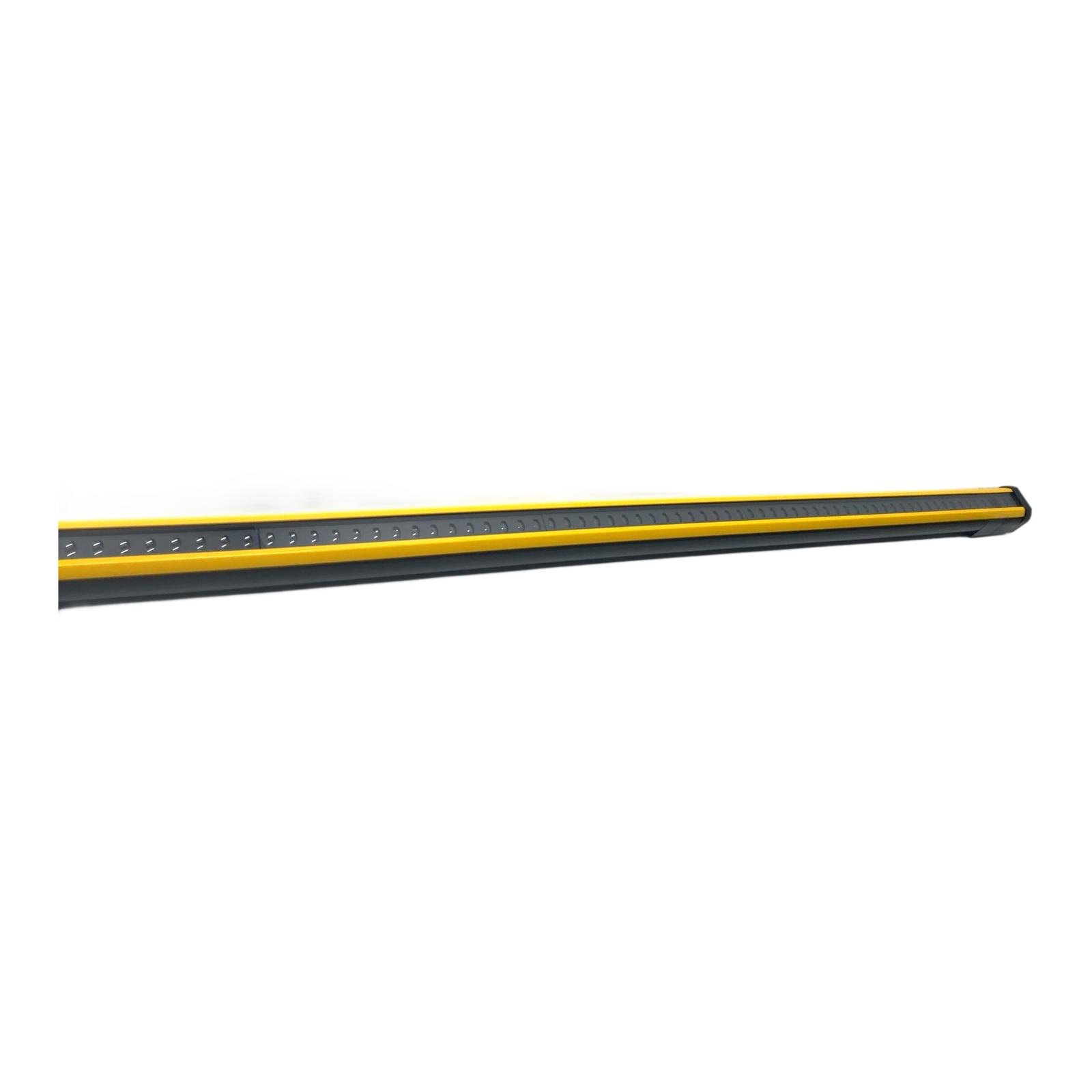

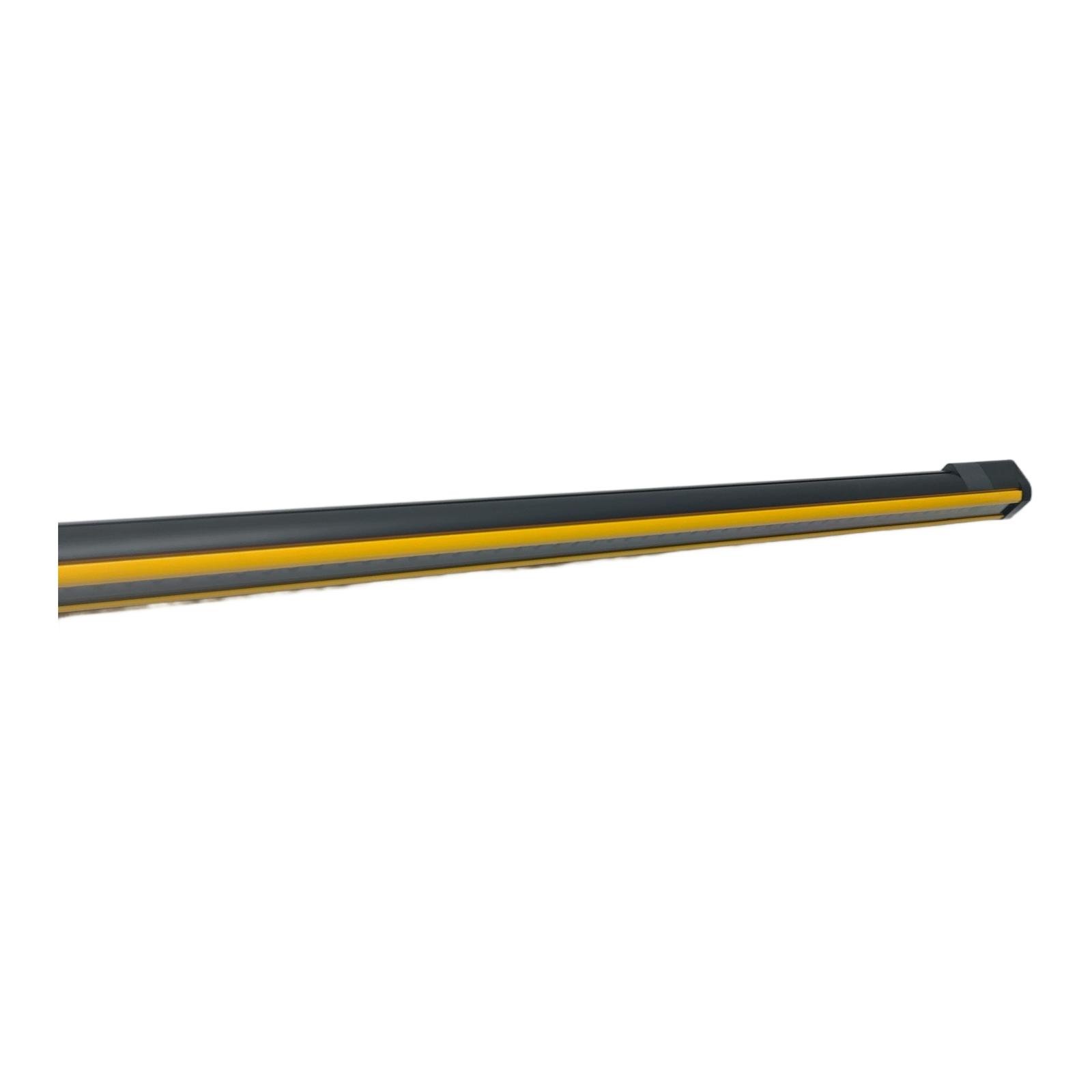

SICK deTec4 Core Safety Light Curtain Emitter Description This is the C4C-EA16510A10000 emitter unit from SICK’s deTec4 Core series of safety light curtains. It is engineered for reliable and straightforward machine safeguarding applications. With a protective field height of 1650 mm and a 30 mm resolution, it is ideal for hand and finger protection at hazardous points. This component provides Type 4 and PL e safety levels, ensuring compliance with the highest industrial safety standards. Specifications Manufacturer: SICK Series: deTec4 Core Component: Emitter (Sender) Protective Field Height: 1650 mm Resolution: 30 mm (Hand and Finger Protection) Safety Integrity Level: SIL3 (IEC 61508), PL e (EN ISO 13849) Connection Type: M12 male connector, 5-pin Label Info Model: C4C-EA16510A10000 Part Number: 1211485 Application The C4C-EA16510A10000 emitter is designed for use in various industrial automation environments, including packaging lines, assembly stations, robotic cells, and material handling systems, where access to hazardous areas needs to be monitored and controlled safely. Country of Origin Made in Germany. CO2 Impact Opting for this pre-owned component avoids the production of a new one, saving an estimated 100.0 kg of CO2. This saving is comparable to driving a car for 500 km. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the difference between this deTec4 Core emitter and the deTec4 Prime series?The deTec4 Core is designed for standard applications with basic functionality, like protective operation, without the need for configuration. The deTec4 Prime series offers advanced features like muting, cascading, and more complex logic functions, making it suitable for more demanding applications. Is this C4C-EA16510A10000 emitter a standalone device?No, this is only the emitter (sender) unit. To create a functional safety light curtain system, it must be paired with the corresponding receiver unit, typically the SICK C4C-SA16530A10000 (part number 1211486). What does the 30 mm resolution signify for this safety curtain?A resolution of 30 mm means the light curtain can reliably detect an object, such as a hand, that is 30 mm in diameter or larger anywhere within the protective field. This is a common resolution for hand protection applications, requiring a specific minimum safety distance from the hazard zone. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
