DANFOSS VLT 5004 175Z0052

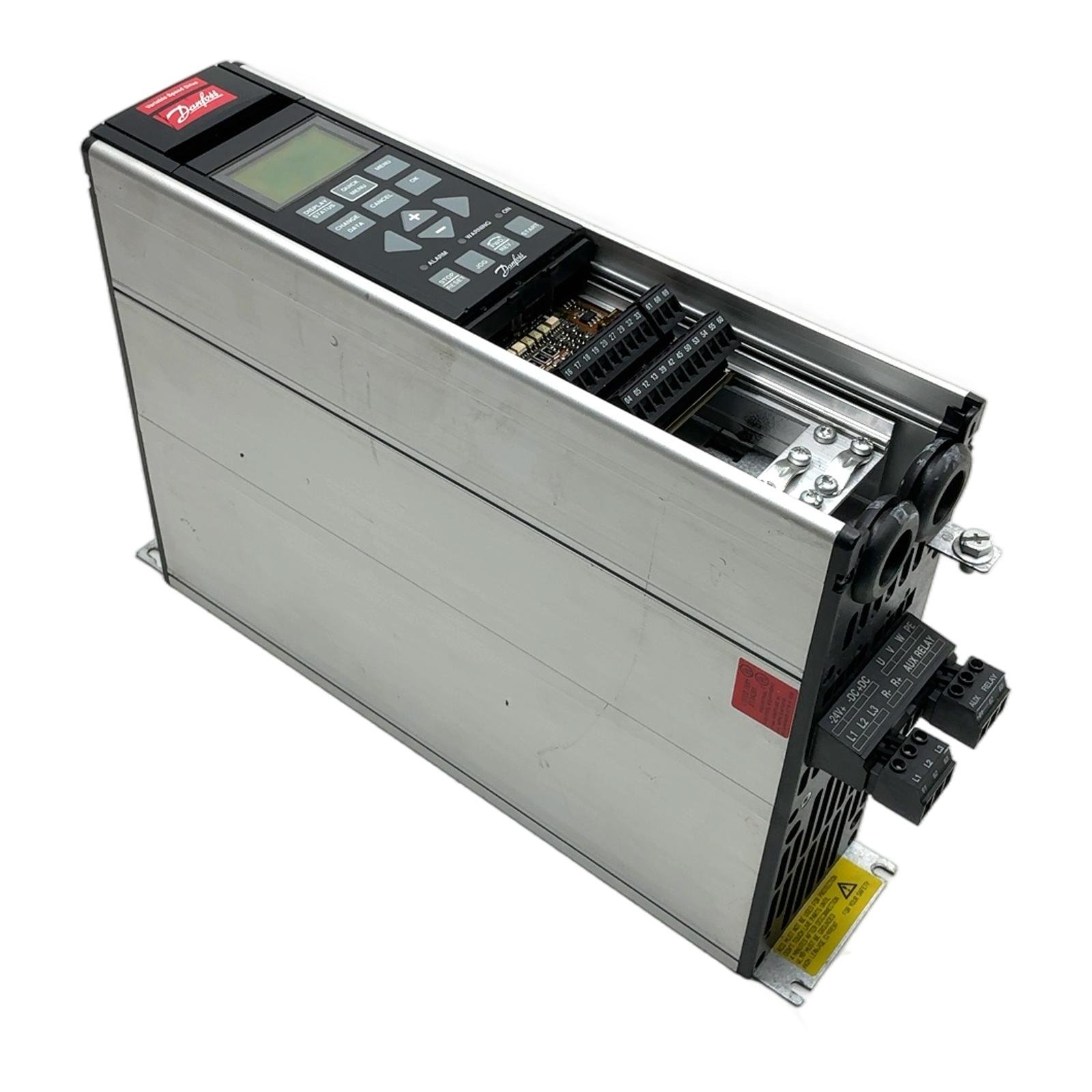

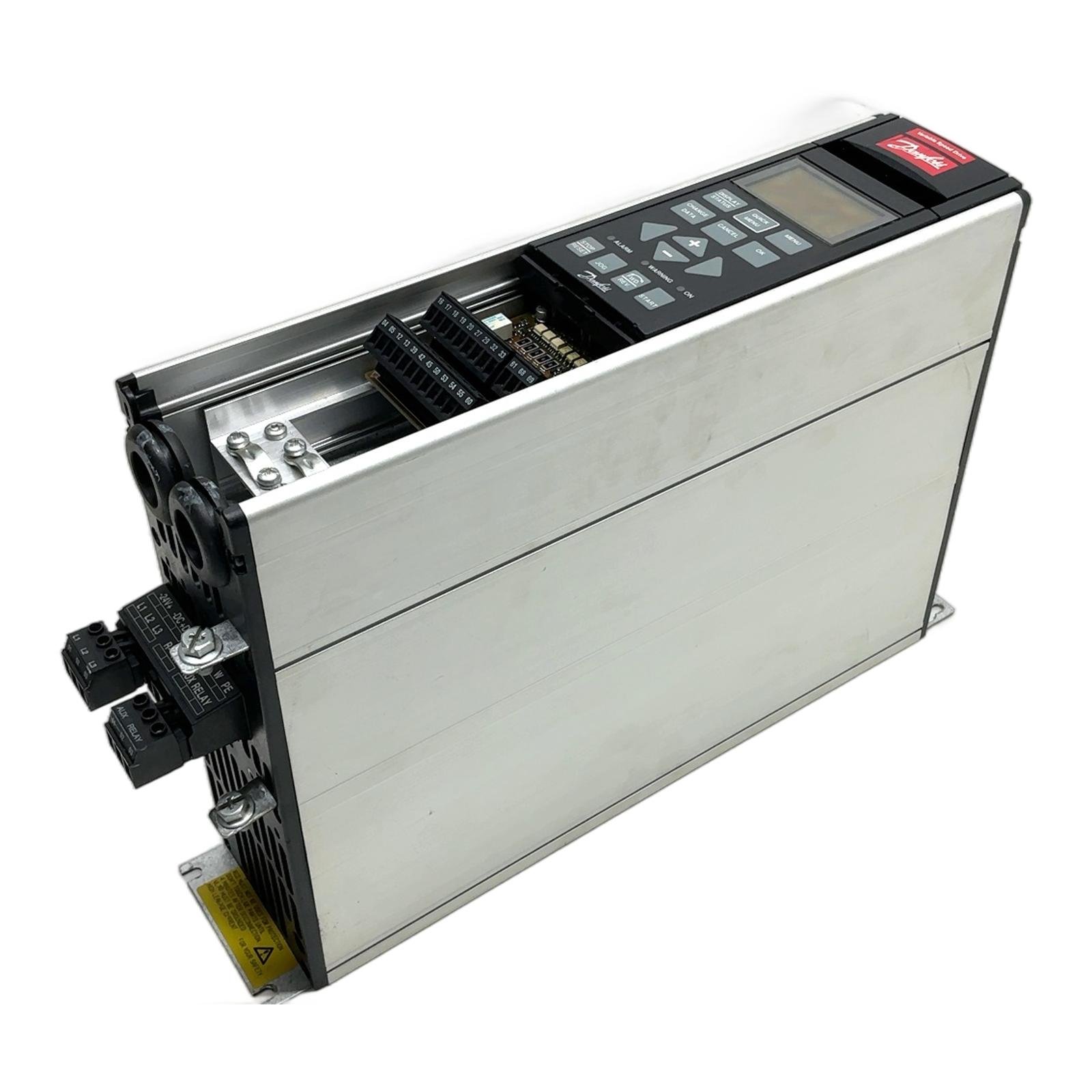

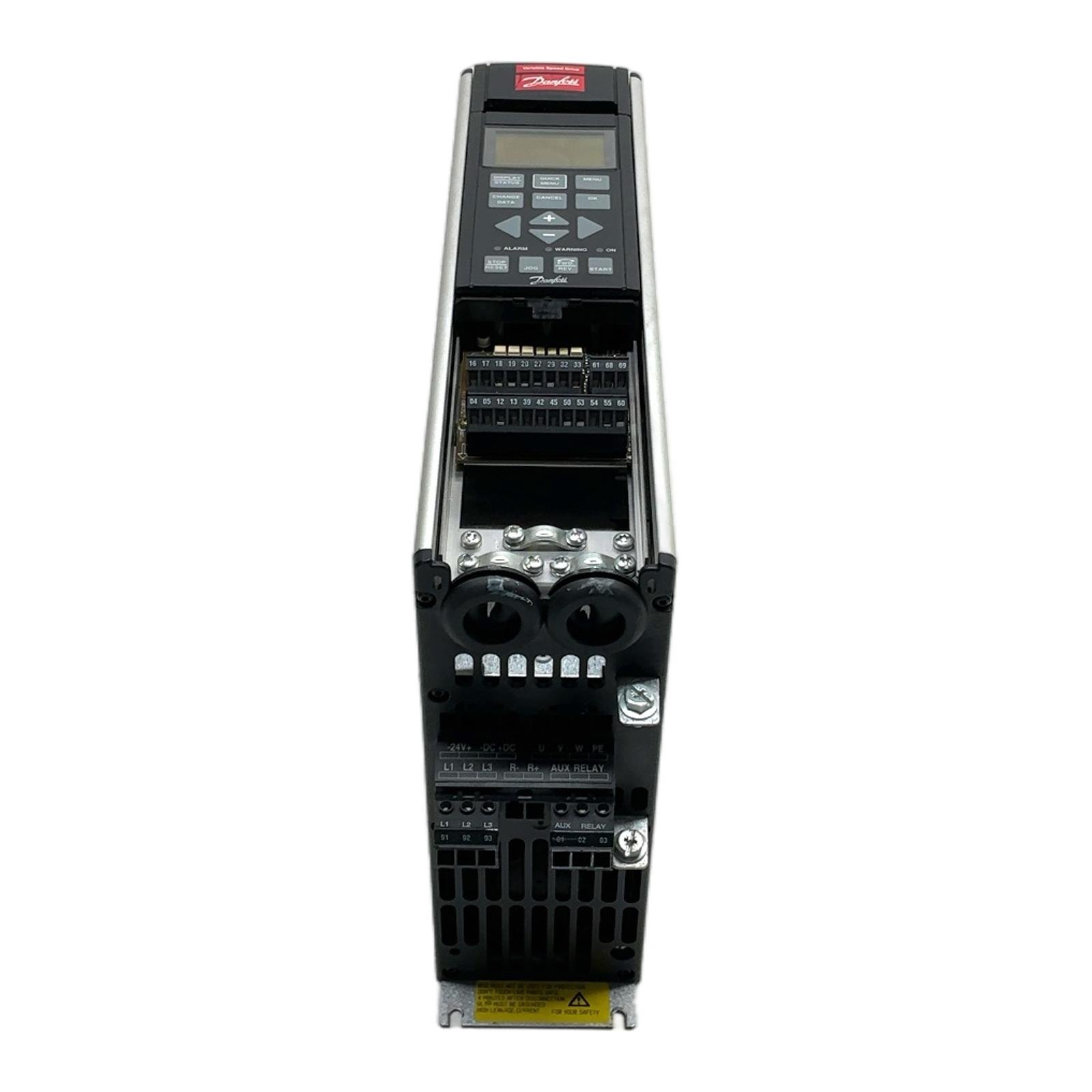

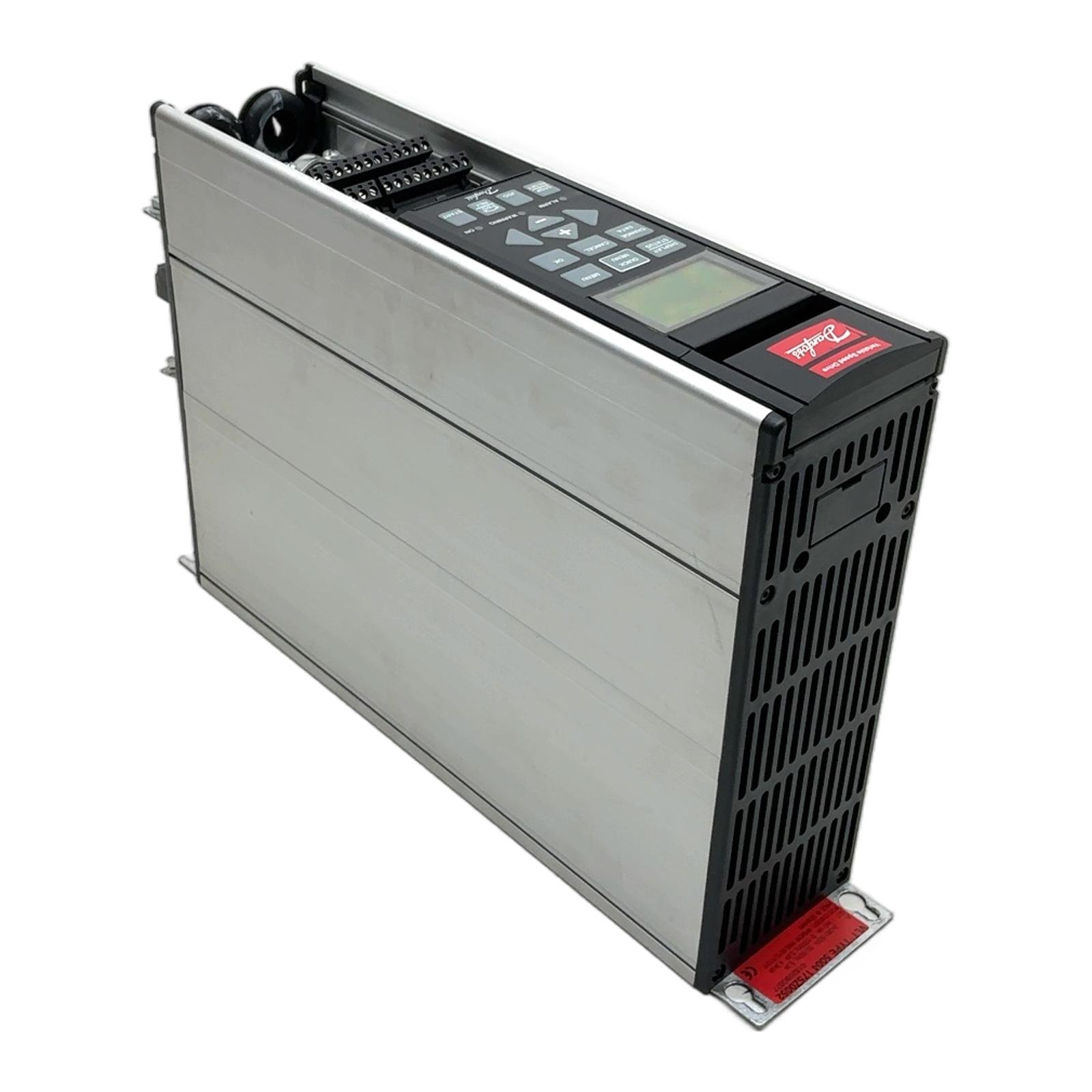

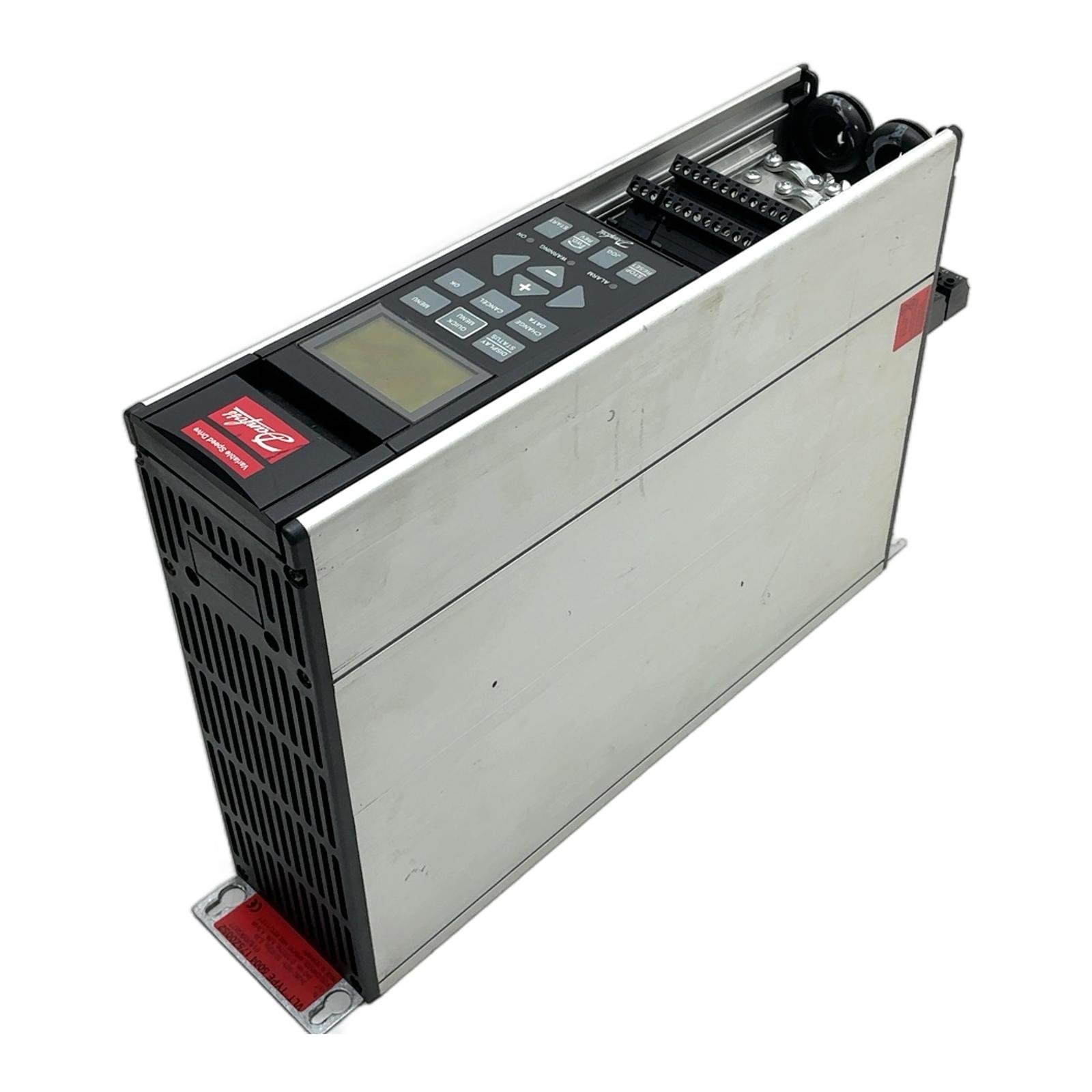

Danfoss VLT 5004 2.2kW Frequency Converter Description The Danfoss VLT 5004, part number 175Z0052, is a high-performance variable speed drive designed for controlling AC motors. This model from the reliable VLT 5000 series offers a power rating of 2.2 kW and operates on a 3-phase 380-500V power supply. It is an excellent solution for applications requiring precise speed and torque control. This unit is an obsolete but highly sought-after spare part for maintaining existing machinery. Specifications Manufacturer: Danfoss Series: VLT 5000 Type: VLT 5004 Part Number: 175Z0052 Power Rating: 2.2 kW (3.0 HP) Input Voltage: 3 x 380-500V AC, 50/60Hz Input Current: 5.3A Output Current: 5.6A Output Frequency: 0-1000 Hz Apparent Power: 4.3 kVA Protection Rating: IP20 Label Info VLT TYPE 5004 175Z0052 018209G077 IN: 3×380-500V 50/60Hz, 5.3A OUT: 3×0-Uin 0-1000Hz, 5.6A 4.3kVA IP20/CHASSIS: AMBIENT MAX.45deg.C/113deg.F Application This frequency converter is suitable for a wide variety of industrial applications, including pumps, fans, conveyors, and other machinery where variable motor speed control is essential for process optimization and energy savings. Country of Origin This product is made in Denmark. CO2 Impact By purchasing this pre-owned item, you are helping to avoid the production of a new one, which saves an estimated 240 kg of CO2. This is a sustainable choice for your operations. Availability This is an obsolete item. Availability is limited. Order now from profideals for expert support and fast delivery. FAQ Question? Is the Local Control Panel (LCP) included with this VLT 5004 drive? Answer Yes, as shown in the product images, the graphical Local Control Panel (LCP) with display and keypad is included and attached to the drive. Question? Can this VLT 5000 series drive be programmed using the same software as the modern FC 302 series? Answer No, the VLT 5000 series uses the older VLT Software MCT 10. The modern VLT Motion Control Tool MCT 10 is designed for newer series like the FC 302 and is not backward compatible with the VLT 5000. Question? What is the maximum motor cable length recommended for this 175Z0052 drive without additional filters? Answer For the Danfoss VLT 5000 series, the recommended maximum motor cable length is typically 50 meters for screened/armored cables and 100 meters for unscreened cables to maintain EMC compliance and prevent motor bearing issues. For longer distances, output filters may be required. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder. Last Update: Friday, March 13, 2026
