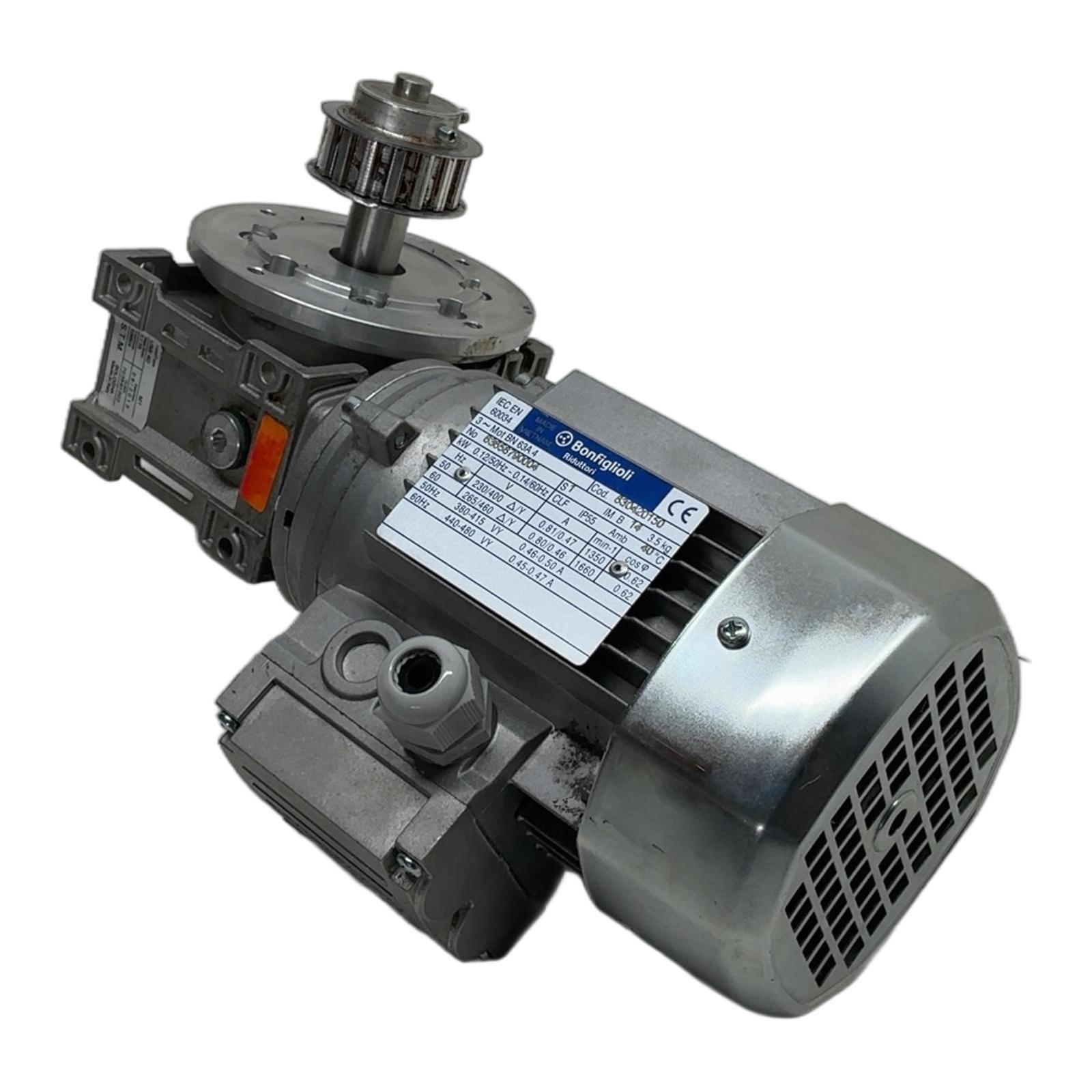

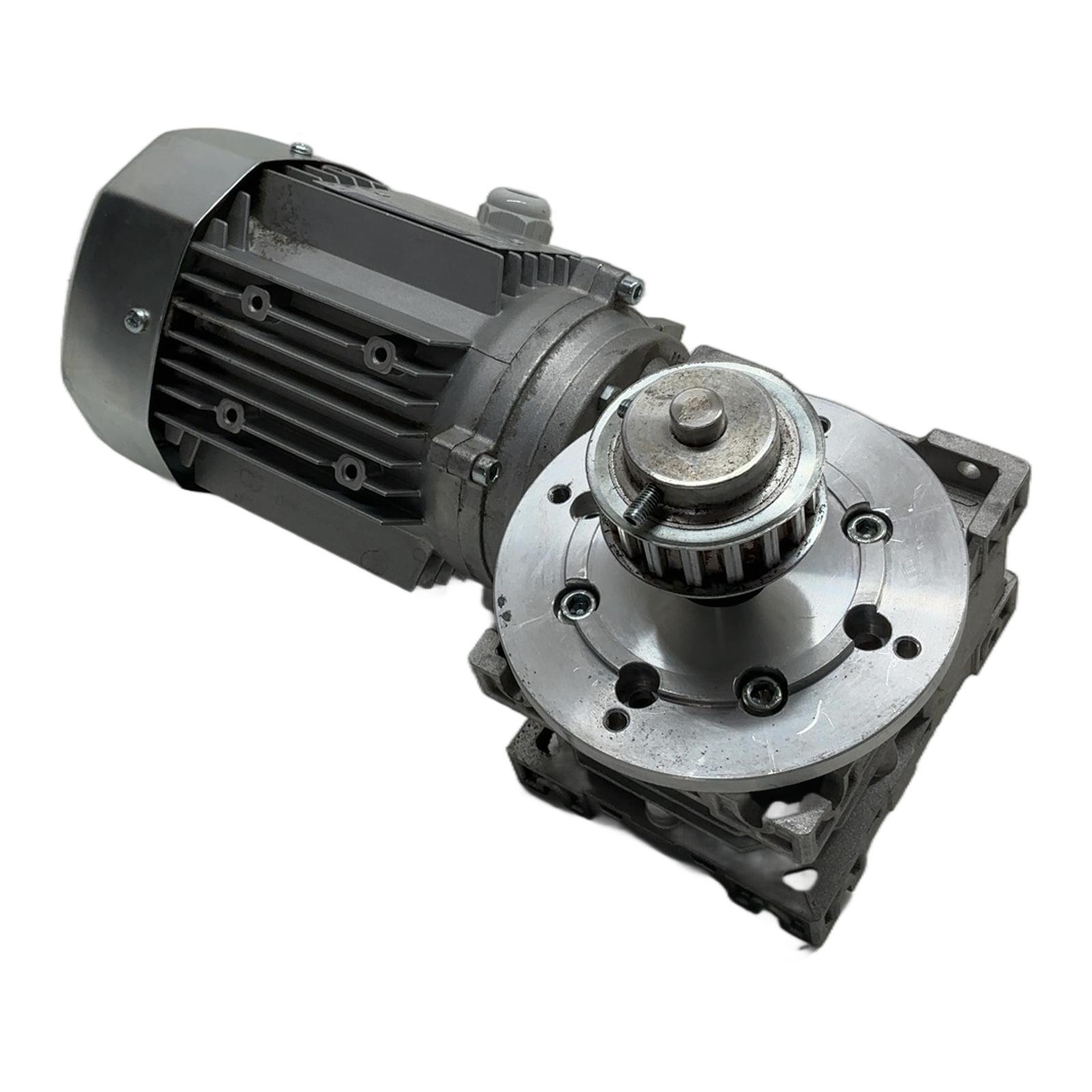

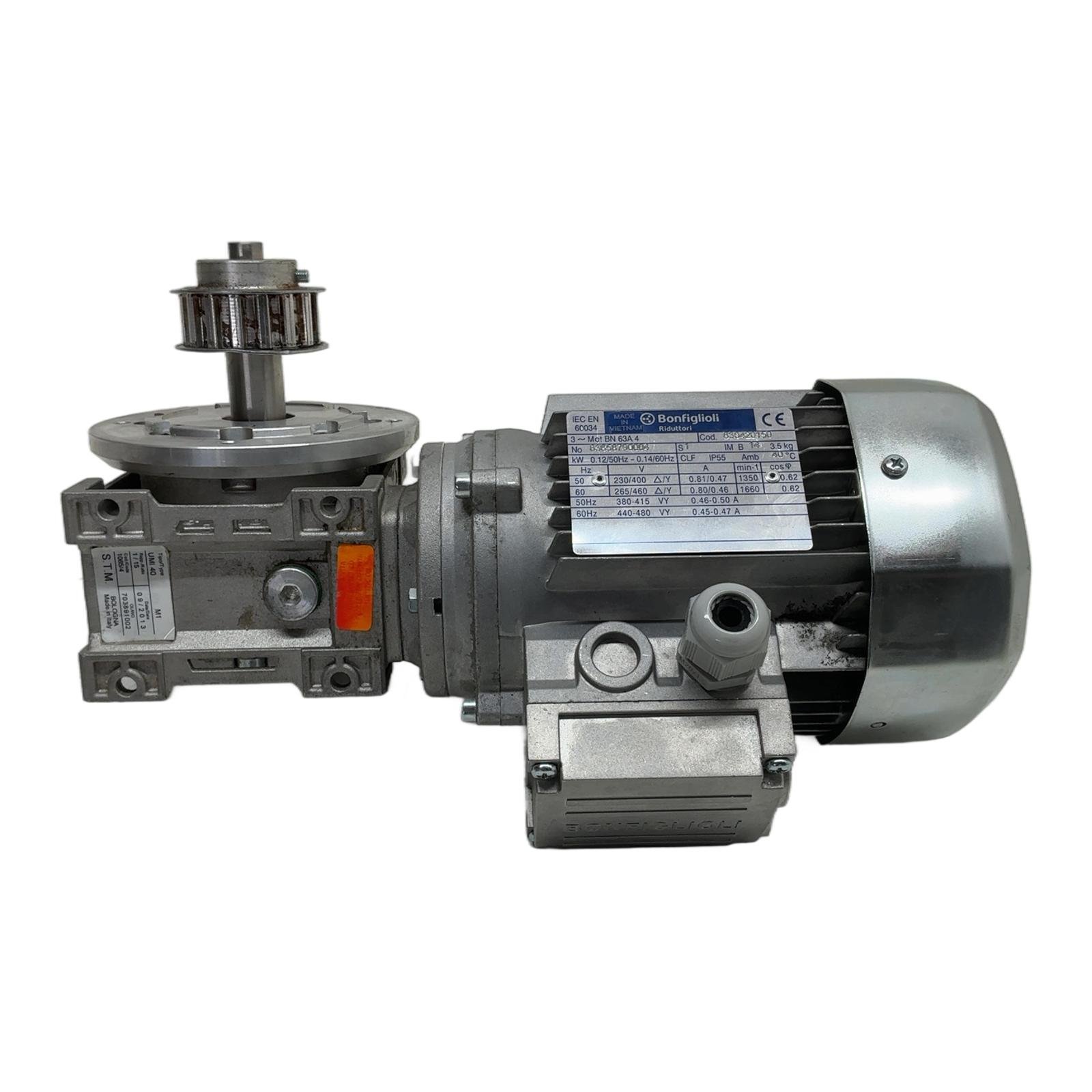

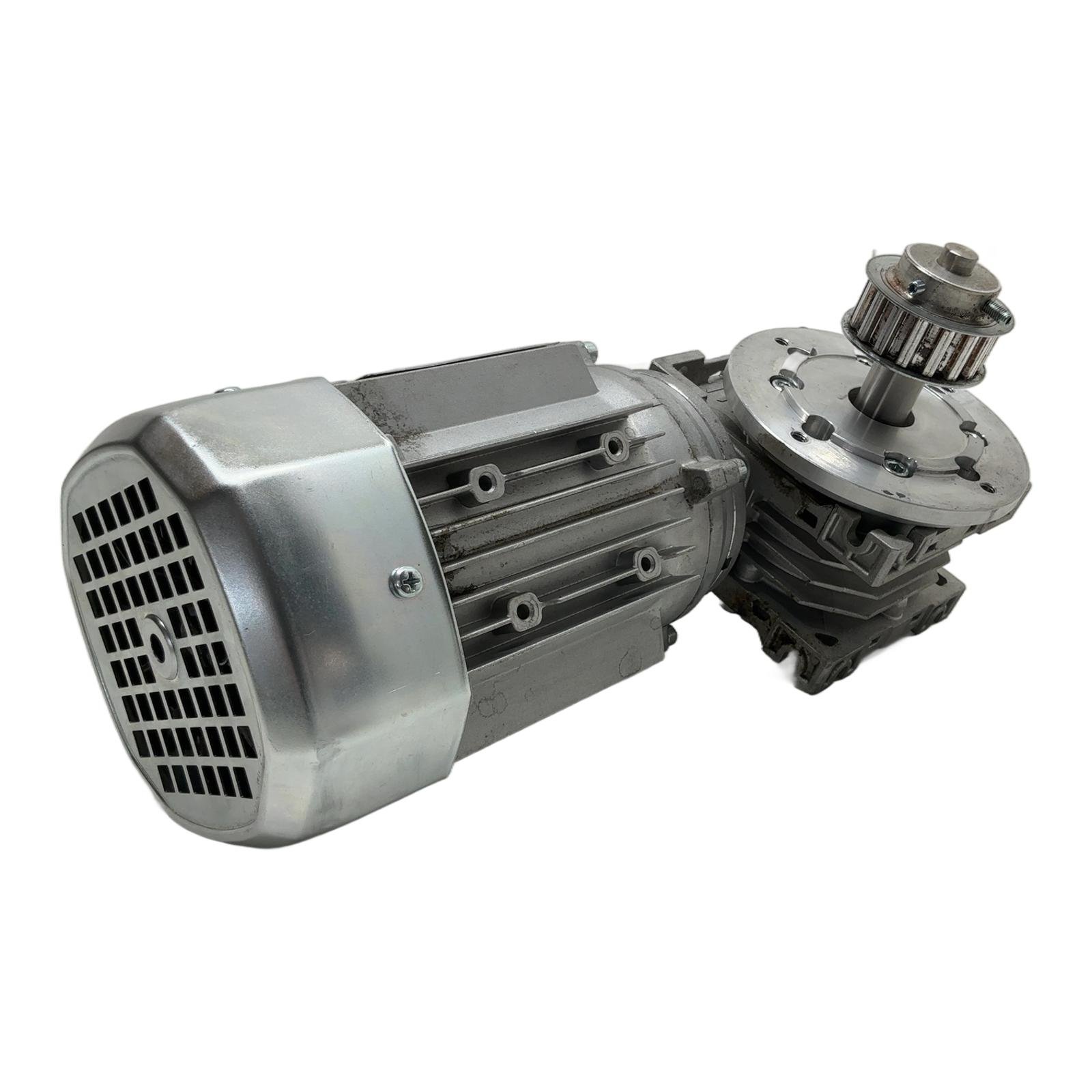

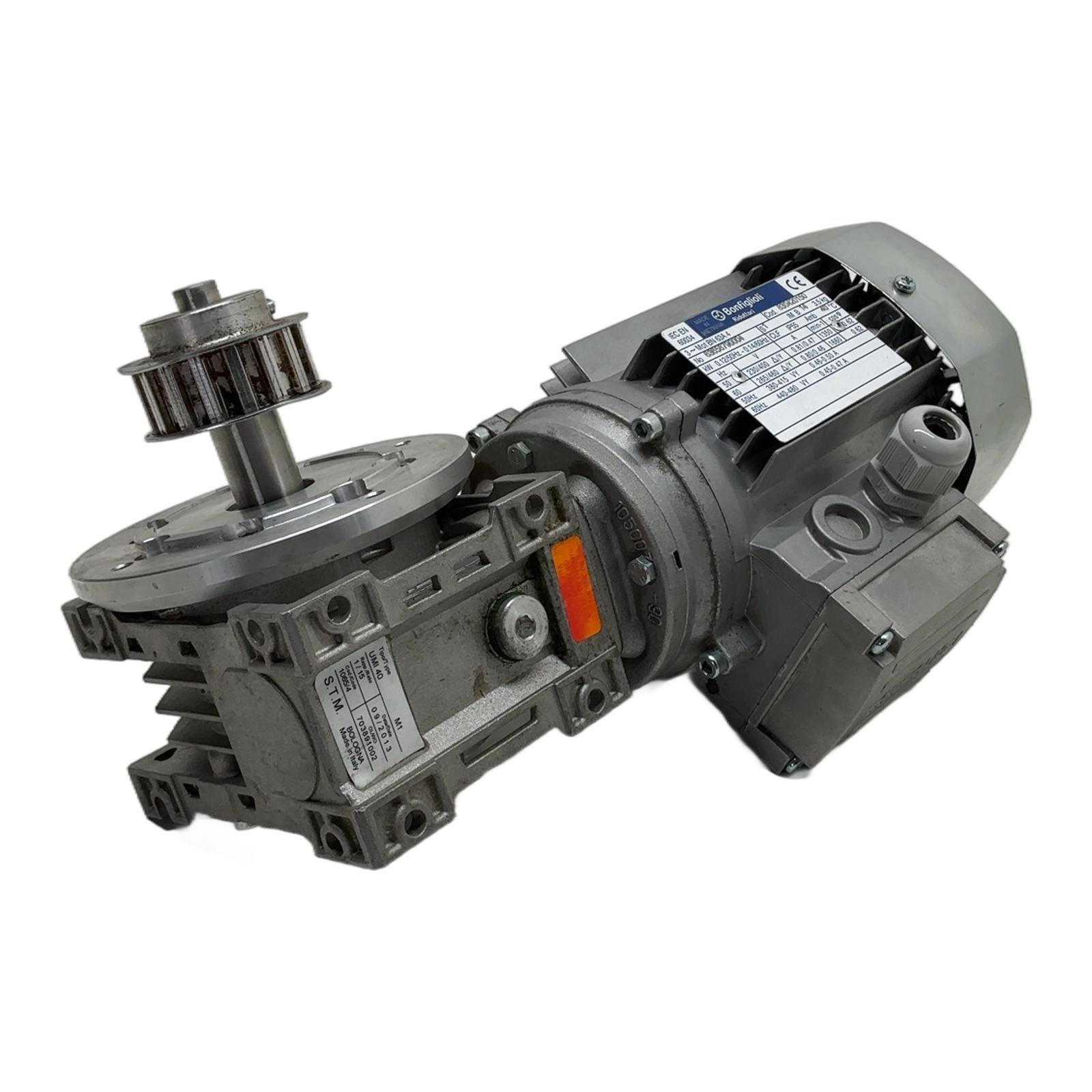

BONFIGLIOLI BN 63A 4 830420150 / UMI 40 M1 1065/4

Bonfiglioli & S.T.M. Gearmotor Assembly Description This is a robust and reliable gearmotor assembly, featuring a Bonfiglioli BN 63A 4 three-phase asynchronous motor paired with an S.T.M. UMI 40 worm gearbox. With a power rating of 0.12 kW and a gear ratio of 15:1, this unit delivers high torque at a reduced output speed, making it perfect for demanding industrial automation tasks. The motor is built to IEC standards with an IP55 rating, ensuring protection against dust and water ingress. Specifications Manufacturer (Motor): Bonfiglioli Motor Type: BN 63A 4 Manufacturer (Gearbox): S.T.M. Gearbox Type: UMI 40 Power: 0.12 kW at 50Hz Voltage: 230/400V (Delta/Y) at 50Hz Current: 0.81/0.47 A at 50Hz Frequency: 50 Hz Speed: 1350 min-1 (RPM) Gear Ratio: 1/15 Protection Class: IP55 Mounting: IM B14 (Motor) Label Info Motor No: 83658790004 Motor Cod: 830420150 Gearbox Cod: 1065/4 Gearbox OL/WO: 703891002 Date of Manufacture: September 2013 Application Ideal for use in conveyor systems, packaging machinery, agitators, and other applications that require precise and powerful low-speed motion control. Country of Origin Made in Italy. CO2 Impact Choosing this pre-owned gearmotor over a new one prevents the emission of approximately 268 kg of CO2, contributing to a more sustainable industrial environment. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question?Can this motor be run with a variable frequency drive (VFD)? AnswerYes, the Bonfiglioli BN 63A 4 is a standard three-phase induction motor suitable for VFD operation. Ensure the VFD is configured for the motor’s voltage (230V or 400V) and current ratings, and maintain proper cooling, especially at low speeds. Question?What type of oil is required for the S.T.M. UMI 40 gearbox and what is the mounting position? AnswerThe S.T.M. UMI series is typically filled with synthetic oil (ISO VG 320) for life. The label indicates mounting position ‘M1’, which is a standard universal position for this gearbox size, allowing for flexible installation without changing the oil level. Question?The motor is from Bonfiglioli and the gearbox from S.T.M. Are they compatible? AnswerYes, this assembly is fully compatible. The motor features a standard IEC B14 flange and shaft dimensions that match the input of the S.T.M. UMI 40 gearbox. This combination of components from different manufacturers is common in industrial applications. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
