PANASONIC MBMG9A2BN00 MB9G15B

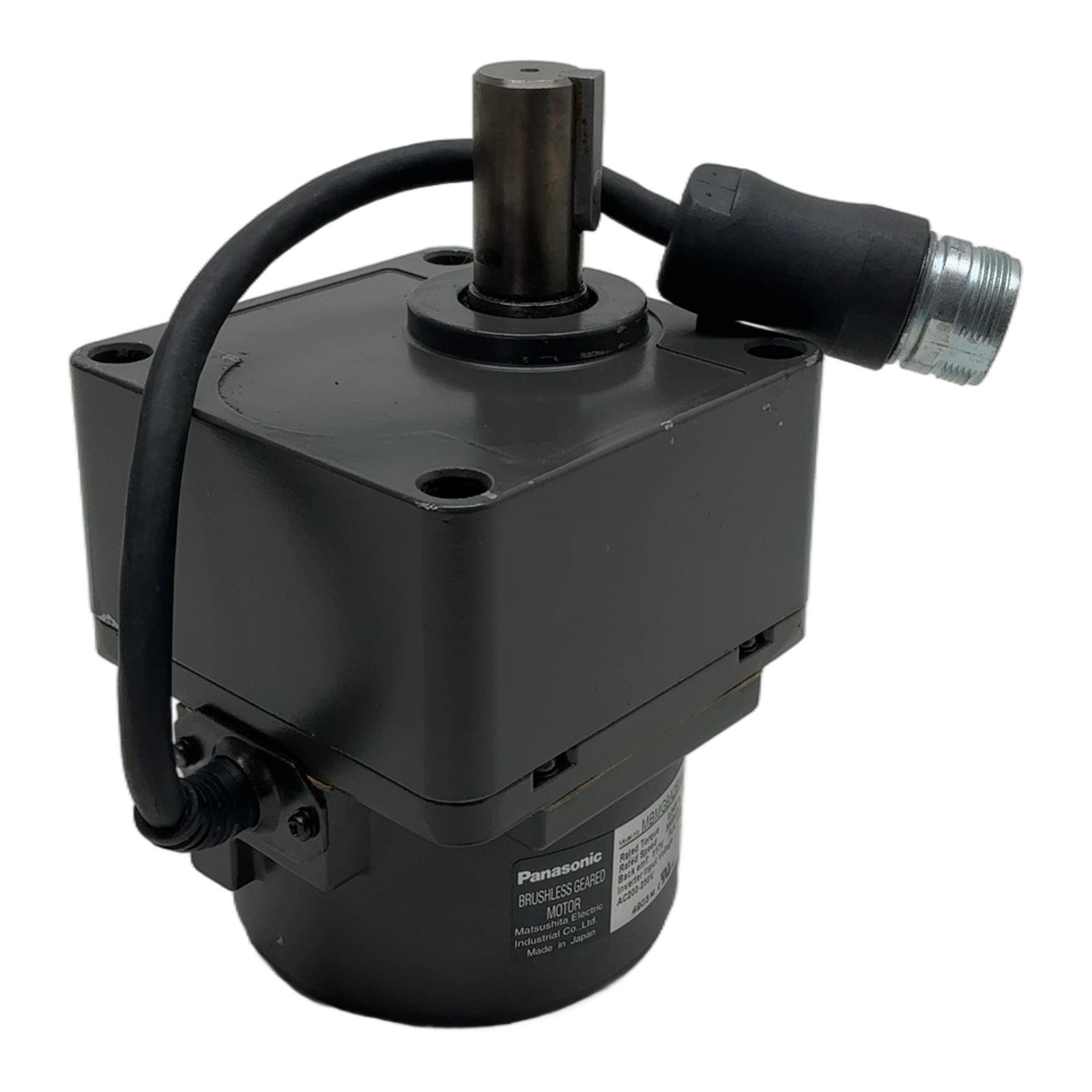

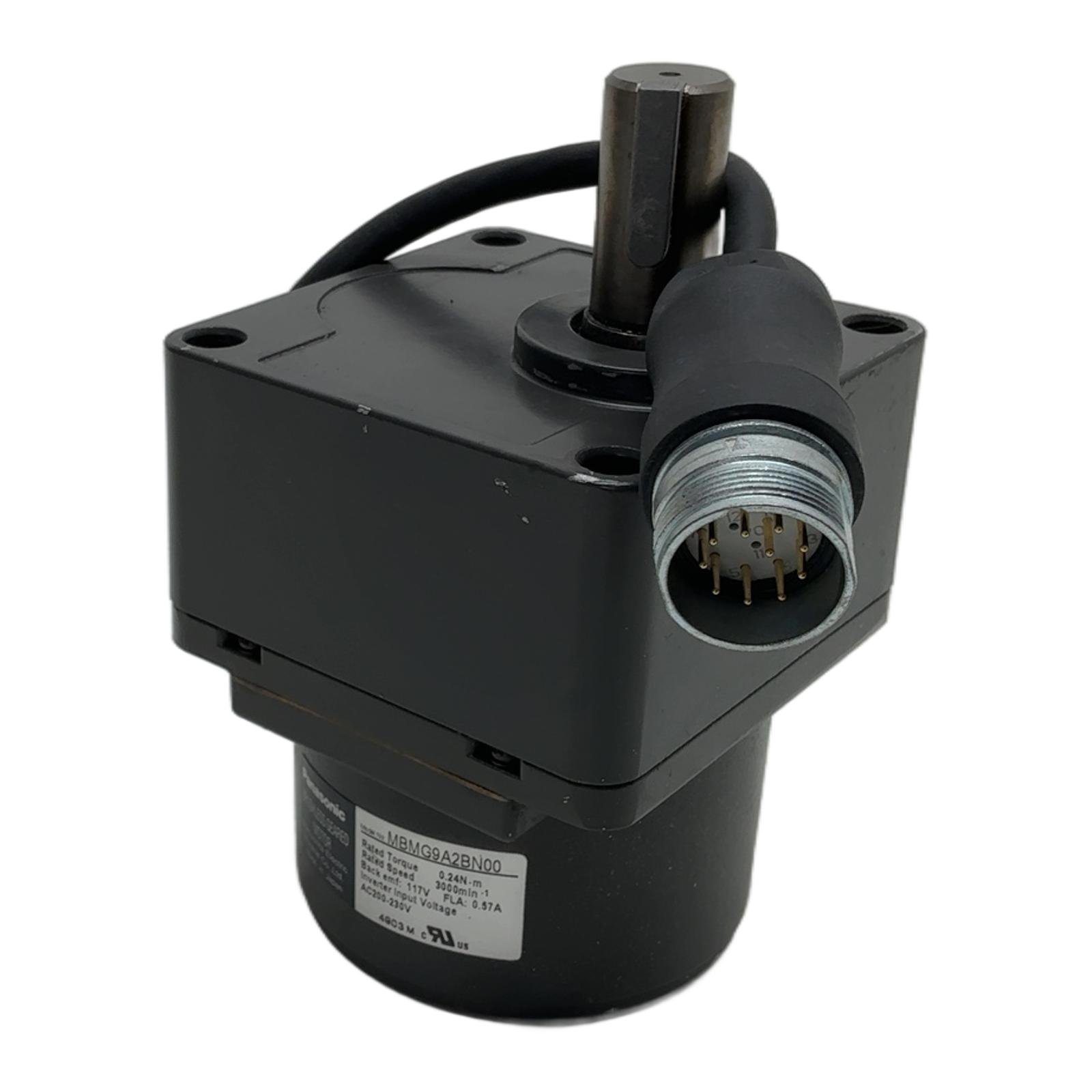

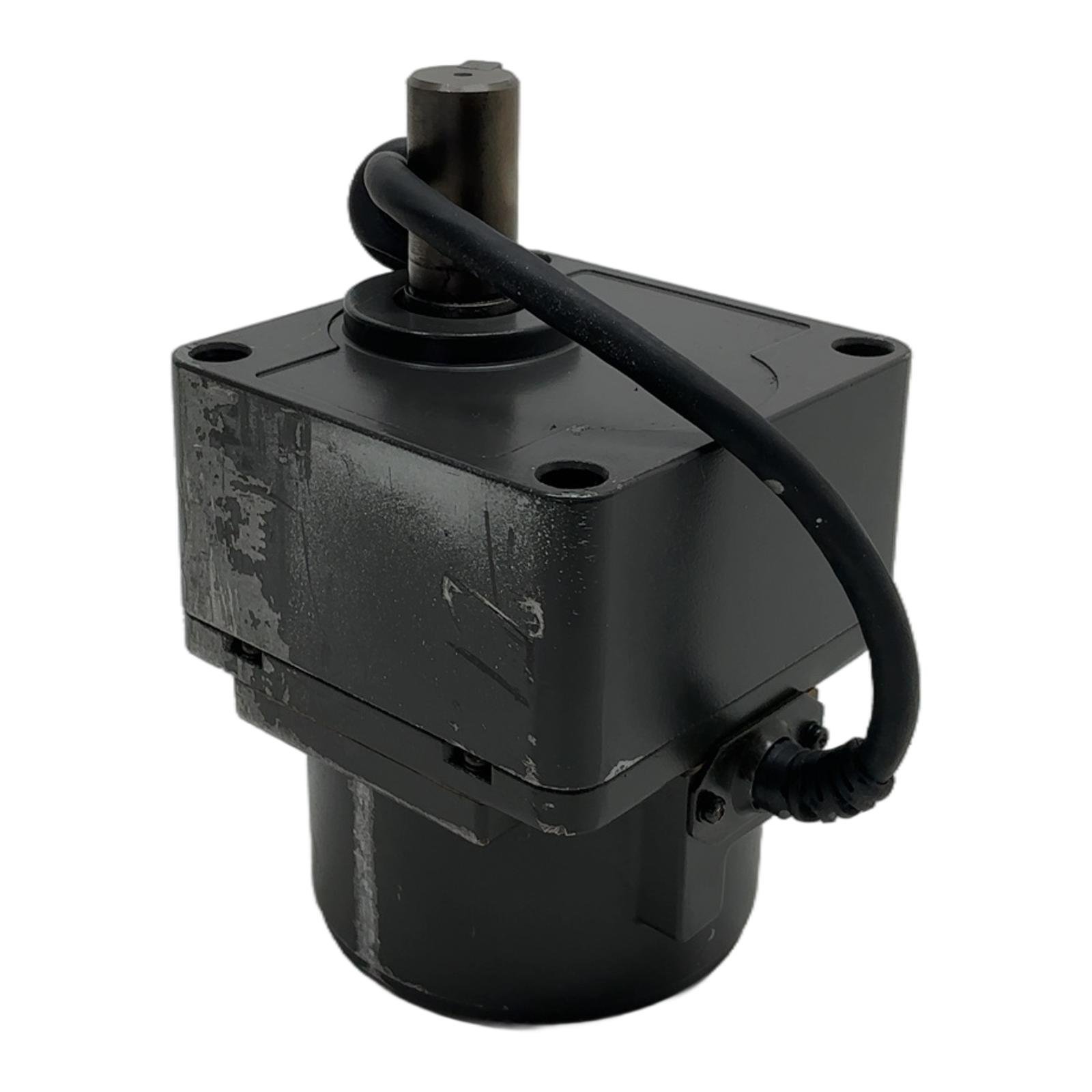

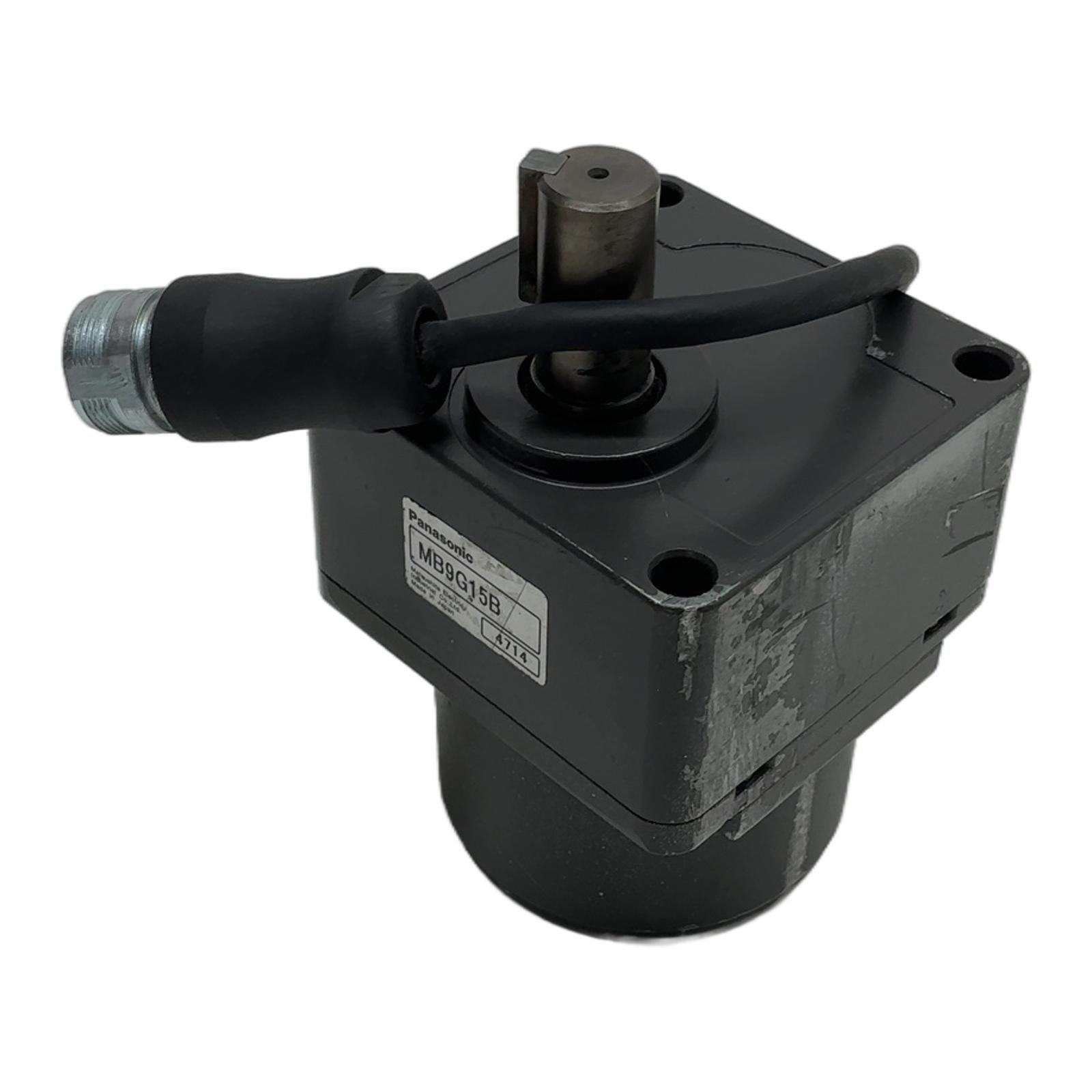

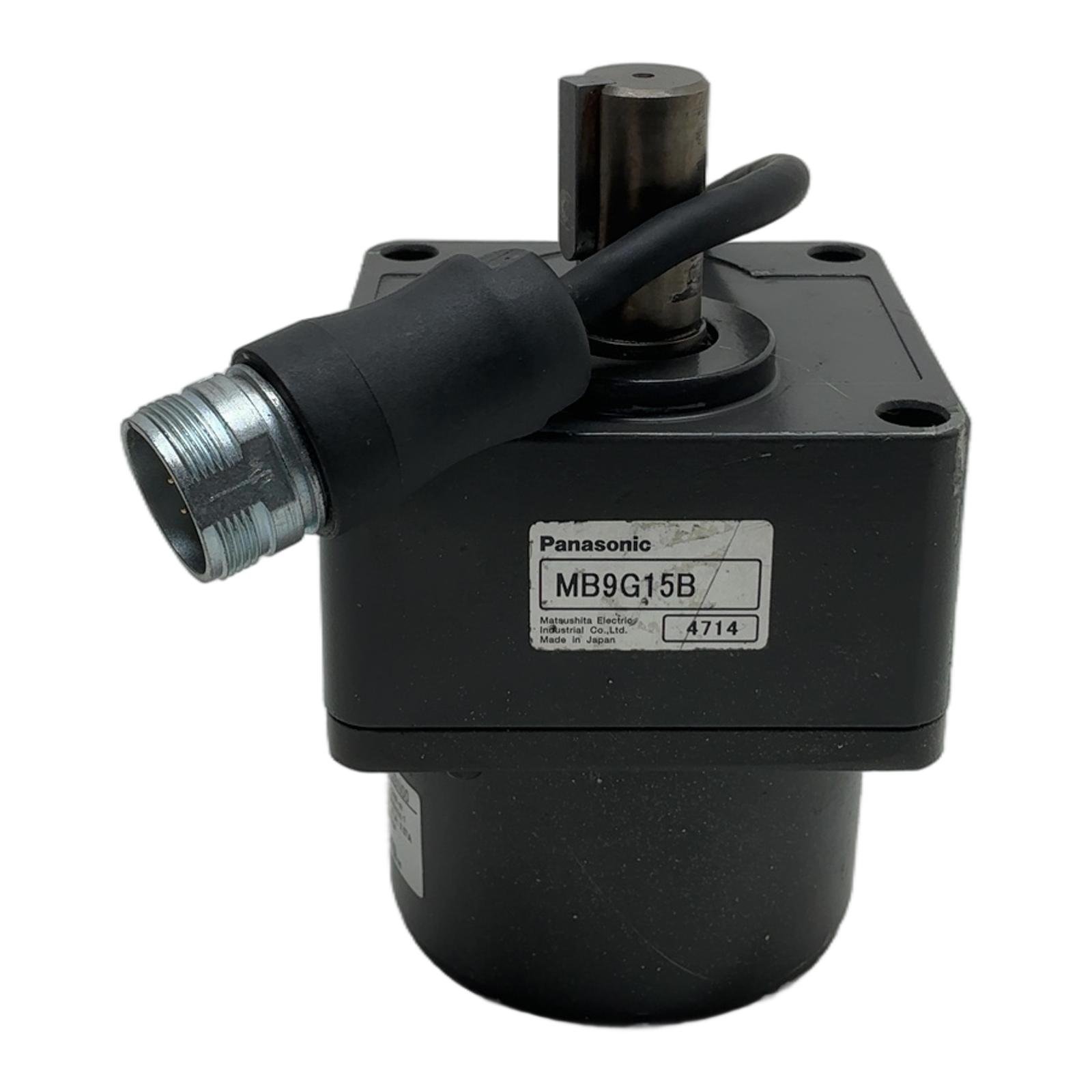

Panasonic Brushless Geared Motor 90W MBMG9A2BN00 MB9G15B Description This is a complete geared motor assembly from Panasonic, combining the MBMG9A2BN00 brushless motor with the MB9G15B gearhead. As part of the reliable but obsolete MINAS A series, this 90W motor is an excellent choice for repairs and maintenance of existing industrial machinery, preventing the need for costly system upgrades. It is designed for precision control applications requiring high torque in a compact form factor. Specifications Manufacturer: Panasonic Motor Model: MBMG9A2BN00 Gearhead Model: MB9G15B Motor Type: Brushless AC Motor Power Rating: 90W Input Voltage: 200-230V AC Rated Speed (Motor): 3000 min-1 (rpm) Gear Ratio: 15:1 Final Output Speed: approx. 200 rpm Rated Torque (Motor): 0.24 N-m FLA: 0.57A Label Info Brand: Panasonic (Matsushita Electric Industrial Co.,Ltd.) Motor Model No.: MBMG9A2BN00 Gearhead Model No.: MB9G15B Application Ideal for applications in robotics, automated assembly lines, material handling, and other systems where precise speed and torque control are critical. It serves as a direct replacement part for machinery originally equipped with the Panasonic MINAS A series. Country of Origin Made in Japan. CO2 Impact Opting for this pre-owned geared motor instead of a new one saves an estimated 100 kg of CO2. This saving is equivalent to the emissions from driving a car for 500 kilometers. Availability This item is a used, tested product in good working condition. Order now from profideals for expert support and fast delivery. FAQ What kind of driver or servo amplifier is compatible with this MBMG9A2BN00 motor?This motor belongs to the Panasonic MINAS A series and requires a compatible MINAS A series servo driver, such as models starting with MBDDT. It is not compatible with newer series like A4, A5, or A6 without significant system changes. What is the final output speed of this geared motor assembly?With a motor rated speed of 3000 rpm and a gearhead ratio of 15:1 (from model MB9G15B), the final output speed at the gearhead shaft is approximately 200 rpm (3000 / 15). Is the connector cable included with this motor?The images show the motor with its pigtail connector. However, the mating cable that connects the motor to the drive is typically a separate part and is not included unless specified otherwise. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
