SCHNEIDER ELECTRIC iC60N C2A A9F04402 + Vigi iC60 + iOF A9A26924

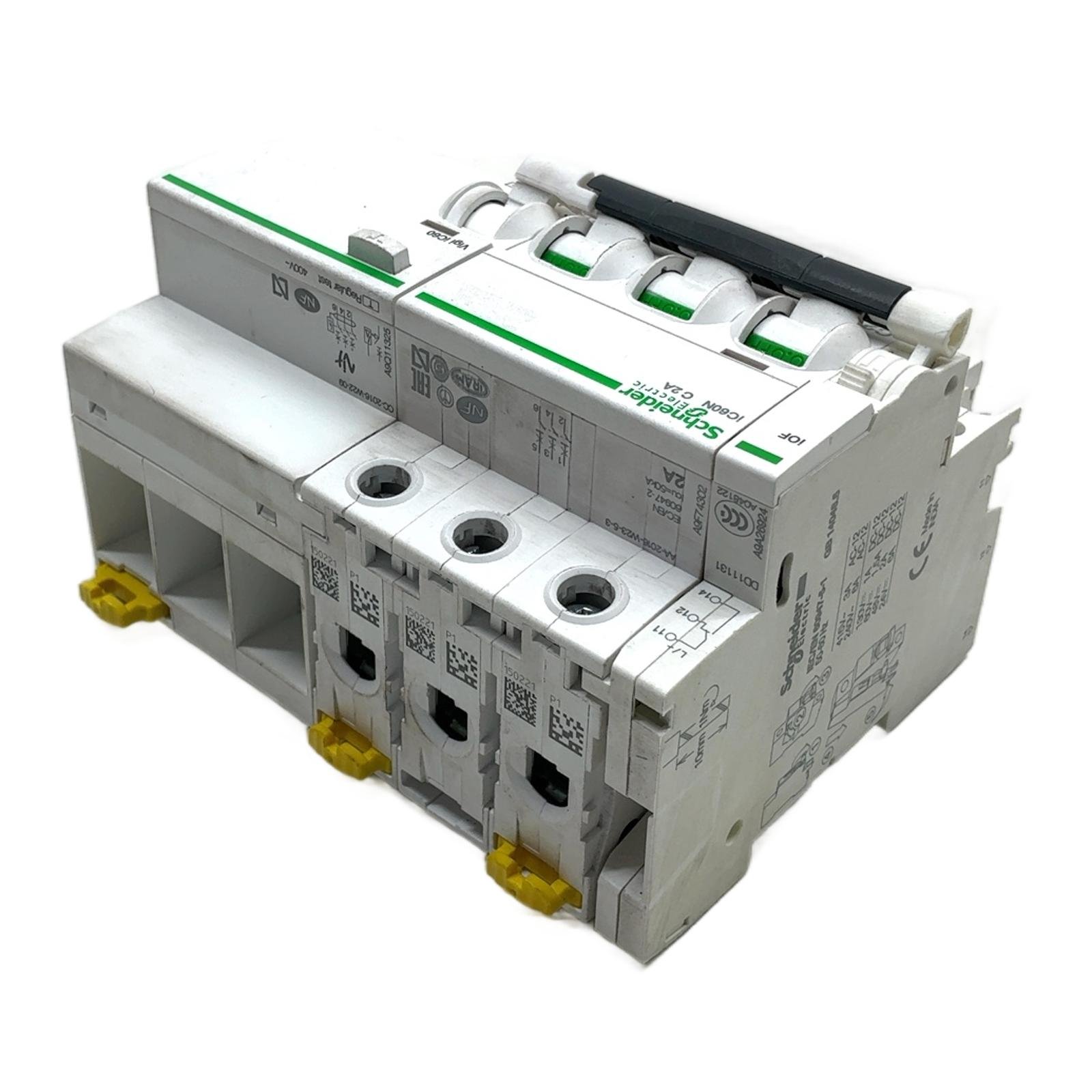

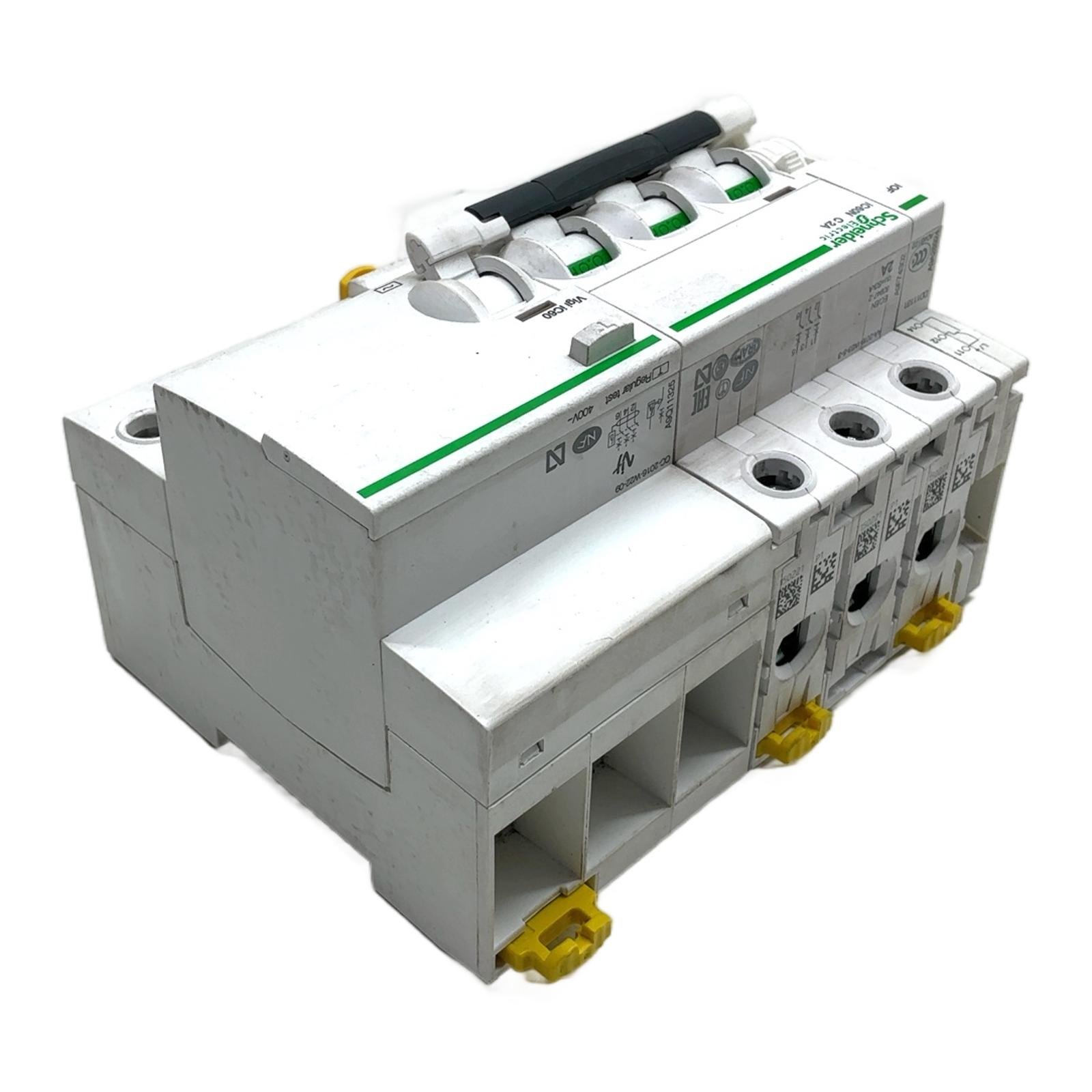

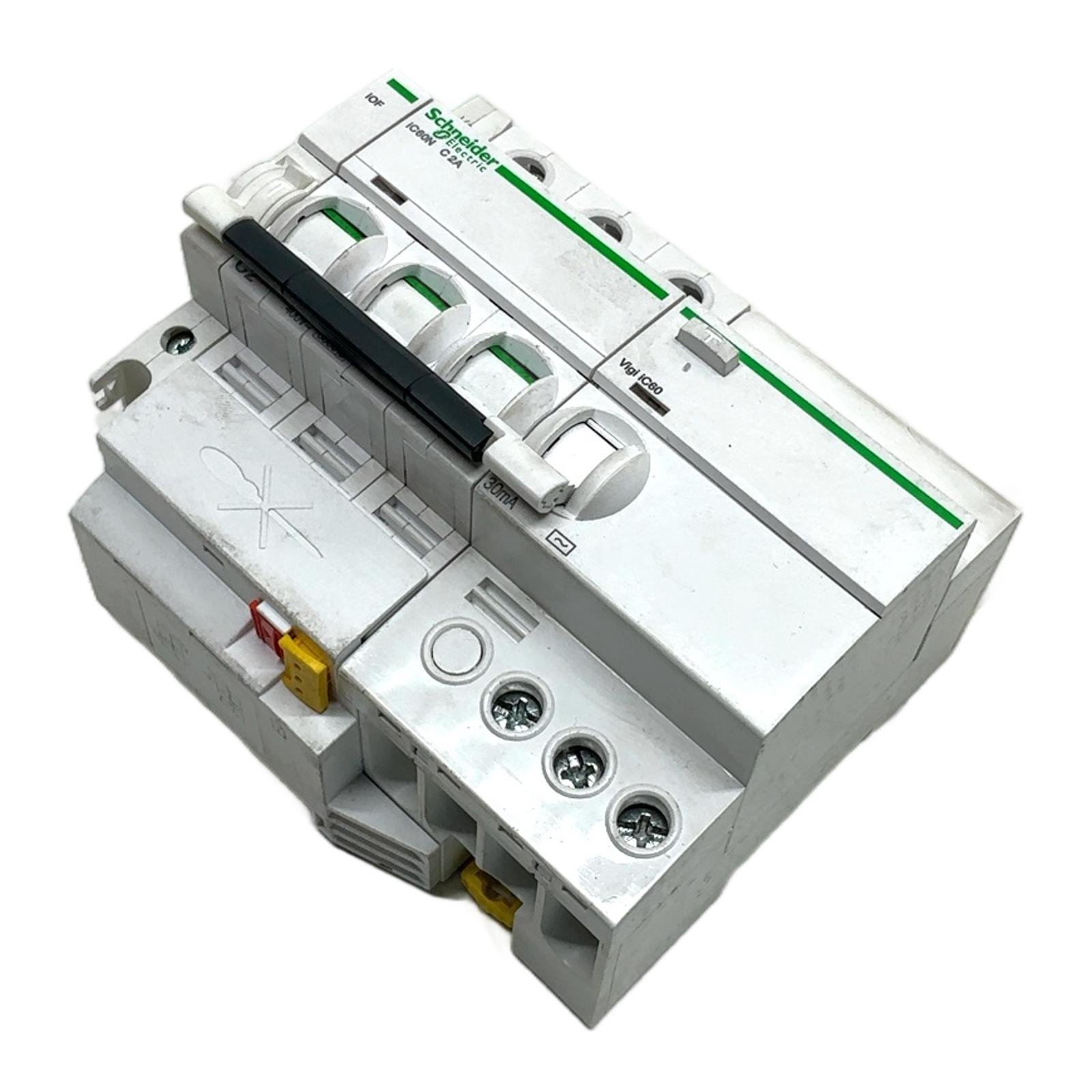

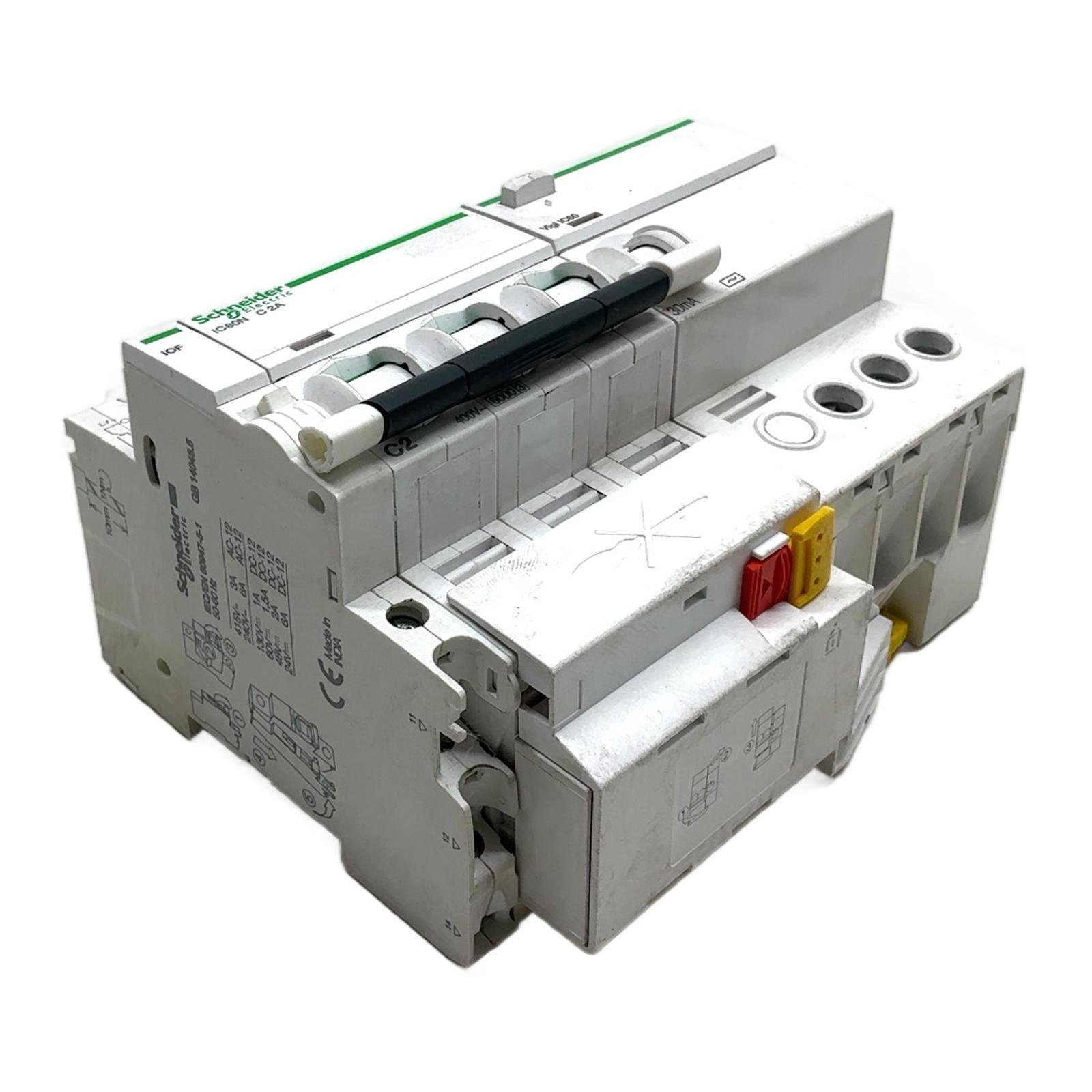

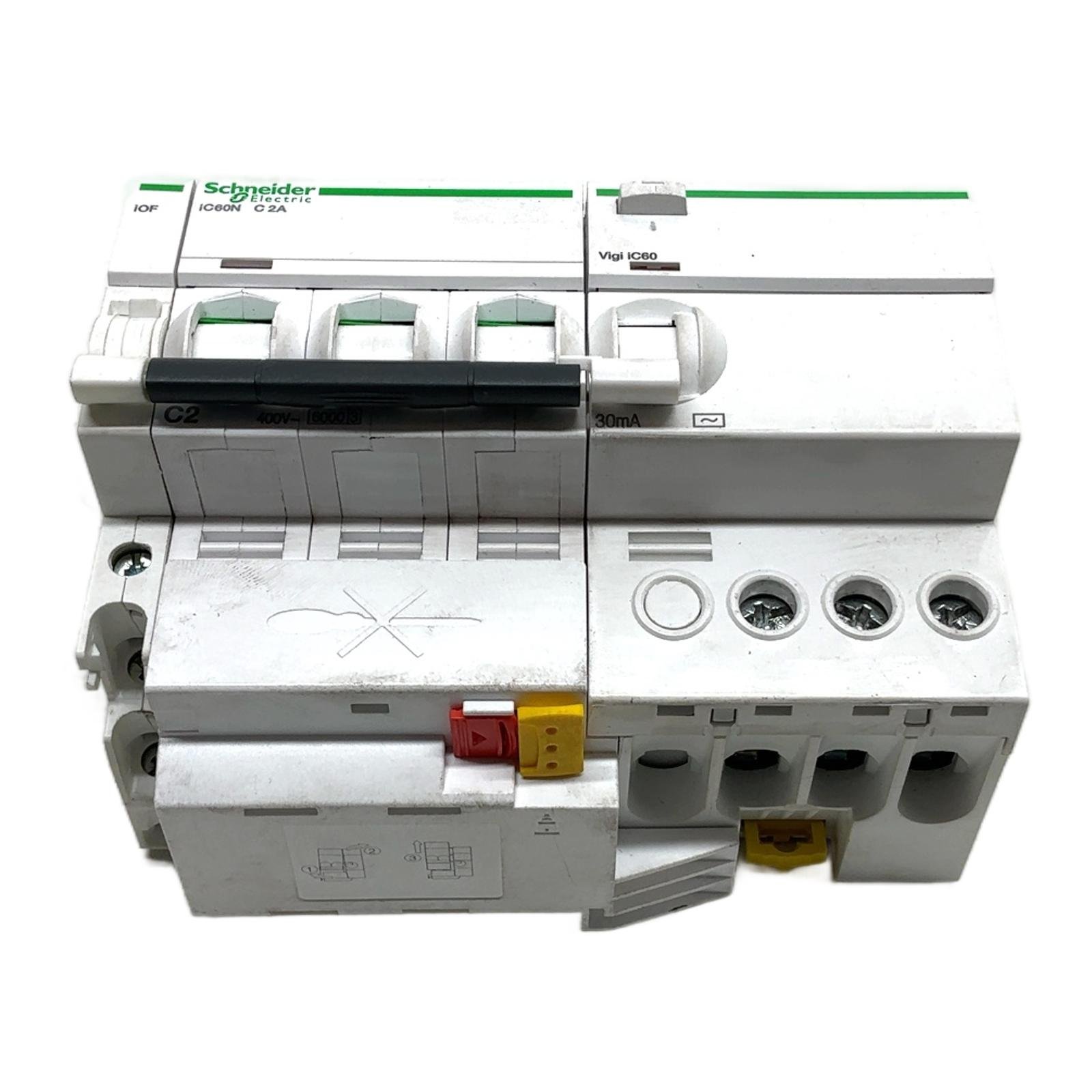

Schneider Electric Acti9 iC60N RCBO Assembly Description This is a pre-assembled residual current circuit breaker with overload protection (RCBO) from Schneider Electric’s industry-leading Acti9 range. The assembly consists of an iC60N 4-pole miniature circuit breaker, a Vigi iC60 add-on block for earth leakage protection, and an iOF auxiliary contact for remote signaling of the breaker’s status. It provides a complete, DIN-rail mountable solution for protecting three-phase circuits in commercial and industrial environments. Specifications Manufacturer: Schneider Electric Series: Acti9 Main Component: iC60N Miniature Circuit Breaker (MCB) Part Number (MCB): A9F04402 Poles: 4P Rated Current: 2 A Tripping Curve: C RCD Module: Vigi iC60 Add-on Block Auxiliary Contact: iOF (1x Open/Closed) Rated Voltage (Ue): 400V AC 50/60 Hz Breaking Capacity: 6 kA Label Info Schneider Electric iC60N C2A Vigi iC60 iOF Auxiliary Contact – IEC/EN 60947-5-1 Application Ideal for the protection of final circuits against overloads, short-circuits, and earth fault currents. Suitable for use in distribution boards for commercial buildings, industrial facilities, and infrastructure projects requiring comprehensive circuit protection and status monitoring. Country of Origin The iOF auxiliary contact is marked as Made in India. Components may originate from various Schneider Electric facilities. CO2 Impact Reusing this component saves approximately 29 kg of CO2, which is comparable to the emissions from driving a car for 145 kilometers. Choosing used parts significantly reduces the environmental footprint of your operations. Availability This item is a used, tested component in excellent working condition. Available for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the tripping sensitivity (in mA) of the included Vigi iC60 module?The exact sensitivity of this specific Vigi add-on module is not printed on the visible parts. Vigi iC60 modules are available in various sensitivities (e.g., 30mA, 100mA, 300mA). Please ensure the sensitivity matches your application’s safety requirements or test the unit before installation. Can the iOF auxiliary contact be moved to the other side of the circuit breaker?Yes, the Acti9 system is modular. The iOF auxiliary contact can typically be mounted on either the left or right side of the iC60N circuit breaker to suit your panel layout and wiring needs. Is this assembly suitable for protecting DC circuits?No, this specific assembly is designed for AC (Alternating Current) systems, as indicated by the Vigi RCD module. While the iC60N breaker itself may have some DC rating, the RCD function is for AC earth leakage detection only and will not work correctly on DC circuits. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder. Last Update: Friday, March 13, 2026
