LEGRAND 4884

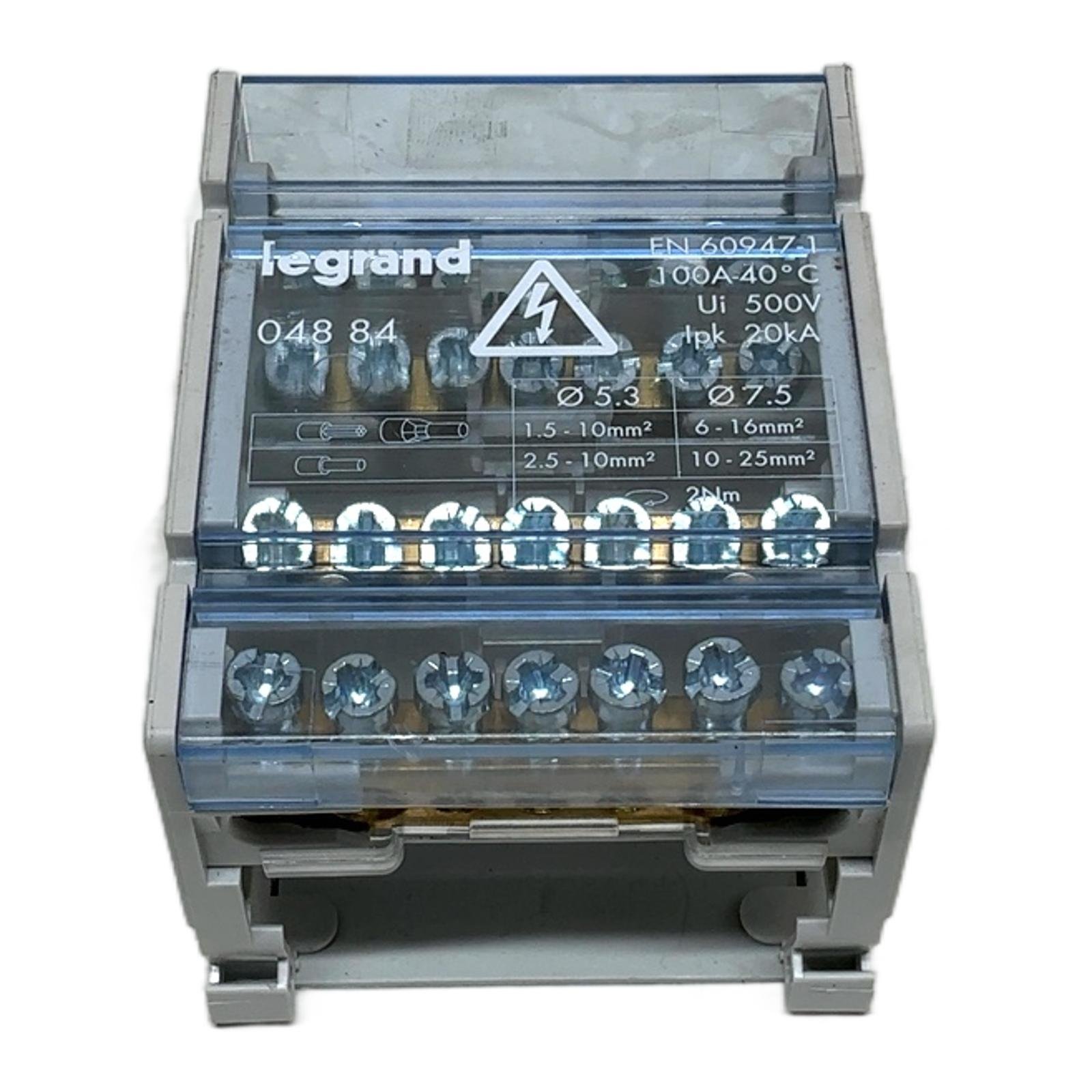

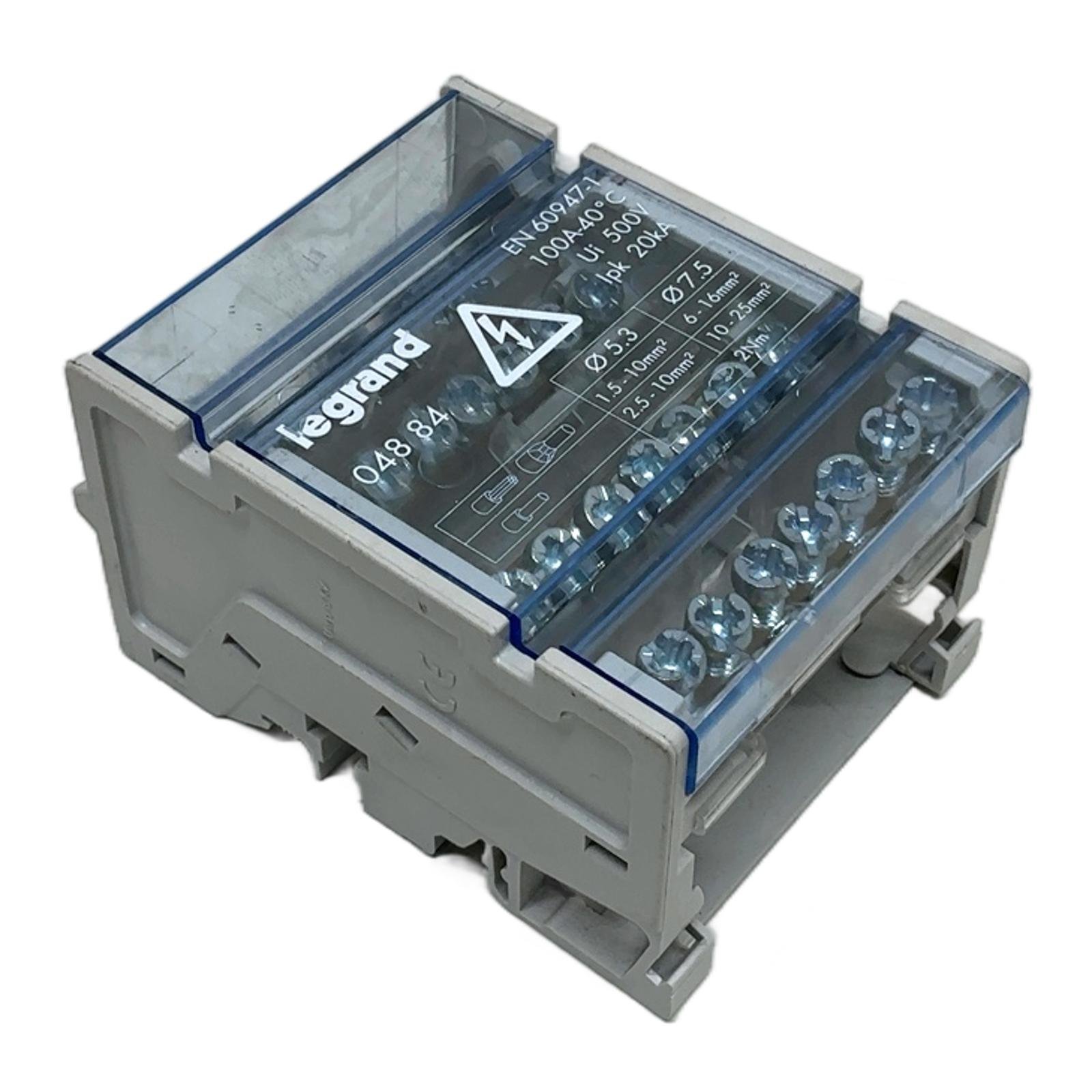

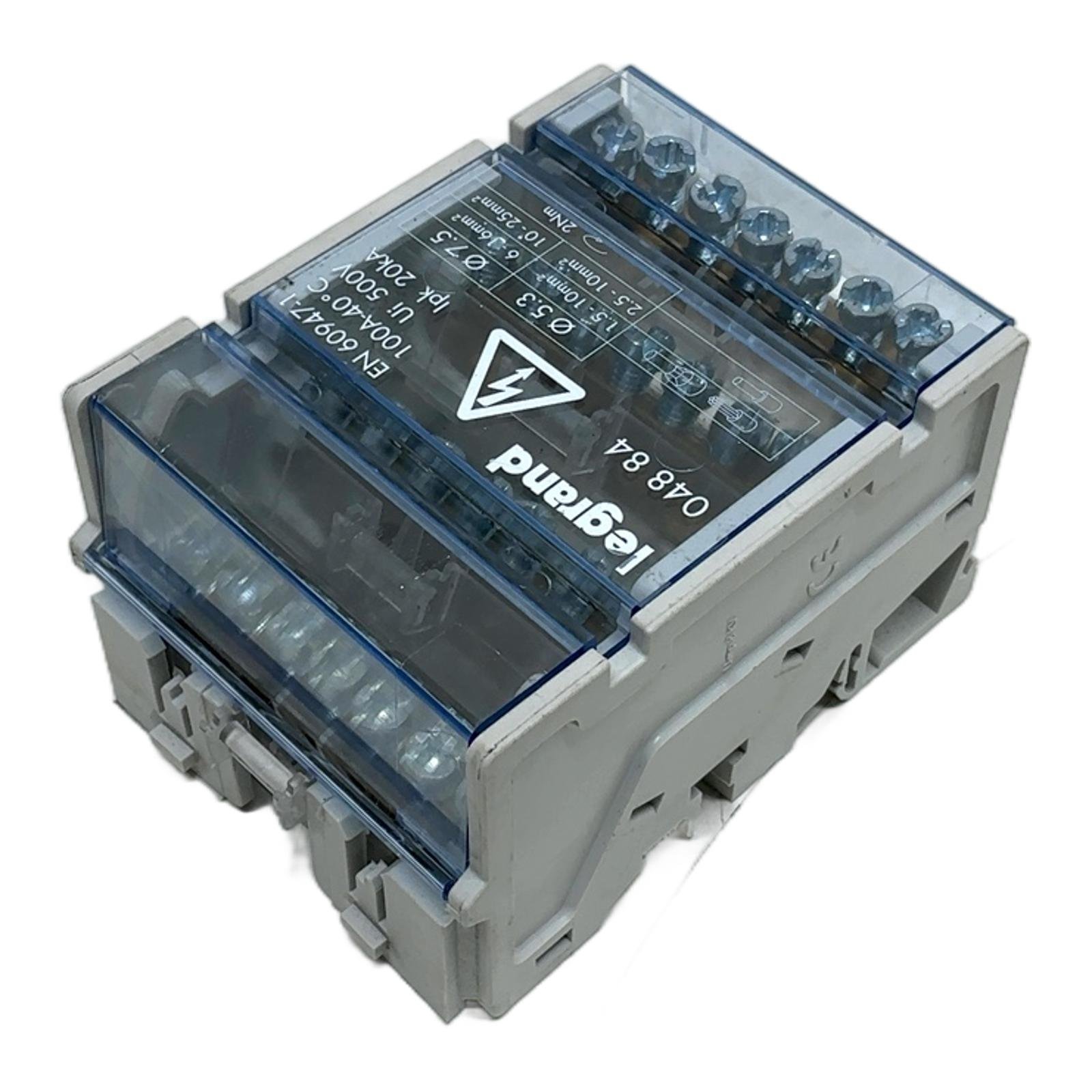

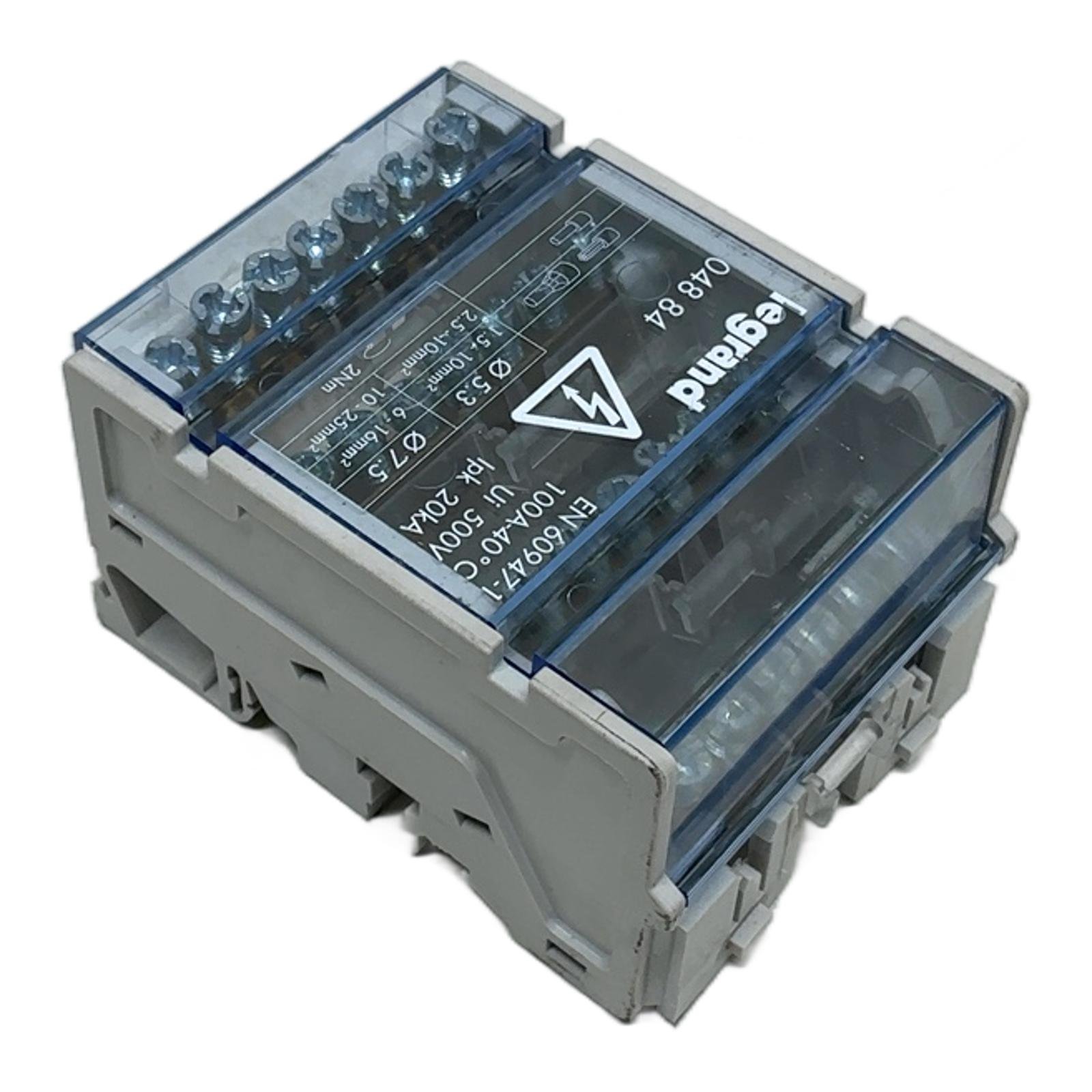

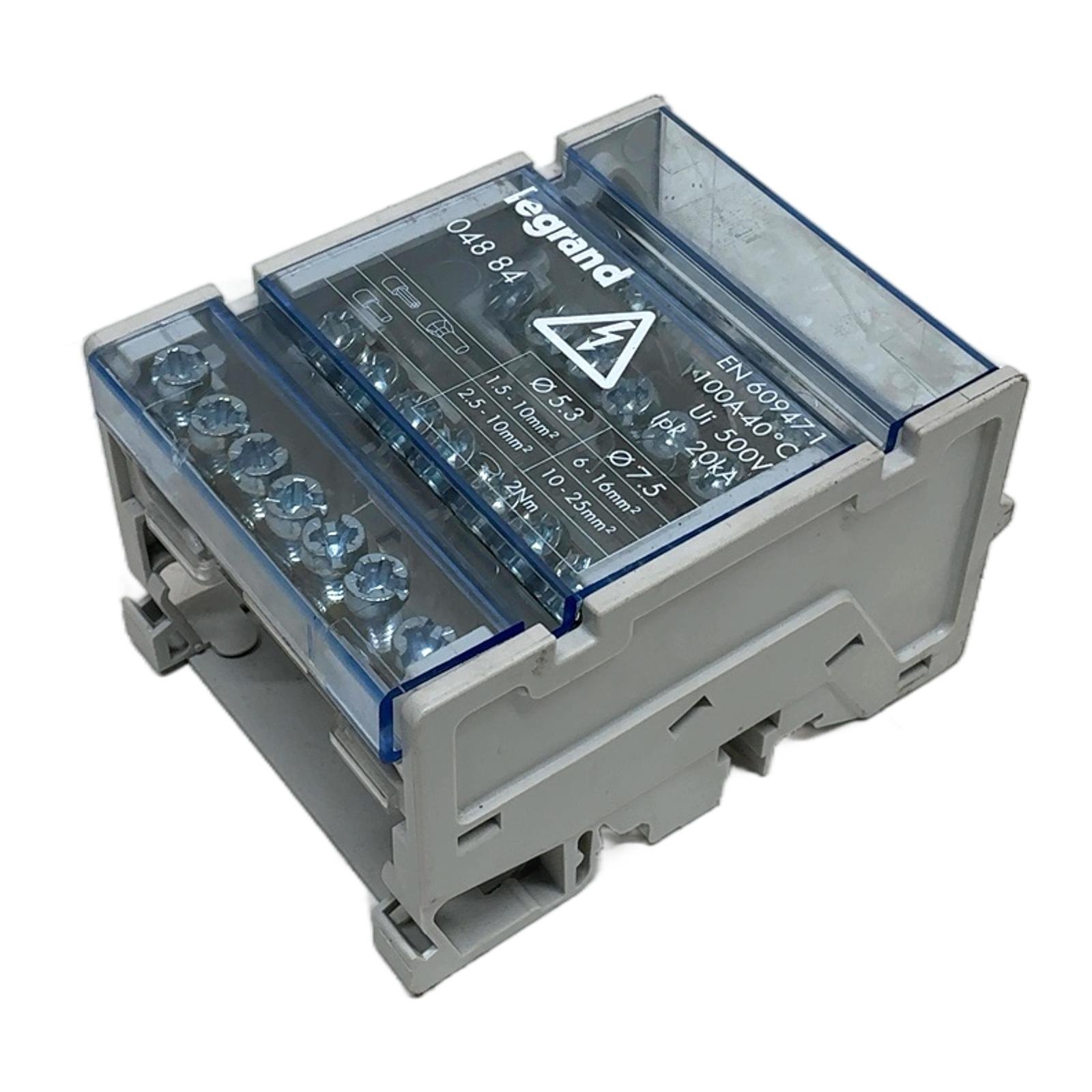

Legrand 048 84 2-Pole 100A Monobloc Distribution Block Description The Legrand 048 84 is a high-quality, compact distribution block designed for reliable and organized power distribution within electrical enclosures. This 2-pole monobloc unit is rated for 100A and can be easily mounted on a standard DIN rail, saving valuable panel space. Its clear cover provides visual inspection of connections while ensuring IP2X protection against direct contact. Specifications Manufacturer: Legrand Part Number: 048 84 Product Type: Monobloc Distribution Block Number of Poles: 2 Nominal Current (In): 100 A at 40 deg. C Insulation Voltage (Ui): 500 V Peak Short-Circuit Current (Ipk): 20 kA Mounting: DIN Rail Standard: EN 60947-1 Label Info Connection with rigid conductors: 1.5 to 16 mm2 Connection with flexible conductors: 2.5 to 25 mm2 Tightening Torque: 2 Nm Application This distribution block is ideal for power distribution in industrial control panels, HVAC systems, and commercial electrical installations where multiple loads need to be connected to a single source in a secure and organized manner. Country of Origin Made in France. CO2 Impact By purchasing this pre-owned item, you help avoid the 7.0 kg of CO2 emissions associated with the production of a new one, contributing to a more sustainable industrial sector. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the maximum tightening torque for the terminal screws?The manufacturer specifies a maximum tightening torque of 2 Newton-meters (Nm) for all terminal screws to ensure a secure and reliable connection without damaging the threads. Can this distribution block be used with both solid and flexible (stranded) conductors?Yes, it is designed for versatility. It accepts rigid (solid) copper conductors from 1.5 mm2 to 16 mm2 and flexible (stranded) conductors from 2.5 mm2 to 25 mm2. What is the Ipk rating and why is it important for a distribution block?The Ipk rating of 20kA (kiloamperes) is the peak short-circuit current the block can withstand without mechanical failure. This is a critical safety feature, ensuring the block maintains its integrity during a fault condition, preventing further damage or hazards. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
