BALLUFF BES 516-324-G-S49-C BES01AU

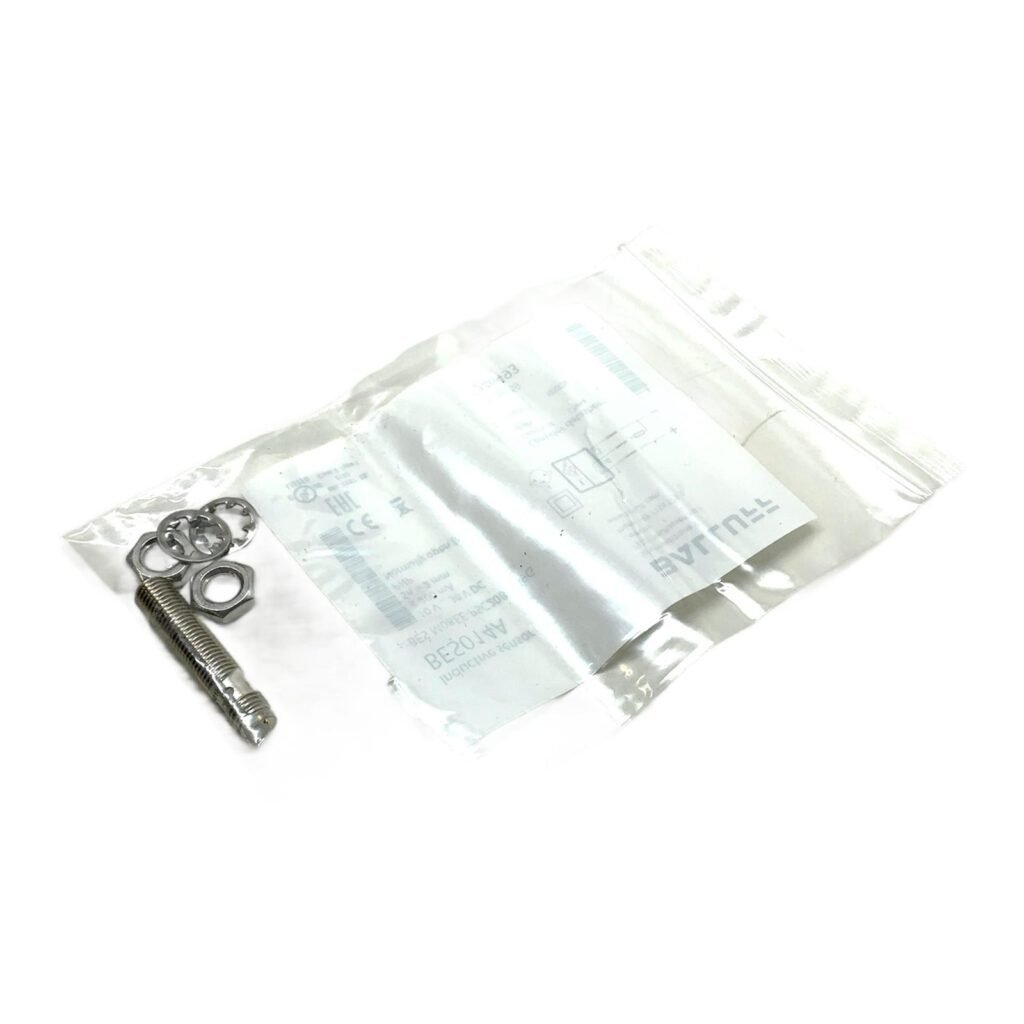

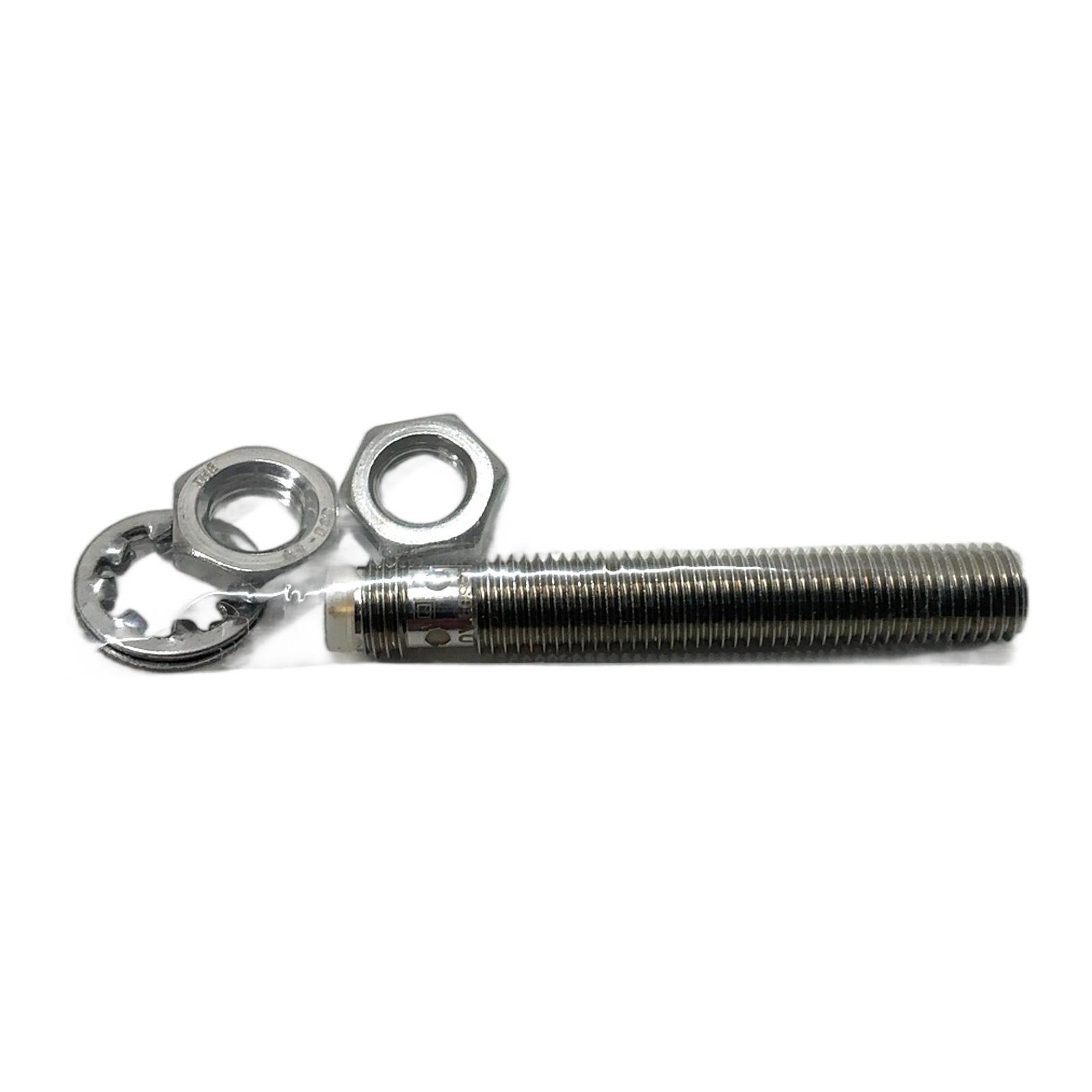

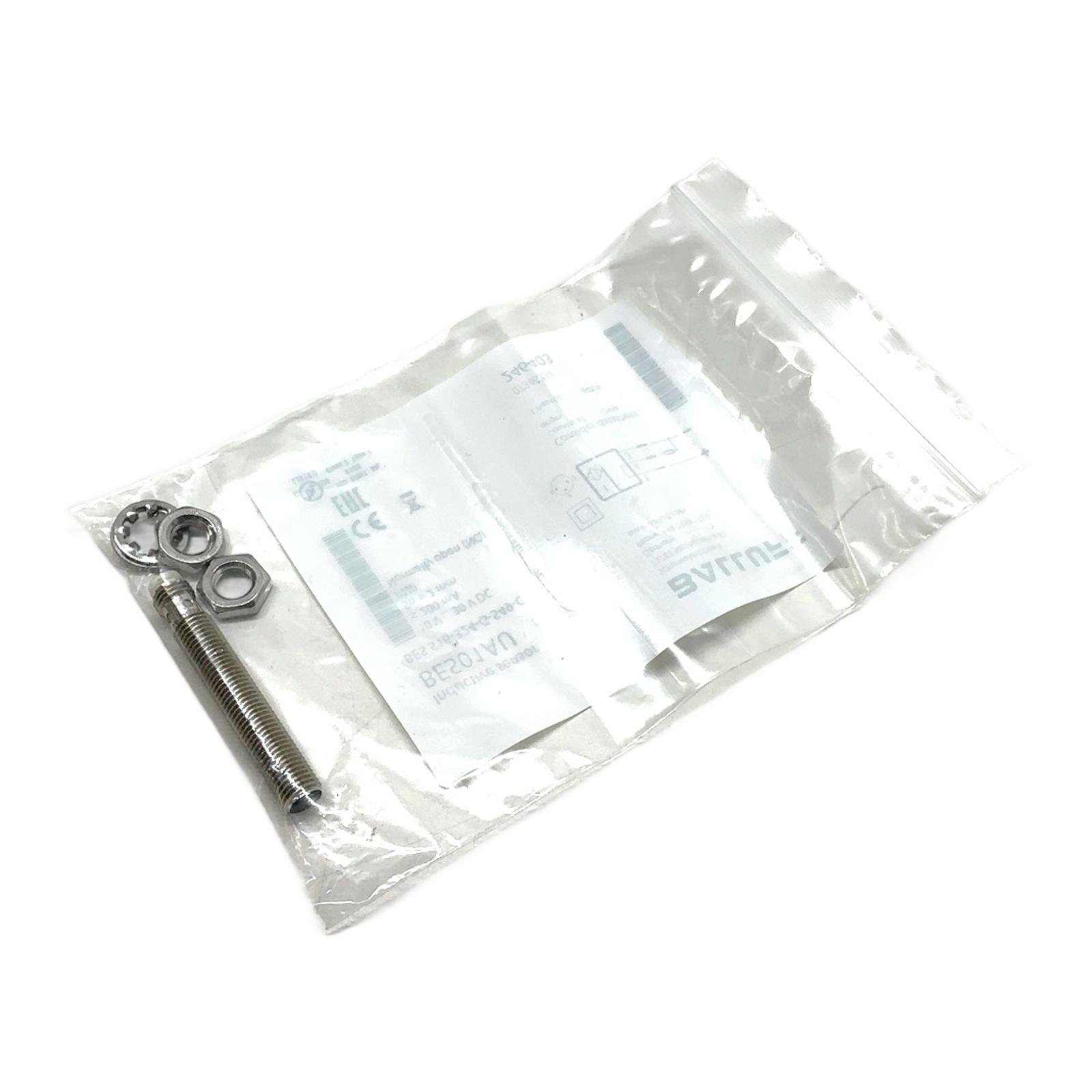

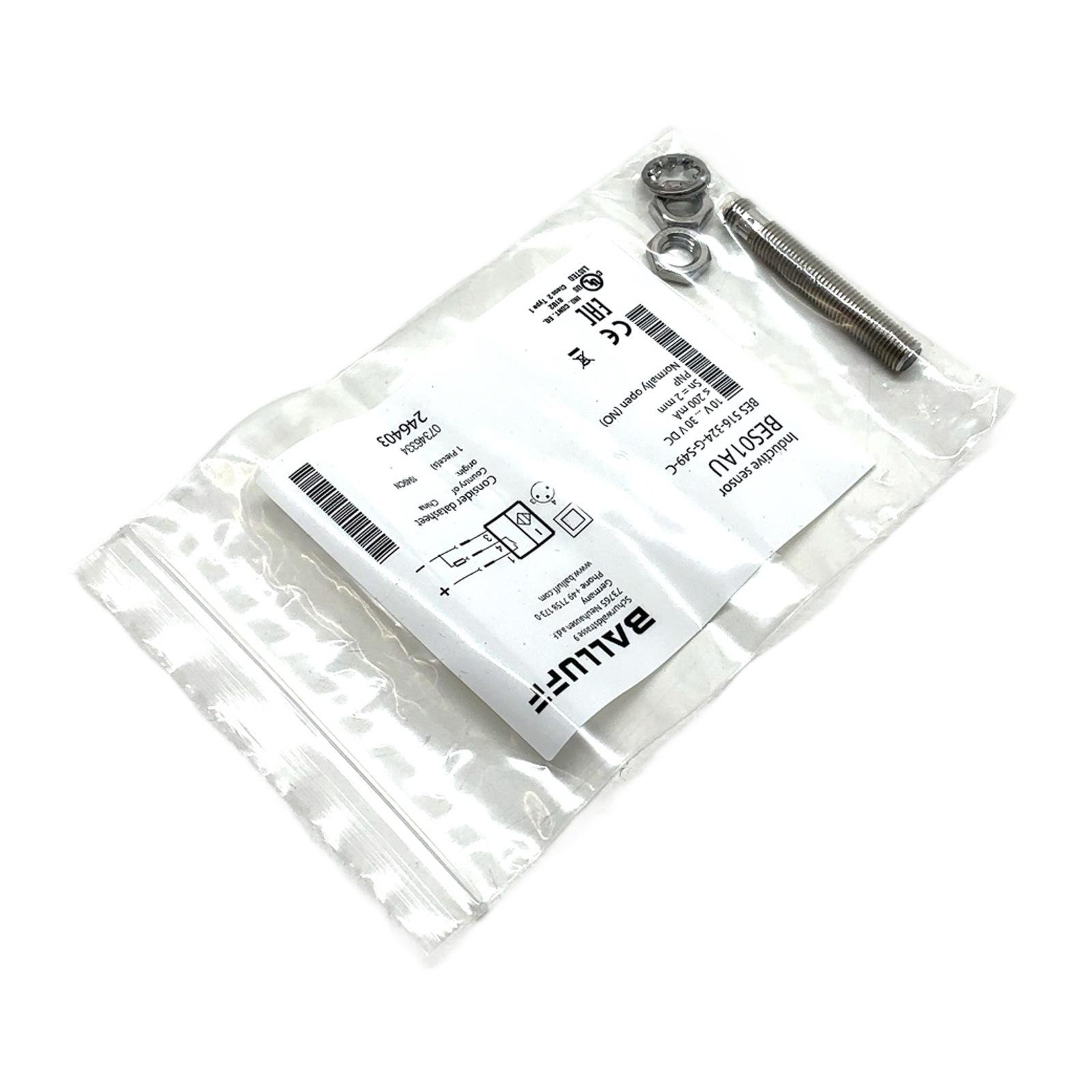

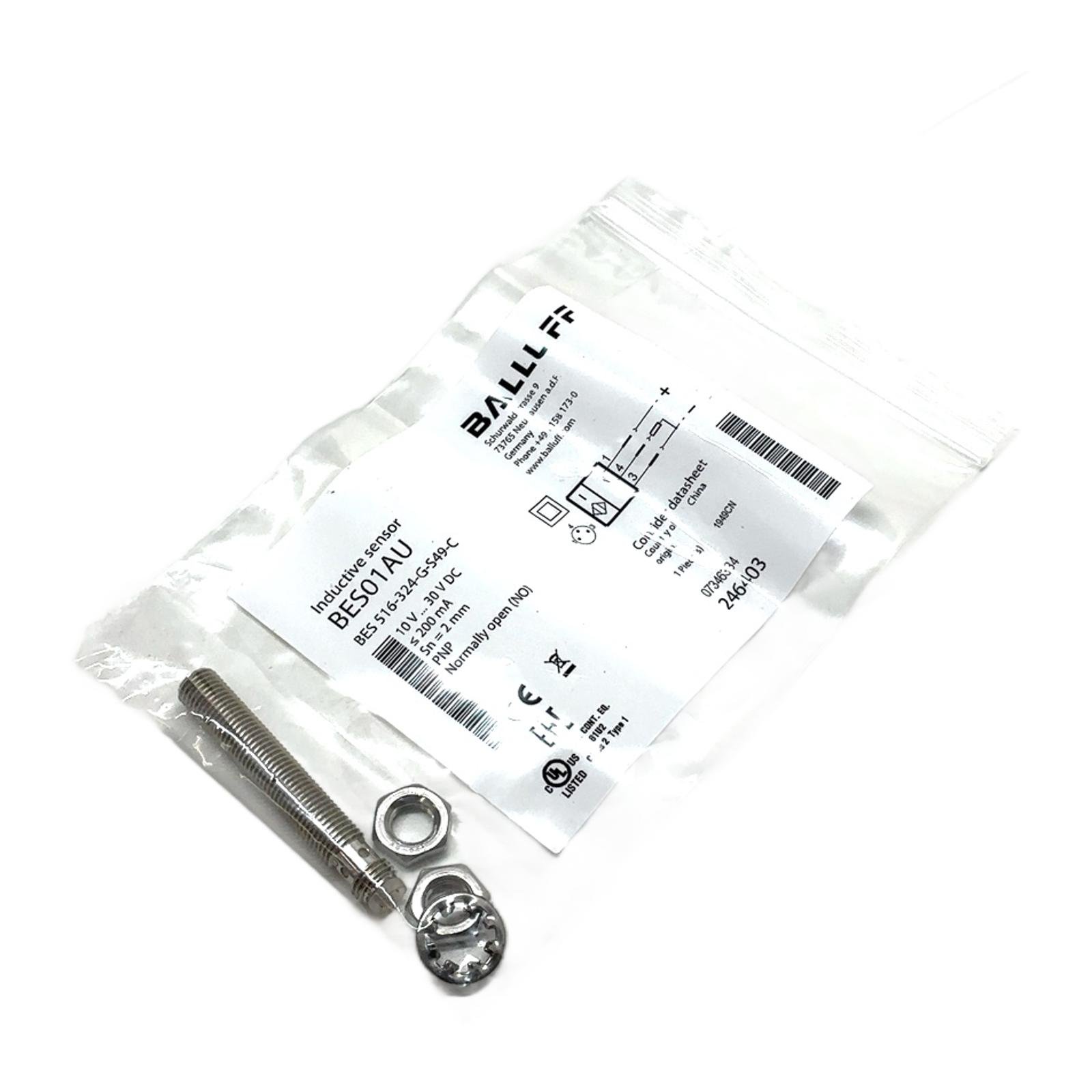

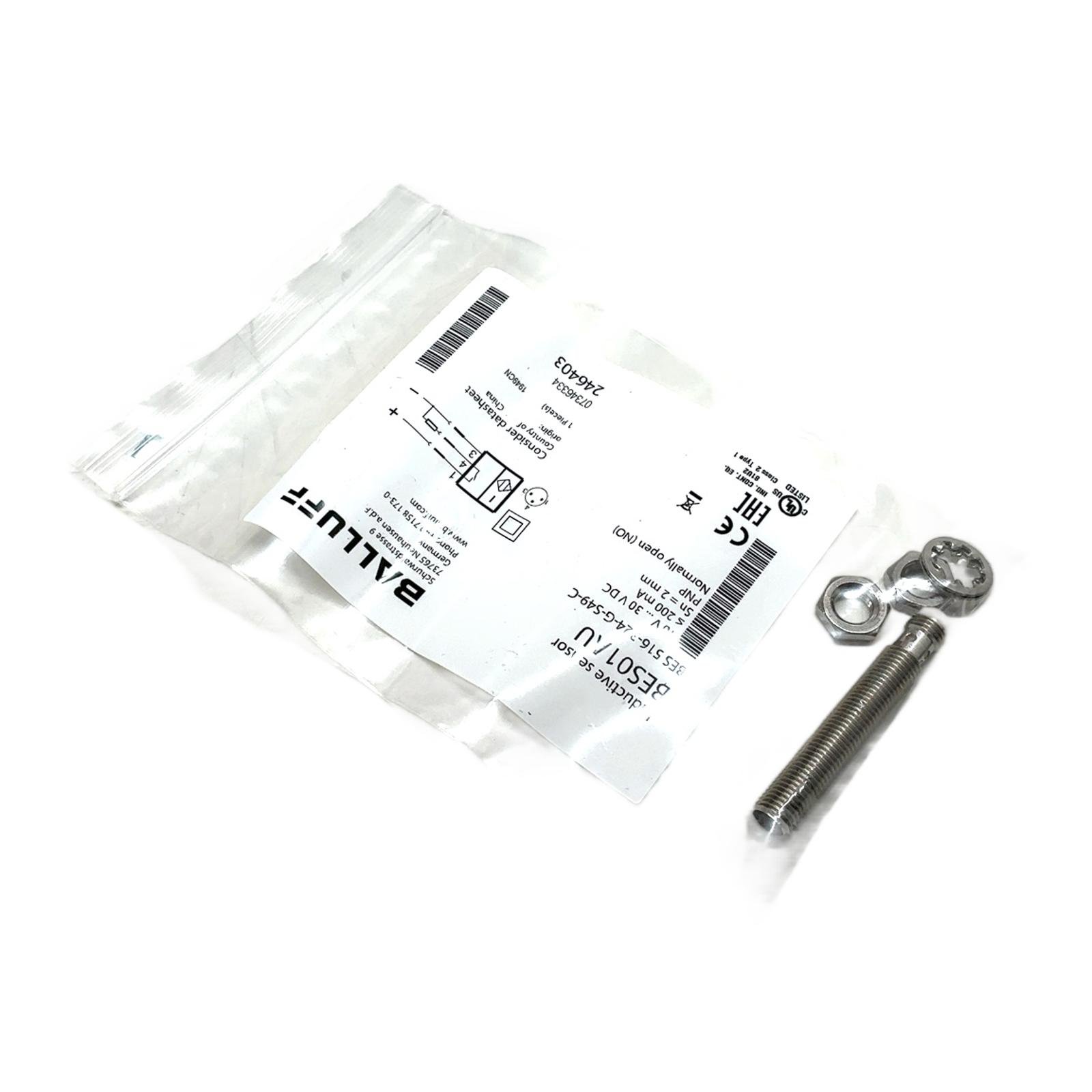

Balluff BES01AU Inductive Proximity Sensor Description The Balluff BES 516-324-G-S49-C, also known as BES01AU, is a high-quality inductive sensor designed for reliable detection of metallic objects in industrial environments. Its compact M8 threaded housing allows for easy and flush installation, even in space-constrained applications. This sensor operates on a 10 to 30V DC supply and provides a PNP normally open (NO) output, ensuring compatibility with standard PLC inputs. Specifications Manufacturer: Balluff Type: BES 516-324-G-S49-C Order Code: BES01AU Sensing Distance (Sn): 2 mm Operating Voltage: 10 to 30V DC Output Type: PNP Switching Function: Normally Open (NO) Housing Size: M8 x 1 Mounting: Flush mountable Connection: M8 male connector, 3-pin Max Output Current: 200 mA Label Info IND. CONT. EQ. 81U2 LISTED Class 2 Type 1 Application This sensor is ideally suited for tasks such as part detection, position monitoring, and counting applications in automated machinery, conveyor systems, and assembly lines. Country of Origin This product is manufactured in China. CO2 Impact By purchasing this reused component, you contribute to avoiding approximately 0.8 kg of CO2 emissions compared to a new production. Availability Available from stock. Order now from profideals for expert support and fast delivery. FAQ What does “flush mountable” mean for this sensor? Flush mountable means the sensing face of the BES 516-324-G-S49-C can be installed level with the surrounding metal mounting surface without affecting its performance. This is ideal for applications where space is limited or the sensor needs to be protected. What is the pinout for the M8 connector on the BES01AU? The standard 3-pin M8 connector for this PNP sensor is pinned as follows: Pin 1 is for the positive supply (+V, typically brown wire), Pin 3 is for the ground (0V, typically blue wire), and Pin 4 is the signal output (typically black wire). Can this sensor detect non-ferrous metals like aluminum or copper? Yes, as an inductive sensor, it can detect all metals. However, the nominal sensing distance of 2 mm is specified for standard steel targets. For non-ferrous metals like aluminum, the sensing distance will be reduced due to a correction factor. You should consult the Balluff datasheet for the specific reduction factor for your target material. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
