NEUTRAL AWM STYLE 2464 9-PIN

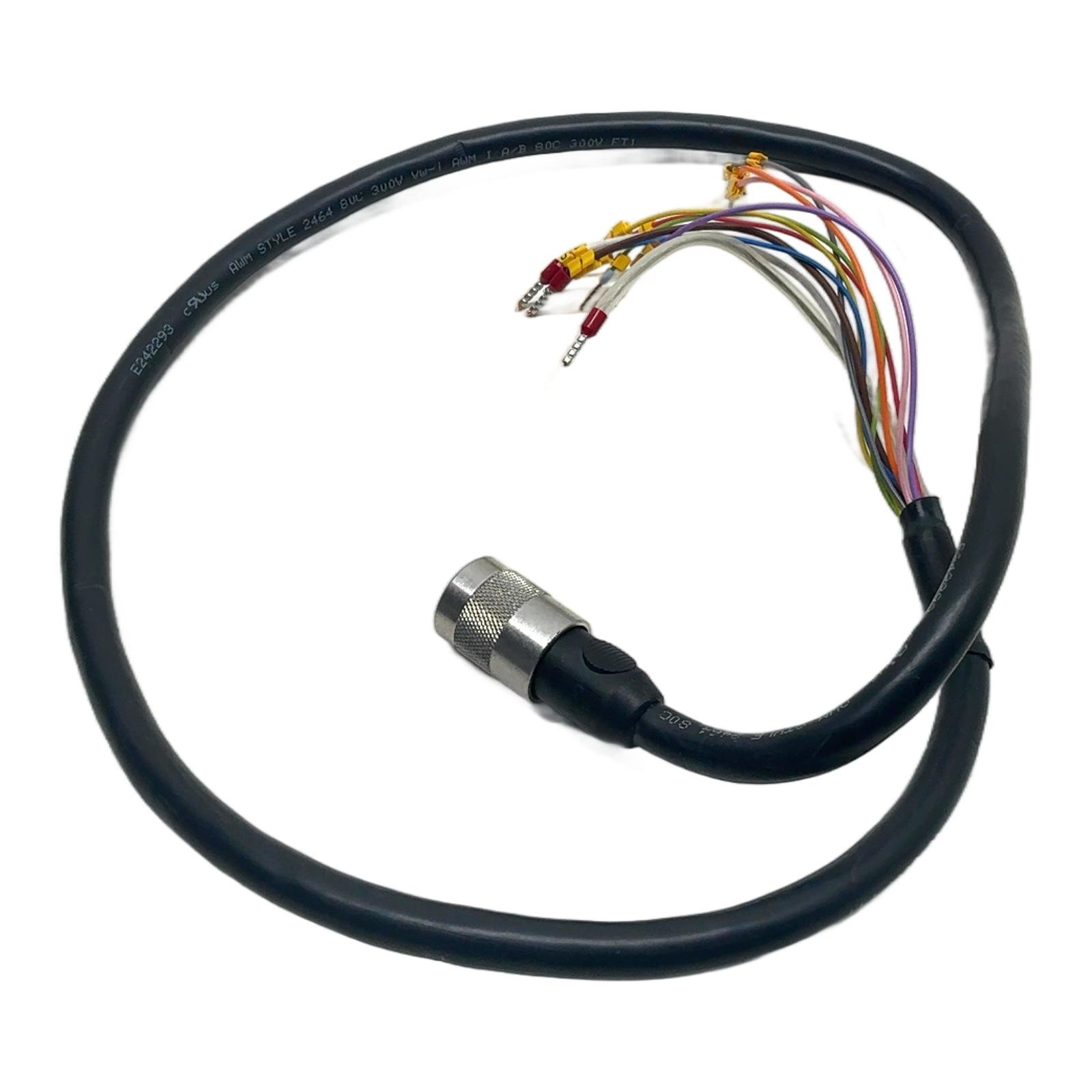

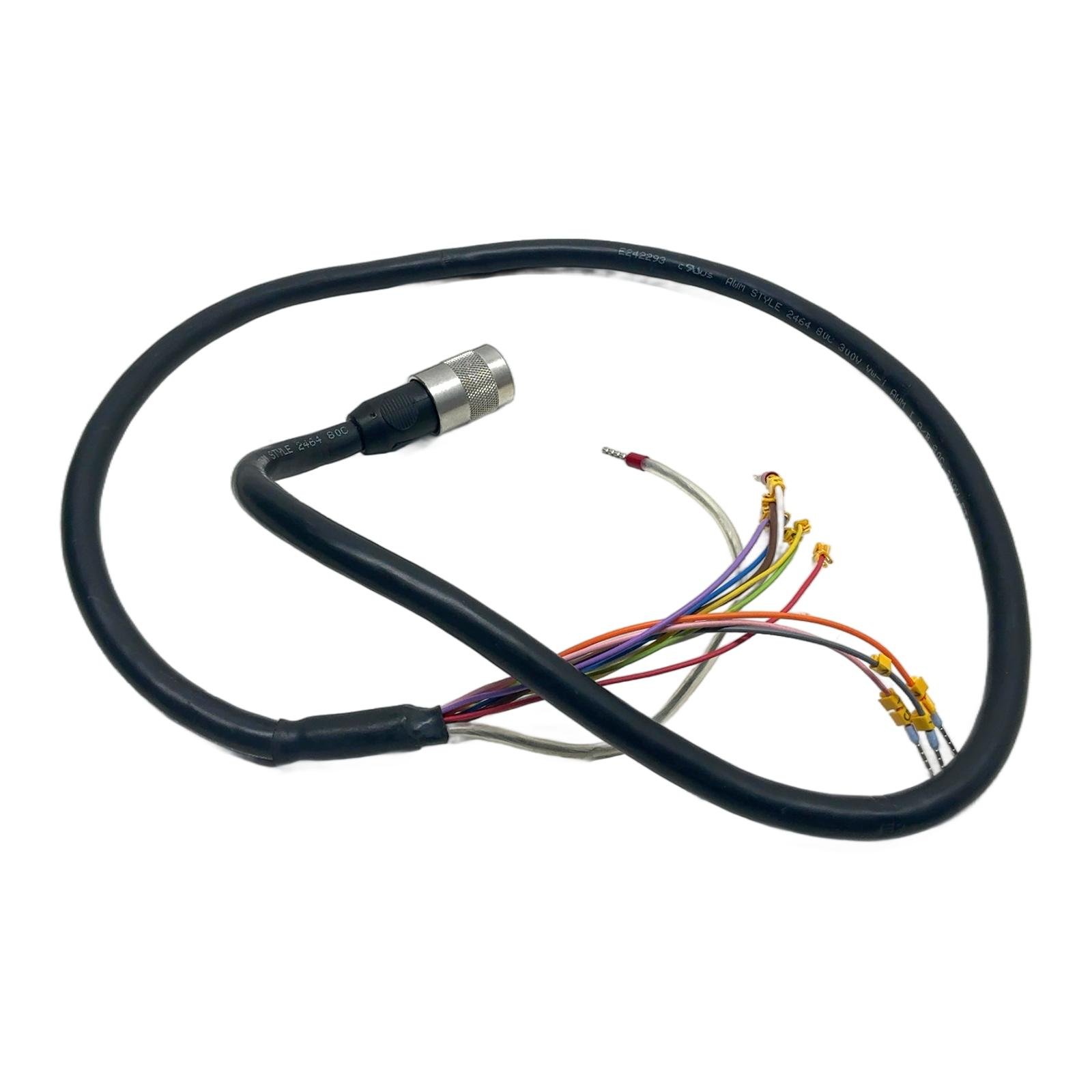

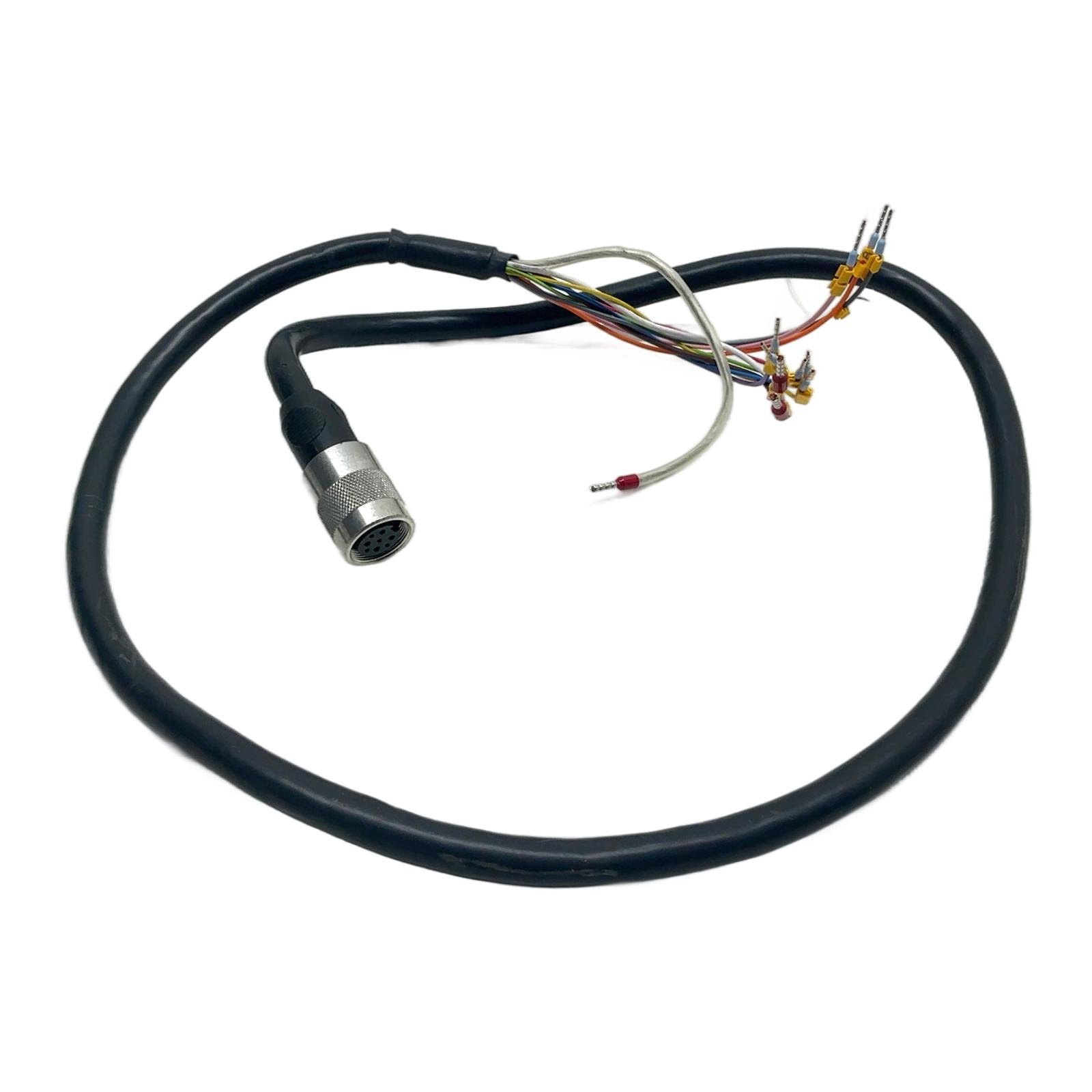

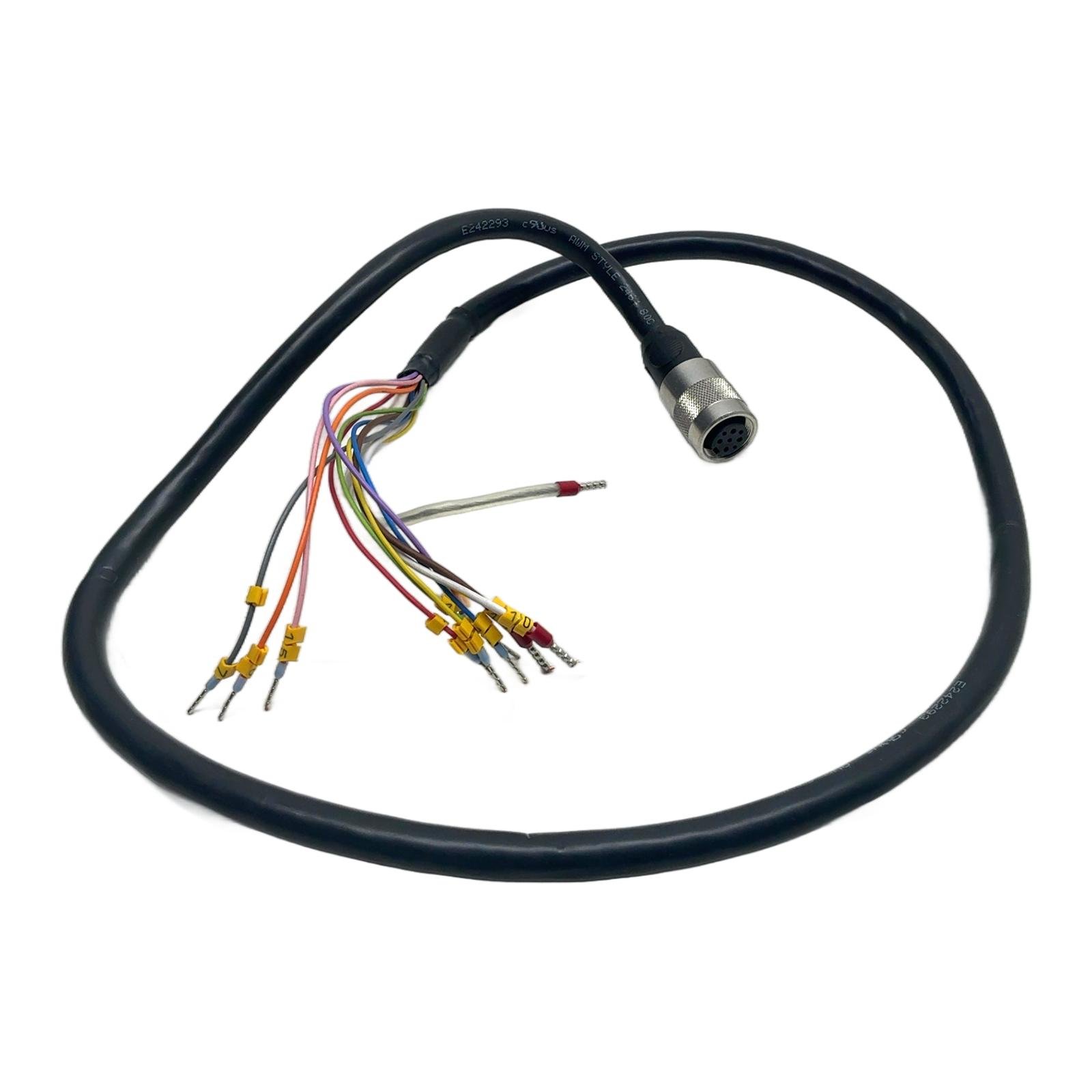

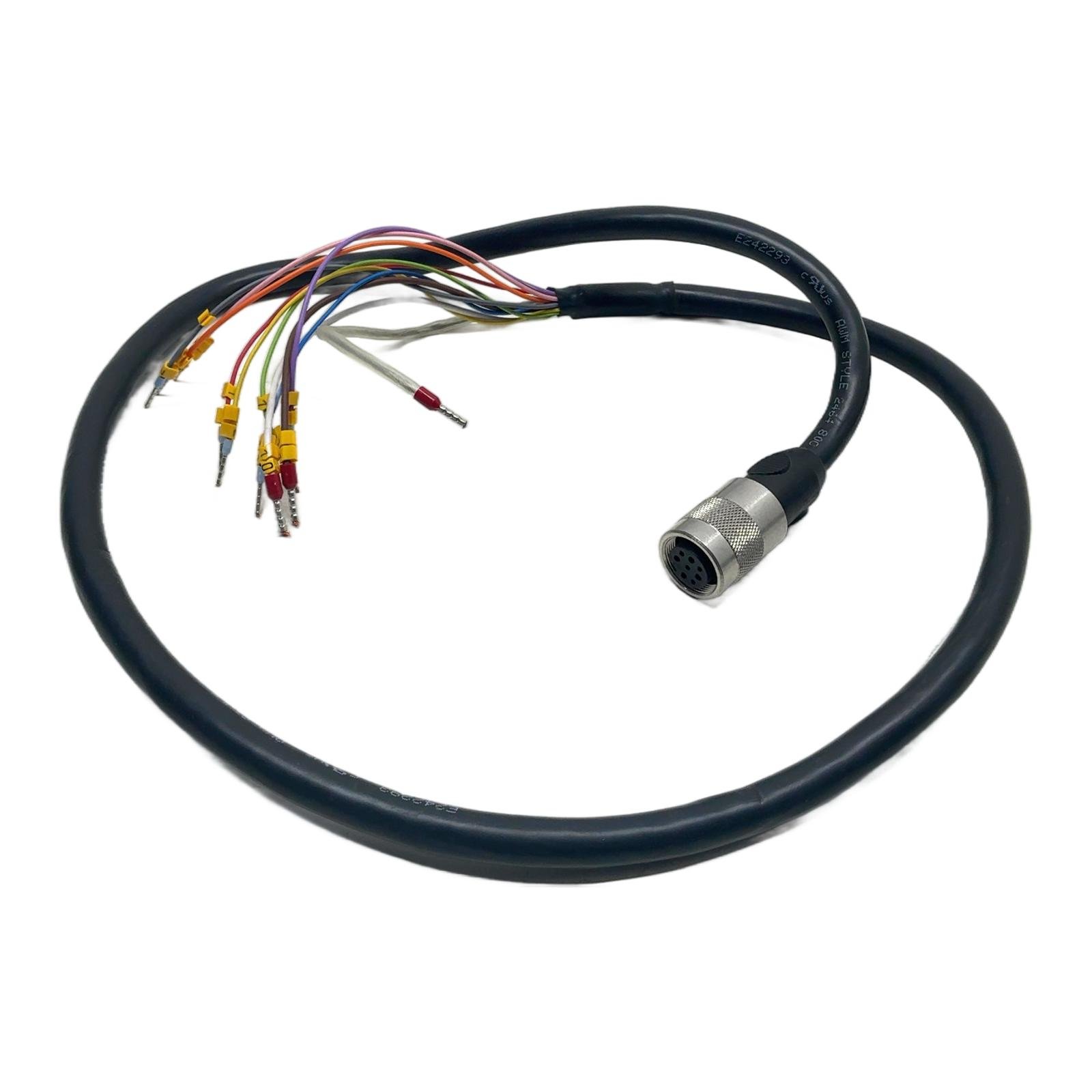

Generic 9-Pin Female Encoder/Signal Cable Description This is a versatile and robust connection cable designed for a wide range of industrial automation applications. It features a durable 9-pin female circular connector on one end and professionally terminated wires with insulated ferrules on the other, making it ready for integration into your system. The cable adheres to the AWM Style 2464 standard, ensuring high-quality performance and safety. Specifications Connector Type: 9-Pin Female Circular, Screw-Locking Termination: Pre-stripped wires with insulated ferrules Cable Standard: AWM Style 2464 Voltage Rating: 300V Temperature Rating: 80 deg C Flame Resistance: VW-1, FT1 Label Info UL File No: E242293 Cable Marking: cRUus AWM STYLE 2464 80C 300V VW-1 AWM I A/B 80C 300V FT1 Application Ideal for connecting encoders, servo motors, sensors, and other devices in factory automation, robotics, and machinery. The open-ended design allows for custom wiring to terminal blocks or other connectors. Country of Origin The bulk cable is manufactured in China (based on UL file number). The final assembly origin is not specified. CO2 Impact Choosing this reused cable assembly saves an estimated 6.0 kg of CO2 compared to a new one. This is equivalent to the emissions from driving a standard car for 30 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the pinout for this 9-pin connector? The pinout is not standard and depends on the specific equipment it was intended for. Users must verify the pinout with their device’s documentation before connecting to avoid damage. Can this cable be used for RS232 or CAN bus communication? While the cable has enough conductors, its suitability for specific protocols like RS232 or CAN bus depends on factors like shielding, impedance, and wire gauge, which are defined by the AWM 2464 standard. It is primarily designed for sensor and encoder signals, but compatibility should be verified. What are the wire gauges of the internal conductors? The AWM 2464 standard covers a range of wire gauges. Without a specific datasheet for this exact cable, the gauge is not specified, but it is typically between 20 AWG and 28 AWG for this type of application cable. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
