MURRELEKTRONIK 7000-19301-7061000

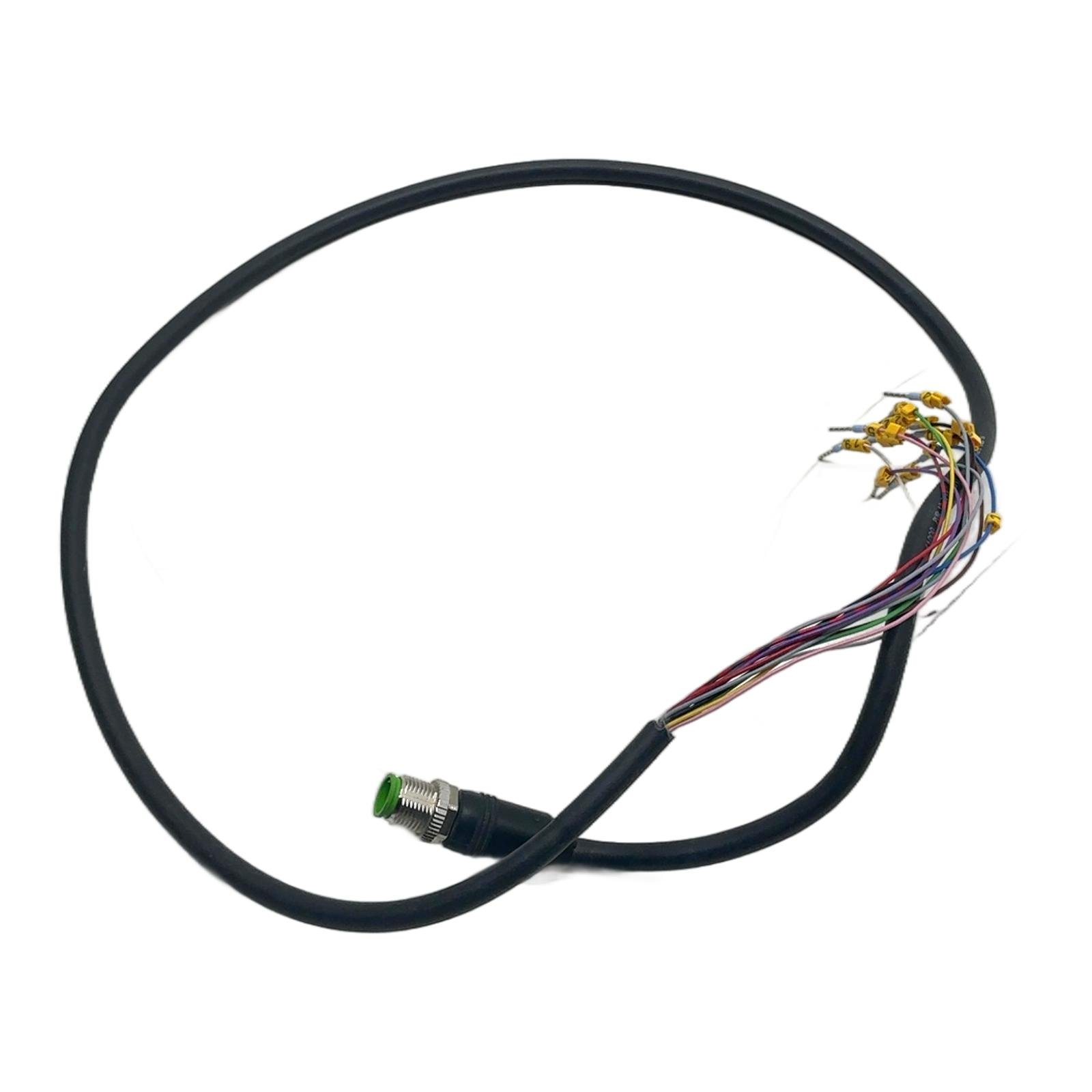

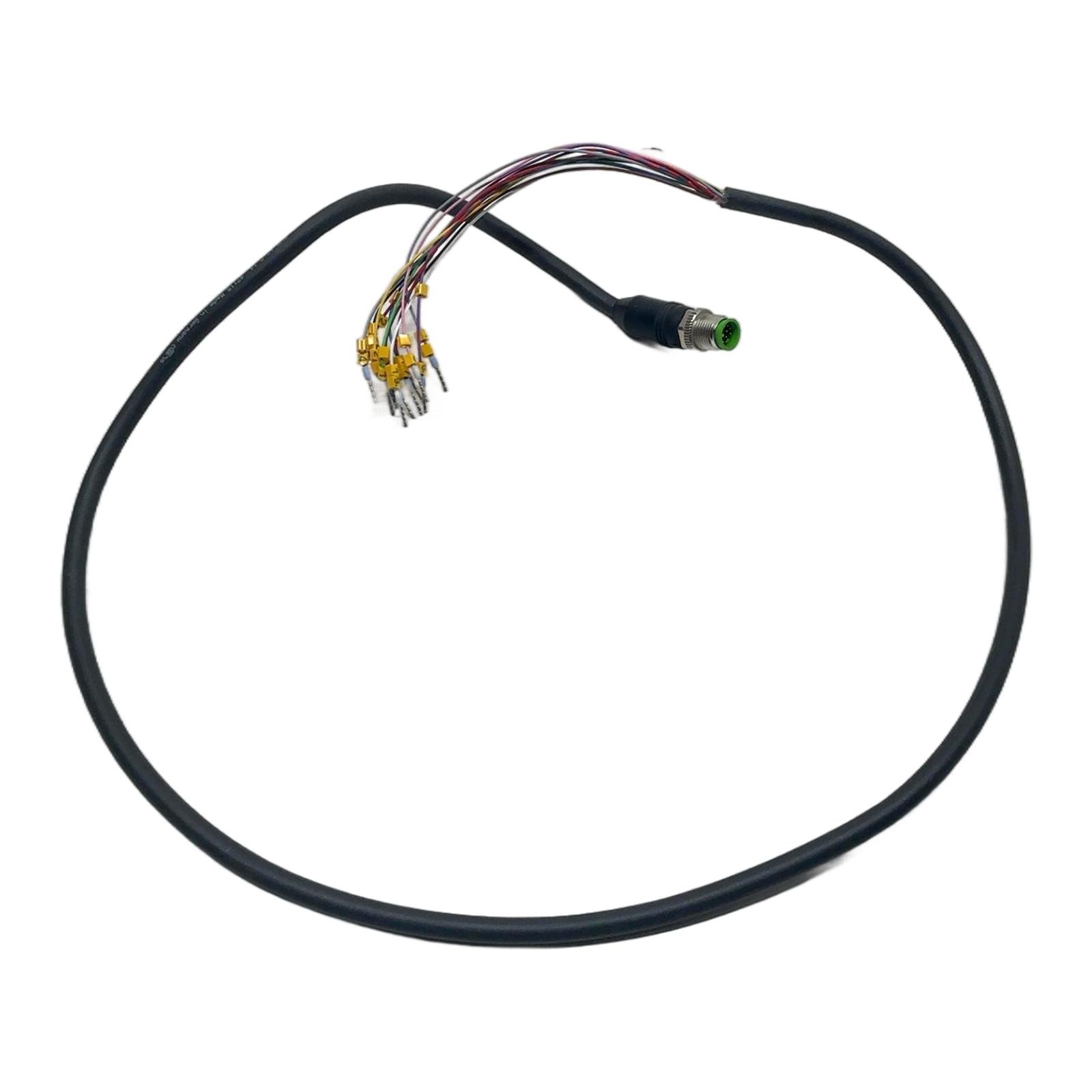

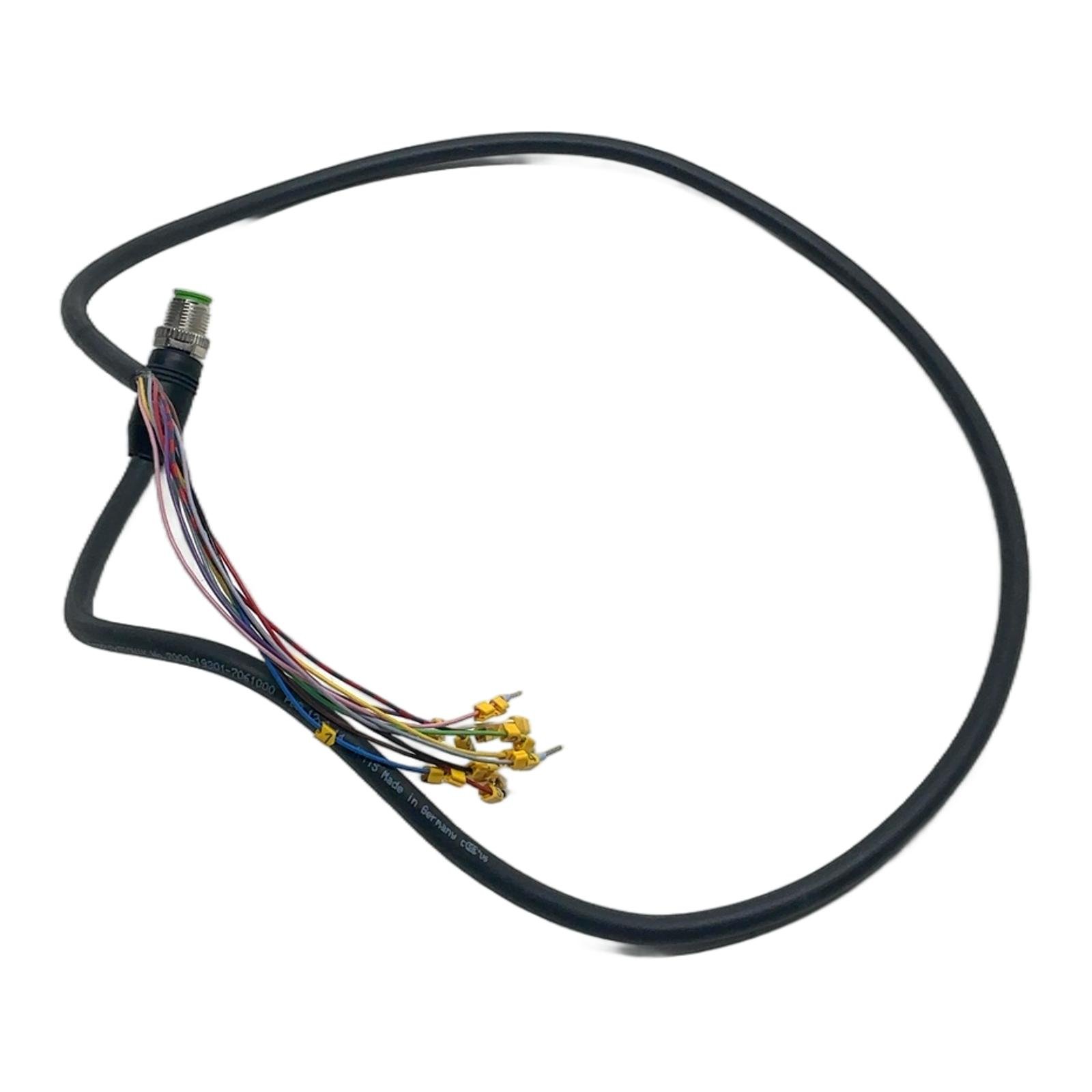

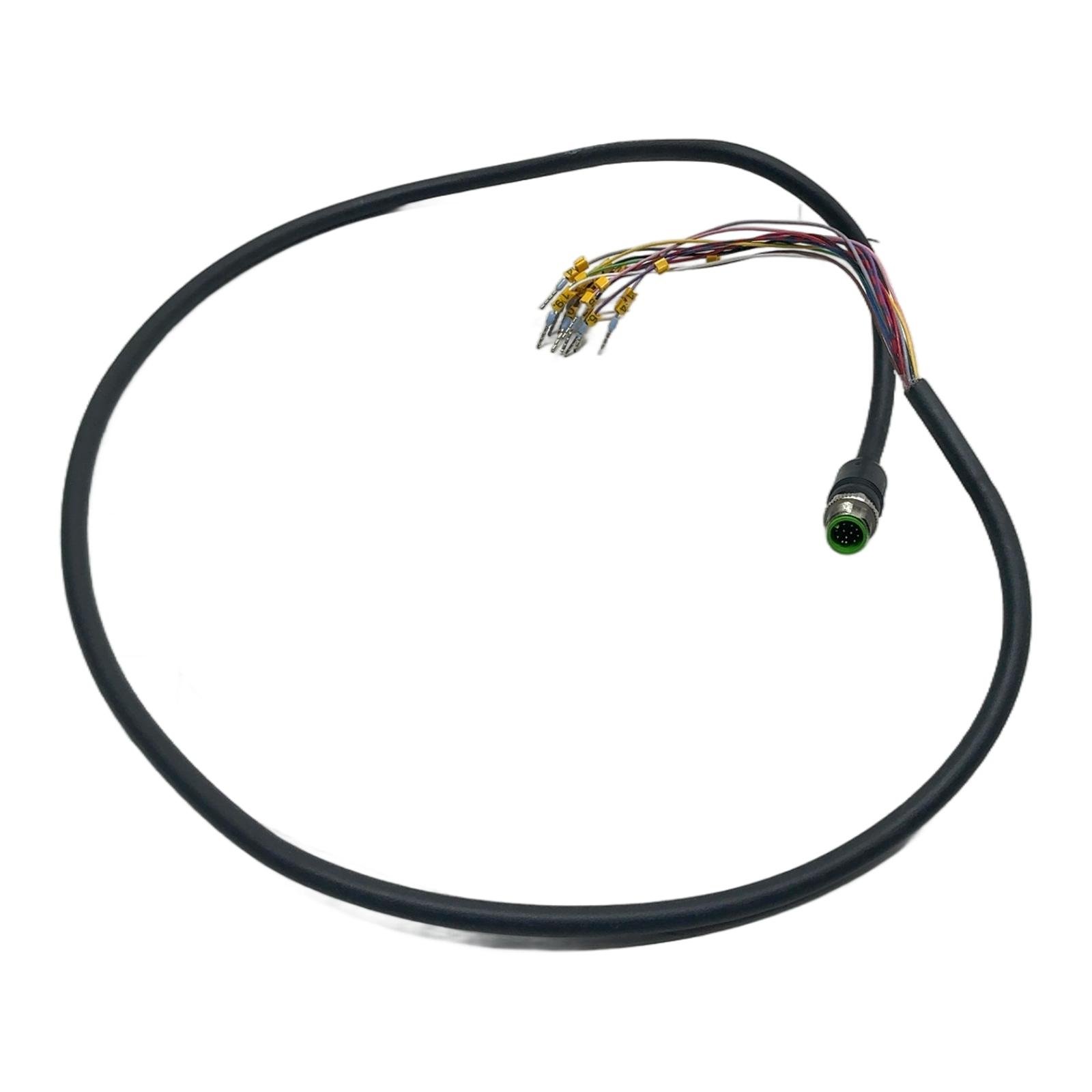

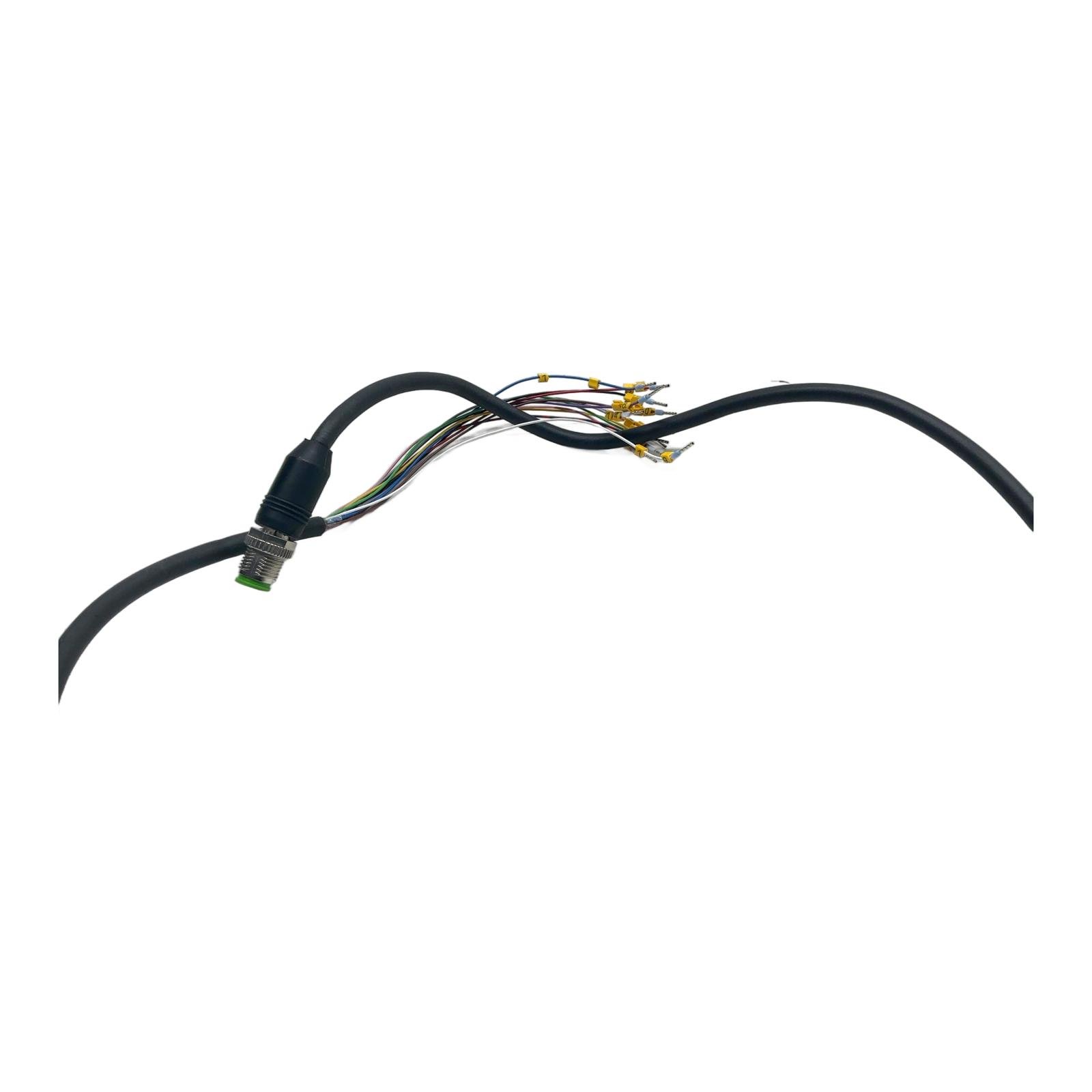

Murrelektronik M12 12-Pole Sensor/Actuator Cable, 10 Meters Description This is a high-quality, pre-assembled M12 sensor/actuator cable from Murrelektronik, part number 7000-19301-7061000. It features a straight, 12-pole female M12 connector on one end and free, unterminated wire ends on the other, providing flexibility for custom connections. The cable has a total length of 10 meters and is encased in a durable, halogen-free PUR (polyurethane) jacket, making it suitable for challenging industrial environments, including use in drag chains. Specifications Connector 1: M12 Female, Straight, A-coded Number of Poles: 12 Connector 2: Free wire ends Cable Length: 10.0 m Cable Sheath: PUR (Polyurethane), Black Conductor Size: 12 x 0.14 mm2 Rated Voltage: max. 30 V AC/DC Temperature Range (fixed): -40 to +80 deg C Temperature Range (flexible): -25 to +80 deg C Protection Class: IP67 (when connected) Label Info Manufacturer: Murrelektronik Part Number: 7000-19301-7061000 Application Ideal for connecting sensors, actuators, and other components in industrial automation, robotics, machine building, and packaging applications where reliable and flexible connections are required. Country of Origin Made in Germany. CO2 Impact By purchasing this pre-owned item, you are helping to avoid the emission of approximately 24 kg of CO2, which is equivalent to the carbon captured by over 1 tree in a year. This sustainable choice supports a circular economy and reduces industrial waste. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the A-coding on this M12 connector typically used for?A-coding is the most common coding for M12 connectors and is primarily used for sensor and actuator signals in DC power applications. It ensures correct mating and prevents connection to differently coded connectors for other purposes like networking. Is the PUR jacket on this cable resistant to oils and chemicals?Yes, the PUR (polyurethane) jacket offers excellent resistance to oils, greases, coolants, and other chemicals commonly found in industrial environments. It also provides high abrasion resistance. Can this cable be used in a moving application like a drag chain (cable carrier)?Absolutely. This cable is specifically designed with a PUR jacket and fine-stranded wires, making it highly suitable for continuous flexing applications within drag chains, as confirmed by Murrelektronik’s technical data. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners.
