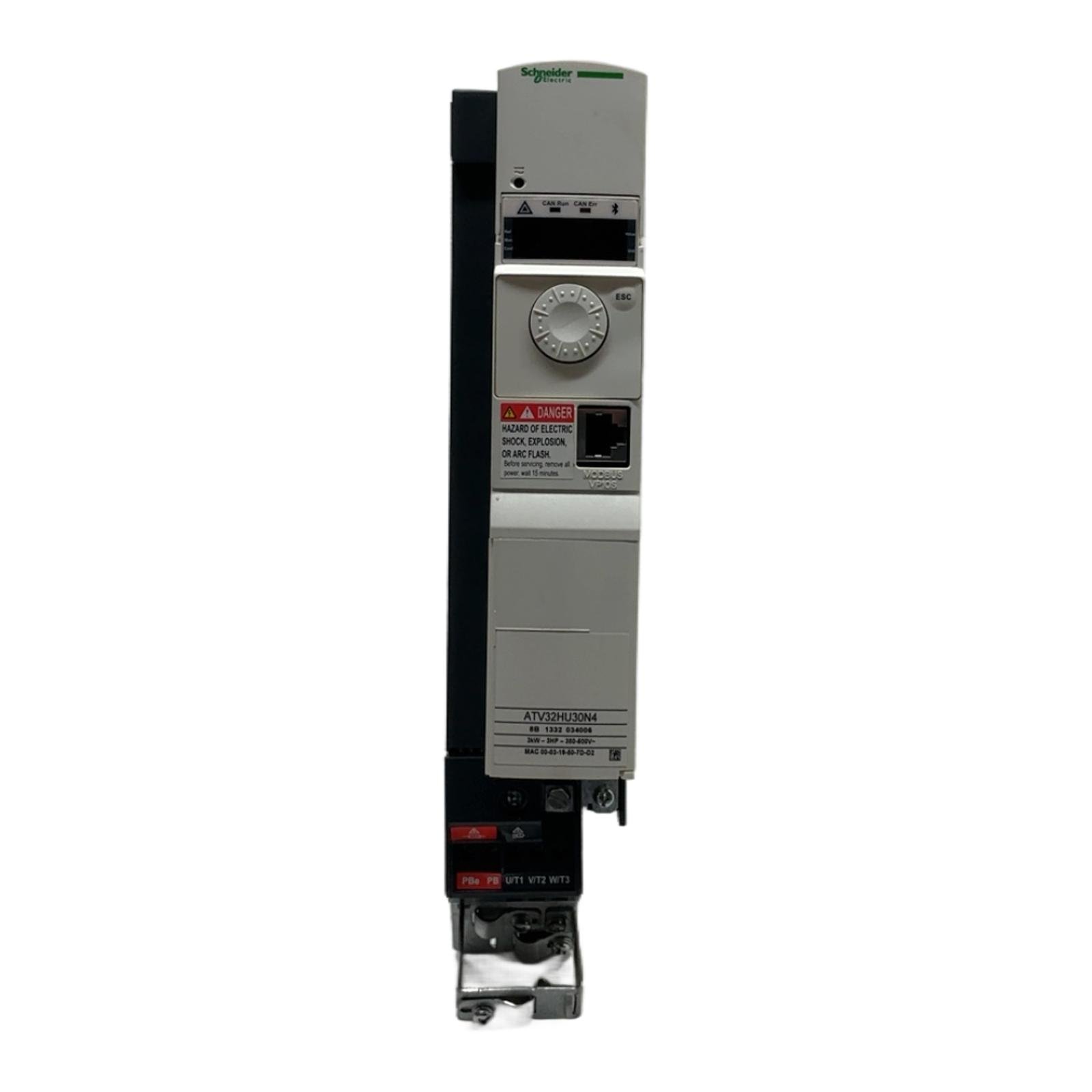

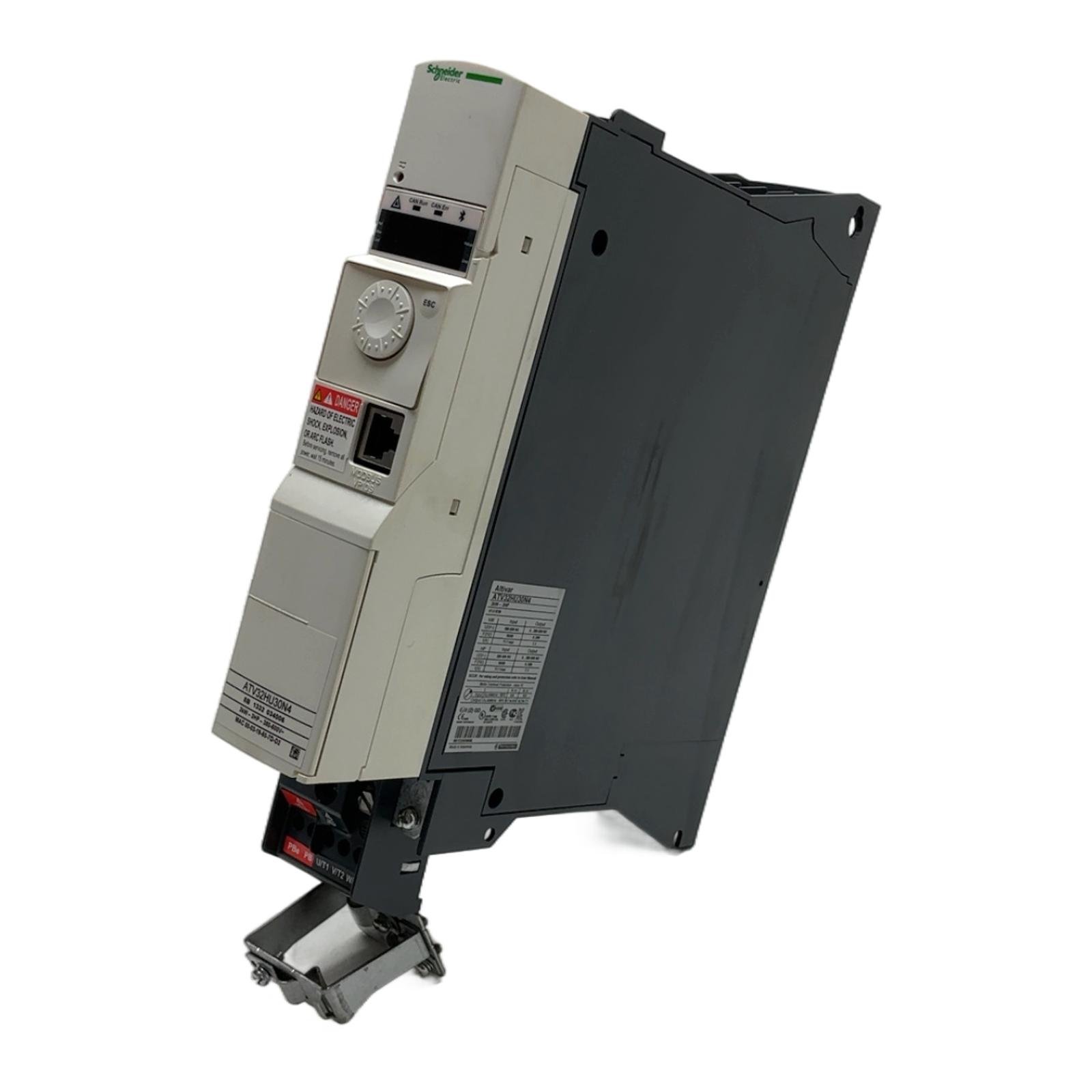

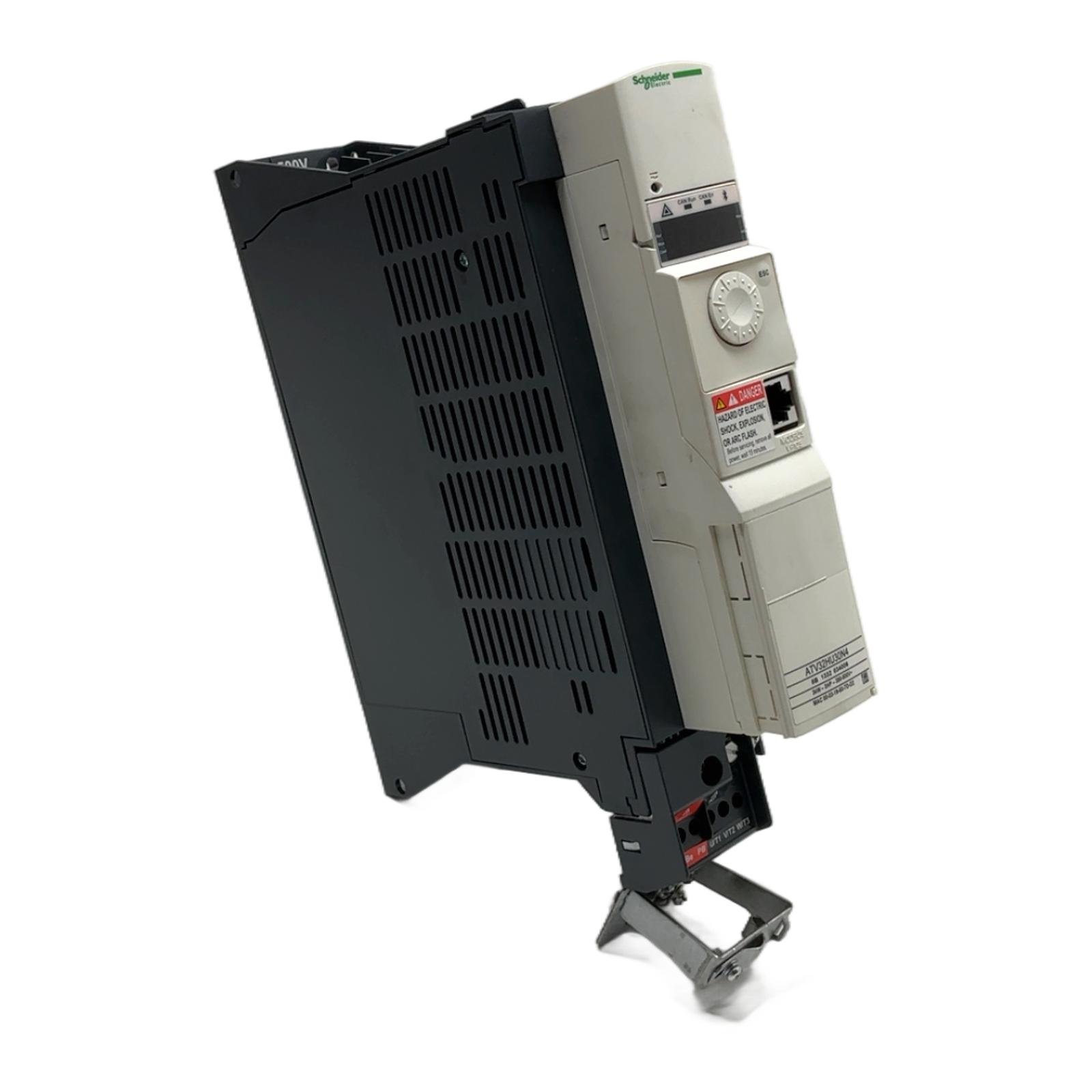

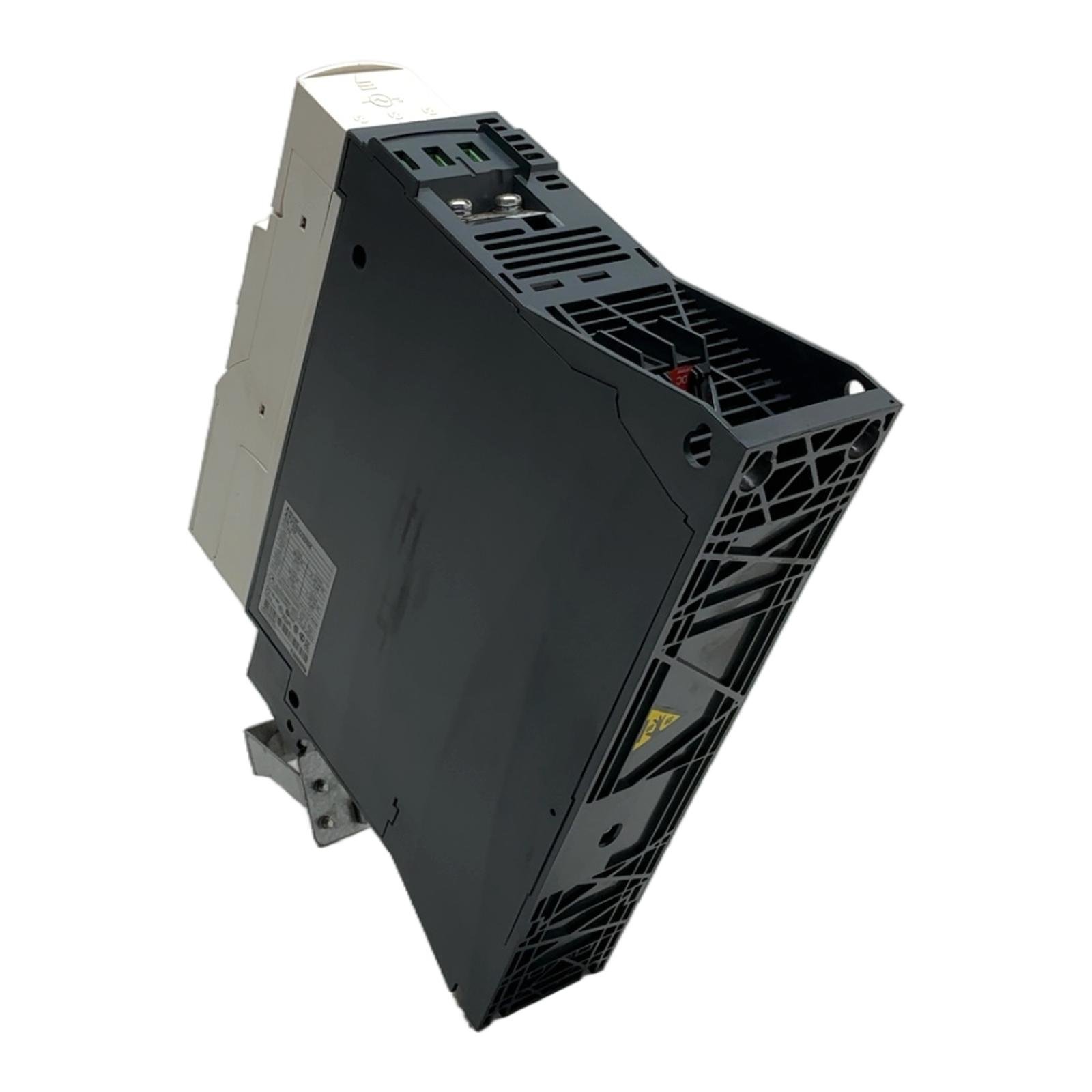

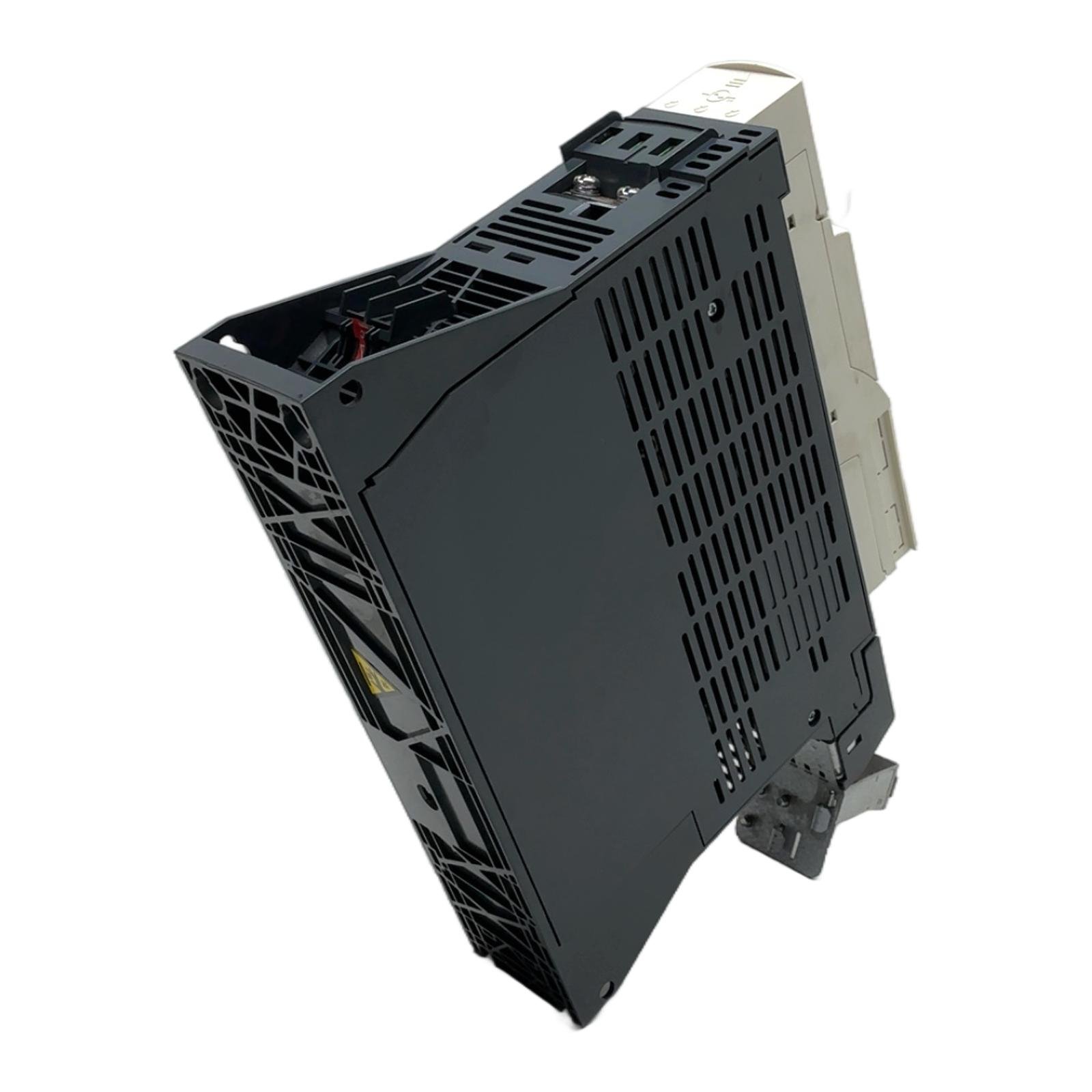

SCHNEIDER ELECTRIC ATV32HU30N4

Schneider Electric Altivar 32 VFD Description The ATV32HU30N4 is a variable frequency drive from the Schneider Electric Altivar 32 series, designed for simple and advanced machine applications. It provides precise speed control for 3-phase asynchronous motors up to 3 kW. This drive is renowned for its robustness, compact design, and ease of integration into automation architectures. Specifications Manufacturer: Schneider Electric Series: Altivar 32 Model: ATV32HU30N4 Power Rating: 3.0 kW / 3 HP Input Voltage: 380 to 500V AC, 3-Phase Input Frequency: 50/60 Hz Output Current: 7.1 A Output Frequency: 0 to 599 Hz Enclosure Rating: IP20 Integrated EMC Filter: Class C2 Label Info Model: ATV32HU30N4 Serial: 8B1332034006 Input: 380-500V, 3-phase, 11.1A max Output: 0-500V, 3-phase, 7.1A Application This drive is ideal for applications such as material handling, packaging machines, textile machines, and general-purpose pumps and fans where reliable motor speed control is required. Country of Origin Made in Indonesia. CO2 Impact By purchasing this reused Schneider Electric drive, you are preventing the emission of approximately 100 kg of CO2. This is a significant contribution to sustainability, equivalent to avoiding the emissions of a 500 km car journey. Availability This item is a tested, used product in excellent condition. Availability is limited. Order now from profideals for expert support and fast delivery. FAQ What is the main difference between the Altivar 32 and its replacement, the Altivar 320?The Altivar 320 series offers a more compact design, enhanced connectivity options including Ethernet/IP and Profinet, and improved safety functions like Safe Torque Off (STO) as standard. Can this ATV32HU30N4 drive be programmed without the optional display terminal?Yes, basic configuration can be done using the navigation dial and the integrated 7-segment display. For more advanced programming and diagnostics, SoMove software via a PC connection is recommended. What is the IP rating of this drive and what does it mean for installation?This drive has an IP20 rating. This means it is protected against solid objects larger than 12.5mm (like fingers) but has no protection against water. It must be installed inside a clean, dry electrical enclosure or control cabinet. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
