FESTO HE-1/4-D-MIDI 186513

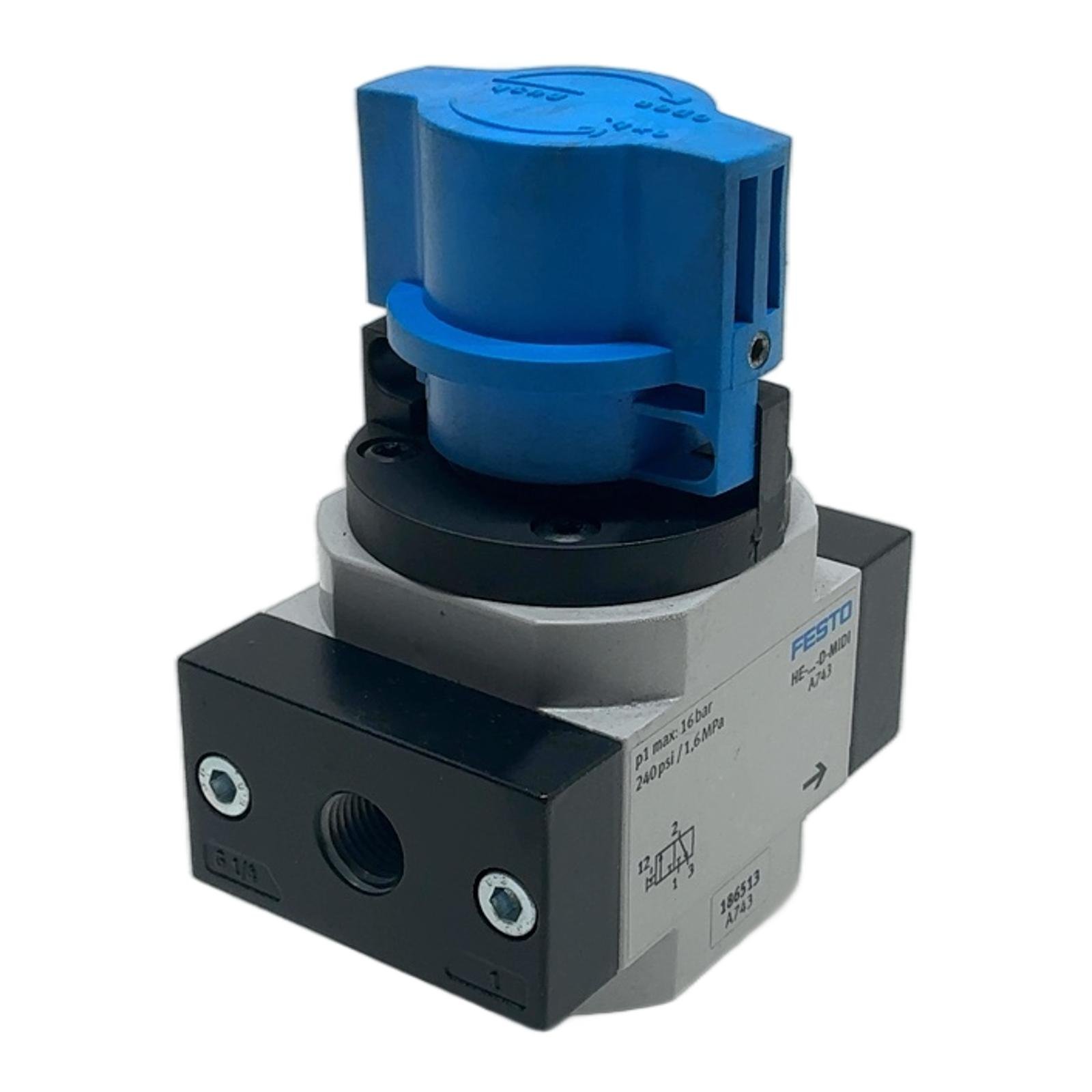

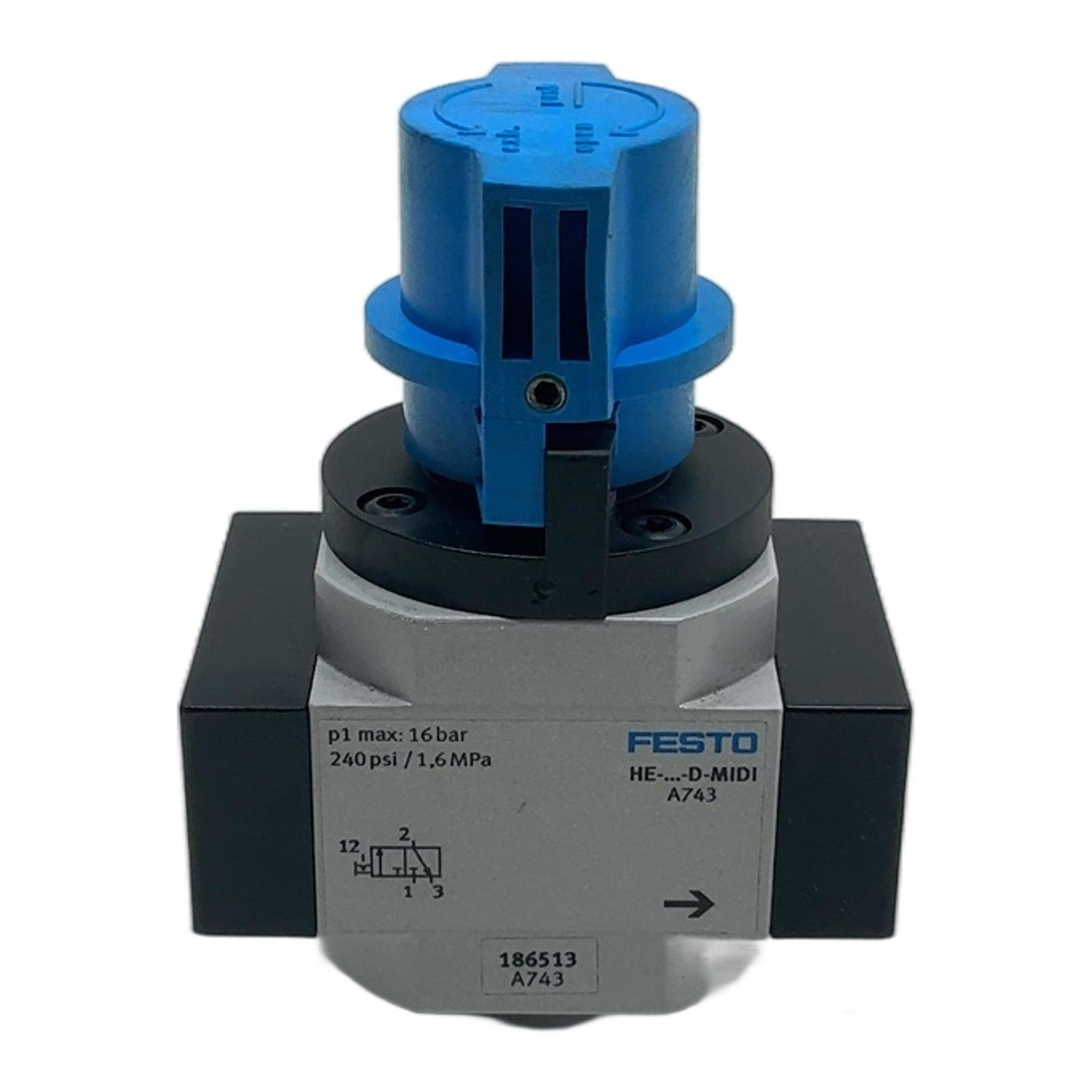

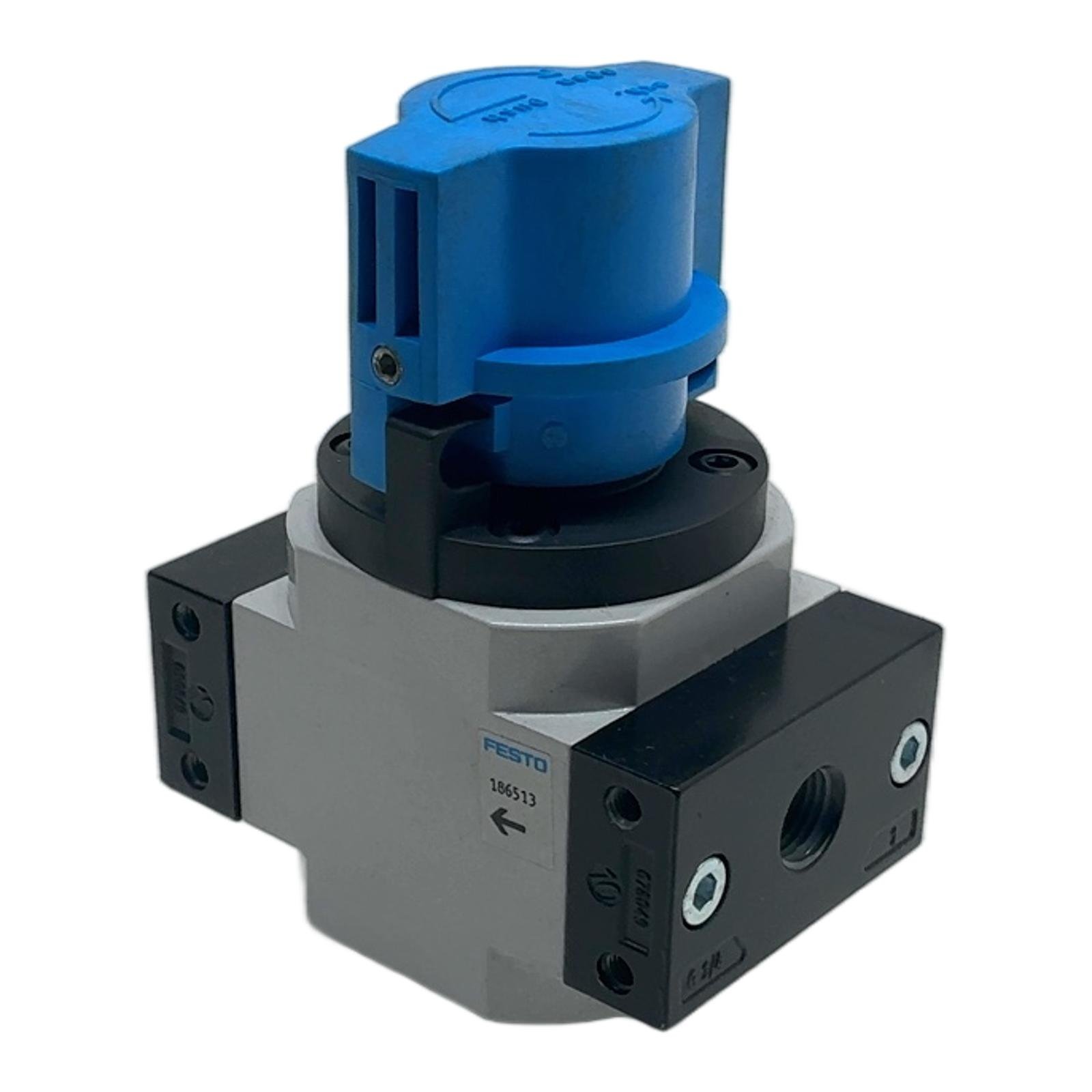

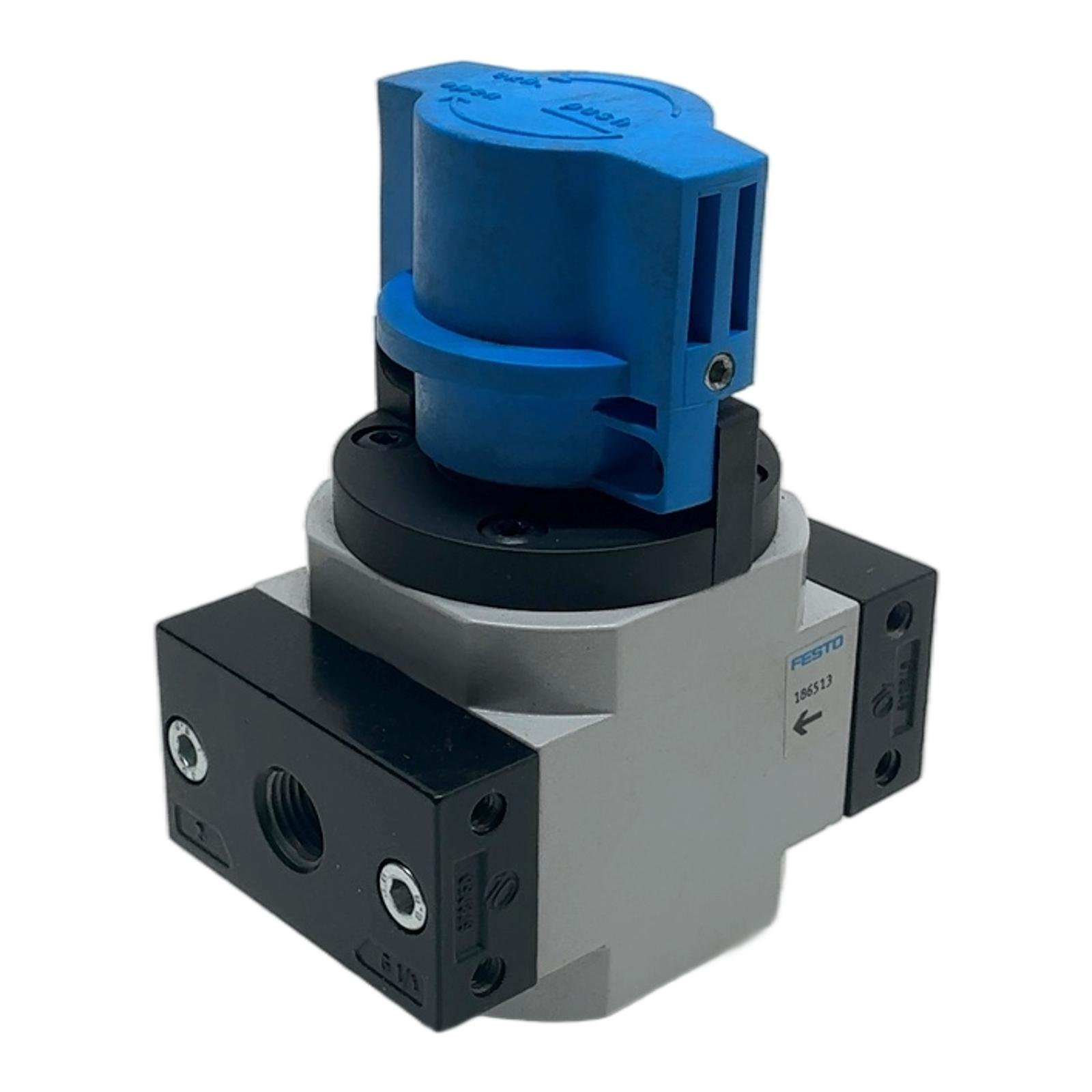

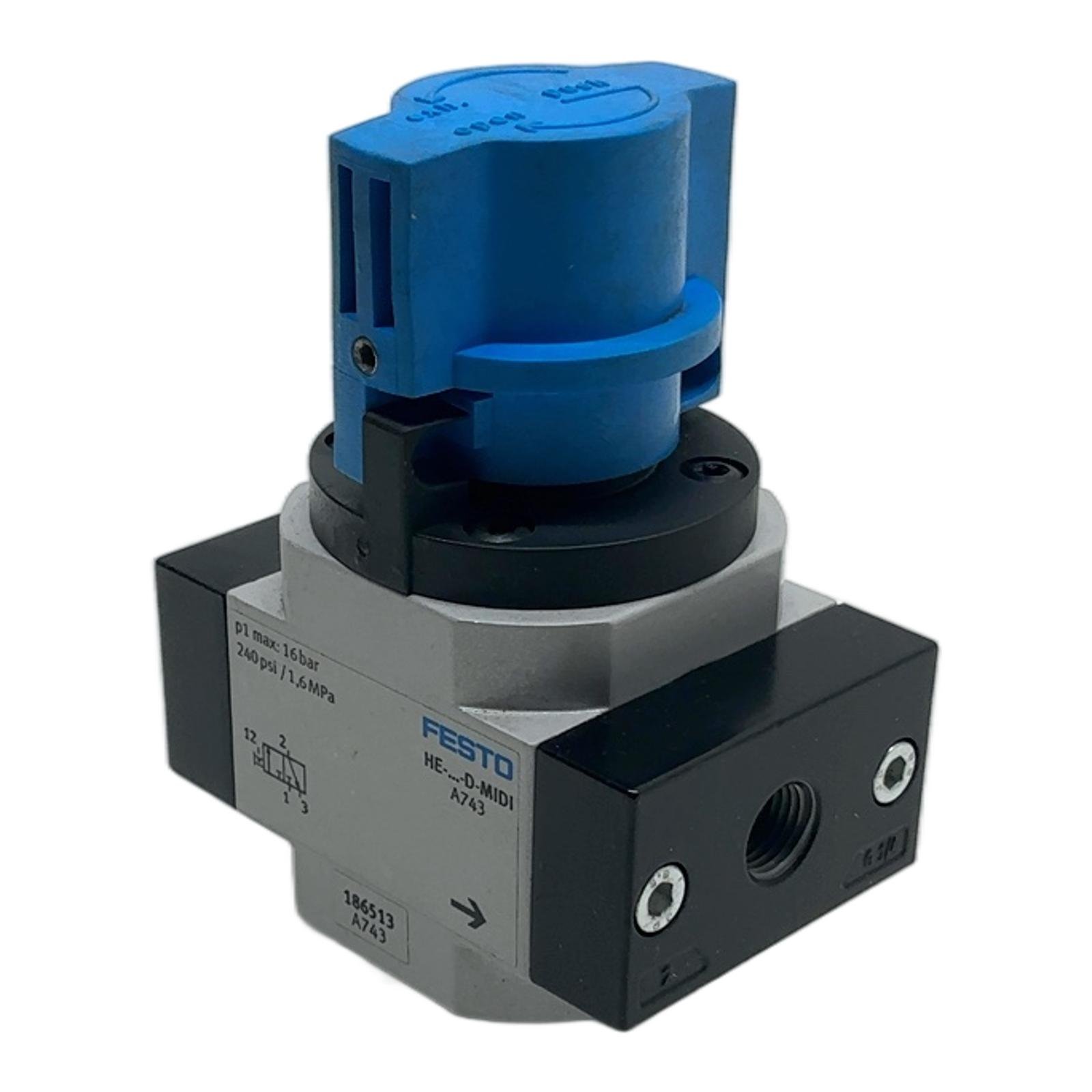

Festo On-off Valve 16 bar HE-1/4-D-MIDI 186513 Description The Festo HE-1/4-D-MIDI is a high-quality, manually operated on-off valve, also known as a shut-off or start-up valve. It belongs to the D-series of air preparation components and serves as the primary means to pressurize and vent pneumatic systems safely. Its 3/2-way, normally closed function ensures that the system is depressurized when the valve is in the off position. The rotary knob is lockable, providing a crucial safety feature for maintenance and service work (lock-out/tag-out). Specifications Manufacturer: Festo Part Number: 186513 Model: HE-1/4-D-MIDI Valve Function: 3/2-way, monostable, closed Actuation: Manual rotary knob with locking facility Operating Pressure: 0 to 16 bar (0 to 1.6 MPa) Pneumatic Connection: G1/4 female thread Standard Nominal Flow Rate: 1300 l/min Housing Material: Die-cast aluminum Label Info FESTO HE-…-D-MIDI Mat.-Nr.: 186513 Serie: BO43 p1 max: 16 bar / 240 psi / 1.6 MPa Application This valve is typically installed as the first component in a Festo D-series FRL (Filter-Regulator-Lubricator) combination. It is essential for isolating sections of a pneumatic circuit for maintenance, safely starting up machinery, and for emergency stop functions where rapid depressurization is required. Country of Origin Germany CO2 Impact Choosing this reused component over a new one saves approximately 5.0 kg of CO2, which is comparable to the emissions from driving a standard car for 25 kilometers. Availability This item is in stock and available for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Question?Can this valve be locked in the closed position? Answer:Yes, the HE-1/4-D-MIDI features an integrated locking facility. You can use a standard padlock to secure the rotary knob in the vented (off) position, preventing unauthorized or accidental system start-up. Question?What is the flow direction for this valve? Answer:The valve has a clear arrow marking on the body indicating the correct direction of flow. Air should enter at port 1 and exit at port 2. Reversing the flow is not recommended and can impair function. Question?Is this valve suitable for vacuum applications? Answer:No, the Festo HE-1/4-D-MIDI is designed for positive pressure applications from 0 to 16 bar. It is not rated for use in vacuum systems. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
