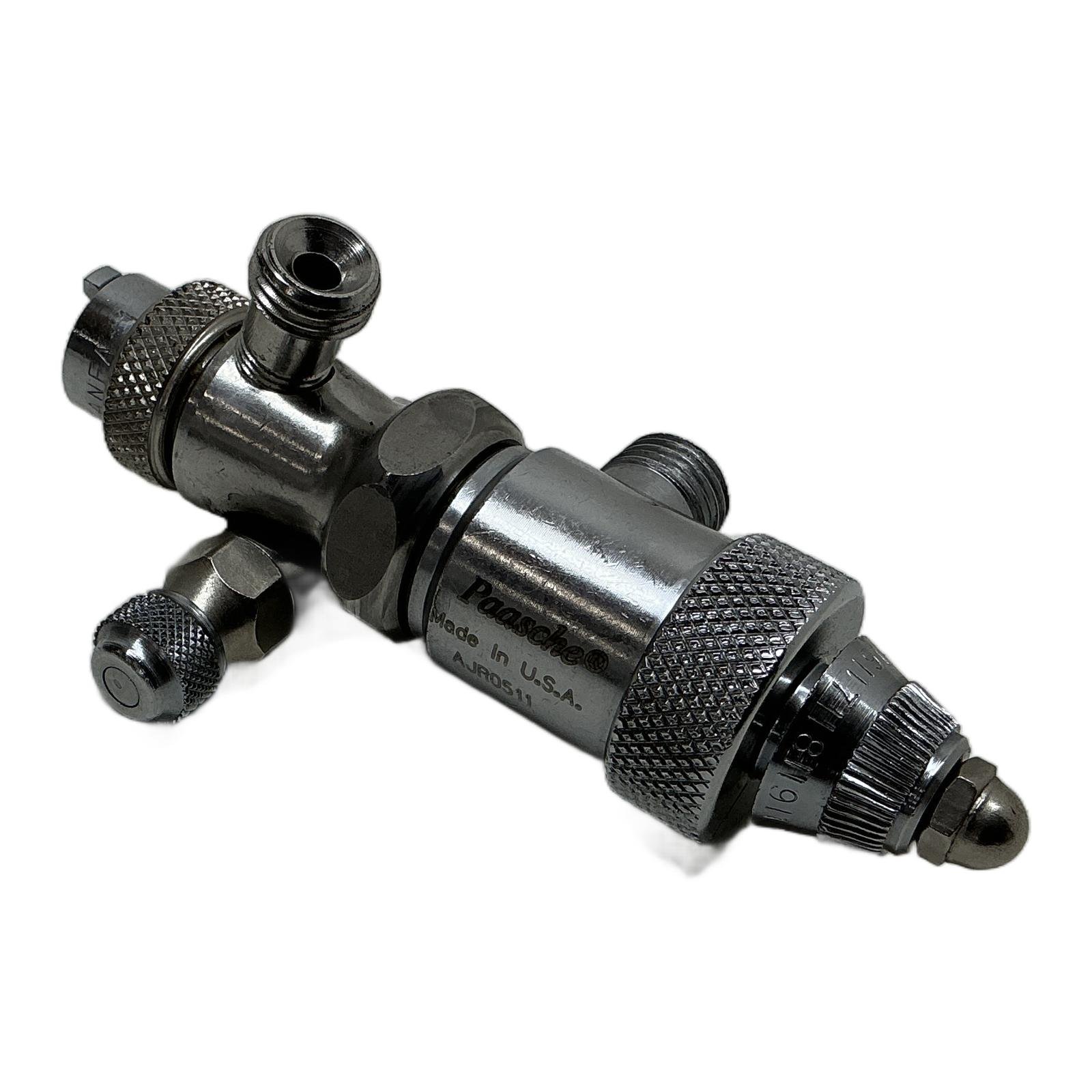

PAASCHE AJR0511 Spray Gun

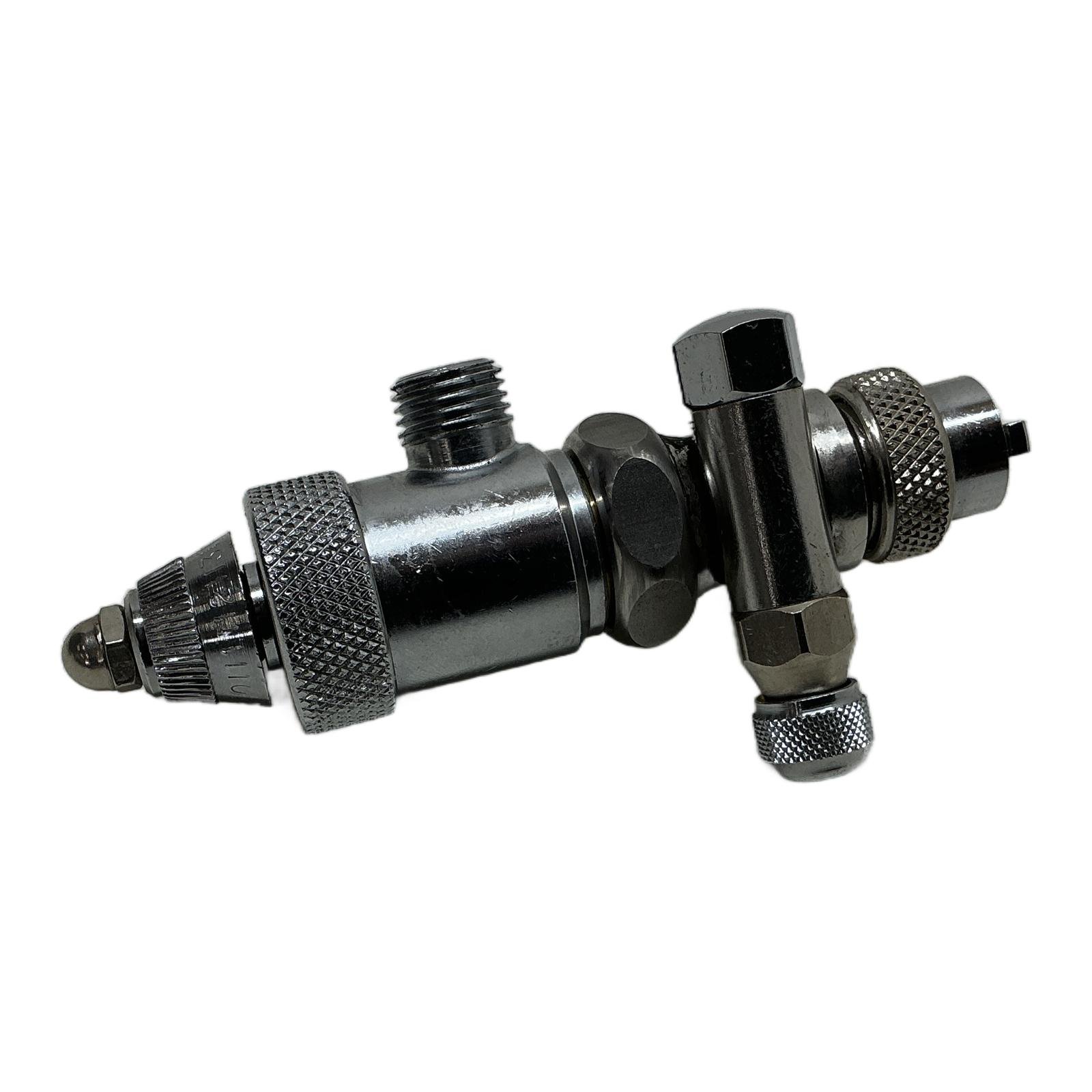

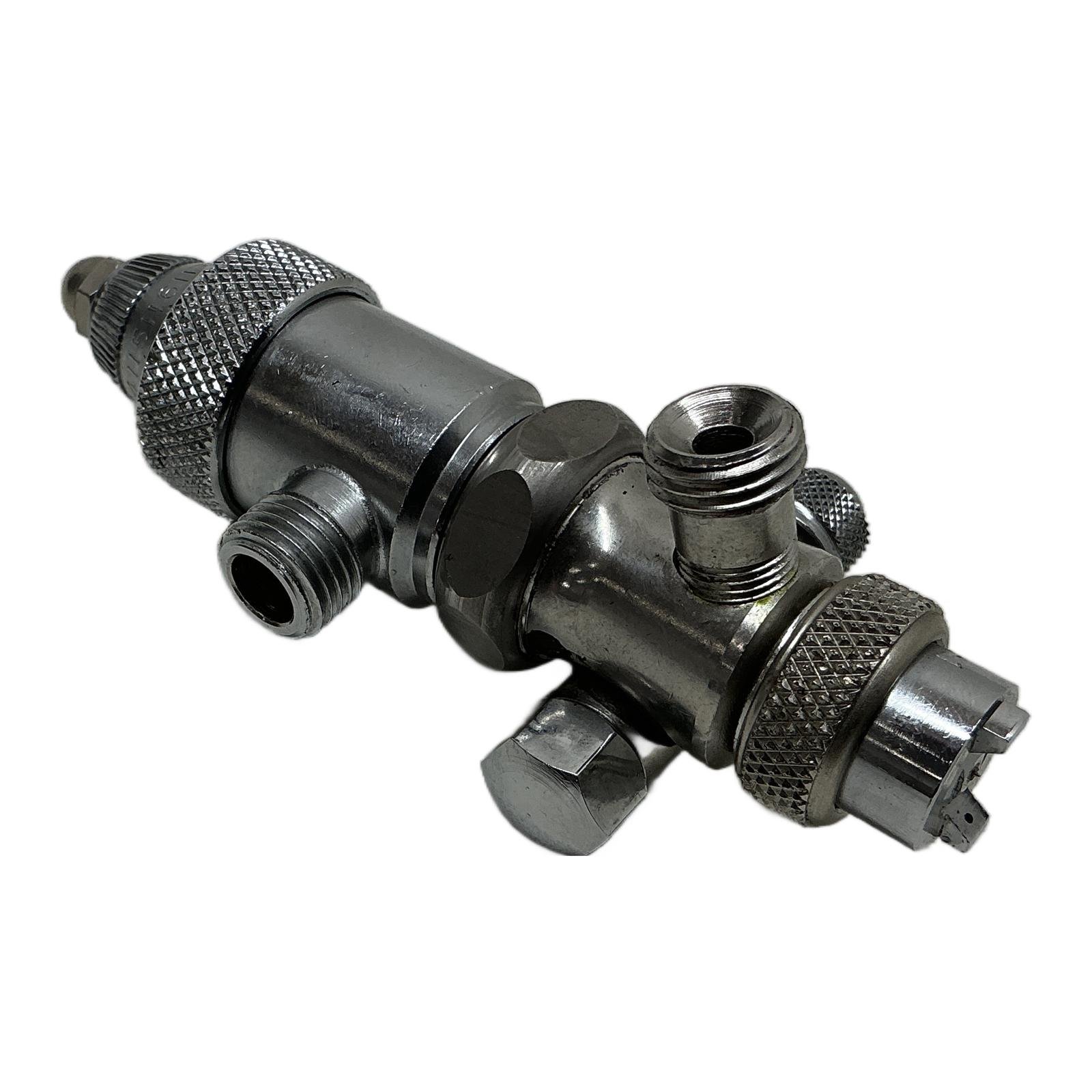

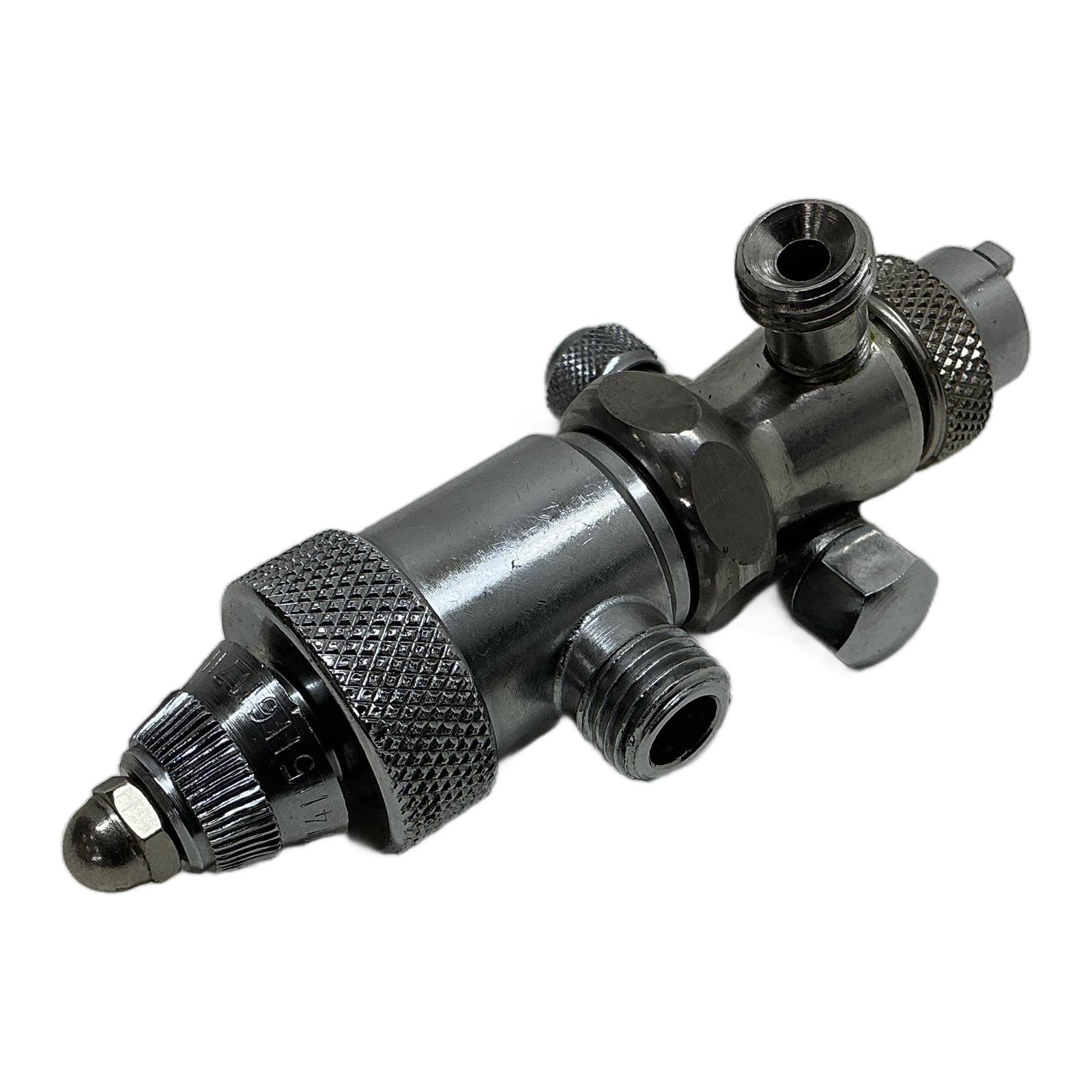

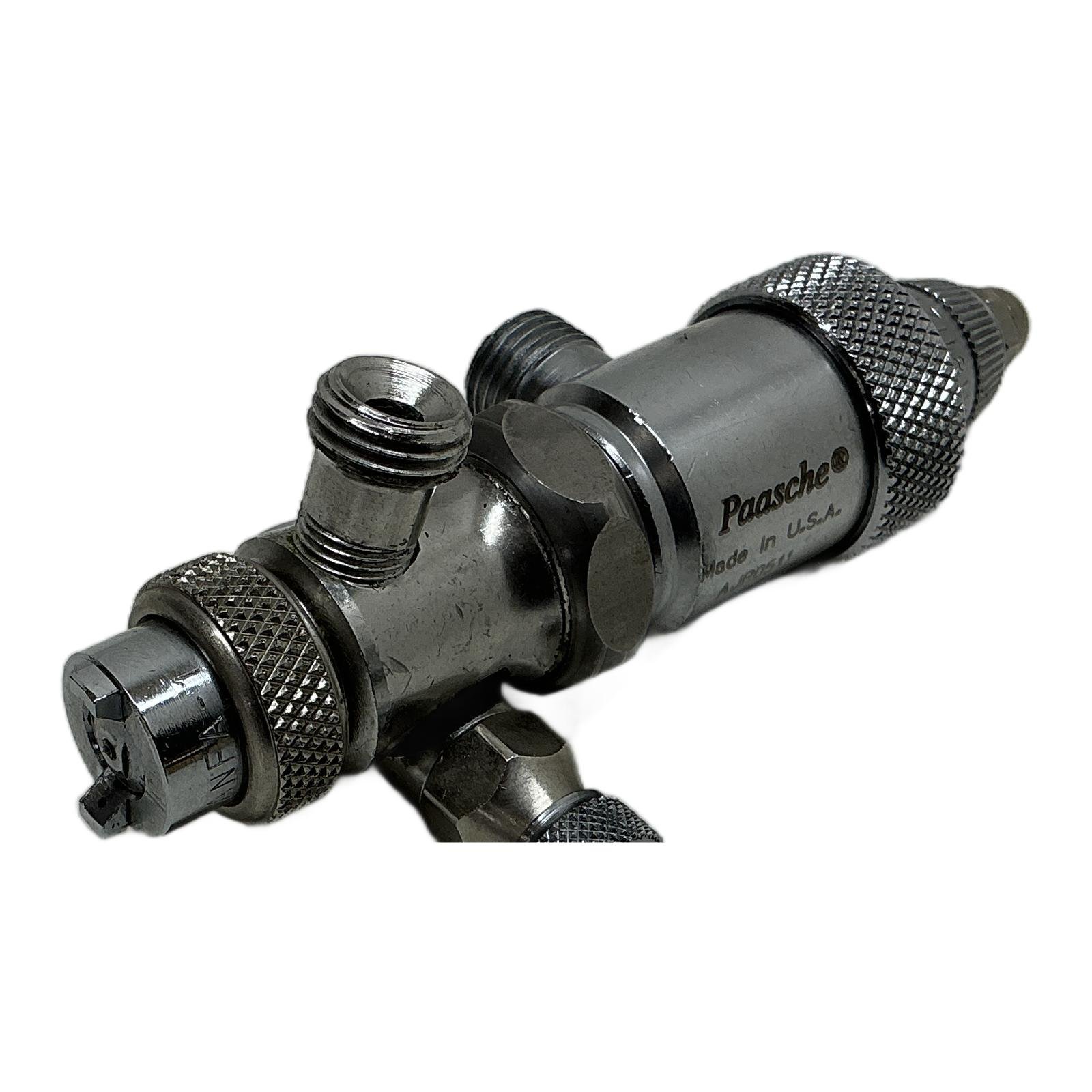

Paasche AJR-0511 Automatic Spray Gun Description The Paasche AJR-0511 is a precision-engineered automatic spray gun designed for industrial applications requiring consistent and automated fluid application. It produces a round spray pattern, making it ideal for marking, coating small components, or applying adhesives. This unit is pneumatically operated, with separate inputs for piston actuation and fluid atomization, allowing for precise control within an automated system. Specifications Manufacturer: Paasche Type: AJR-0511 Function: Automatic Spray Gun Spray Pattern: Round Standard Nozzle Size: 0.6mm (Size 1) Recommended Operating Pressure: 20-50 PSI Fluid Inlet: 1/8 inch NPT Female Atomization Air Inlet: 1/8 inch NPT Female Cylinder Air Inlet: 10-32 Thread Label Info Brand: Paasche Model: AJR0511 Origin: Made in U.S.A. Application This automatic spray gun is suitable for a variety of automated production lines, including automotive parts finishing, ceramics glazing, conveyor-based coating, and precise application of lubricants or marking inks. Country of Origin This product is manufactured in the USA. CO2 Impact By purchasing this reused item, you are contributing to a circular economy and helping to avoid 0.4 kg of CO2 emissions. This saving is comparable to the amount of CO2 absorbed by a small tree in several weeks. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What types of fluids are compatible with the AJR-0511?The AJR-0511 is constructed from chrome-plated brass and stainless steel components, making it compatible with a wide range of fluids, including water-based paints, inks, dyes, light oils, and some low-viscosity adhesives. Always check fluid compatibility with the wetted parts before use. What is the difference between the cylinder air input and the atomization air input?The cylinder air input (10-32 thread) controls the internal piston that opens and closes the fluid needle. This triggers the spray on and off. The atomization air input (1/8 inch NPT) provides the air that mixes with the fluid at the nozzle to create the fine spray pattern. They are controlled independently for precise timing and spray quality. How do I adjust the spray pattern and fluid flow on this model?Fluid flow is adjusted by turning the knurled knob at the rear of the gun, which limits the travel of the fluid needle. The spray pattern’s fineness is controlled by adjusting the atomizing air pressure; higher pressure typically results in a finer mist. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
