SCHNEIDER ELECTRIC ATV32H037N4

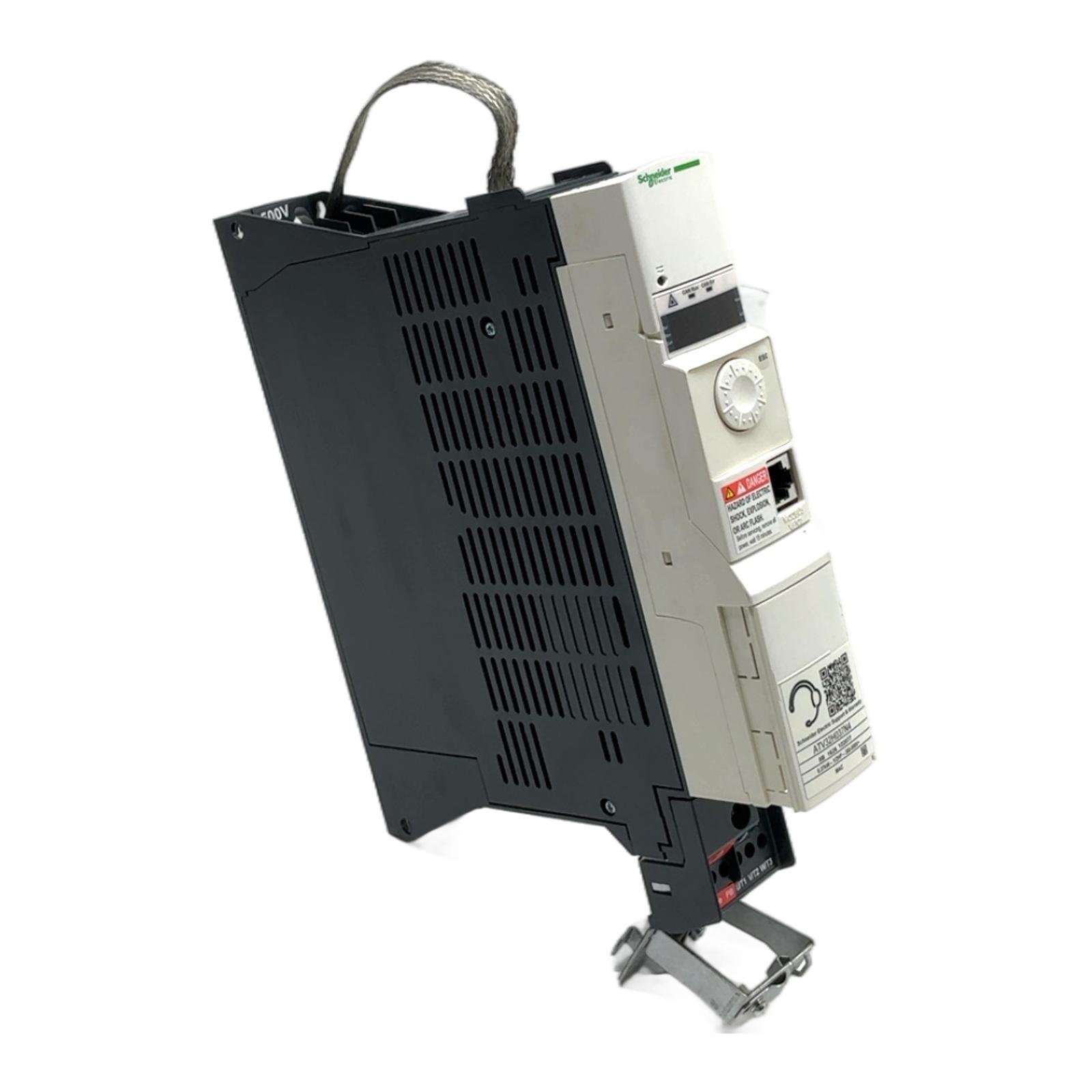

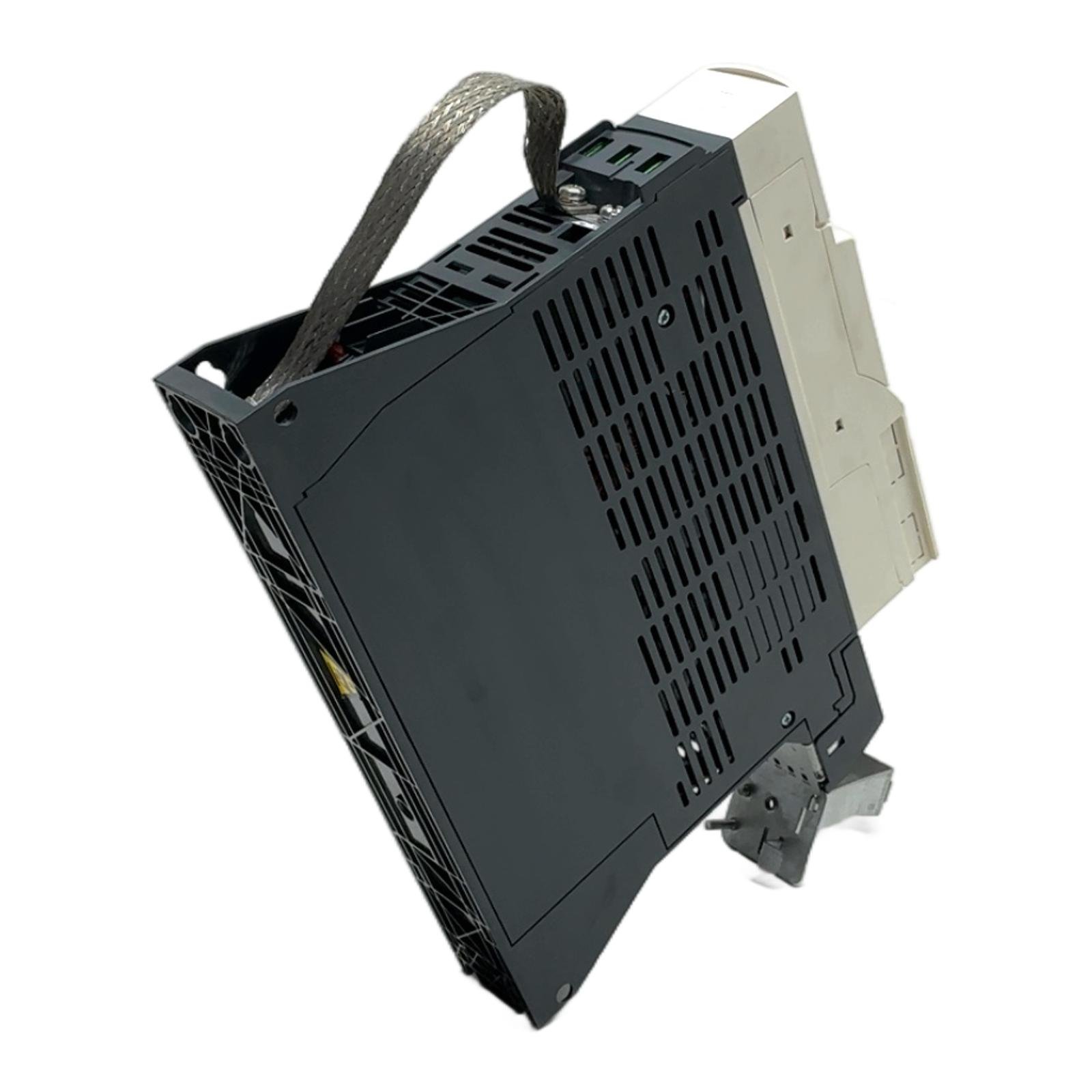

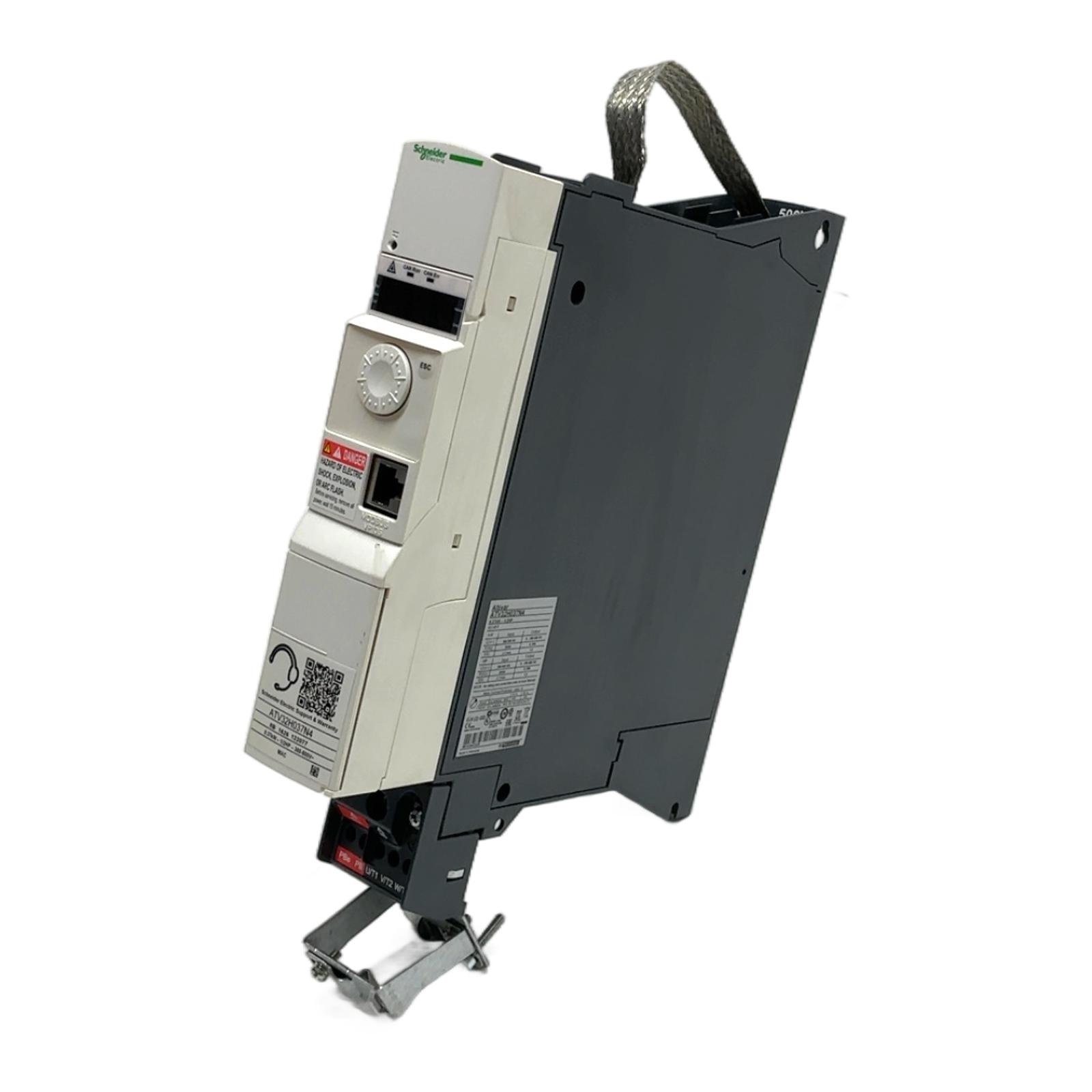

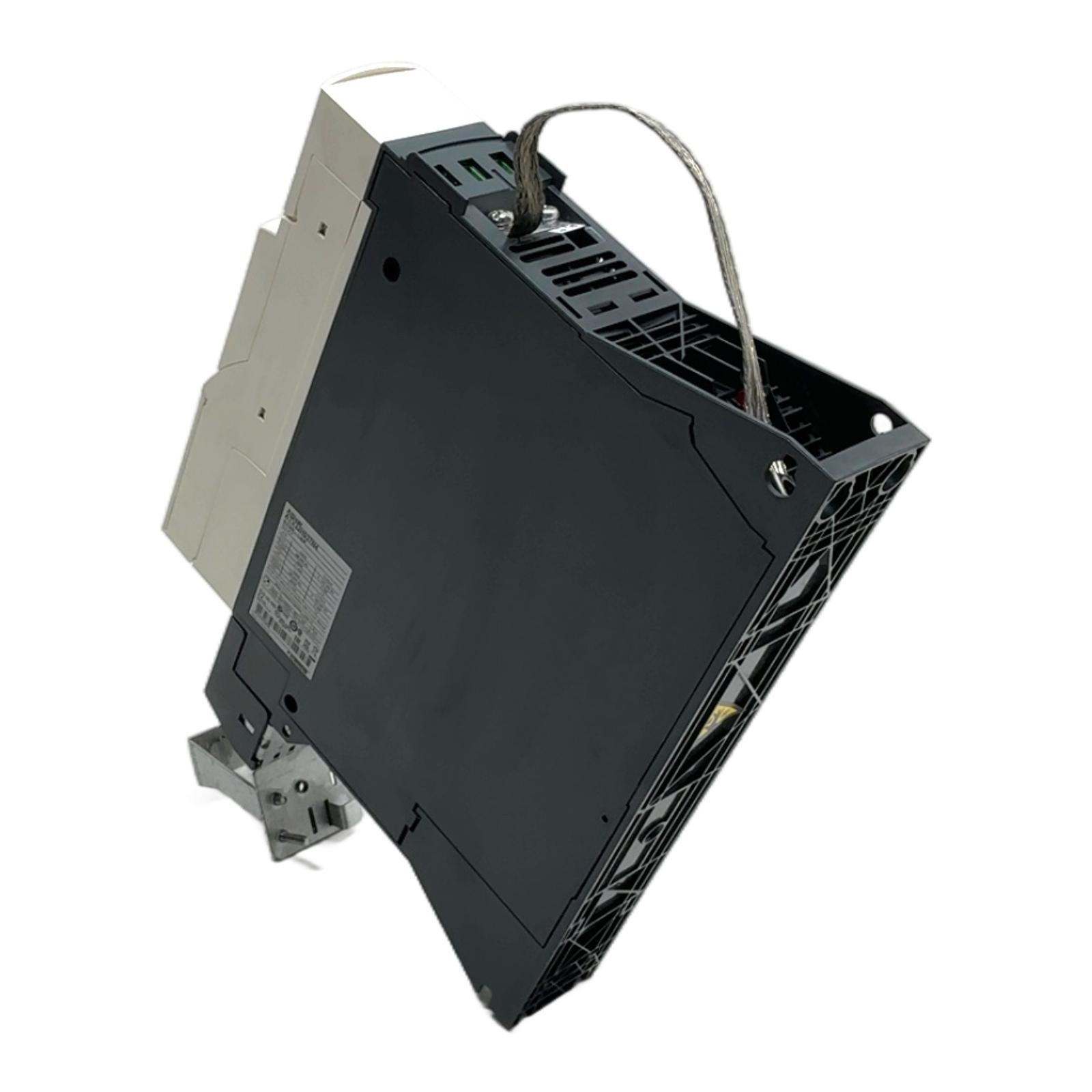

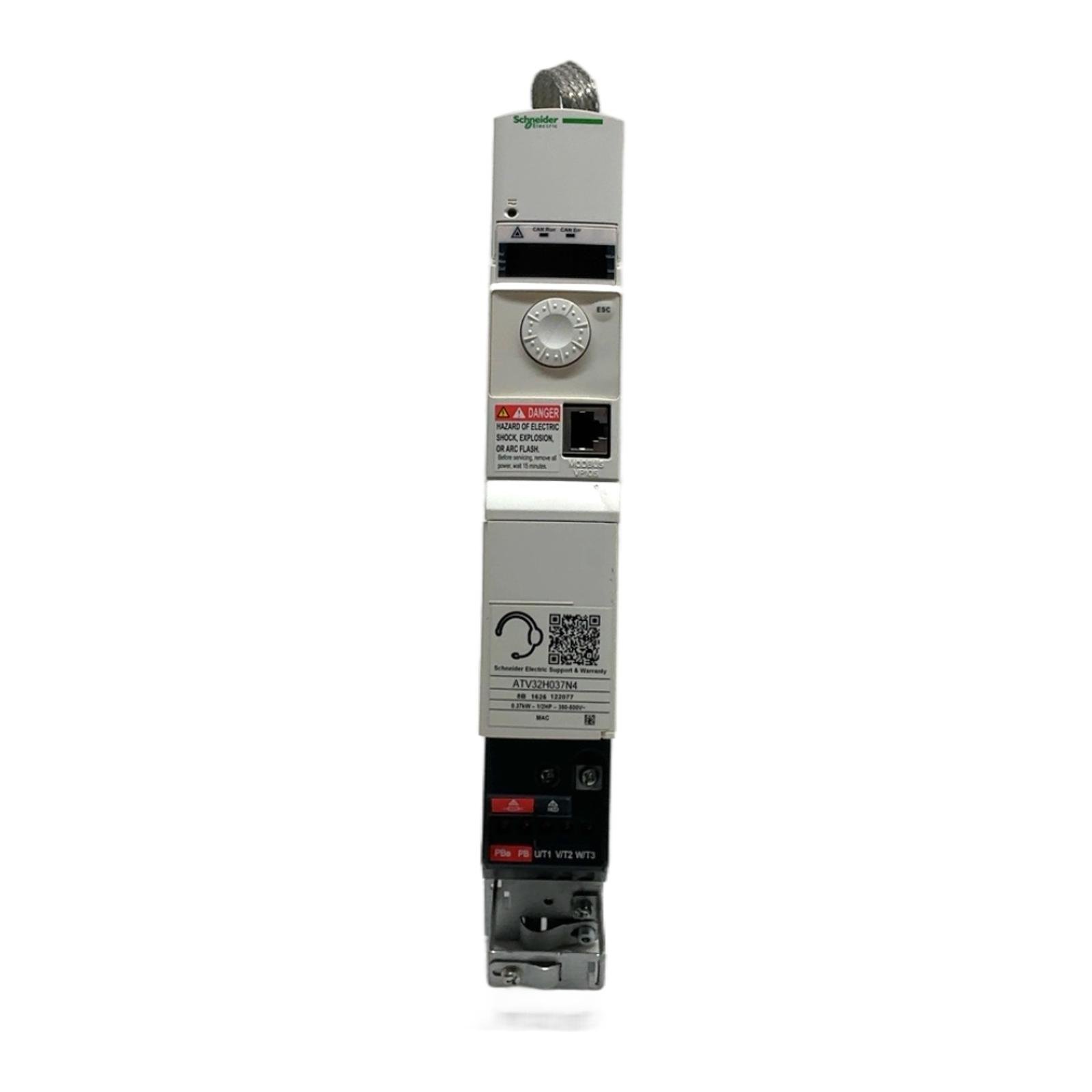

Schneider Electric Altivar 32 Variable Speed Drive Description The ATV32H037N4 is a compact variable speed drive from the Schneider Electric Altivar 32 series, designed for controlling 0.37kW three-phase motors. This drive is renowned for its robustness and ease of integration into various industrial automation systems. As an obsolete model, it serves as a critical spare part for maintaining existing installations without the need for extensive retrofitting. Order now from profideals for expert support and fast delivery. Specifications Manufacturer: Schneider Electric Series: Altivar 32 Model: ATV32H037N4 Power Rating: 0.37 kW / 0.5 HP Input Voltage: 380-500V AC, 3-Phase Input Frequency: 50/60 Hz Output Current: 1.5 A Output Frequency: 0 to 599 Hz Enclosure: Book-style for cabinet mounting Label Info Type: ATV32H037N4 Firmware: V2.3 IE17 Input: 380-500V, 3-phase, 2.1A max Output: 0-380/480V, 3-phase, 1.5A Application This drive is suitable for a wide range of applications including material handling, packaging machinery, textile machines, and general-purpose pumps and fans. Country of Origin Made in Indonesia. CO2 Impact Reusing this electronic component prevents the emission of approximately 48 kg of CO2, which would be generated during the production of a new one. This is comparable to the savings from not driving a car for 240 kilometers. Availability This is a used item, tested and confirmed to be in good working condition. Available for immediate dispatch. FAQ What is the firmware version of this ATV32H037N4 drive and can it be updated?This unit has firmware version V2.3 IE17 as indicated on the label. While firmware updates were possible, this model series is obsolete, and official support or new firmware files from Schneider Electric are no longer available. Is this drive compatible with the SoMove software for parameter setup?Yes, the Altivar 32 series, including the ATV32H037N4, is fully compatible with Schneider Electric’s SoMove commissioning software. You can connect to the drive using a USB to RJ45 cable (like part number TCSMCNAM3M002P). Can this drive be used for single-phase input power?No, the ‘N4’ suffix in ATV32H037N4 specifically designates a three-phase input model (380-500V). Using it with a single-phase input is not supported and may damage the drive. For single-phase applications, you would need a model with an ‘M2’ or ‘M3’ suffix. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
