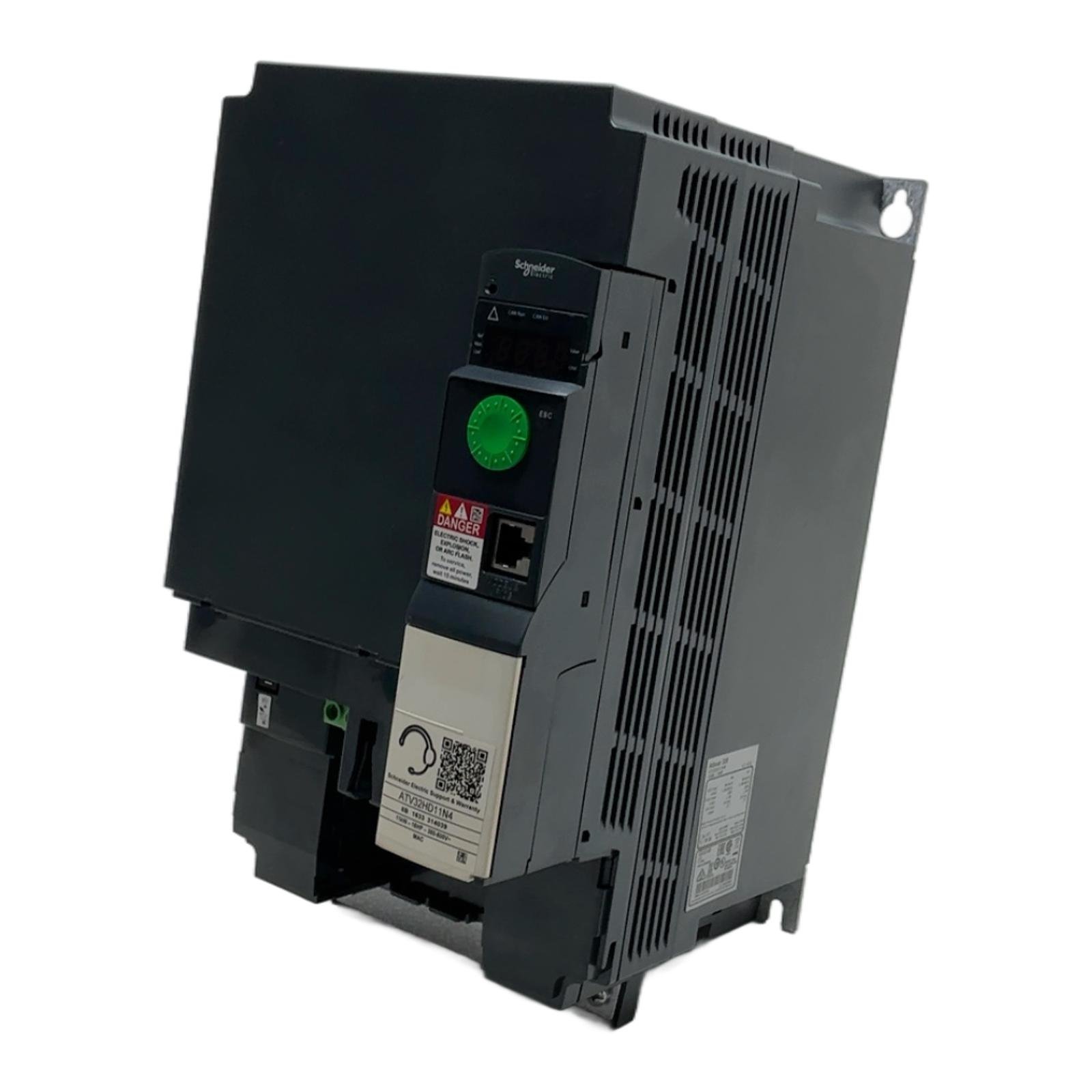

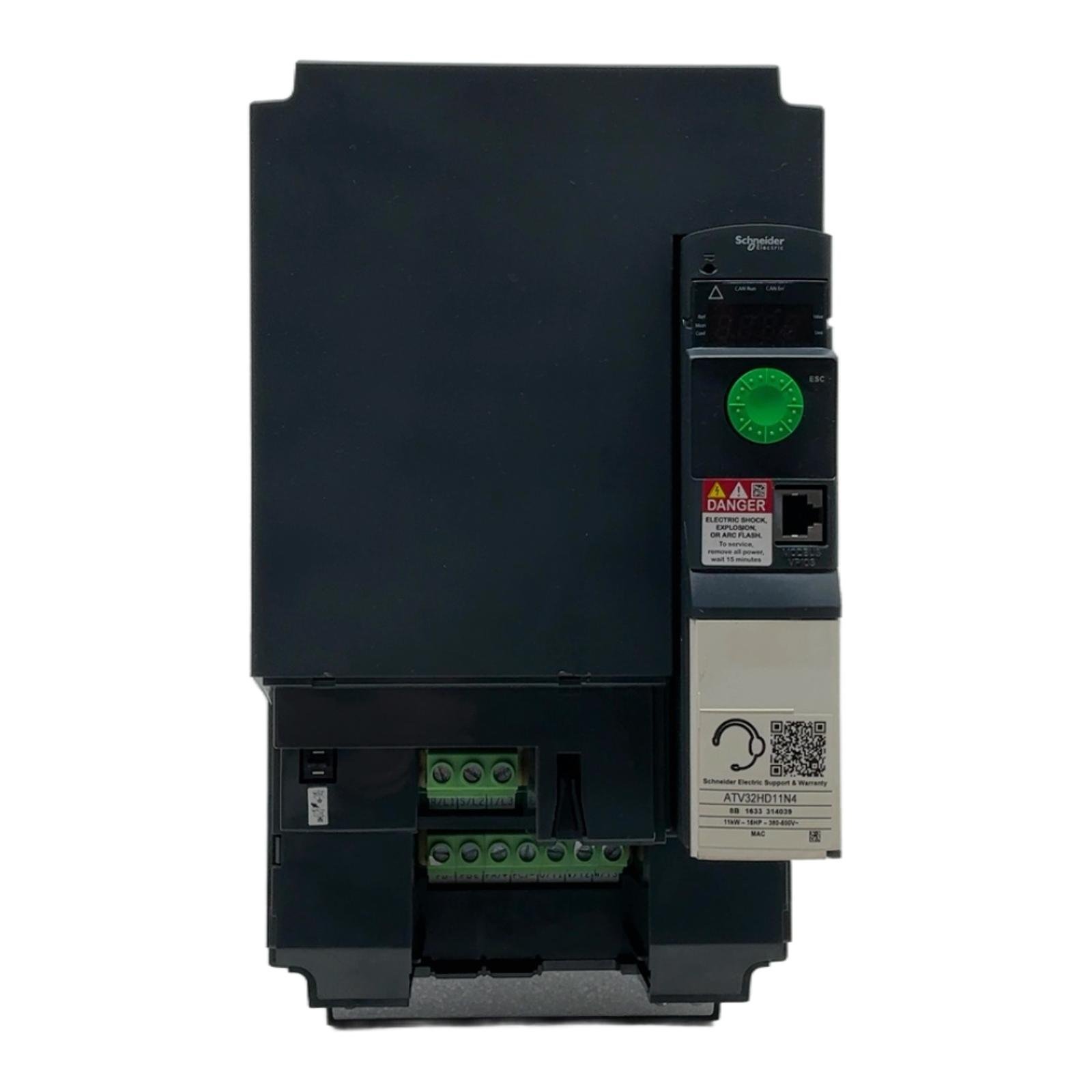

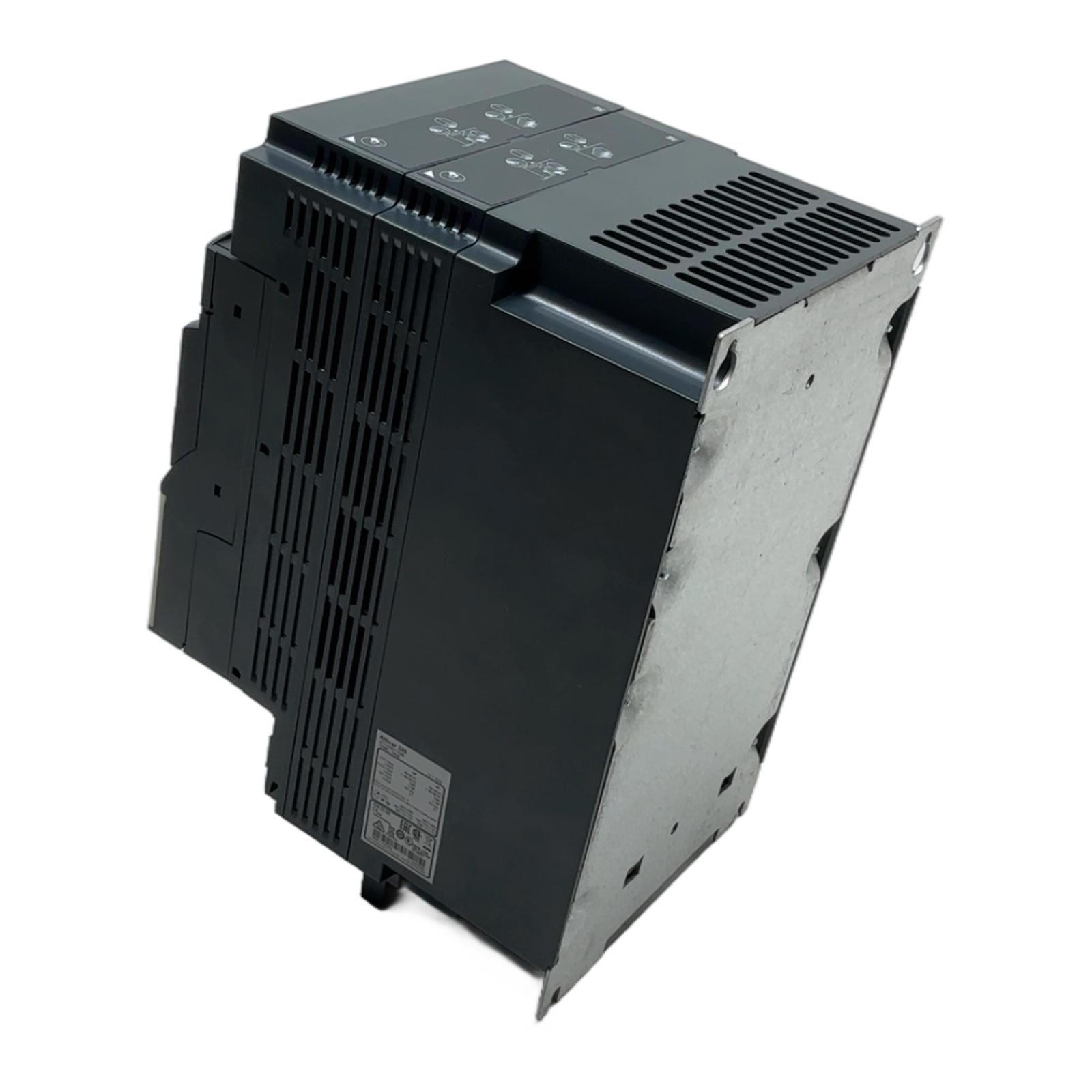

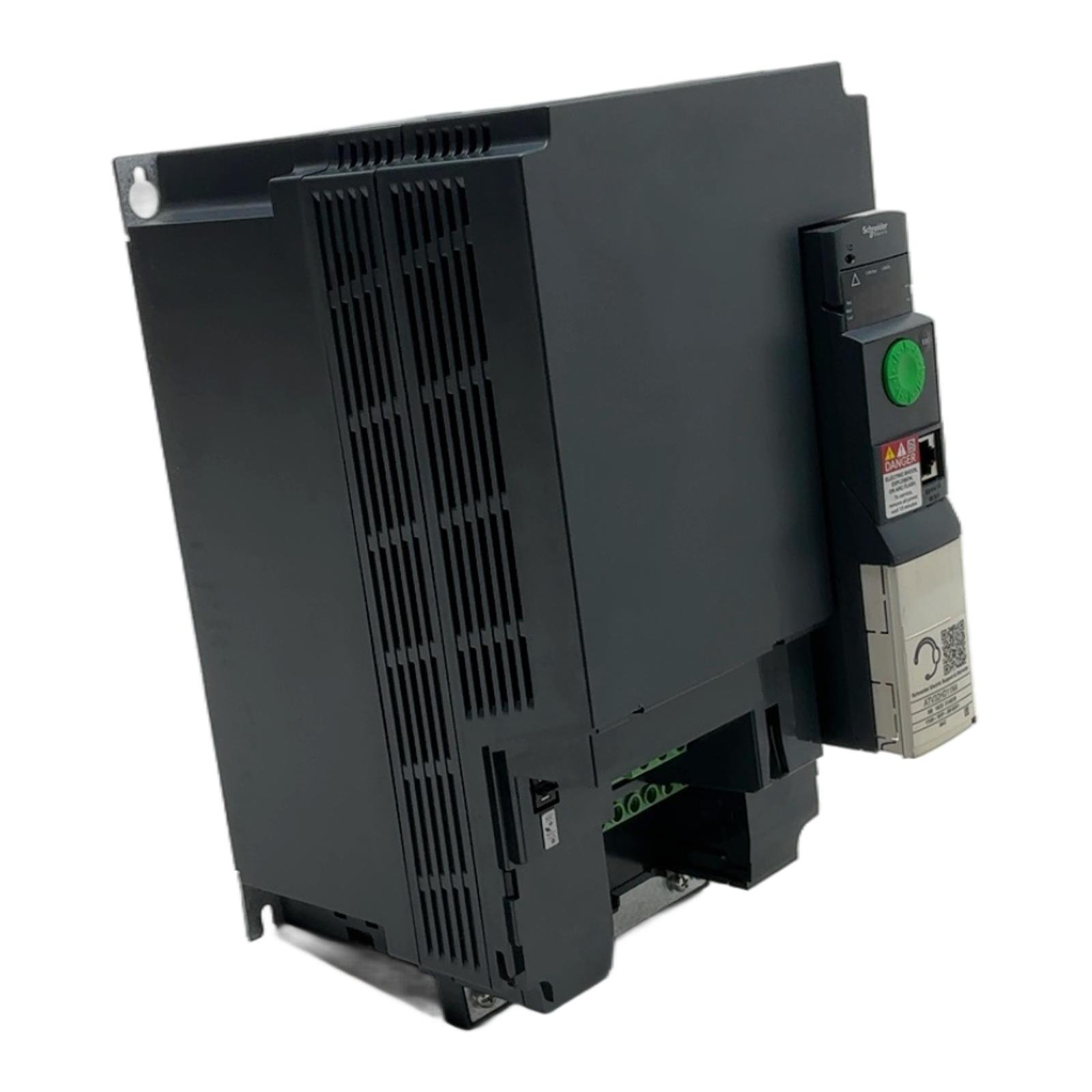

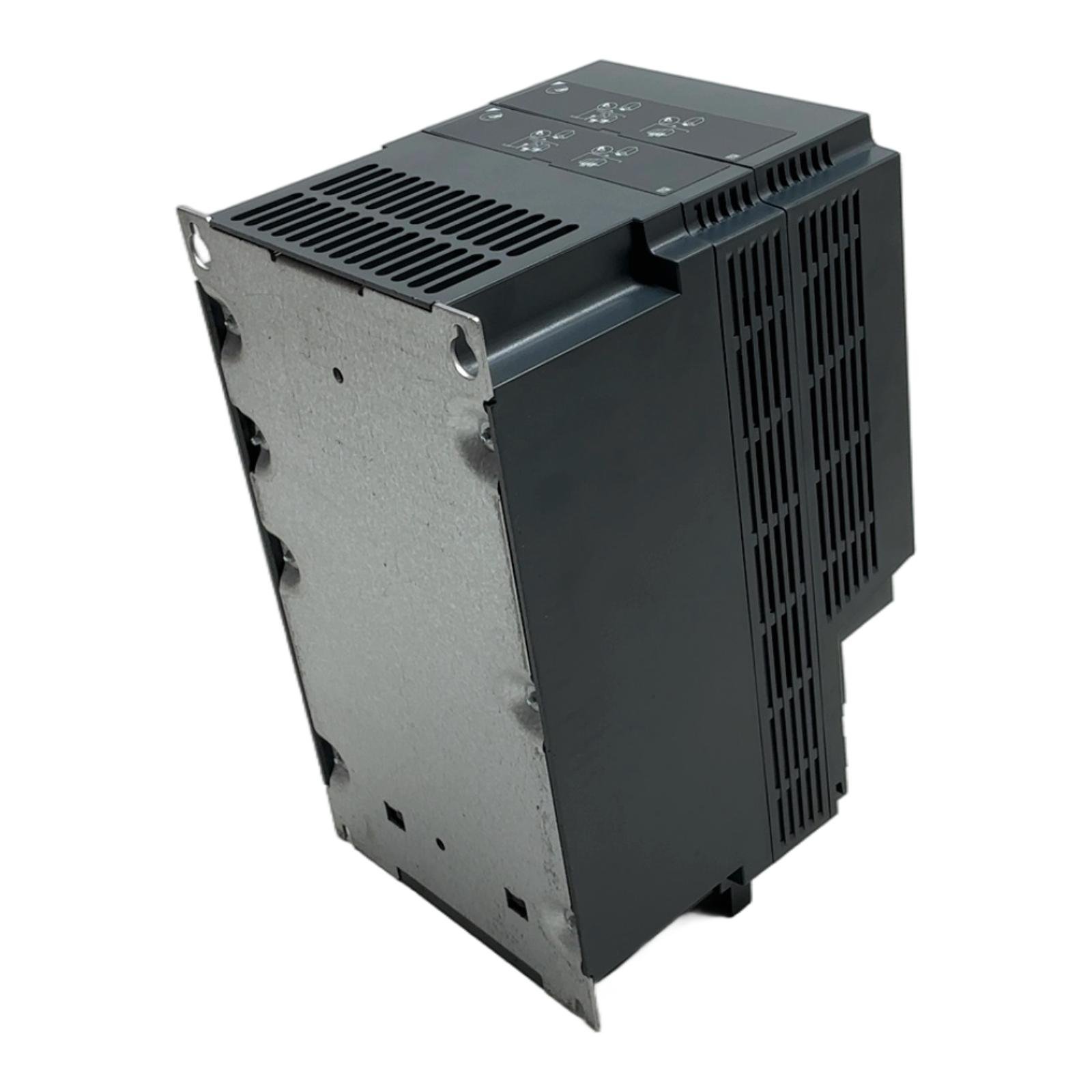

SCHNEIDER ELECTRIC ATV320D11N4B

Schneider Electric Altivar 320 Variable Frequency Drive Description The ATV320D11N4B is a variable speed drive from Schneider Electric’s Altivar 320 Machine series. It is designed for three-phase synchronous and asynchronous motors in open loop control. With its compact book-style form factor, it is optimized for easy integration into control cabinets, saving valuable space. This drive provides robust motor control for a wide range of industrial machine applications. Specifications Power Rating: 11 kW / 15 HP Input Voltage: 380-500V AC, 3-Phase Input Frequency: 50/60 Hz Output Current: 27.7 A Output Frequency: 0 to 599 Hz Protection Class: IP20 Integrated Safety: Safe Torque Off (STO) Label Info Model: ATV320D11N4B Version: V2.7 IE32 Serial Number: HL1808769002 Application This drive is suitable for material handling, packaging machines, textile machines, hoisting applications, and general machine control that requires precise speed and torque regulation. Country of Origin Made in Indonesia. CO2 Impact By purchasing this pre-owned drive, you are contributing to the circular economy and avoiding the emission of approximately 232 kg of CO2, which is comparable to the emissions from driving a standard car for 1160 kilometers. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ Can the ATV320D11N4B be used in a simple start/stop application without a PLC?Yes, it can be configured for 2-wire or 3-wire control using its digital inputs. You can wire push buttons directly to the drive’s terminals for local start, stop, and direction control. What is the difference between the ‘book’ style format of this drive and a standard ‘compact’ drive?The ‘book’ style format is designed for side-by-side mounting in control cabinets with minimal clearance, optimizing cabinet space. This is ideal for applications with multiple drives. ‘Compact’ drives are typically wider and may require more ventilation space around them. Does this drive have built-in safety functions like Safe Torque Off (STO)?Yes, the Altivar 320 series, including the ATV320D11N4B, comes with an integrated Safe Torque Off (STO) function as standard. This allows for safe shutdown of the motor without needing an external safety contactor, contributing to a simpler and more cost-effective safety circuit design. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: Friday, March 13, 2026
