INA KWSE20-HL G3V1

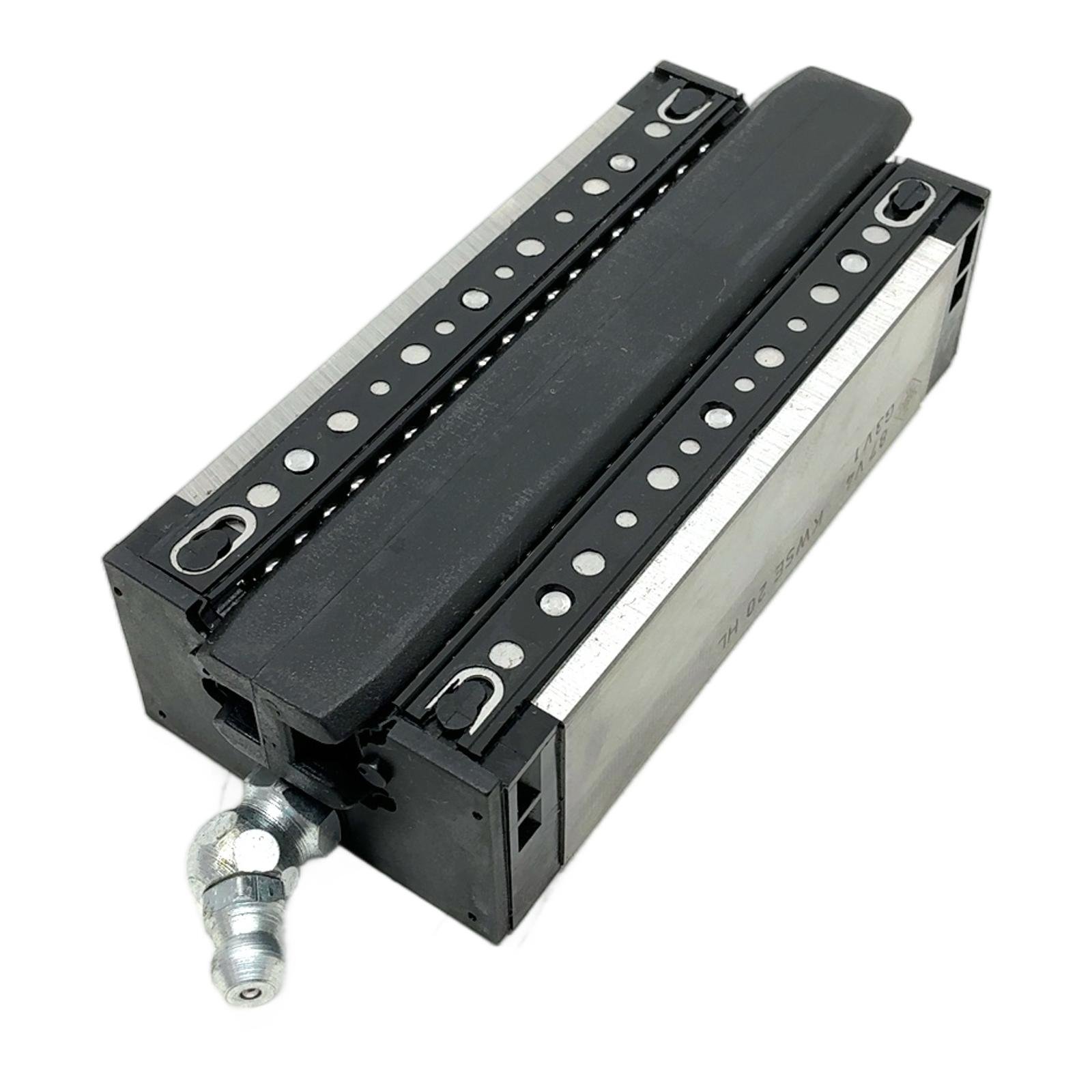

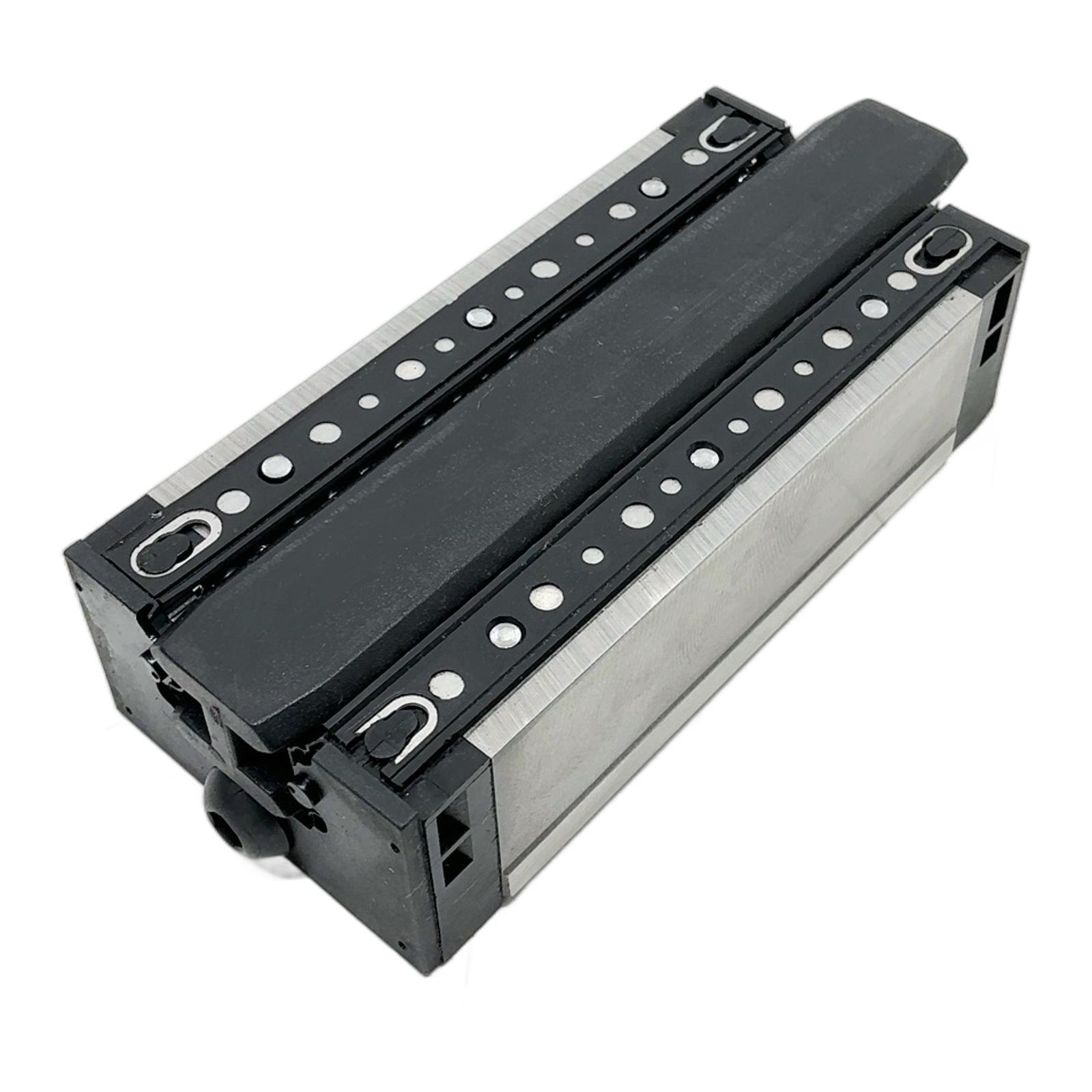

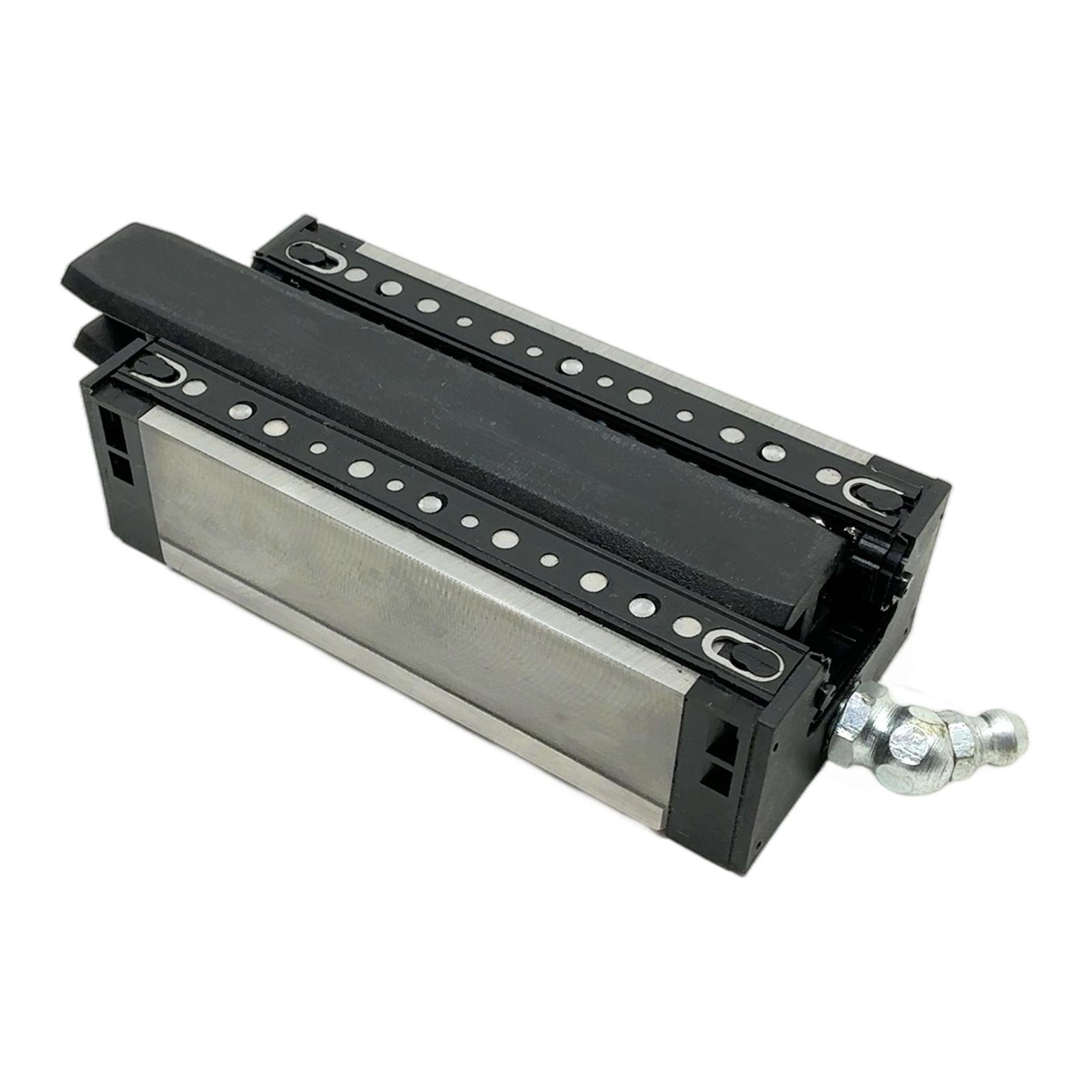

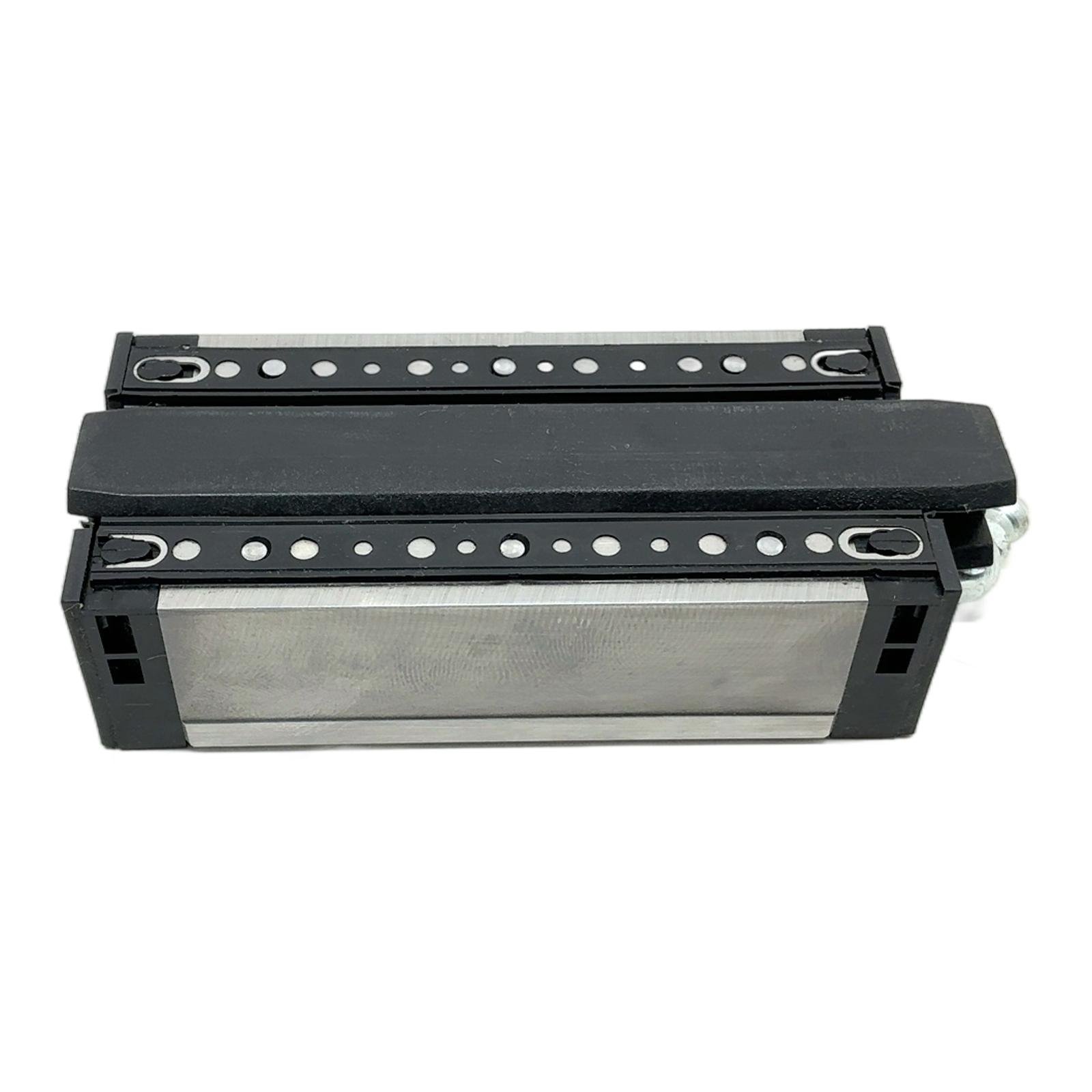

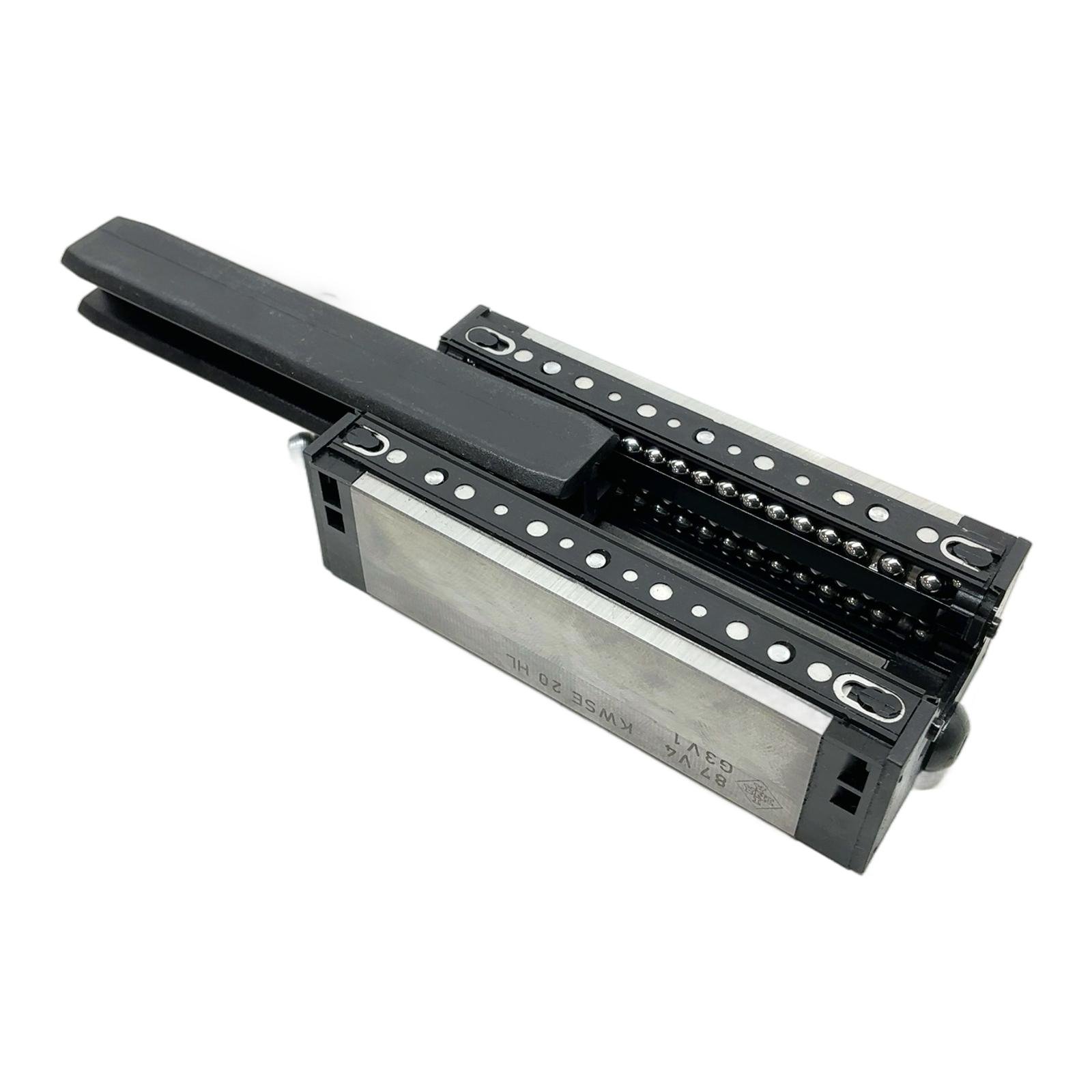

INA Linear Guide Carriage Size 20 KWSE 20 HL Description The INA KWSE 20 HL is a high-performance linear guide carriage, part of Schaeffler’s robust KWE series. This component is engineered for superior precision and durability in linear motion applications. It features a compact design with a high load capacity and excellent rigidity, making it suitable for machine tools, industrial robots, and automated production lines. The ‘HL’ designation indicates a high, long carriage design, providing increased stability and load-bearing surface. Specifications Manufacturer: INA (Schaeffler Group) Type: Linear Guide Carriage Model: KWSE 20 HL Rail Size: 20 mm Design: High, Long (HL) Preload/Accuracy: G3V1 Material: High-grade bearing steel Label Info Brand: INA Part Number: KWSE 20 HL Codes: 87 V4, G3V1 Application This linear carriage is ideal for applications requiring precise and reliable linear movement under heavy loads. Common uses include CNC milling machines, laser cutters, packaging equipment, and automated assembly systems where accuracy and repeatability are critical. Country of Origin Manufactured by INA (Schaeffler Group) in Germany. CO2 Impact By choosing this pre-owned component, you are avoiding the emission of approximately 1.0 kg of CO2 associated with the production of a new one. This saving is comparable to the emissions from a 5 km car journey. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What type of profile rail is compatible with the KWSE 20 HL carriage?This carriage is designed for INA KUVE20-B series profile rails. It may also be compatible with other standard 20mm rails, but it is crucial to verify dimensional tolerances to ensure proper performance. What do the G3V1 markings mean on this INA carriage?G3 typically refers to the accuracy class (high precision), and V1 indicates a light preload. The preload eliminates internal clearance, which significantly increases the system’s rigidity and positioning accuracy. What is the recommended lubrication for this linear bearing block?It should be lubricated with a high-quality lithium-based grease, such as those from the Schaeffler Arcanol series, applied via the attached grease nipple. The lubrication frequency depends heavily on the specific application’s load, speed, and operating environment. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
