REXROTH ABZMS-36-1X/0370M-K24 R901066117

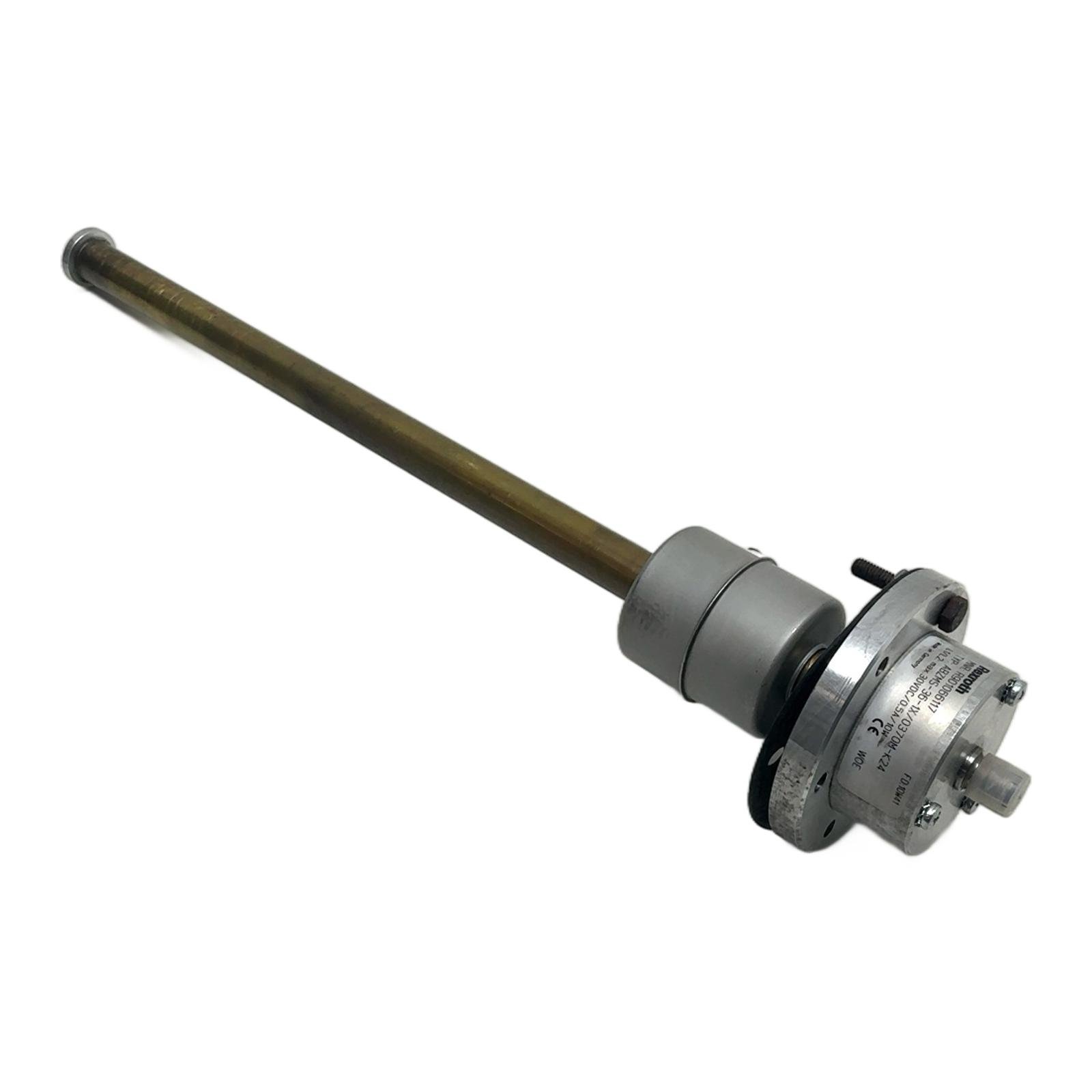

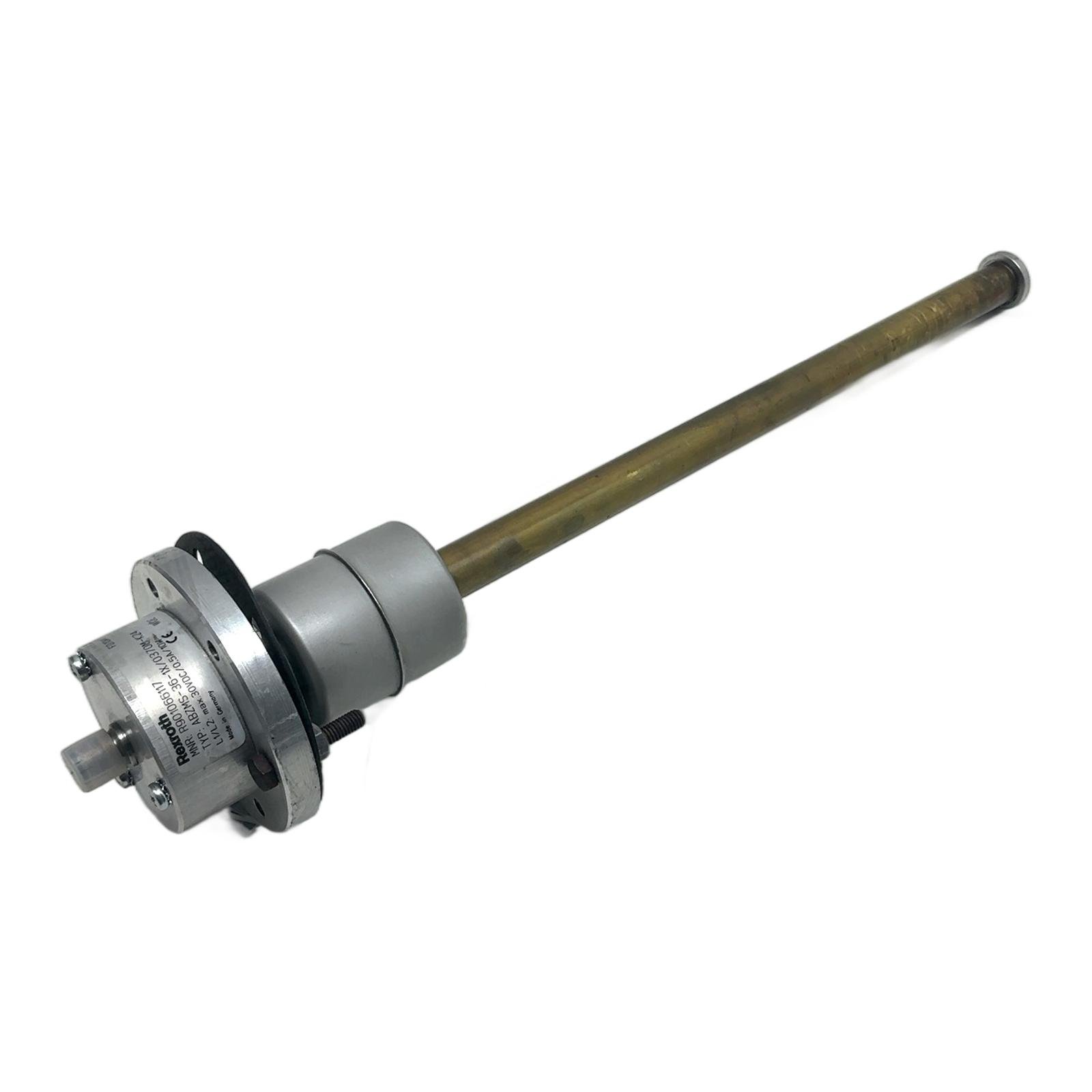

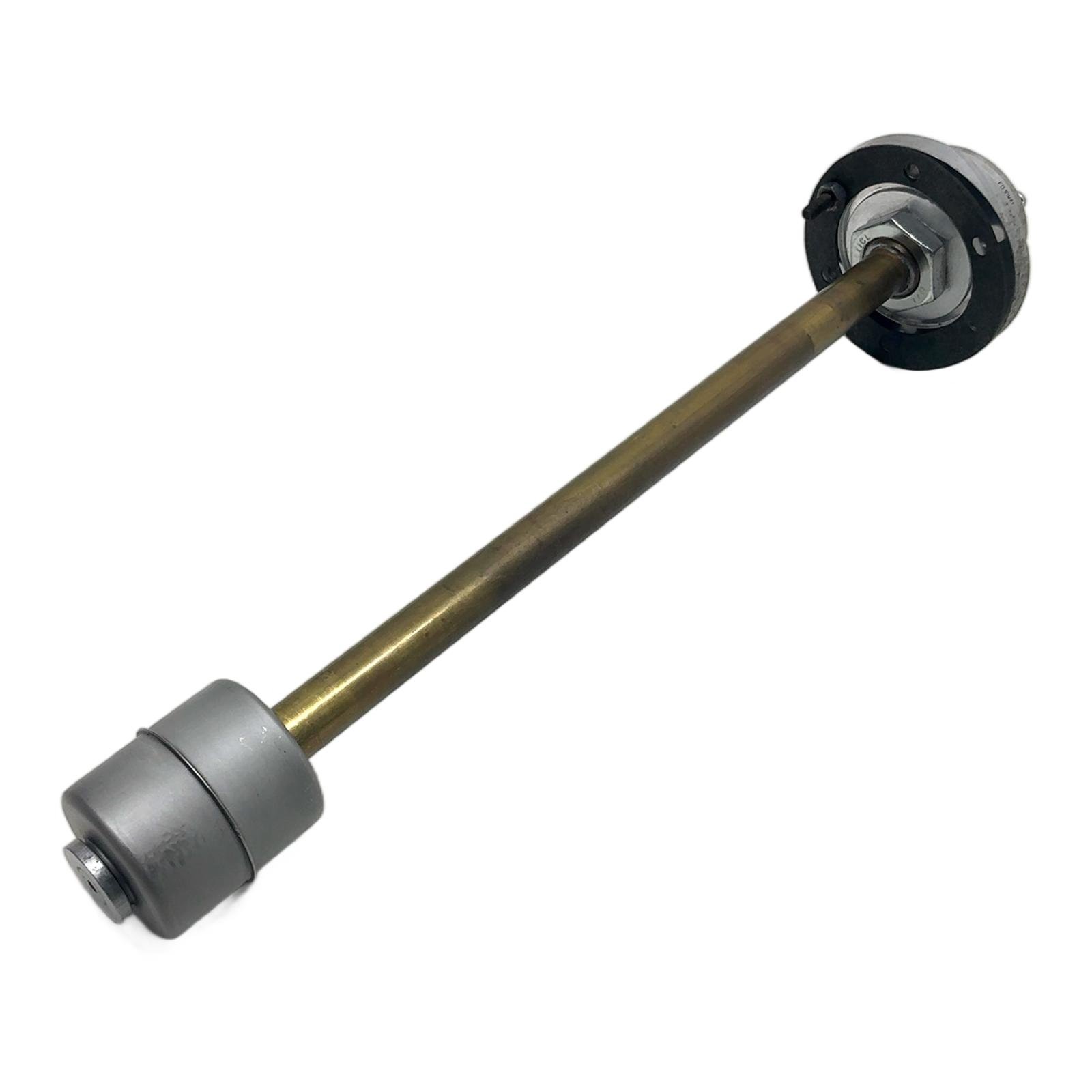

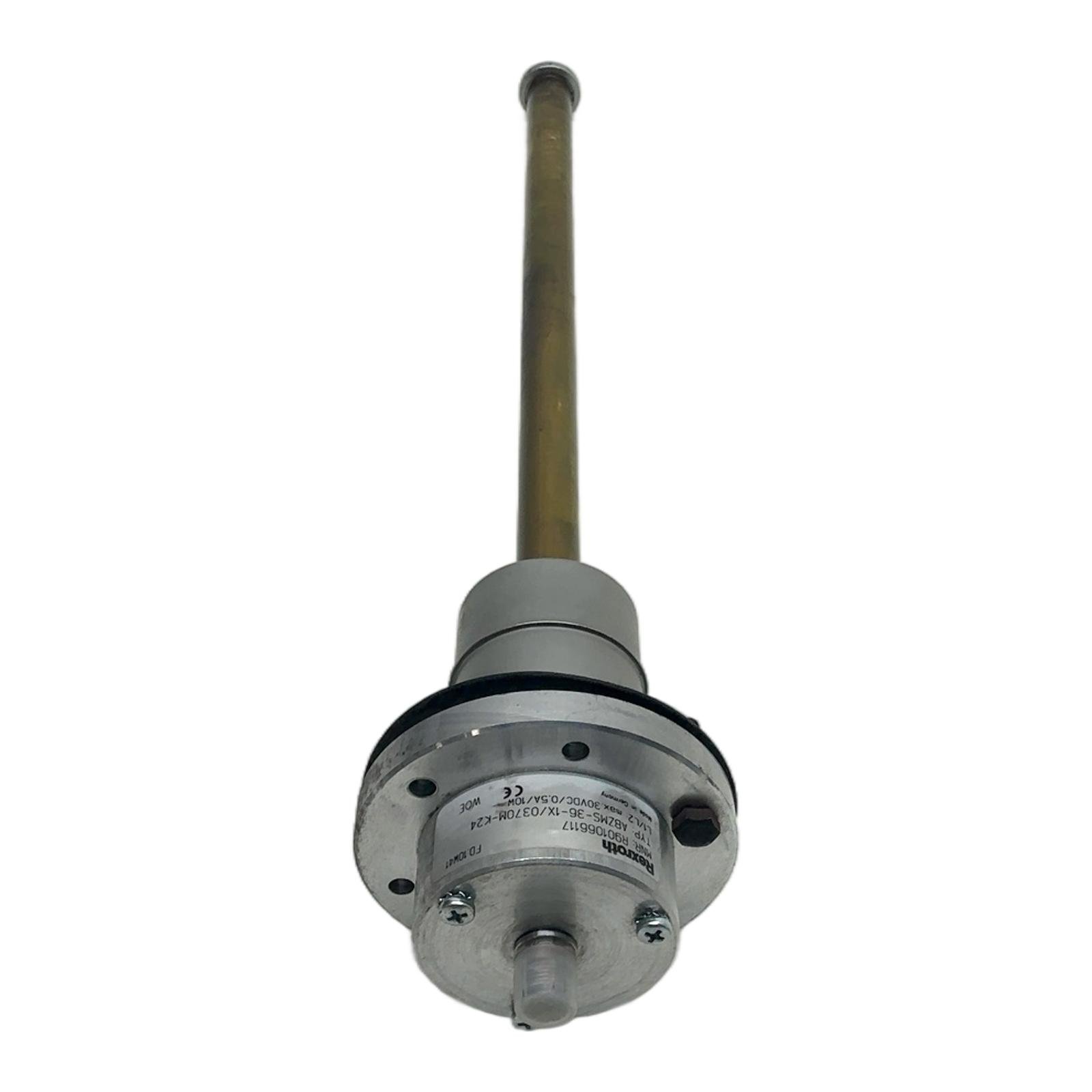

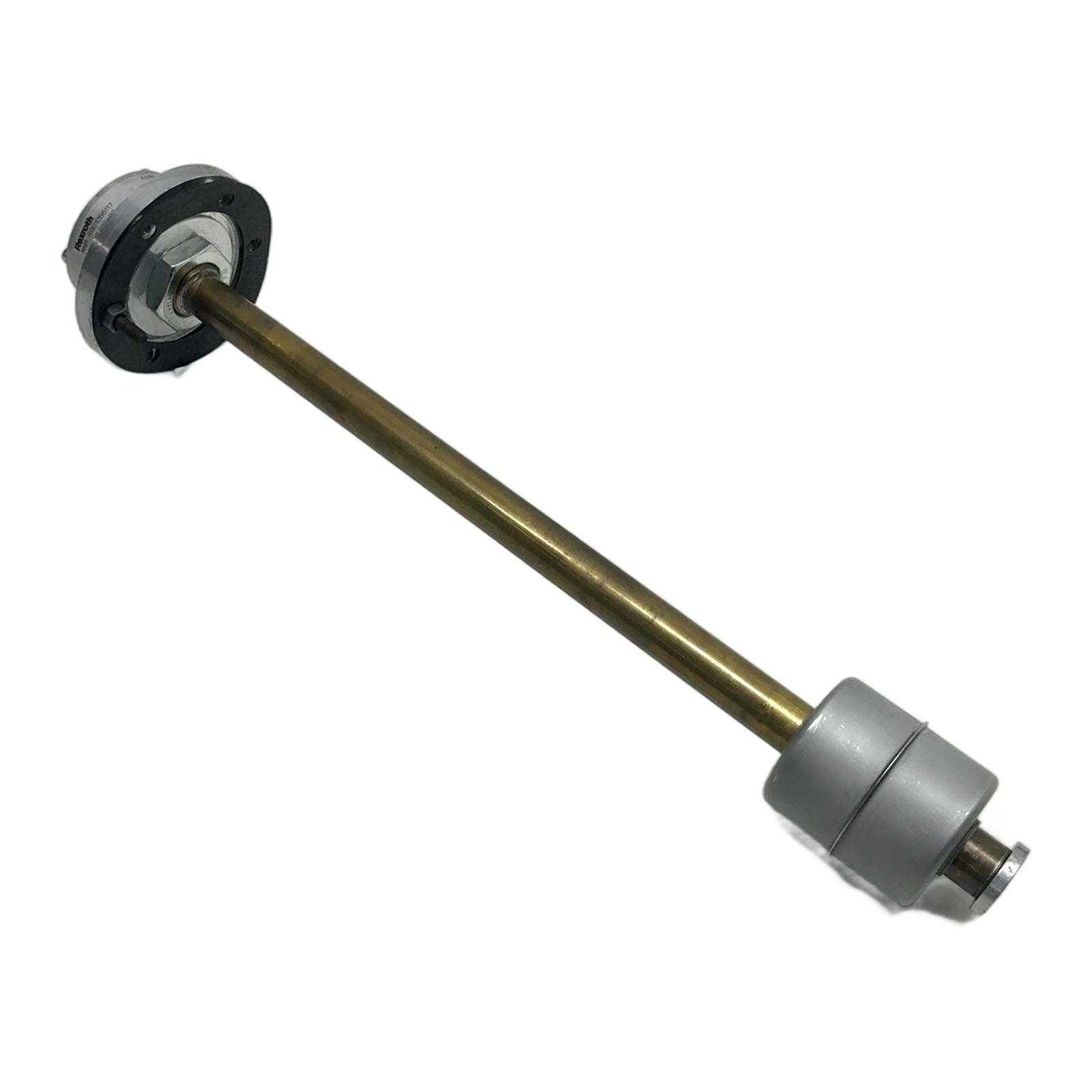

Rexroth Magnetic Float Level Switch Description The Rexroth ABZMS-36-1X/0370M-K24 is a high-quality magnetic float switch designed for precise liquid level monitoring. With an immersion depth of 370mm, it is ideal for use in hydraulic tanks and other industrial fluid reservoirs. This switch provides a reliable signal to prevent overflow or low-level conditions, protecting your equipment from damage. Specifications Manufacturer: Rexroth Type: ABZMS-36-1X/0370M-K24 Material Number: R901066117 Immersion Length: 370 mm Electrical Rating: Max. 30VDC / 0.5A / 10W Switching Contact: 1 contact point Label Info MNR: R901066117 TYP: ABZMS-36-1X/0370M-K24 L1/L2: max.30VDC/0.5A/10W Application This level switch is commonly used in hydraulic power units, lubrication systems, and coolant tanks to monitor fluid levels and trigger alarms or shut-offs. Country of Origin Made in Germany. CO2 Impact By purchasing this pre-owned item, you help save approximately 20 kg of CO2, equivalent to the emissions of driving a car for 100 km. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What type of liquid is this switch suitable for?It is primarily designed for mineral-oil based hydraulic fluids (HL, HLP), but compatibility with other media should be verified against the material specifications (brass tube, polyamide float). What is the switching logic of the contact?The contact logic (Normally Open or Normally Closed) depends on the mounting orientation and float position. Typically, it functions as a single pole, single throw (SPST) switch that changes state as the float passes the reed contact inside the stem. Can the switching point be adjusted?No, the switching point is fixed at a specific level determined by the position of the internal reed switch and the float’s buoyancy characteristics. The immersion length of 370mm defines the overall operational range. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorization by any rights holder.
