DENCO DDM5 DDM05A2500

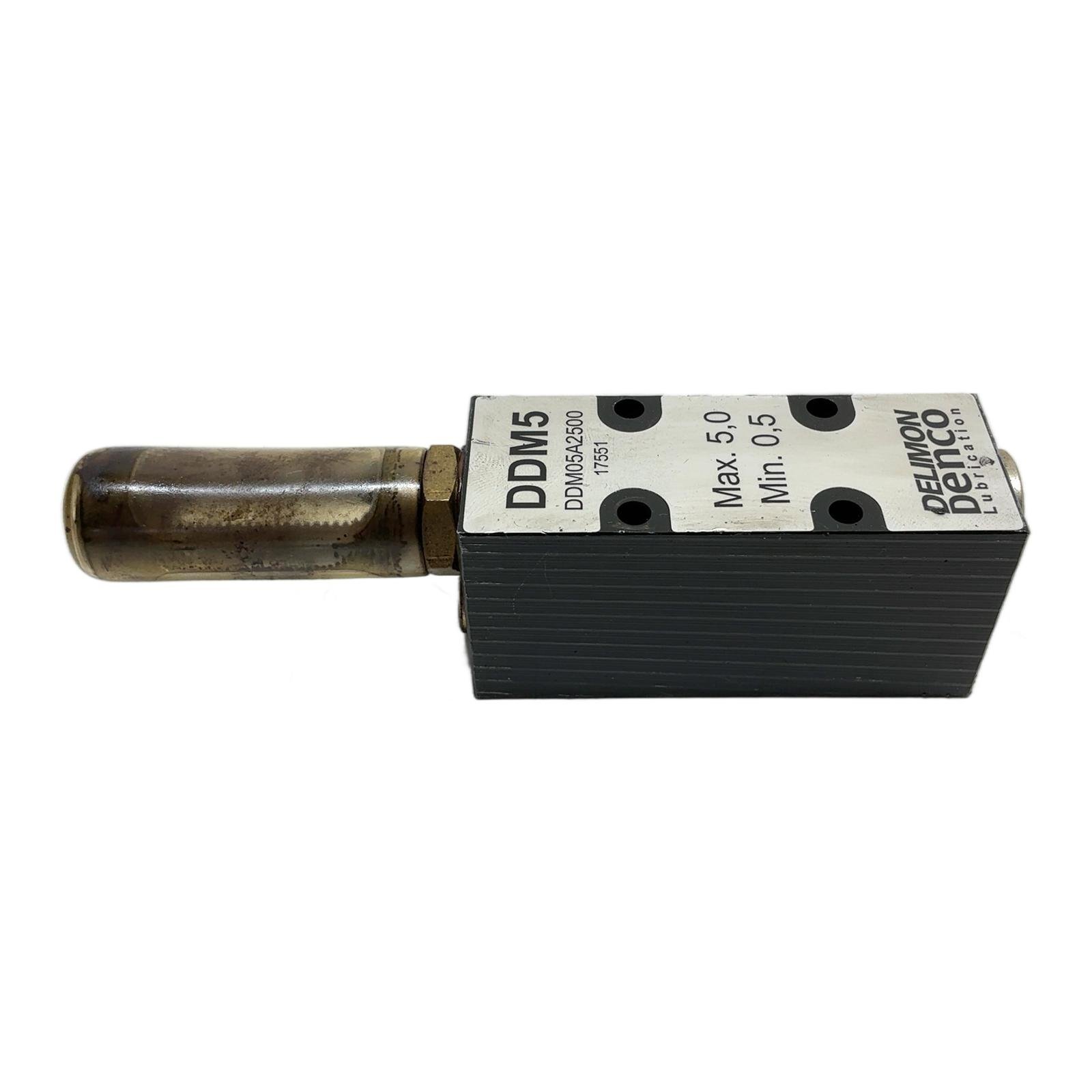

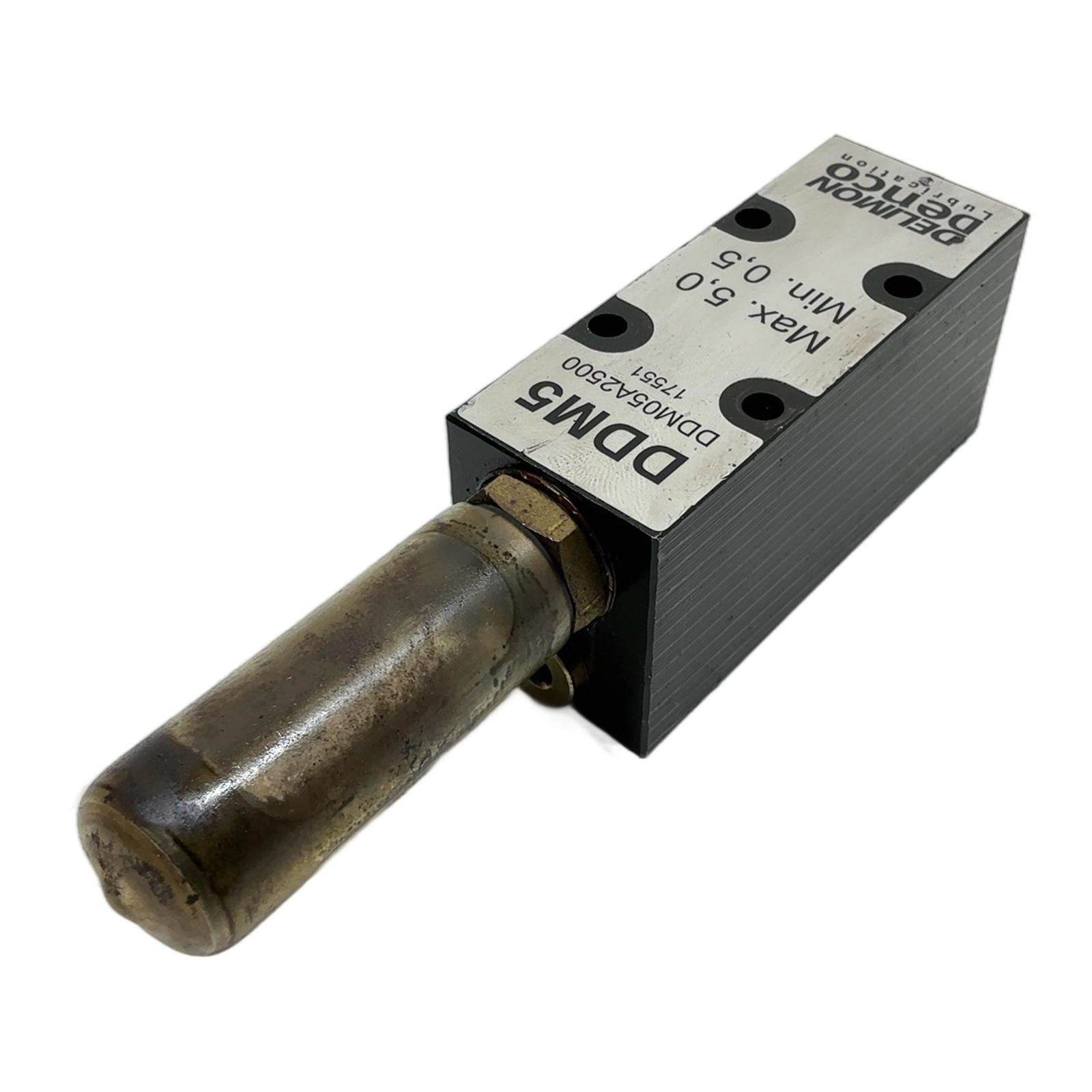

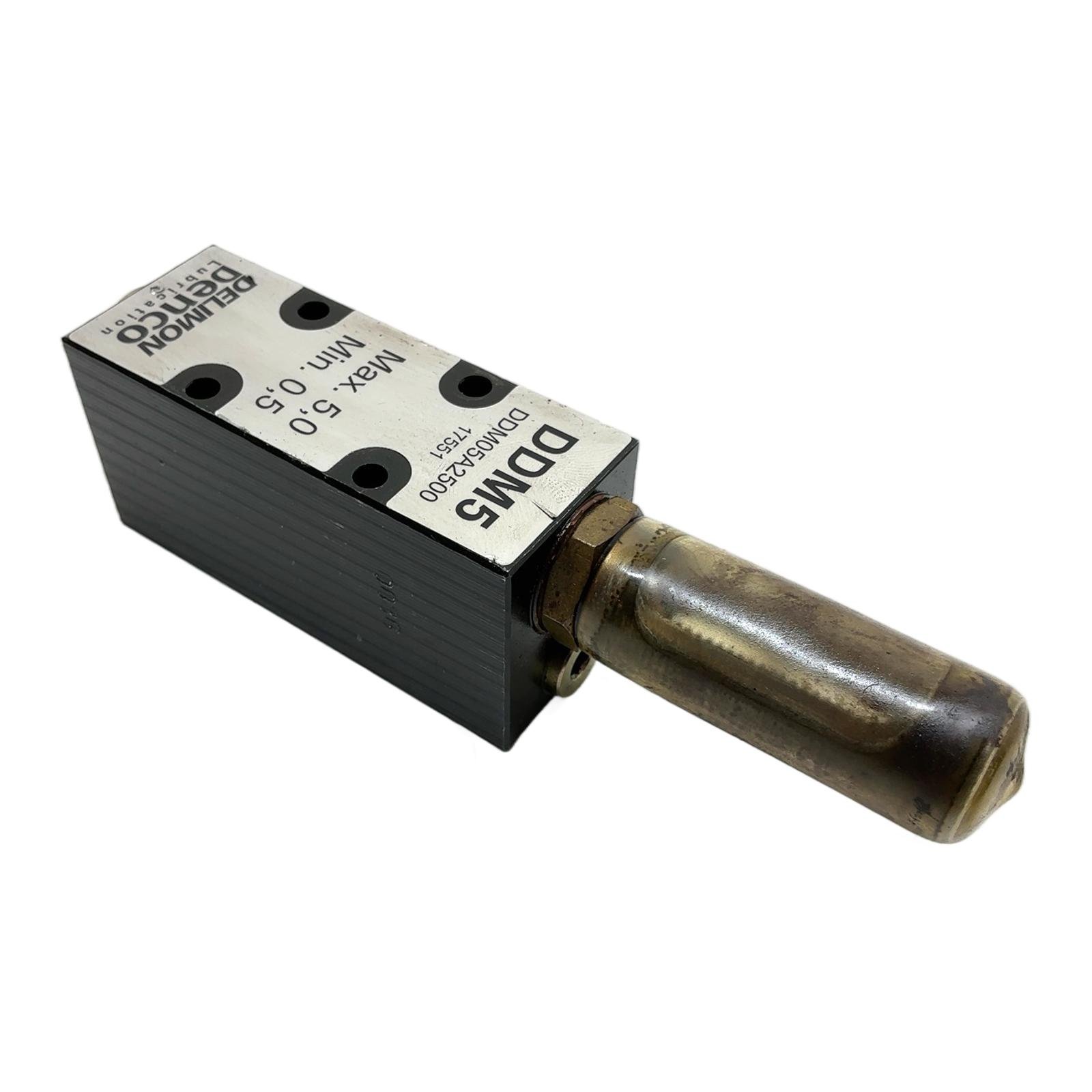

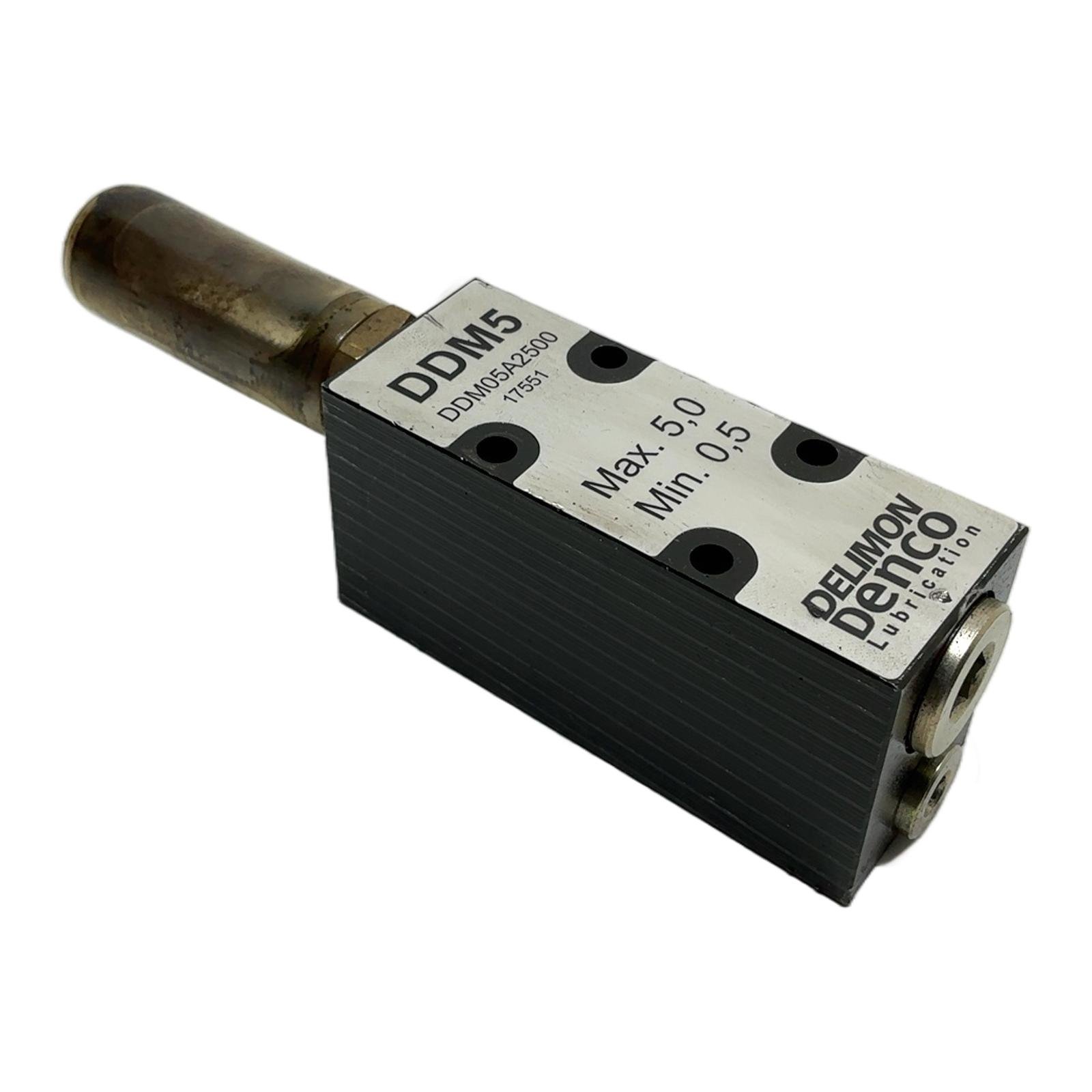

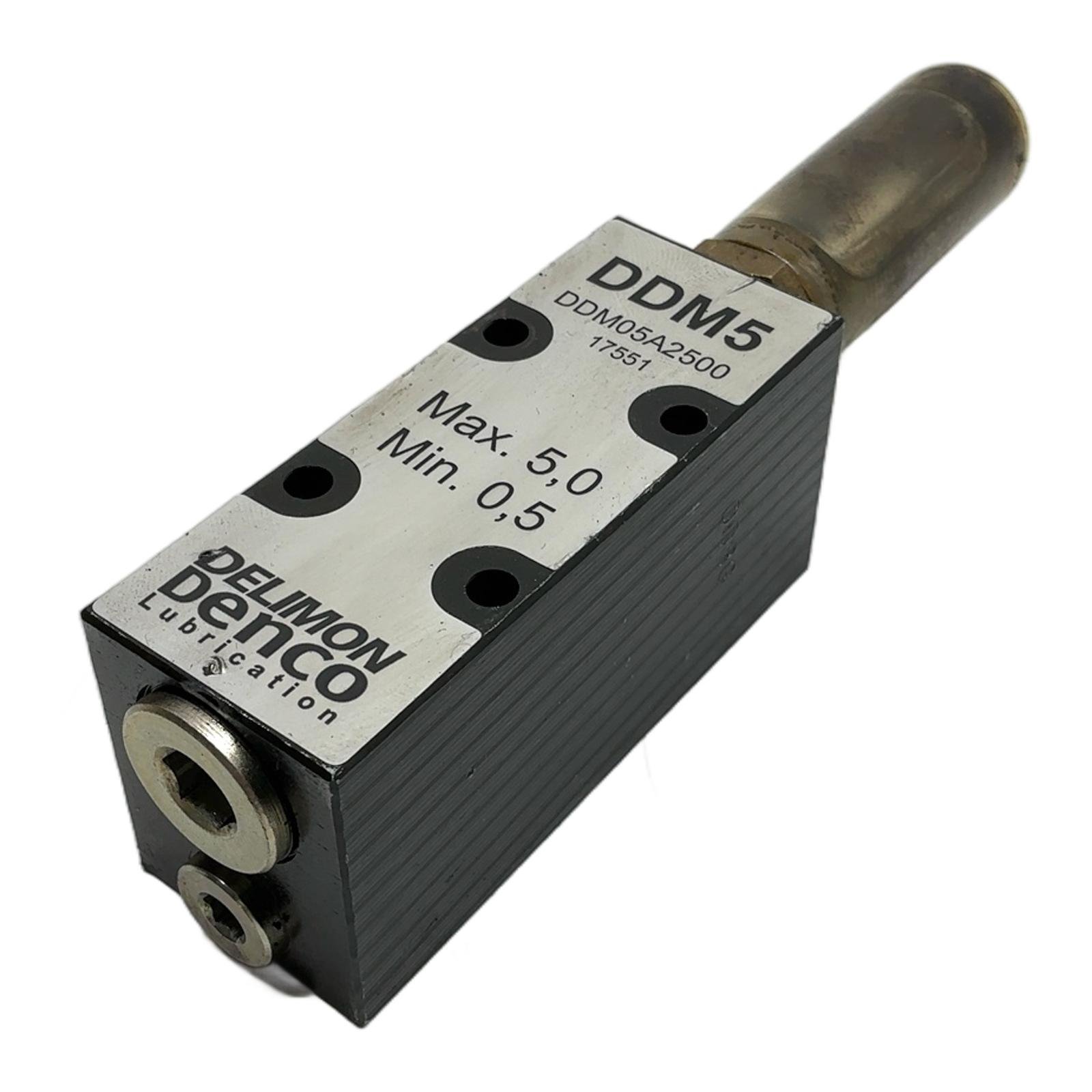

Delimon Denco DDM5 Progressive Distributor Description This Delimon Denco DDM5 is a progressive metering device designed for use in centralized lubrication systems. It reliably distributes lubricant to up to 5 lubrication points. The flow rate is adjustable, providing flexibility for various industrial applications. As a progressive feeder, it operates sequentially, ensuring that each outlet dispenses lubricant before the next cycle begins, which allows for easy monitoring of the system’s function. Specifications Manufacturer: Delimon Denco Series: DDM5 Part Number: DDM05A2500 Number of Outlets: 5 Metering Volume (per outlet, per stroke): Adjustable from 0.5 to 5.0 cm3 Operating Principle: Progressive Suitable Lubricants: Oil and Grease Label Info Model: DDM5 Type: DDM05A2500 Serial/Batch: 17551 Range: Max. 5,0, Min. 0,5 Application Ideal for automated lubrication of bearings, chains, and guides in industrial machinery such as presses, packaging machines, machine tools, and conveyor systems. Country of Origin Germany CO2 Impact By purchasing this pre-owned component, you are actively participating in the circular economy. You help save 12 kg of CO2 emissions compared to the production of a new part, contributing to a more sustainable industrial environment. Availability This item is a used, tested component. Availability is limited. Order now from profideals for expert support and fast delivery. FAQ What type of lubricant is compatible with the Delimon Denco DDM5 distributor?The DDM5 is designed for use with both oil and grease up to NLGI class 2. Always consult the machine’s manual for the specific lubricant viscosity and type required for your application. How is the metering volume adjusted on the DDM5?The metering volume is typically adjusted via a set screw on the block. It is crucial to ensure the system is depressurized before making any adjustments to prevent injury or damage. Can this 5-outlet distributor be modified for fewer lubrication points?Yes, in progressive systems, unused outlets can often be plugged. It is also possible to combine two adjacent outlets by removing the partition between them, effectively doubling the lubricant volume for a single point. This should only be done by a qualified technician. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
