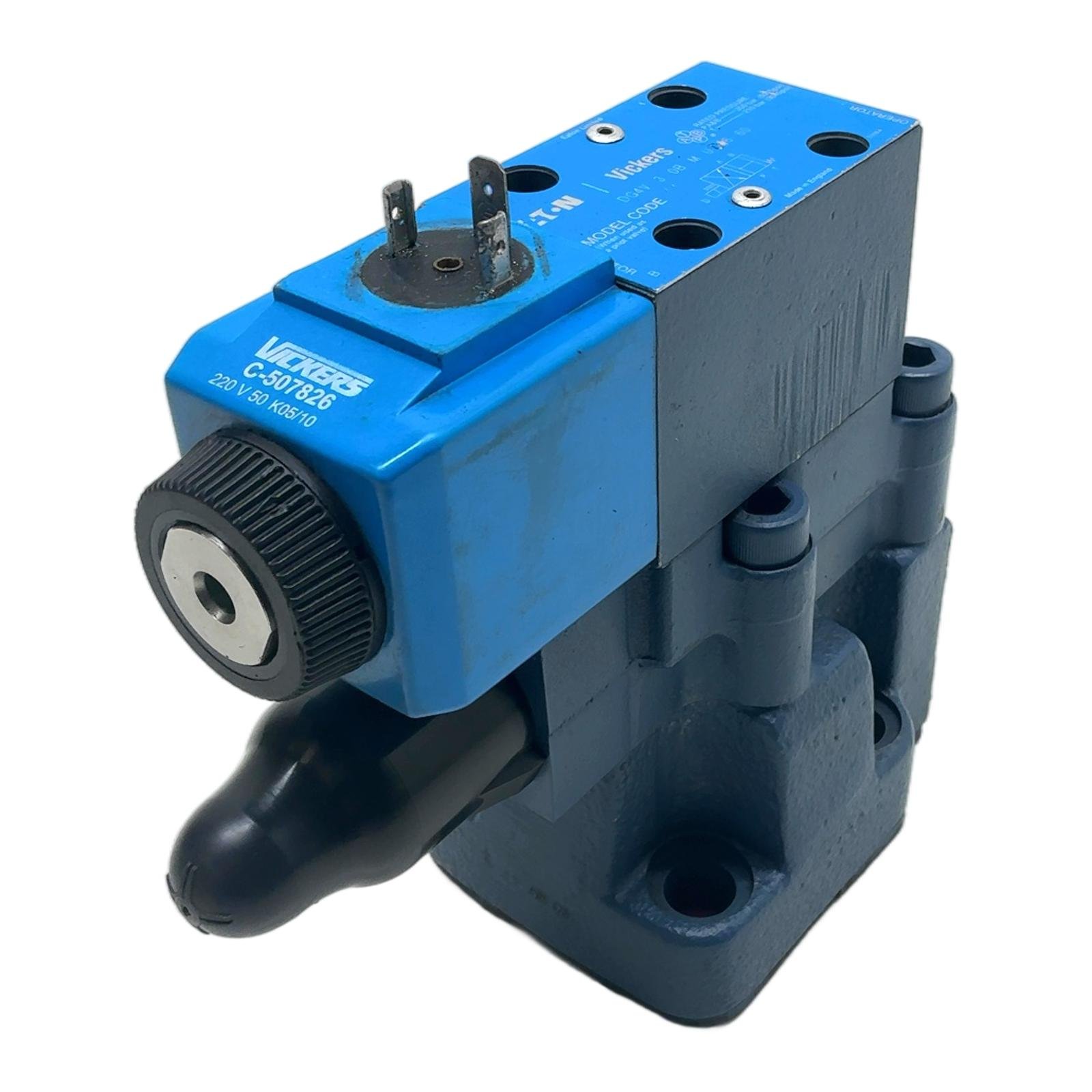

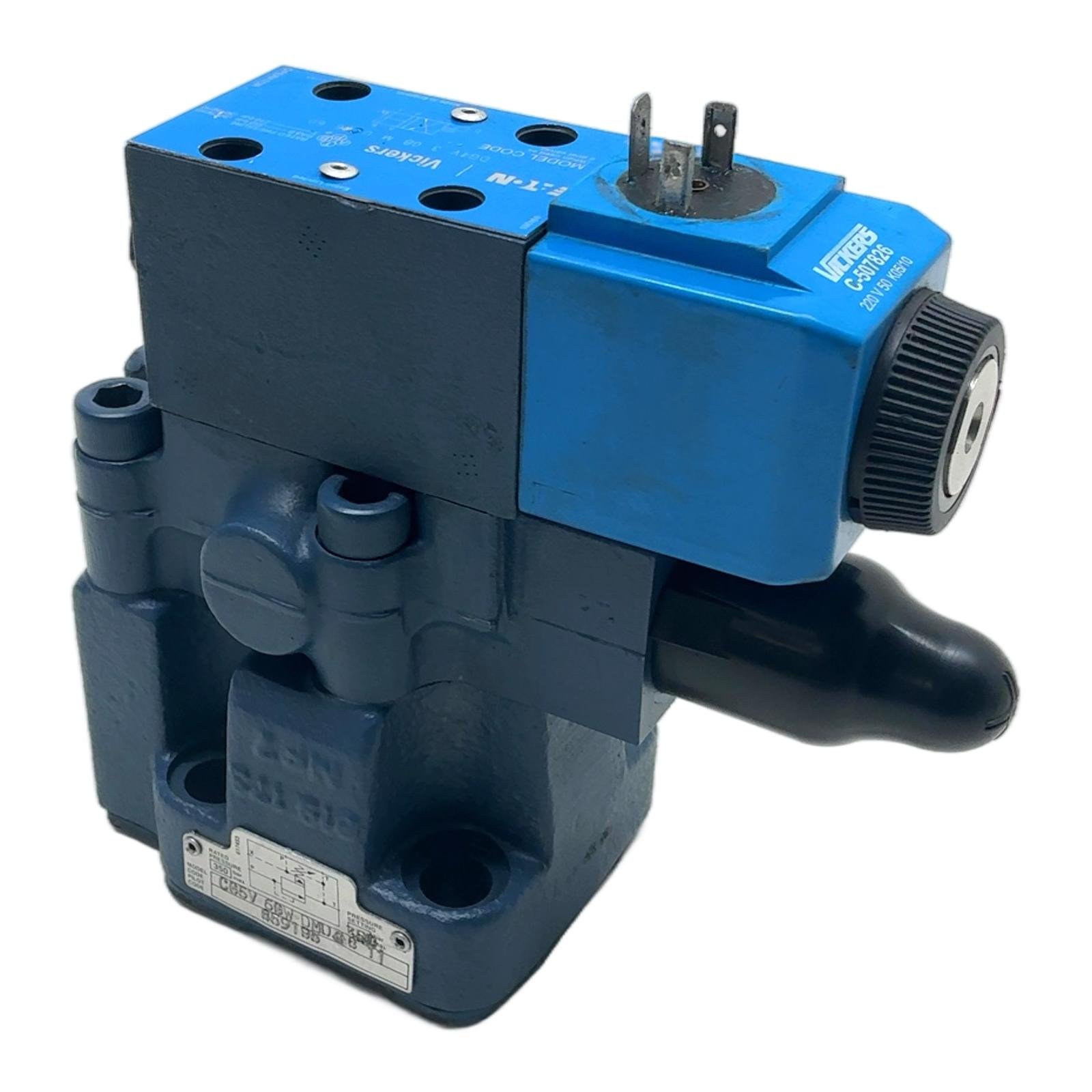

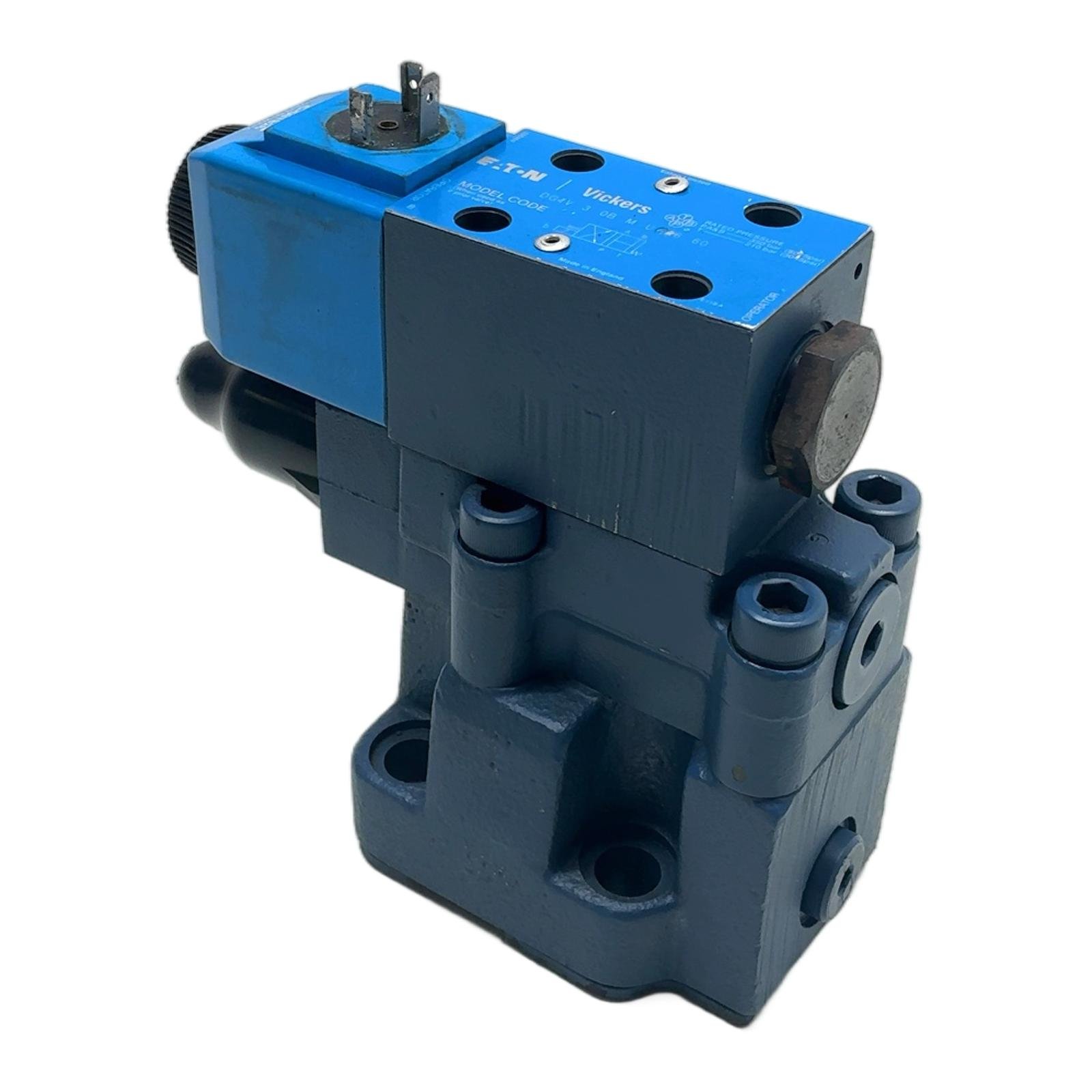

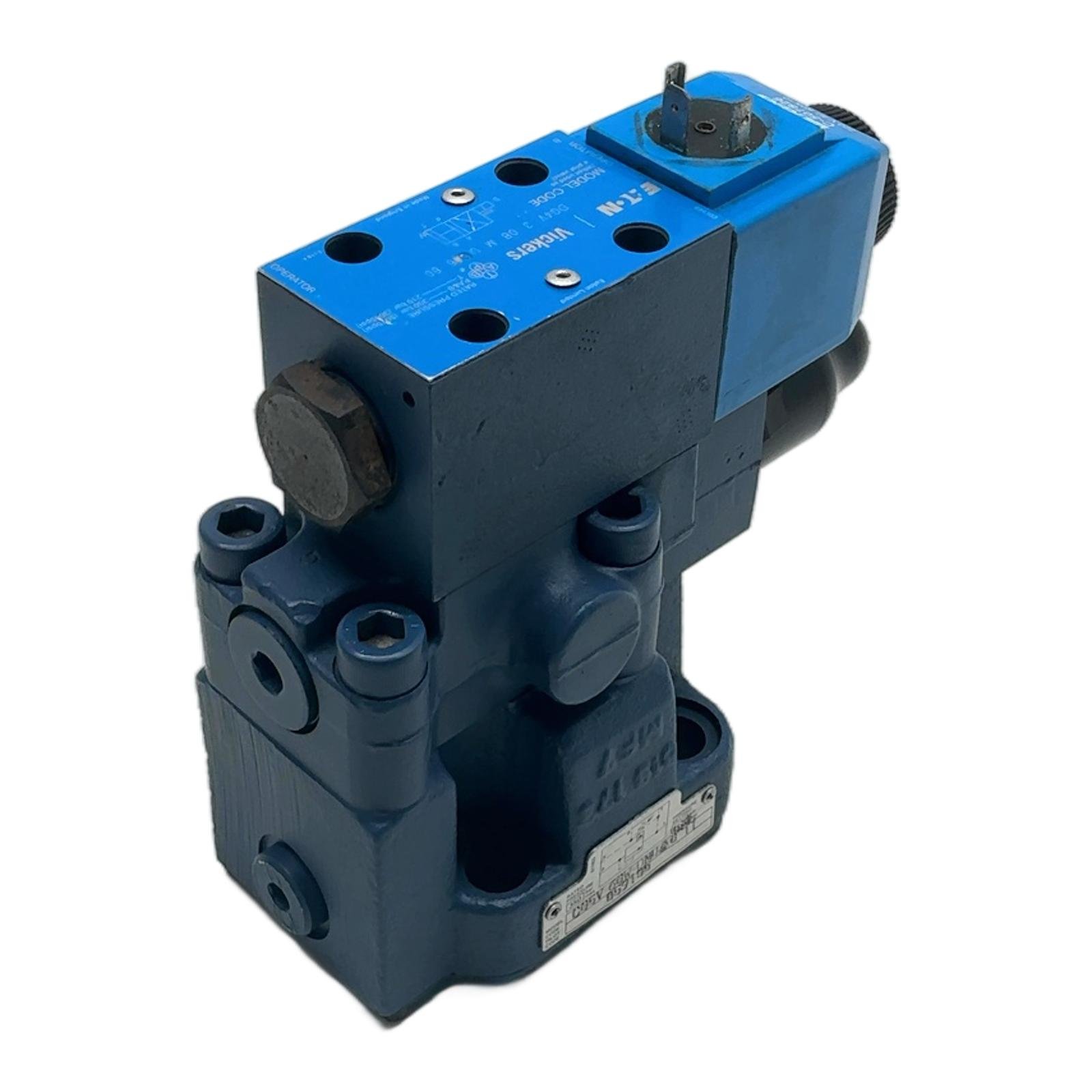

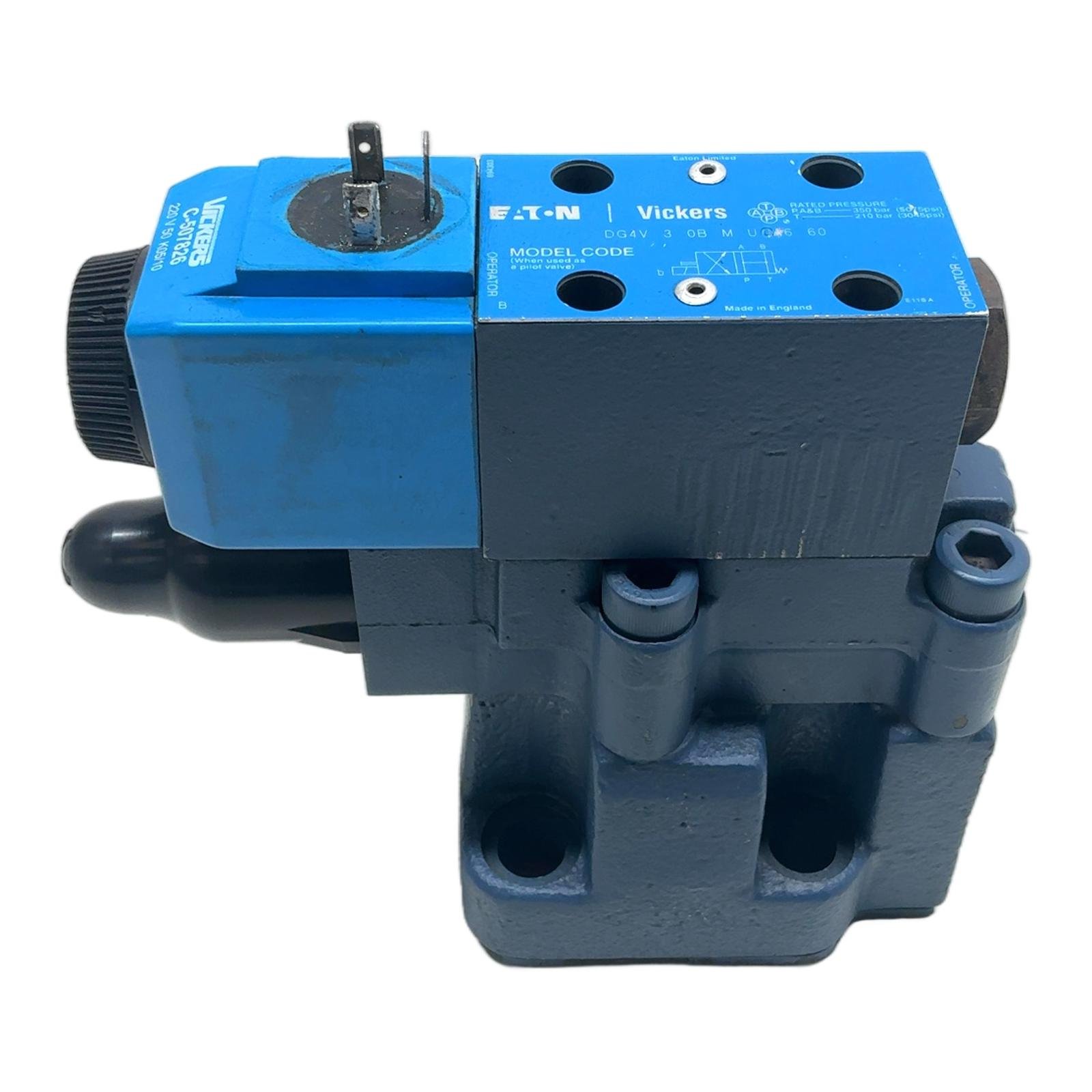

EATON VICKERS DG4V-3-0B-M-UC6-60 + CG5V-6GW-DMU-C6-11 859195

Eaton Vickers Hydraulic Valve Assembly DG4V and CG5V Series Description This is a complete hydraulic valve assembly from Eaton Vickers, combining a DG4V-3 series solenoid-operated directional control valve with a CG5V-6 series pilot-operated pressure relief valve. This modular unit is designed for high-pressure industrial applications, offering precise control over hydraulic fluid flow and system pressure. It features a robust cast iron body and a reliable 220V AC solenoid for actuation. Specifications Manufacturer: Eaton Vickers Pilot Valve Type: DG4V 3 0B M UC6 60 Base Valve Type: CG5V 6GW DMU C6 11 Max. Operating Pressure (P, A, B ports): 350 bar / 5075 psi Max. Tank Line Pressure (T port): 210 bar / 3045 psi Solenoid Coil Voltage: 220V 50Hz Coil Part Number: C-507826 Mounting Interface: CETOP / ISO standard Label Info Pilot Valve Code: DG4V 3 0B M U C6 60 Base Valve Code: CG5V 6GW DMU C6 11 Pilot Code: 859195 Application Ideal for use in industrial machinery such as hydraulic presses, machine tools, injection molding machines, and heavy mobile equipment where reliable directional and pressure control is critical. Country of Origin Made in the United Kingdom. CO2 Impact By reusing this component, you are avoiding approximately 15.0 kg of CO2 emissions from the production of a new one. Availability This unit is a used, tested item in excellent working condition. Available for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the function of the ‘0B’ spool in the DG4V-3 valve?The ‘0B’ spool is a ‘blocked center’ configuration. In the neutral (de-energized) position, it blocks the pressure port (P) and both work ports (A and B), while allowing flow from the work ports to the tank port (T). This is commonly used to hold a hydraulic actuator in a fixed position when the valve is not active. Can the 220V 50Hz AC coil (C-507826) be replaced with a different voltage, for example, 24V DC?Yes, the solenoid coil on Eaton Vickers DG4V-3 valves is modular and can be replaced. You would need to source a compatible 24V DC coil for the C6-style valve and ensure your control system is adapted for the different voltage and current requirements. What type of hydraulic fluid is recommended for this valve assembly?This valve assembly is designed for use with standard mineral oil-based hydraulic fluids (such as ISO VG 32, 46, or 68). For use with other fluids like water glycols or synthetic esters, you should consult the Eaton Vickers technical documentation to ensure seal compatibility. profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. Last Update: March 13, 2026
