SCHNEIDER ELECTRIC ABE7 R16S210

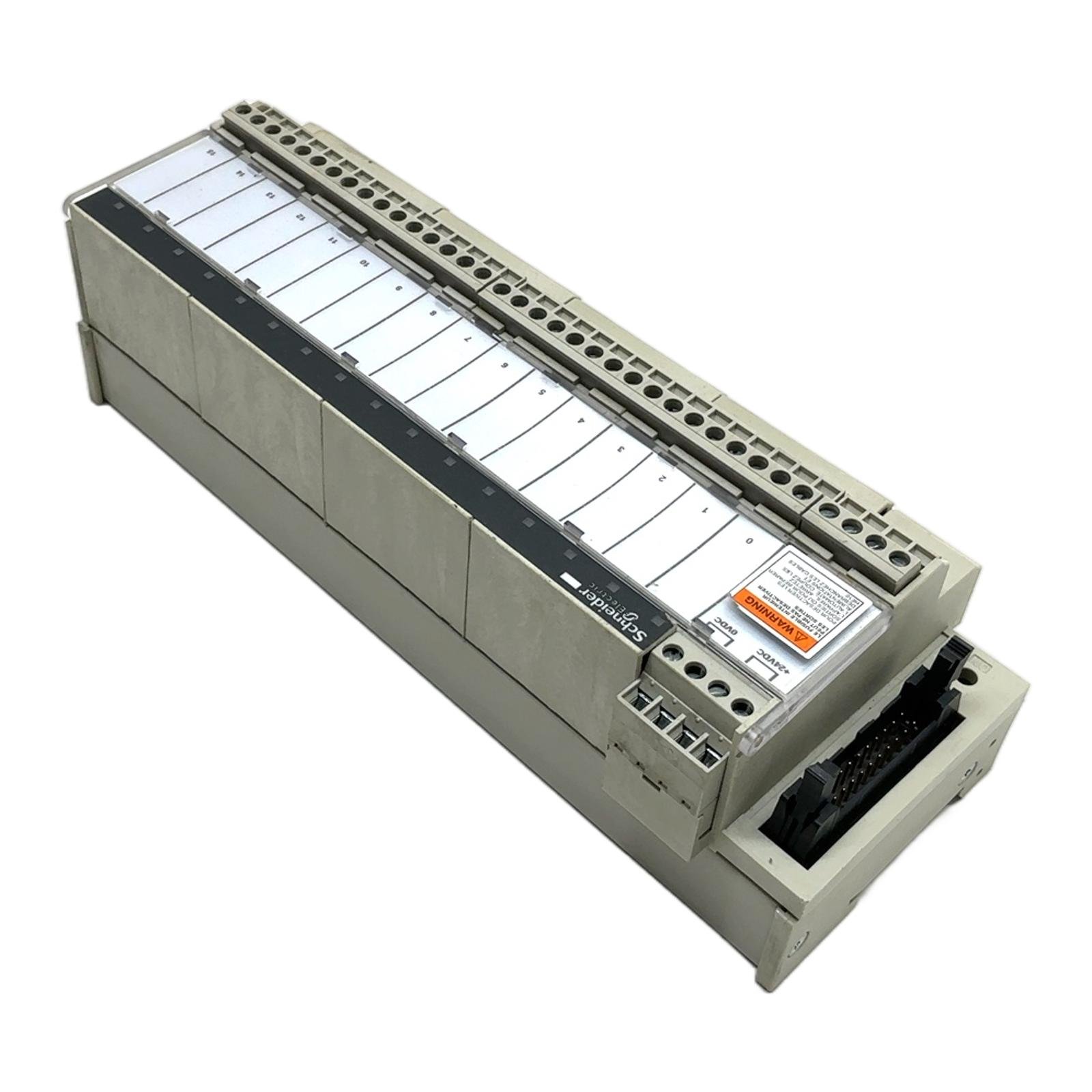

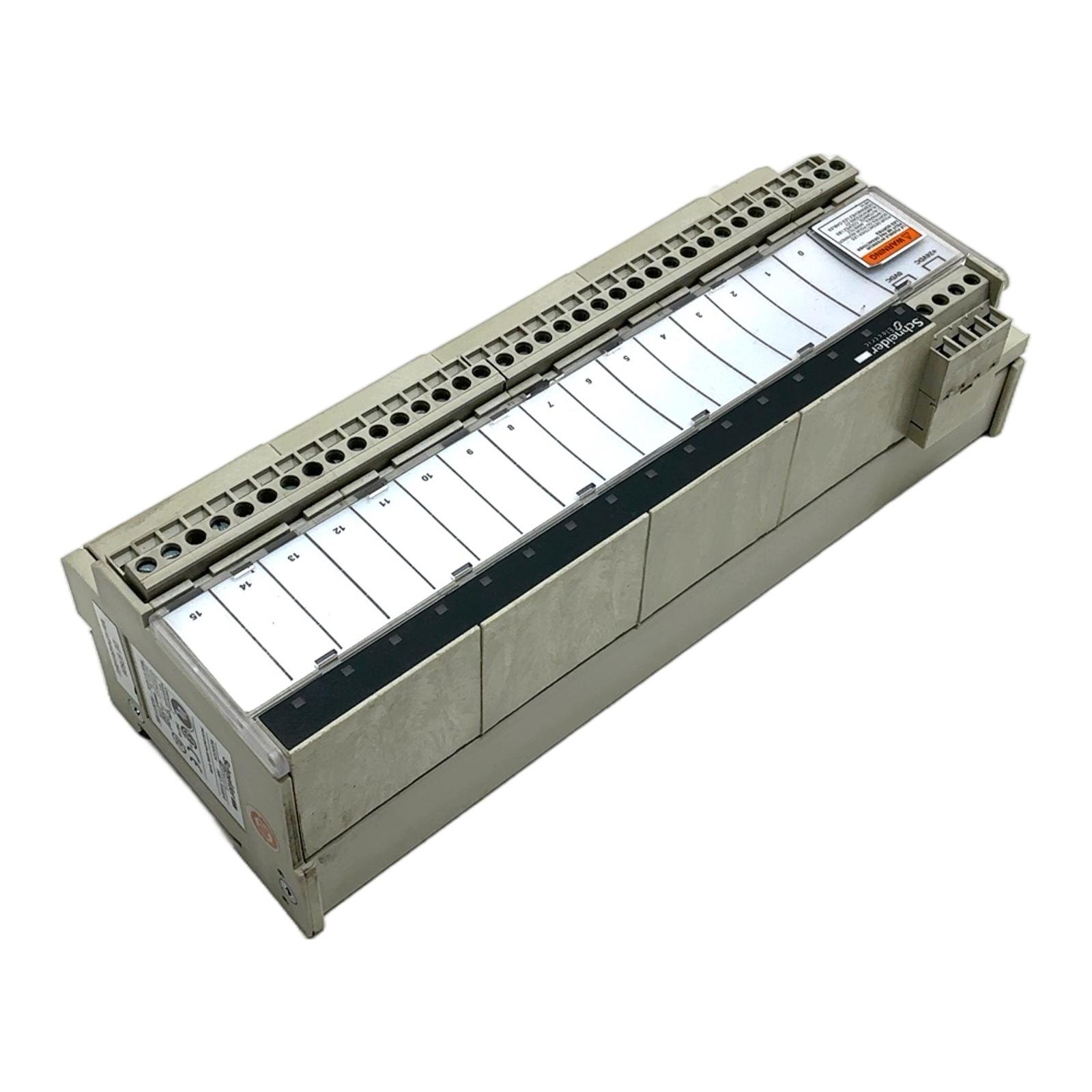

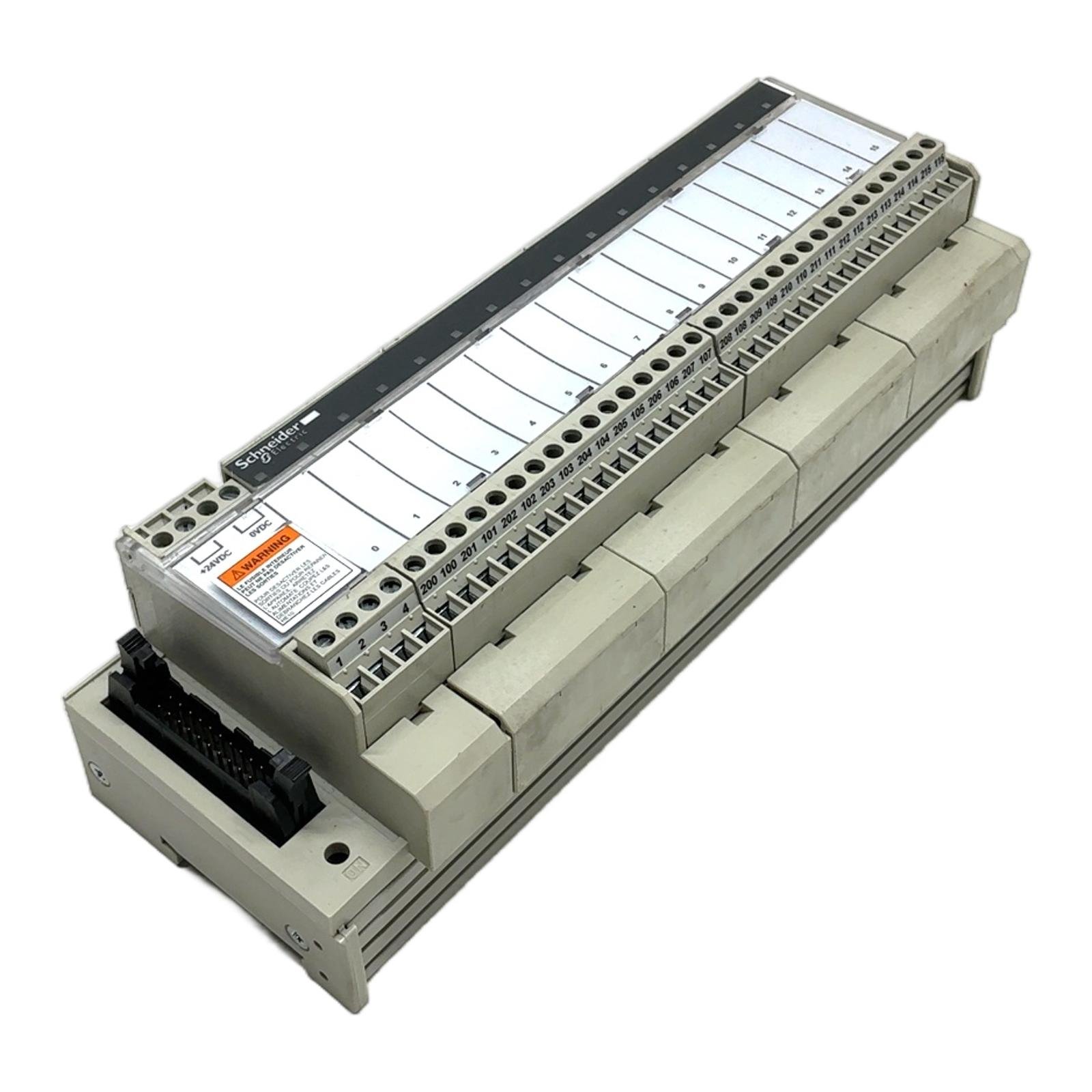

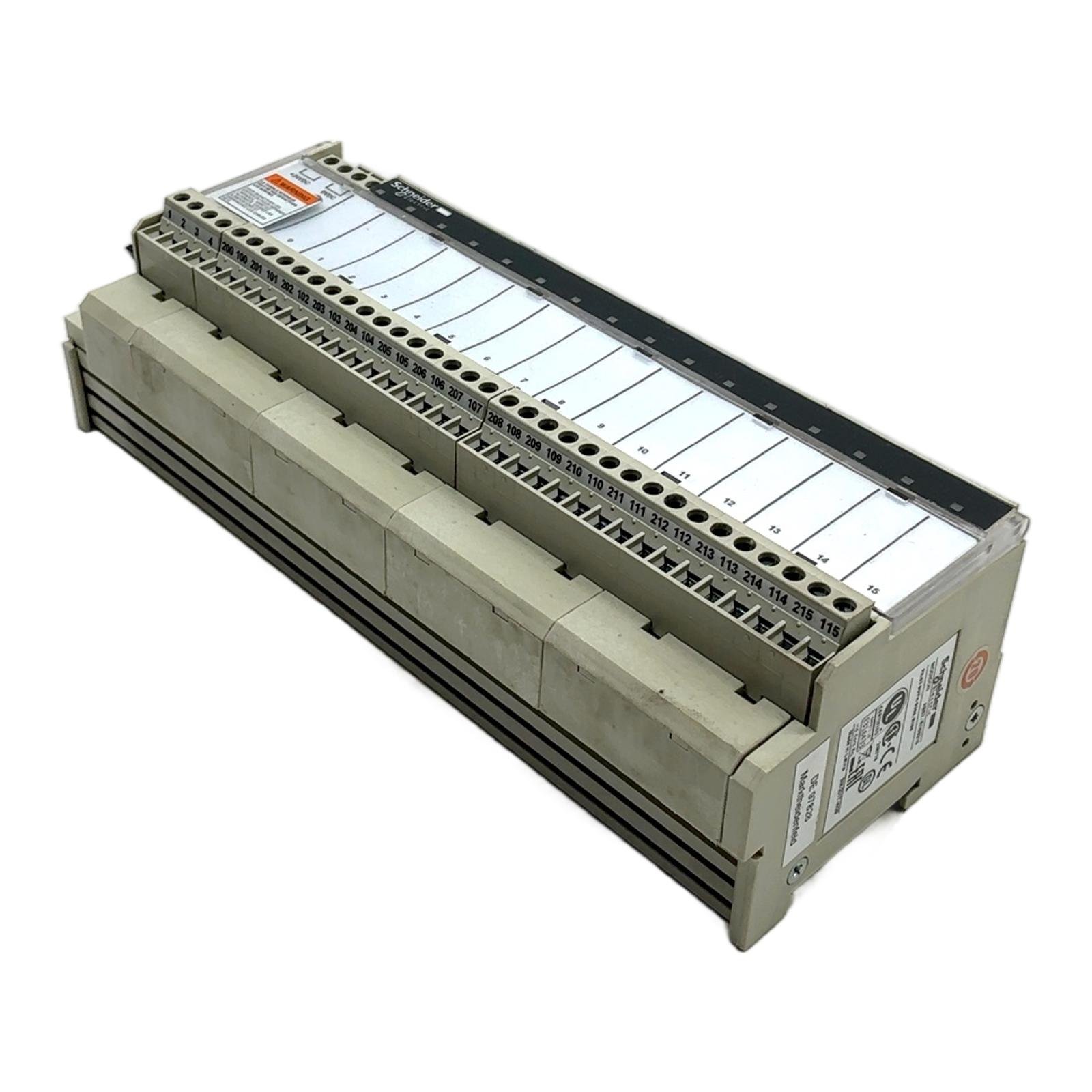

Schneider Electric ABE7 R16S210 Telefast Connection Base Description The ABE7 R16S210 is a Telefast 2 connection interface module designed for Modicon PLC systems. It provides a pre-wired solution for connecting 16 relay outputs, simplifying control panel wiring and maintenance. This base is equipped with screw terminals for secure field wiring and LEDs for channel status indication. Specifications Manufacturer: Schneider Electric Product Line: Modicon ABE7 Model: ABE7 R16S210 Product Type: Connection Base for Relay Outputs Number of Channels: 16 Terminal Type: Screw terminals Rated Supply Voltage: 19 to 30 V DC Maximum Current per Output: 2 A Fixing Mode: By clips on 35 mm DIN rail or by screws Label Info Model: MODICON ABE7 R16S210 Pilot Duty: B300, R150 Certifications: UL, CSA, CE, EAC, GL Made in Latvia Application This module is ideal for interfacing with Schneider Electric Modicon M340, Premium, and Quantum PLC relay output cards, providing a fast and reliable connection point for actuators like contactors, solenoid valves, and indicator lights. Country of Origin This product is manufactured in Latvia. CO2 Impact Choosing this reused ABE7 R16S210 connection base over a new one saves an estimated 15.2 kg of CO2, which is comparable to the emissions of driving a car for 76 kilometers. This decision supports sustainable industrial practices by reducing manufacturing demand and waste. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What PLC series is the ABE7 R16S210 compatible with?The ABE7 R16S210 is primarily designed for use with Schneider Electric’s Modicon M340, Modicon Quantum, and Premium PLC series. It connects to 16-channel relay output modules via a standard HE10 connector cable. What is the maximum current rating per channel for this connection base?Each of the 16 channels on the ABE7 R16S210 is rated for a maximum current of 2 A per output. The total current for the entire module should not exceed the rating specified in the technical documentation, typically related to the common connections. Does this module provide any channel isolation or protection?The ABE7 R16S210 is a passive connection base. It provides a terminal for a protective fuse (5×20 mm) for each of the 16 output channels, but the fuses themselves are not included. It does not provide galvanic isolation; this is typically a function of the PLC output card it connects to. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller, or representative of the products featured on this website. All product names, trademarks, brands, and logos used on this site are the property of their respective owners.
