DELIMON DENCO DDM5 DDM05A2500

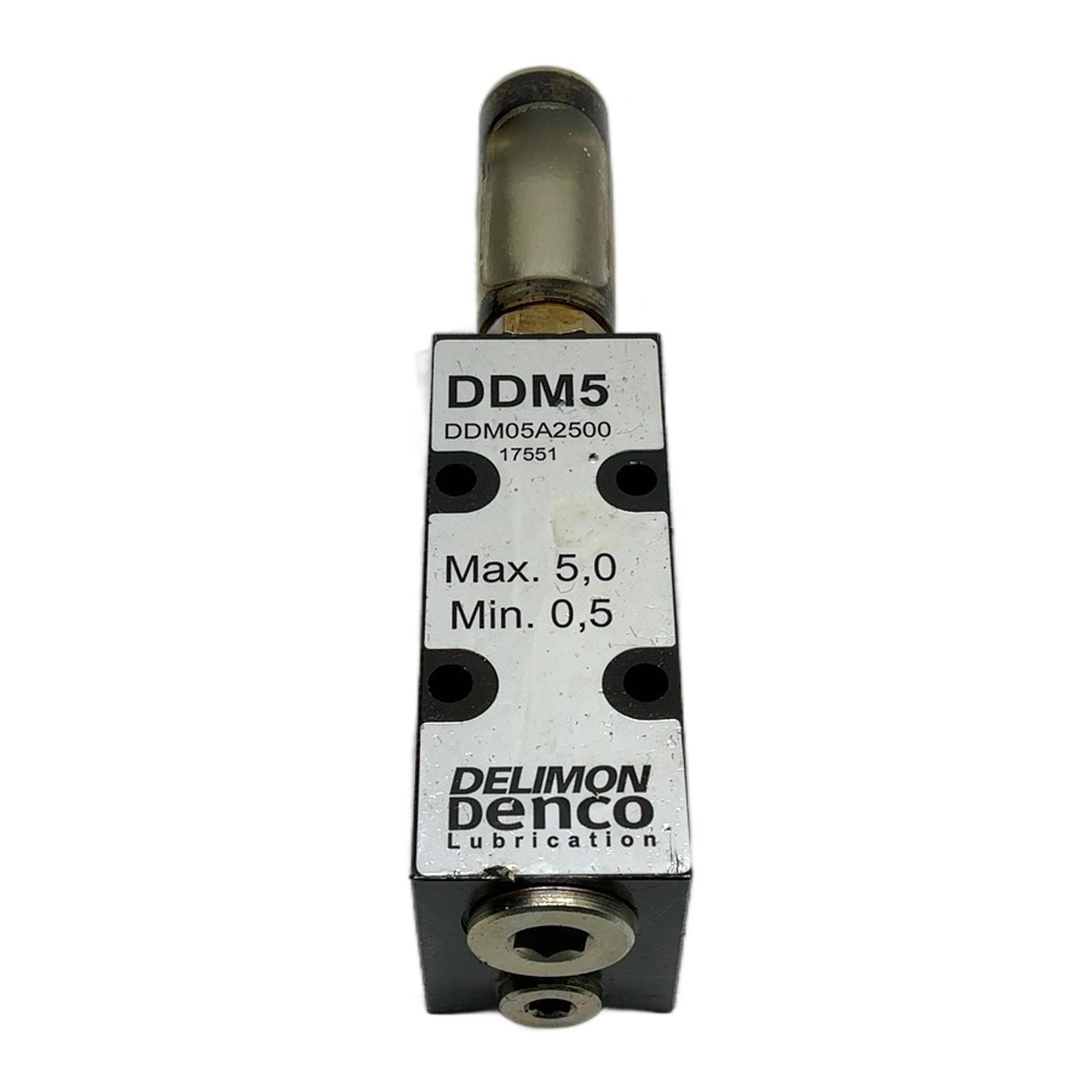

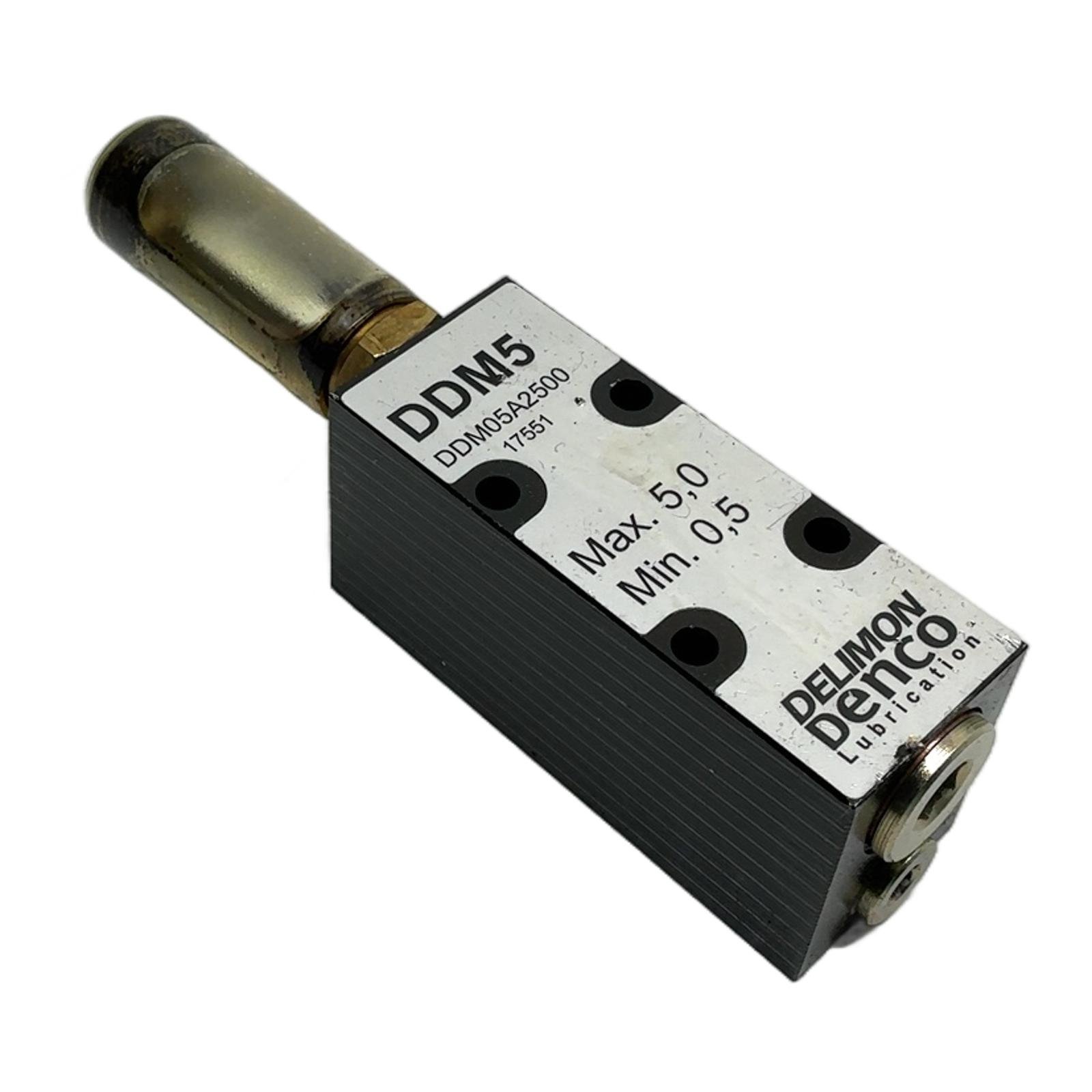

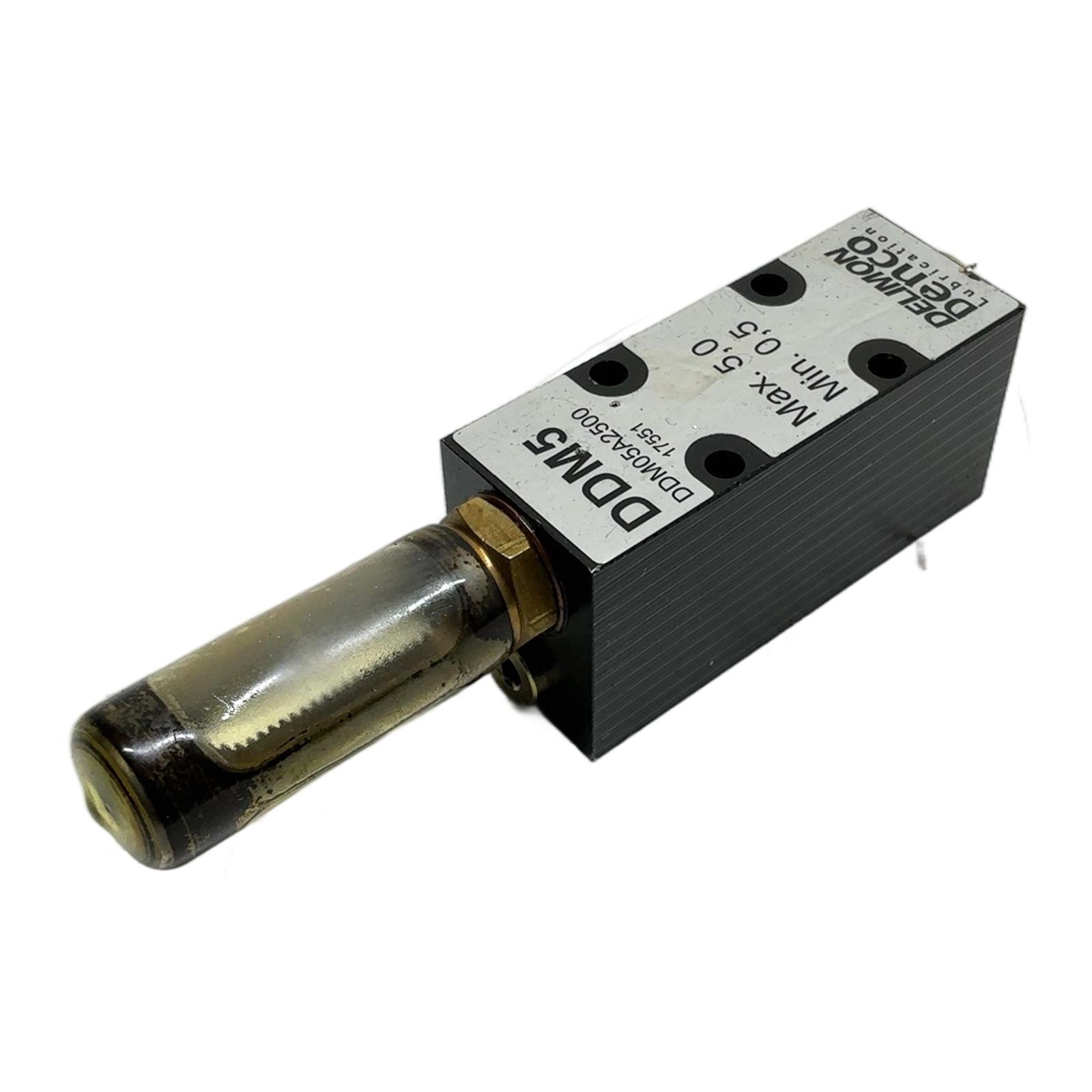

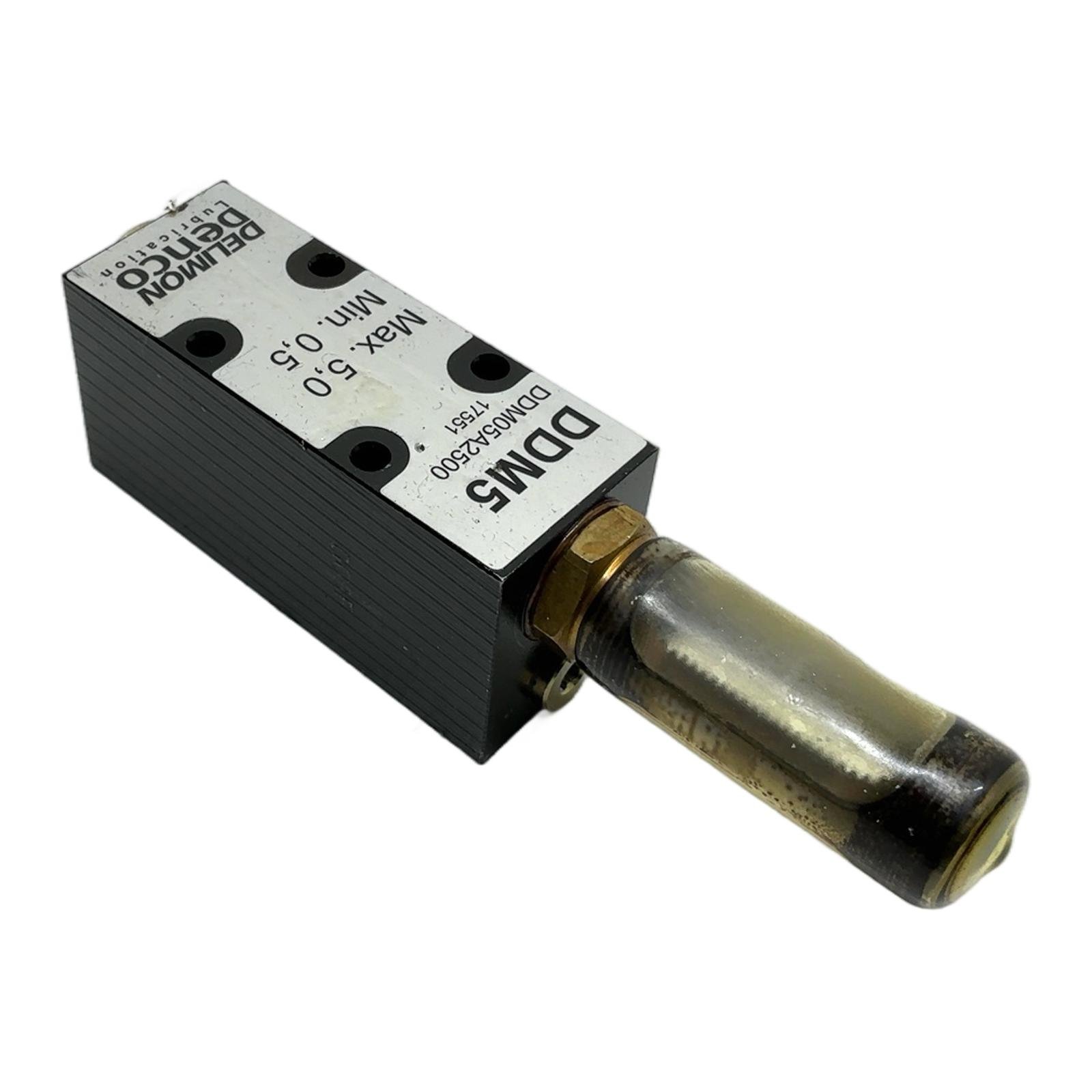

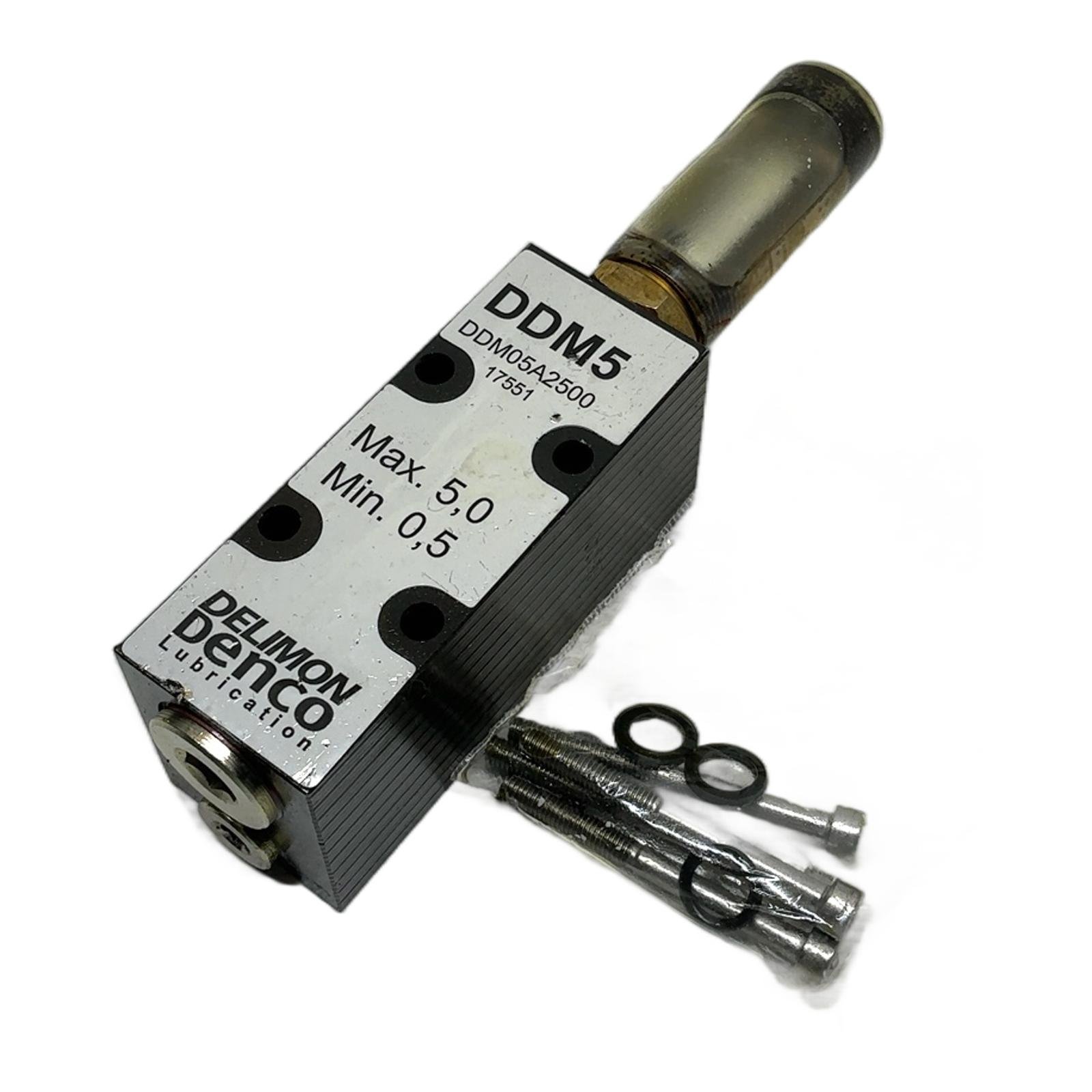

Delimon Denco DDM5 Dual-Line Lubrication Distributor Description The Delimon Denco DDM5 is a modular dual-line metering device designed for use in centralized lubrication systems. It accurately dispenses lubricant to various points on industrial machinery, ensuring optimal performance and reduced wear. This distributor features an adjustable output, allowing for precise control over the amount of lubricant delivered with each cycle. Its robust construction makes it suitable for heavy-duty applications in various industries. Specifications Manufacturer: Delimon Denco (SKF Group) Model: DDM5 Part Number: DDM05A2500 Type: Dual-Line Lubrication Distributor Adjustable Output: 0.5 cm3 (Min) to 5.0 cm3 (Max) per outlet/stroke Indicator: Visual cycle indicator pin Label Info Model: DDM5 Part Number: DDM05A2500 ID: 17551 Max: 5,0 Min: 0,5 Application This metering device is ideal for applications in heavy industry, including steel mills, paper manufacturing, cement plants, and large-scale machining centers, where reliable and precise lubrication is critical. Country of Origin Germany CO2 Impact Reusing this component saves approximately 16.0 kg of CO2, which would have been generated during the manufacturing of a new part. This choice supports a circular economy and reduces industrial waste. Availability This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery. FAQ What is the operating pressure range for the DDM5 distributor? Dual-line lubrication systems, for which the DDM5 is designed, typically operate at pressures up to 400 bar (5800 psi). However, it is crucial to consult the specific technical manual for your system’s exact pressure limits. How do I adjust the lubricant output on the DDM5? The output is adjusted via a screw on each outlet section. Turning the screw changes the stroke of the internal metering piston, thus altering the discharged volume between the minimum (0.5 cm3) and maximum (5.0 cm3) values. Can this distributor be used with both oil and grease? Yes, Delimon Denco dual-line distributors are generally designed to handle both oil (minimum viscosity of 40 mm2/s) and grease (up to NLGI class 2, and sometimes class 3, depending on system parameters). Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
