AKN BMF101212 (10pcs)

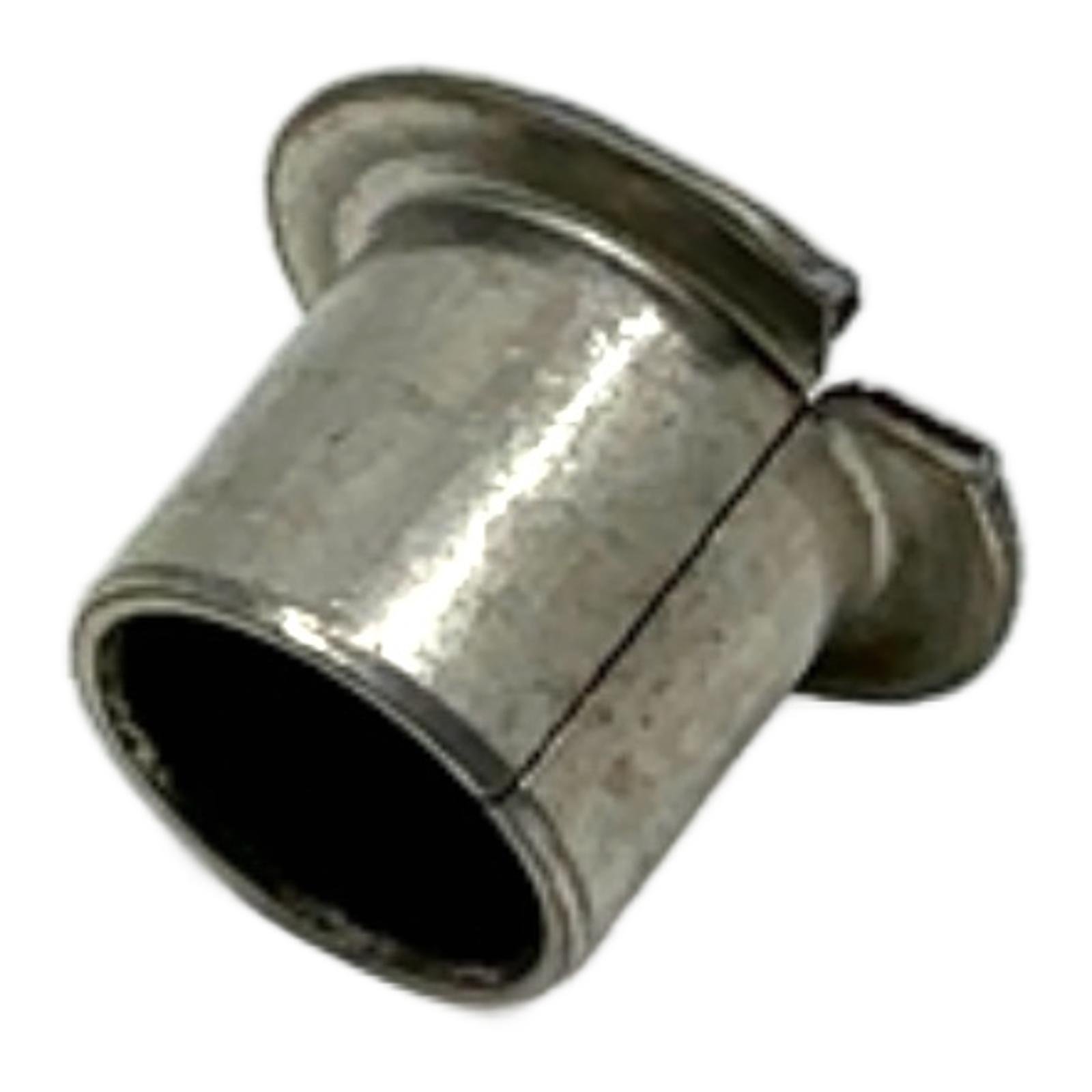

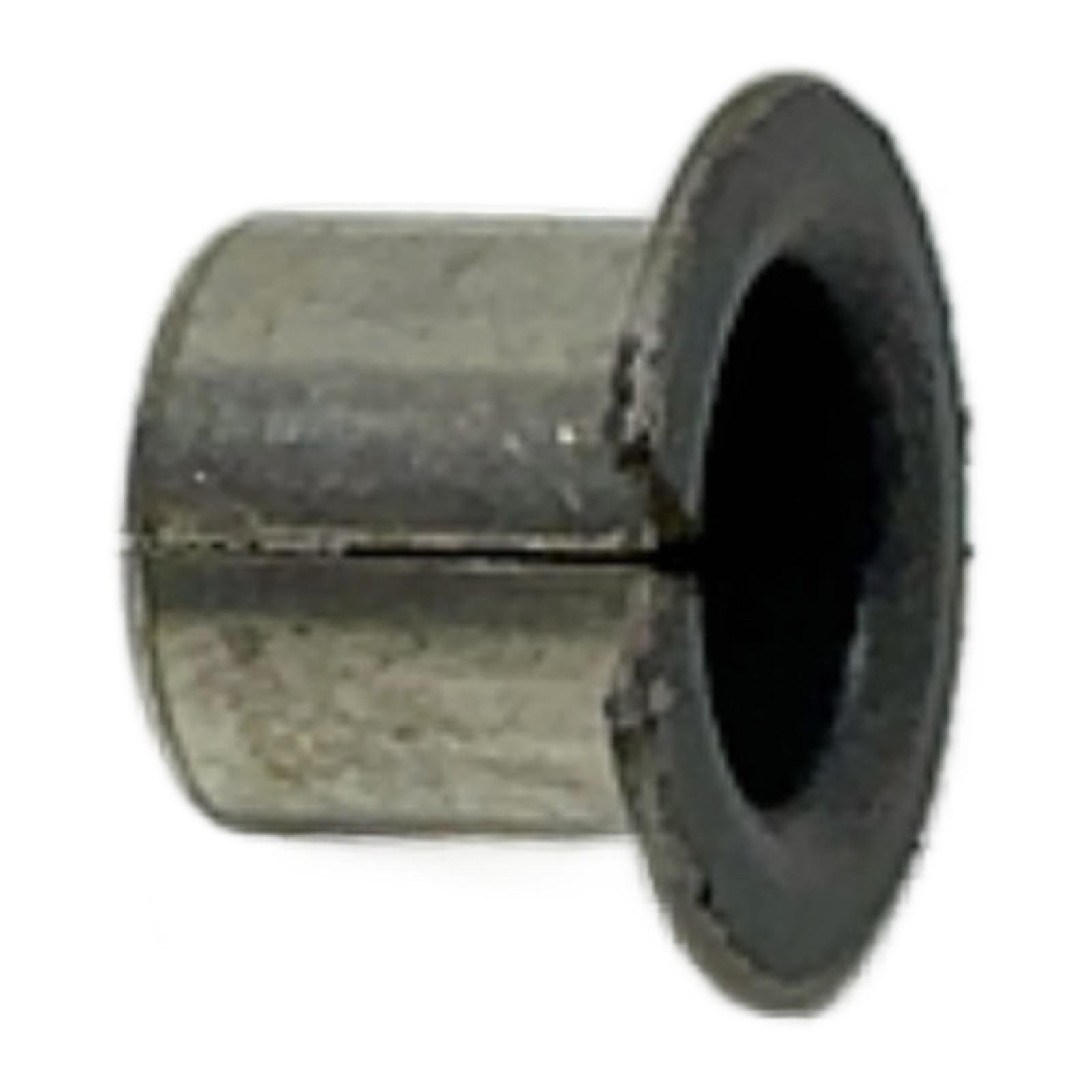

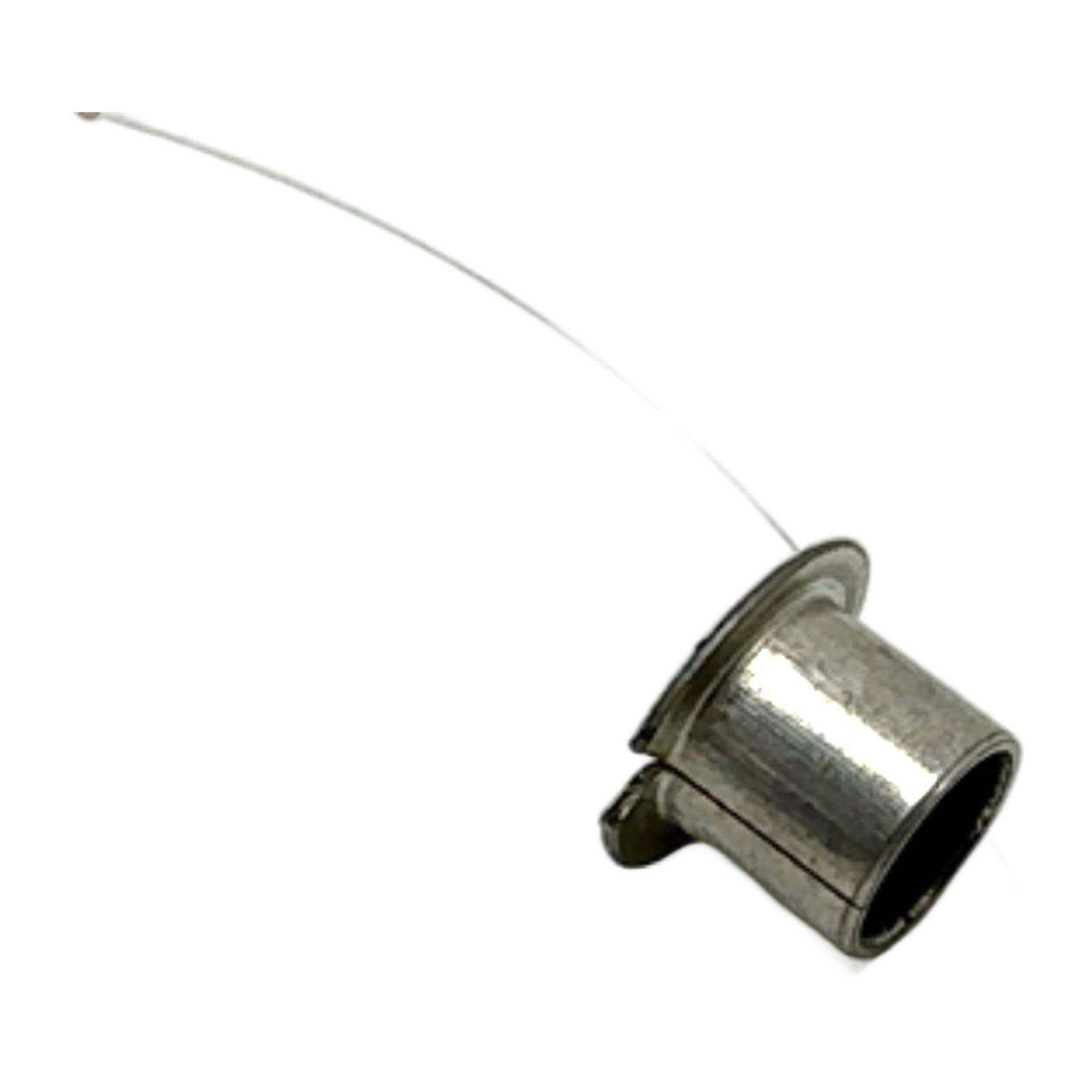

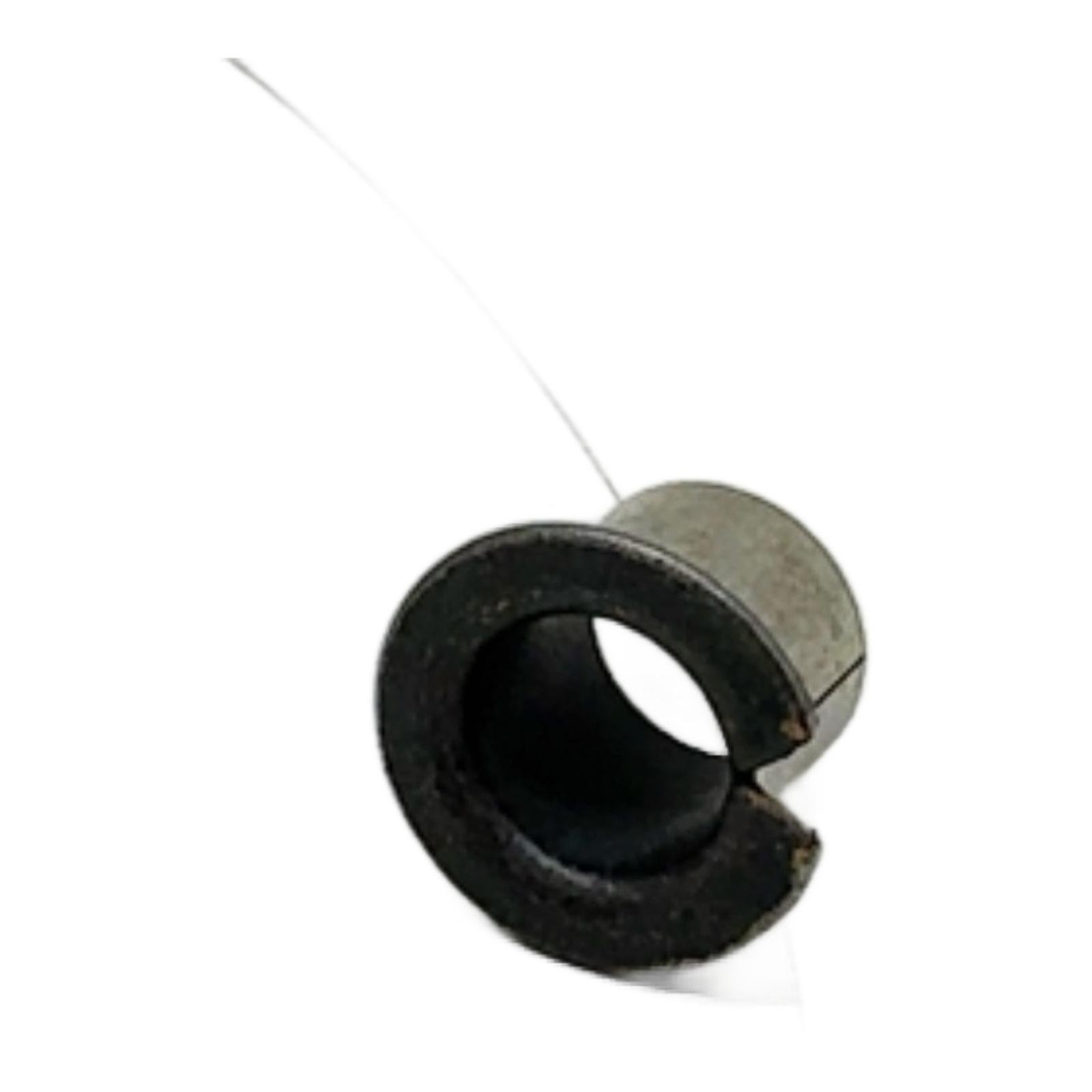

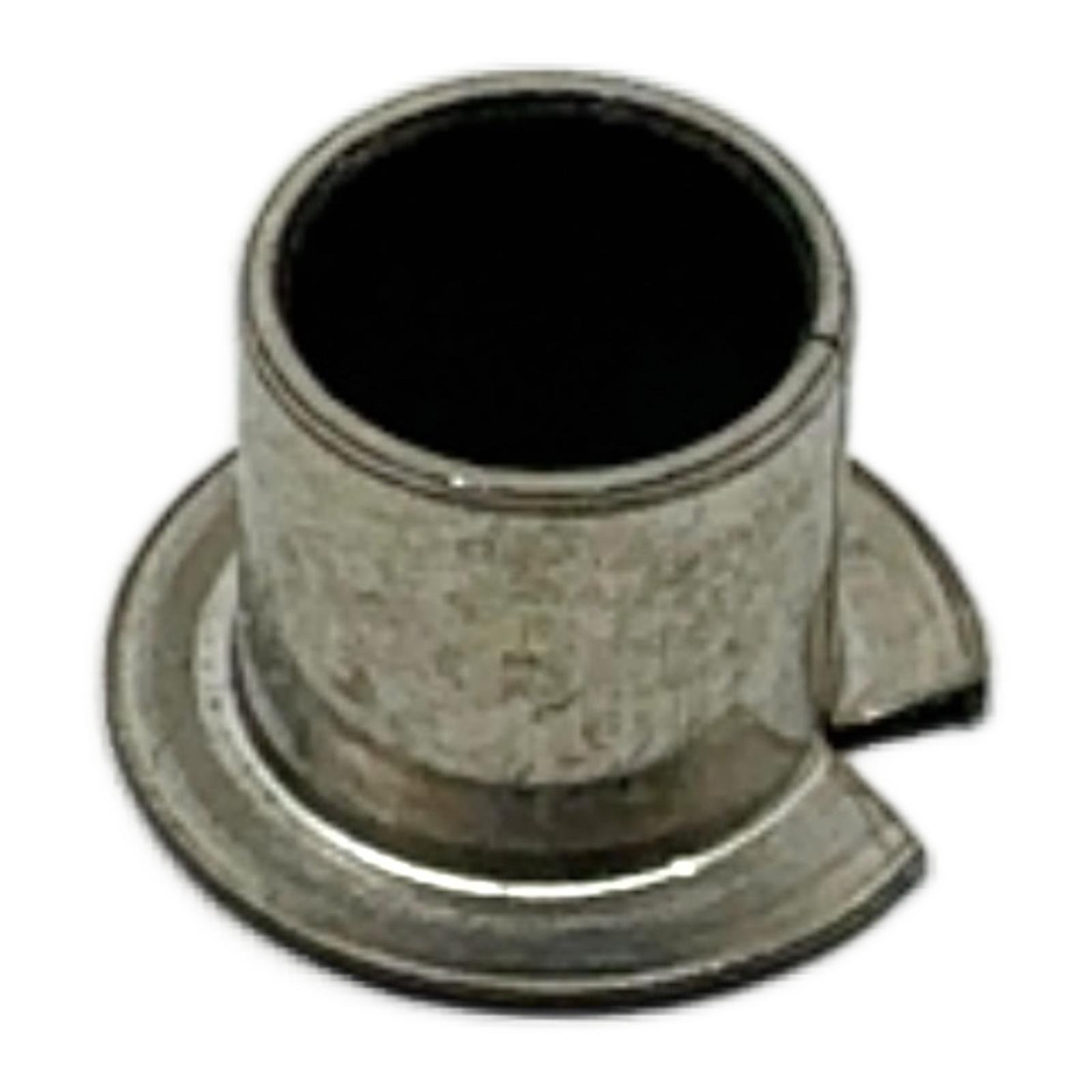

AKN Bimetal Flanged Bushing 10x12x12mm Description This is a bag of high-performance flanged plain bearings, model BMF 101212, from AKN. These bushings are designed for maintenance-free operation under demanding conditions. With an inner diameter of 10mm, outer diameter of 12mm, and a length of 12mm, they are suitable for a wide range of industrial applications. The bimetal construction consists of a steel backing for high load capacity and a sintered bronze sliding layer for excellent low-friction and wear-resistant properties. Specifications Inner Diameter (ID): 10 mm Outer Diameter (OD): 12 mm Length (L): 12 mm Material: Bimetal (Steel back with sintered bronze layer) Type: Flanged Bushing (Kraagbus) Standard: Conforms to DIN 1494 / ISO 3547 Label Info Brand: AKN Model Code: BMF 101212 GLIJLAGERKRAAGBUS Article Number: 03435389 Application These bushings are widely used in mechanical and automotive engineering, agricultural machinery, hydraulic cylinders, and general industrial equipment for pivot points, hinges, and guide assemblies. CO2 Impact By choosing this reused bag of bushings, you contribute to a circular economy and avoid the emission of approximately 0.12 kg of CO2, which is equivalent to the energy needed to charge a smartphone more than 14 times. Availability This item is in stock and ready for immediate dispatch. This listing is for the complete bag of bushings. Order now from profideals for expert support and fast delivery. FAQ Are these bushings self-lubricating?These are bimetal bushings with a sintered bronze layer. They are designed for low-friction operation and are often considered self-lubricating for many applications, especially with initial greasing. For high-speed or high-load applications, periodic lubrication is recommended. What are the tolerances for the inner and outer diameters?These bushings typically conform to DIN 1494 / ISO 3547 standards. For a 10mm inner diameter, the tolerance is usually H7 after pressing into a housing. The outer diameter has a tolerance designed for a press-fit into a standard H7 bore. Always consult the manufacturer’s datasheet for precise tolerance values. Can these bushings be used in wet or corrosive environments?The primary material is a steel backing, which is susceptible to corrosion. While the bronze sliding layer offers some resistance, these standard bimetal bushings are best suited for dry, clean environments. For corrosive applications, consider polymer or stainless steel bushings. Last Update: Friday, March 13, 2026 profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.
