VICKERS DG4V 5 2A M U C

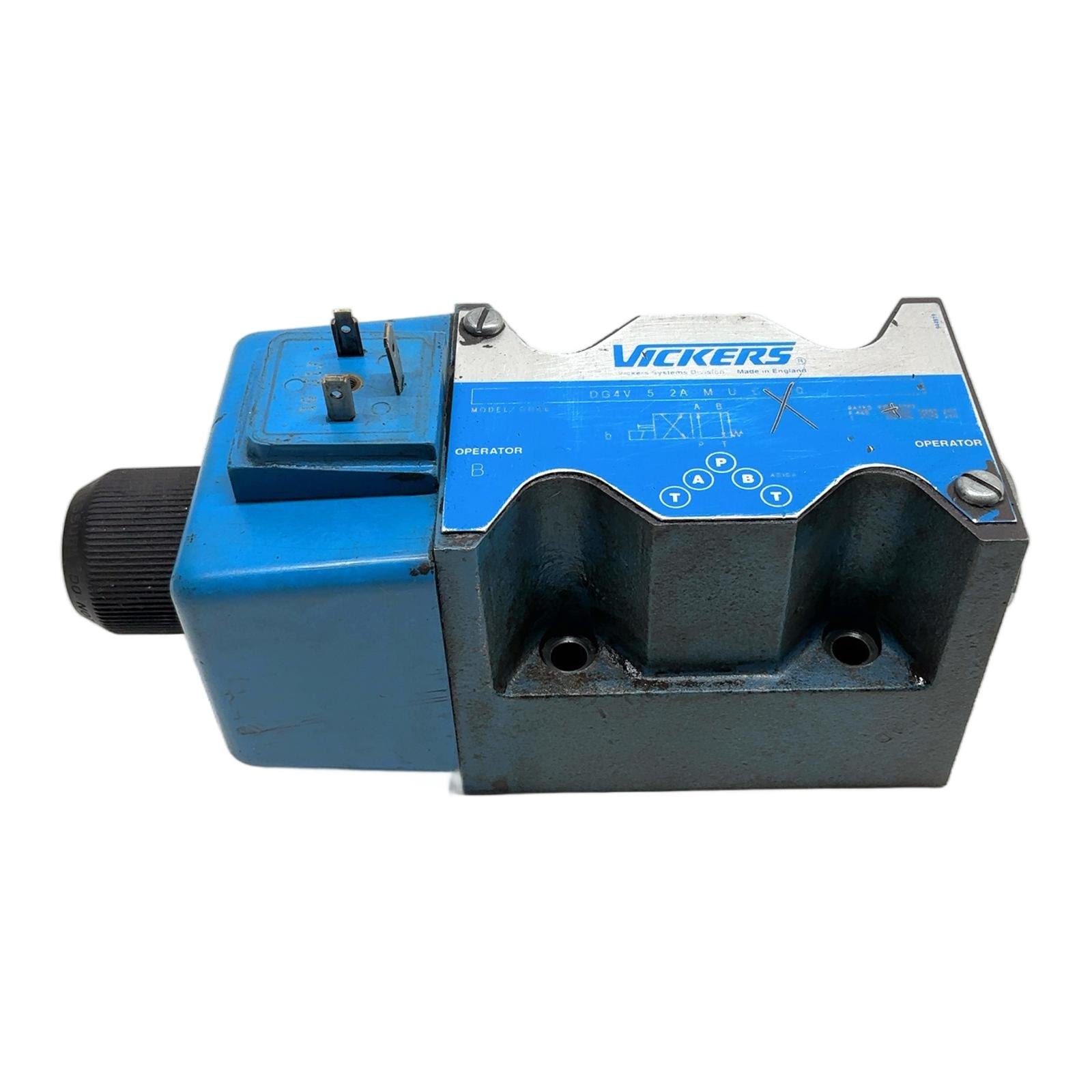

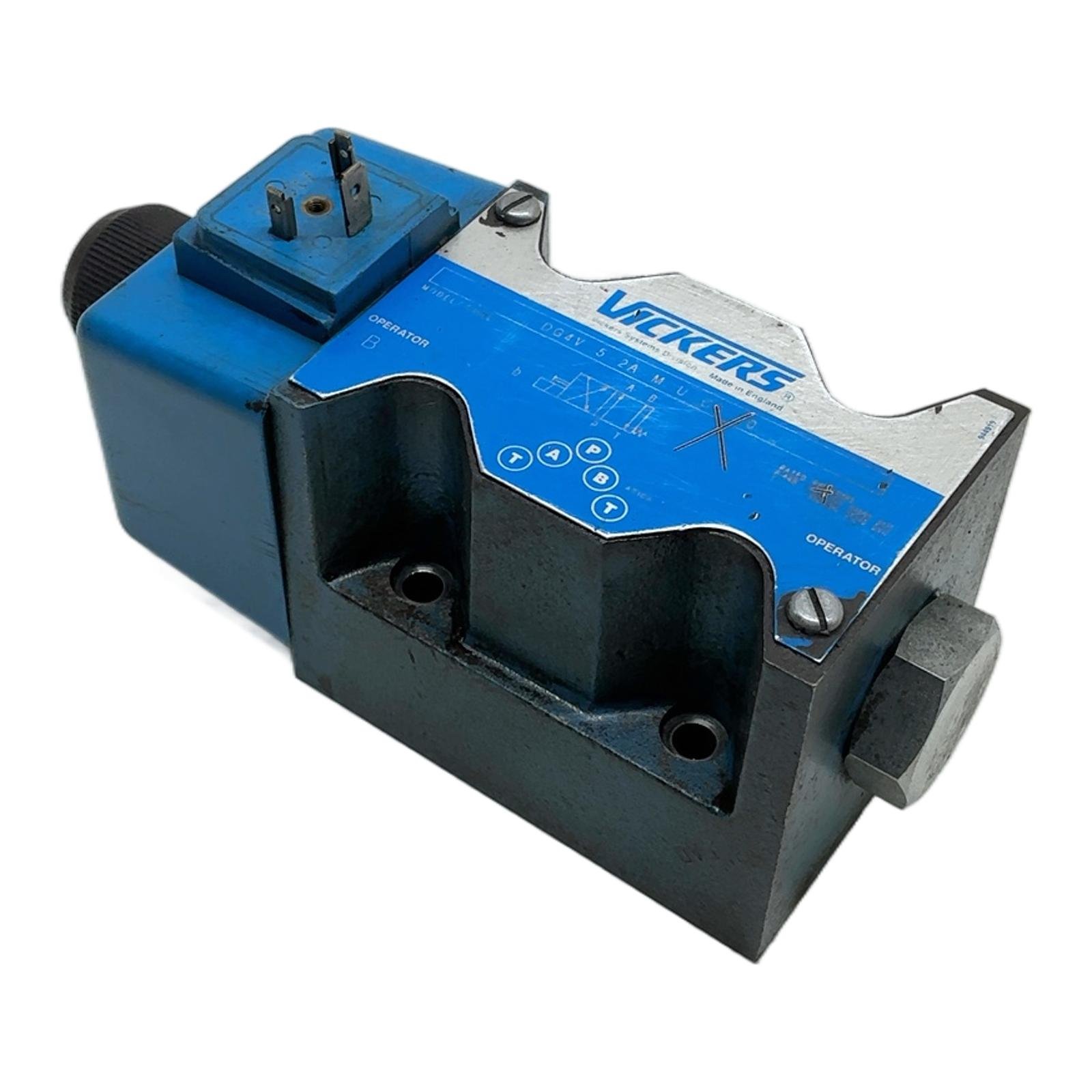

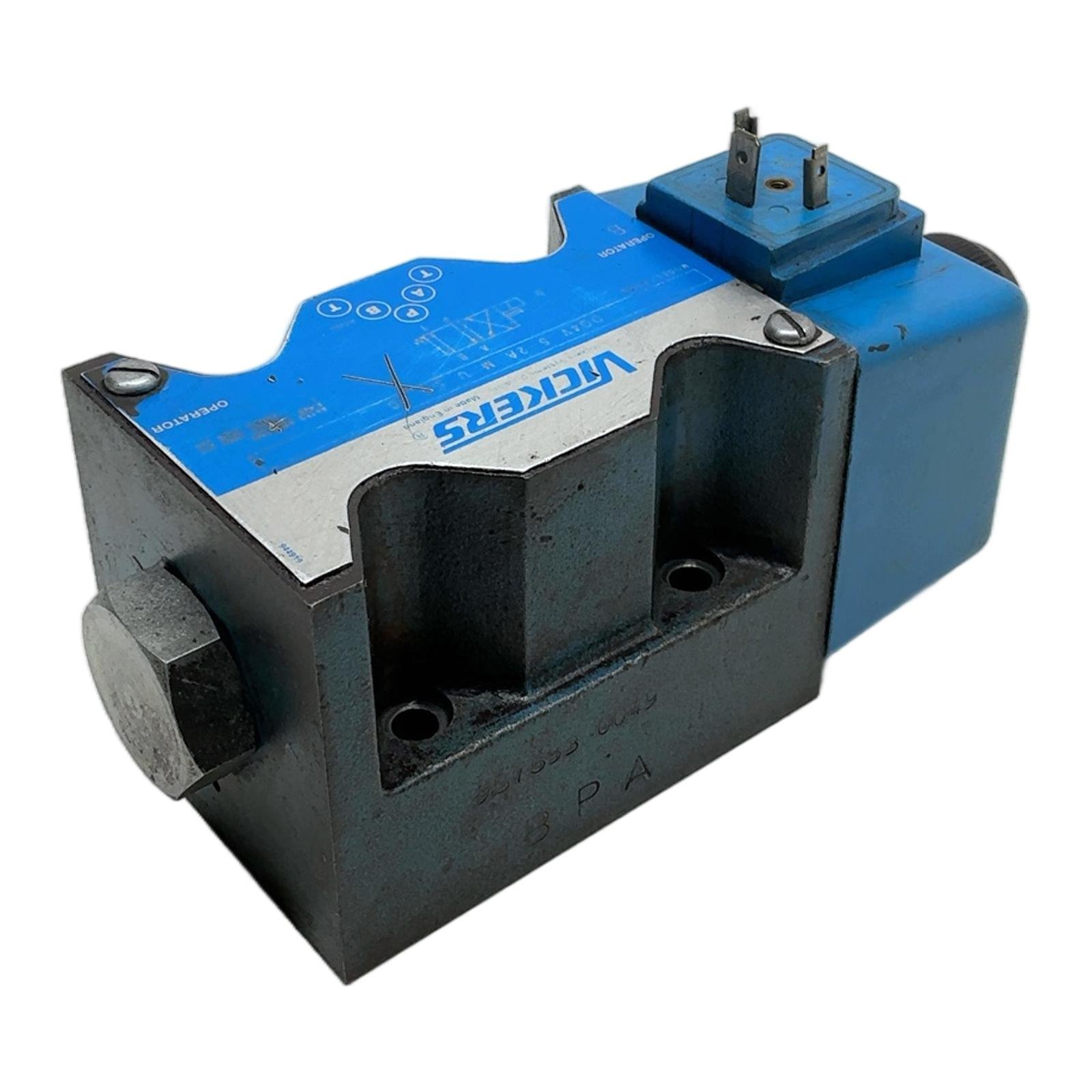

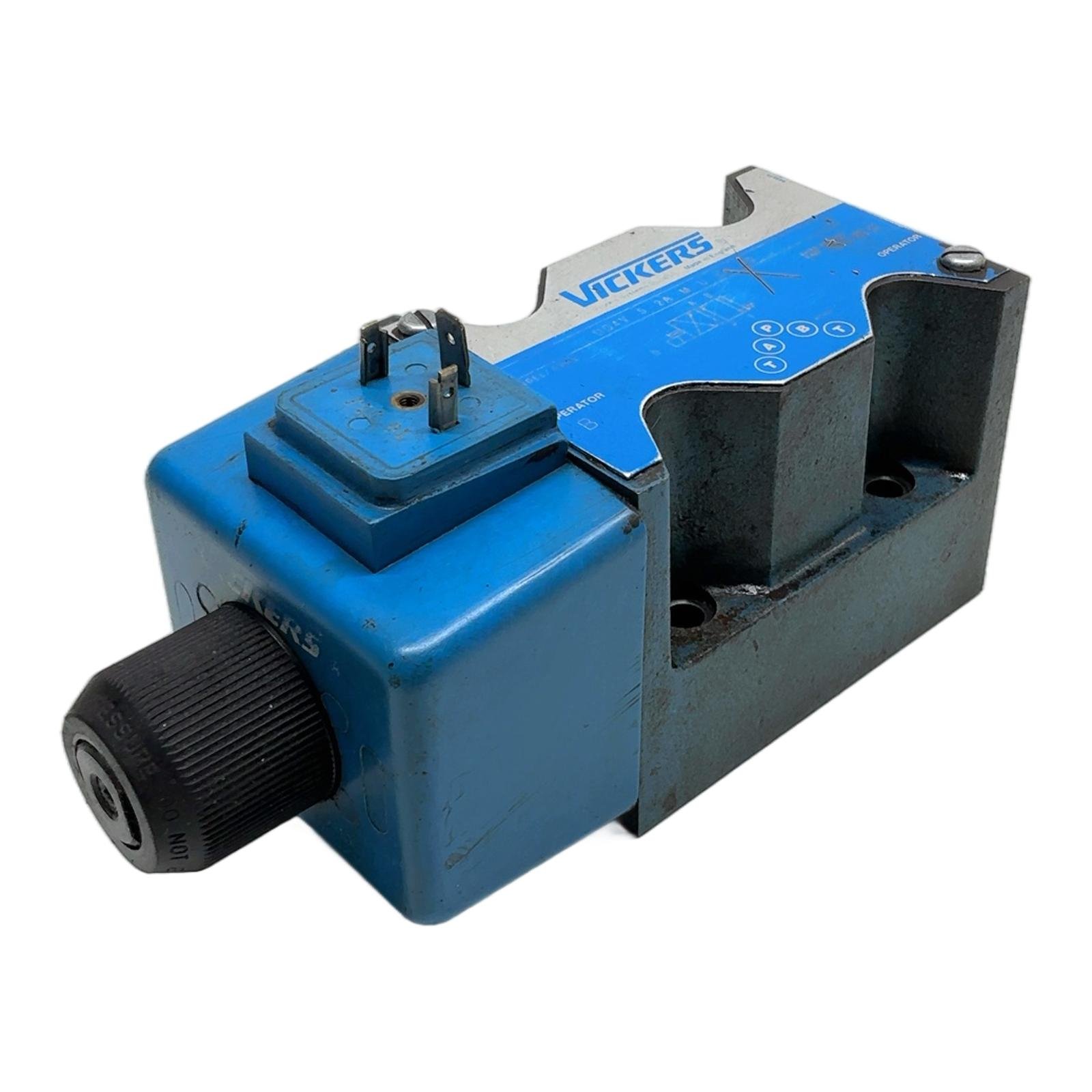

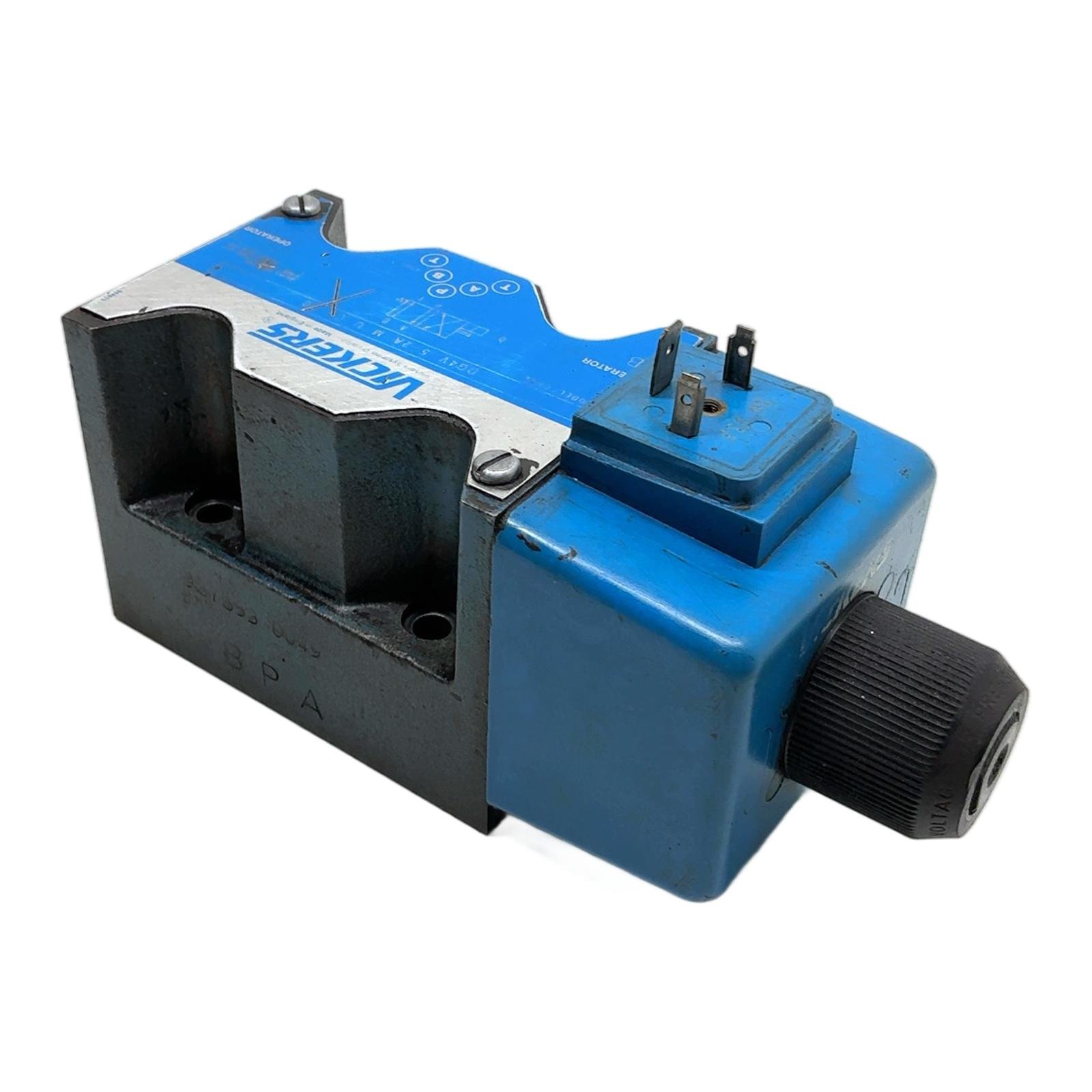

<h2>Vickers NG10 Hydraulic Directional Control Valve</h2> <h3>Description</h3> <p>This is a DG4V-5 series solenoid-operated directional control valve from Vickers, a leading name in hydraulics. This valve is designed for directing and stopping flow in hydraulic systems, offering reliable performance and a long service life. It features a standard NG10 (CETOP 5) mounting pattern for easy integration into existing systems or new designs. The single solenoid, spring-return mechanism ensures a dependable default position when de-energized.</p> <h3>Specifications</h3> <ul> <li>Manufacturer: Vickers (Eaton)</li> <li>Series: DG4V-5</li> <li>Mounting Standard: ISO 4401-05, CETOP 5, NG10</li> <li>Operation: Solenoid, single</li> <li>Spool Type: 2-position, spring offset (Code 2A)</li> <li>Maximum Operating Pressure: 210 bar (3000 psi)</li> <li>Solenoid Voltage: 110V AC 50Hz / 120V AC 60Hz (Code C)</li> <li>Electrical Connection: DIN 43650</li> </ul> <h3>Label Info</h3> <ul> <li>Model/Code: DG4V 5 2A M U C</li> <li>Rated Pressure: 210 bar / 3000 psi</li> <li>Max Tank Line Pressure: 70 bar / 1000 psi</li> </ul> <h3>Application</h3> <p>This valve is suitable for a wide range of industrial hydraulic applications, including machine tools, presses, injection molding machines, and material handling equipment, where precise directional control is required.</p> <h3>Country of Origin</h3> <p>Made in England.</p> <h3>CO2 Impact</h3> <p>Opting for this pre-owned valve instead of a new one saves approximately 40 kg of CO2 emissions. This sustainable choice supports a circular economy and reduces industrial waste.</p> <h3>Availability</h3> <p>This item is in stock and ready for immediate dispatch. Order now from profideals for expert support and fast delivery.</p> <h3>FAQ</h3> <strong>Question?</strong><br><p>What is the coil voltage for this DG4V-5-2A-M-U-C valve?</p><p>Answer</p><p>The ‘C’ in the model code specifies the solenoid coil voltage. For this Vickers series, it typically indicates a 110V AC 50Hz or 120V AC 60Hz coil. Always verify compatibility with your system’s electrical supply.</p> <strong>Question?</strong><br><p>What does the ‘2A’ spool configuration mean?</p><p>Answer</p><p>The ‘2A’ designates a 2-position, spring-offset spool. In its de-energized state, the spring pushes the spool to a default position (P to B, A to T as shown in the schematic). When the solenoid is energized, it shifts the spool to the other position (P to A, B to T).</p> <strong>Question?</strong><br><p>Is this valve compatible with standard CETOP 5 / NG10 subplates?</p><p>Answer</p><p>Yes, the DG4V-5 model number indicates it conforms to the CETOP 5 / NG10 / ISO 4401-05 mounting standard. This ensures interchangeability with other valves and manifolds that follow the same standard.</p> <p><em>profideals is not an authorized distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners.</em></p> <p>Last Update: Friday, March 13, 2026</p>
